Stock No.: 41174082
Used BRODR. HETLAND HIFS 6 Pilot Falling Film Vacuum Evaporator – 316L Stainless Steel Protein Processing System
Used- BRODR. HETLAND A/S, 1-Effect Pilot Falling-Film Vacuum Evaporator Unit, Type HIFS 6. 316L Stainless steel.64.58 Sq. ft ( 6 m2) heating surface. 220 lbs/HR (100KG/HR) Water evaporation % DS til 35 % DS. 7. 20 pipes 1.3" (33.7 mm) dia x 9'8" (3000 mm) long pipes. Serial# 8401-B4. Complete with piping, pumps, sensors and additional infrastructure. Previously used in a protein application. Our Freight specialists can assist with any customs documentation to insure a smooth transition.
-
ModelHIFS 6
-

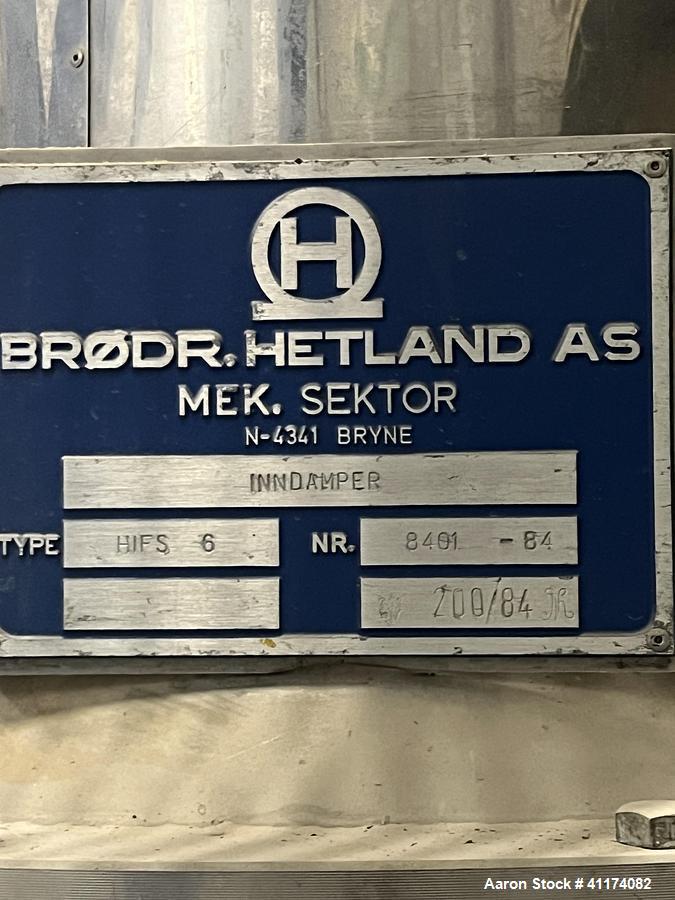

Serial #8401-B4
-
CategoryEvaporators
-
SubcategoryWipe Film - Thin Film
Used equipment facts about this machine
Manufacturer Information
Manufacturer: BRODR. HETLAND A/S
Model: HIFS 6
Type: 1-Effect Falling Film Vacuum Evaporator
Condition: Used
Serial Number: 8401-B4
Description

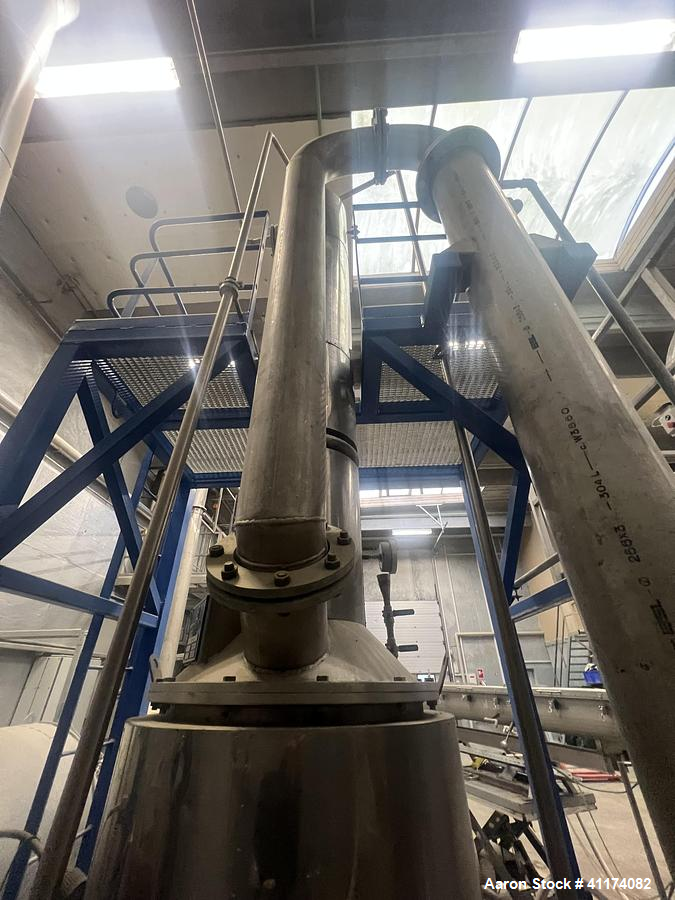

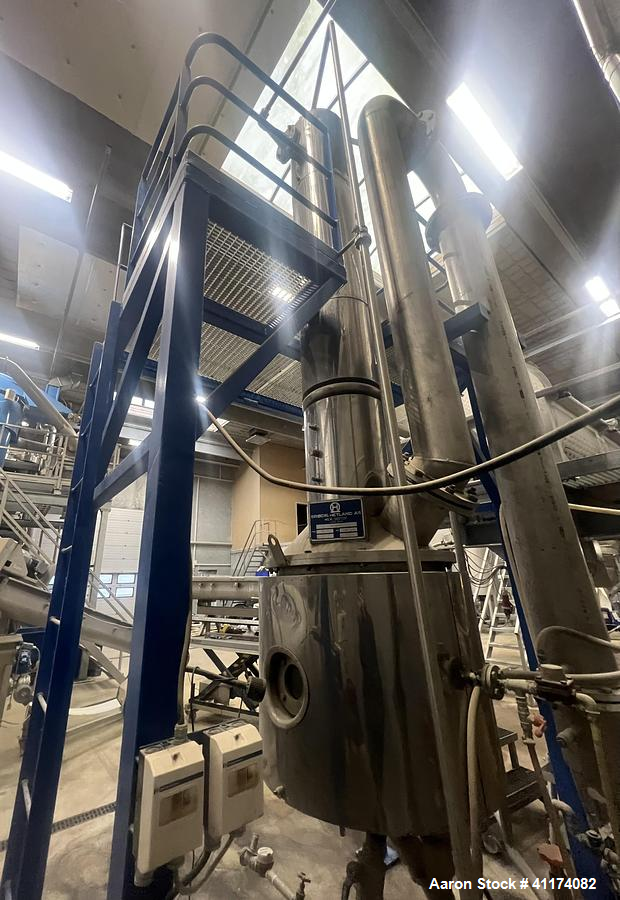

Used BRODR. HETLAND HIFS 6 Pilot Falling Film Vacuum Evaporator, designed for efficient concentration of liquids under vacuum conditions, particularly suited for heat-sensitive products such as proteins and food ingredients.
Constructed from 316L stainless steel, this system offers excellent corrosion resistance and hygienic processing standards. With a 6 m² (64.58 sq ft) heating surface, the unit is capable of evaporating approximately 100 kg/hr (220 lbs/hr) of water, concentrating product streams up to 35% dry solids (DS).
The evaporator features a falling film design, ensuring short residence times and minimal thermal degradation. Complete with piping, pumps, sensors, and supporting infrastructure, this pilot unit is ideal for R&D, pilot plant trials, and small-scale production.
Previously used in a protein application, this system is well suited for food, biotech, and specialty chemical industries.
Freight specialists are available to assist with customs documentation, ensuring smooth global delivery.
Specifications
- Manufacturer: BRODR. HETLAND A/S
- Model: HIFS 6
- Machine Type: Falling Film Vacuum Evaporator
- Effect Type: Single Effect (1-Effect)
- Construction: 316L Stainless Steel
- Serial Number: 8401-B4
Performance
- Heating Surface Area: 64.58 sq ft (6 m²)
- Evaporation Capacity:
- 100 kg/hr (220 lbs/hr) water removal
- Product Concentration: Up to 35% dry solids (DS)
Heat Exchange System
- Number of Tubes: 20
- Tube Diameter: 1.3" (33.7 mm)
- Tube Length: 3000 mm (9’8”)
System Features
- Falling film evaporation technology
- Vacuum operation for low-temperature processing

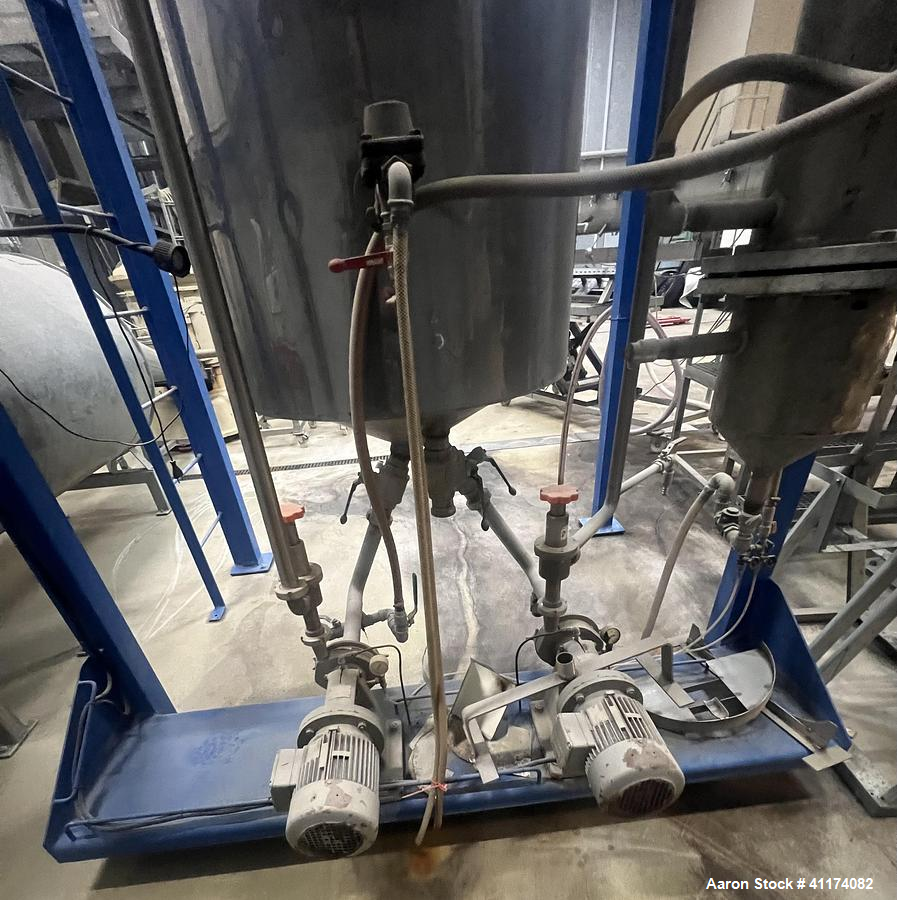

- Complete with piping, pumps, sensors
- Additional infrastructure included
Applications
- Protein concentration
- Dairy processing
- Food ingredient concentration
- Juice concentration
- Pharmaceutical solutions
- Chemical concentration
- Waste stream volume reduction
- Heat-sensitive liquid processing
- Biotech processing
- Pilot plant evaporation trials
What might this be used for
- Concentrating protein solutions
- Removing water from liquid streams
- Processing heat-sensitive materials under vacuum
- Developing evaporation processes
- Reducing product volume for storage or transport
- Increasing product solids content
- Pilot testing for scale-up
- Processing specialty food or biotech products
- Enhancing product stability
- Continuous evaporation in pilot systems
Products this machine would be used for
- Protein concentrates
- Dairy liquids
- Food extracts
- Juice concentrates
- Pharmaceutical liquids
- Chemical solutions
- Nutraceutical liquids
- Fermentation broths
- Biotech solutions
- Specialty liquid products
