Used Buss-SMS B400 Evaporator – 316 Stainless Steel, 13' Long, Jacketed for 45 PSI & Vacuum

Manufacturer Information:

• Brand: Buss-SMS
• Type: Evaporator
• Model: B400
• Material: 316 Stainless Steel

Description:

This used Buss-SMS B400 Evaporator is a high-performance evaporation system, designed for chemical, pharmaceutical, and industrial applications that require vacuum and pressure-controlled evaporation.

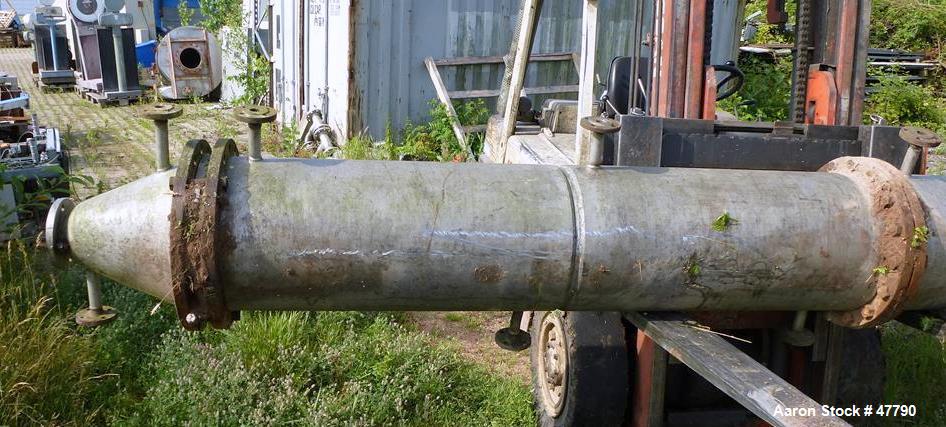

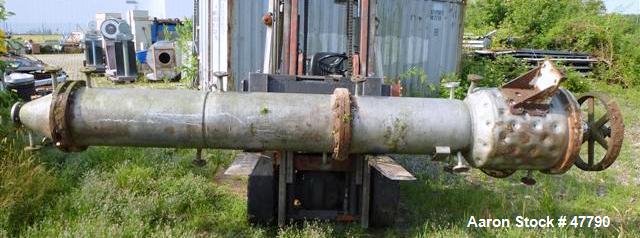

Constructed from 316 stainless steel, the evaporator features a 13' long straight side with a 1'6" diameter, providing efficient heat transfer and vapor separation. The jacketed design is rated for 45 psi (3 bar) and vacuum operation, ensuring precise temperature and pressure control during the evaporation process.

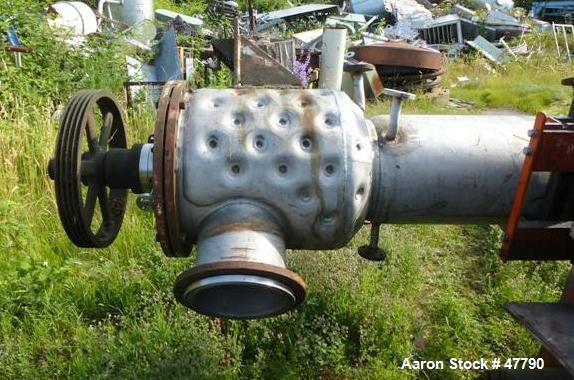

Equipped with a 1" diameter product inlet and a conical 3.5" diameter bottom product outlet, this system allows for efficient material flow and controlled product discharge. The unit is belt-driven but does not include a motor, allowing for customization based on application needs.

Key Features:

• 316 Stainless Steel Construction for Corrosion Resistance
• 13' Long Straight Side, 1'6" Diameter for Efficient Evaporation
• Jacketed & Rated for 45 PSI (3 Bar) and Vacuum Operation
• 1” Diameter Product Inlet for Controlled Feed
• Conical 3.5” Diameter Bottom Product Outlet for Efficient Discharge
• Belt-Driven System (Motor Not Included)
• Ideal for Chemical, Pharmaceutical, and Industrial Applications

Specifications:

• Model: B400
• Material: 316 Stainless Steel
• Design: Jacketed Evaporator
• Straight Side Length: 13'
• Diameter: 1'6"
• Jacket Pressure Rating: 45 PSI (3 Bar) & Vacuum
• Inlet: 1" Diameter Product Feed
• Outlet: Conical 3.5" Diameter Bottom Discharge
• Drive System: Belt-Driven (Motor Not Included)

Applications:

• Chemical Processing – Concentration and separation of chemical compounds
• Pharmaceutical Production – Solvent evaporation and active ingredient concentration
• Food & Beverage Industry – Concentration of liquid products and extracts
• Industrial Solvent Recovery – Efficient removal of solvents from process streams
• Biotechnology & Research – Purification and recovery of valuable compounds

What Products Would This Be Used For?

• Chemical and pharmaceutical ingredient concentration
• Evaporation of heat-sensitive liquids and solvents
• Food and beverage concentrate production
• Industrial solvent recovery and purification
• Waste reduction in liquid processing
