Stock No.: 52636002

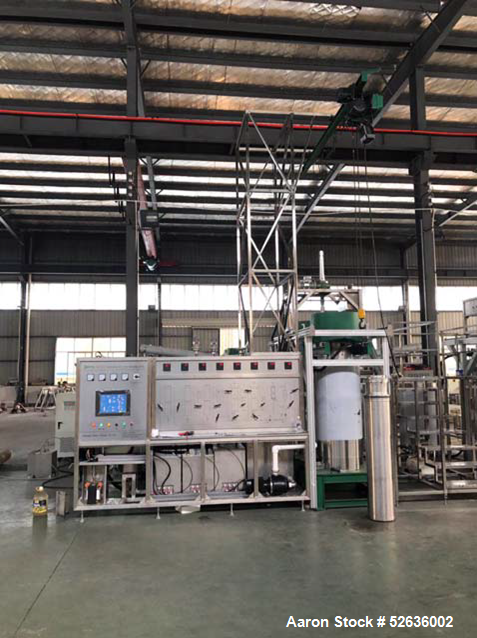

Unused Supercritical CO2 Fluid Extraction Machine – Industrial Cannabis/THC Extractor
Unused- industrial Supercritical CO2 Extraction (SCFE) system designed to extract high-value compounds from natural raw materials such as plants, biomass, and oils using carbon dioxide in its supercritical state, ensuring a clean, solvent-free, and highly efficient process. The system is configured with one extractor and two separators, allowing operation in both batch and continuous modes, with the option to incorporate co-solvents when required. It is manufactured entirely in 304 stainless steel and equipped with a PLC-based automatic and manual control system, enabling precise monitoring and control of pressure, temperature, and flow throughout the process. The unit operates at pressures up to 5055 MPa and temperatures up to 8590C, and includes integrated safety features such as overpressure protection and safety valves, ensuring reliable and secure operation. In terms of capacity, this configuration corresponds to a large-scale industrial solution, featuring dual extraction vessels of approximately 150L each (150L 2), making it capable of processing significant volumes of raw material per batch or in continuous production. Additionally, the system incorporates electro-heating, CO2 recovery systems, high-pressure valves, and specialized sealing components, providing durability, operational efficiency, and consistency. This makes it an ideal solution for pharmaceutical, food, nutraceutical, and cosmetic applications, where high purity and process control are essential
-
CategoryCannabis Equipment
-
SubcategoryExtraction & Processing Equipment
Used equipment facts about this machine
Manufacturer Information
Manufacturer Information:
- Condition: Unused
- System Status: Crated and ready for shipment
Manufacturing Data:
- Maximum Extraction Pressure: 40MPa
- Maximum Separation Pressure: 20MPa
- Extraction Kettle Volume: 150L x 2 (Total 300L)
- Extraction Temperature Range: Normal temperature ~ 75°C
- Maximum CO2 Flow Rate: 1000L/h (Adjustable)
- Plunger Pump Flow Rate: 1000L/h and 10L/h
Included System Components:
- Refrigeration Device – Maintains optimal CO2 temperature
- Temperature Control Display System – Ensures precise heat regulation
- Pressure Control Display System – Real-time monitoring of extraction pressure
- Safety Protection Device – Built-in safety measures for high-pressure operation
- Carrier Tank – Supports CO2 circulation and storage
- Purifier – Ensures high-purity extraction
- Mixer – Enhances compound separation efficiency
- Heat Exchange Device – Optimizes thermal energy use
- Storage Tank – Holds extracted materials before further processing
- Plunger Pump – Dual flow rate of 1000L/h and 10L/h for extraction control
- Extraction Tank – Main chamber for supercritical CO2 extraction
- Separator – Facilitates component isolation and fractionation
- Electric Control Cabinet – Centralized operational controls
- Valve & Pipe Fittings – High-pressure-resistant piping and flow regulation
- Cabinet Rack – Structural support for organized system setup
Description:

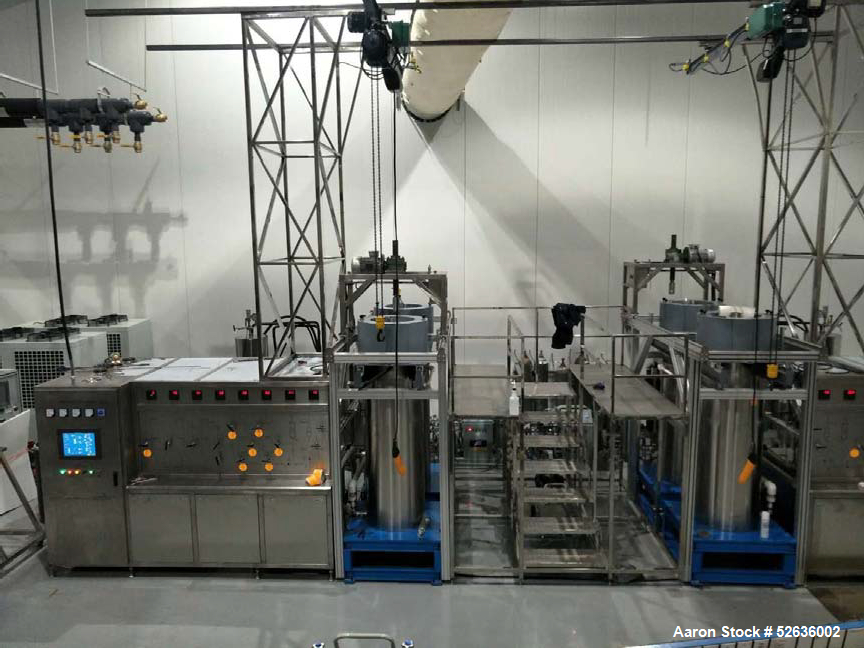

The Supercritical CO2 Fluid Extraction Machine is a high-capacity industrial extraction system designed for large-scale cannabis, THC, and botanical oil extraction. With dual 150L extraction kettles, this system provides high-throughput processing at a maximum extraction pressure of 40MPa.
This fully automated CO2 extraction system includes advanced temperature and pressure control displays, a purification system, and high-efficiency heat exchange to ensure precise, high-purity extraction. Equipped with a safety protection system and high-pressure CO2 pump, this extractor is optimized for pharmaceutical-grade cannabis and THC processing.
This unused system is crated and ready for shipment, making it ideal for businesses seeking a turnkey industrial extraction solution.
Specifications:
- Extraction Kettle Volume: 150L x 2 (Total 300L)
- Maximum Extraction Pressure: 40MPa
- Maximum Separation Pressure: 20MPa
- Extraction Temperature Range: Normal temperature ~ 75°C
- Maximum CO2 Flow Rate: 1000L/h (Adjustable)
- Plunger Pump Flow Rate: 1000L/h & 10L/h
- System Status: Crated and ready for shipment
Applications:
- Cannabis and THC extraction
- CBD oil production
- Full-spectrum and broad-spectrum cannabinoid extraction
- Botanical and herbal oil extraction
- Nutraceutical and pharmaceutical compound separation
- Essential oil and terpene extraction
Potential Products for Extraction:
- Full-spectrum THC and CBD oil
- Terpene-rich cannabis extracts
- Hemp-derived cannabinoid concentrates
- Herbal medicine extracts
- Essential oils for cosmetics and aromatherapy
Product Details
- Supercritical CO2 extraction machine
- Industrial THC extraction system
- High-pressure cannabis extraction equipment
- CO2 extraction machine for CBD and THC
- Large-scale supercritical CO2 processing unit
- Unused supercritical CO2 extraction machine for cannabis and THC processing
- Industrial CO2 extraction system with dual 150L kettles
- High-pressure botanical extraction equipment for CBD oil production
- Supercritical CO2 fluid extraction system for hemp and cannabis oils
- Fully automated CO2 extraction machine with temperature and pressure control
- Unused supercritical CO2 extraction system for high-efficiency THC and CBD processing
- Industrial cannabis extraction machine with high-pressure CO2 and dual separators
- Large-scale supercritical CO2 fluid extraction system for botanical and pharmaceutical use
- High-efficiency CO2 extraction unit for THC, terpenes, and full-spectrum cannabis oil
- Fully automated industrial CO2 extraction system with plunger pump and purification technology
