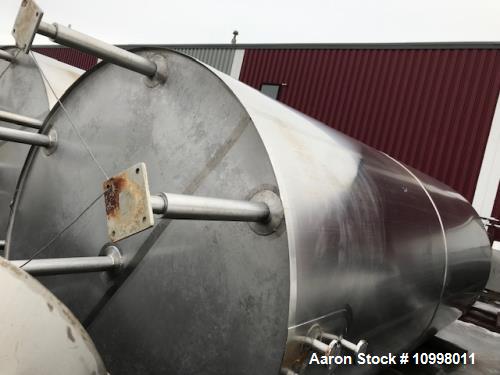

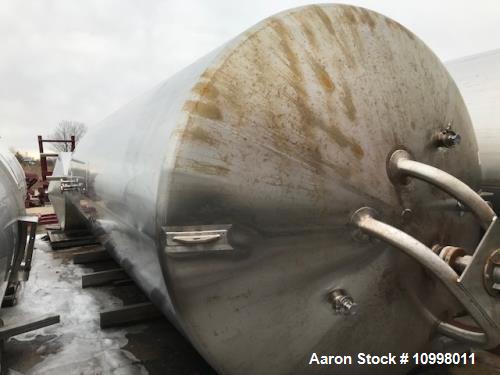

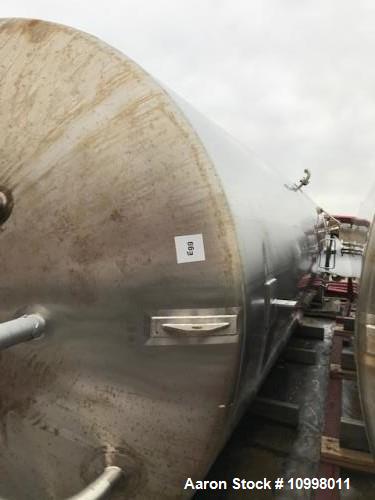

Used Feldmeier 6,000 Gallon 316L S/S Vertical Insulated and Jacketed Mix Tank

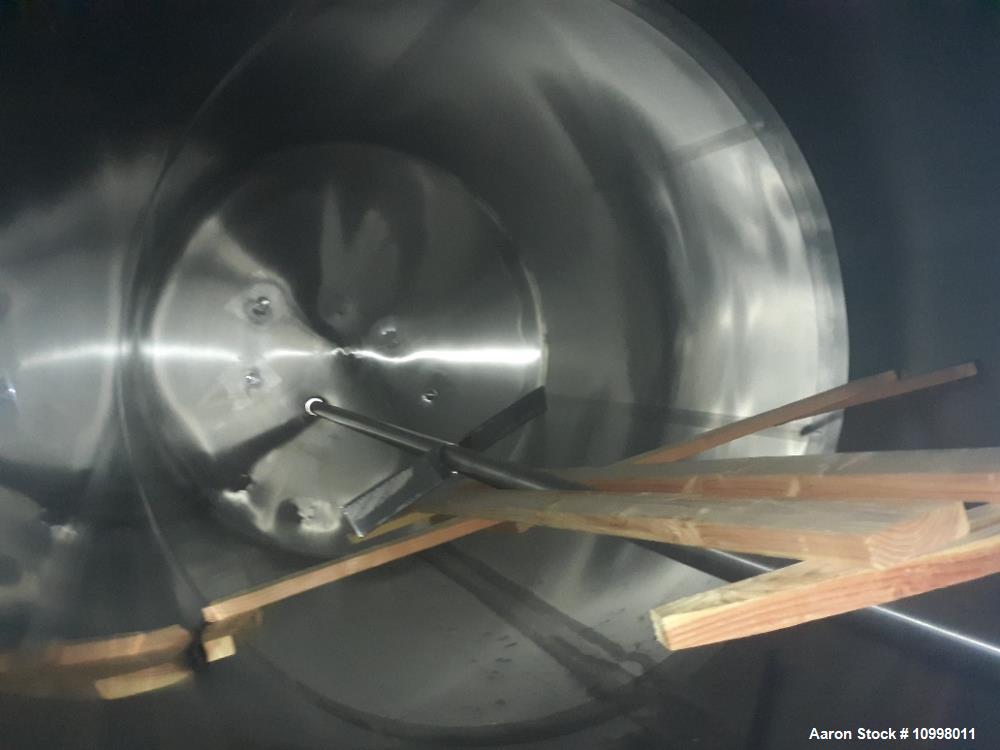

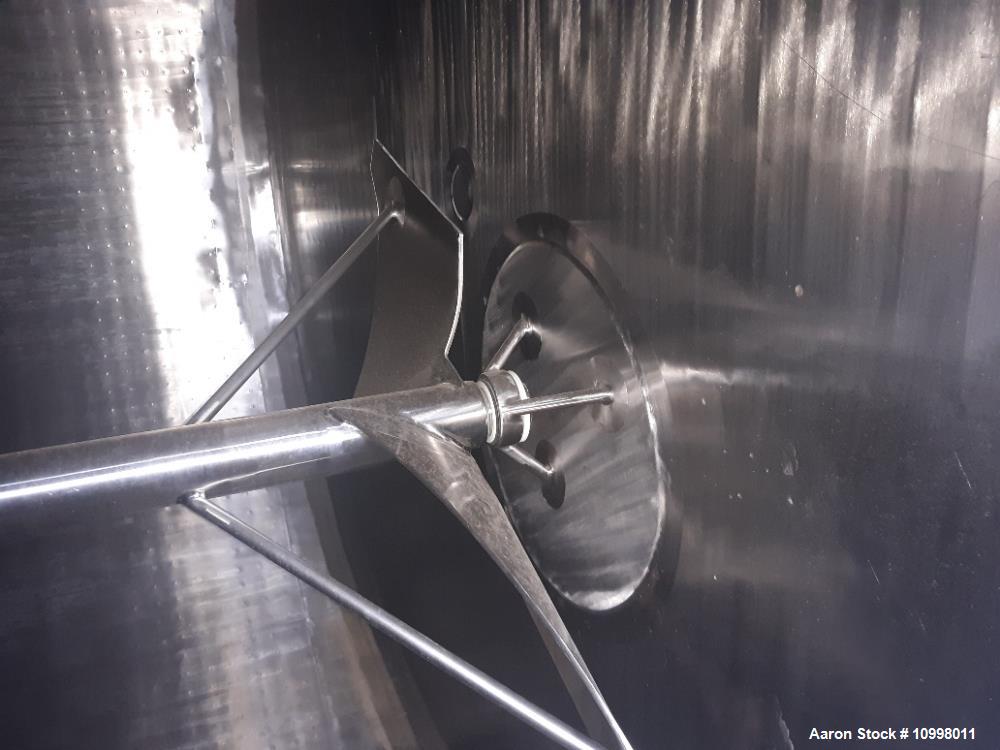

Used- Feldmeier 6,000 Gallon 316L Stainless Steel Vertical Insulated and Jacketed Mix Tank. 96" ID, 103" OD, 216" straight wall. Dome top, sloped bottom. Flooded ammonia jacket: MAWP 150 psi at 200 degree F. MDMT -20 degree F at 150 psi. Bottom Jacket: 46' with 1-1/2" NPT Inlets / Outlets. Side Jacket: 54' with 1-1/2" NPT Inlets / Outlets. 5 hp bridge mounted agitator 48" bottom sweep and mid mounted 32" (2) blade axial flow turbine. 20" diameter side bottom manway. 4" OD / 3" ID Tri-Clamp side discharge at 27" ground clearance. Top Ports: (2) 3" OD / 3" ID Tri-Clamp. Mounted on (7) legs. Electric: 3/60/230-460 5 hp 15.2/7.6 amp 1725 rpm 48 Final rpm. OAD: 113" long x 105" wide x 312" high.

ManufacturerFeldmeier
CategoryTanks
SubcategoryStainless 5000 Gal and up
Gallons6000
Material Of Construction316L Stainless Steel
Horizontal Or VerticalVertical
Diameter96"
Straight Side216"
Top Head StyleDome Top
BottomPitched Sloped Bottom
Internal Pressure150psi
Internal Temperature200 deg f
Agitator LocationTop Center
Agitator TypeTop Entering
Agitator Hp5 hp
Agitator Phase3
Agitator Cycle60
Agitator Voltage208-230/460 Volt
Agitator Rpm48
Opening20" diameter side bottom manway
Opening CoverYes
Outlet Size4" OD / 3" ID
Outlet LocationSide bottom
Discharge Height27"
MountedMounted on 7 Legs
Overall Dimensions113" L x 105" W x 312" H

We offer a variety of finance programs. Please contact your sales person for more information.
