Stainless steel 5,000 Gallon Agitated Tank

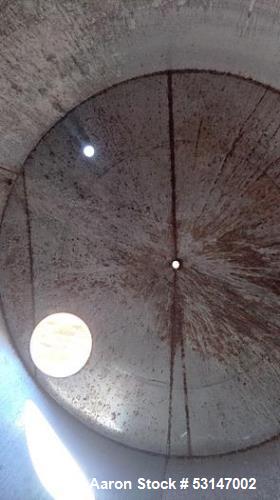

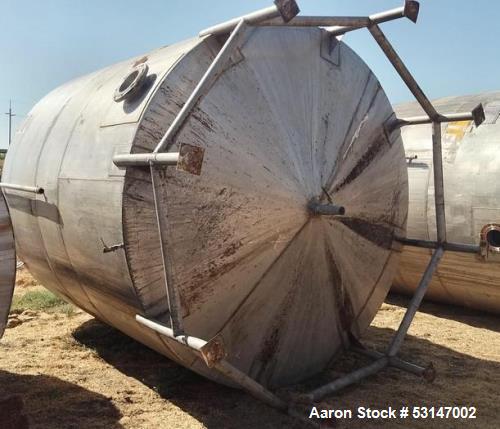

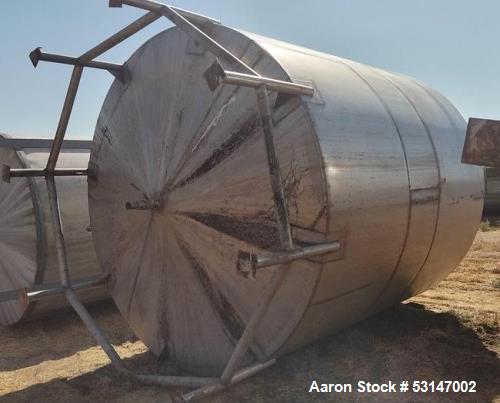

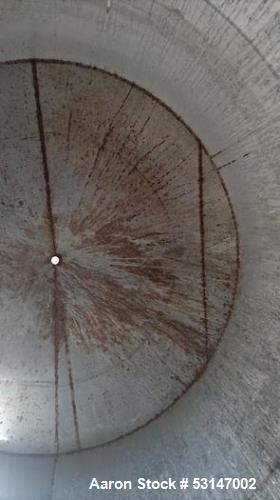

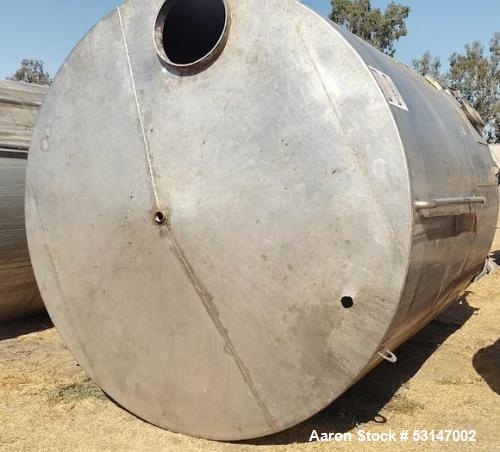

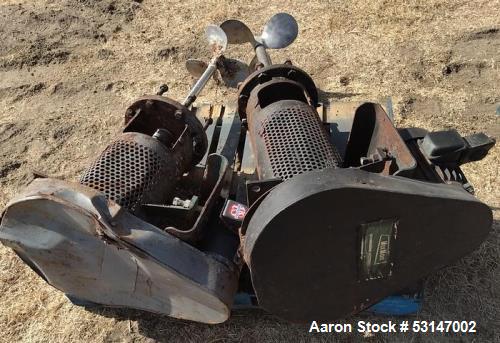

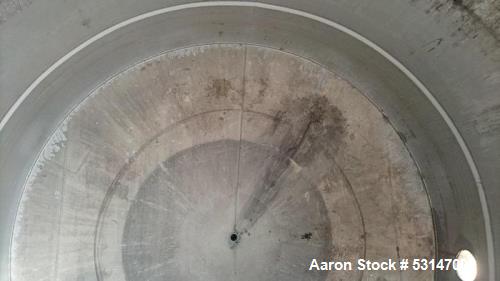

Used- Stainless Steel 5,000 Gallon Agitated Tank. Measures approximately 9'8" inside diameter x 10' straight side with a slight cone top and slight cone bottom, 2 1/2" diameter center bottom discharge with manual valve and tri-clamp connection. Offered with side-entering agitator connected to 8" diameter flange connection, agitator driven by approximately 2 HP motor. Top head includes 20" diameter manway and 2 1/2" center top opening. Mounted on 8 legs. Overall height is 14'.

CategoryTanks
SubcategoryStainless 5000 Gal and up
Gallons5000
Material Of ConstructionStainless Steel
Horizontal Or VerticalVertical
Diameter9'8"
Straight Side10'
Top Head StyleConed Top
BottomConed Bottom
Agitator Hp2
Opening20" manway, 2-1/2"
Outlet Size2-1/2"
Outlet LocationBottom
MountedMounted on 8 Legs

We offer a variety of finance programs. Please contact your sales person for more information.
