Stock No.: 11059346

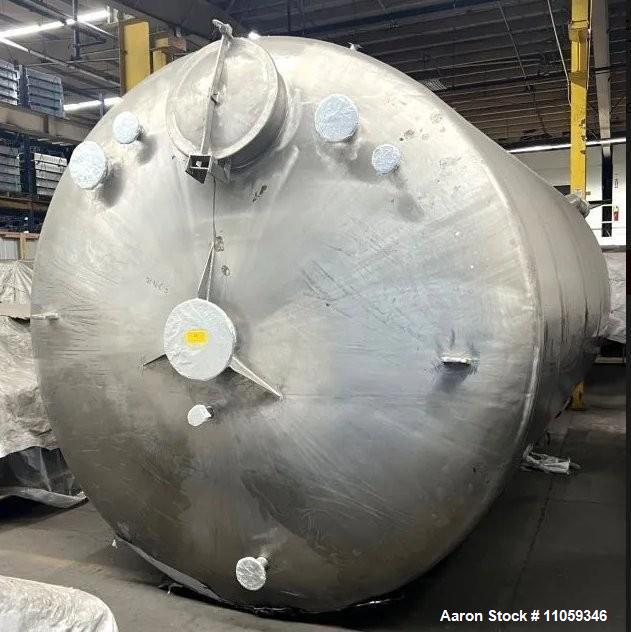

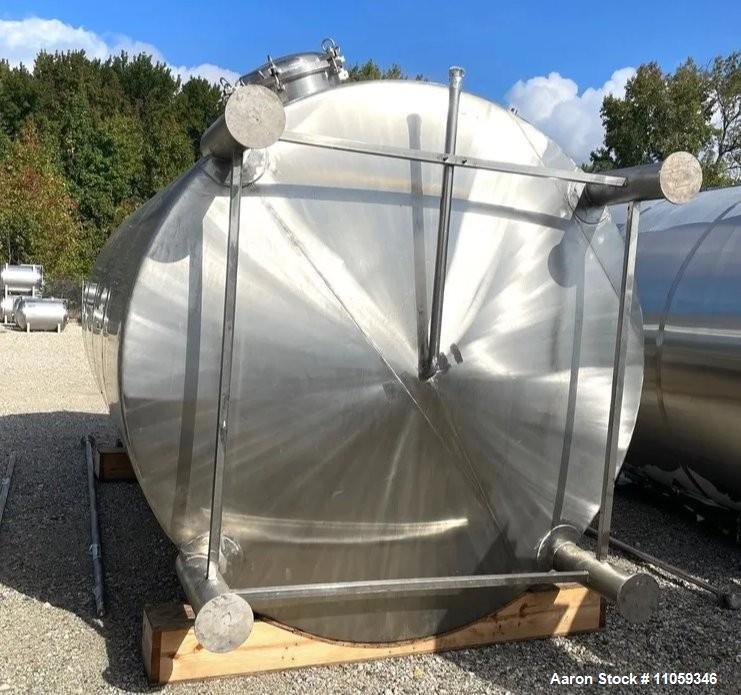

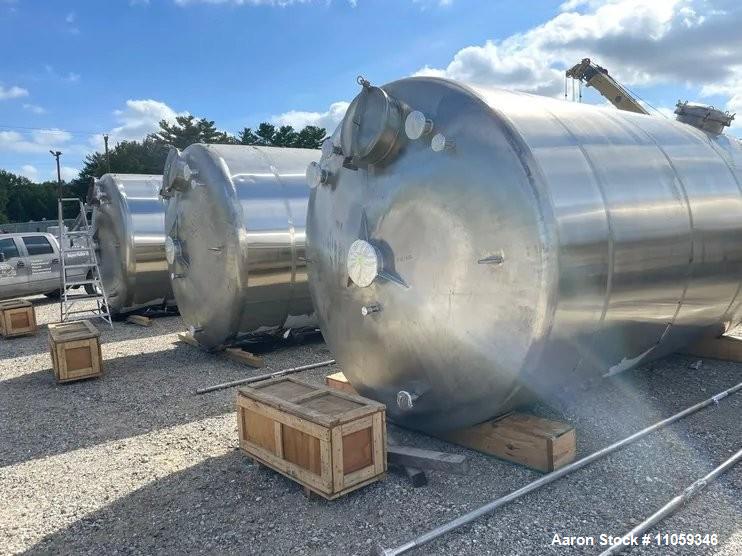

Unused- Rattan Mix Tank, 7000 Gallons. 304 Stainless steel; Dish top, Cone bottom

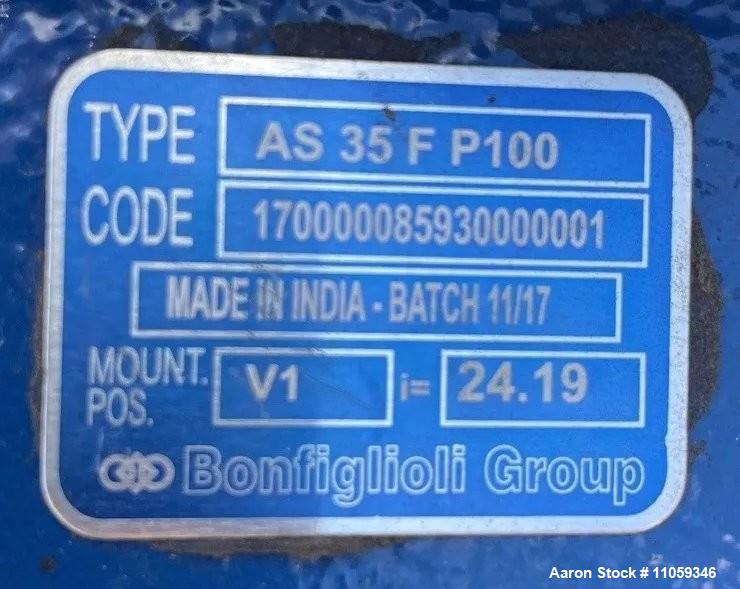

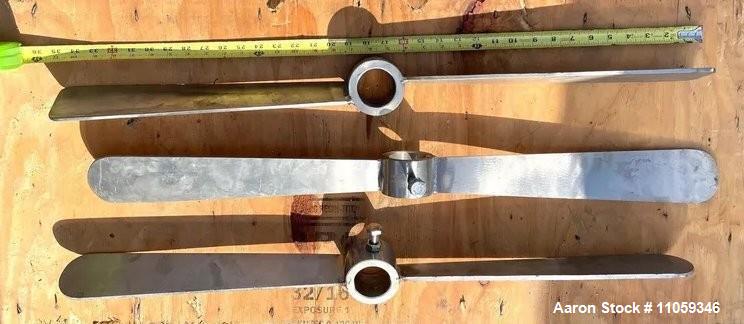

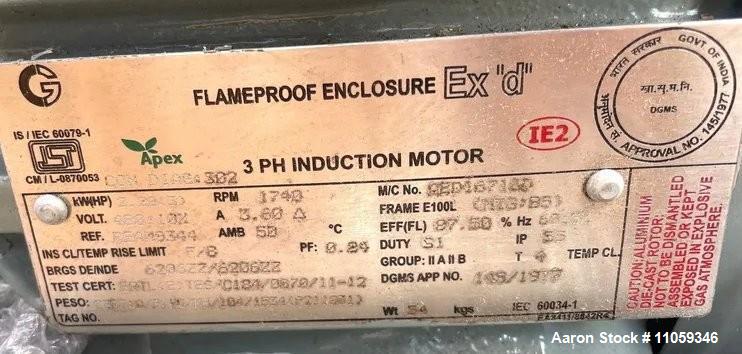

Unused- Rattan Mix Tank, 7000 Gallons. 304 Stainless steel; Dish top, Cone bottom. 108" diameter x 174" straight side. Openings: 20" side manway; 20" top manway; 10" mixer mount flange (top); 4" top flange; (2) 2" top flange; 3" top flange; 1.5" top flange; 2" tri-clamp; 2" center bottom outlet; (3) mixing blades driven by a 3 HP, 1740RPM; 480V flame proof mixer motor into gear reducer with 24.91:1 reduction (approx. 70 RPM output). 18' overall height w/o mixer. Shipping OAD (without mixer): 217" L x 108" W x 114" H. Built for sanitary spirit manufacturing plant.
-
CategoryTanks
-
SubcategoryStainless 5000 Gal and up
-
Gallons7000
-
Material Of Construction304 Stainless Steel
-
Horizontal Or VerticalVertical
-
Diameter108"
-
Straight Side174"
-
Top Head StyleDished Head
-
BottomConed Bottom
-
Agitator Hp3
-
Agitator Voltage480 Volt
-
Agitator Rpm1740
-
Reducer Ratio24.91:1
-
OpeningOpenings: 20" side manway; 20" top manway; 10" mixer mount flange (top); 4" top flange; (2) 2" top flange; 3" top flange; 1.5" top flange; 2" tri-clamp
-
Opening CoverYes
-
Outlet Size2"
-
Outlet LocationBottom
-
MountedMounted on 4 Legs
-
Overall Dimensions217" L x 108" W x 114" H
-
Last Used OnUnused
Used equipment facts about this machine
Manufacturer Information
General Information:
This 7000-gallon stainless steel rattan mix tank is a robust and versatile piece of equipment designed for efficient and thorough mixing in various industrial processes. The unique rattan mixing action ensures gentle yet effective blending of a wide range of materials.
Specifications:
- Manufacturer: Rattan
- Gallons: 7000
- Material Of Construction: 304 Stainless Steel
- Orientation: Verrtical
- Interior Diameter: 108"
- Interior Straight Side: 174"
- Discharge: 2" diameter
- Agitation: 3 blade mixer
- Motor: 3hp
Applications:
- Food Processing: Mixing of food ingredients, such as sauces, dressings, and batters.
- Chemical Processing: Mixing of chemicals, dyes, and other industrial fluids.
- Pharmaceutical Manufacturing: Mixing of pharmaceutical ingredients and formulations.
- Biotechnology: Mixing of biological materials and solutions.
- Other Applications: Mixing of various other materials in a wide range of industries.
