Stock No.: 47110023
Pharmaceutical Vaccine 50 Liter Pressure Tank

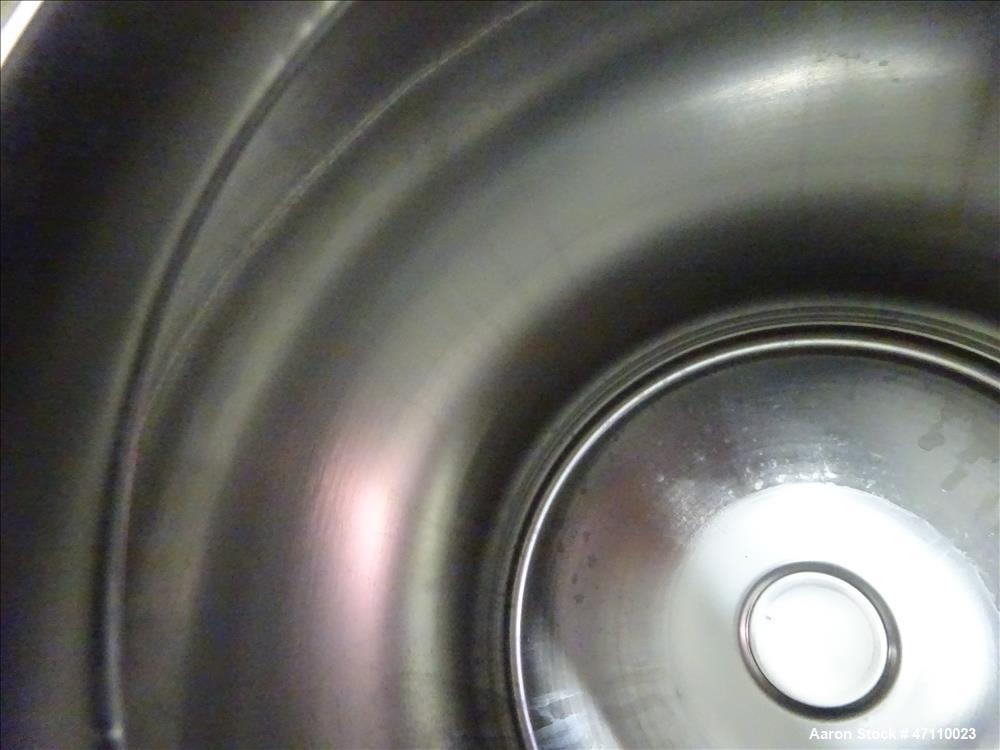

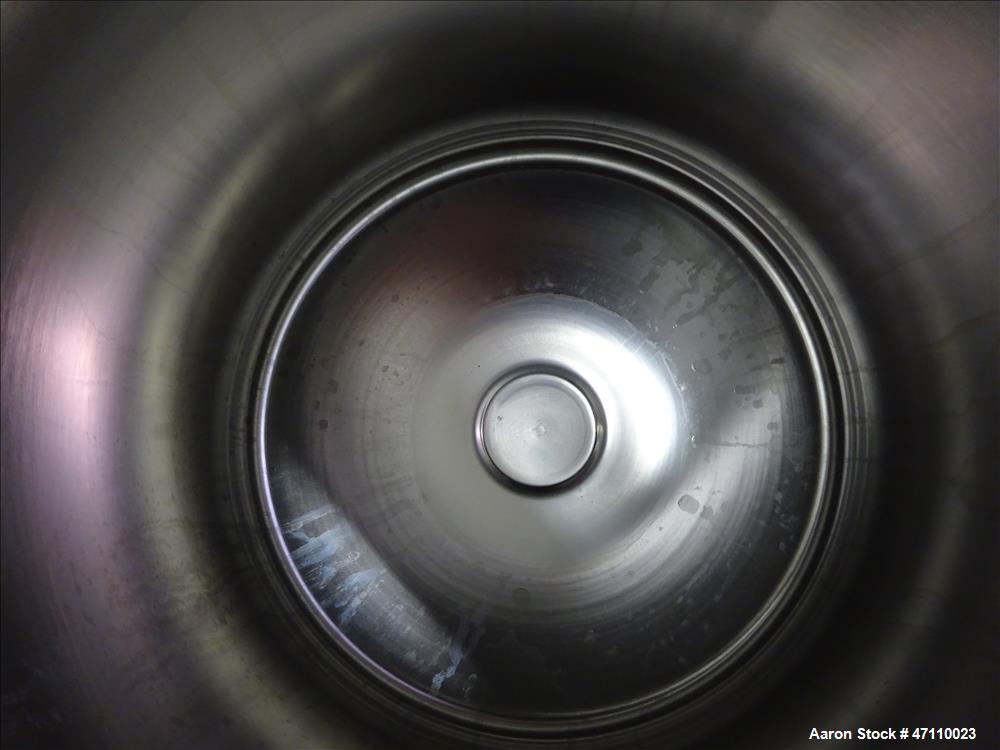

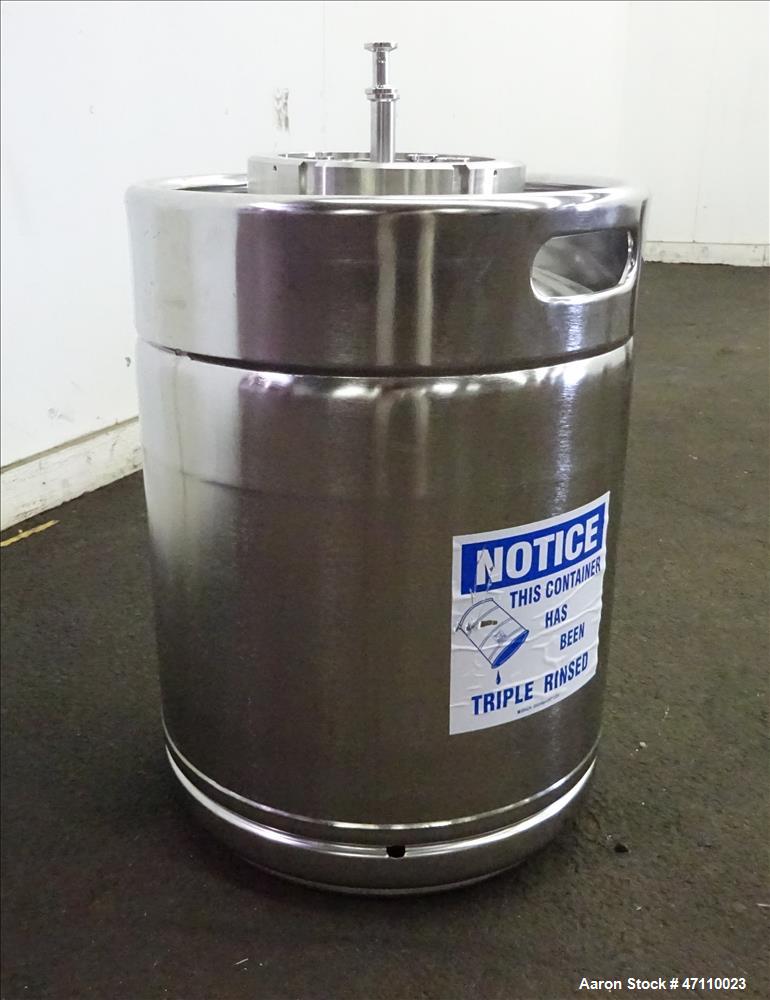

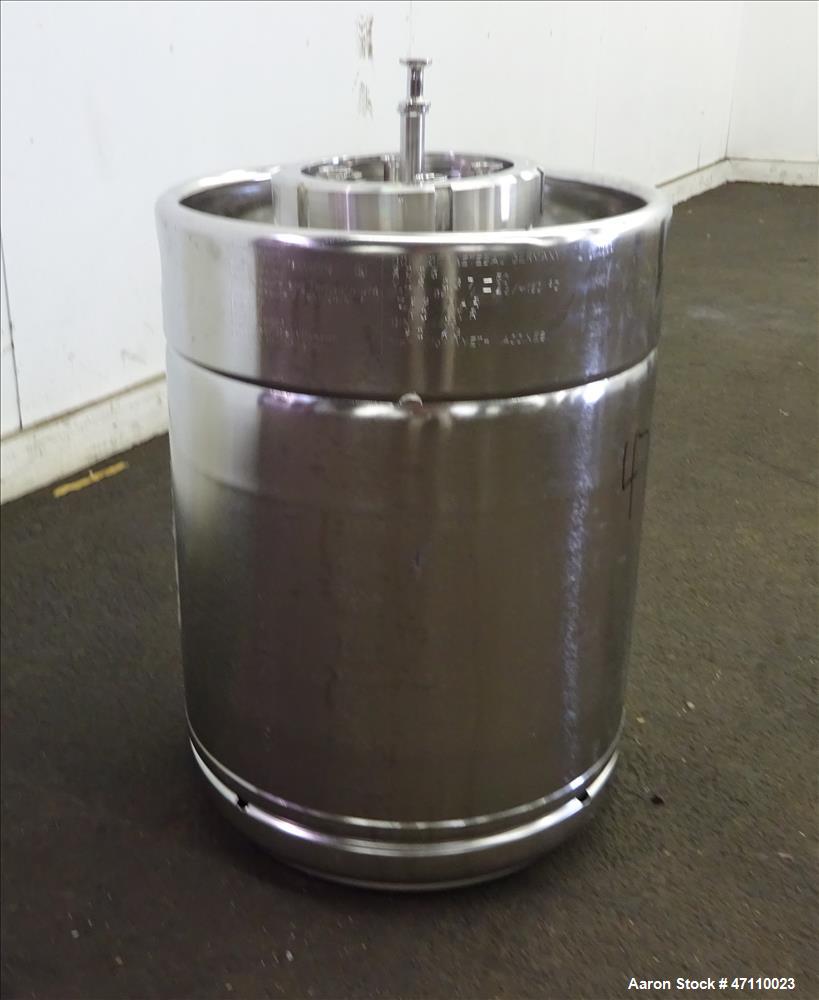

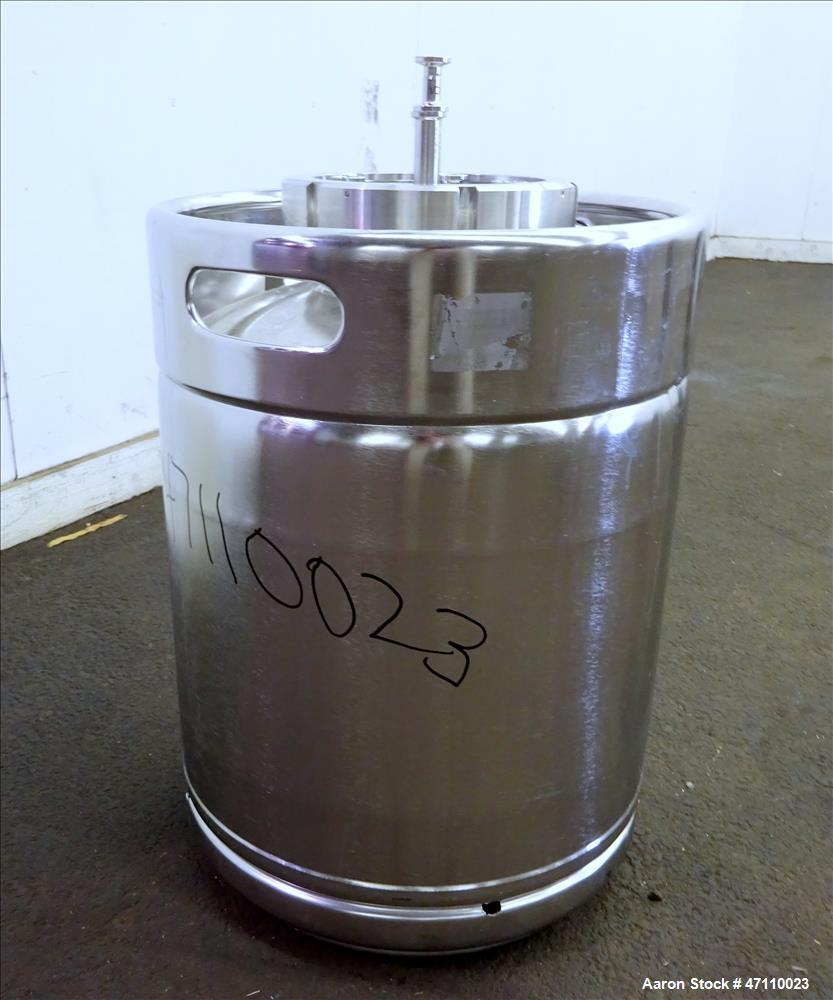

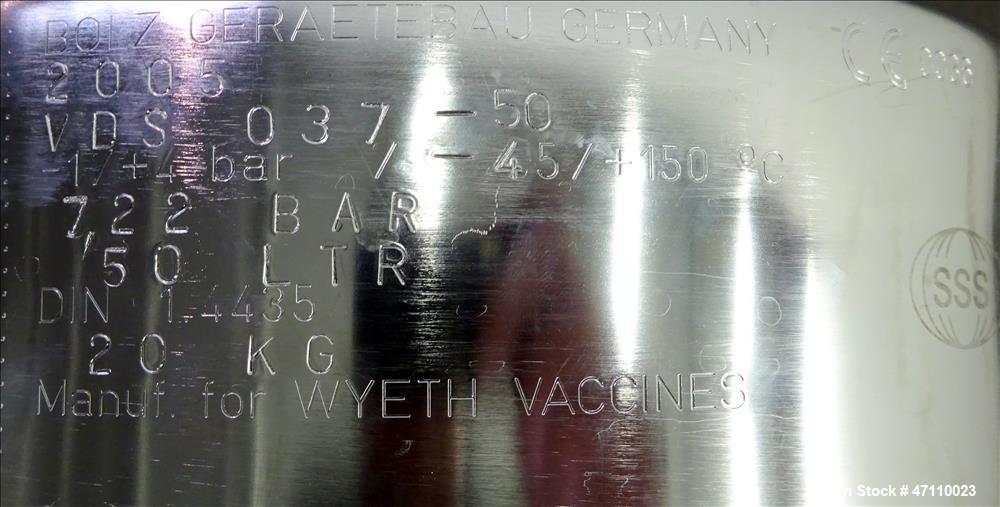

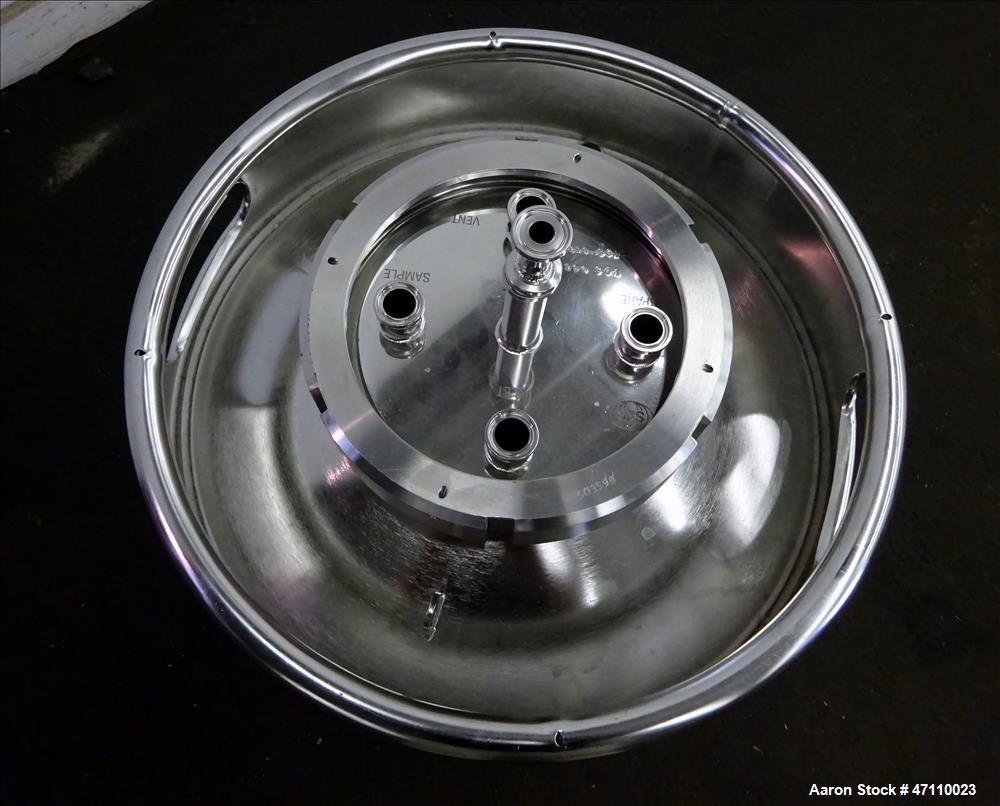

Used- Bolz Rutten Sterile Storage Systems Pressure Tank, 13.2 Gallon (50 Liter) Capacity, 316L Stainless Steel, Vertical. Approximate 395mm (15.5") diameter by 304mm (12") straight side, dished top & bottom. Internal rated -1 bar (-14.5psi) / +4 bar (58 psi) at -45 to 150 degrees C. (-49 to 302 F). 6" Top opening with a screw down cover with (5) 3/4" Tri-clamp fittings. Skirt mounted. No bottom outlet. Serial # VDS 037-50. Built 2005. Manufactured for Wyeth Vaccines.
-
ManufacturerRutten Engineering
-
Serial #VDS 037-50
-
CategoryTanks
-
SubcategoryStainless 0-499 Gal
-
Gallons13.2
-
Material Of Construction316 Stainless Steel
-
Diameter15.5"
-
Straight Side12"
-
Top Head StyleDished Head
-
BottomDished Bottom
-
Internal Pressure-14.5 to 58 psi
-
Internal Temperature-49 to 302 F
-
Opening6"
-
Opening CoverYes
-
Overall Dimensions16"L x 16"W x 32"T
-
Year Built2005
