Unused JBF Approximately 530-Gallon 316L Stainless Steel Jacketed Kettle – Dual-Motion Turbine & Anchor Agitation

Manufacturer Information

JBF

JBF process kettles and vessels are designed for industrial mixing, blending, heating, cooling, and batch-processing applications. This JBF kettle combines 316L stainless steel construction with independent turbine and anchor-style agitation, providing multiple mixing actions for processing products requiring both bulk circulation and wall-sweeping agitation.

Description

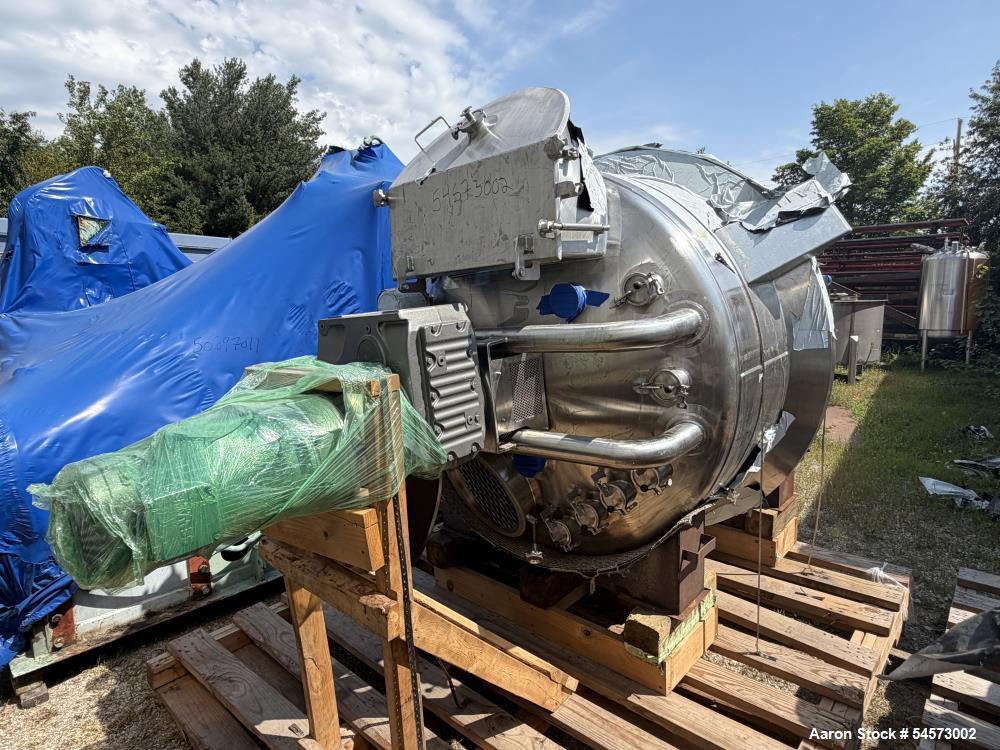

Available for sale is an unused JBF stainless steel jacketed kettle with an approximate 530-gallon capacity and 316L stainless steel construction.

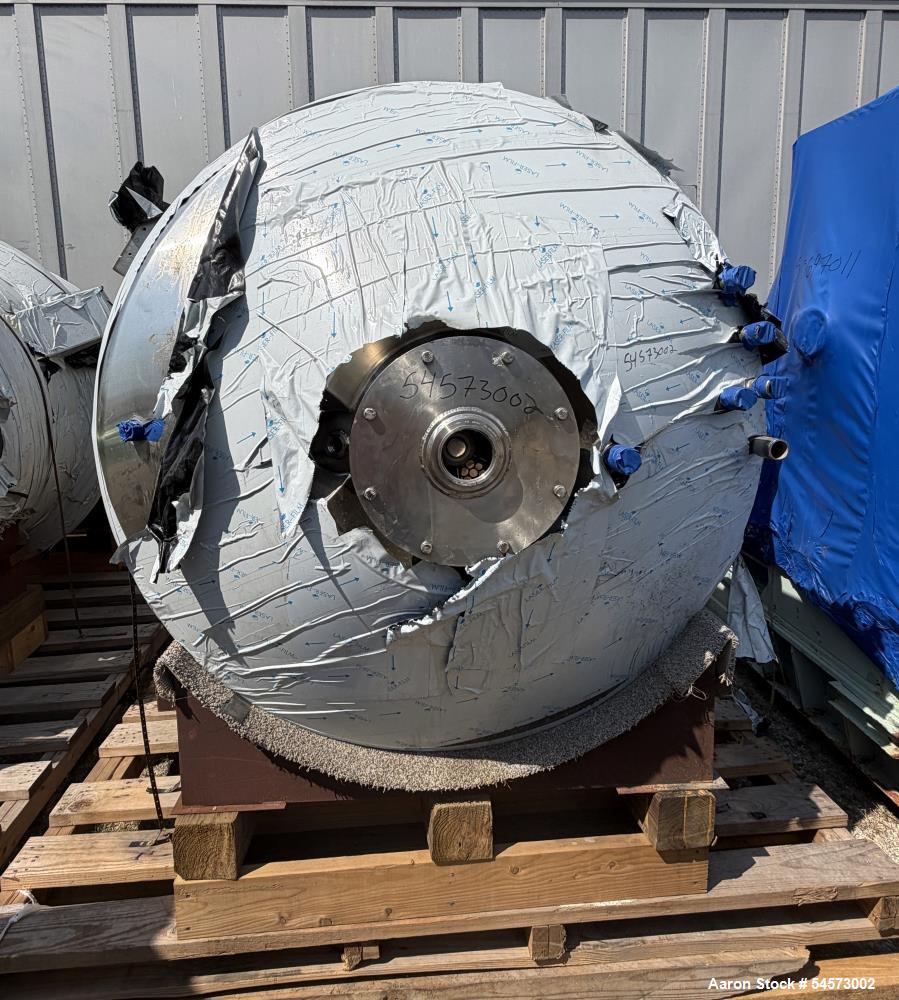

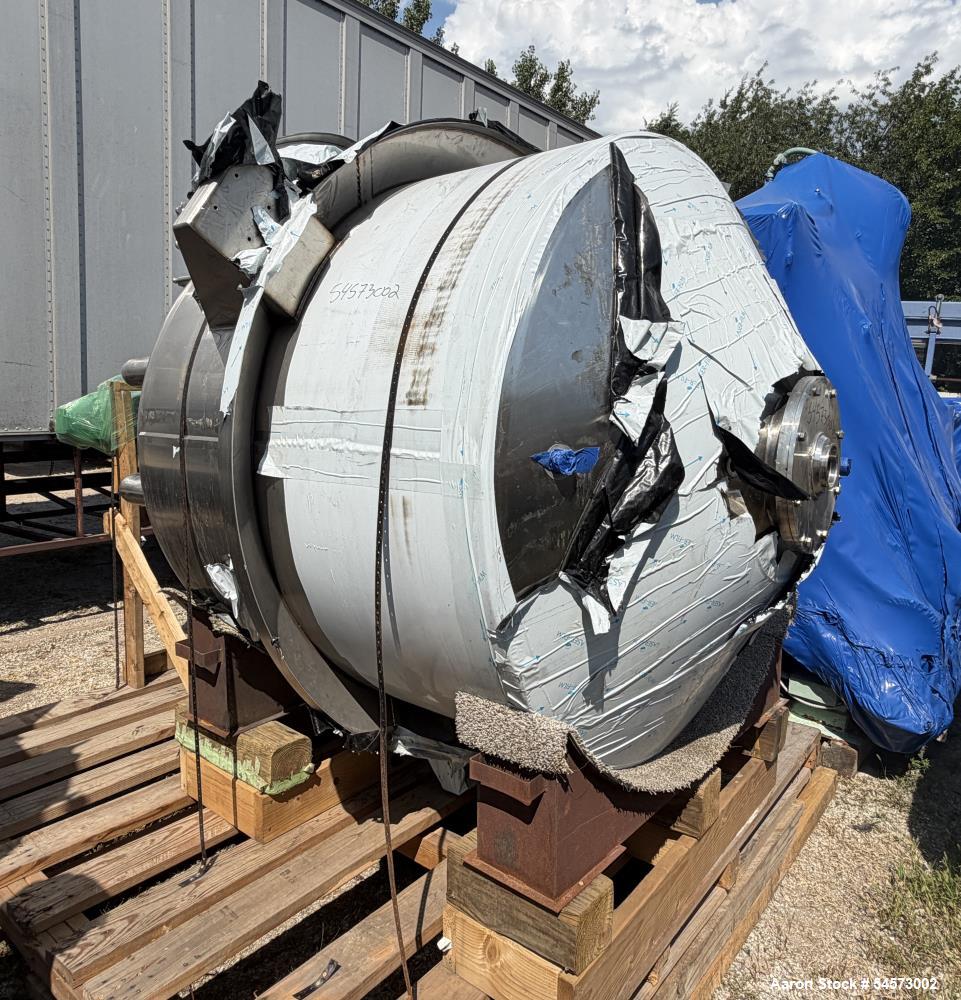

The vessel measures approximately 54" diameter x 48" straight side and features a dished top and cone bottom. Its jacketed construction provides the capability for process heating or cooling when connected to an appropriate utility system.

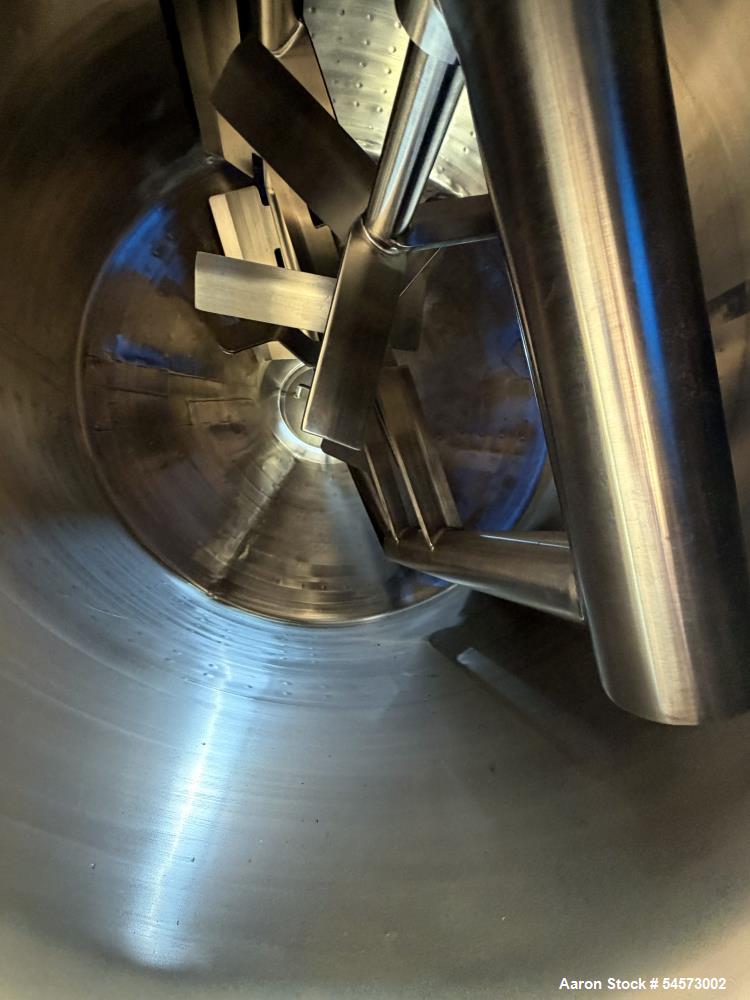

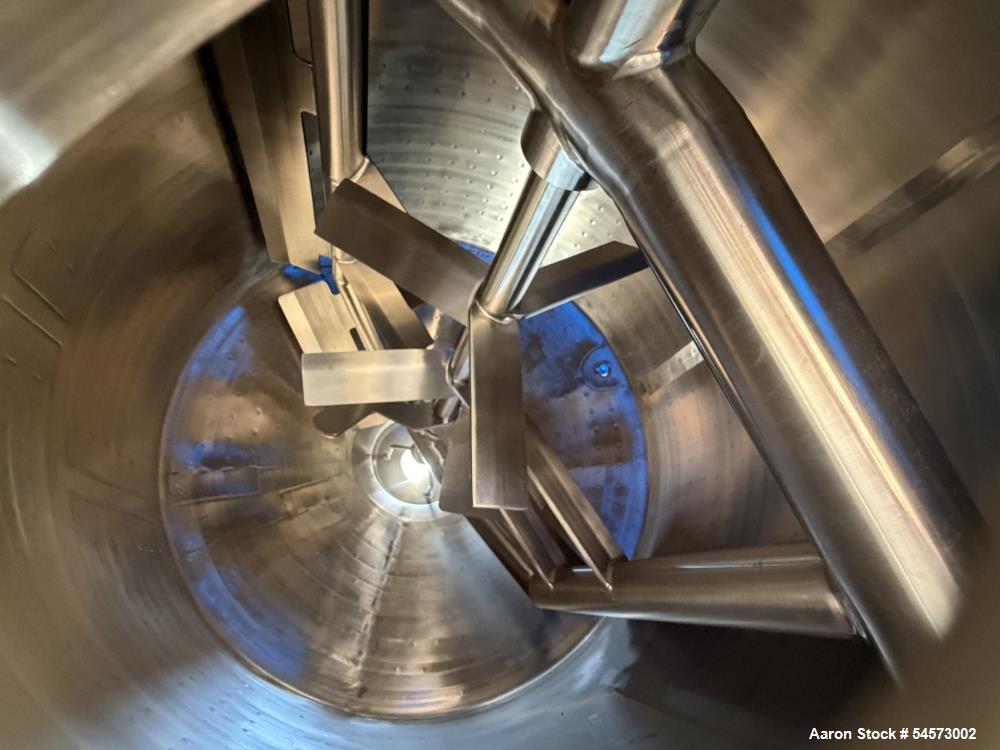

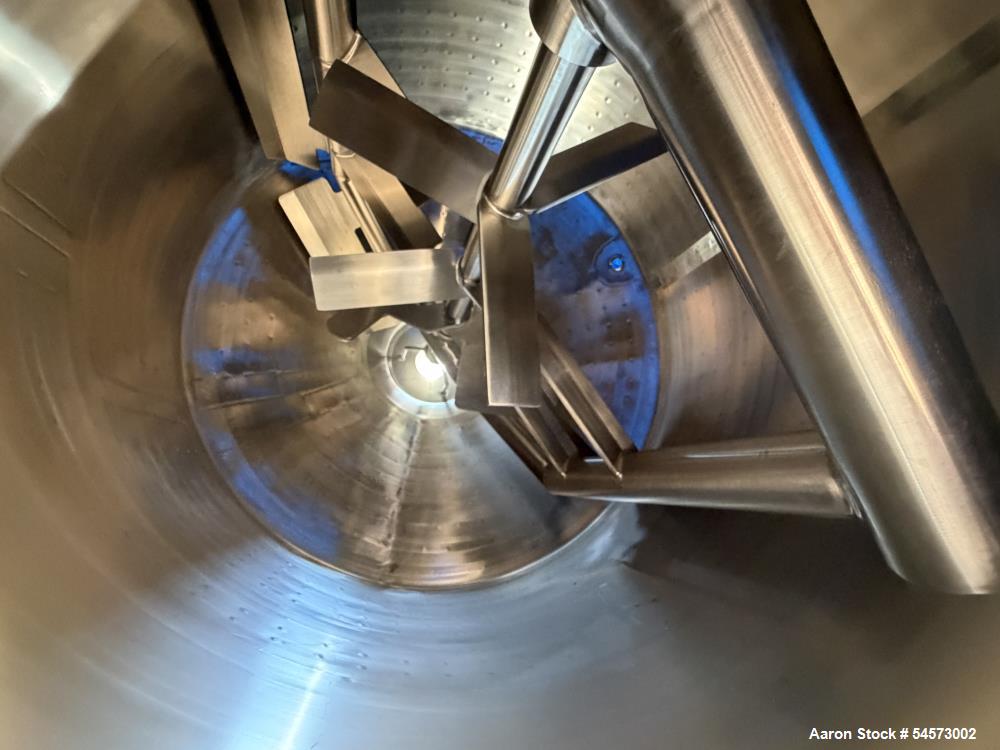

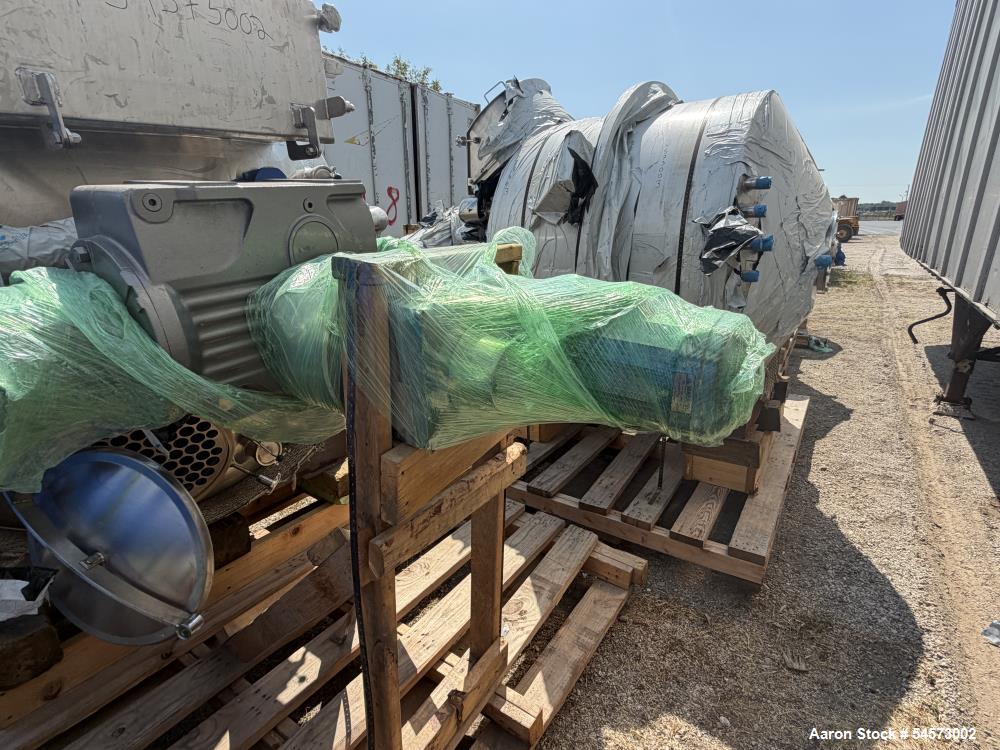

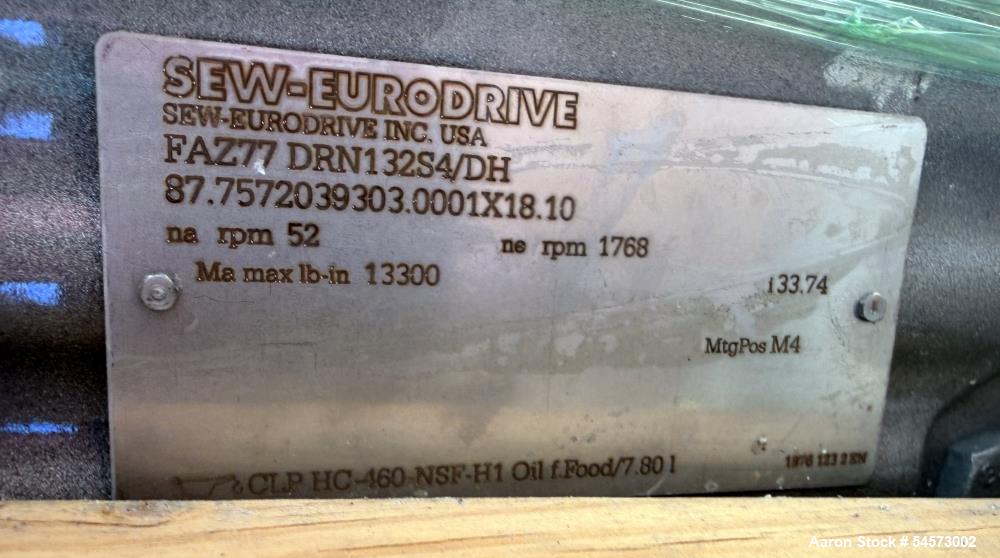

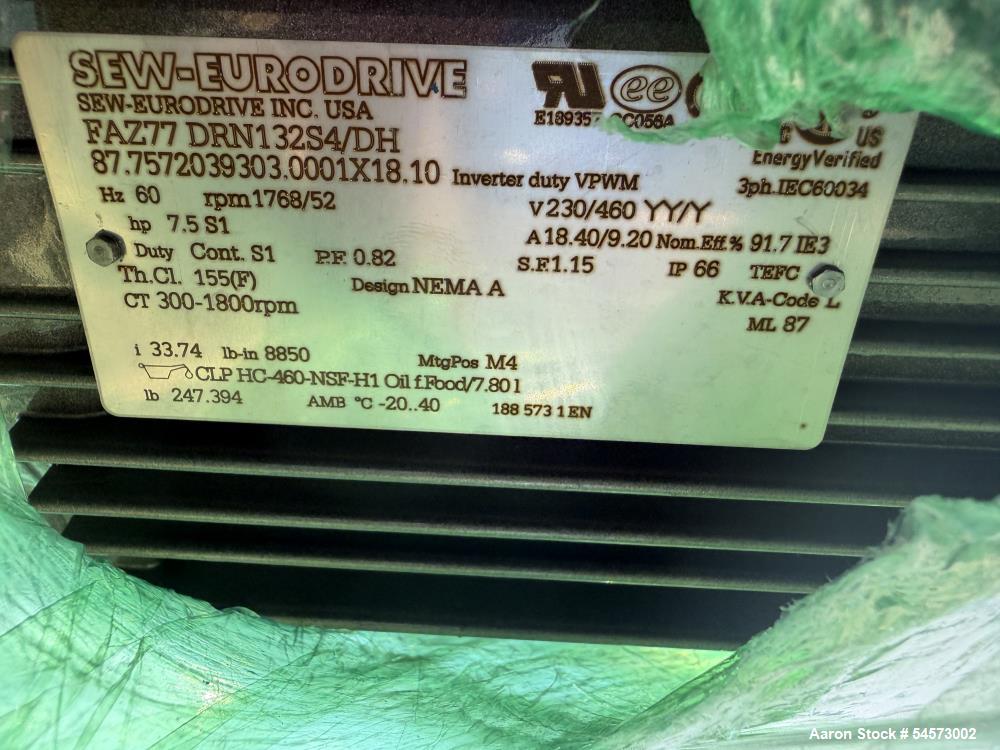

A key feature is the top-entering dual-motion agitation system. One drive operates dual 3-blade turbine impellers using a 7.5 HP, 1,768 RPM motor with a 33.74:1 gear reducer, producing a calculated output speed of approximately 52.4 RPM.

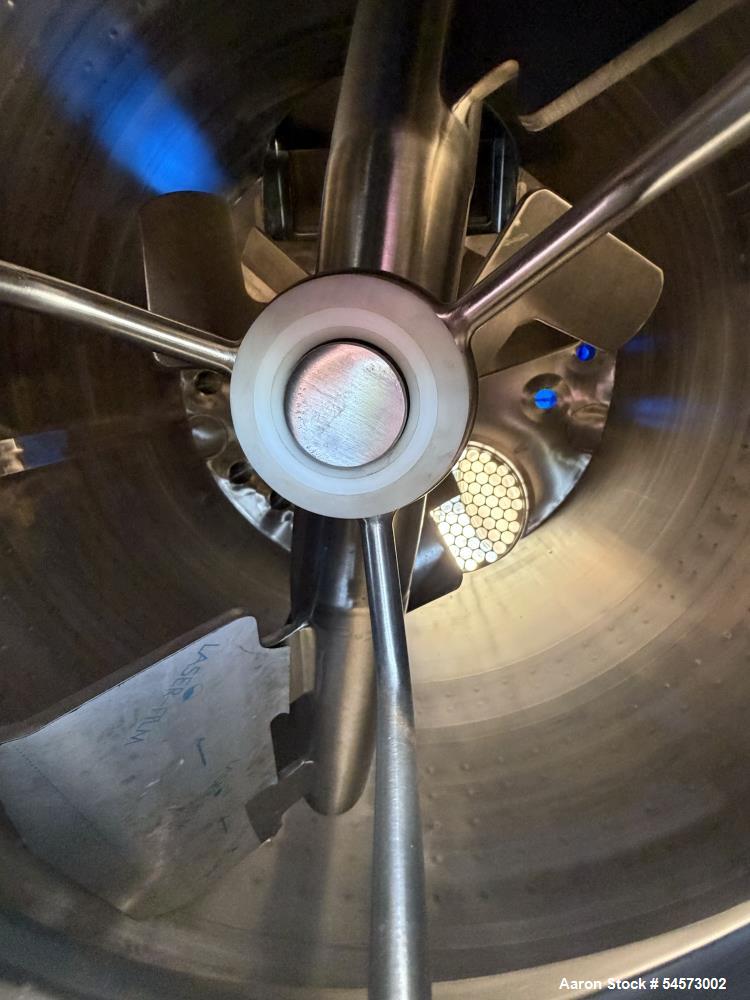

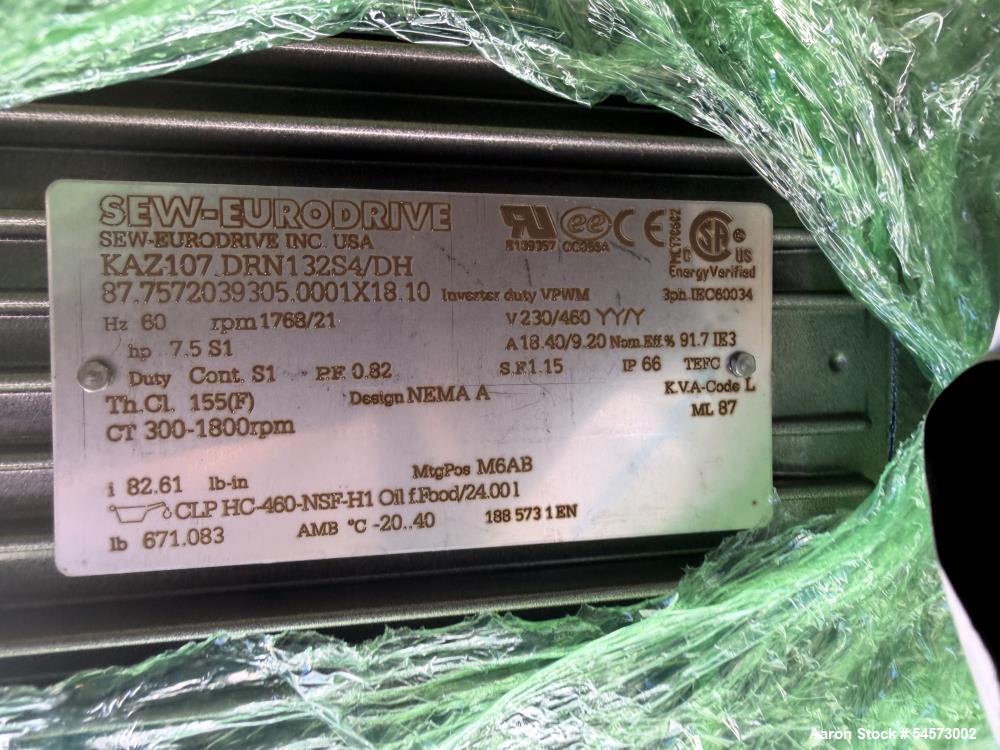

The second drive operates an anchor-style agitator with scrapers, powered by a separate 7.5 HP, 1,768 RPM motor through an 82.61:1 reducer, providing a calculated output speed of approximately 21.4 RPM. The combination of turbine and anchor agitation can provide effective bulk blending while the scraper-equipped anchor promotes product movement along the vessel wall.

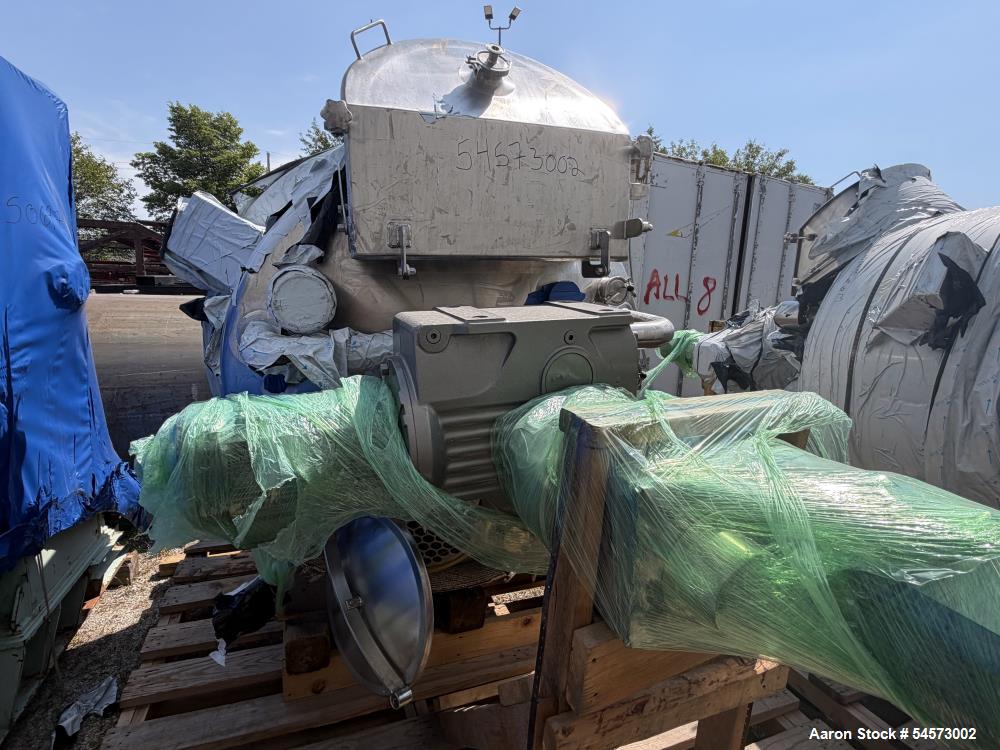

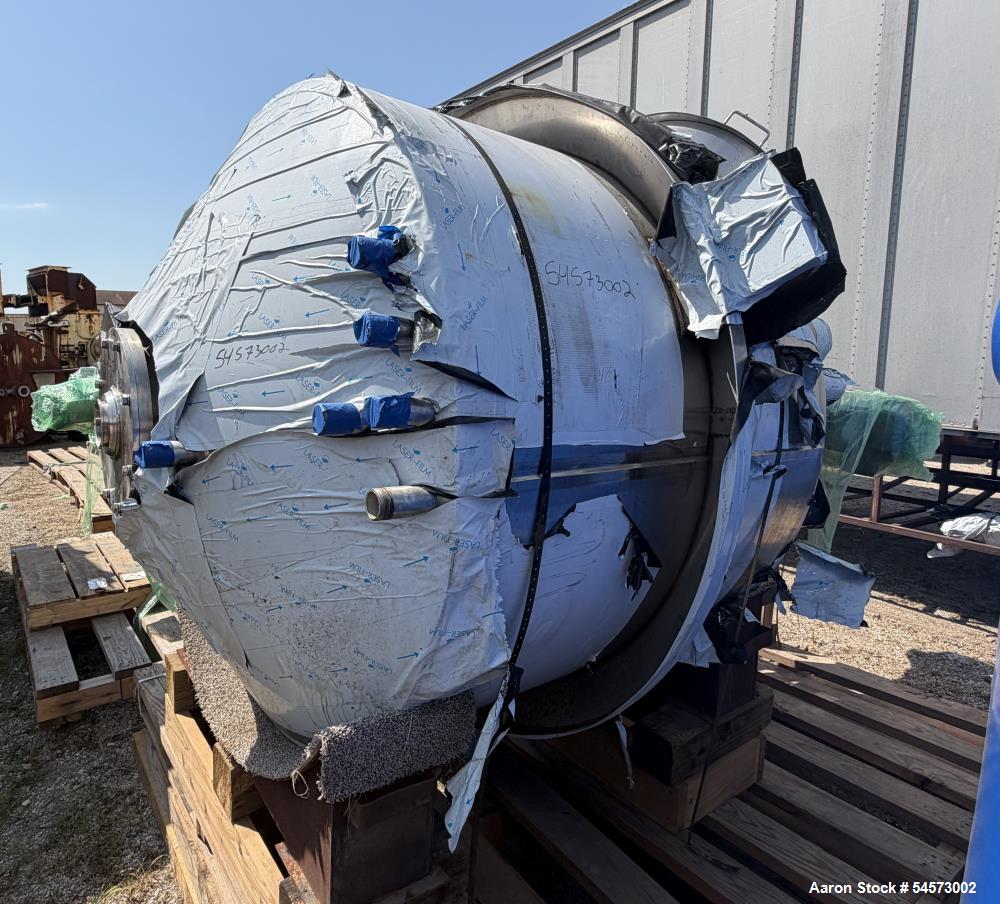

The kettle includes an 18" covered manway, large 27" x 20" covered top infeed, multiple process connections, and a 3-1/2" center-bottom outlet. The vessel is configured for side-lug mounting.

This unused JBF kettle may be suitable for food, pharmaceutical, cosmetic, nutraceutical, personal care, and specialty chemical applications requiring heating, cooling, blending, and processing of compatible viscous products.

Specifications

Typical Applications

• High-viscosity product mixing
• Heating and cooling
• Batch blending
• Sanitary product processing
• Ingredient incorporation
• Emulsion preparation
• Temperature-controlled mixing
• Food processing
• Pharmaceutical processing
• Cosmetic manufacturing
• Nutraceutical processing
• Specialty chemical formulation

Products This Kettle Could Be Used For

• Creams and lotions
• Sauces and dressings
• Syrups and concentrates
• Cosmetic creams
• Personal care formulations
• Nutraceutical formulations
• Pharmaceutical preparations
• Gels and compatible pastes
• Viscous food products
• Suspensions and emulsions
• Specialty chemical blends
• Other compatible liquid and semi-viscous products

Actual suitability depends on viscosity, product chemistry, temperature requirements, surface finish, scraper material, sanitary requirements, and applicable industry regulations.

Frequently Asked Questions

• What is the capacity of this JBF kettle? The vessel has an approximate capacity of 530 gallons.
• What makes this a dual-motion mixing kettle? It has two independently driven mixing systems: dual 3-blade turbine impellers for product circulation and an anchor-style agitator with scrapers for slower wall-sweeping agitation.
• What are the approximate agitator speeds? Based on the stated motor speeds and reducer ratios, the turbine agitator operates at approximately 52.4 RPM, while the anchor agitator operates at approximately 21.4 RPM.
• Does the anchor agitator include scrapers? Yes. The anchor-style agitator is equipped with scrapers, which can help move compatible product away from the vessel wall during processing.
• Can this kettle be used for food, pharmaceutical, cosmetic, or nutraceutical processing? Its 316L stainless construction and dual-motion configuration make it a potential candidate for these industries. Final suitability should be verified based on surface finish, sanitary design, product requirements, and applicable regulations.
• Can Aaron Equipment assist with shipping and logistics? Yes. Aaron Equipment can assist with rigging and loading coordination, domestic and international freight, customs documentation, and logistics planning for kettles, mixers, tanks, and other industrial process equipment.
