Used 200 Liter, Lee Industries Pressure Mix Tank, Model 200 LDBT

Description

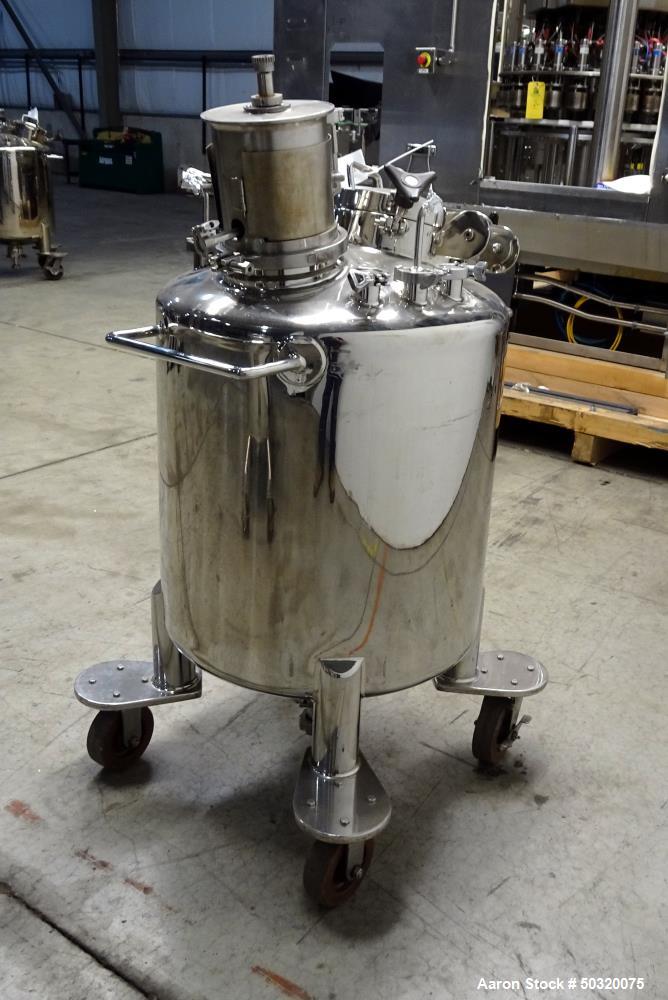

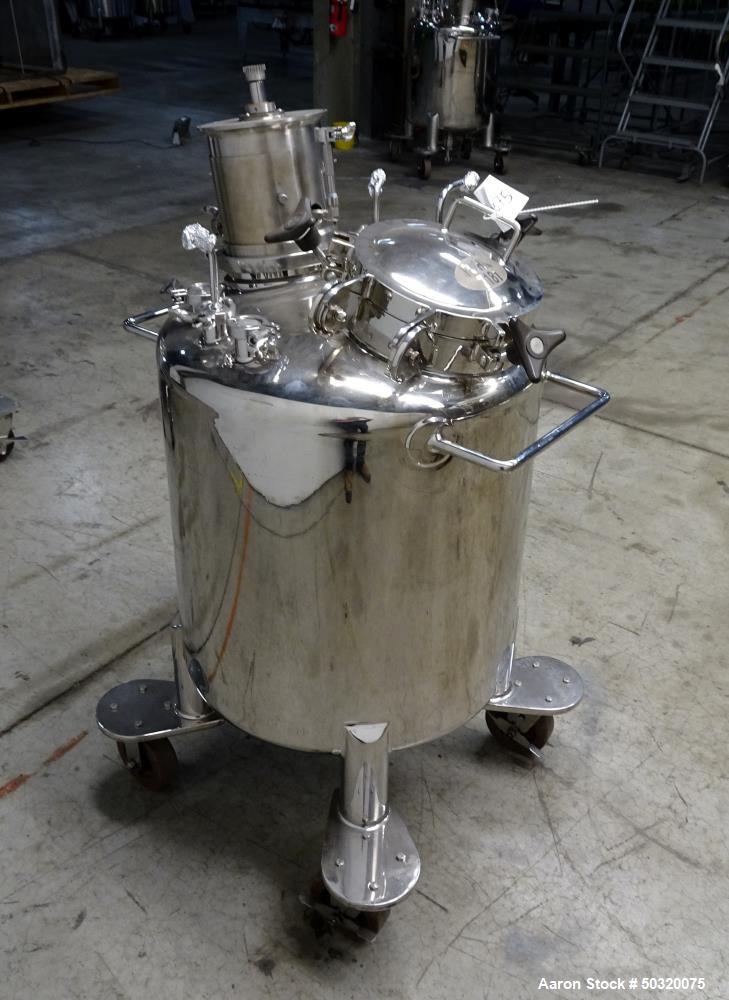

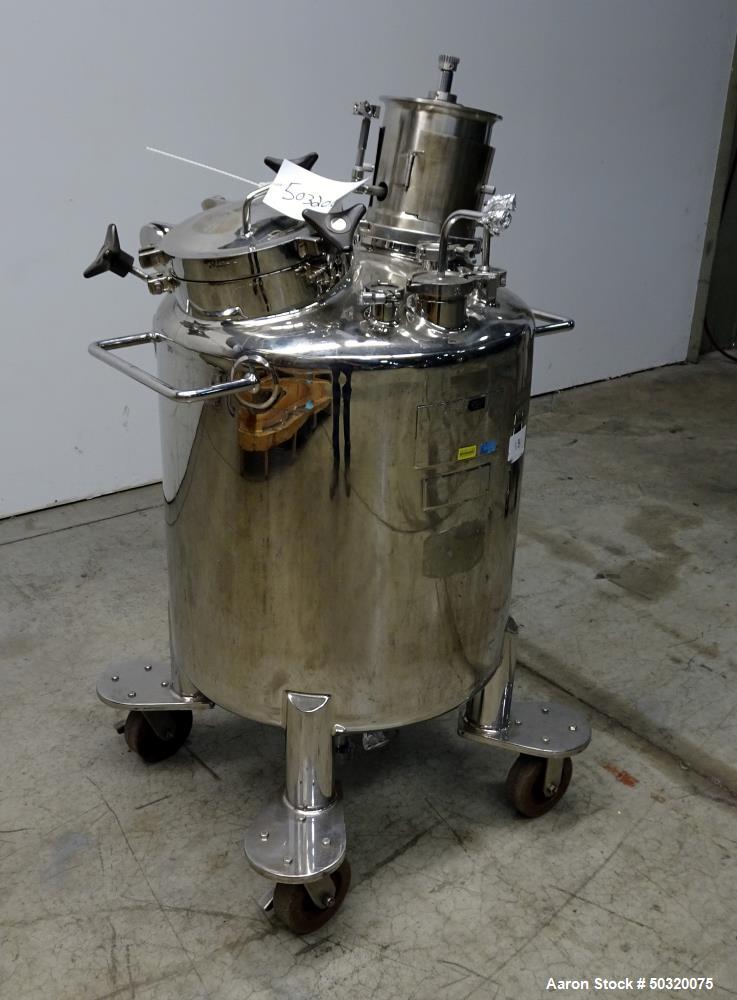

This used Lee Industries 200-liter pressure mix tank is constructed from 316L stainless steel for superior durability and corrosion resistance. Designed with a vertical orientation, the tank features a dished top and bottom for efficient mixing and easy drainage. It is rated for 30 psi internal pressure and vacuum conditions, making it suitable for various processing applications. The unit includes a top-entering dual 3-blade turbine agitator, which requires a motor and drive for operation. The tank is mounted on four legs with casters for mobility.

Specifications

• Capacity: 200 liters
• Material: 316L Stainless Steel
• Orientation: Vertical
• Tank Dimensions:
  • Diameter: 26 inches
  • Straight Side Height: 24 inches
  • Discharge Height: Approx. 5-1/2 inches
• Top Design:

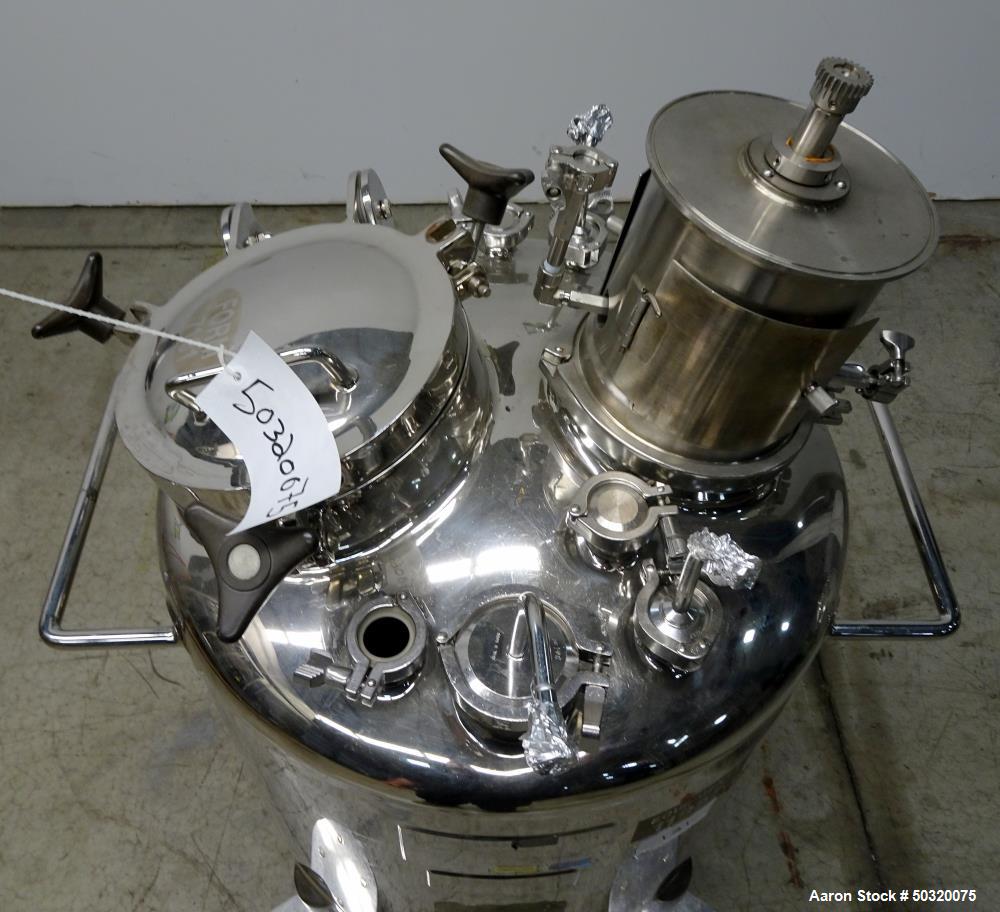

  • Dished top with openings:
    • 10” with cover
    • (1) 3” opening
    • (6) 1-1/2” openings
• Bottom Design:
  • Dished bottom

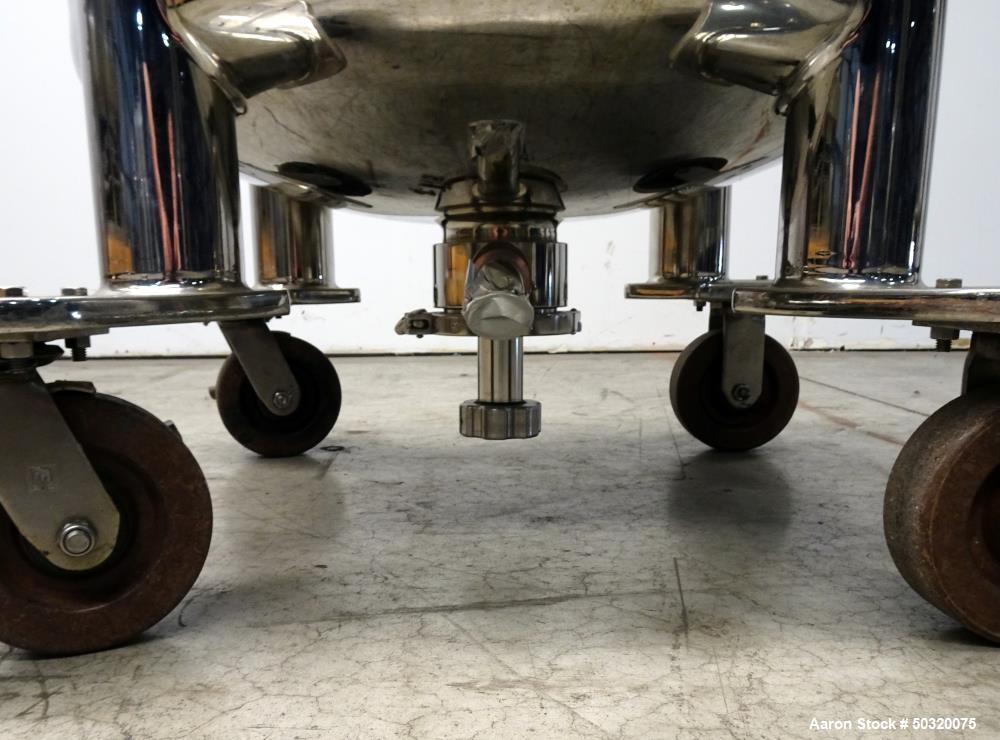

  • 1-1/2” center bottom outlet
• Pressure Rating:

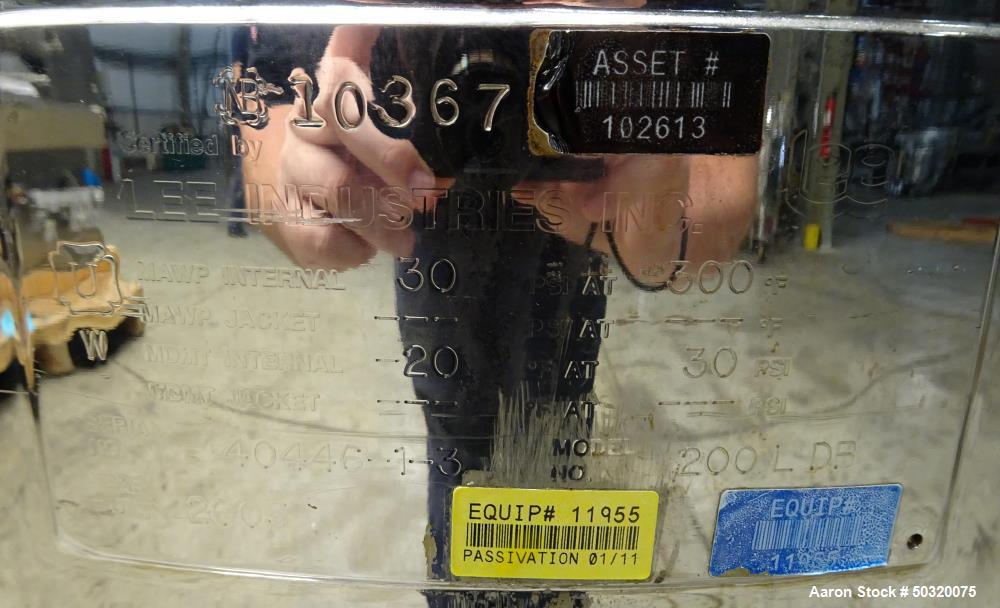

  • Internal: 30 psi (-20°F to 300°F)

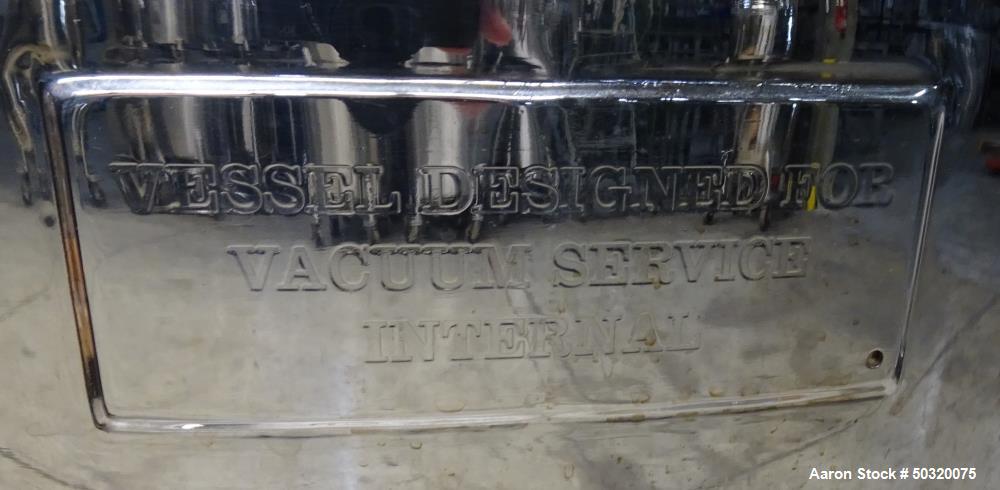

  • Vacuum rated
• Agitator:

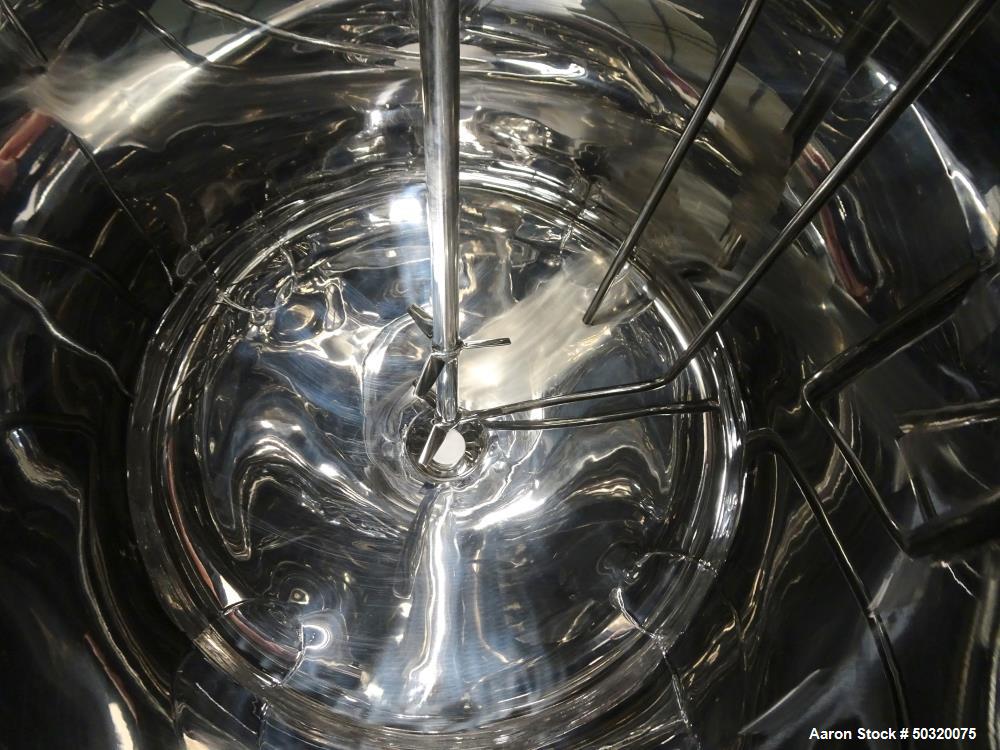

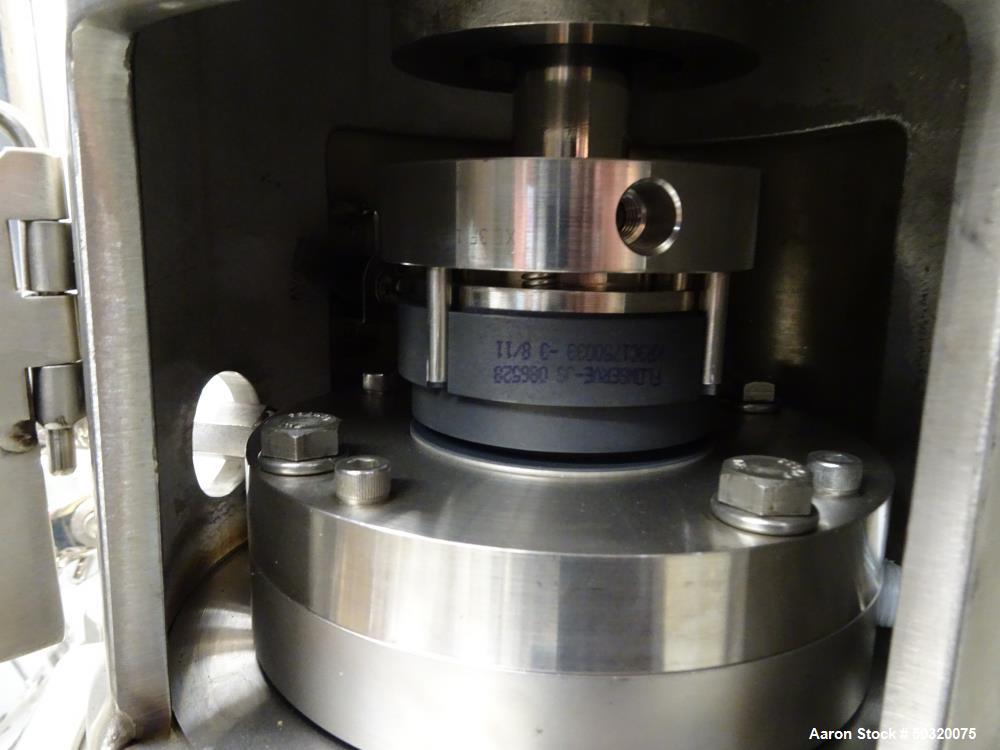

  • Dual 3-blade turbine (motor/drive required)
• Mobility: Mounted on (4) legs with casters

Applications

This pressure mix tank is ideal for use in pharmaceutical, food & beverage, chemical, and cosmetic processing industries, including:

• Mixing, blending, and emulsification of liquids
• Vacuum mixing and pressure processing
• Storage and handling of sensitive or viscous materials
• Batch processing for regulated industries

Compatible Products

This tank is designed for use with a variety of products, including:

• Liquid food products (sauces, syrups, dairy mixtures)
• Cosmetic creams and lotions
• Chemical solutions and solvents
• Pharmaceutical preparations
• Adhesives and coatings

🧰 Applications

Perfect for sanitary and industrial pressure mixing in:

• Pharmaceutical production

• Biotech and life sciences

• Cosmetic and personal care blending

• Food and beverage batch processing

• Nutraceutical and supplement formulation

• Chemical slurry or emulsions

• Lab-scale fermentation

• Pilot-scale process validation

• High-purity manufacturing

• Temperature-controlled fluid blending

📦 Used For (Products)

• Liquid drug formulations

• Ointments, gels, and creams

• Food flavor concentrates

• Pharmaceutical syrups

• Nutrient slurries and enzyme solutions

• Sanitizing agents

• Alcohol-based formulas

• Buffer solutions and suspensions

• Active pharmaceutical ingredients (API)

• Cosmetic serums and bases
