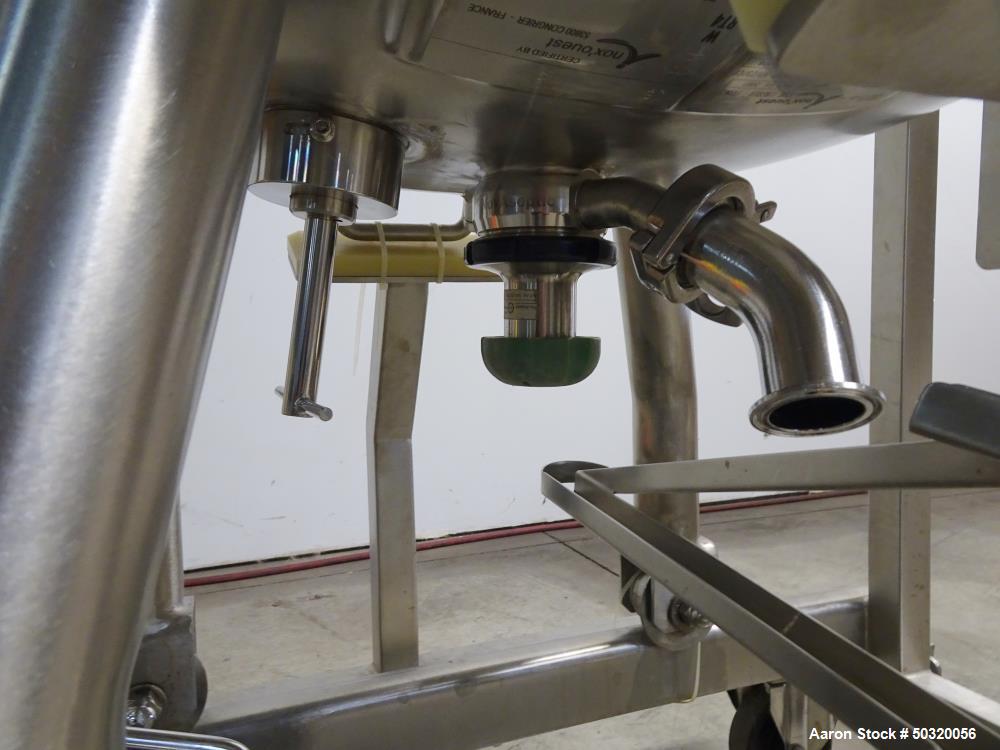

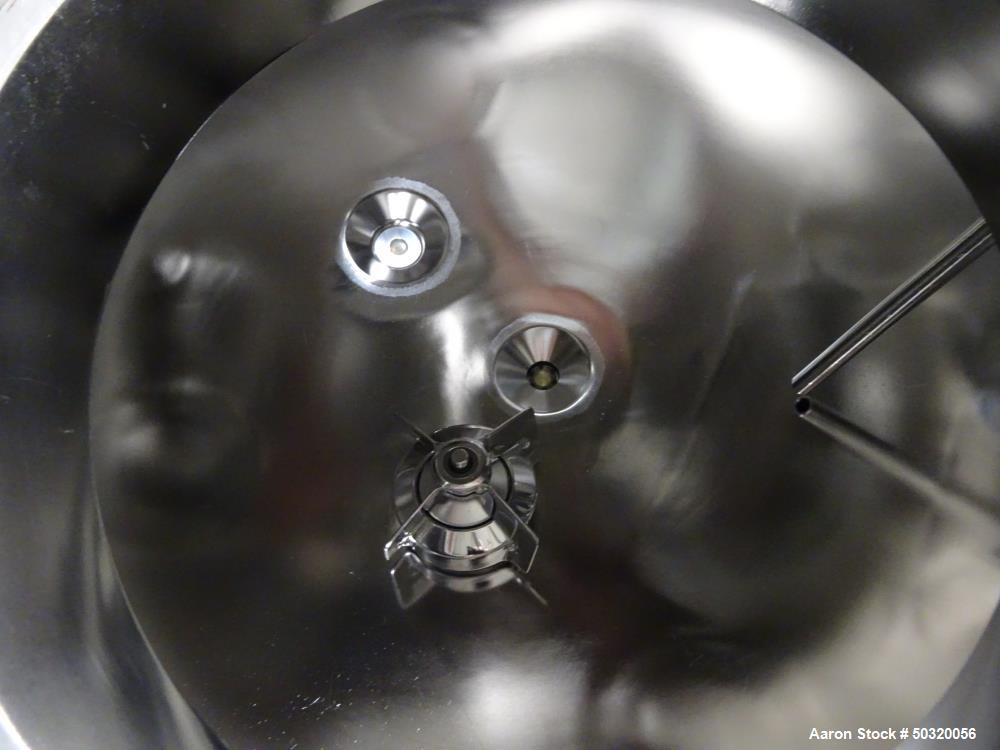

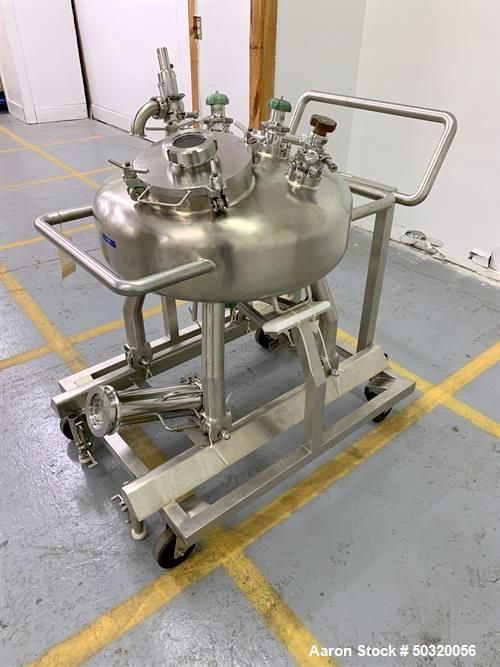

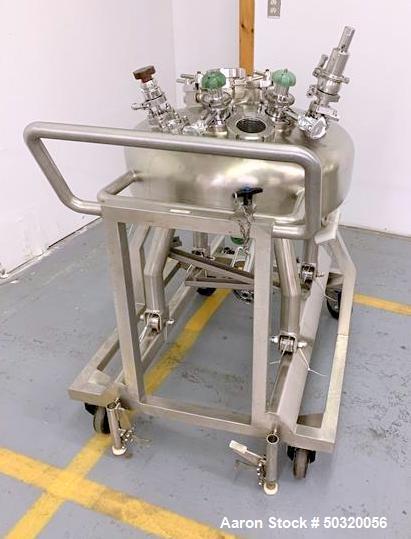

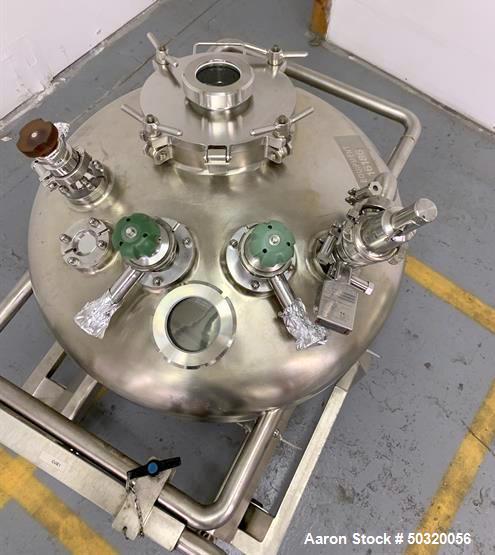

Used Inox'ouest Pressure Mix Tank, 100 Liter, 316L Stainless Steel, Vertical. Approximate 28" diameter x 2" straight side, dished top and bottom. Internal rated 59.46 psi at 20 to 212 degrees F. Bottom entering sanitary 4 blade agitator, requires motor/drive. Openings top: 10" with cover and 3" sight glass, 3" sight glass, (2) 2", (3) 1-1/2". 1-1/2" Tri-clamp center bottom outlet, approximate 24" discharge height. Mounted on (4) legs with casters. National Board# 118, Serial# 80057-200, Built 2008.
Serial # | 80057-200 |
Category | TanksTanks |
Subcategory | Stainless 0-499 GalStainless 0-499 Gal |
Gallons | 26 |
Material of Construction | 316L Stainless Steel |
Horizontal or Vertical | Vertical |
Diameter | 28" |
Straight Side | 2" |
Top Head Style | Dished Head |
Bottom | Dished Bottom |
Internal Pressure | 59.46 PSI |
Internal Temperature | 20 TO 212 DEGREES F. |
Mixer Type | 4 Blade Turbine |
Outlet Size | 1-1/2" |
Outlet Location | Bottom |
Discharge Height | 24" |
Mounted | Mounted on Casters |

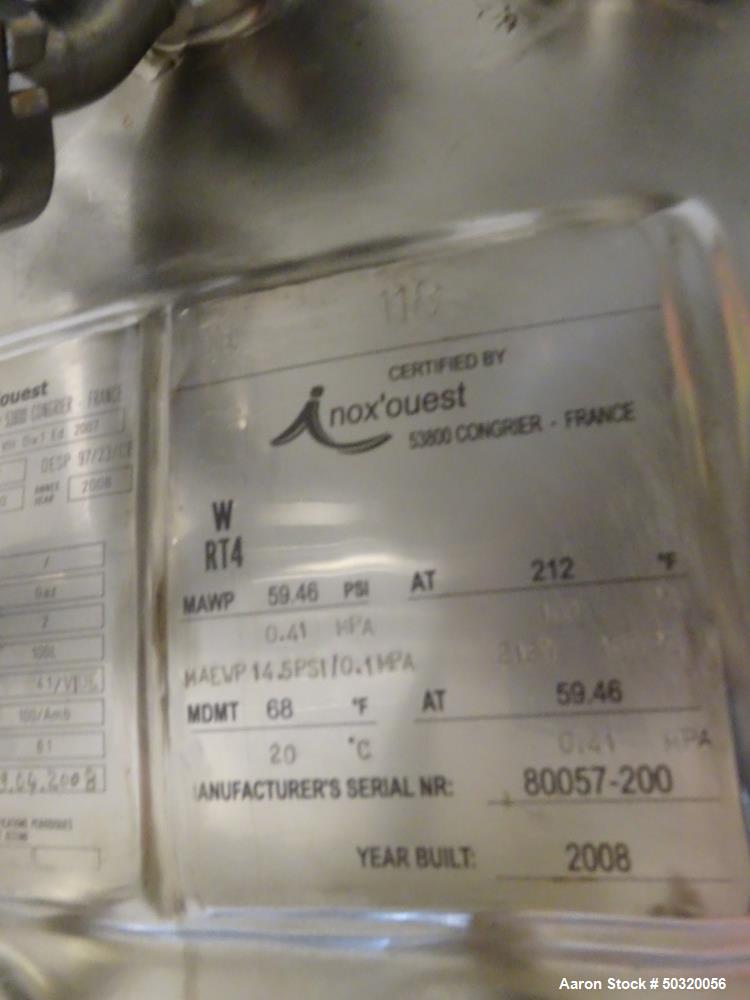

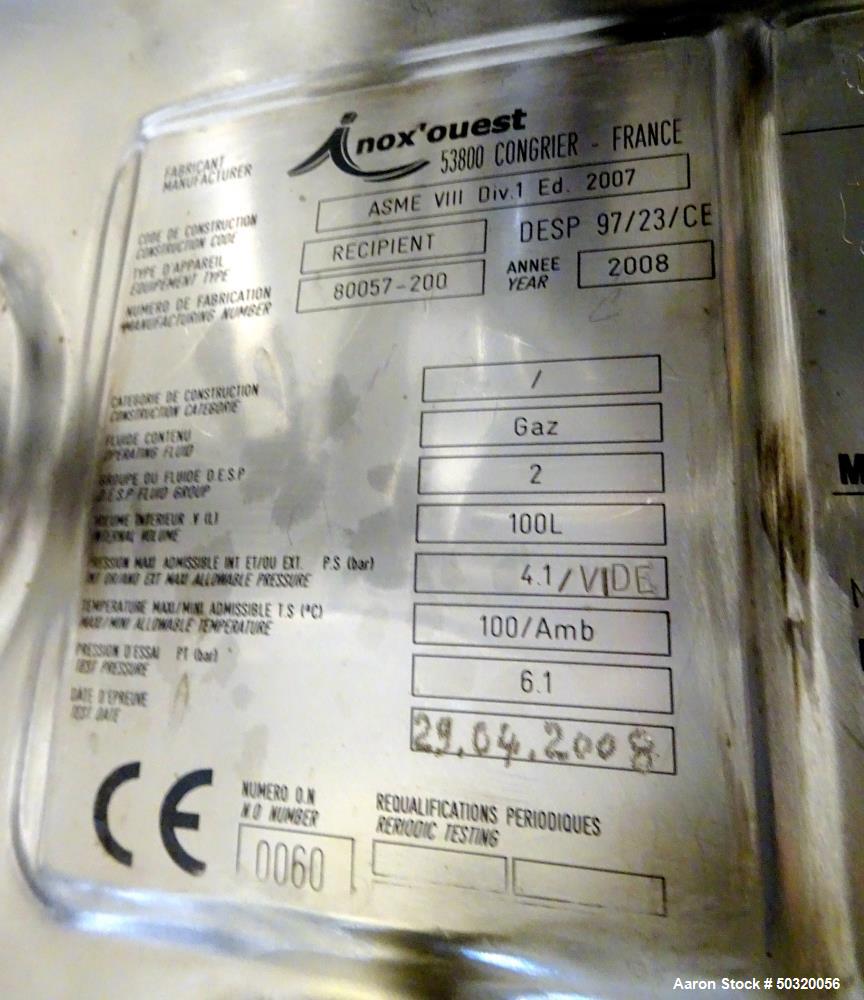

National Board No. | 118 |
Overall Dimensions | 48"L X 36"W X 48"T |
Year Built | 2008 |
This 100-liter Inox'ouest pressure mix tank is constructed from 316L stainless steel, ensuring superior corrosion resistance and durability. It features a vertical orientation with an approximate 28" diameter and 2" straight side, along with a dished top and bottom. The tank is designed for pressure-rated applications, with an internal pressure rating of 59.46 psi at 20 to 212°F.
The unit is equipped with a bottom-entering sanitary 4-blade agitator that requires a motor/drive (not included). It has multiple top openings, including:
The approximate discharge height is 24 inches. The tank is mounted on four legs with casters, allowing for easy mobility and stability.
This Inox'ouest pressure mix tank is suitable for various industries requiring controlled mixing and pressure-rated processing, including:
Used Inox'ouest Pressure Mix Tank, 100 Liter, 316L Stainless Steel, Vertical. Approximate 28" diameter x 2" straight side, dished top and bottom. Internal rated 59.46 psi at 20 to 212 degrees F. Bottom entering sanitary 4 blade agitator, requires motor/drive. Openings top: 10" with cover and 3" sight glass, 3" sight glass, (2) 2", (3) 1-1/2". 1-1/2" Tri-clamp center bottom outlet, approximate 24" discharge height. Mounted on (4) legs with casters. National Board# 118, Serial# 80057-200, Built 2008.
This 100-liter Inox'ouest pressure mix tank is constructed from 316L stainless steel, ensuring superior corrosion resistance and durability. It features a vertical orientation with an approximate 28" diameter and 2" straight side, along with a dished top and bottom. The tank is designed for pressure-rated applications, with an internal pressure rating of 59.46 psi at 20 to 212°F.
The unit is equipped with a bottom-entering sanitary 4-blade agitator that requires a motor/drive (not included). It has multiple top openings, including:
The approximate discharge height is 24 inches. The tank is mounted on four legs with casters, allowing for easy mobility and stability.
This Inox'ouest pressure mix tank is suitable for various industries requiring controlled mixing and pressure-rated processing, including:
Serial # | 80057-200 |
Category | Tanks |
Subcategory | Stainless 0-499 Gal |
Gallons | 26 |
Material of Construction | 316L Stainless Steel |
Horizontal or Vertical | Vertical |
Diameter | 28" |
Straight Side | 2" |
Top Head Style | Dished Head |
Bottom | Dished Bottom |
Internal Pressure | 59.46 PSI |
Internal Temperature | 20 TO 212 DEGREES F. |
Mixer Type | 4 Blade Turbine |
Outlet Size | 1-1/2" |
Outlet Location | Bottom |
Discharge Height | 24" |
Mounted | Mounted on Casters |
National Board No. | 118 |
Overall Dimensions | 48"L X 36"W X 48"T |
Year Built | 2008 |
