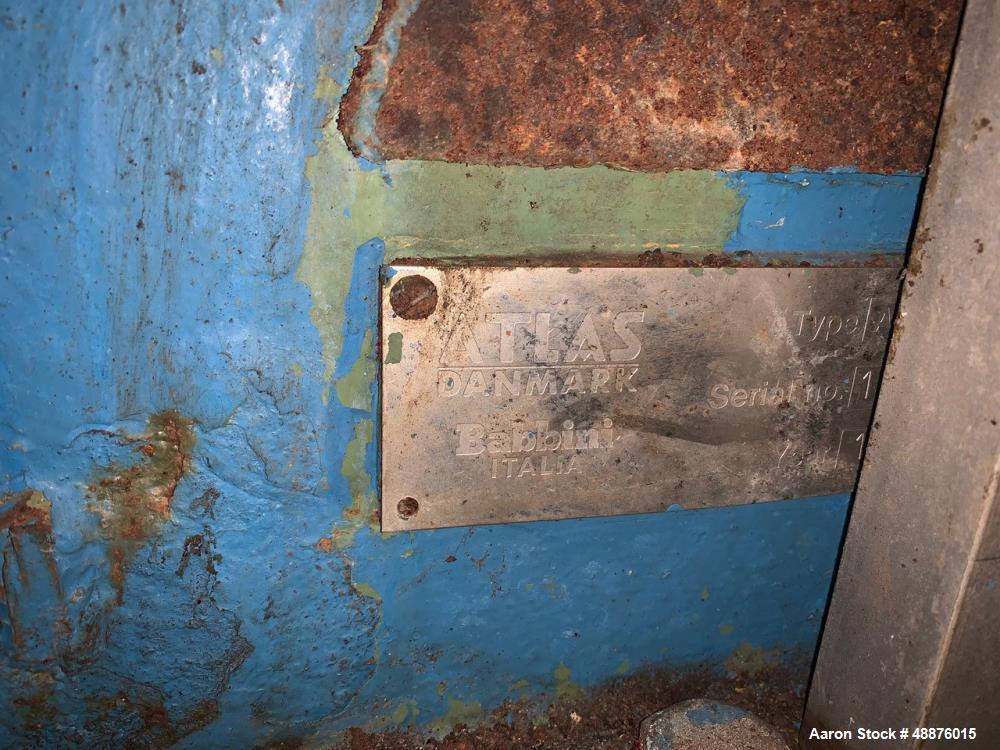

Used- Atlas Babbini Double Screw Press

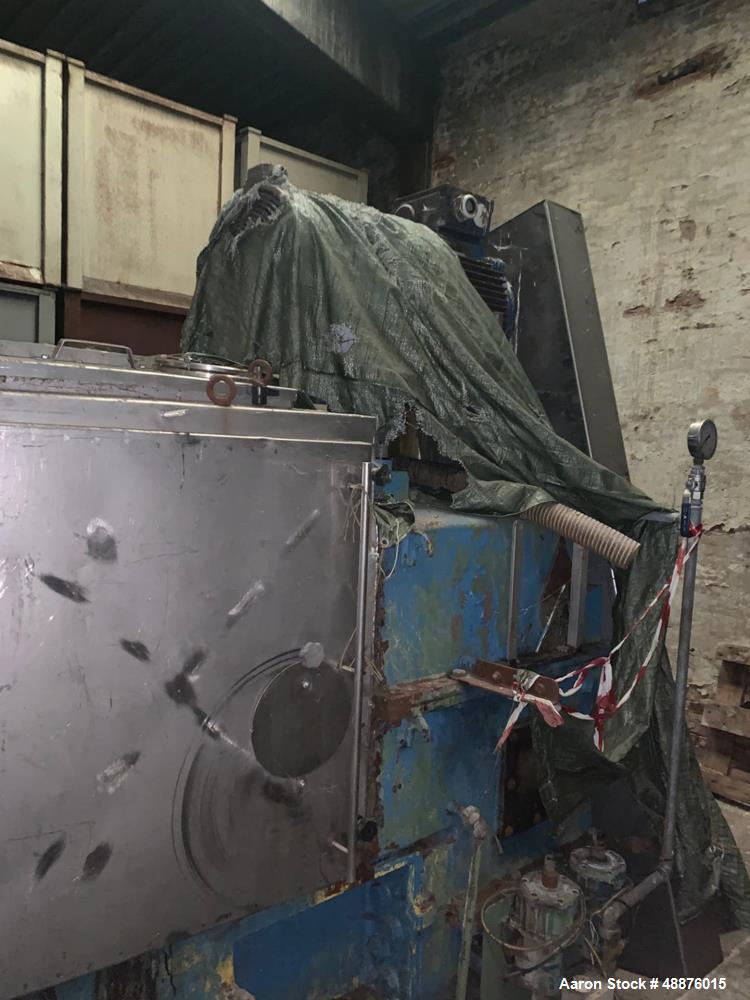

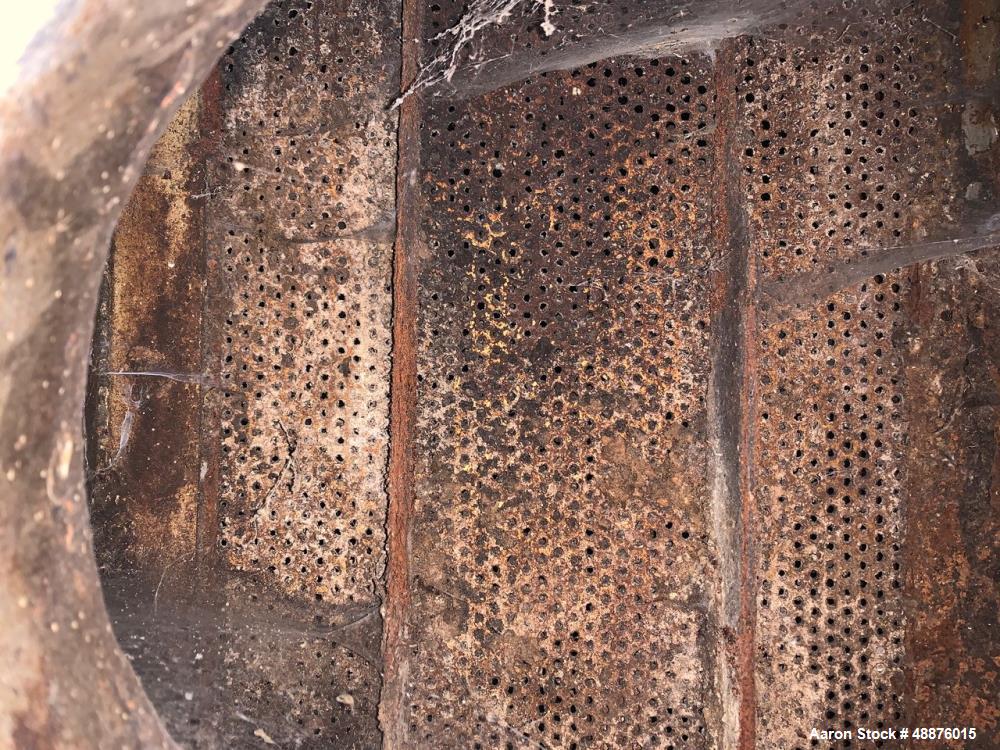

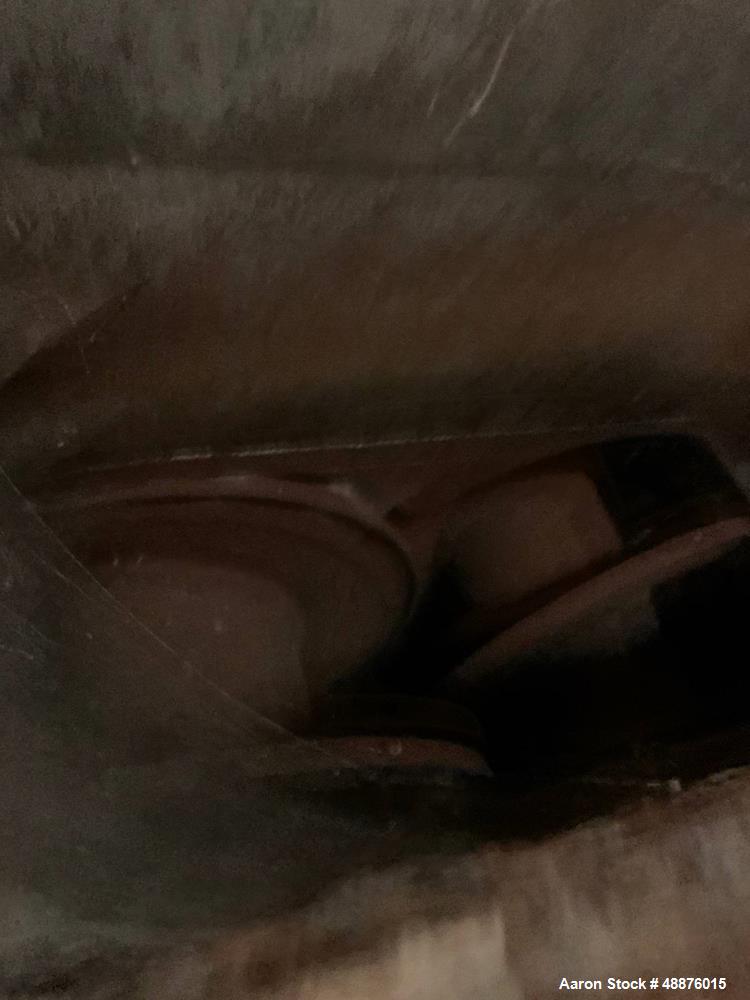

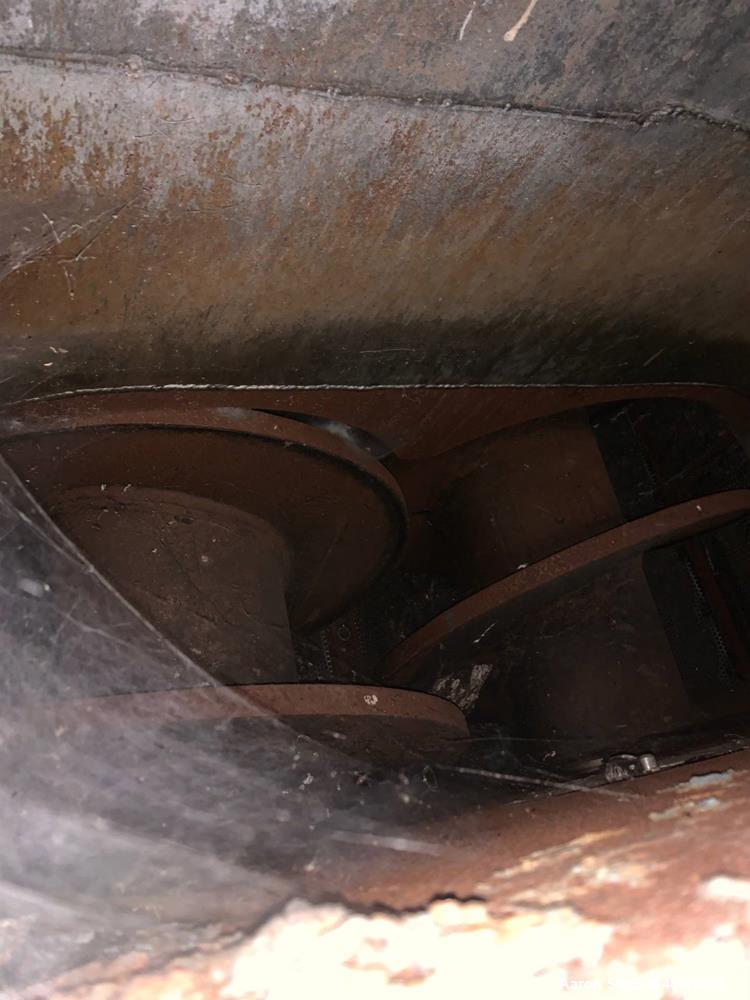

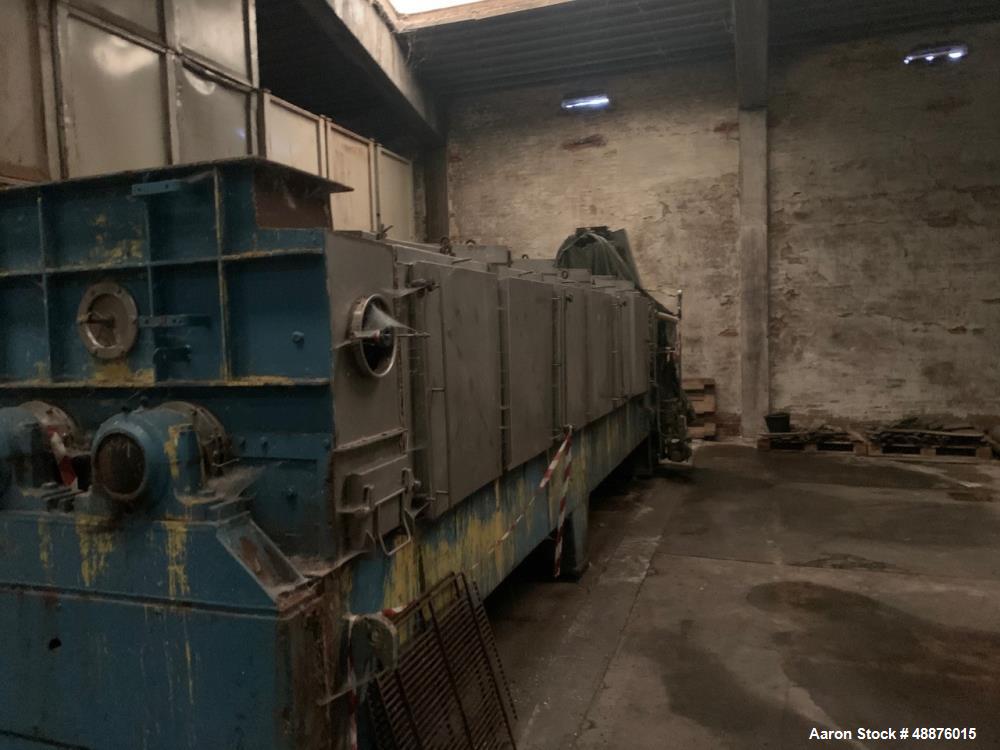

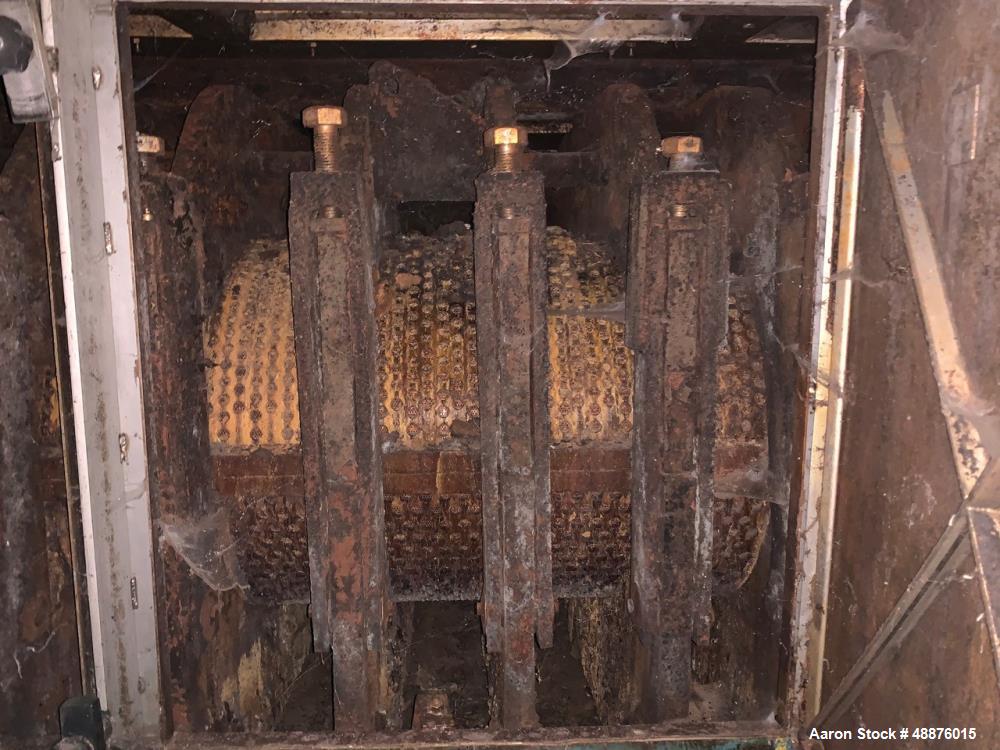

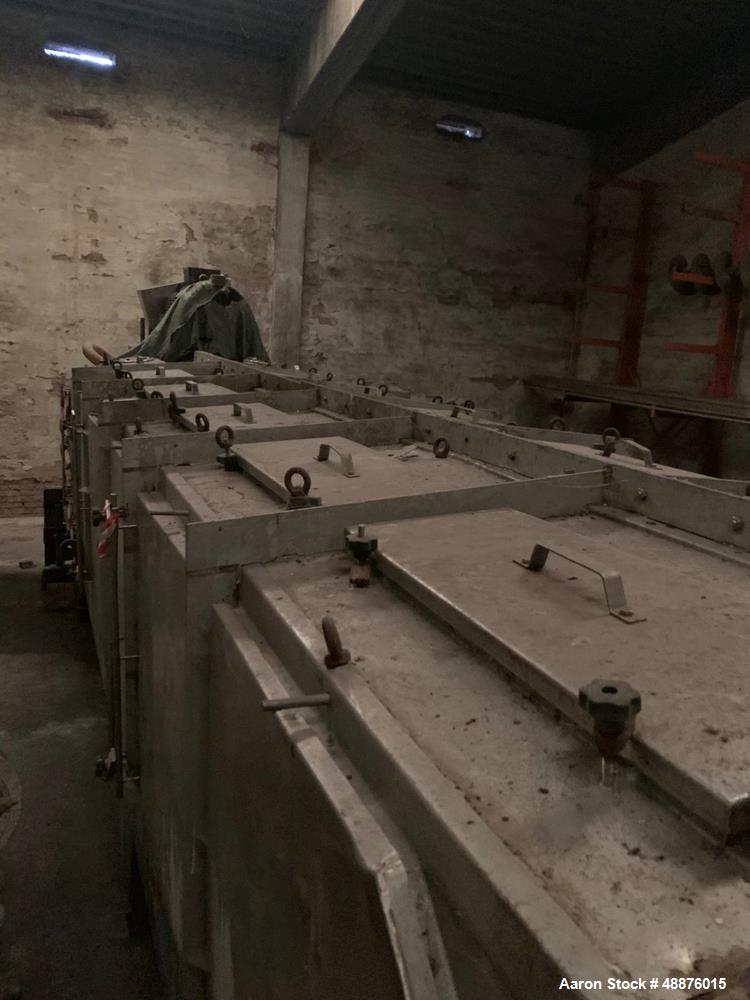

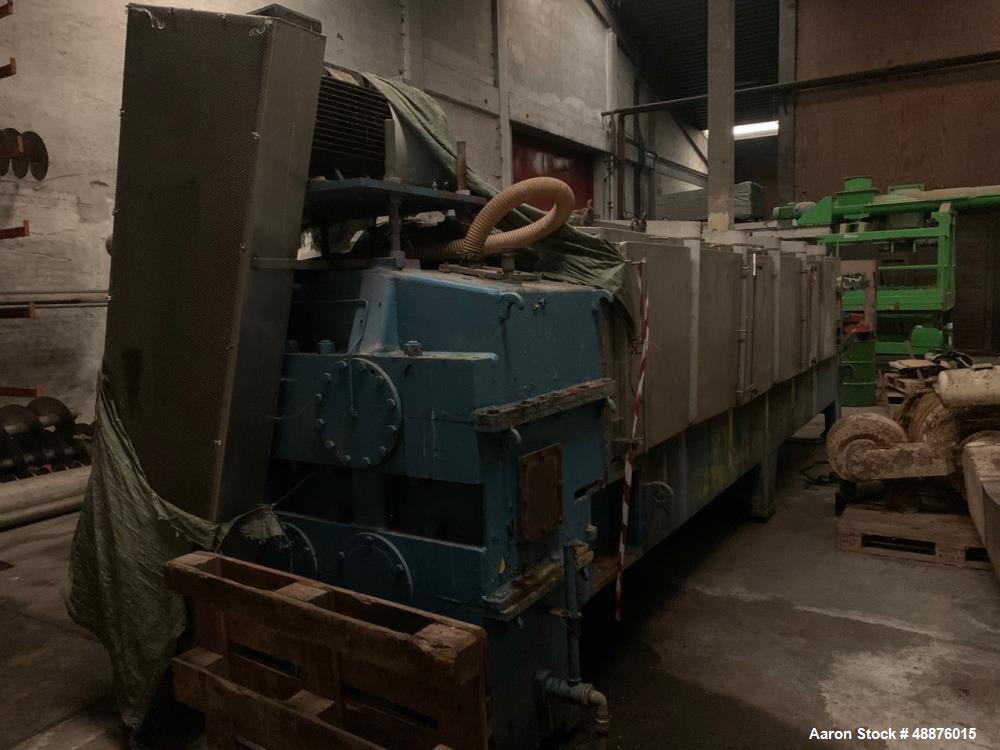

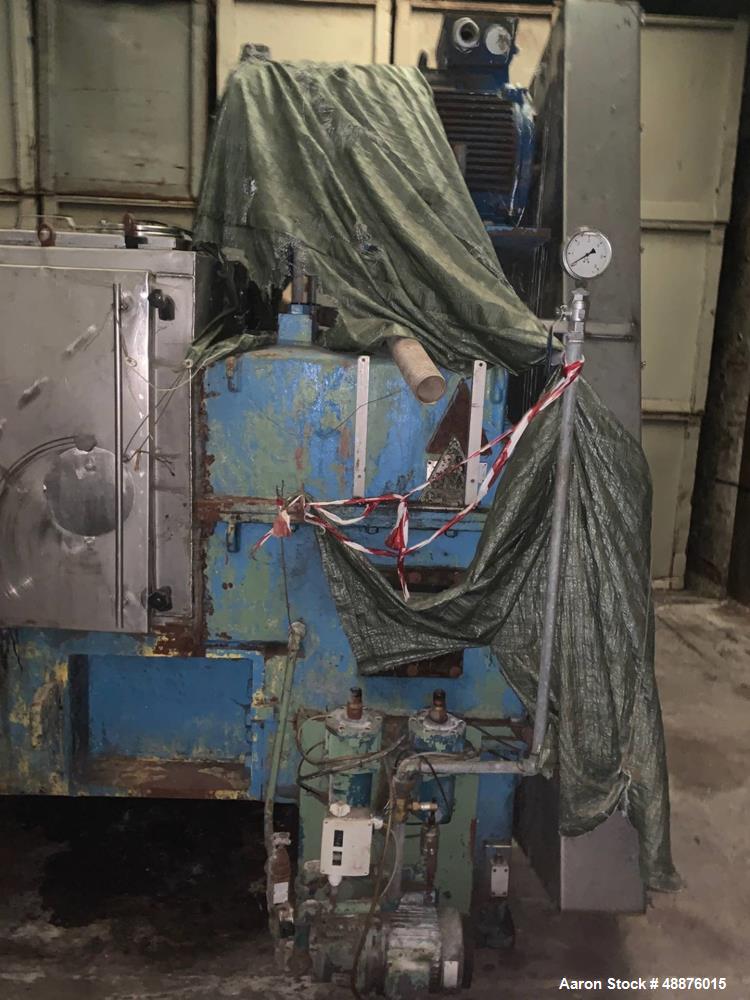

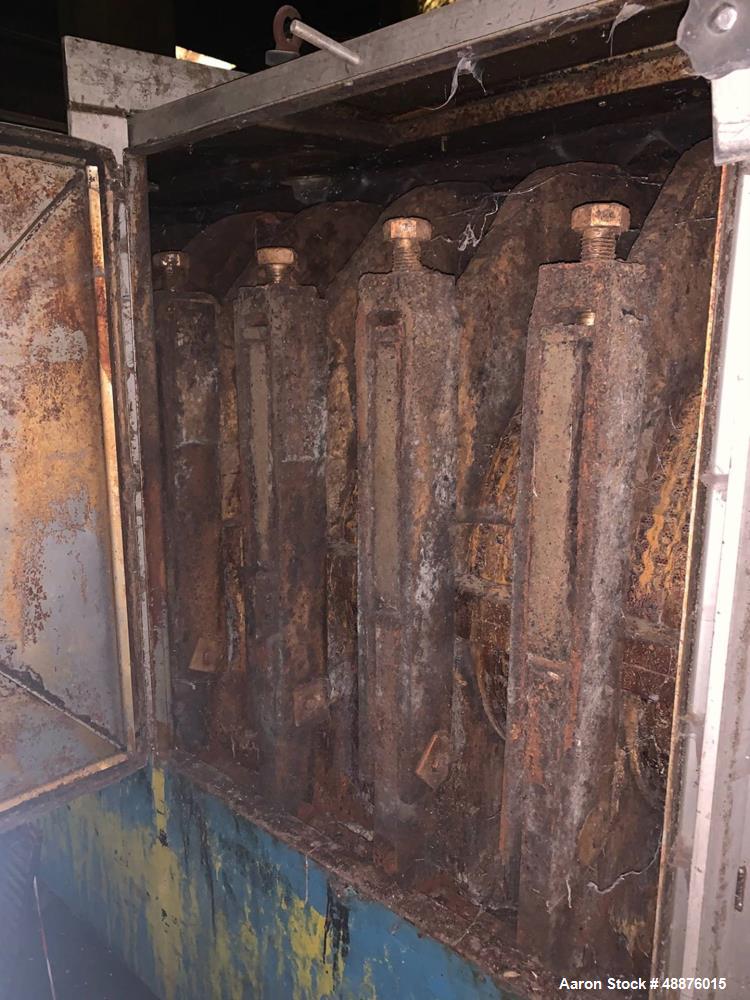

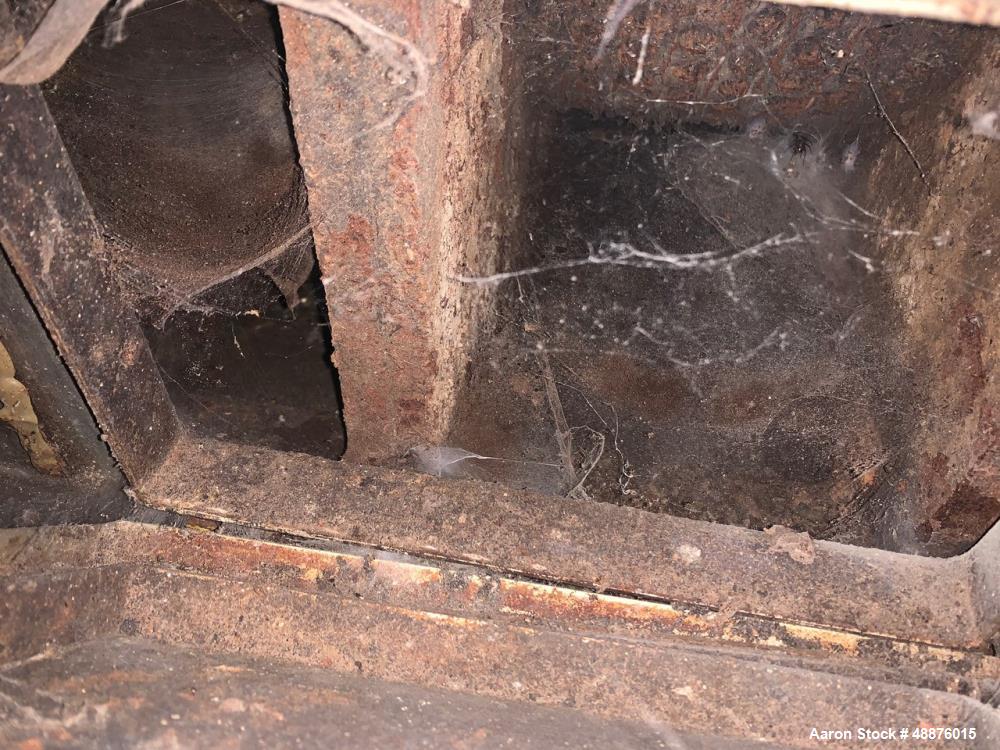

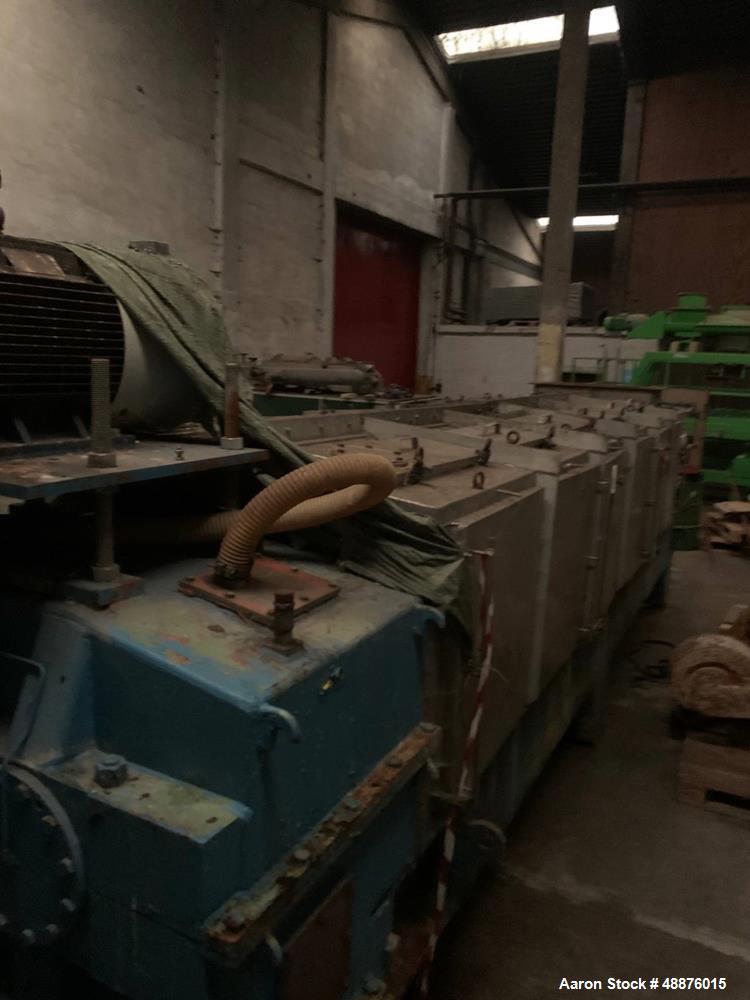

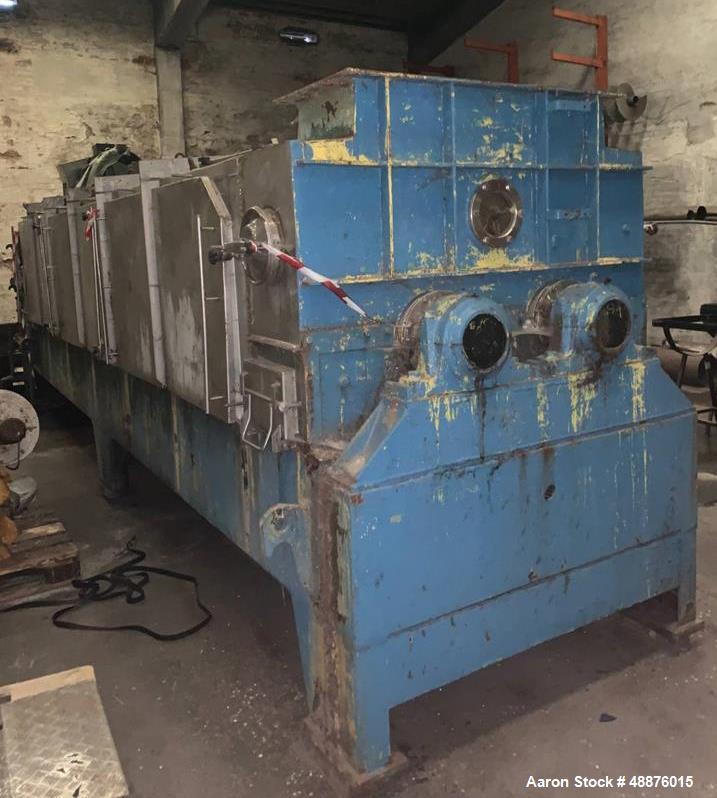

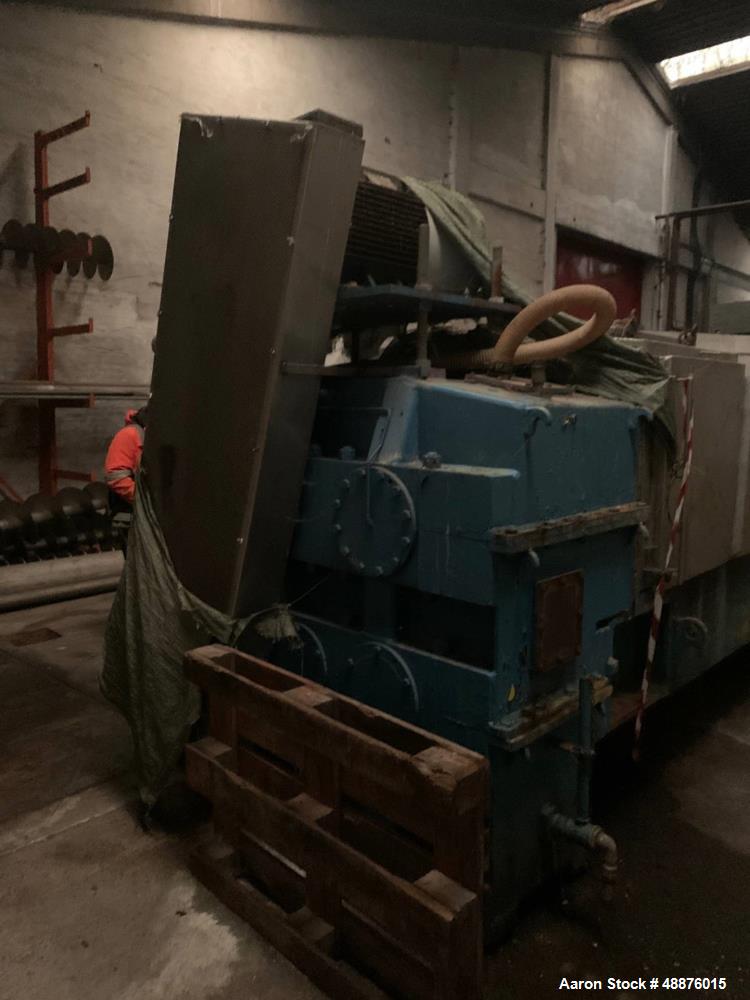

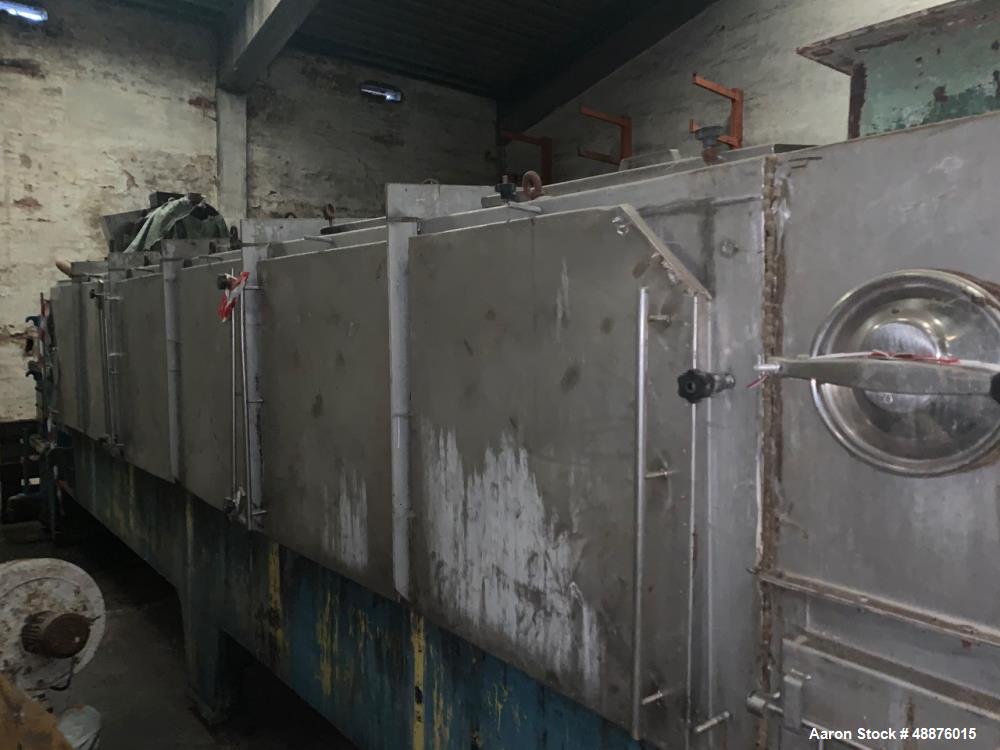

Used- Atlas Babbini Double Screw Press, Type AB 70. 26-39 tonnes/hour nominal capacity. Carbon steel construction on product contact parts. (2) Interlock screws enclosed by strainer plates. Screw speed 4-6 RPM. Screw flights are reinforced with a 5 mm thick flat bar. Supporting plates, lube pump. V-belt driven via a gearbox with forced lube system by a 75 Kw-112.5 HP-400 volt/50cycle/3Ph motor. Includes stainless steel housing with top and side inspection doors, product infeed, liquid outlet, and press cake outlet. On 6 legs. Overall dimensions: 228" (7000 mm) long x 62" (1900 mm) width x 65" (2000 mm) high. Weight empty 26 tonnes. Previous used in a fish meal/oil application.
