Used Vincent CP-6 Horizontal Screw Press – 6" Dewatering Press, 300–1,000 Lb/Hr

Manufacturer Information

Vincent Corporation

Vincent Corporation is a recognized manufacturer of screw presses and liquid-solid separation equipment used for dewatering, pressing, fiber recovery, waste reduction, and process-stream separation. Vincent screw presses are commonly found in food processing, beverage, agricultural, biomass, pulp and paper, recycling, and industrial processing operations.

Description

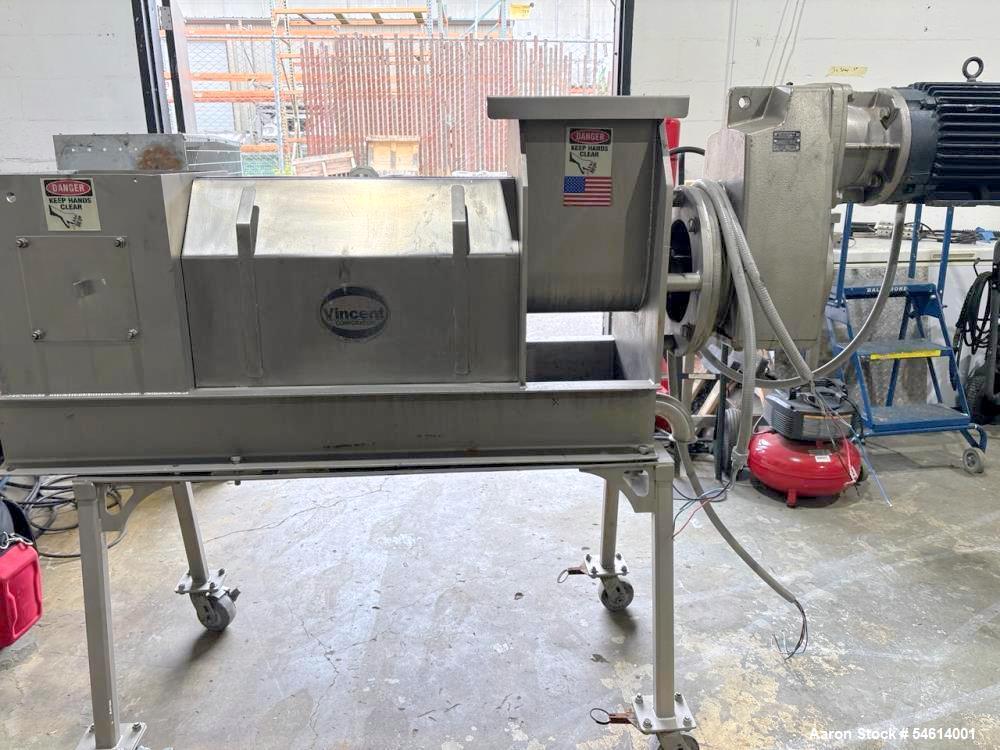

Available for sale is a used Vincent Model CP-6 horizontal screw press, built in 2019 and designed for continuous liquid-solid separation and dewatering applications.

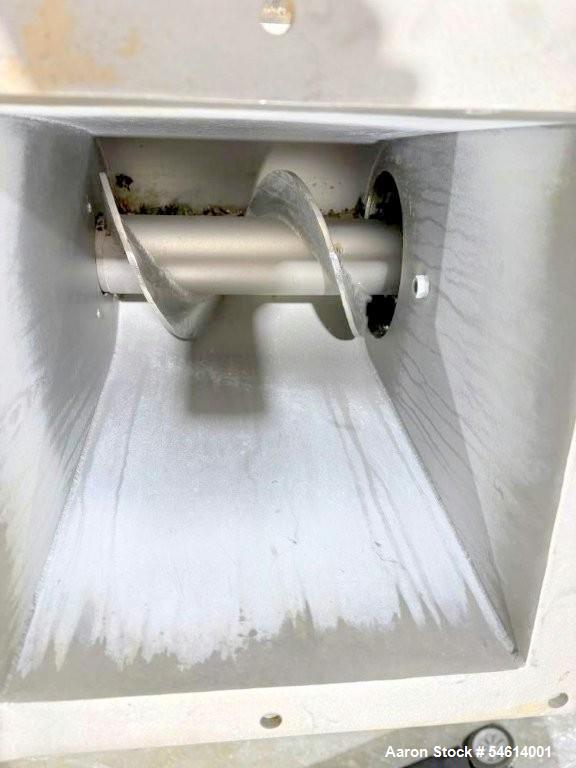

The press features a 6" diameter x 32" long screw operating at approximately 20 RPM. Depending on product characteristics and operating conditions, the unit has an approximate processing capacity of 300 to 1,000 pounds per hour.

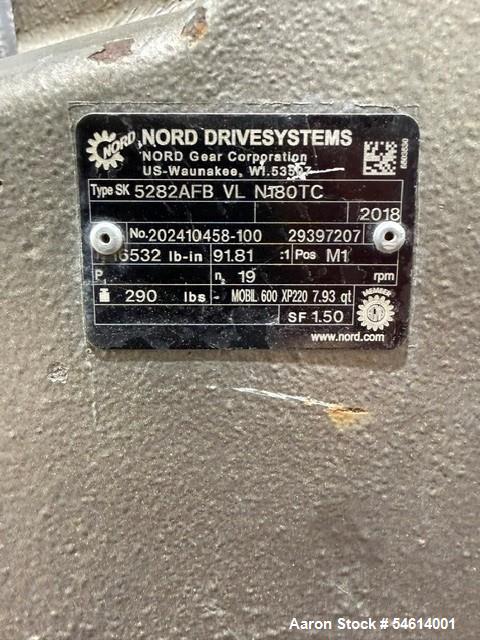

Power is supplied by a 5 HP Nord motor, configured for 3-phase, 60 Hz, 230/460V operation. The motor drives the press through a reducer with a stated 91.81:1 ratio, providing the low-speed, high-torque operation required for screw-press applications.

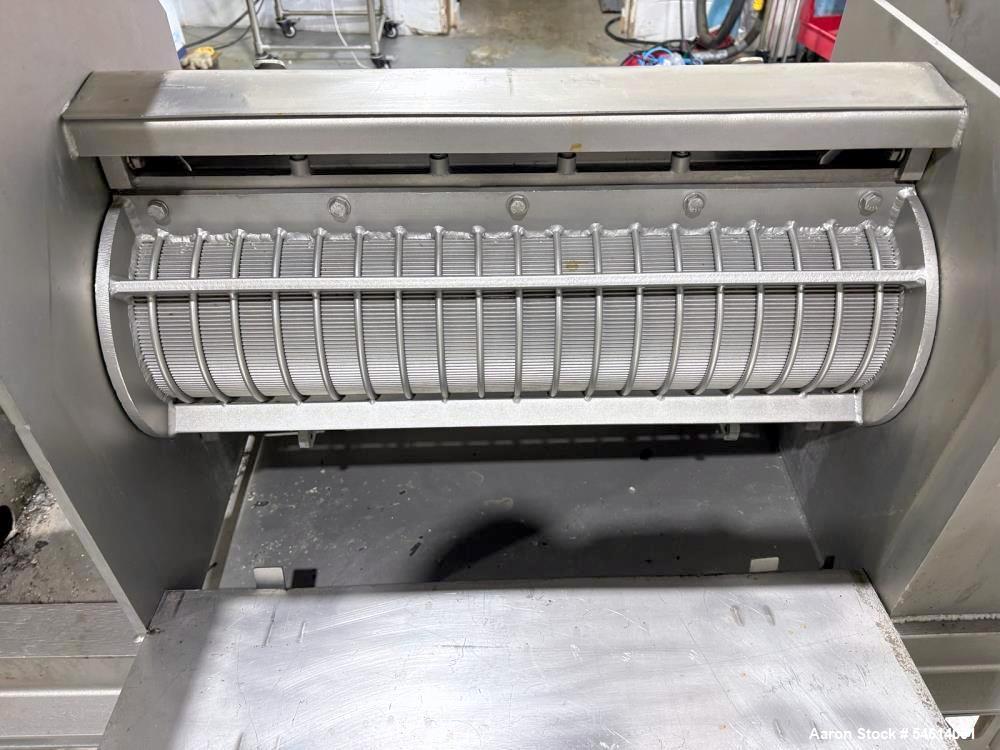

The unit is equipped with a 152-micron perforated screen for separating expressed liquid from retained solids. This configuration makes the CP-6 suitable for compatible applications involving product dewatering, liquid extraction, fiber separation, solids concentration, and waste-stream volume reduction.

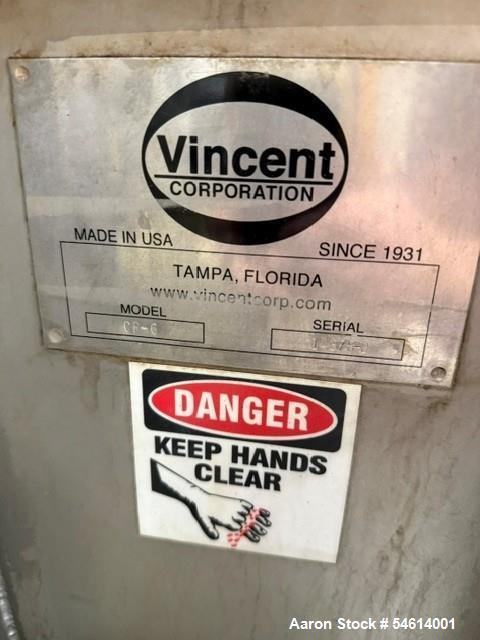

Serial Number 14375-D.

Specifications

Typical Applications

• Liquid-solid separation
• Product dewatering
• Fiber dewatering
• Process waste reduction
• Liquid extraction
• Solids concentration
• Food processing
• Agricultural processing
• Biomass dewatering
• Byproduct recovery
• Waste-stream processing
• Continuous pressing operations

Products & Materials This Screw Press Could Be Used For

• Fruit and vegetable pulp
• Food-processing byproducts
• Fibrous organic materials
• Agricultural products
• Biomass
• Spent grains
• Process fibers
• Pulp materials
• Wet solids
• Organic waste streams
• Compatible industrial slurries
• Other suitable liquid/solid mixtures

Actual throughput and separation performance depend heavily on feed composition, solids content, particle size, moisture level, screen configuration, desired discharge consistency, and operating conditions.

Frequently Asked Questions

• What is the capacity of the Vincent CP-6? The stated approximate capacity is 300–1,000 pounds per hour, depending on the material and required separation performance.
• What size screw does the press use? This CP-6 features a 6" diameter x 32" long screw operating at approximately 20 RPM.
• What screen is installed? The press is equipped with a 152-micron perforated screen for liquid-solid separation.
• What powers the screw press? The unit is driven by a 5 HP Nord motor rated for 3/60/230/460V service through a 91.81:1 ratio reducer.
• What is a horizontal screw press typically used for? Screw presses continuously compress suitable wet materials to separate free liquid from solids, making them useful for dewatering, extraction, solids concentration, and process-waste reduction.
• Can Aaron Equipment assist with shipping and logistics? Yes. Aaron Equipment can assist with loading, freight coordination, domestic and international transportation, and logistics for screw presses and other industrial separation and dewatering equipment.
