Used Equipment Facts About This Machine
Manufacturer Information
- Brand: Dusenberry
- Model: 815 Duplex Score Cut Slitter-Rewinder
- Condition: Used
- Web Width: 72"
- Drive System: 25 HP DC Motor + 15 HP DC Motor (Dual Drive System)
Description

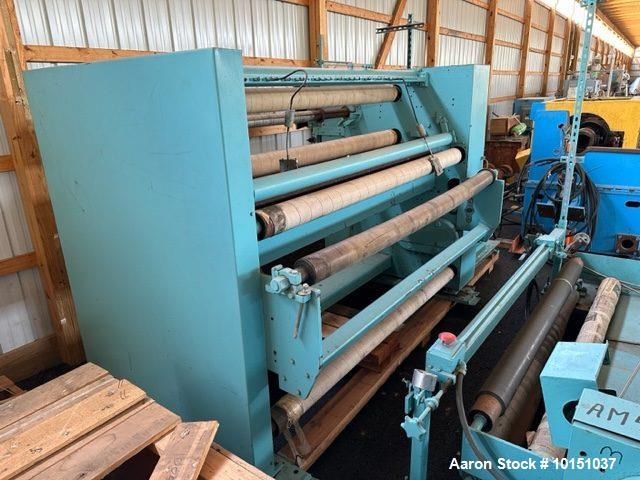

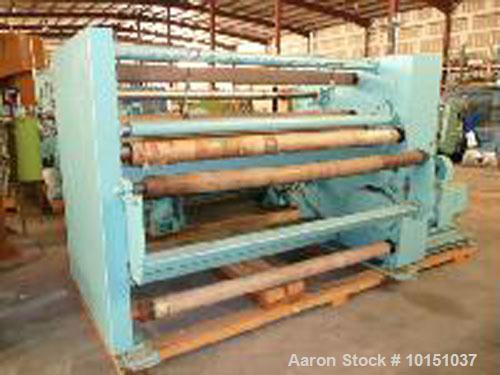

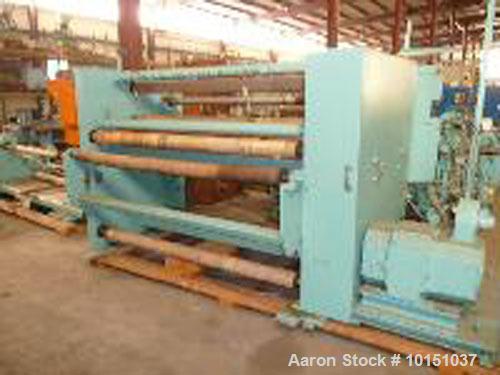

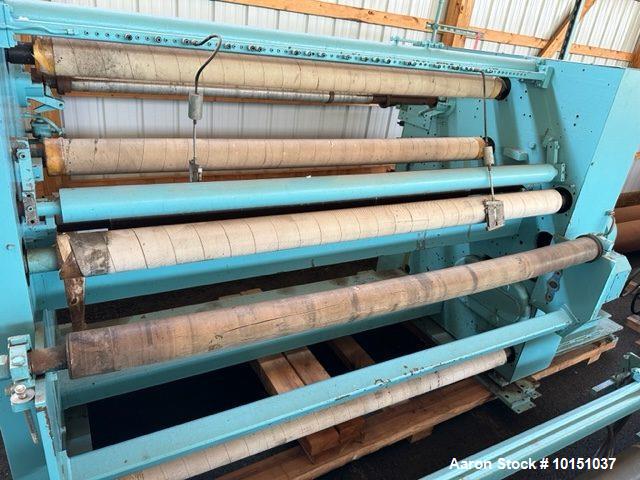

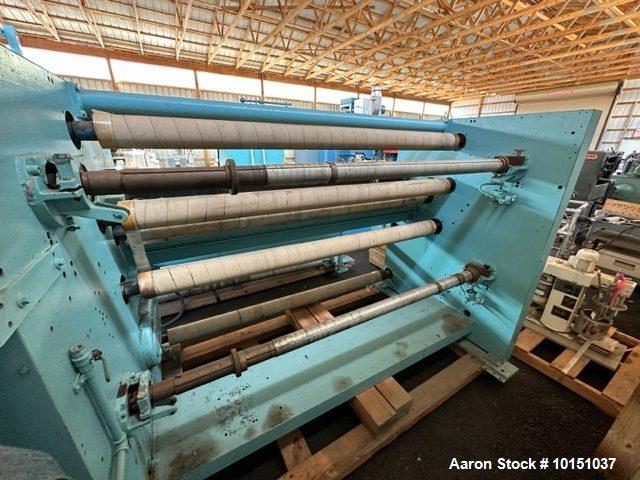

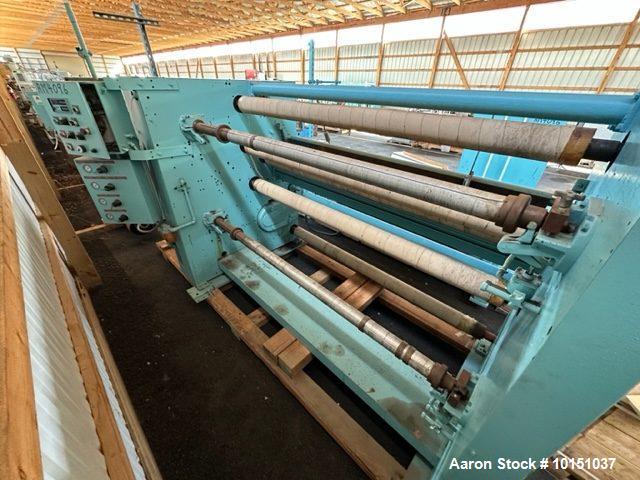

This Used Dusenberry Model 815 Duplex Score Cut Slitter-Rewinder is a versatile and heavy-duty slitting and rewinding system, capable of processing web materials up to 72” wide. It features a duplex differential center wind design with score slitting assembly, enabling precise and consistent slitting for a variety of materials such as films, papers, laminates, and flexible packaging.

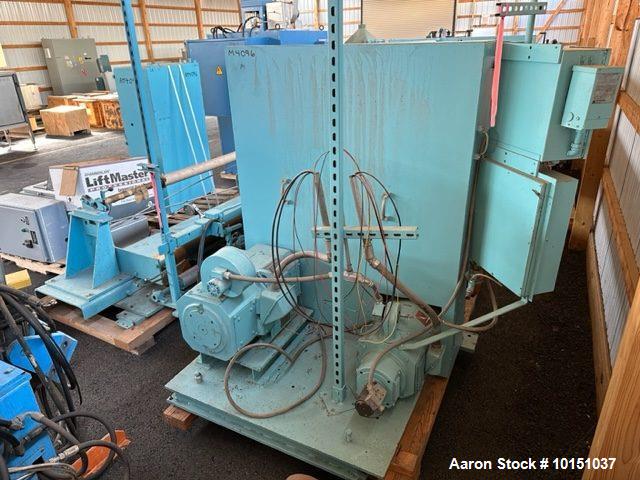

The system includes dual drive control, with a 25 HP DC drive and 15 HP DC drive, ensuring optimal tension control and winding performance. It is presently configured for one zone control per winding shaft, capable of producing 28" maximum diameter finished rolls on 3" cores.

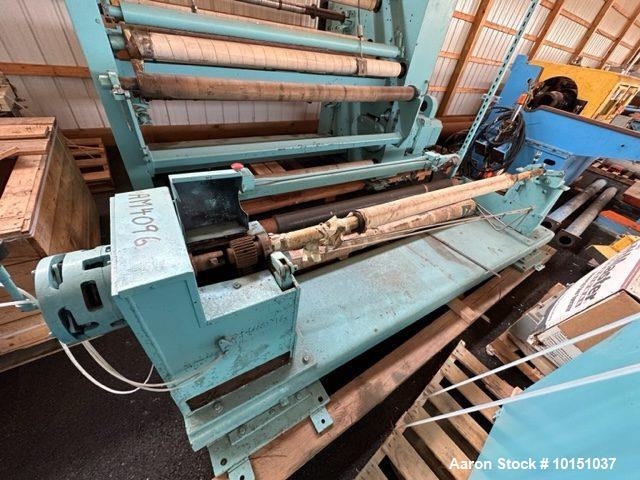

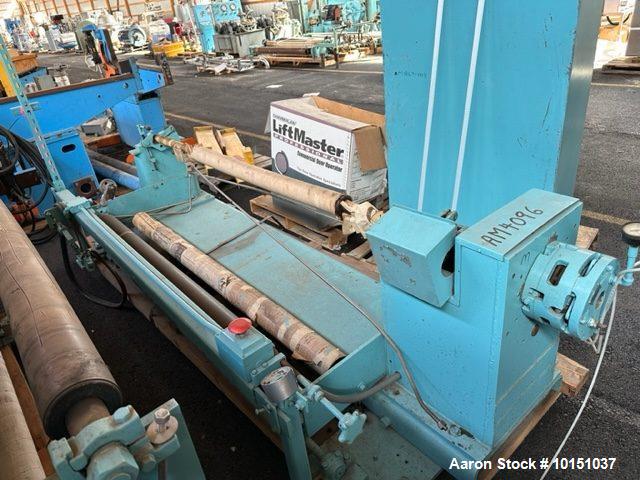

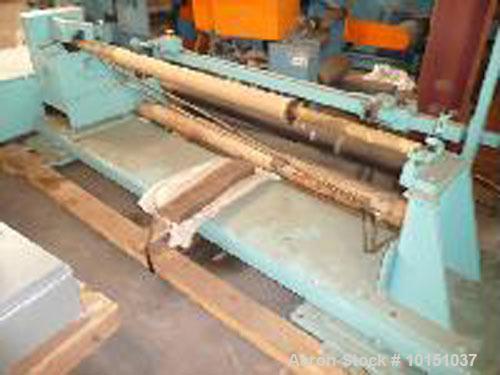

A separate Dusenberry Model 863 AK Single Station Unwind is included, designed to handle 40" diameter mill rolls on 3" cores, complete with a Fife guide edge system for precise web alignment.
Key Specifications
- Max Web Width: 72"
- Slitting Method: Score Cut Slitting Assembly
- Winding Type: Duplex Differential Center Wind
- Drive System:
- 25 HP DC Motor
- 15 HP DC Motor
- Winding Zones: One Zone Control Per Winding Shaft
- Finished Roll Capacity: 28" Max Diameter Rolls on 3" Cores
- Unwind Station:
- Dusenberry Model 863 AK
- Single Station Unwind
- Handles Mill Rolls Up to 40" Diameter on 3" Cores
- Includes Fife Guide Edge System for Accurate Web Tracking
Applications
- Flexible Packaging Materials
- Plastic Films & Laminates
- Paper & Nonwovens
- Pressure-Sensitive Materials
- Labelstock Slitting
- Foils & Specialty Substrates
Industries Served
- Converting & Packaging
- Printing & Label Manufacturing
- Film & Flexible Material Processing
- Paper & Pulp
- Industrial Roll Goods Production
Benefits & Features
- High-Capacity Web Width (72") – Handles a wide range of material widths
- Duplex Differential Center Wind – Provides precision winding with excellent tension control
- Score Slitting Assembly – Versatile slitting for multiple material types
- Dual Drive System (25 HP + 15 HP) – Ensures optimal motorized control and torque
- Separate Unwind Station with Fife Guide – Enhances web alignment for higher quality output
- Capable of Handling Large Mill Rolls – Up to 40" diameter on unwind
