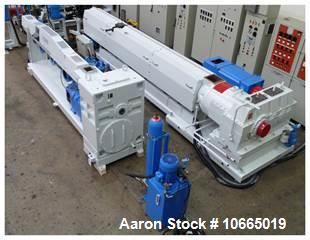

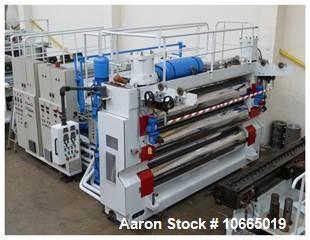

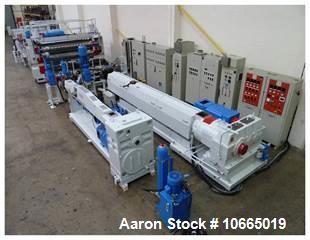

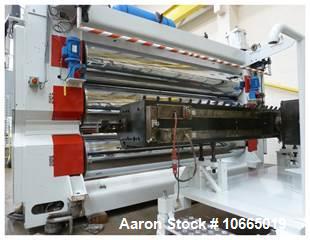

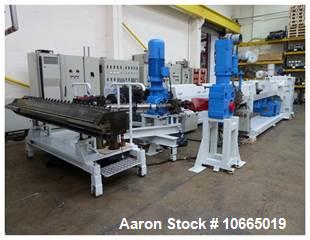

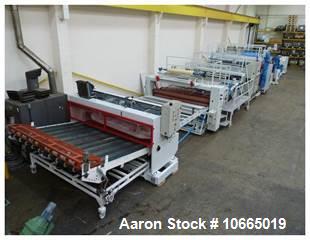

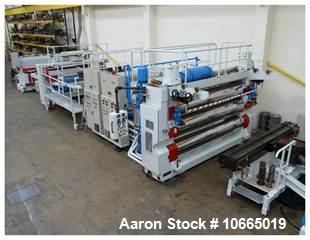

Used 2950mm (116.1") Wide Davis Standard Co-Ex Sheet Extrusion Line. 150mm (5.90") Davis Standard extruder, 115mm (4.5") Co-ex, Flex lip die, 2950mm (116.1") x 500mm(19.7") 3 roll stack, pump group, haul off, guillotine. 150mm (5.90") Davis Standard single screw extruder 33D Fan cooled barrel, 340Kw (456HP) Dc motor. Vented with vacuum pump and filter pot. Lantern screen changer. Maag 90/90 Melt pump with 30kw dc motor, 1997, Spare Screw for HDPE. 115mm(4.5") Kaufman Davis Standard 33D vented Co-extruder, fan cooled barrel, 186Kw DC drive motor, lantern slide screen changer, Normag MDSP 275 gear pump with 25Kw DC drive. Co-extrusion feedblock with selector plug layer change system 3 spare selector plugs. 2850mm (112.2") wide Simplas flex lip sheet die Fast Gap type model L4-J-RB-CN-SP-SLVC-FG/2850 Year 1998. 11 zone. 2-12mm die gap range. 2950mm(116.1") x 500mm (19.7") 3 roll polishing stack. Upstack configuration. Individual roll drives 7.5kw ac servo control. Spare emboss and chrome roll (roll out bars also). Hydraulic bottom nip, pneumatic top nip. Laminating station with operator walk ways. Multi Knife station with knife heating facility. 3 zone pump group with additional heat exchanger for ABS sheet. Top and bottom cooling fans adjustable angle. Centre cut knife facility. Operator walkways with access bridges. Film protection station with edge trim winders. 2950mm (116.1") wide 2 roll haul off with dc motor. Option of further film masking unit. Option of 2 off thick sheet edge trim guilotine units. 3000mm (118") wide Stilmax guillotine. 7.5kw. Year 2002. 3000mm (118") wide exit conveyor table.
Used 2950mm (116.1") Wide Davis Standard Co-Ex Sheet Extrusion Line. 150mm (5.90") Davis Standard extruder, 115mm (4.5") Co-ex, Flex lip die, 2950mm (116.1") x 500mm(19.7") 3 roll stack, pump group, haul off, guillotine. 150mm (5.90") Davis Standard single screw extruder 33D Fan cooled barrel, 340Kw (456HP) Dc motor. Vented with vacuum pump and filter pot. Lantern screen changer. Maag 90/90 Melt pump with 30kw dc motor, 1997, Spare Screw for HDPE. 115mm(4.5") Kaufman Davis Standard 33D vented Co-extruder, fan cooled barrel, 186Kw DC drive motor, lantern slide screen changer, Normag MDSP 275 gear pump with 25Kw DC drive. Co-extrusion feedblock with selector plug layer change system 3 spare selector plugs. 2850mm (112.2") wide Simplas flex lip sheet die Fast Gap type model L4-J-RB-CN-SP-SLVC-FG/2850 Year 1998. 11 zone. 2-12mm die gap range. 2950mm(116.1") x 500mm (19.7") 3 roll polishing stack. Upstack configuration. Individual roll drives 7.5kw ac servo control. Spare emboss and chrome roll (roll out bars also). Hydraulic bottom nip, pneumatic top nip. Laminating station with operator walk ways. Multi Knife station with knife heating facility. 3 zone pump group with additional heat exchanger for ABS sheet. Top and bottom cooling fans adjustable angle. Centre cut knife facility. Operator walkways with access bridges. Film protection station with edge trim winders. 2950mm (116.1") wide 2 roll haul off with dc motor. Option of further film masking unit. Option of 2 off thick sheet edge trim guilotine units. 3000mm (118") wide Stilmax guillotine. 7.5kw. Year 2002. 3000mm (118") wide exit conveyor table.
