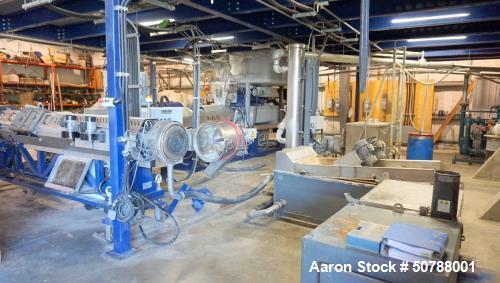

Used- MAS 90mm Twin Screw Pelletizing Line

Stock# 50788001

DOWNLOAD ALL PHOTOS FOR THIS ITEM

Stock # 50788001

HAVE A SIMILAR MACHINE FOR SALE?

DESCRIPTION

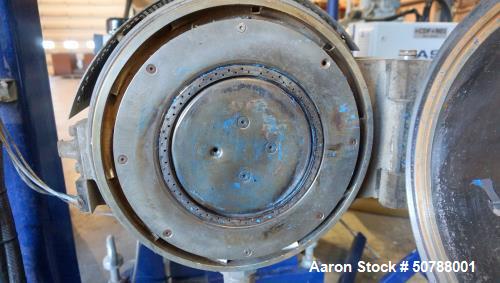

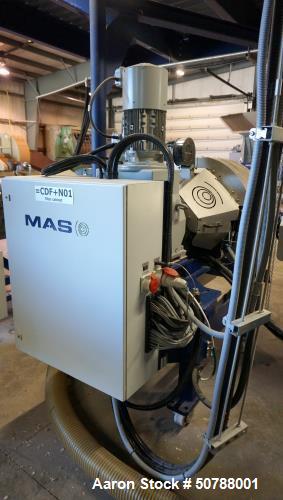

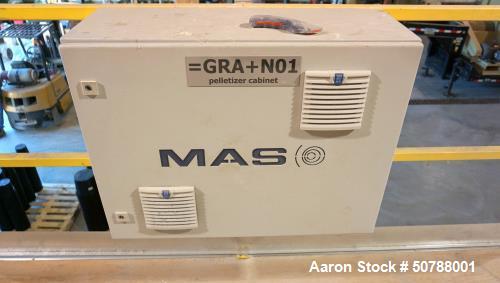

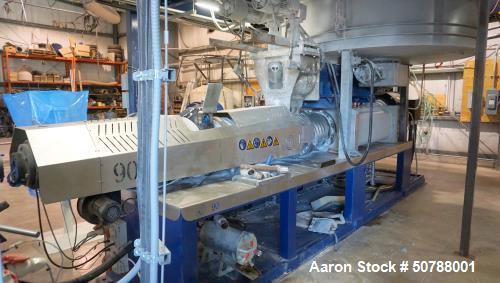

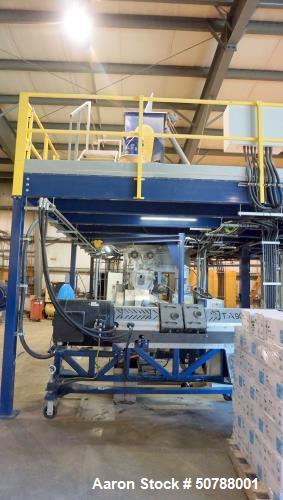

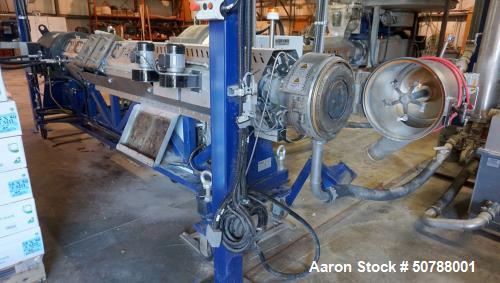

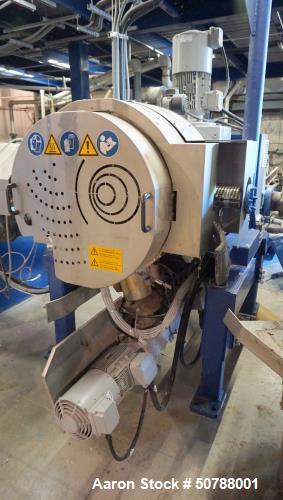

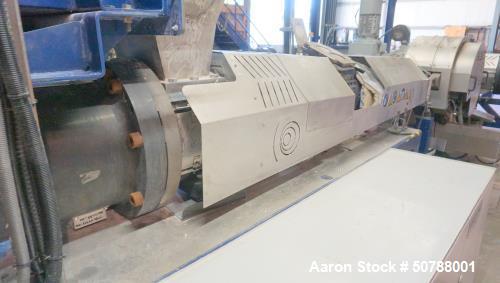

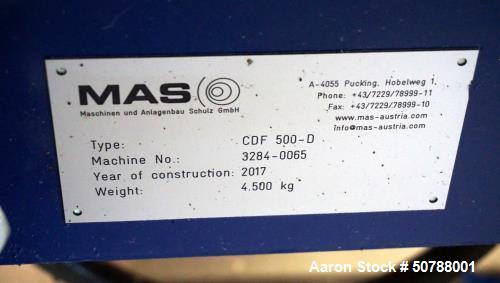

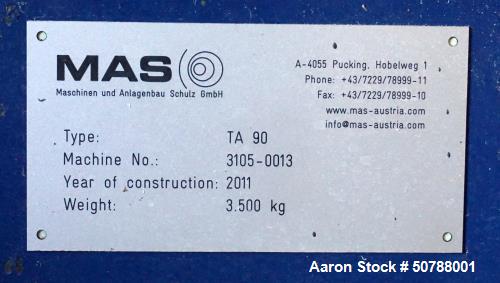

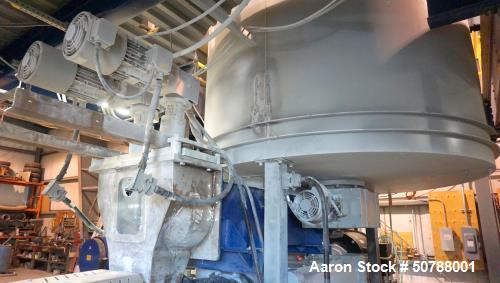

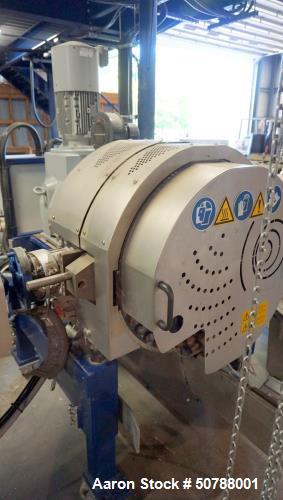

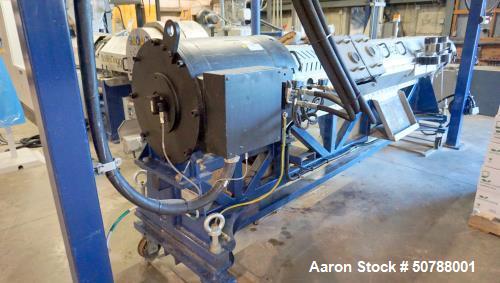

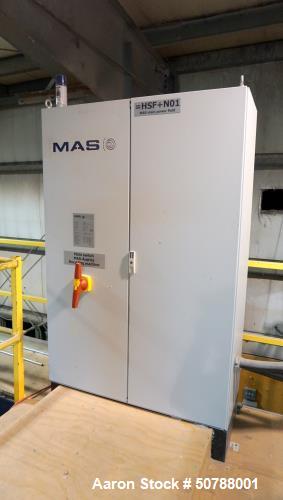

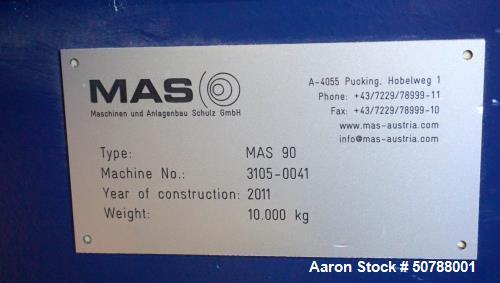

Used- MAS 90mm Twin Screw Pelletizing Line: MAS 90K 285/73DD Co-Rotating Conical Twin Screw Extruder (Built 2011 and refurbished in 2017), Rated 1000-1800 kg/hr, (2000-3960 lbs/hr), Machine # 3105-9041. 285 kW (382) HP, 150 rpm Screw Speed, (6) Barrel Zones, (2) Adapter Zones, Oil-Cooled Barrel, Vented Barrel with 5.5 kW (7.4 HP) Vacuum Pump; Feeding a MAS CDF 500-D Continuous Disc Filter, Machine # 3284-0065, Built 2017. (2) Parallel Discs), 3,280 sq. ft. Filter Surface Area, 1,300-2,000 kg/hr, (2,600-4000 lbs/hr) Throughput. Feeding a MAS 90 K Cascade Single Screw Extruder, Machine # 3105-0013, Built 2011. 180 mm Screw Diameter, 12:1 L/D Ratio, 75 kW (100) HP, Air Cooled Barrel, 2 Vent Openings With 5.5KW (7.4HP) Vacuum Pump. Feeding an Erema Water Ring Pelletizer, Model HG 244-D. Twin Vacuum Pumps, Electrical Controls, MAS SC 700 Vacuum Oven, ARC Force 30 X 30 Free Standing Mezzanine. Central Control Panel To Operate Both Extruders, 15" Touch Screen Interface.
