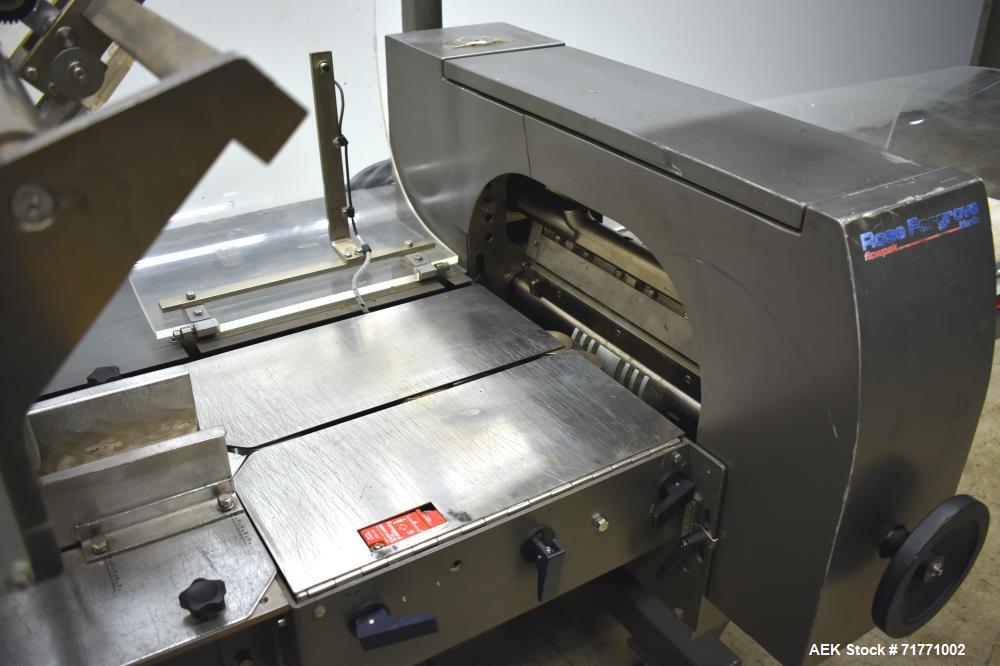

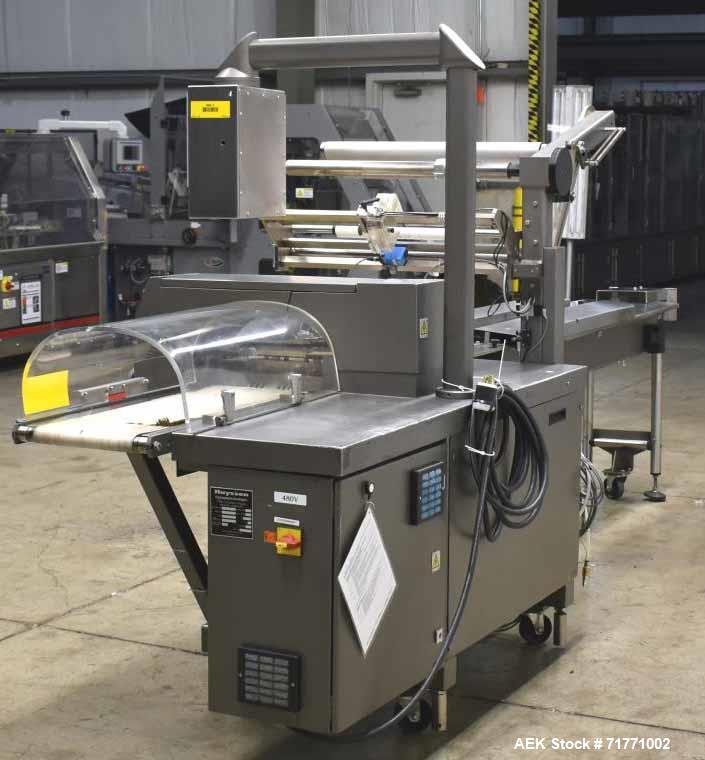

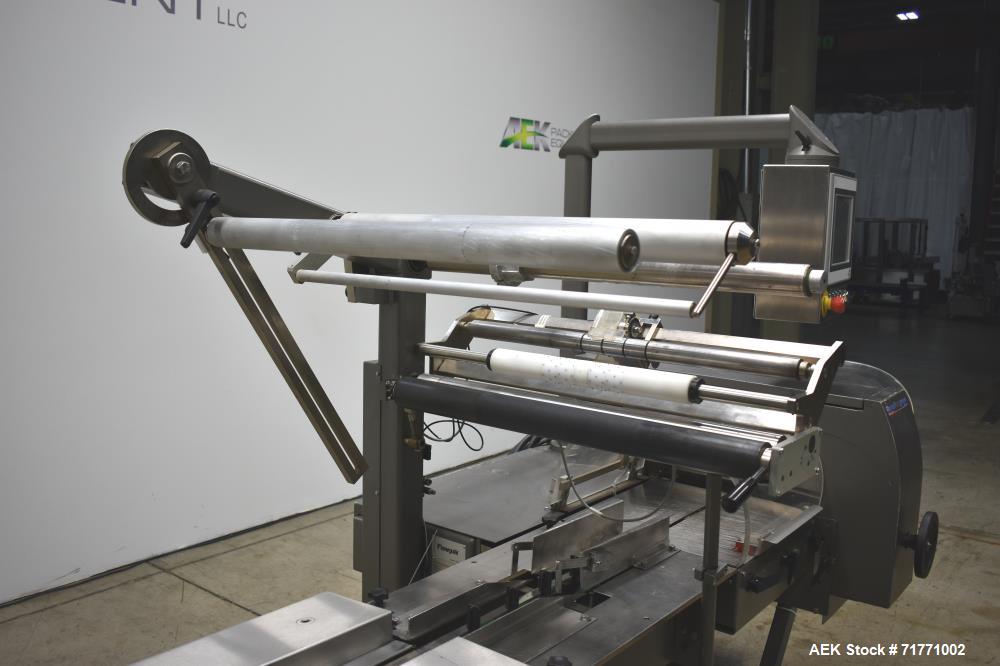

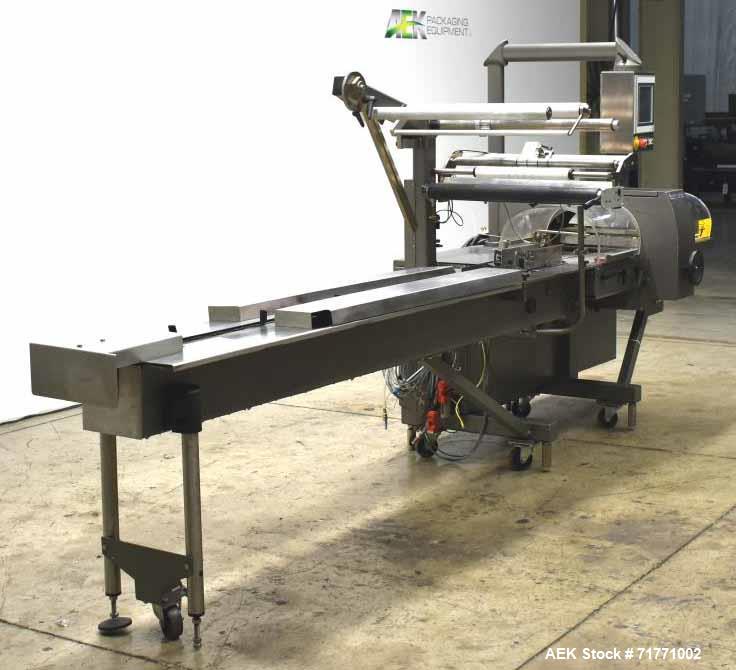

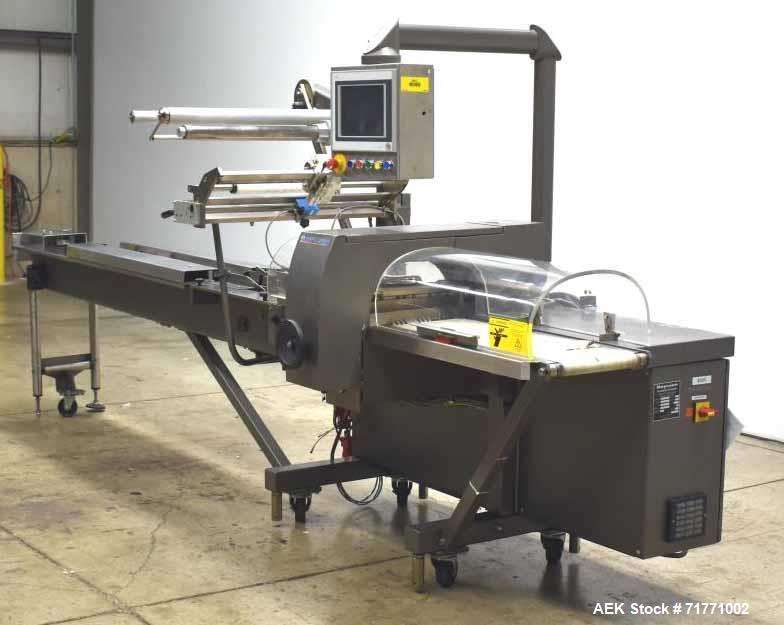

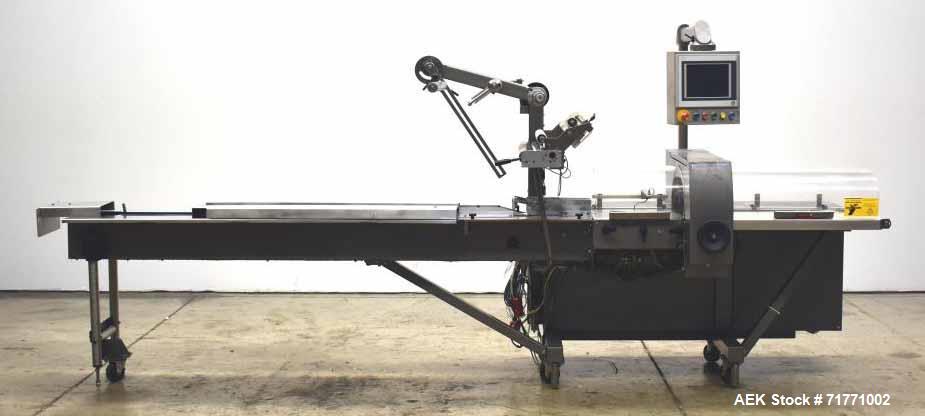

Used- Rose Forgrove Model RF305 Merlin Automatic Horizontal Wrapper
Stock# 71771002
DESCRIPTION

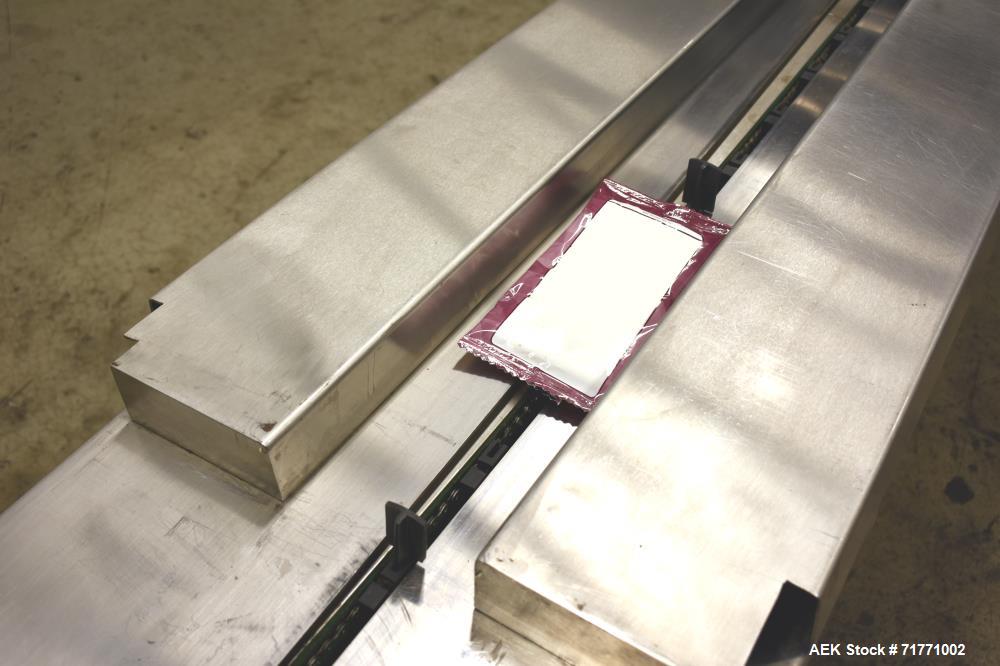

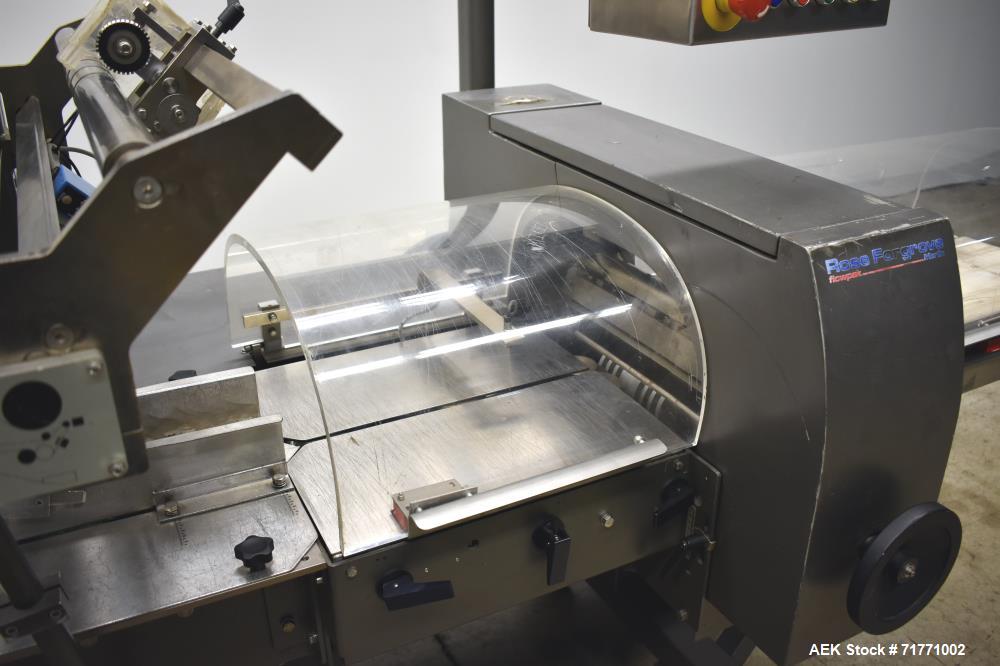

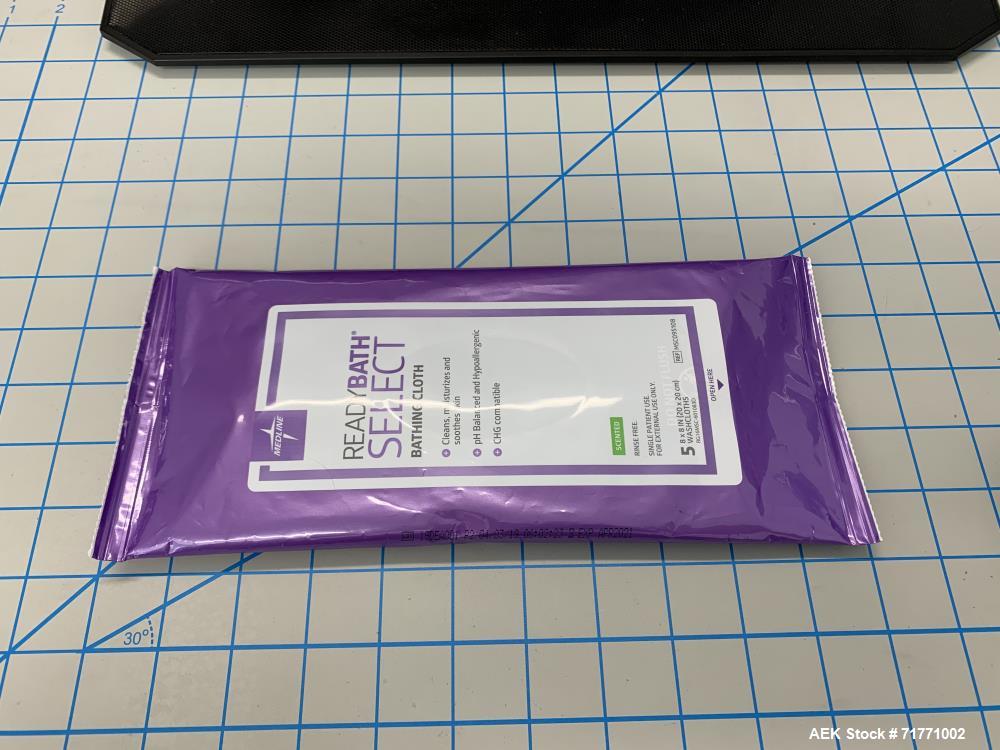

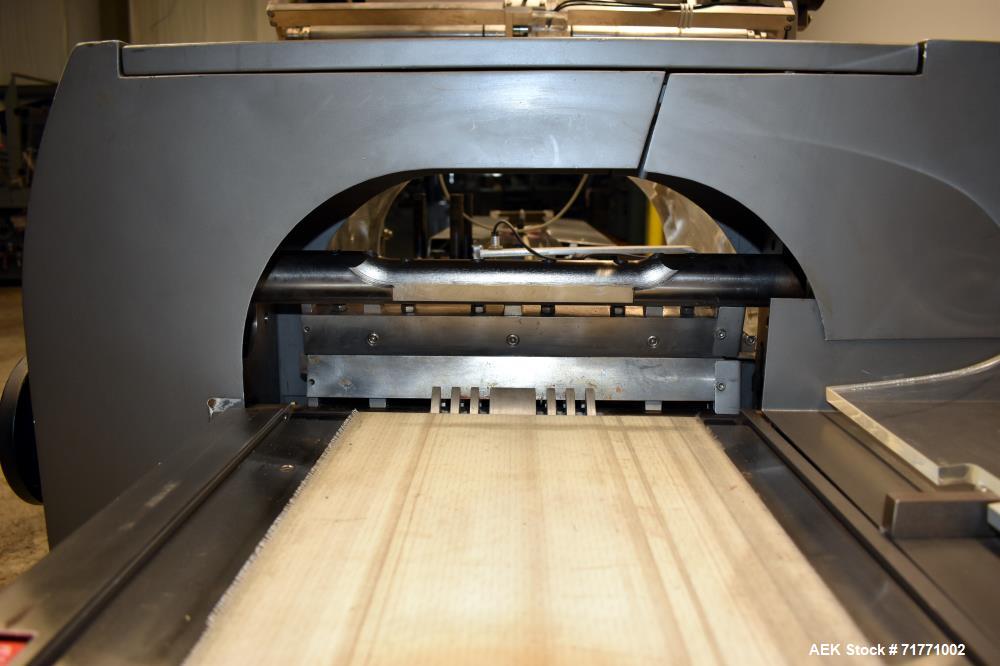

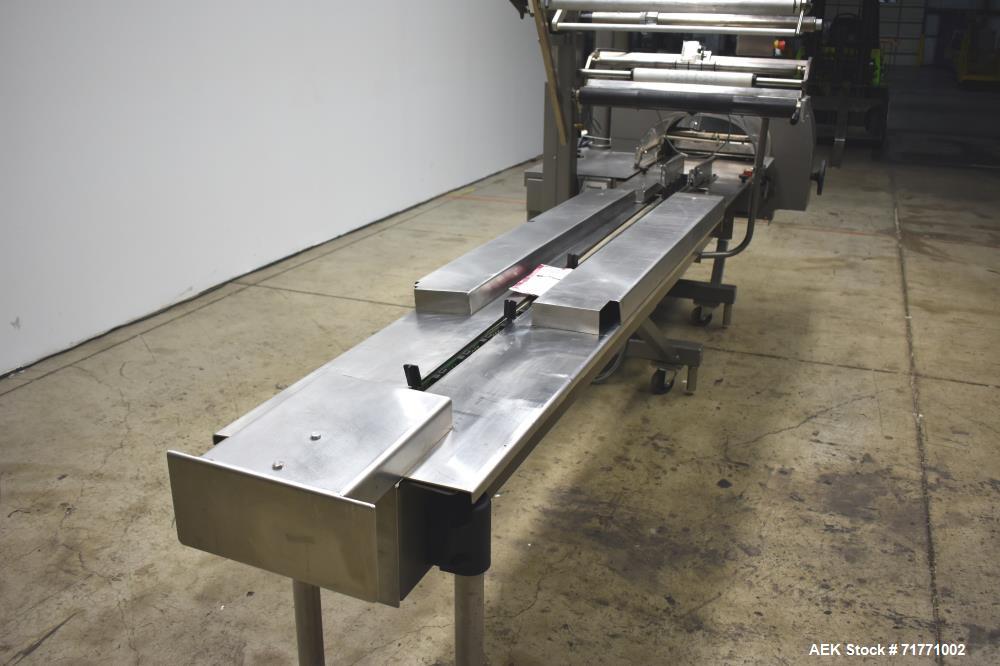

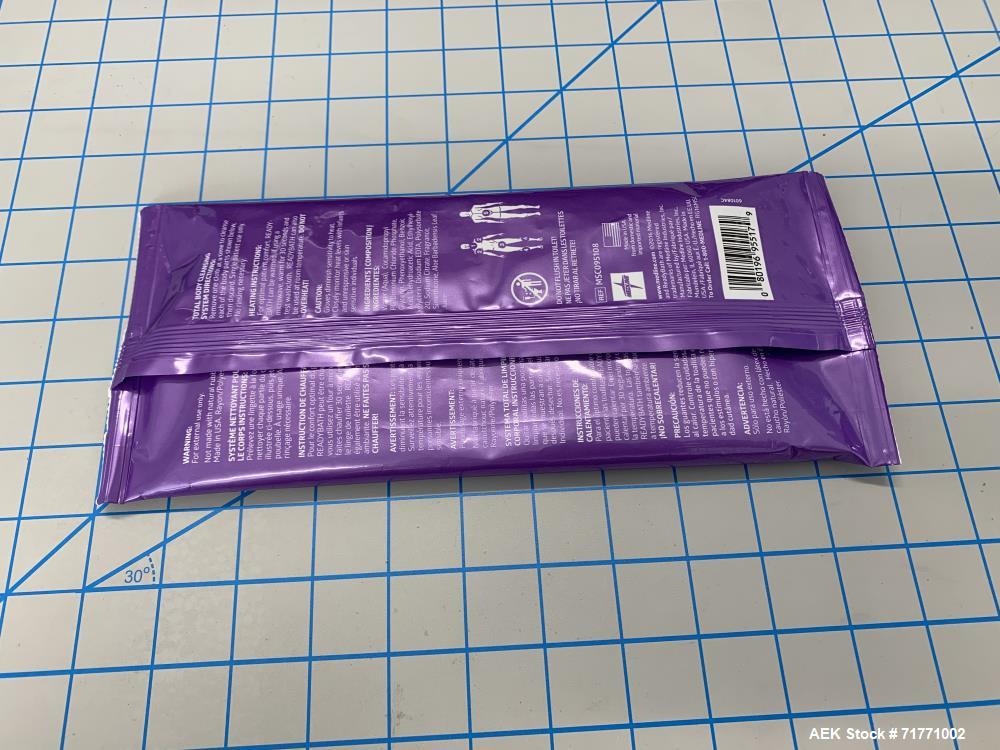

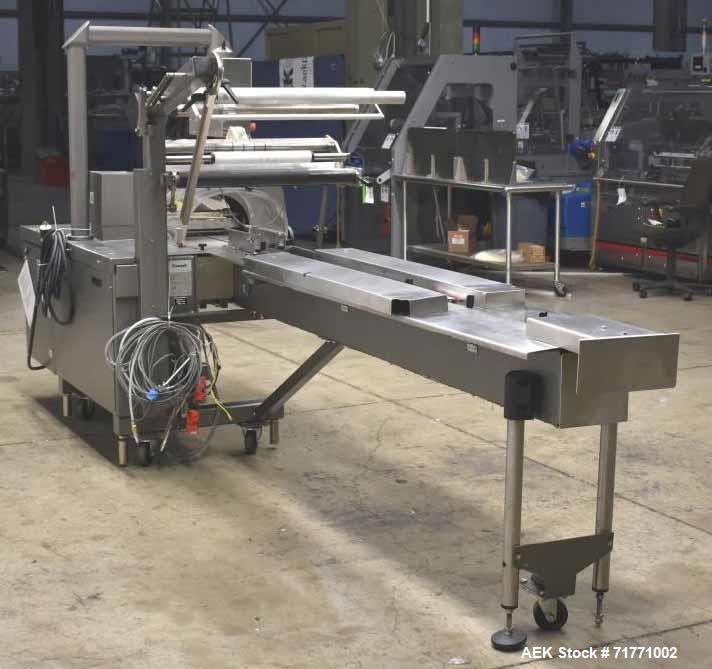

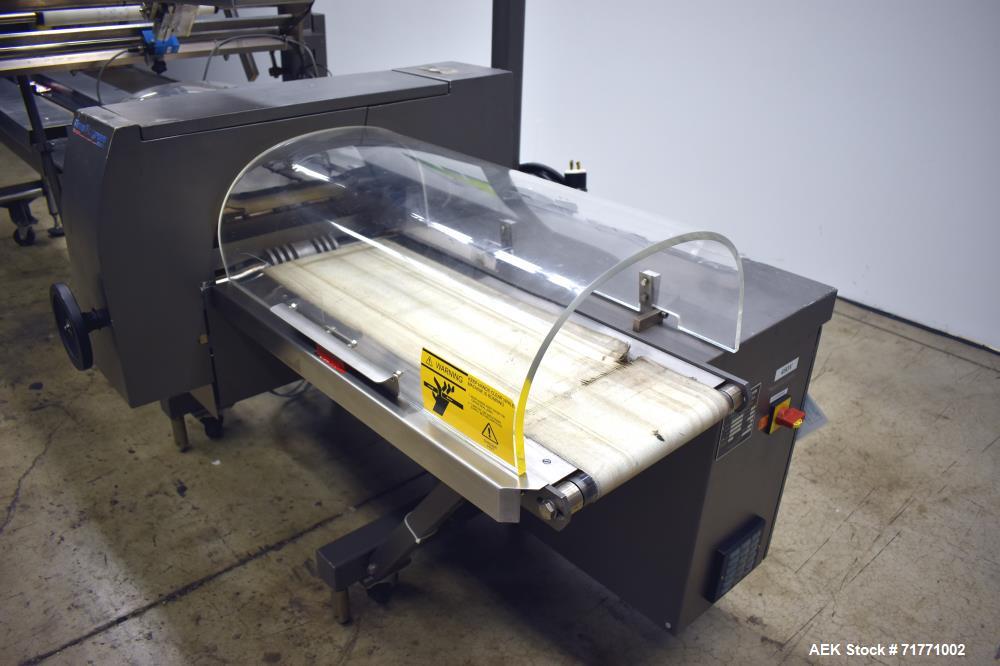

Used- Rose Forgrove Model RF305 Merlin Horizontal Wrapper. Rated up to 100 products per minute-depending on materials and application. Product size range: (Length) 6" - 14.5", (Width) 1"- 11.8", (Height) .25" - 2.95". Has 6' long lugged chain infeed with variable centers spacing in 4" increments. Fixed former, last running 9.5"L x 4.5" W x .5" H pouch. Accepts registered, resistance sealed film, 28" web width, up to 13" in Diameter, 3" core. 1-up, 16" wide end seal with horizontal lines and straight line scissors cut, with tear notch and optional pin perforation. Interlocking Lexan safety guarding and 11" wide x 34" long discharge belt conveyor. CE Certified. Mounted on Casters. 3/60/460V. Retooling, set-up and testing services are available. Contact AEK for more information.
SPECIFICATIONS
| Manufacturer | Rose Forgrove |
| Model | RF305 |

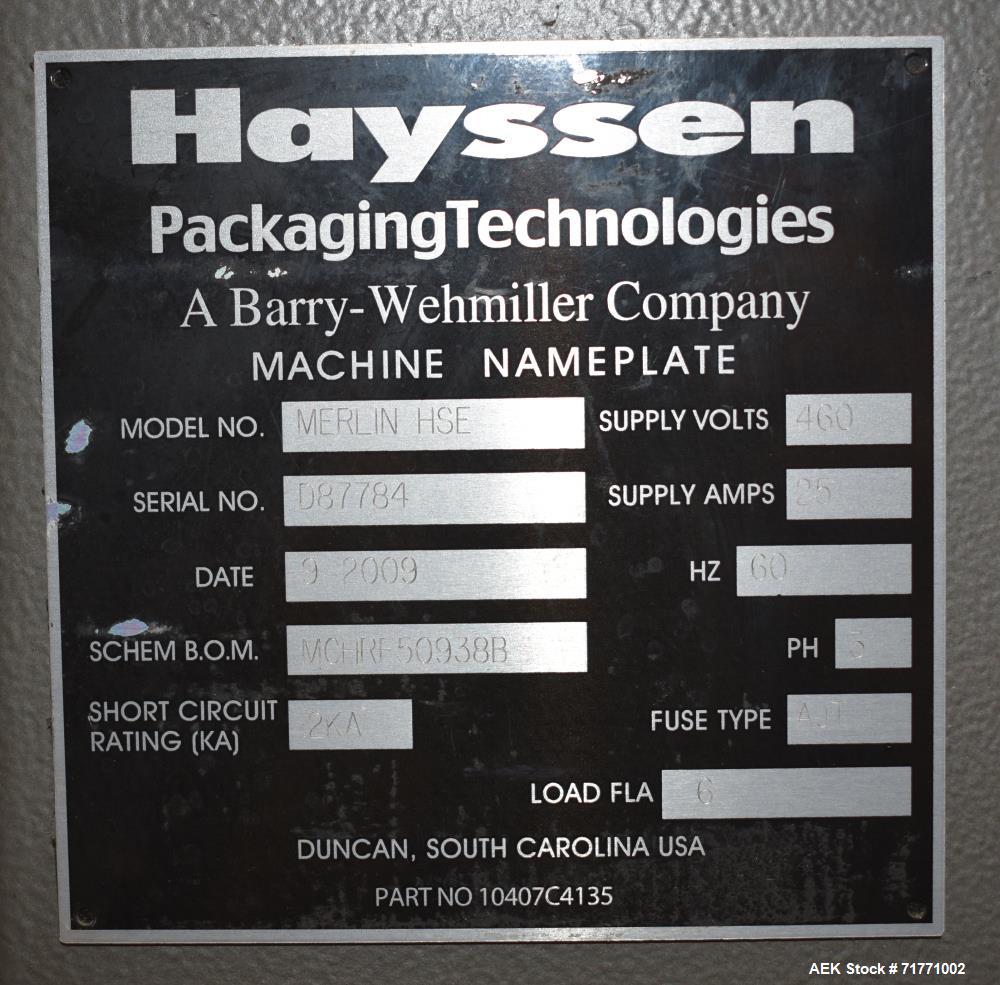

| Serial # | 50938 |
| Category | Packaging EquipmentPackaging Equipment |
| Subcategory | Wrappers - Horizontal FlowWrappers - Horizontal Flow |
| Model Number | RF305 |
| Speed Range CPM | 100ppm |
| Package Size Range (Length) | maximum 14.5" |
| Package Size Range (Width) | 11.8" in Width |
| Package Size Range (Height) | 2.95" in Height |
| Print Registraion | Yes |
| Brand of PLC | N/A |
| Number of End Seal Jaws | 1 Up |
| End Seal Jaw Width | 16" |
| End Seal Jaw Lines | Horizontal |
| End Seal Cut Off | Scissors Knife |
| Height Between End Seal Shafts | 4" |
| Infeed Type | Manual |
| Length of Infeed | 8' |
| Center Distance on Infeed Lugs | Adjustable |
| Discharge Belt Size (W x L) | 11" W x 34" L |
| Number of Web Arbors | Single |
| Film Web Width | 28" |

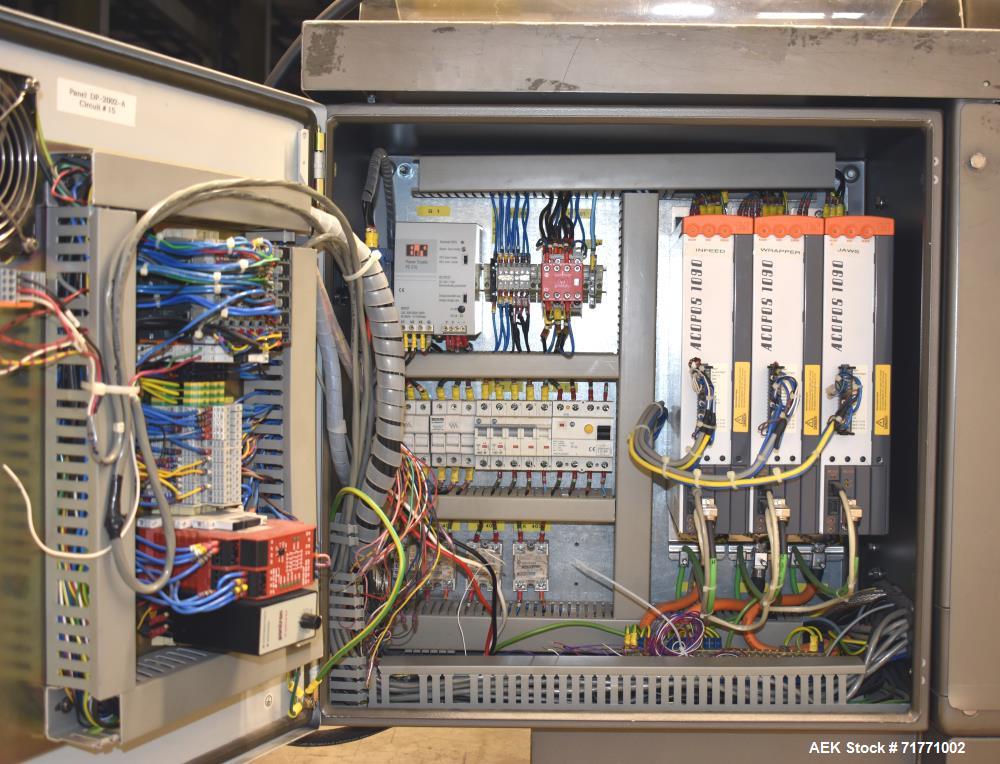

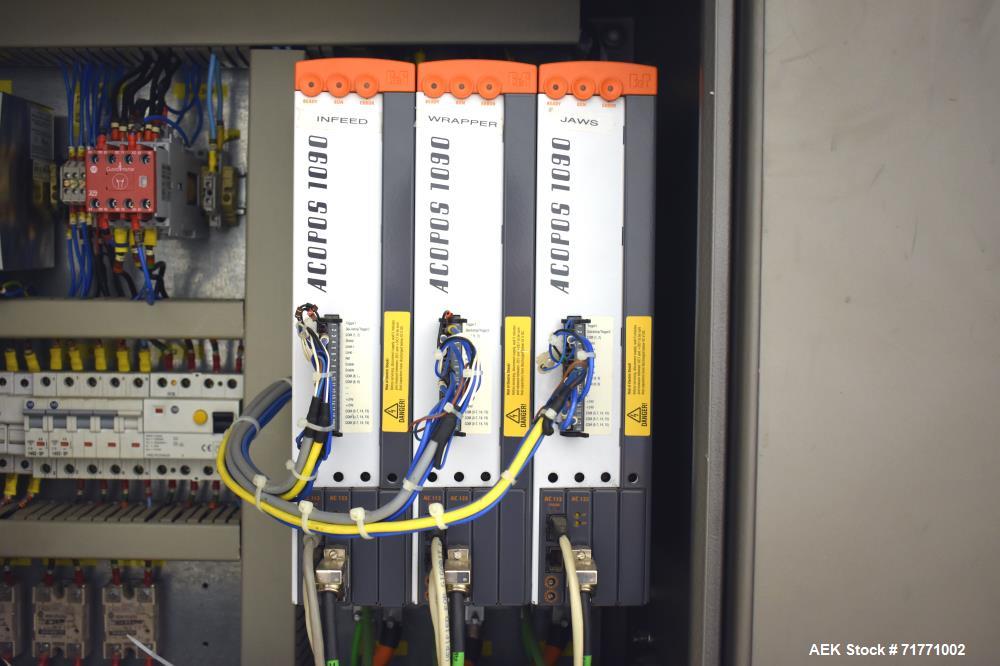

| Brand of Servo | Acopos 1090 |
| Current Voltage | 460V |
| OAD (Length) | 123 |
| OAD (Width) | 49 |
| OAD (Height) | 74 |
| Manual | Yes |
| Date Coder | N/A |
| Casters | Yes |
| Gas Flush | No |
| Hole Punch | Yes |
| Splice Table | No |
| Low Film Sensor | No |
| High Product Detection | No |
| Year Built | 2009 |
PRODUCT DETAILS
- Used Rose Forgrove Model RF305 Merlin Automatic Horizontal Wrapper
- Rose Forgrove RF305 Merlin Automatic Horizontal Wrapper
- Automatic Horizontal Wrapper
- Horizontal Wrapper
- Wrapper
- Rose Forgrove Horizontal Wrapper
- Wrapper
- RF305 Merlin Horizontal Wrapper
- Used Packaging Machinery
- Used Wrapper
- Used Horizontal Wrapper
- Used Rose Forgrove Horizontal Wrapper
