Stock #
72886001

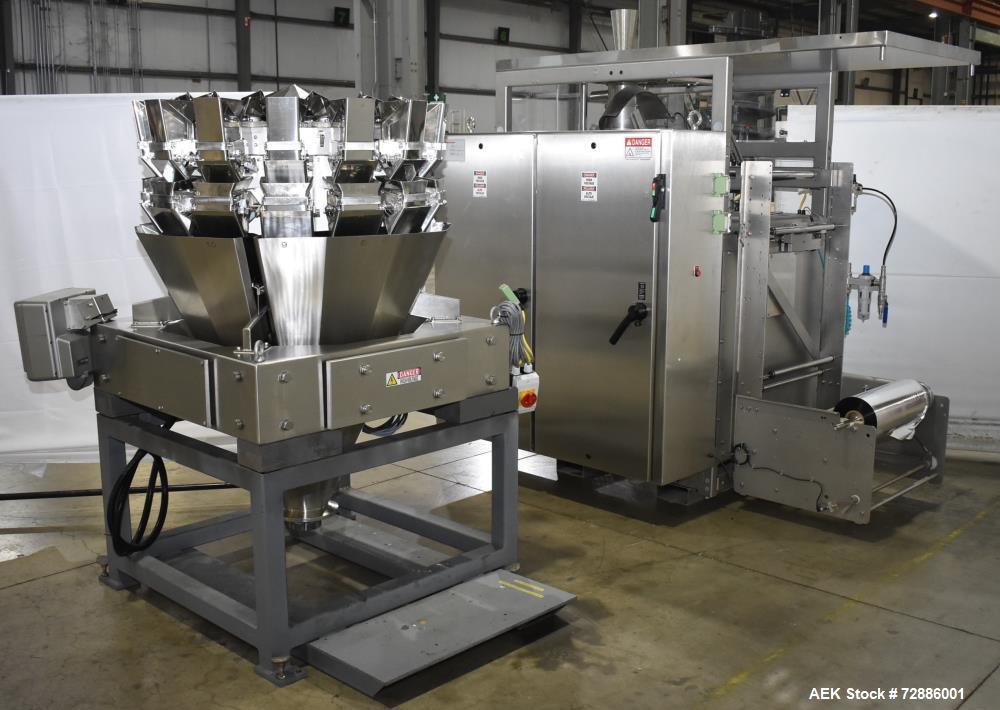

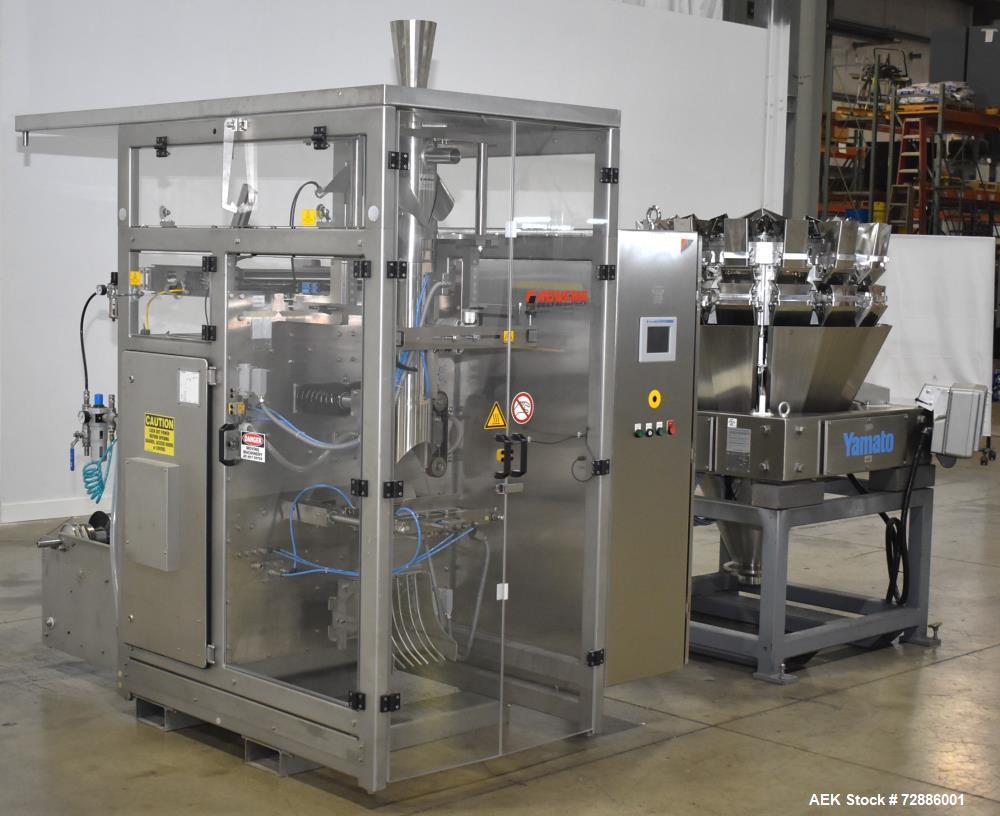

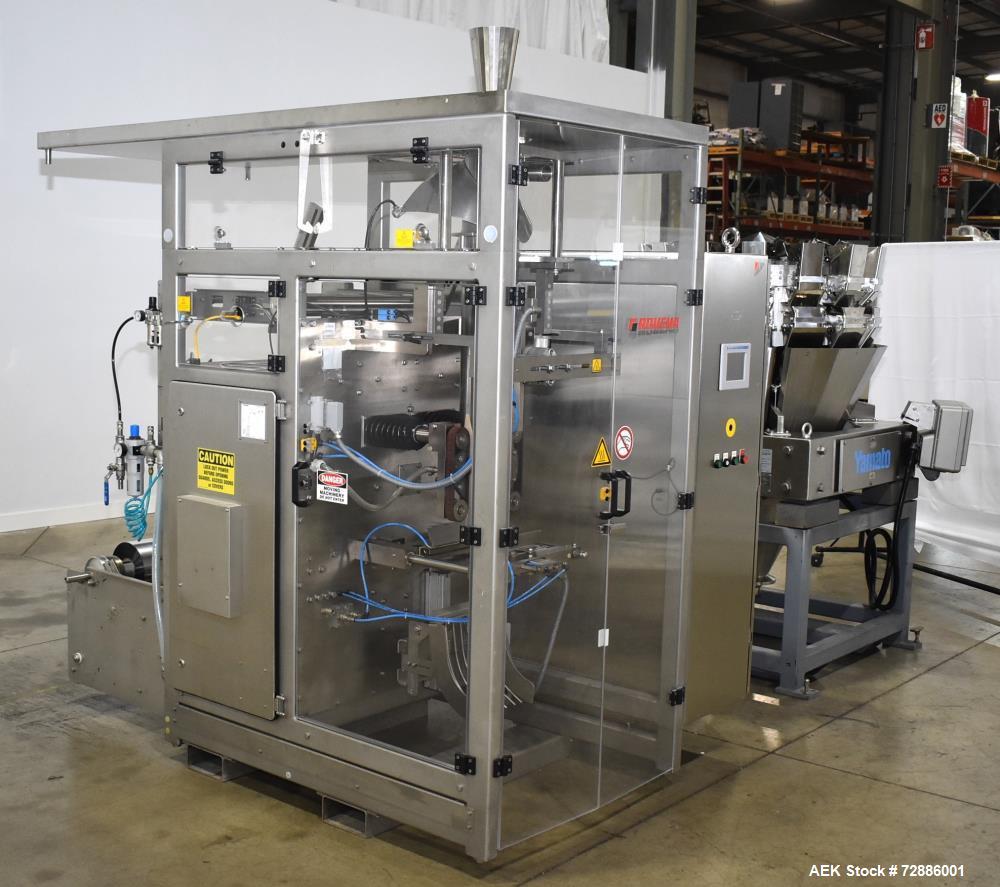

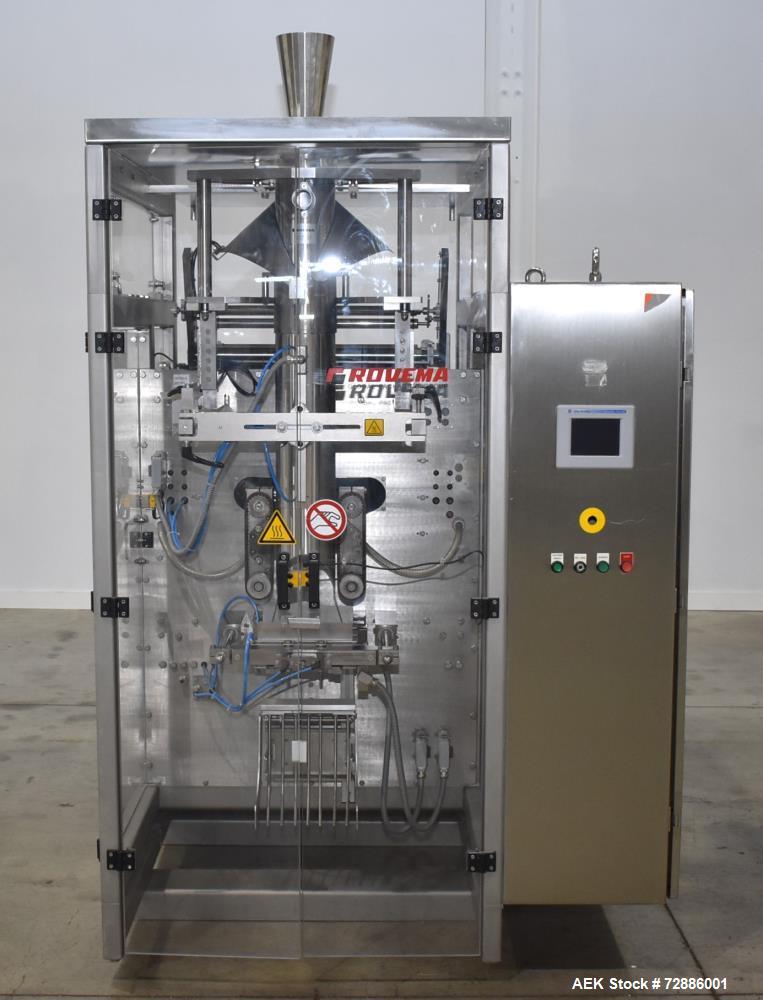

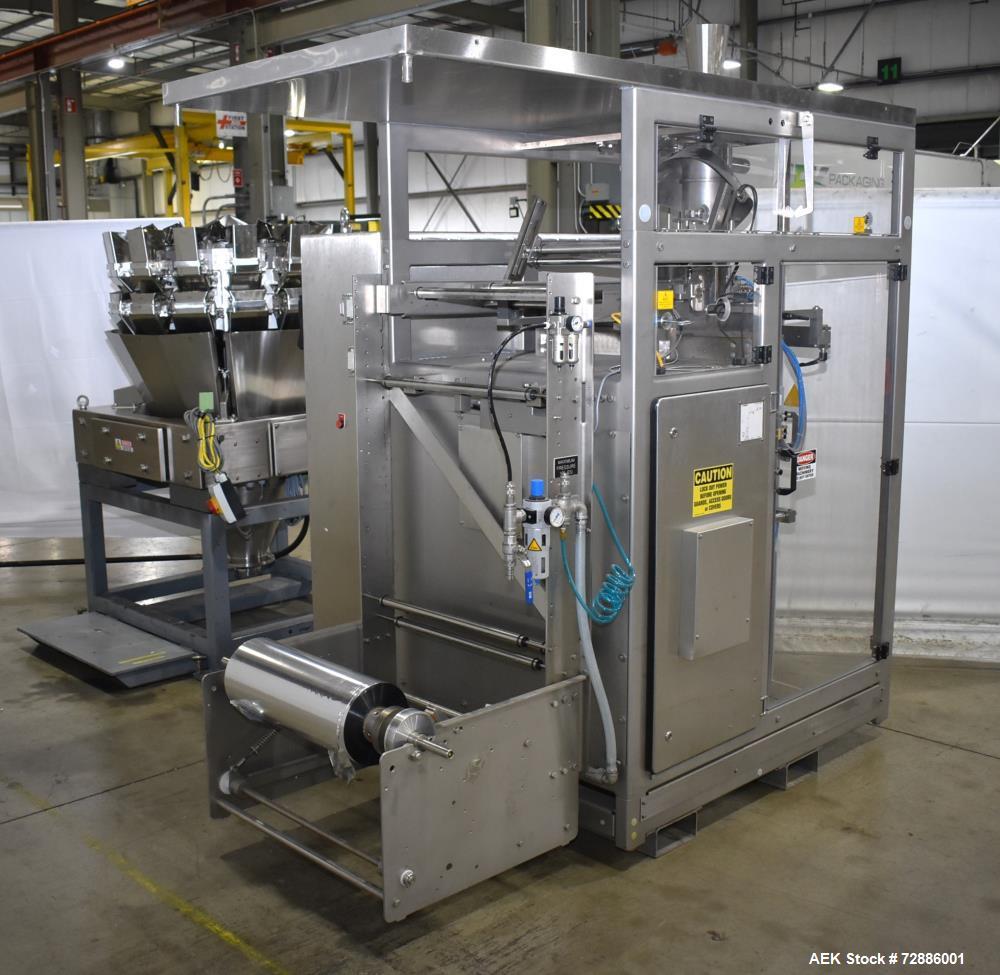

Used Rovema Model VPI-260 Vertical Form Fill Seal Machine. Capable of speeds up to 120 PPM. Bag Size Range from: 2-3/8" - 10-7/32" or 60mm - 260mm (width) x 1-19/32" - 13-3/8" or 40mm to 340mm (length). Seal bar 11"L x 1-1/4" wide. Current former 255mm (#50194). Has print registration, Allen Bradley PA3 PLC controls, Allen Bradley Panelview Plus 600 HMI, Allen Bradley Kinetix 6000 servo drive. Last running with Yamato Scale which is sold separately. Request quote for scale item 72886001
Used Equipment Facts About This Machine
Manufacturers Info:
- Manufacturer: Rovema
- Model: VPI-260 Vertical Form Fill Seal (VFFS) Machine
- Condition: Used
- Speed Capacity:
- Bagger: Up to 120 Packages Per Minute (PPM)
- Weigher: Up to 130 Packages Per Minute (PPM)
- Bag Size Range:
- Width: 2-3/8" - 10-7/32" (60mm - 260mm)
- Length: 1-19/32" - 13-3/8" (40mm - 340mm)

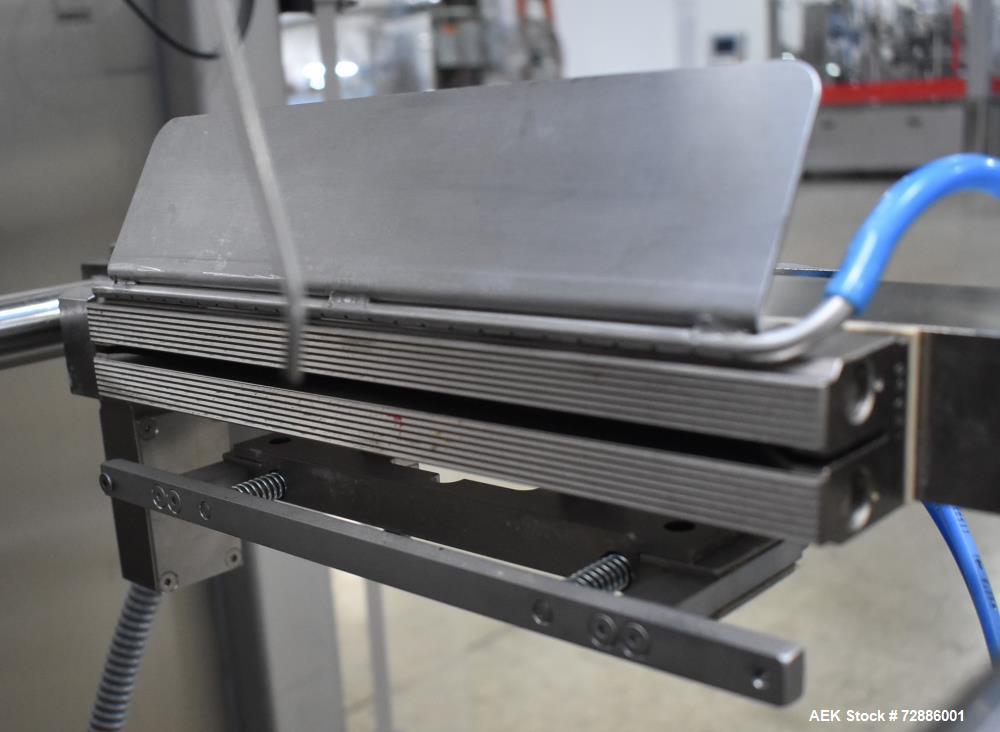

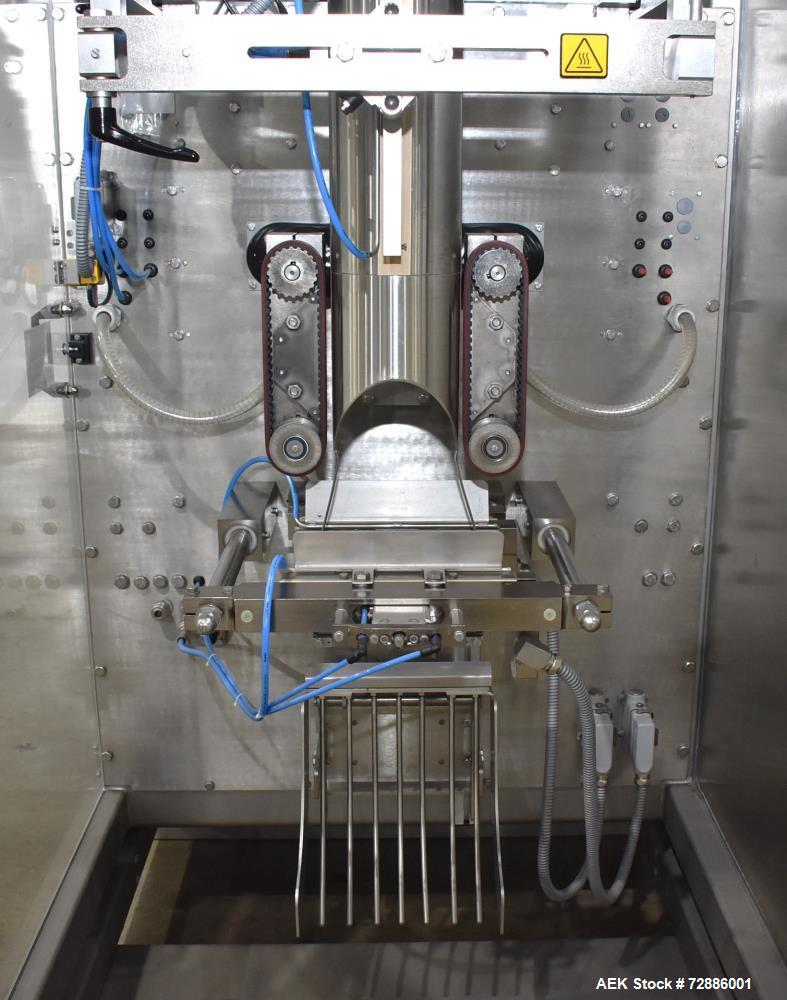

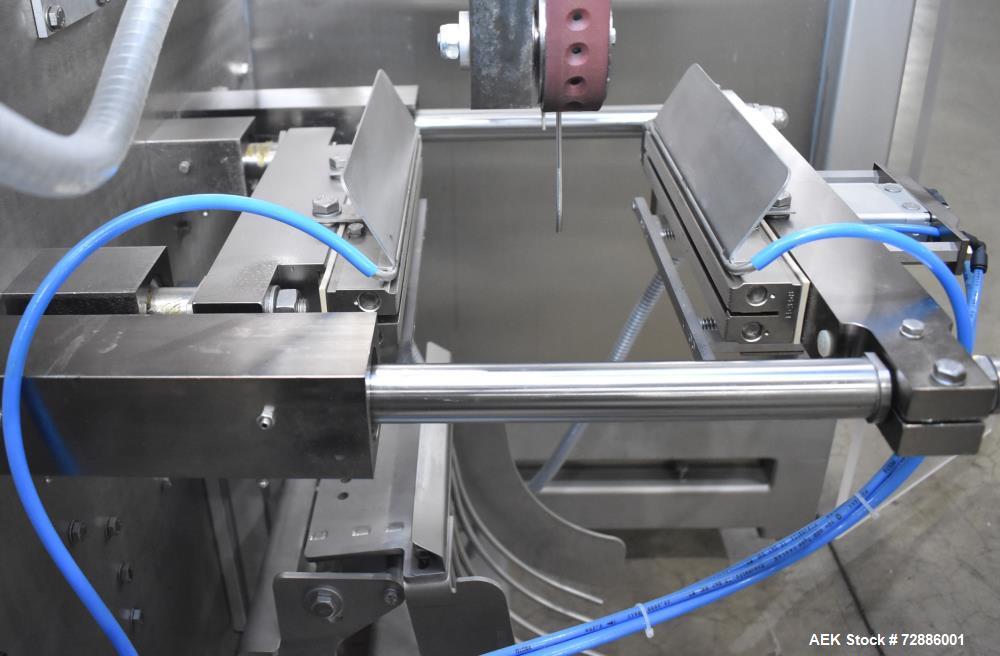

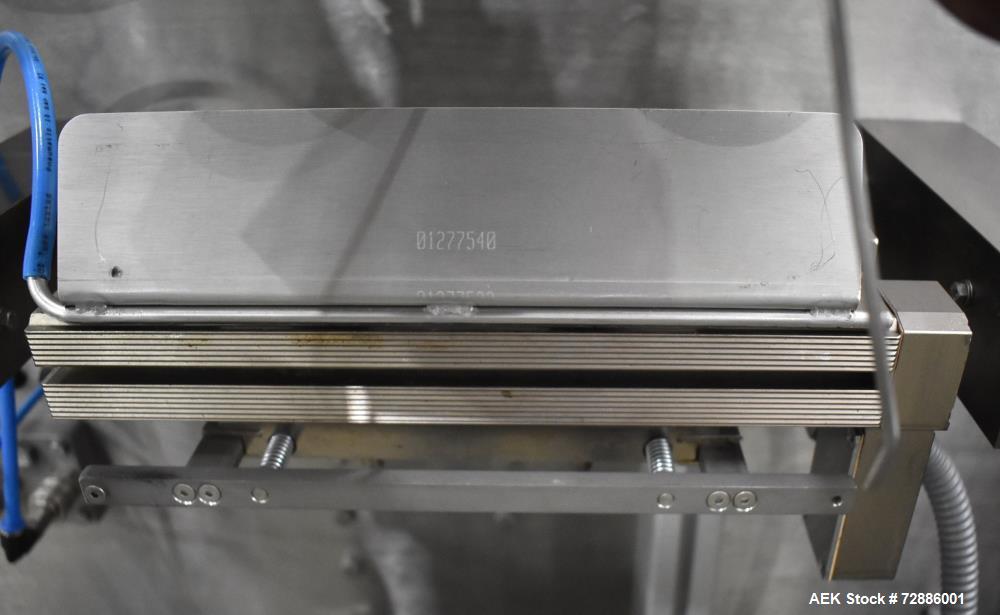

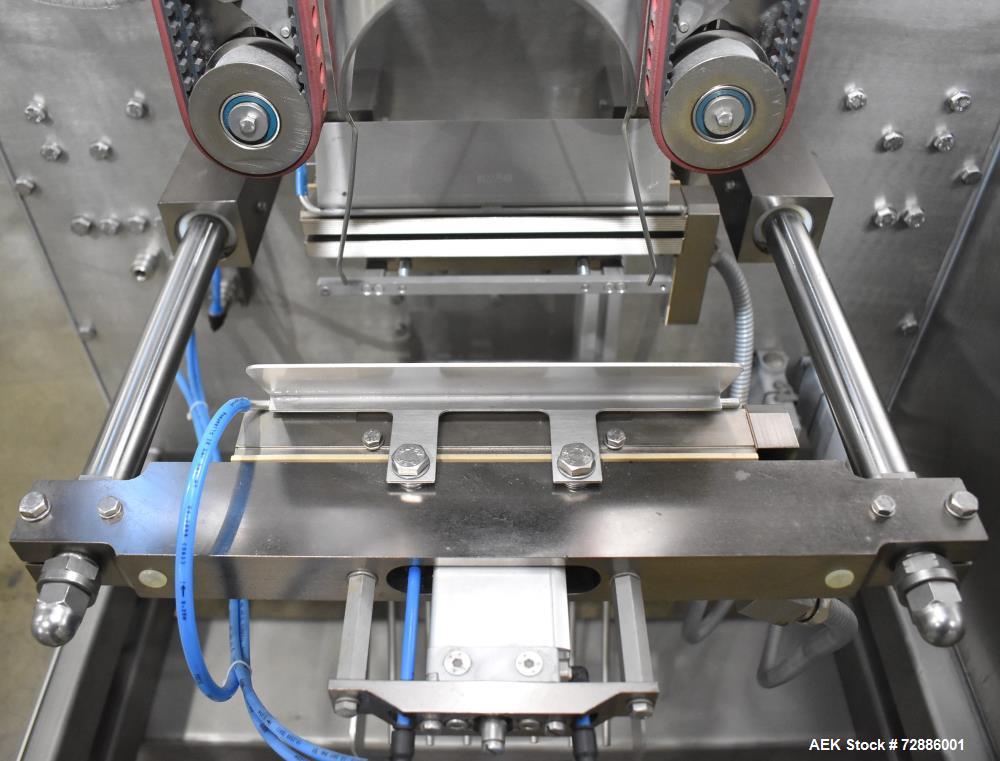

- Seal Bar Dimensions: 11" Long x 1-1/4" Wide

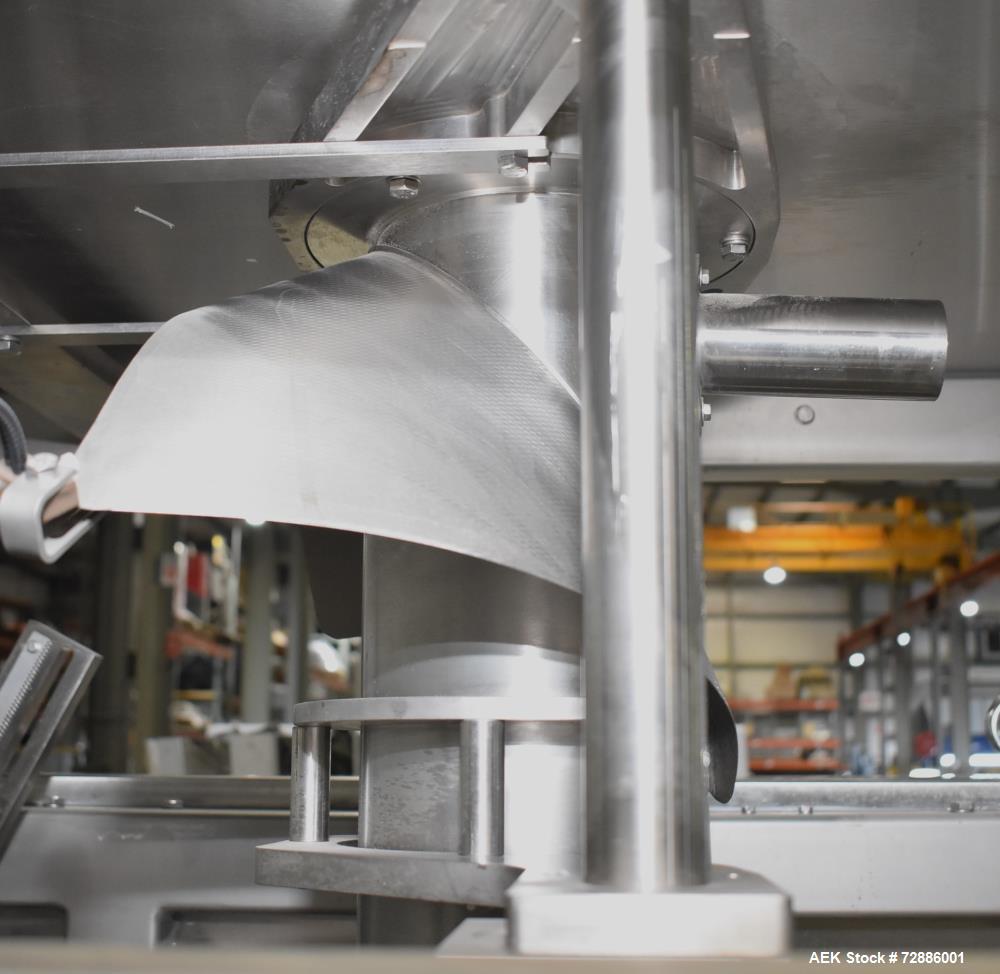

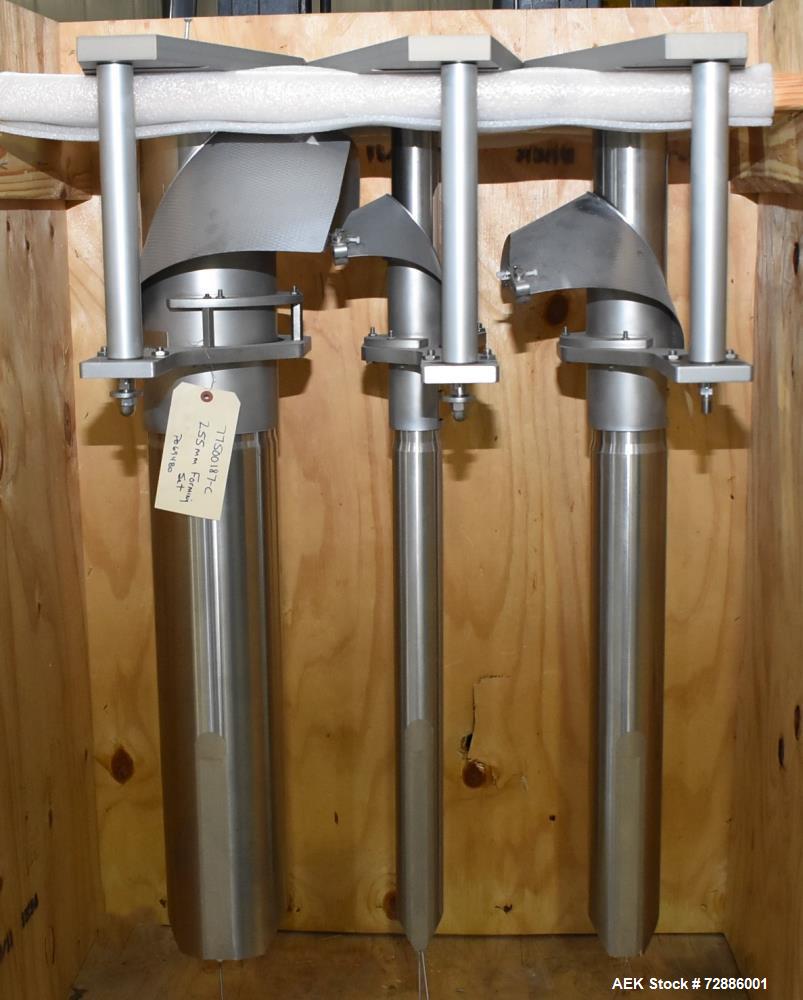

- Former Size: 255mm (#50194)
System Components & Features:

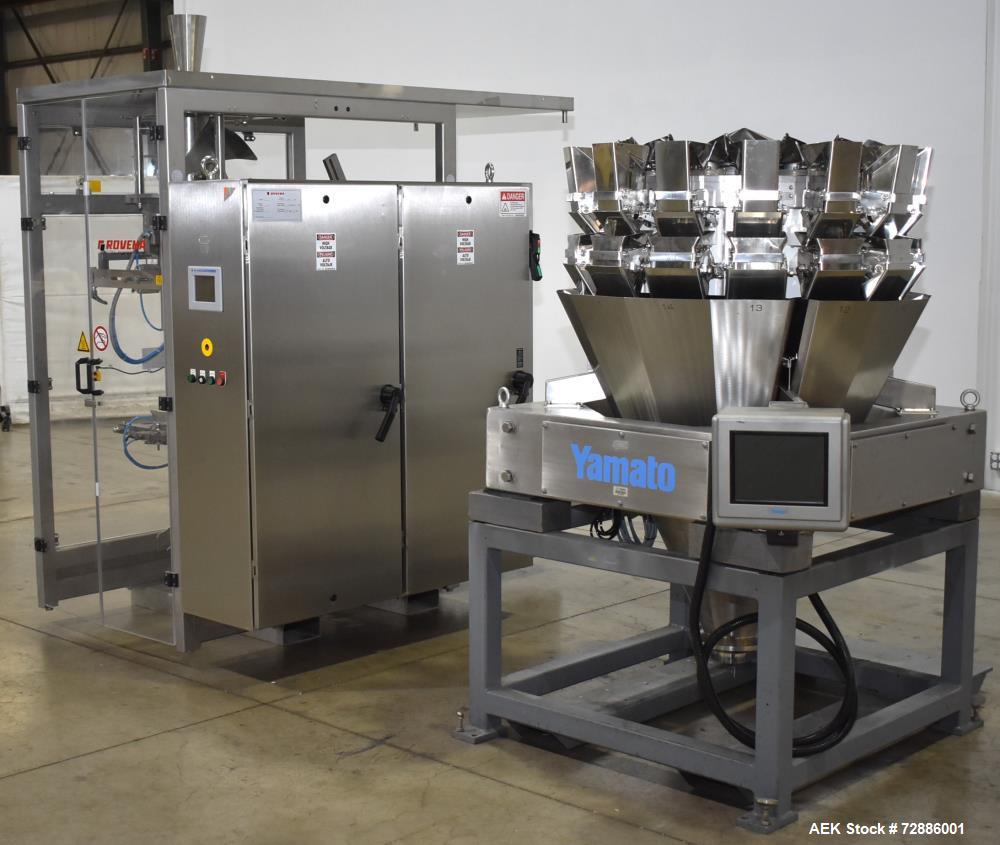

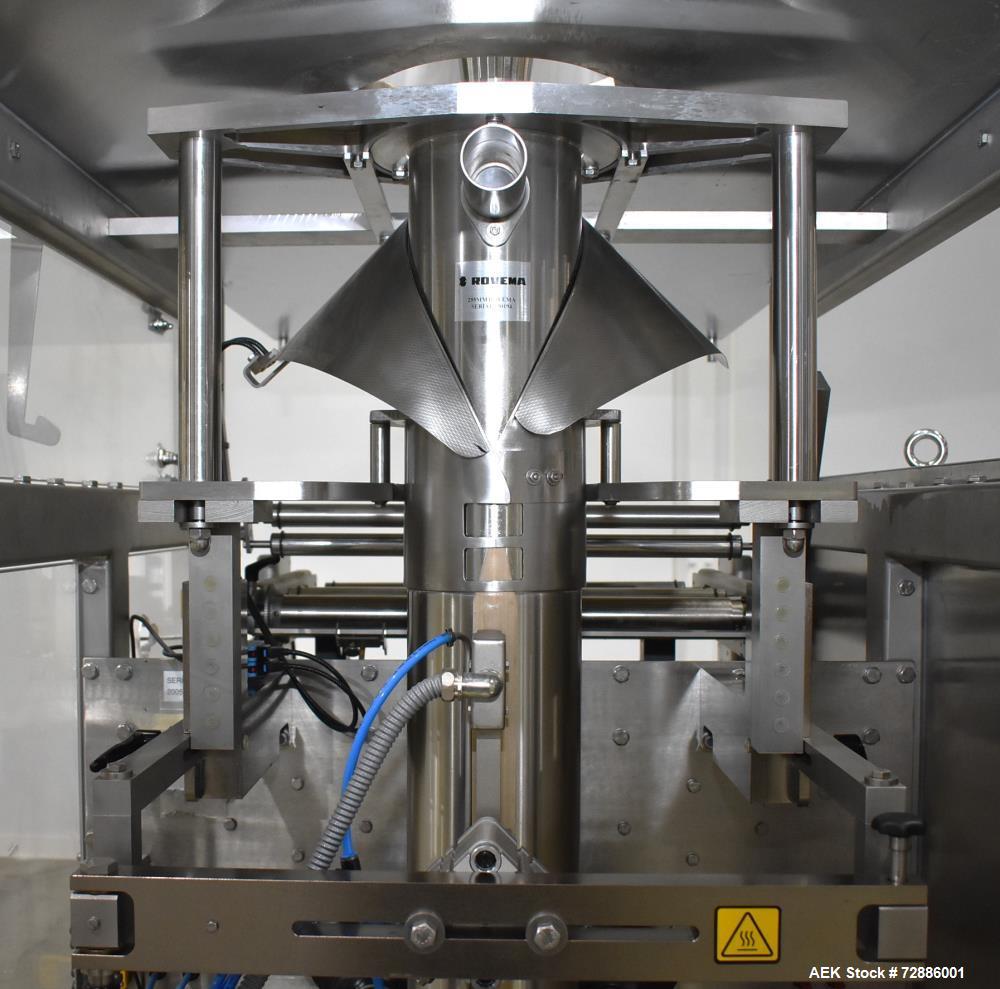

- Rovema VPI-260 Vertical Form Fill Seal Machine – High-speed, precise bagging system

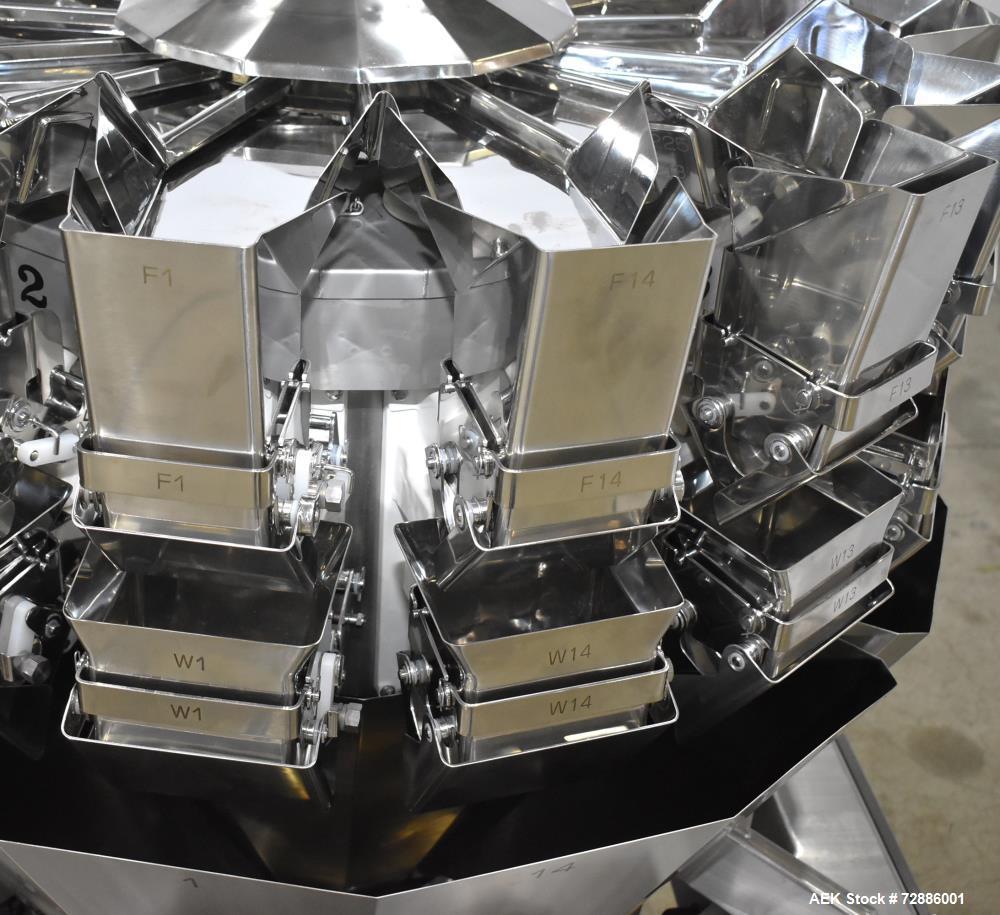

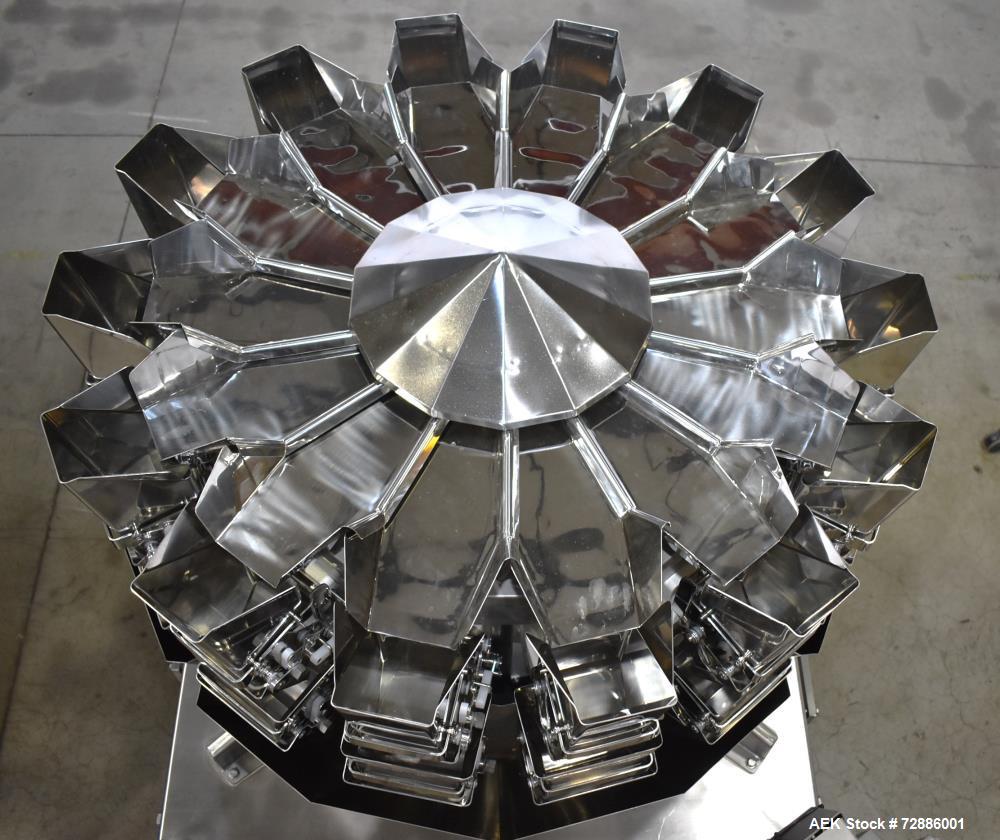

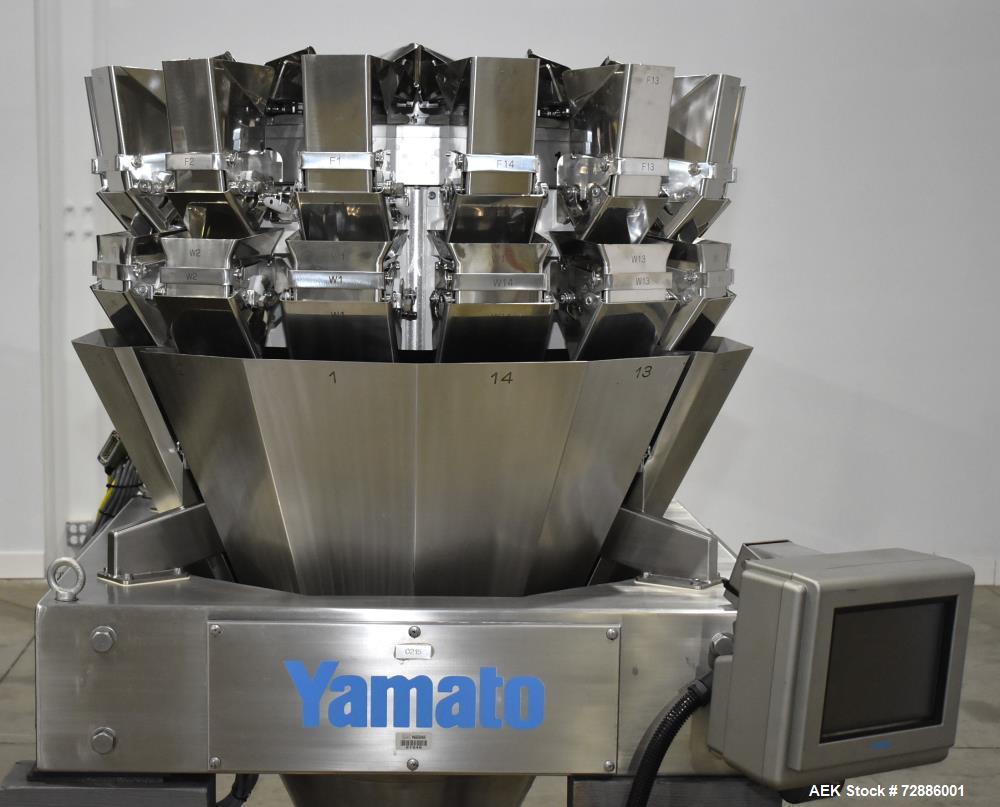

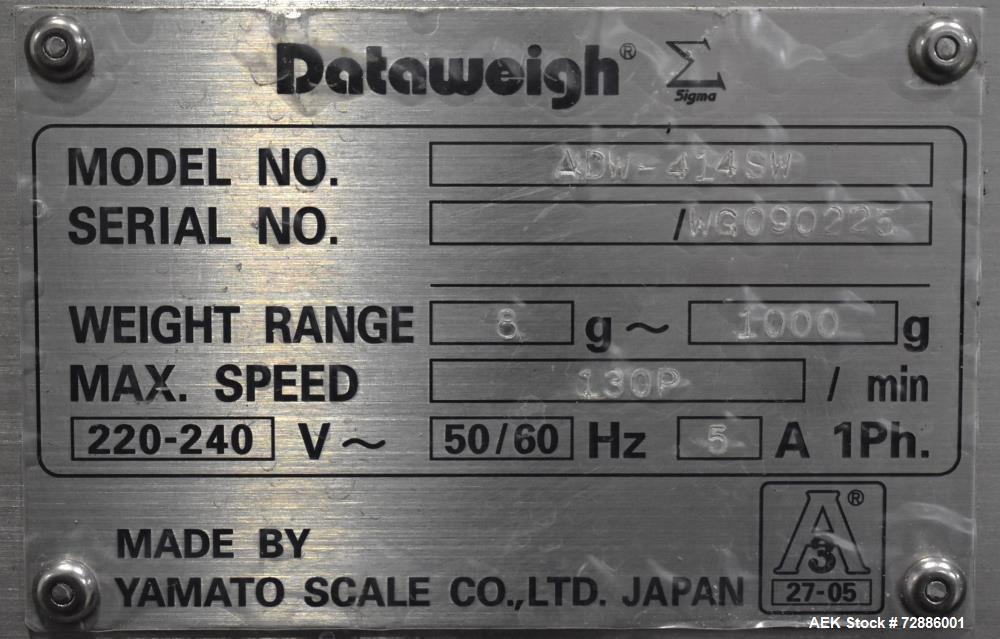

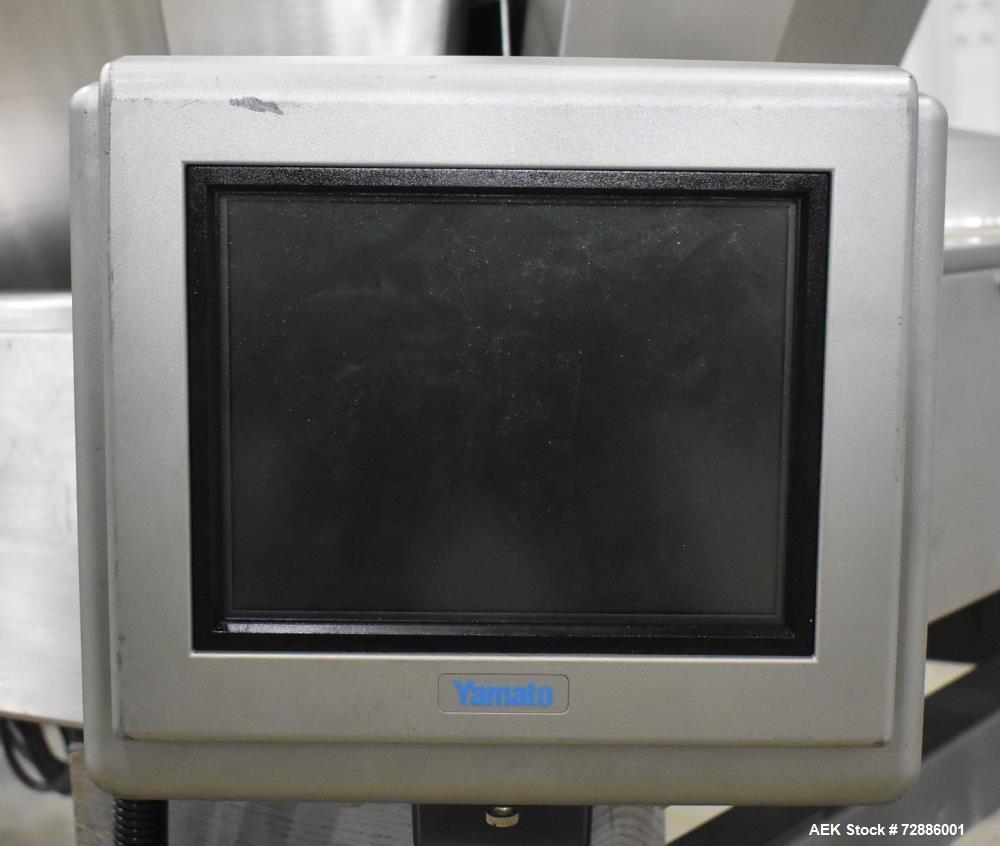

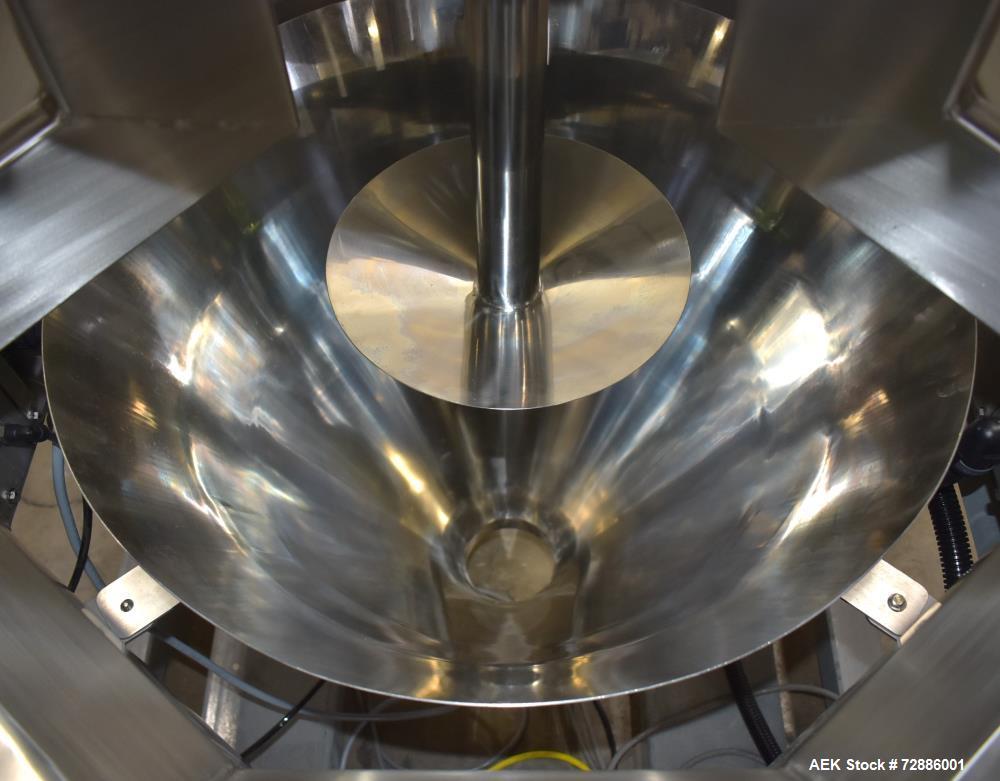

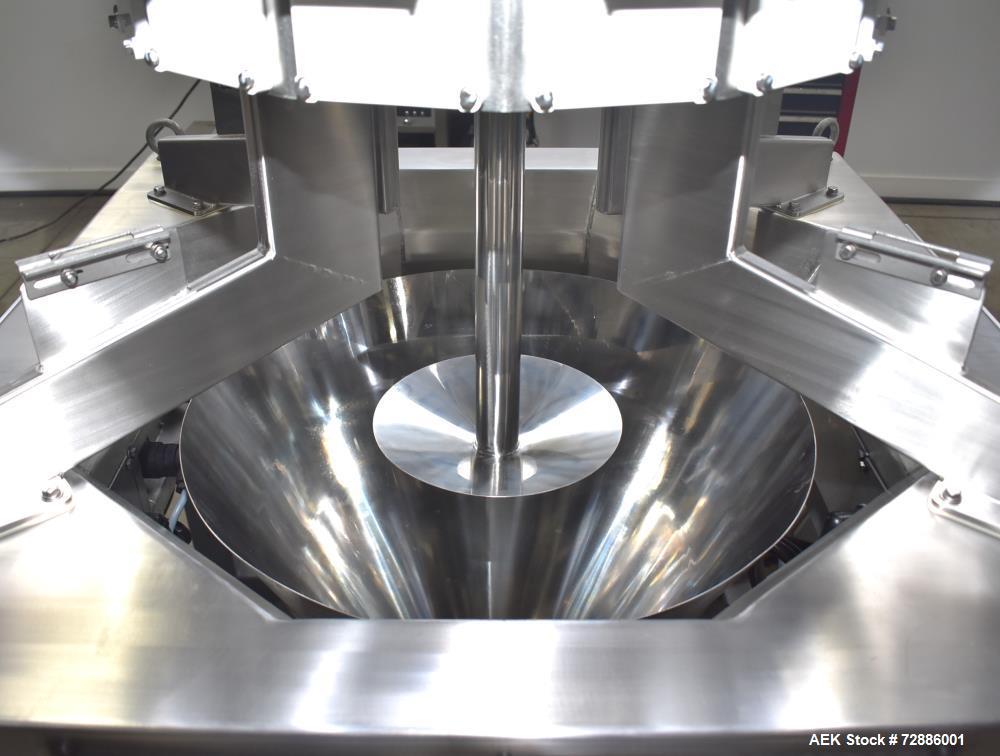

- Yamato Model ADW-414SW 14-Head Radial Weigher – Smooth bucket scale for accurate portioning
- Weight Range Per Dump: 8g - 1000g

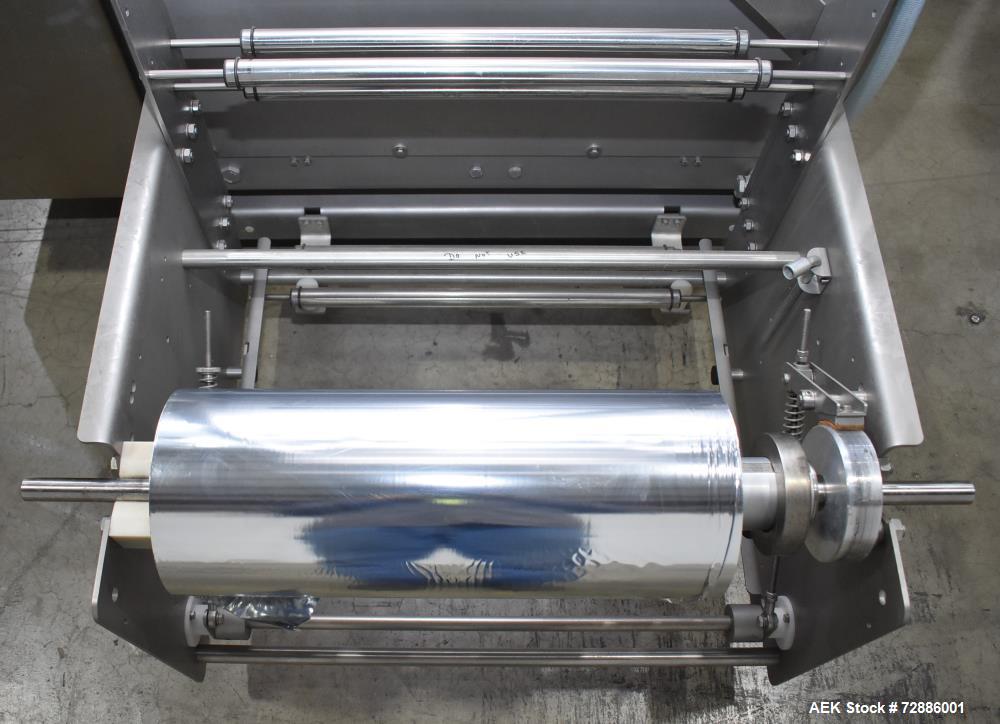

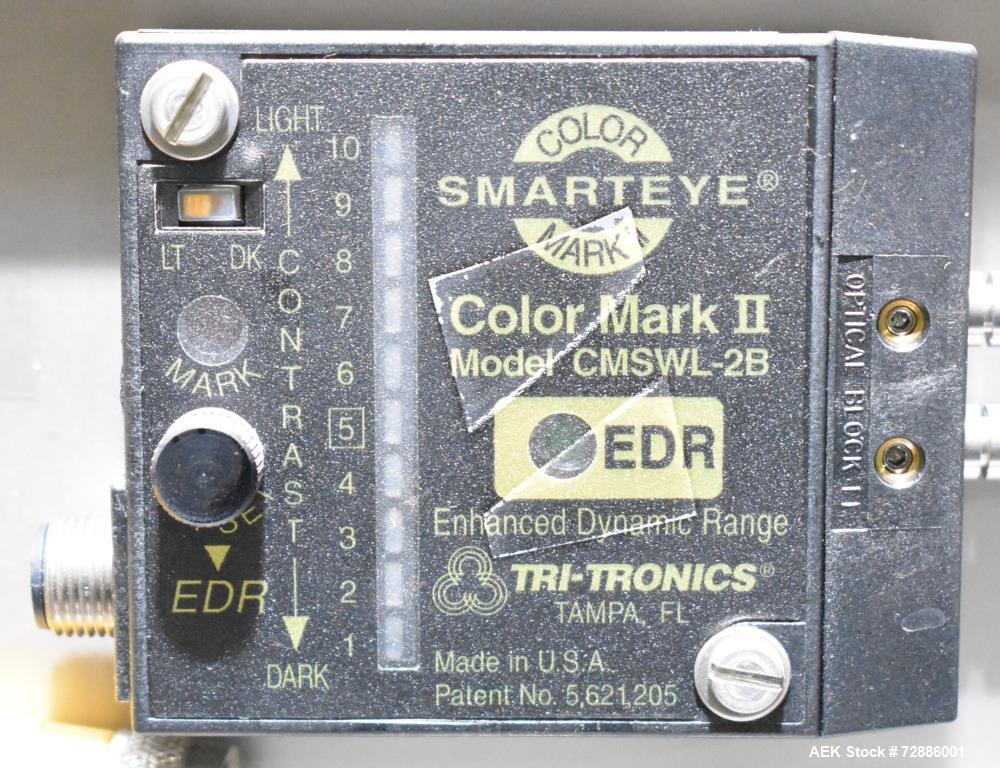

- Print Registration System – Ensures precise alignment and tracking

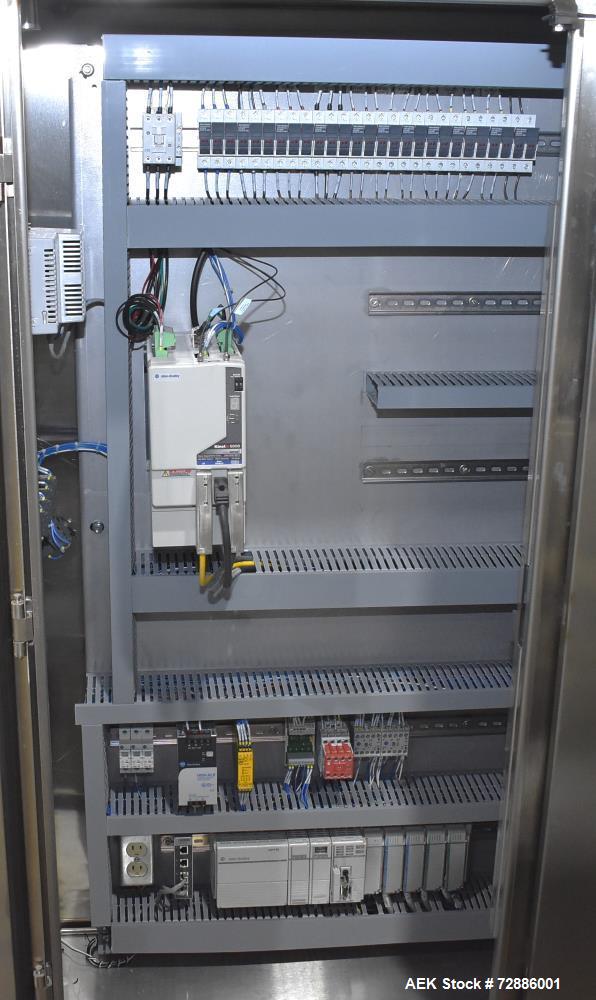

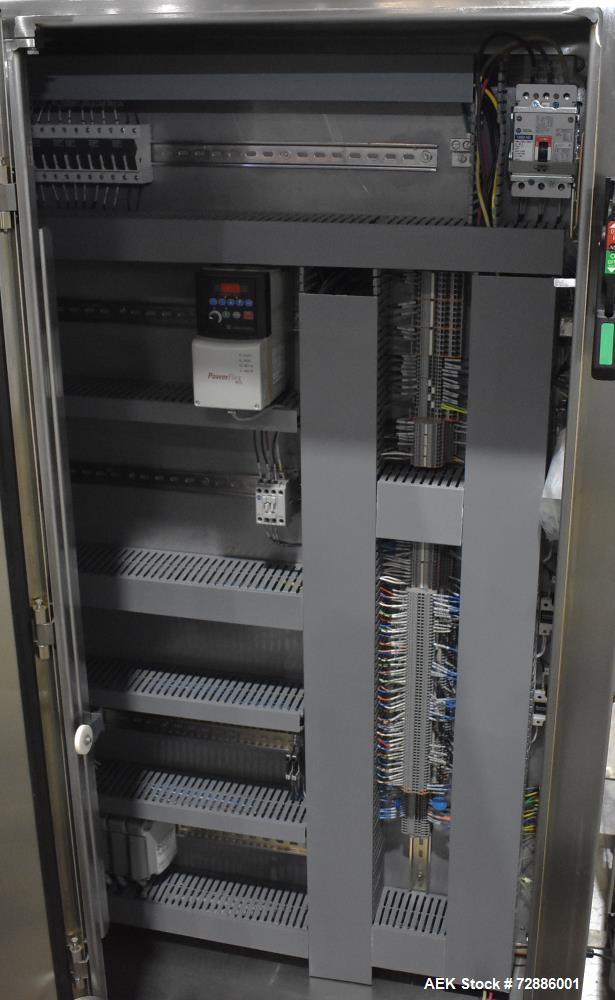

- Allen Bradley Controls:

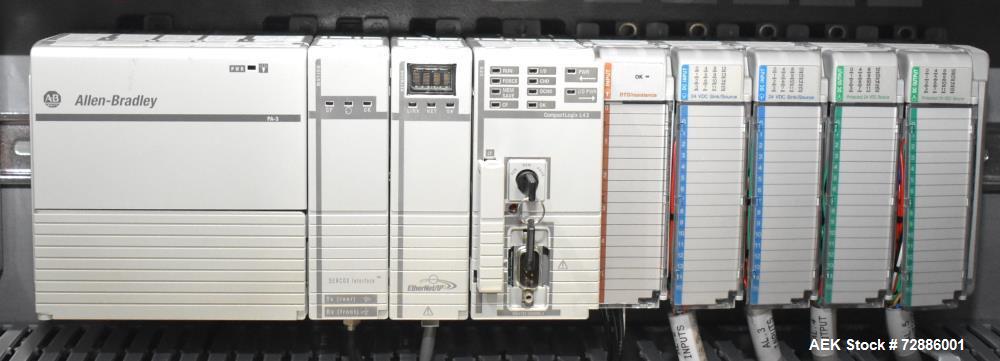

- PA3 PLC for Advanced Machine Automation

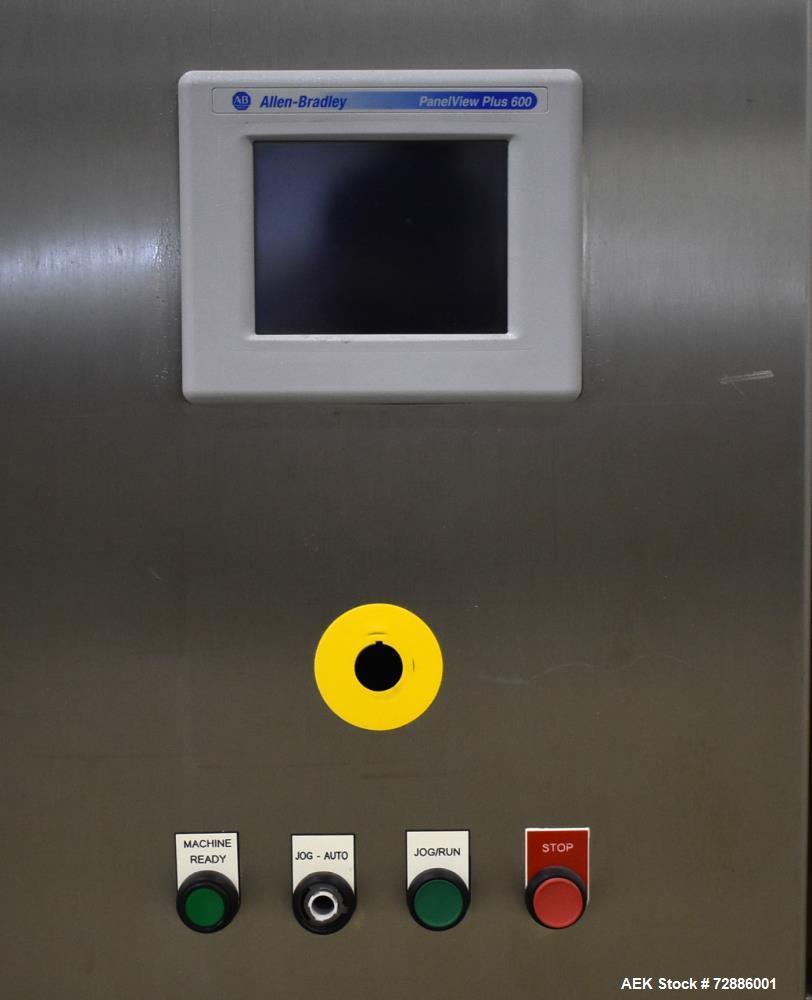

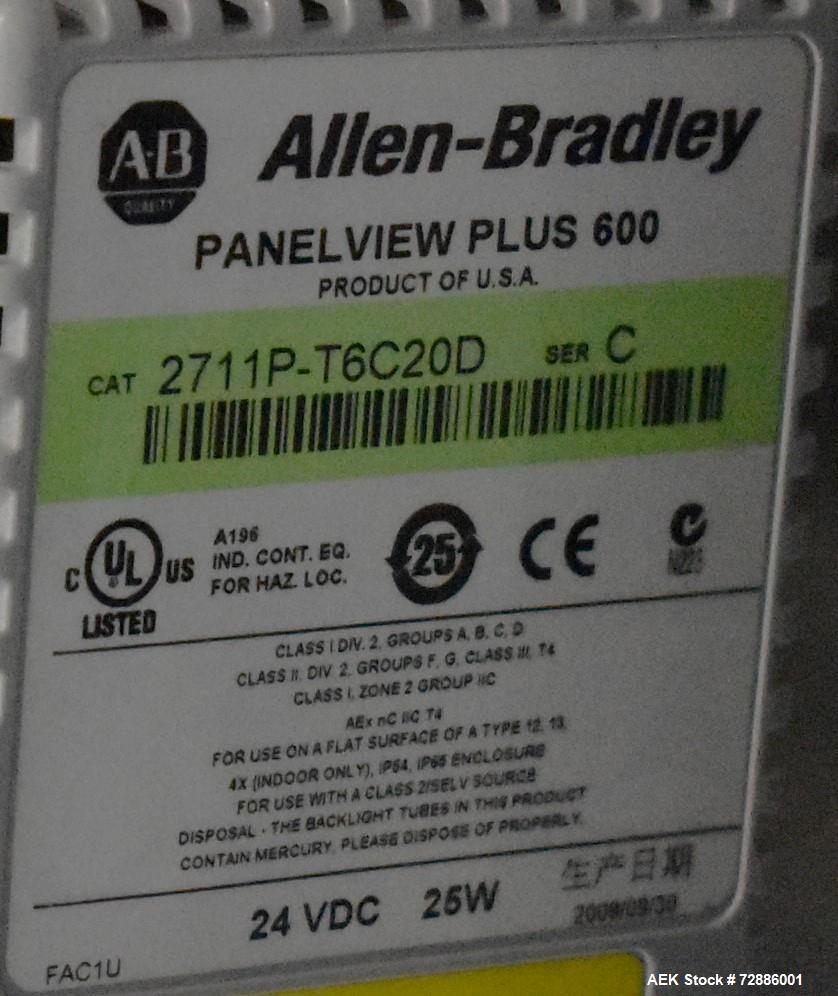

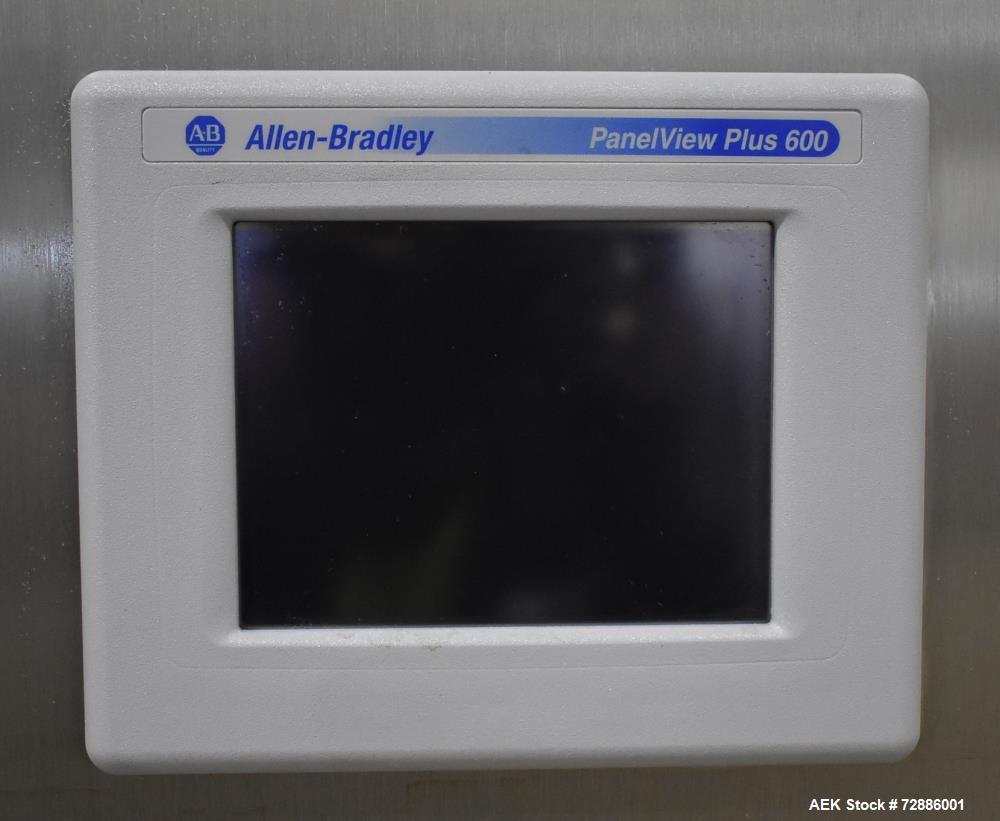

- PanelView Plus 600 HMI for User-Friendly Operation

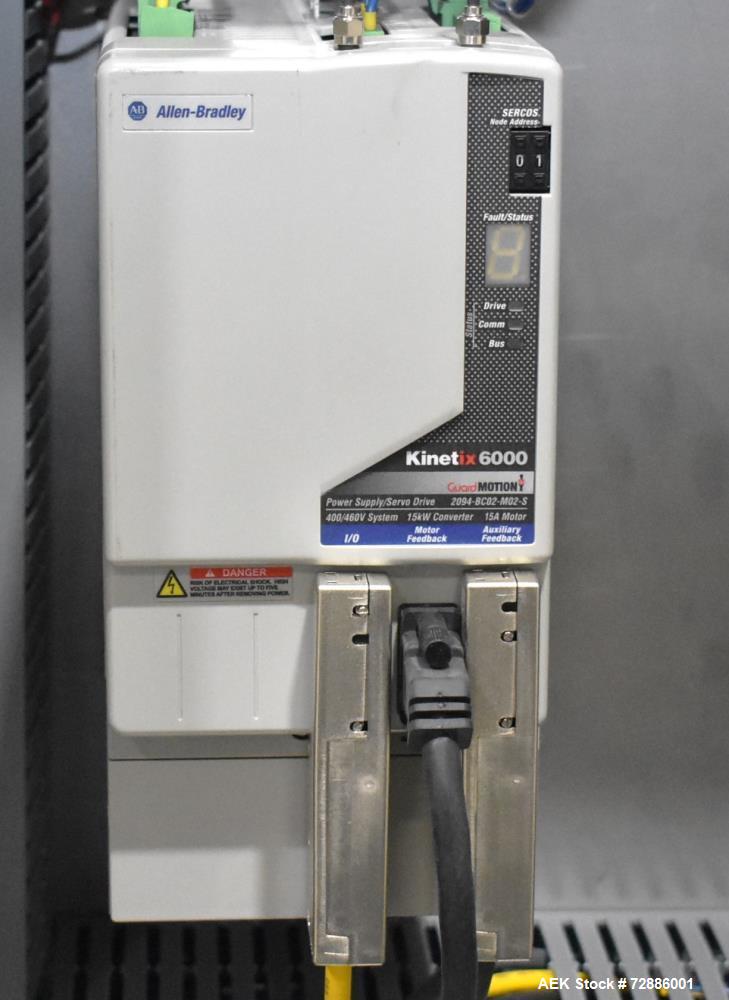

- Kinetix 6000 Servo Drive for Precision Motion Control

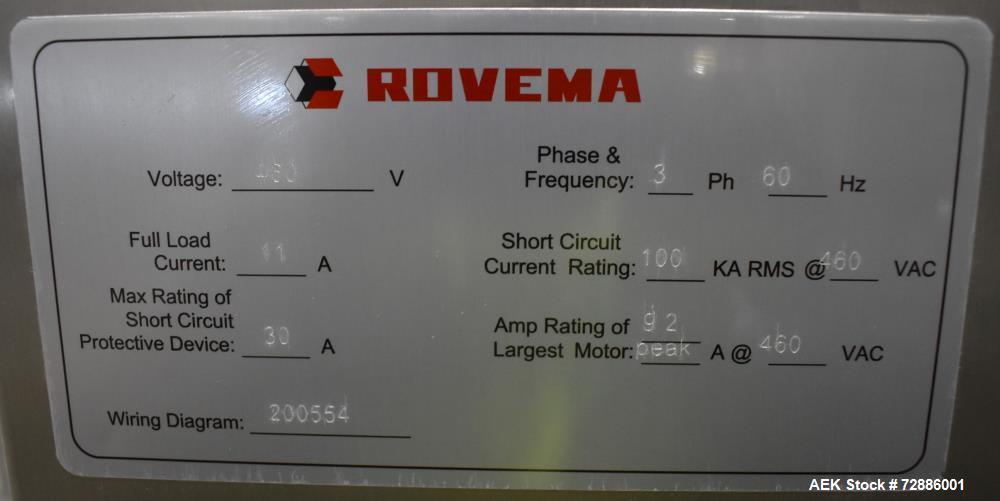

- Power Requirements: 3-Phase, 60 Hz, 460V
Facts About the Rovema VPI-260 VFFS System:
- Fully automated high-speed bagging machine, capable of up to 120 PPM.
- Supports a wide range of bag sizes, from 2-3/8” to 10-7/32” wide and 1-19/32” to 13-3/8” long, making it versatile for various packaging needs.
- Yamato 14-head ADW-414SW radial weigher provides high-precision weighing with smooth bucket technology.
- Advanced Allen Bradley PA3 PLC system with PanelView Plus 600 HMI allows easy control and monitoring.
- Allen Bradley Kinetix 6000 servo drive ensures precise movement, enhancing accuracy and efficiency.
- Print registration system ensures consistent alignment of printed film for professional packaging.
Description:
This used Rovema VPI-260 Vertical Form Fill Seal (VFFS) Packaging System is a high-speed, automated solution for food, pharmaceutical, and consumer goods packaging. It features a Yamato ADW-414SW 14-head smooth bucket scale, which provides accurate weighing with a weight range from 8g to 1000g per dump.
The bag size range is highly versatile, allowing widths from 2-3/8” to 10-7/32” and lengths from 1-19/32” to 13-3/8”, making it suitable for various bag styles and products. The machine includes a 255mm former (#50194), optimizing film handling and bagging efficiency.
Equipped with print registration, an Allen Bradley PA3 PLC, a PanelView Plus 600 HMI, and a Kinetix 6000 servo drive, this system offers precision, automation, and user-friendly operation.
Specifications:
- Bagging Machine: Rovema VPI-260 Vertical Form Fill Seal
- Speed Capacity:
- Bagger: Up to 120 PPM
- Weigher: Up to 130 PPM
- Bag Size Range:
- Width: 2-3/8" - 10-7/32" (60mm - 260mm)
- Length: 1-19/32" - 13-3/8" (40mm - 340mm)
- Seal Bar Dimensions: 11” Long x 1-1/4” Wide
- Former Size: 255mm (#50194)
- Weighing System: Yamato ADW-414SW 14-Head Radial Weigher
- Weight Range: 8g - 1000g per dump
- Control System:
- Allen Bradley PA3 PLC
- PanelView Plus 600 HMI
- Kinetix 6000 Servo Drive
- Print Registration System: Ensures Precise Film Tracking
- Power Requirements: 3-Phase, 60 Hz, 460V
Applications:
- Snack Food & Dry Goods Packaging
- Powdered & Granular Product Bagging
- Frozen Food & Produce Packaging
- Pharmaceutical & Nutraceutical Packaging
- Industrial & Consumer Product Packaging
What Products Would This Be Used For?
- Chips, Popcorn, & Snack Foods
- Frozen Vegetables, Fruits, & Seafood
- Coffee, Tea, & Powdered Drinks
- Candy & Confectionery Items
- Spices, Nuts, Grains, & Dry Foods
- Industrial & Non-Food Granular Products
