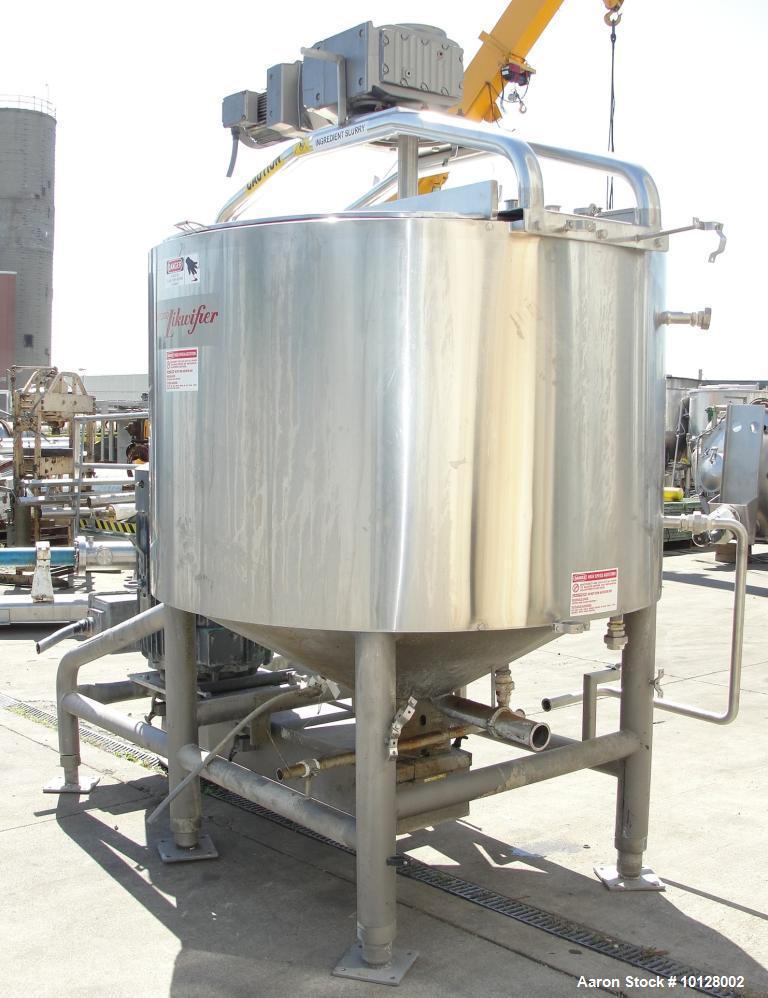

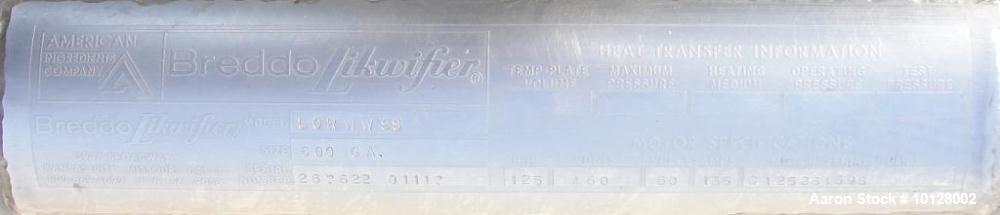

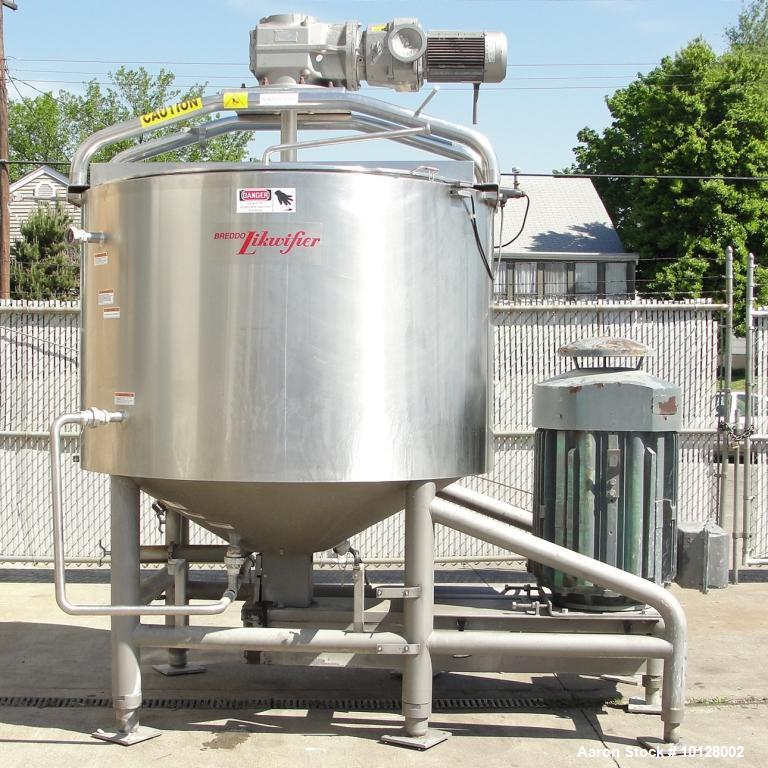

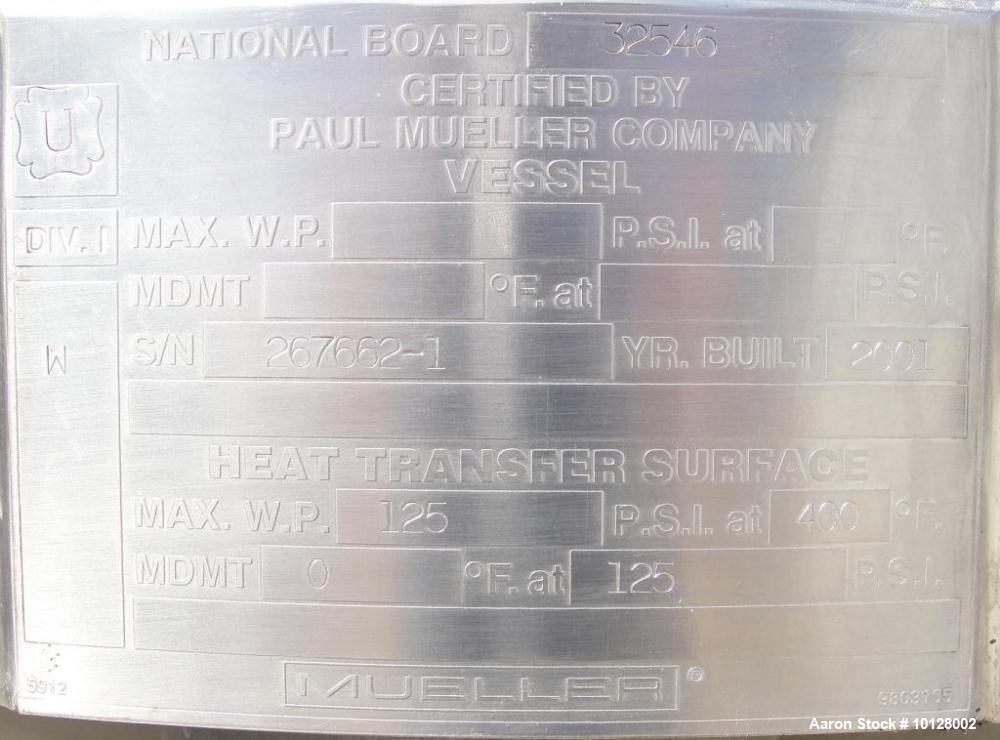

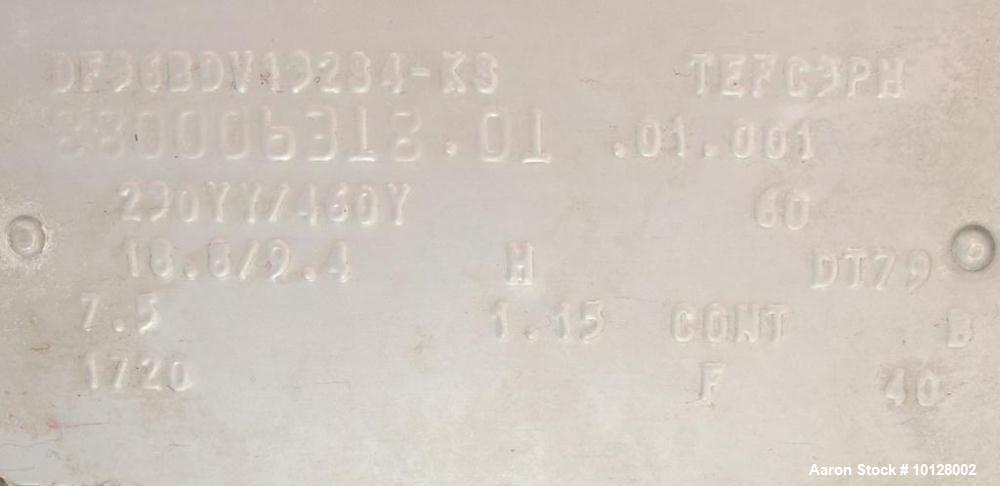

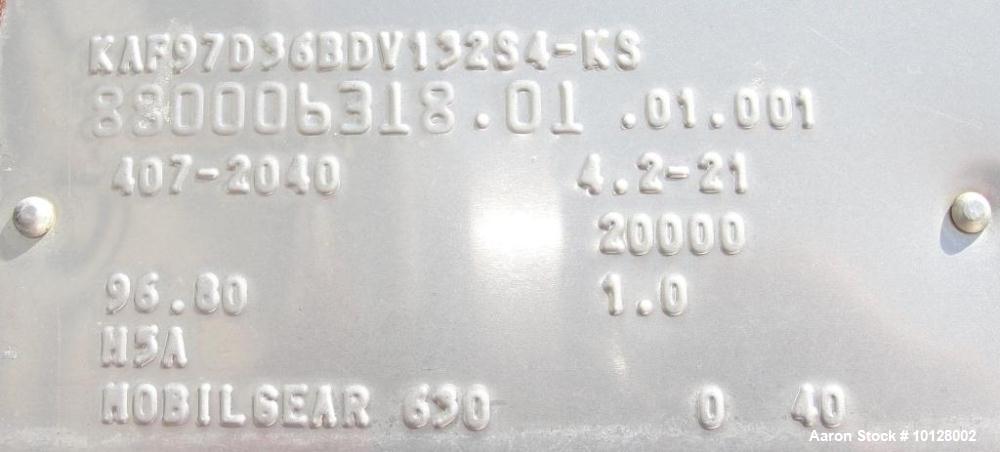

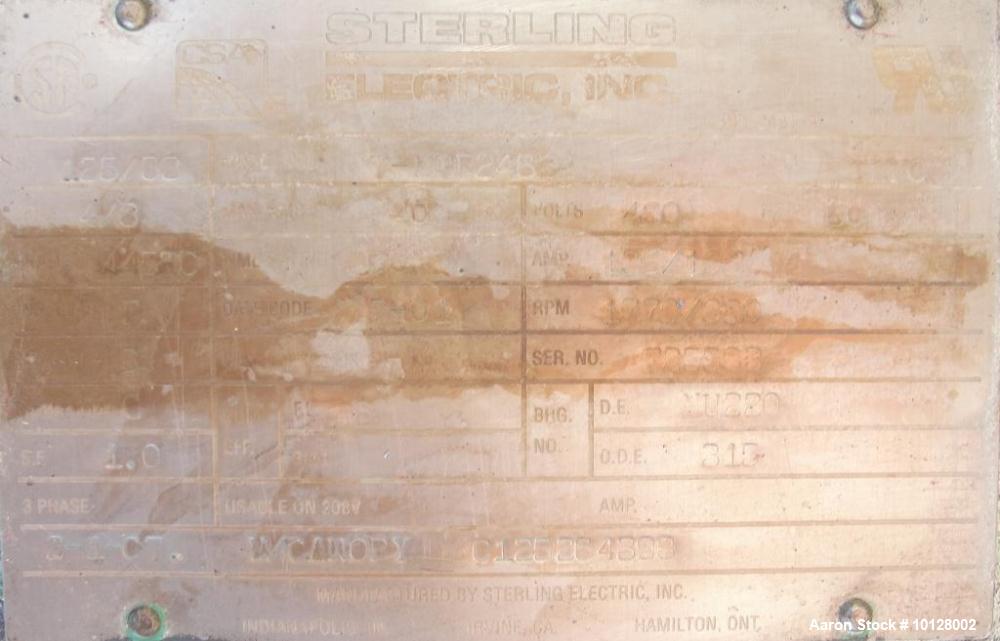

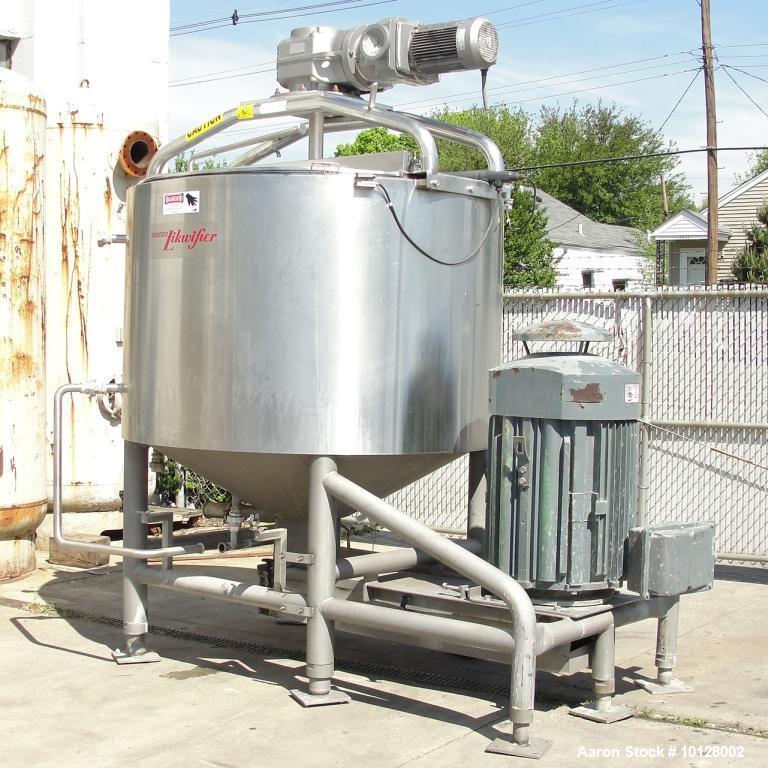

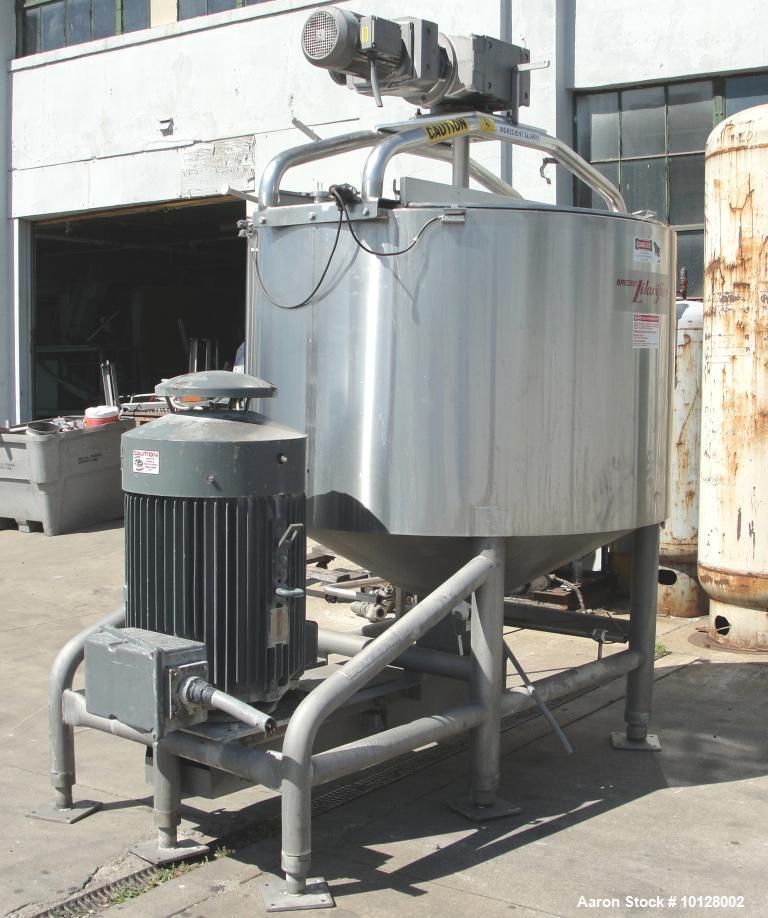

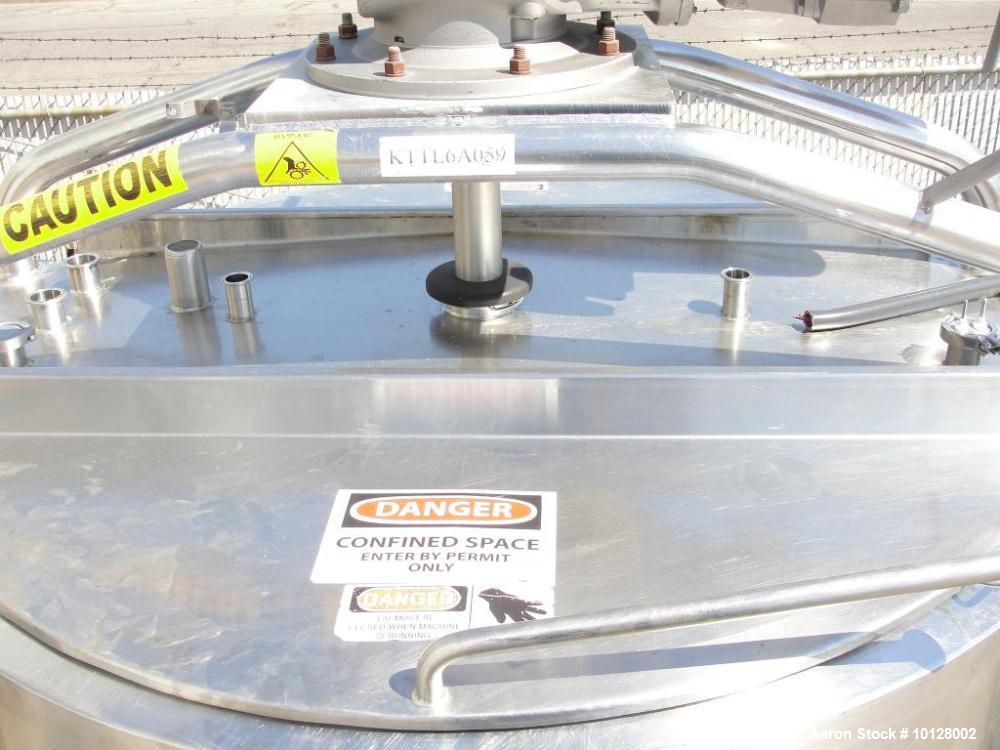

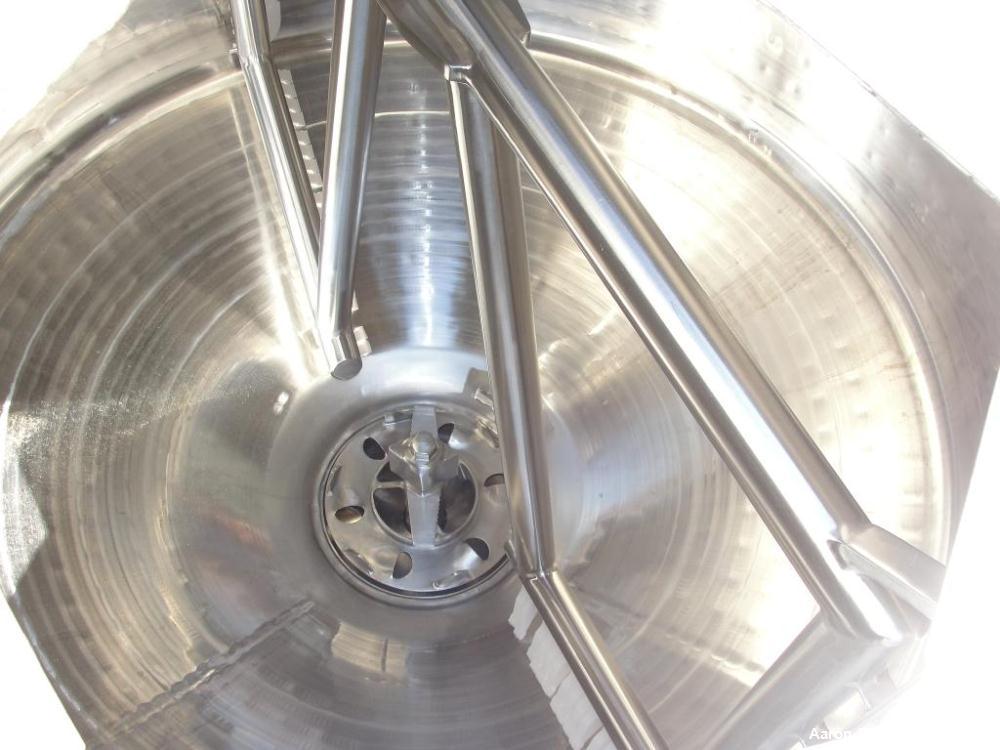

Used Breddo Likwifier 600 Gallon, 316 Stainless Steel, Jacketed Scrape Surface Contical Bottom Blender, Model LORWWSS. Interior dimensions 64" diameter x 40" straight side height x 15" cone. Overall dimensions are 72" wide x 123" long x 116" high with legs and agitator. The bottom has a 3" tri-clamp discharge that is 25" from the ground and a 14" diameter high shear blending impeller driven by a 125 hp, 1770 rpm motor. The top has (2) 1/3 hinged lids. (4) 2" Tri-clamp inlets, (2) 1.5" tri-clamp inlets and (1) 2" inlet. The side and bottom jackets have a maximum working pressure (MAWP) of 125 psi @ 400 deg F, a minimum design metal temperature (MDMT) of 0 deg F @ 125 psi, and (4) 2" NPT inlets/outlets. The tank is equipped with a side and bottom scrape agitator. Agitator is driven by a 7.5 hp, 1720 rpm with a 96.8:1 ratio gear reduced euro drive motor. Requires 230/460 VAC 3 phase electrical supply. Built in 2001 and refurbished in 2008. Reported to be in good condition.
