Unused- Heat Recovery Steam Generator (HRSG)

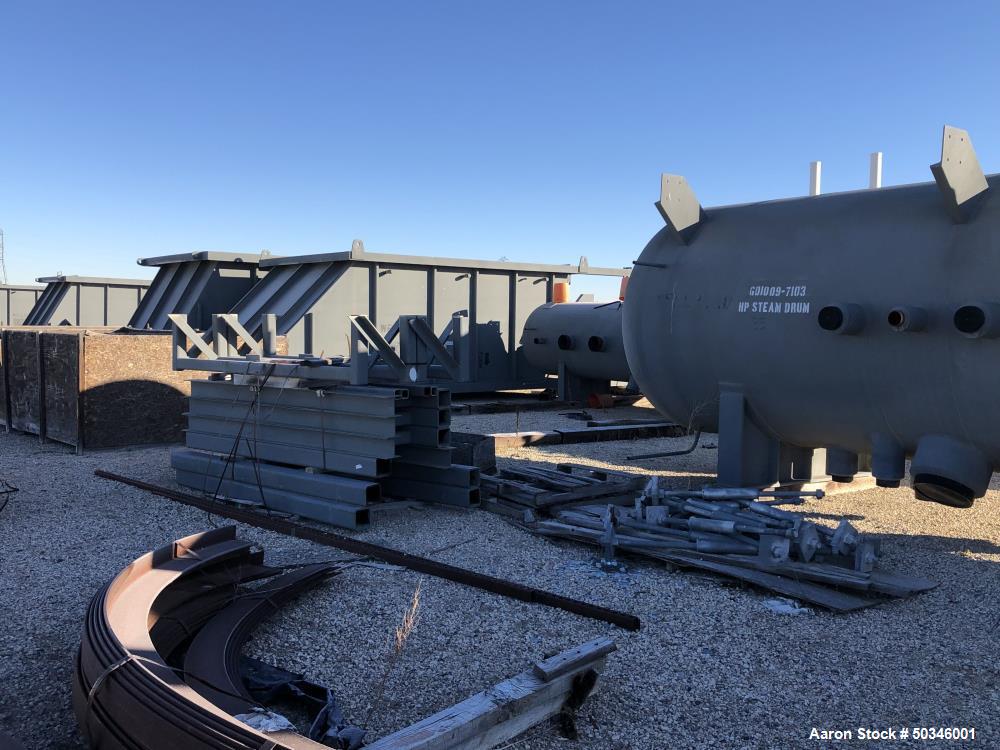

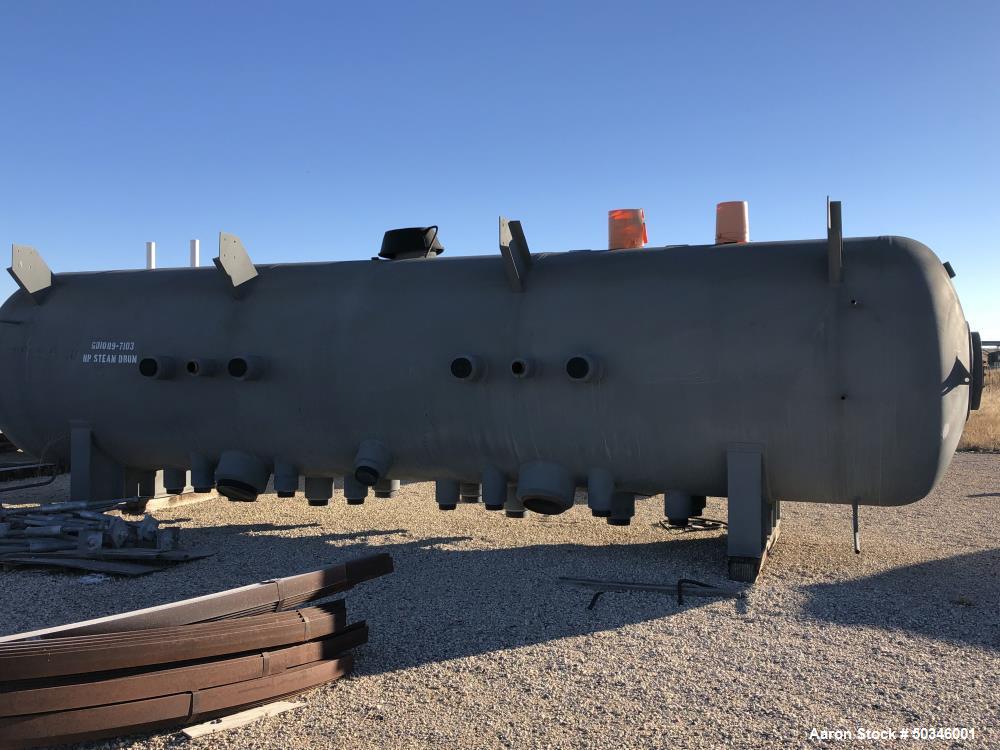

Unused- Heat Recovery Steam Generator (HRSG). Can be coupled with GE Fr 6,7 Turbines; Ambient Temperature 60 degrees F; Turbine Exhaust Flow 2,336,000 lb/hr; Turbine Exhaust 1002 degrees F; Burner Heat Input LHV 240 MMBtu/hr; Burner Fuel LHV 20,500 Btu/hr; Burner Firing Temperature 1,347 degrees F; HP Steam Flow: Fired 554,403 lb/hr; Unfired 333,258 lb/hr; Steam Temperature 750 degrees F; Steam Pressure: Fired 954 psig; Unfired 648 psig; LP Steam Flow: fired 31,238 lb/hr; Unfired 51,142 lb/hr; Steam Temperature: Fired 358 degrees F; Unfired 337 degrees F; Steam Pressure: Fired 72 psig; Unfired 31 psig. Includes: HP/LP Steam Drum Modules; Heat Transfer Sections; Transition Ducts; Duct Burner system; Isolation, Vent & Drain Valves; Pressure Relief Valves; HP/LP Flow Elements; Ladders and Walkways; Field Assembly Fittings.
