Used- Voran Belt Press Filter

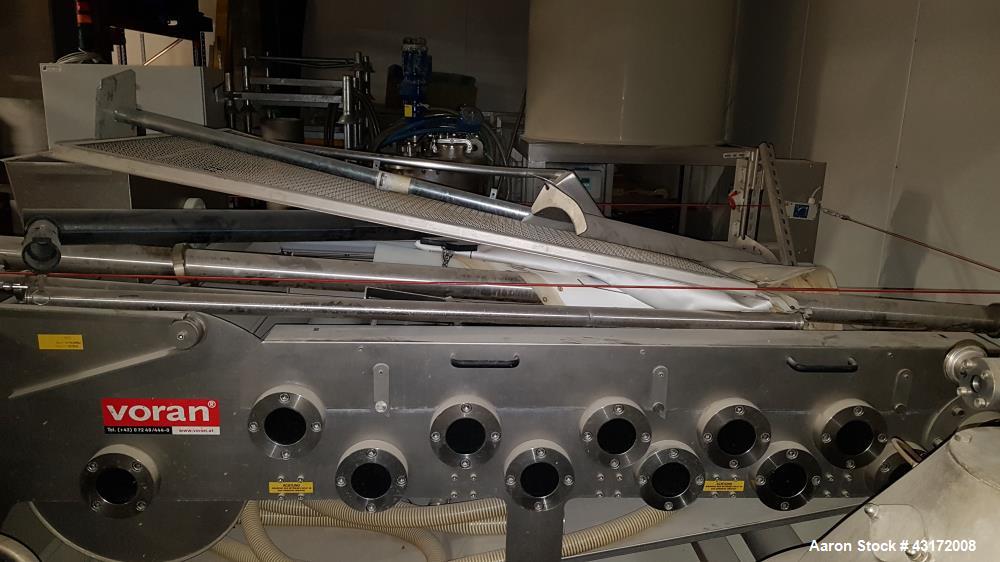

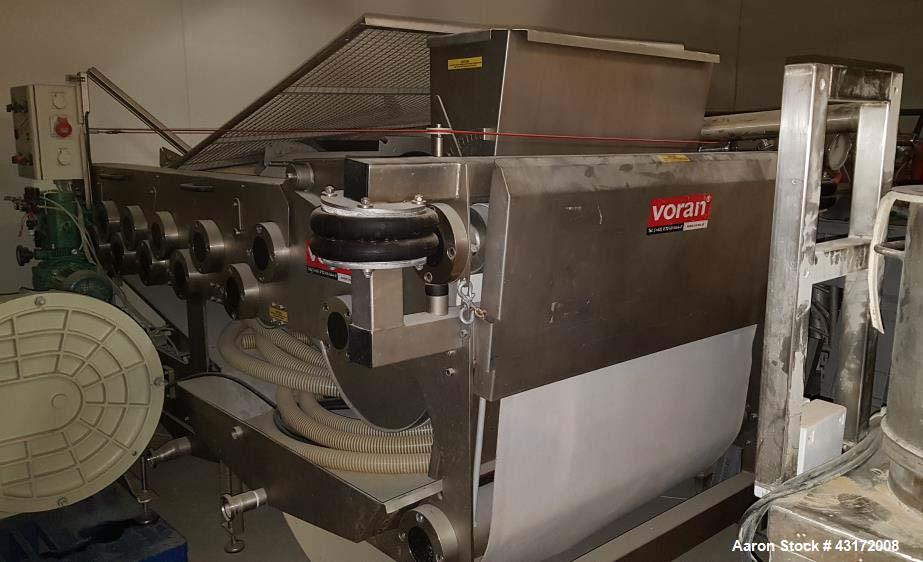

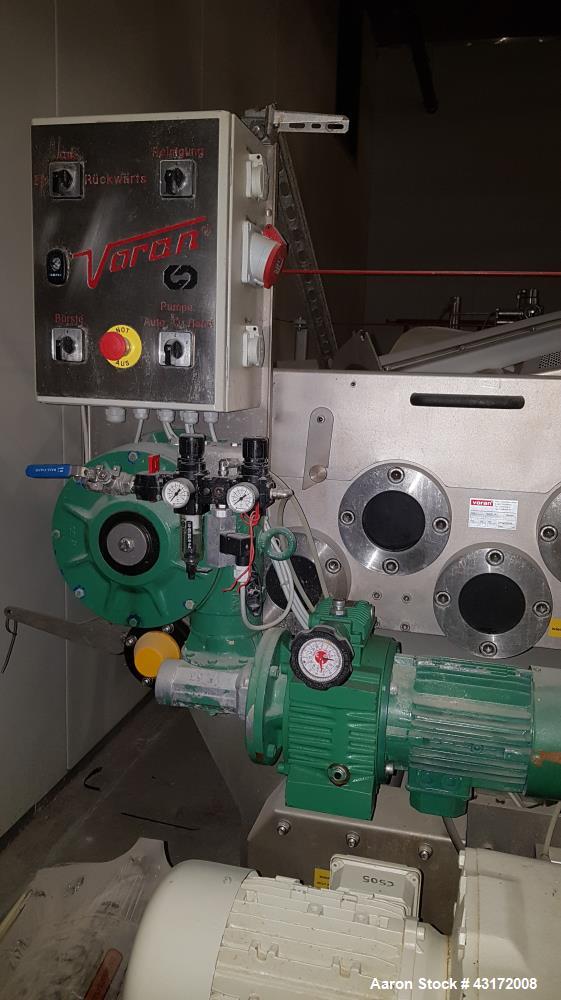

Used- Voran Belt Press Filter with pneumatic belt tensioner, type ESP 1200. Capacity up to 6600 lbs//hr. (3000 kg/hr.). Material of construction is 304 (1.4301) stainless steel. Belt width 46.8" (1200 mm) x 338.05" (9950 mm) strip length. Automatic belt control. Product contact time 2-11 minute. Juice yield up to 75%. High pressure bottom water injection system to clean the belt. Water consumption for belt cleaning 1.58 gallon (6 liter/min). Belt speed 19.5"-136.5" (500-3500 mm) per minute by a 3.3 HP/2.2 KW-400 volt/50cucle/3Ph motor. Safety devices. Control panel. On 6 legs. 97" (2990 mm) long x 68" (2090 mm) width x 55" (1690 mm) high. Weight 2.5 tonnes. Previous used in a food supplements and ingredients application from fungal chitosan and chitin-glucan. New year 2007.
