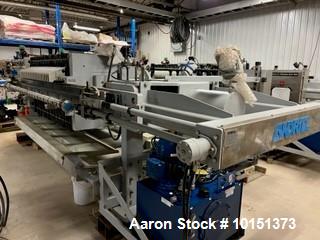

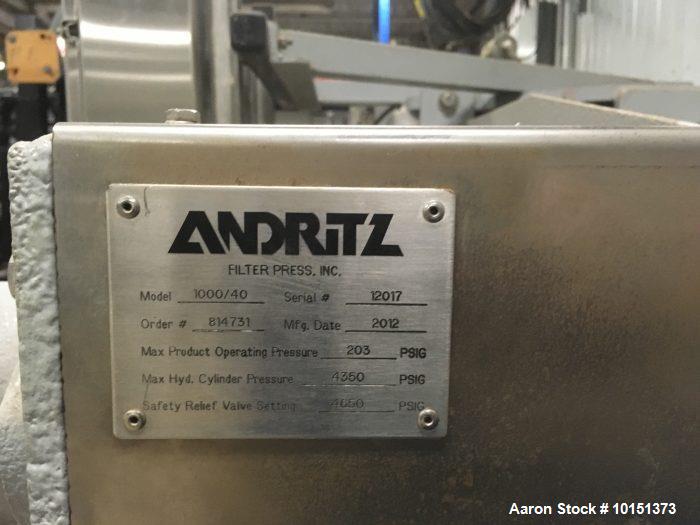

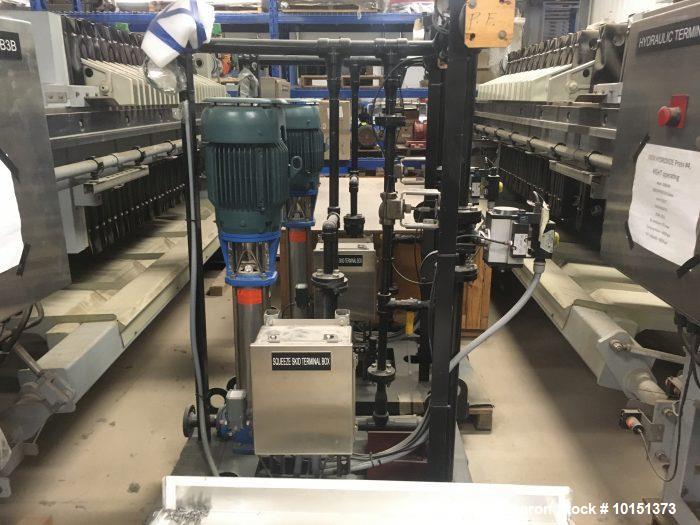

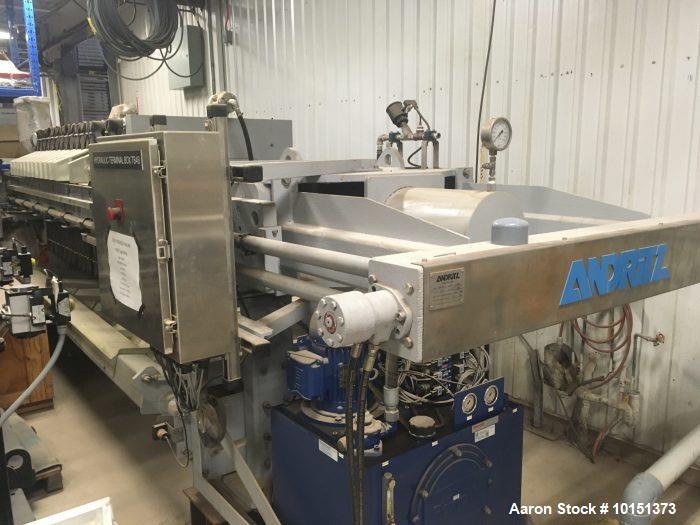

Unused - Andritz Polypropylene Plate and Frame Filter Press: Model 1000/40; (24) 32mm chambers; Machine Type: 1000/HP/SR/24/32mm; Type: Closed Filtrate; No. of Stay Boss: 4; Slurry Type: Iron Hydroxide; Inlet Consistency: 3% TSS; Cake Density: 83 lb/ft; Slurry Temperature: 65C Max; pH: 13; Guaranteed Cake Solids: 52%; Maximum Cycle Time: 120 minutes; Size of Press: 1000 High Pressure; Cake Thickness (Pre-Squeeze): 32mm; No. of Chambers: 24; Filter Area: 417 ft; Capacity: 0.5352m / 19ft; Pack Length: 183.92cm; Weight of Empty Press: 10.89 Tonnes; Hydraulic Unit: 5 HP; Power Supply: 575V, 3-Phase, 60 Hz; Plate Material: Polypropylene; Slurry Feed Pressure (Max at 75C): 65psi @ 75C; Squeeze Pressure (Max at 75C.): 141psi @ 75C; Flooded Weight of Machine: 11.74 Tonnes; Filter Cloths: Composition: Polypropylene; Weight: 318.76 (grams/m); Caliper: 0.46mm; Porosity: 3-5 CFM: Thread Count: 107 x 36; Warp Yarn: Monofilament Black; Filling Yarn: Multifilament; Finish: Heat Set & Calendared; Style: AFP 101; Attachment: Plastic Tie; Hydraulic Power Pack; Nominal Motor Rating: 5 HP; Voltage: 575 Volt; Piston Diameter: 254mm; Piston Rod Diameter: 127mm; Piston Stroke (Maximum): 762mm; Tank Volume: 113.57 Liters; Pump Conveying Stream, 4500 psi: 18.93 Liters/Minute; Pump Conveying Stream, 4500 psi: 8.71 Liters/Minute; Motor Speed: 1750 RPM; Enclosure: IP55; Mfg. 2012
Unused - Andritz Polypropylene Plate and Frame Filter Press: Model 1000/40; (24) 32mm chambers; Machine Type: 1000/HP/SR/24/32mm; Type: Closed Filtrate; No. of Stay Boss: 4; Slurry Type: Iron Hydroxide; Inlet Consistency: 3% TSS; Cake Density: 83 lb/ft; Slurry Temperature: 65C Max; pH: 13; Guaranteed Cake Solids: 52%; Maximum Cycle Time: 120 minutes; Size of Press: 1000 High Pressure; Cake Thickness (Pre-Squeeze): 32mm; No. of Chambers: 24; Filter Area: 417 ft; Capacity: 0.5352m / 19ft; Pack Length: 183.92cm; Weight of Empty Press: 10.89 Tonnes; Hydraulic Unit: 5 HP; Power Supply: 575V, 3-Phase, 60 Hz; Plate Material: Polypropylene; Slurry Feed Pressure (Max at 75C): 65psi @ 75C; Squeeze Pressure (Max at 75C.): 141psi @ 75C; Flooded Weight of Machine: 11.74 Tonnes; Filter Cloths: Composition: Polypropylene; Weight: 318.76 (grams/m); Caliper: 0.46mm; Porosity: 3-5 CFM: Thread Count: 107 x 36; Warp Yarn: Monofilament Black; Filling Yarn: Multifilament; Finish: Heat Set & Calendared; Style: AFP 101; Attachment: Plastic Tie; Hydraulic Power Pack; Nominal Motor Rating: 5 HP; Voltage: 575 Volt; Piston Diameter: 254mm; Piston Rod Diameter: 127mm; Piston Stroke (Maximum): 762mm; Tank Volume: 113.57 Liters; Pump Conveying Stream, 4500 psi: 18.93 Liters/Minute; Pump Conveying Stream, 4500 psi: 8.71 Liters/Minute; Motor Speed: 1750 RPM; Enclosure: IP55; Mfg. 2012
