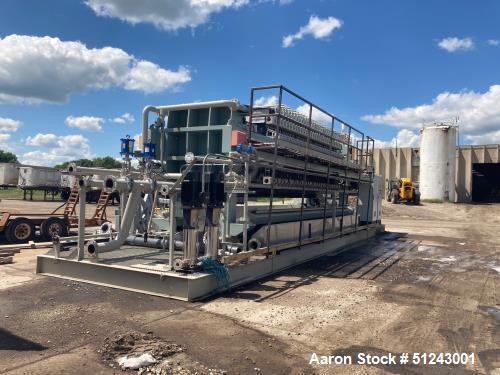

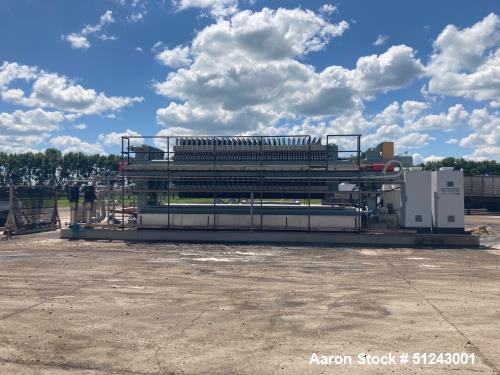

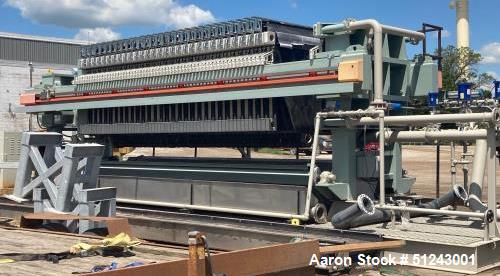

Used Flow Press 1500mm Filter Press System, Model 1500-60. With Plate Shifter. Chamber Volume 146 FT3 at 35mm Chamber Depth, 145 PSI Filtering Pressure, 232 PSI Squeezing Pressure, 50 C / 122 F Maximum Feed Temperature, 4,200 PSI Maximum Hydraulic Pressure, 3,600 PSI Maximum Closing Pressure, 90mm Thickness of Membrane Plates, 85mm Recessed Plates, 29 Plates, 1500mm Maximum Stroke Distance of Hydraulic Cylinders, 2 x 380mm Nominal Diameter of Hydraulic Cylinders. Motors; 11 kW High Pressure Oil Pump, 2.2 kW Drip Tray Oil Pump, .55 kW Washer Travel Motor, 1.1 kW Washer Lift Motor, (2) 18.5 kW Cloth Wash Pumps, 1.1 kW Plate Shifter Motor, 15 kW Squeeze Pump. Built 2017.
Used Flow Press 1500mm Filter Press System, Model 1500-60. With Plate Shifter. Chamber Volume 146 FT3 at 35mm Chamber Depth, 145 PSI Filtering Pressure, 232 PSI Squeezing Pressure, 50 C / 122 F Maximum Feed Temperature, 4,200 PSI Maximum Hydraulic Pressure, 3,600 PSI Maximum Closing Pressure, 90mm Thickness of Membrane Plates, 85mm Recessed Plates, 29 Plates, 1500mm Maximum Stroke Distance of Hydraulic Cylinders, 2 x 380mm Nominal Diameter of Hydraulic Cylinders. Motors; 11 kW High Pressure Oil Pump, 2.2 kW Drip Tray Oil Pump, .55 kW Washer Travel Motor, 1.1 kW Washer Lift Motor, (2) 18.5 kW Cloth Wash Pumps, 1.1 kW Plate Shifter Motor, 15 kW Squeeze Pump. Built 2017.
