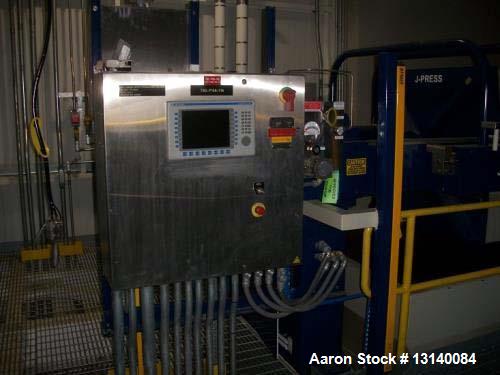

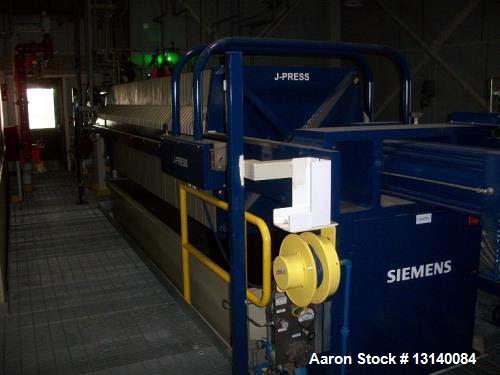

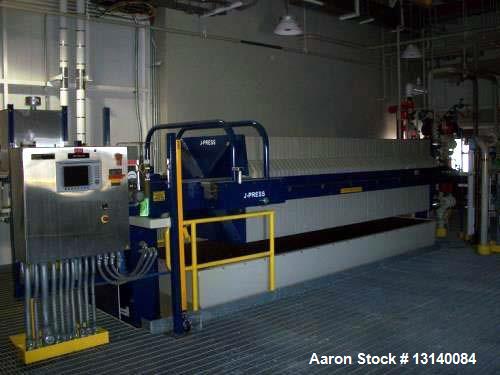

Unused- Siemens Model-1200G32-59-75SYLC, Polypropylene Plate and Frame Press. Unit has 60 1200mm x 1.25 inch polypropylene, gasketed recessed chamber plates with cloth filter elements giving 75 cu. ft. cake capacity. Rated 100 PSIG at 197F. Each chamber has 25 sq. in. of filter area, with max. filter area of 1499 sq. in. with 59 chambers. Automatic, electro-hydraulic self compensating opening and closing system, closing force of 118 tons. Hydraulic control center with switches, gauges, and integral cabinet to house all hydraulic components. Frame is steel construction with a single coat urethane finish. Full width stainless steel, sidebar caps. Product contact piping is 316 SS. Semiautomatic, air operated plate shifter with regulator and nycoil hose. PLC is Allen Bradley CompactLogix 1769 series with Ethernet Capacity with automatic pump control in NEMA 4X box with nitrogen purge kit installed. Hydraulic pump is a Barnes model 1300484-GC, gear type, powered by Baldor 1.5HP motor. Overall dimensions: 302" long x 89" wide x 88" tall.
Unused- Siemens Model-1200G32-59-75SYLC, Polypropylene Plate and Frame Press. Unit has 60 1200mm x 1.25 inch polypropylene, gasketed recessed chamber plates with cloth filter elements giving 75 cu. ft. cake capacity. Rated 100 PSIG at 197F. Each chamber has 25 sq. in. of filter area, with max. filter area of 1499 sq. in. with 59 chambers. Automatic, electro-hydraulic self compensating opening and closing system, closing force of 118 tons. Hydraulic control center with switches, gauges, and integral cabinet to house all hydraulic components. Frame is steel construction with a single coat urethane finish. Full width stainless steel, sidebar caps. Product contact piping is 316 SS. Semiautomatic, air operated plate shifter with regulator and nycoil hose. PLC is Allen Bradley CompactLogix 1769 series with Ethernet Capacity with automatic pump control in NEMA 4X box with nitrogen purge kit installed. Hydraulic pump is a Barnes model 1300484-GC, gear type, powered by Baldor 1.5HP motor. Overall dimensions: 302" long x 89" wide x 88" tall.
