Unused Wisconsin Oven SWH-6126.5-G8 Heavy-Duty Walk-In Oven – Industrial | Temperature 800°F Max
Unused- Wisconsin Oven SWH Series Model SWH-6126.5-G8 Heavy Duty Natural Gas Walk-In Oven. Temperature Rating: Maximum 800 degrees F, Normal 700 degrees F, Minimum 290 degrees F above ambient. Temperature Uniformity: +/- 10 degrees F at 700 degrees F. Chamber Dimensions: 6'0" wide x 12'0" long x 6'6" high. Overall (approximate): 10'6" wide x 13'6" long x 11'8" high. Body Construction: Tongue & groove panel assemblies featuring our patented high efficiency panel seams, 6" of 6# density, industrial board type insulation with a 1,200 degrees F service temperature rating; removable 20 gauge 304 stainless steel interior; 20 gauge carbon steel exterior; 12 gauge base and roof trim. Oven Doors: Bi-parting horizontal swing at one (1) end only. Oven Floor: Reinforced insulated floor (2" thick) with 12 gauge wheel guides, and 1/8" of flat gasket under the wheel guides tracks to be 3" wide and centered 30" with the entrance ends. Recirculation: 11,500 CFM @ 15 HP with stainless steel wheel and shaft; belt driven. Exhaust: 1,900 CFM @ 1 HP; with motorized dampers on both the fresh air inlet and exhaust outlet. Heating Equipment: Industrial air heat burner rated at 800,000 BTU per hour. Hang Rails: Stainless steel load bar supports spaced every 18" each to support 25 lbs. Watlow F4T recorder/controller and a Honeywell 4200 paper recorder, 4.3" color touch screen; graphical trending; USB port for downloading data. Utility Requirements: 208 volt, 3 phase, 60 hertz, 1,000 BTU per cubic foot at a constant pressure of 2-5 PSIG. New in March, 2024.
| Model | SWH-6126.5-G8 |
| Category | Dryers - Drying EquipmentDryers - Drying Equipment |
| Subcategory | OvenOven |
| Chamber Length | 144 |
| Chamber Width | 72 |
| Chamber Height | 78 |
| Temperature Range - Low | 290 F |
| Temperature Range - High | 800 F |
| Power Supply Cycle | 60 |
| Power Supply Phase | 3 |
| Power Supply Voltage | 208 |
| Overall Dimensions | 10'6" wide x 13'6" long x 11'8" high |
| Year Built | 2024 |
Manufacturer Information:
- Brand: Wisconsin Oven
- Model: SWH-6126.5-G8
- Series: SWH Heavy-Duty Walk-In Oven
- Year: New in March 2024
- Type: High-Temperature Industrial Walk-In Oven
Description:

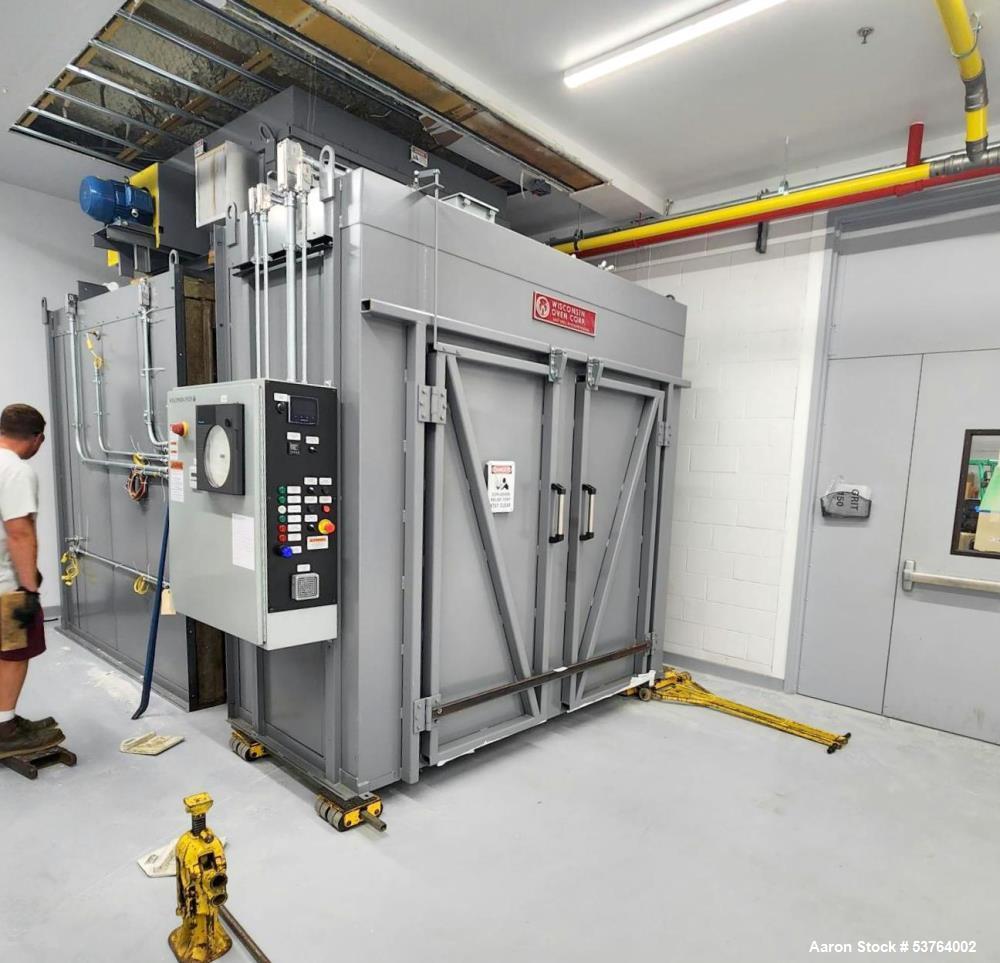

The Unused Wisconsin Oven SWH-6126.5-G8 is a heavy-duty, high-temperature walk-in oven engineered for precision heating applications. Designed with industrial-grade insulation and efficient airflow, it provides uniform heating (+/- 10°F at 700°F) for heat treating, composite curing, powder coating, and industrial drying processes.
Built with a 6" thick high-efficiency insulated panel system, a stainless steel interior, and a reinforced insulated floor, this rugged and reliable oven ensures consistent performance at up to 800°F. It features an industrial air heat burner (800,000 BTU/hr) and a recirculation system rated at 11,500 CFM @ 15 HP, providing efficient heat distribution.
Equipped with an advanced Watlow F4T touchscreen recorder/controller and a Honeywell 4200 paper recorder, the system allows for precise temperature control, graphical trending, and data logging via USB download.
Specifications:
- Maximum Temperature: 800°F
- Normal Operating Temperature: 700°F
- Minimum Temperature: 290°F above ambient
- Temperature Uniformity: ±10°F at 700°F
- Chamber Dimensions: 6'0" W x 12'0" L x 6'6" H
- Overall Dimensions: 10'6" W x 13'6" L x 11'8" H
- Body Construction:
- Tongue & groove panel assemblies with patented high-efficiency seams
- 6” of 6# density industrial board insulation (1,200°F rating)

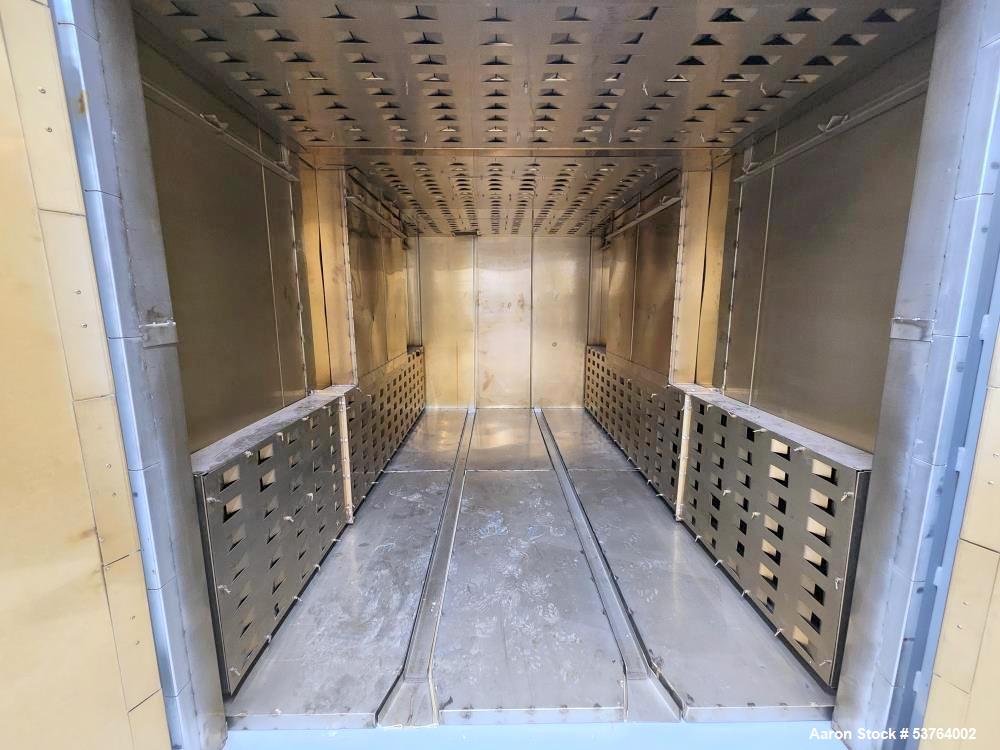

- Removable 20-gauge 304 stainless steel interior
- 20-gauge carbon steel exterior
- 12-gauge base and roof trim

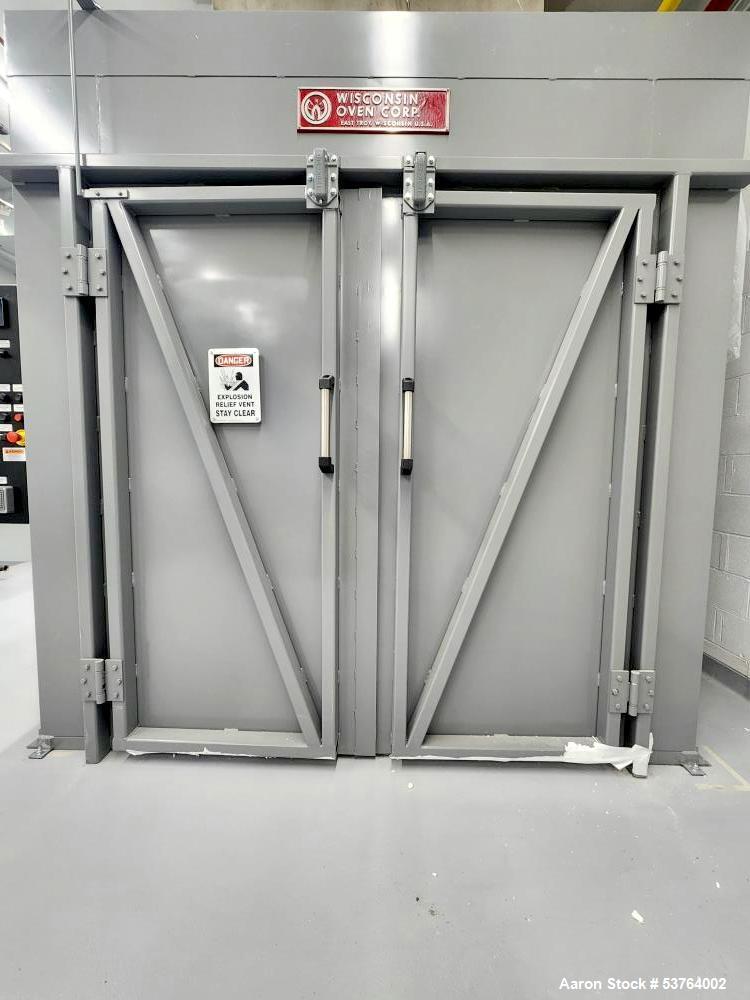

- Oven Doors: Bi-parting horizontal swing door (one end only)
- Oven Floor:
- 2” thick reinforced insulated floor
- 12-gauge wheel guides with 1/8” flat gasket under tracks
- 3” wide tracks, centered at 30” entrance ends
- Recirculation System:
- 11,500 CFM @ 15 HP
- Stainless steel wheel & shaft, belt-driven
- Exhaust System:
- 1,900 CFM @ 1 HP
- Motorized dampers on both fresh air inlet and exhaust outlet

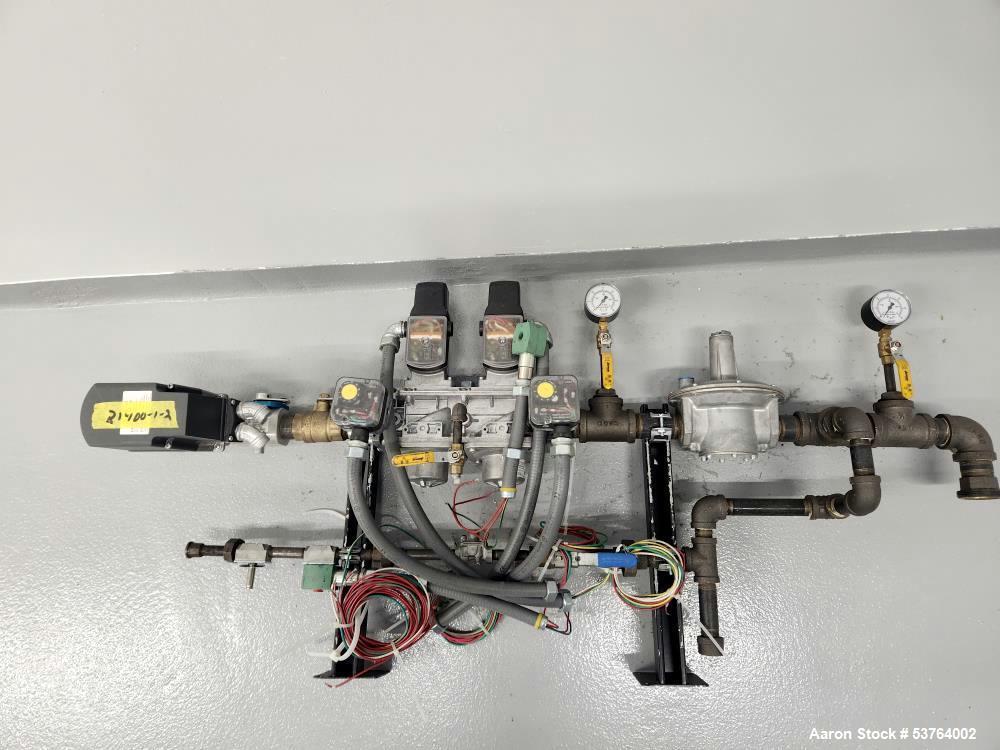

- Heating System: Industrial air heat burner, 800,000 BTU/hr

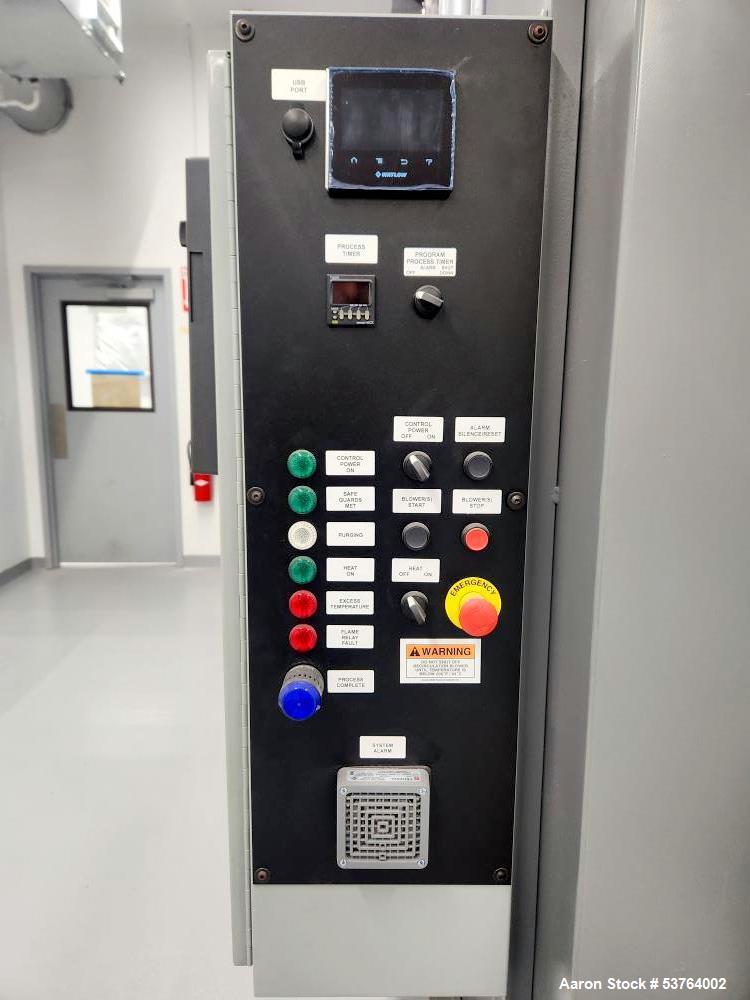

- Control System:
- Watlow F4T Recorder/Controller (4.3” color touchscreen)
- Graphical trending & real-time monitoring
- USB port for data download

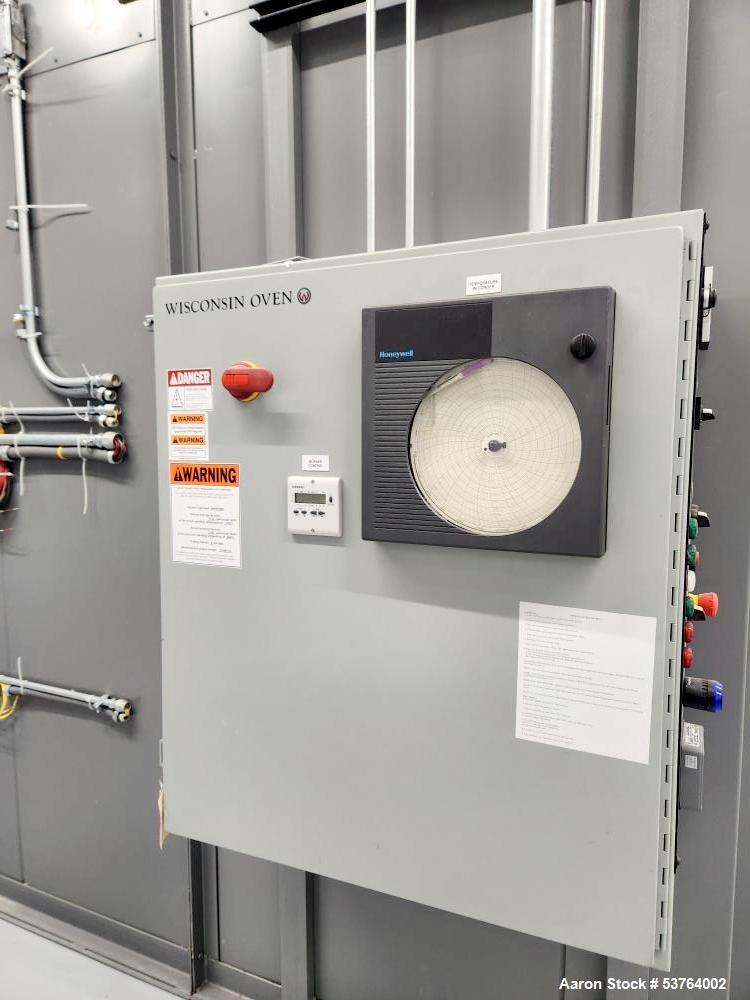

- Honeywell 4200 Paper Recorder
- Hang Rails: Stainless steel load bar supports every 18”, supporting 25 lbs each
- Utility Requirements:
- 208V, 3 Phase, 60 Hz
- 1,000 BTU per cubic foot at 2-5 PSIG
Applications:
The Wisconsin Oven SWH-6126.5-G8 Walk-In Oven is ideal for:
- Heat Treating & Metal Processing – Stress relieving, annealing, preheating
- Composite Curing – Aerospace, automotive, and industrial components
- Powder Coating & Finishing – Curing coatings on metal and composite materials
- Drying & Dehydration – Removing moisture from industrial components
- Plastics & Rubber Processing – Post-molding heat treatment
- Electronics & Semiconductor Manufacturing – Thermal testing & component drying
Alumina Products, Aluminum, Coating, Coating Products, Curing, Heat Treating, Oven
- Aerospace & Automotive Components – Composite curing & stress relieving
- Metal Parts & Fabrications – Heat treating & tempering
- Industrial Coatings – Powder coating & curing
- Electronics & Electrical Components – Drying & testing applications
- Plastic & Rubber Products – Thermal treatment for durability
- Unused Wisconsin Oven SWH-6126.5-G8 for sale
- Heavy-duty walk-in industrial oven
- 800°F high-temperature heat-treating oven
- Industrial walk-in oven with precision temperature control
- Aerospace & automotive composite curing oven
- Large-capacity industrial powder coating oven
- 800,000 BTU/hr high-performance heating oven
- Walk-in oven with advanced process control system
- Unused Wisconsin Oven SWH-6126.5-G8 industrial walk-in oven for sale
- High-temperature walk-in oven with 800,000 BTU/hr burner
- Aerospace and composite curing oven with uniform heat distribution
- 700°F rated heavy-duty industrial oven with recirculation system
- Walk-in powder coating oven with Watlow F4T control system
- Large industrial oven with stainless steel interior and digital recorder
- High-capacity heat treatment oven for manufacturing and metal processing
