Niro (GEA) Fluid Bed Multiprocessor System, Model MP3

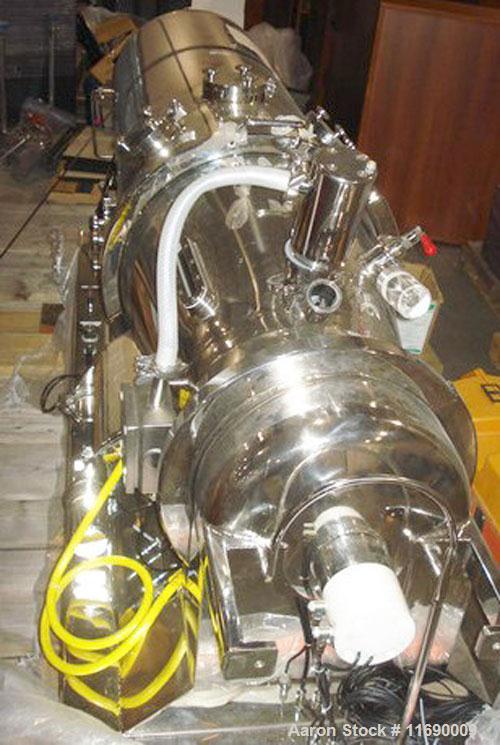

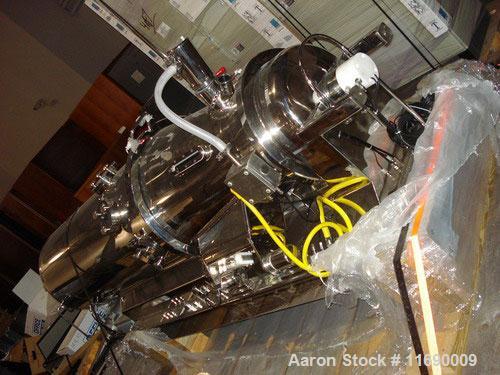

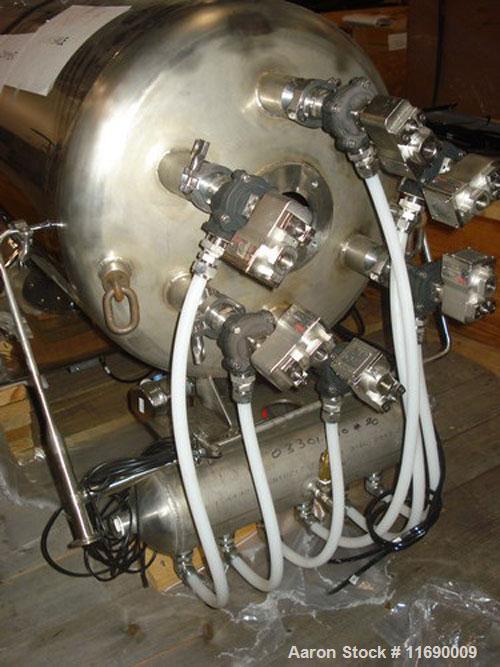

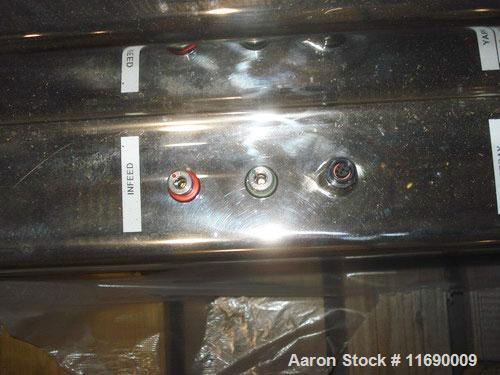

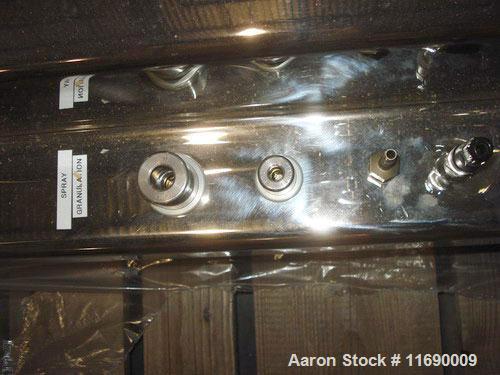

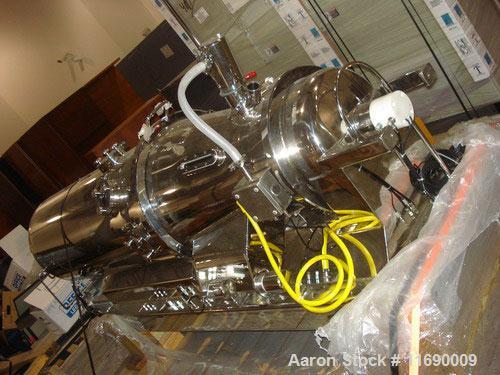

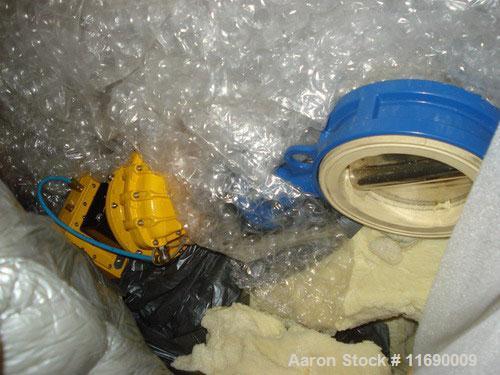

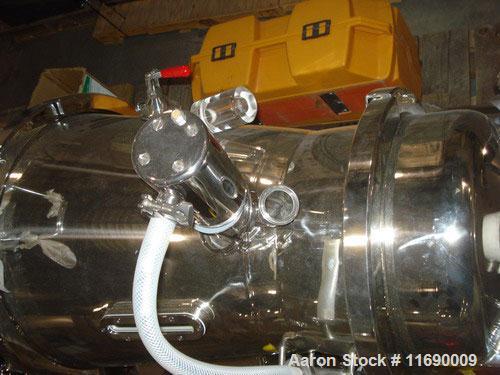

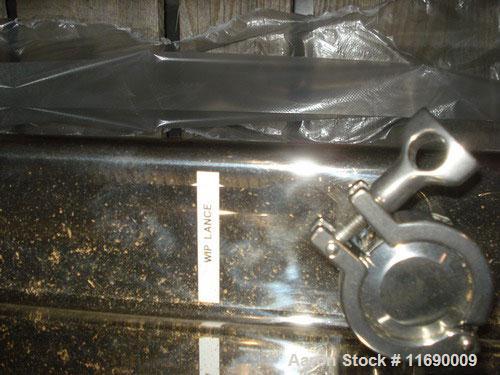

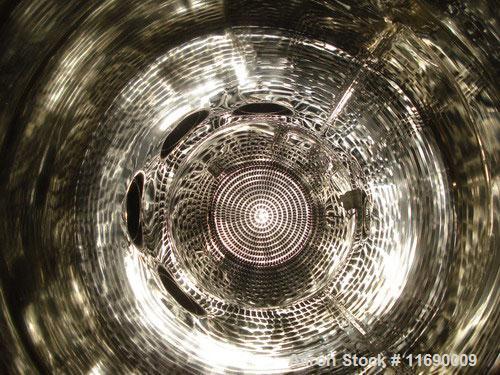

Unused-Niro (GEA) Fluid Bed Multiprocessor System, Model MP3. 10 Bar construction, 316L stainless steel on all internal contact parts, 130 liter gross volume Niro K style product container assembly with gill plate and side discharge assembly, viewing window, manual stainless steel sample port, temperature probe. Side discharge assembly equipped with pneumatic air cylinder and plug combination housing in a fully welded transition assembly, WIP ready design. Product inlet flange (butterfly valve type assembly), 316 stainless steel spray lance assembly with single headed two fluid nozzle, designed for use with remote mounted centrifugal fan, 30 hp. Maximum air flow into processor 660 scfm, minimum with bypass 220 scfm, max air temperature into processor 194 deg F/90 deg C, fluid bed pressure shock resistance 10 bar/150 psig, exhaust fan/motor assembly total system pressure rise approximately 13,947 N/m2, ICS-200 PLC/PC based integrated control system.
