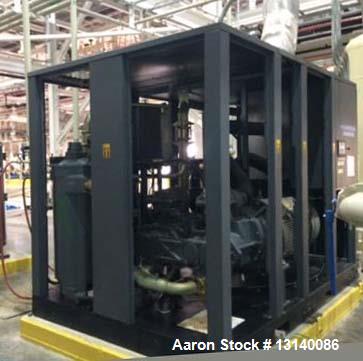

Unused- Atlas Copco Model GA200-W Rotary Screw Compressor

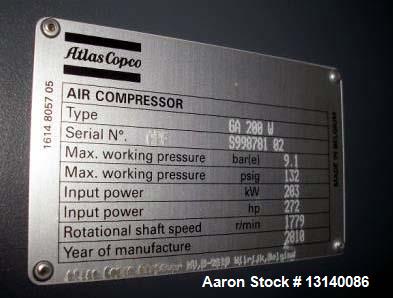

Unused- Atlas Copco Model GA200-W Oil Injected 125 PSI, Rotary Screw Compressor. Reference conditions: absolute inlet press 14.5 PSIA, relative humidity 0%, air inlet temperature 69=8F, cooling water temperature 68F, nominal working pressure 125 PSIG and drive motor shaft speed 1786 RPM. Limitations: maximum working pressure 132 PSIG, minimum working pressure 58 PSIG, maximum allowable air inlet temperature 104F, minimum allowable air inlet temperature 32F. Maximum cooling water temperature of closed system inlet/outlet 104F/140F. Maximum cooling water inlet pressure 145 PSIG. Performance data: flow capacity at working pressures: 132 PSIG/1123 CFM, 125 PSIG/1127 CFM, 100 PSIG/1137 CFM and 58 PSIG/1151 CFM. Power Data: Siemens 250 hp, 3/60/4160 volt TEFC motor, 1800 RPM. Compressor design data: 1 stage, 2 compression elements, male rotor speed 1704 rpm, male rotor diameter 220 mm. Equipped with Elektronikon MKIV control module. Includes Penway wet air receiver. Built 2010.
