Quincy QGV-100 100 HP Variable Speed Rotary Screw Compressor | Water-Cooled Industrial Plant Air

🏭 Manufacturer Information

• Manufacturer: Quincy Compressor

• Model: QGV-100

• Series: QGV Variable Speed Rotary Screw

• Control Package: Quincy BADGER PXE

• Condition: Used

• Application Type: Continuous-duty industrial plant air

⚙️ Description

This Quincy QGV-100 100 HP Variable Speed Rotary Screw Air Compressor is an energy-efficient compressed air solution engineered for demanding industrial environments. Featuring a variable speed drive (VSD), the compressor dynamically adjusts output to match real-time air demand—reducing power consumption, minimizing unloaded run time, and lowering operating costs.

The unit delivers up to 471 CFM and utilizes a water-cooled design, allowing reliable operation in high ambient temperatures up to 104–110°F. It is housed in a fully enclosed, sound-attenuated cabinet and equipped with Quincy’s BADGER PXE control package for advanced diagnostics, monitoring, and system control.

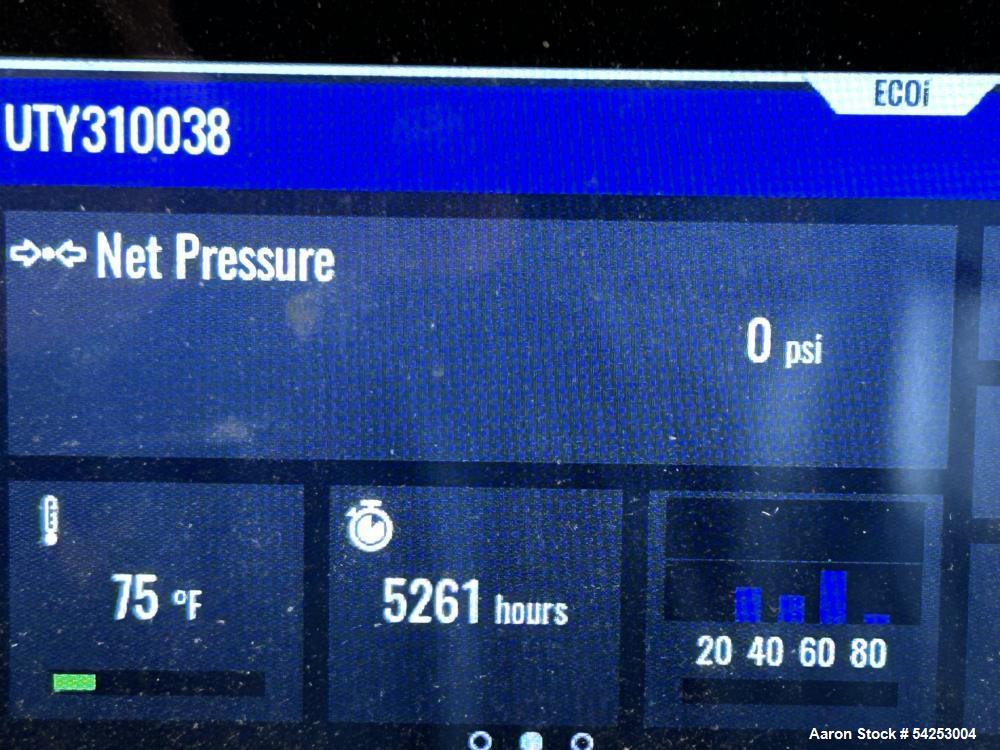

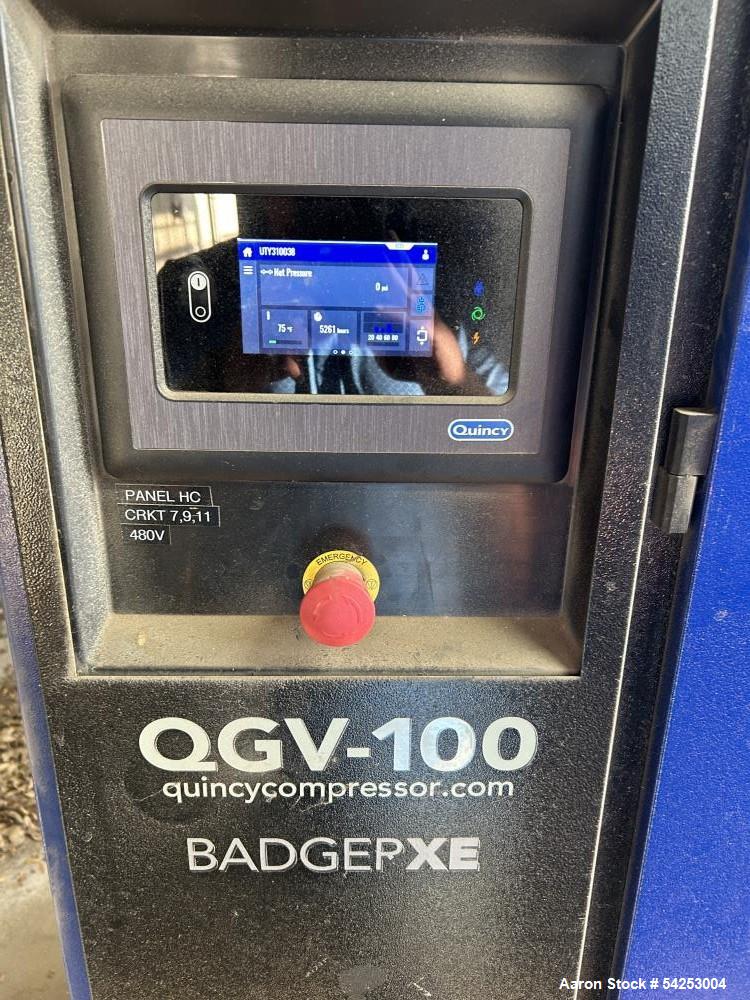

A touchscreen controller (ID UTY310038) shows 5,261 operating hours, 75°F internal temperature, and 0 PSI net outlet pressure at the time of inspection (unit not under load). Electrical protection is provided by a NEMA 4 control enclosure, rated 468 amps, with a largest motor FLA of 163A, making this compressor well suited for manufacturing plants, processing facilities, and utilities requiring reliable, efficient plant air.

📏 Specifications

• Model: QGV-100

• Compressor Type: Rotary Screw

• Horsepower: 100 HP

• Drive Type: Variable Speed Drive (VSD)

• Maximum Air Capacity: 471 CFM

• Cooling Method: Water-cooled

• Voltage: 460V

• Phase: 3-Phase

• Maximum Ambient Temperature: 104–110°F

• Controller: Touchscreen HMI

  • Controller ID: UTY310038

  • Displayed Hours: 5,261

  • Internal Temp (Inspection): 75°F

  • Net Pressure (Inspection): 0 PSI

• Control Package: Quincy BADGER PXE

• Panel Rating: 468A

• Largest Motor FLA: 163A

• Enclosure: NEMA 4, sound-attenuated cabinet

• Safety Features: Emergency stop

🧩 Applications

• Industrial manufacturing plants

• Food & beverage processing

• Pharmaceutical and biotech facilities

• Automotive and metal fabrication

• Packaging and bottling lines

• Utilities and central plant air systems

• Continuous-duty compressed air supply

• Energy-efficient compressor retrofits

• Facilities with fluctuating air demand

• High-temperature operating environments

⚗️ What Might This Be Used For

• Supplying stable compressed air to production equipment

• Reducing energy consumption with variable speed operation

• Supporting continuous plant air requirements

• Powering pneumatic tools and automation systems

• Improving efficiency under variable load conditions
