THIS ITEM HAS SOLD! View similar equipment

Stock No.: 41174037

Used Alfa Laval Solid Bowl Decanter Centrifuge, Model CBDNX 438B-31G

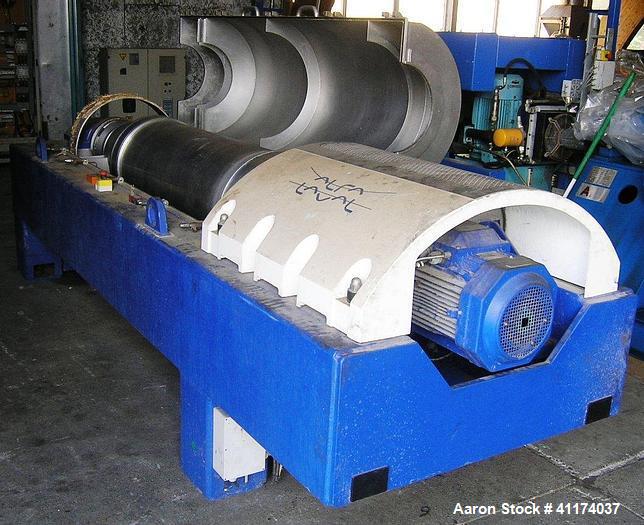

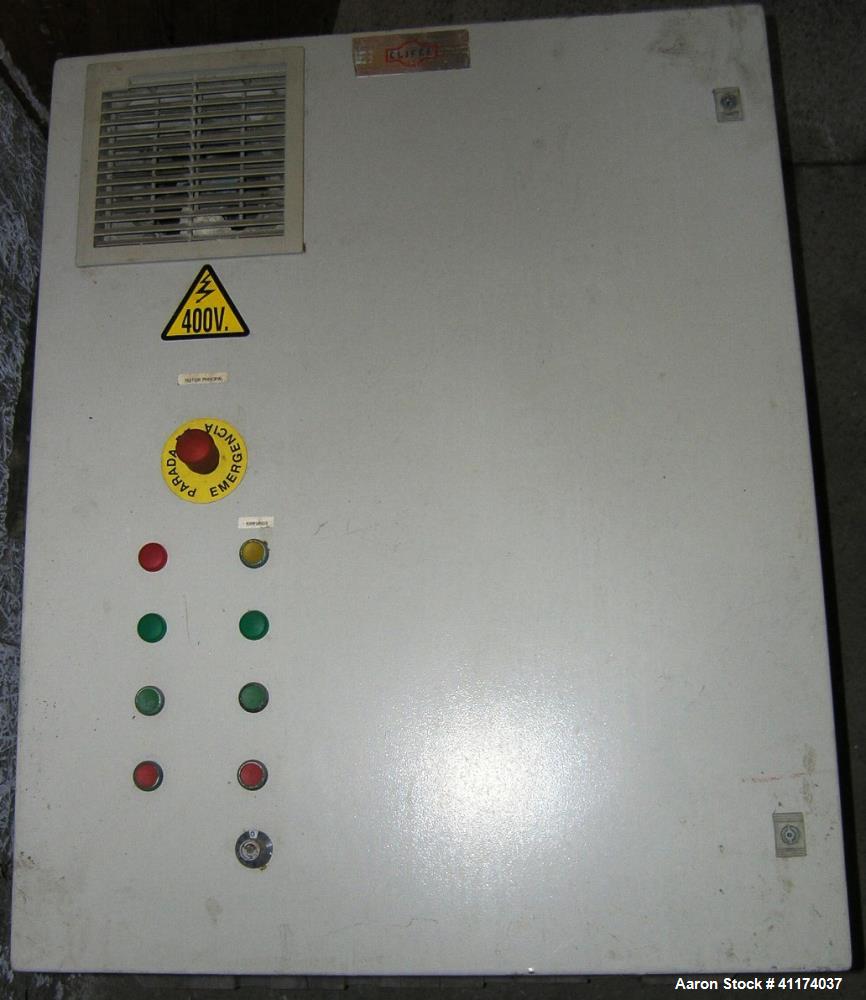

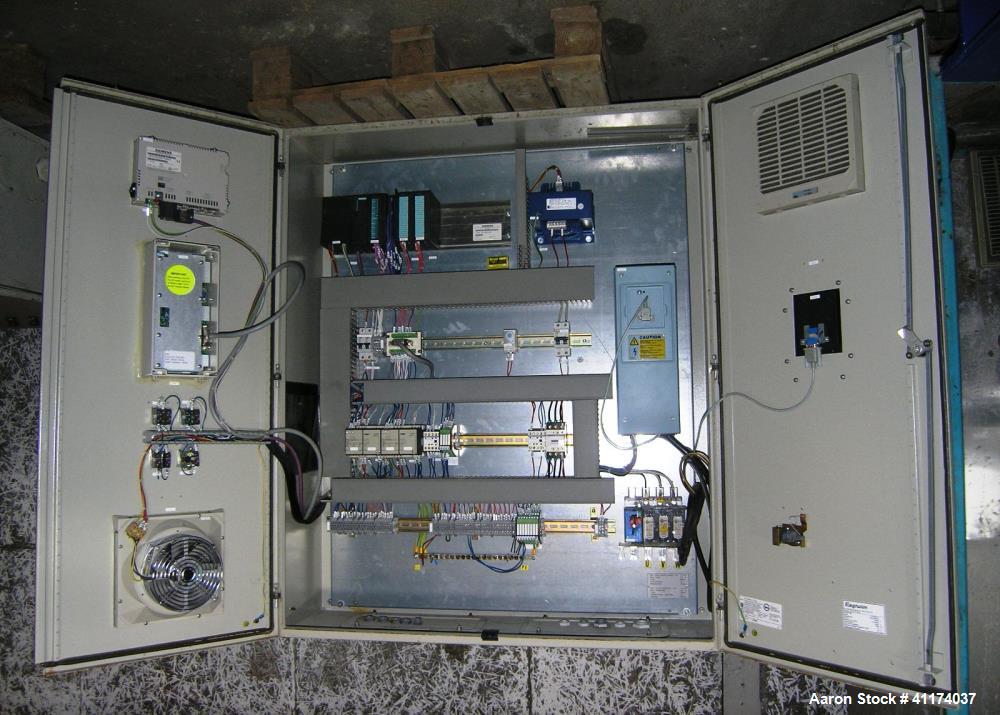

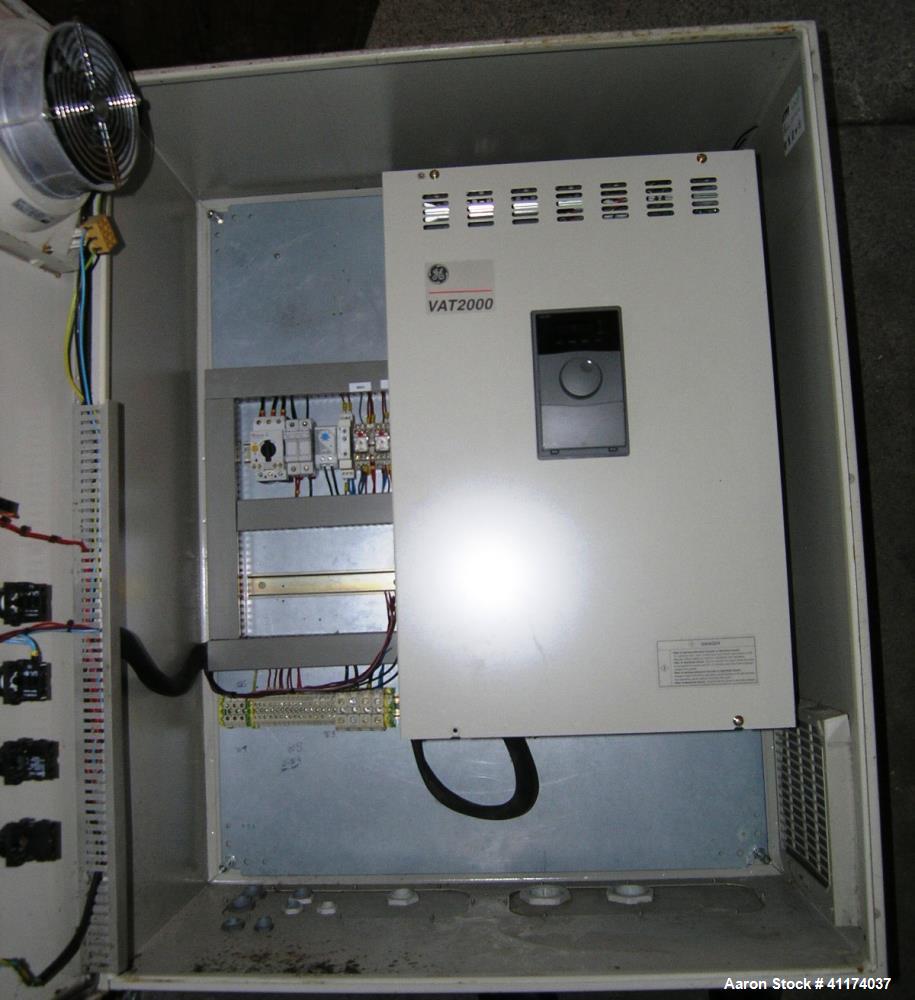

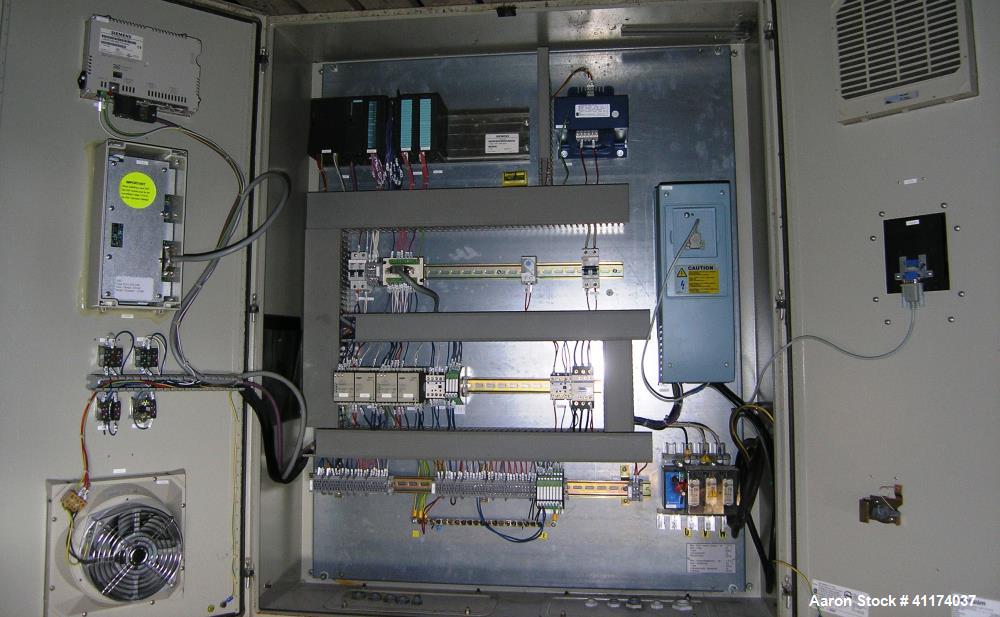

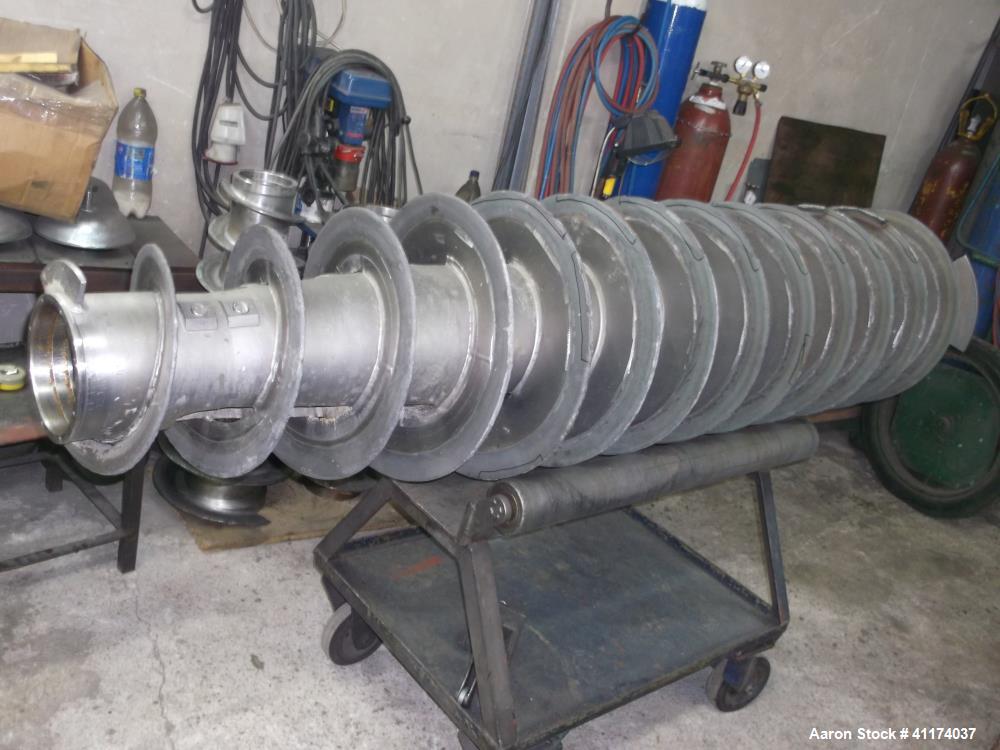

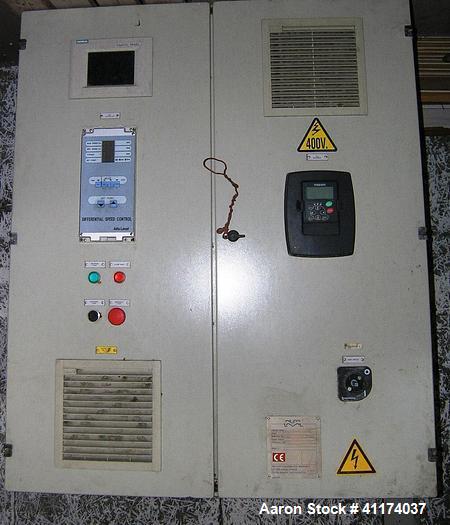

Used- Alfa Laval Solid Bowl Decanter Centrifuge, Model CBDNX-438B-31G, 316 stainless steel construction (product contact areas). Maximum bowl speed 3650 rpm. Operating G force 3193. Conveyor, 360 degree solids discharge ports with wear inserts, base, casing, 55 kW (73.7hp) main drive motor, feed pipe, safety guards, gearbox. On 4 legs. Includes: 2 x control panels. Bowl diameter 480/263 mm. Back drive: Variable frequency drive, 11 kW (14.7hp) motor. Previous used on fish and protein. Mounted on a frame with 4 legs.

ManufacturerAlfa Laval
ModelCBDNX-438B-31G
CategoryCentrifuges
SubcategoryDecanter
Backdrive Hp14.7
Base MaterialCarbon Steel
Bowl Material316 Stainless Steel
Main Drive Hp73.7
Solids Ports360
Bowl Speed3650

We offer a variety of finance programs. Please contact your sales person for more information.
