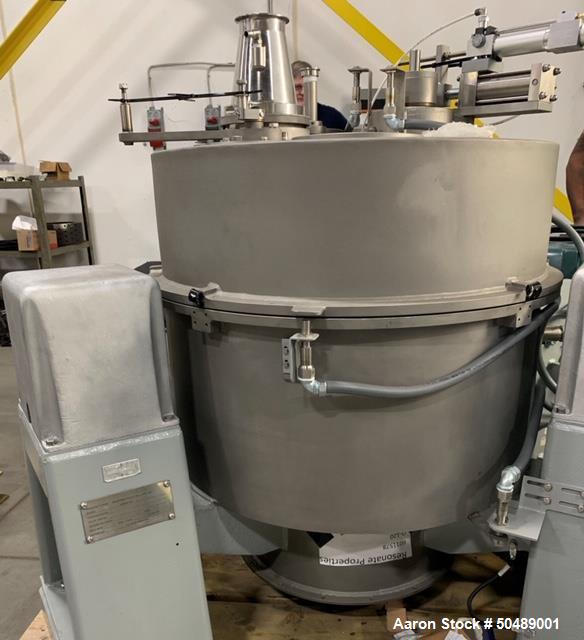

Used- Western States Basket Centrifuge, Model QC-120.

Used- Western States Basket Centrifuge, Model QC-120. 30" diameter x 18" deep. Perforate basket. Top Load/Bottom unload centrifuge. Maximum speed 1450 rpm at 900 gravities. 4" top cap, 11.8' screen area, 3.4' maximum holding capacity. Full welded construction and dynamically balanced. Vertical weld in basket drum radiographed. Maximum load 255 pounds (75 pounds / foot). Constructed of 316 stainless steel. Exclusive Western states Machine Company Drive featuring A-C Variable Frequency Inverter in a NEMA 1 enclosure, complete with a Siemens PE-21, 20 hp. Class 1 Group "D" Division 2 high efficiency motor for 460 VAC, 3 Phase, 60 Hertz. CURB - All welded construction, complete with 22-3/4" I.D. flanged solids outlet and a 4" flanged tangential liquid discharge outlet. Constructed of 316 stainless steel. Feed Pipe. Unbalance Switch, Vibra Switch, Wash Pipe.
