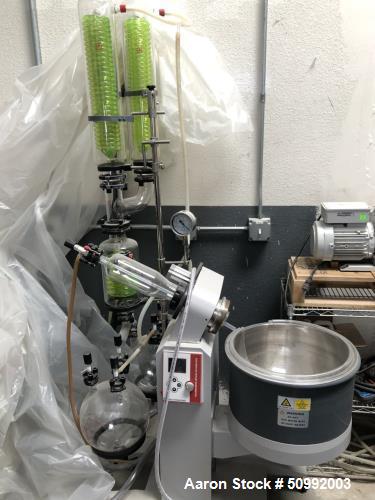

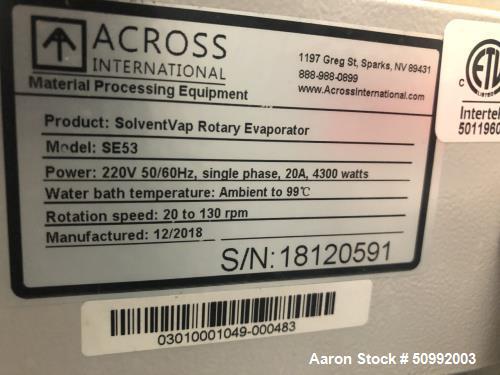

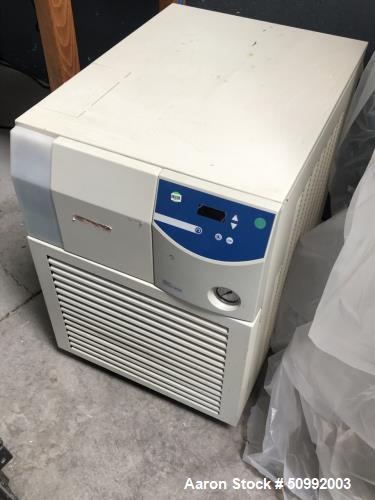

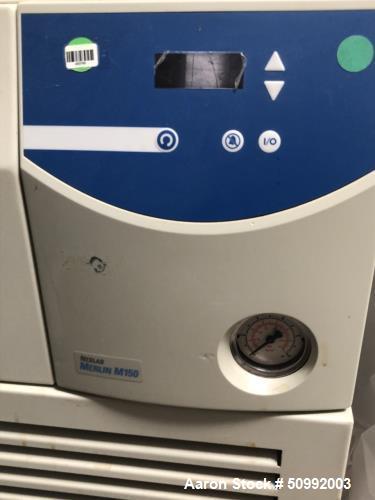

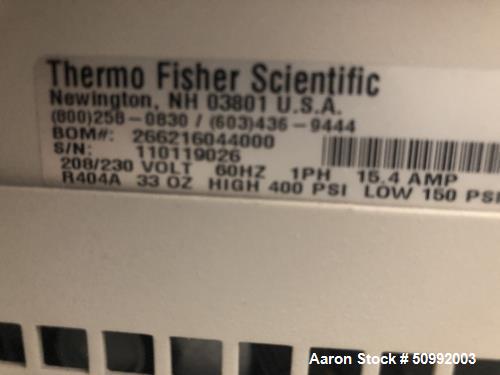

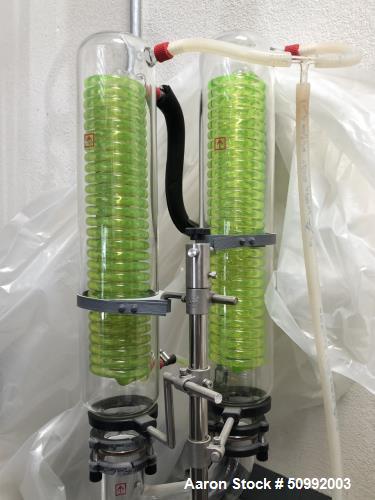

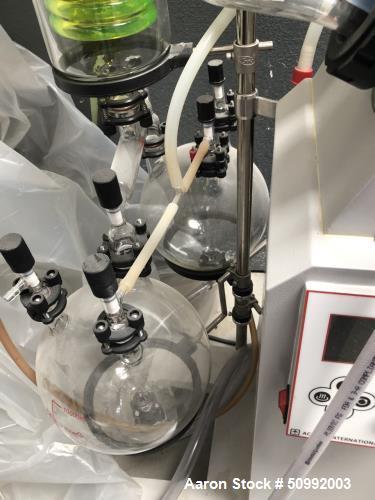

Used Across International SolventVap 20L Rotary Evaporator with Chiller. Model SE53. Evaporating flask: Capacity: 5.28 gallon (20 liters or 0.7 cubic foot). Maximum load: Not to exceed 60% of the flask's capacity. Sealing flange: 4.9" diameter. Rotation speed: 10 to 130 rpm. Evaporating speed: about 2-4 gallon/hour (water), Alcohol evaporation speed approximately 5-7 gallons per hour. Receiving flask: 2.64 gallon (10 liters or 0.35 cubic foot). Condenser Glassware: Main + auxiliary triple-circulating cold traps, vertical Chilling fluid conneciton: 3/8" hose barb x 4 (2 on main + 2 on auxiliary). Condensing surface: Main condenser: 9,480 cm2 or 10.2 square foot. Solvent-resistant PTFE and Viton gaskets, ensuring long time operation. 220V 50/60Hz single phase, 20A, 4300 watt (rotation motor: 300 watts). High borosilicate glass 3.3. Includes Thermo Fisher Scientific Merlin Recirculating Chiller. Model M150. Refrigerant: R134A. Cooling Capacity Up to 4,282 watts. Electrical Requirements: 230 V 50 Hz. Pump Capacity 10 gpm at 22 psi (37.9 L/minute at 1.7 bar). Last used in a cannabis application.
Used Across International SolventVap 20L Rotary Evaporator with Chiller. Model SE53. Evaporating flask: Capacity: 5.28 gallon (20 liters or 0.7 cubic foot). Maximum load: Not to exceed 60% of the flask's capacity. Sealing flange: 4.9" diameter. Rotation speed: 10 to 130 rpm. Evaporating speed: about 2-4 gallon/hour (water), Alcohol evaporation speed approximately 5-7 gallons per hour. Receiving flask: 2.64 gallon (10 liters or 0.35 cubic foot). Condenser Glassware: Main + auxiliary triple-circulating cold traps, vertical Chilling fluid conneciton: 3/8" hose barb x 4 (2 on main + 2 on auxiliary). Condensing surface: Main condenser: 9,480 cm2 or 10.2 square foot. Solvent-resistant PTFE and Viton gaskets, ensuring long time operation. 220V 50/60Hz single phase, 20A, 4300 watt (rotation motor: 300 watts). High borosilicate glass 3.3. Includes Thermo Fisher Scientific Merlin Recirculating Chiller. Model M150. Refrigerant: R134A. Cooling Capacity Up to 4,282 watts. Electrical Requirements: 230 V 50 Hz. Pump Capacity 10 gpm at 22 psi (37.9 L/minute at 1.7 bar). Last used in a cannabis application.
