Complete Ethanol Recovery System – CRC Filters, Dehydrator, Air-Cooled Condenser

Manufacturer Information:

System Type: Turnkey Ethanol Evaporation, Condensing & Drying System
Key Components: CRCfilters EV-2.5 & EDH-25, Midea Induction Burners, Air-Cooled Condenser
System Design: Gravity drain, atmospheric pressure, air-cooled – no pumps or chillers required
Condition: Used – Fully operational with all included components

Description:

Turnkey ethanol evaporation and recovery system designed for atmospheric pressure operation with gravity-fed drainage—eliminating the need for pumps or chillers. This compact and scalable 6-vessel setup allows simultaneous processing of up to six extraction batches or strains. System includes stainless steel evaporation vessels, molecular sieve column ethanol dryer with saturation indicator, air-cooled condenser, and a complete support racking system with induction burners and electrical wiring pre-installed. Ideal for cannabis and botanical ethanol recovery operations seeking a cost-effective and energy-efficient solvent recovery system.

Specifications:

🔧 System Overview:

• Operation Type: Atmospheric pressure

• Drain Type: Gravity-fed (no pump required)

• Evaporation Rate: 5–7 gallons per hour (depending on setup temperatures)

• Batch Capacity: Up to 6 batches simultaneously

• Power Supply: Single switch operation

• Condenser Cooling: 1800 CFM air-cooled fan

🧪 Primary Components:

1. Pallet Racking System:

• Dimensions: 8' Wide x 12' High x 2' Deep

• 3 Levels including stainless steel benchtop

• Custom fit rail mounts for condenser

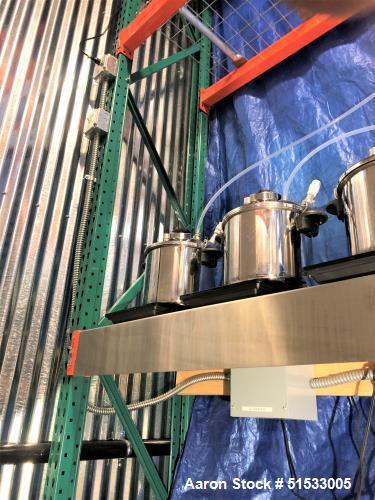

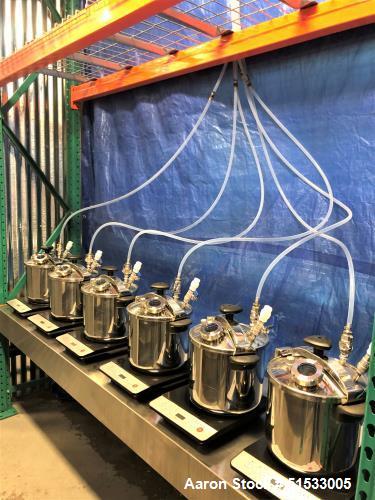

2. (6) CRCfilters EV-2.5 Evaporation Vessels:

• Batch Capacity: 15 gallons each

• Construction: Fully welded stainless steel

• Features: Camlock fittings, sight glass, sanitary design

3. CRCfilters EDH-25 Ethanol Dryer:

• 25 lb Molecular Sieve Column

• 55-gallon stainless steel collection drum

• Includes water saturation/changeout indicator

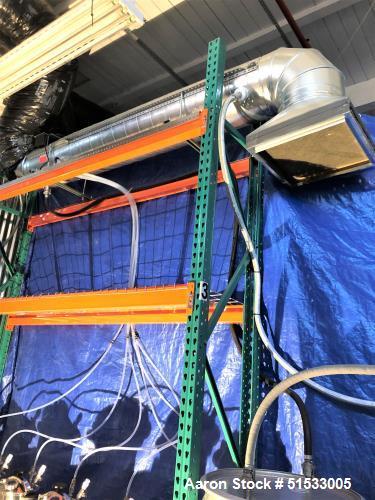

4. Air-Cooled Condenser:

• Internal stainless steel coils

• 1800 CFM fan with standard air filter

• Dual vent ports for drum and air handling

• 14" shell, compatible with standard ducting

• Mounts directly to rack with no fasteners required

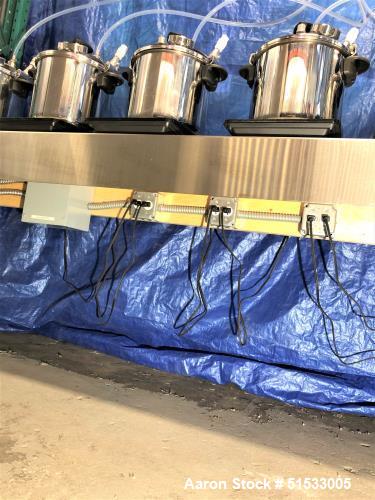

5. Midea 1500W Induction Burners (Qty 6):

• 110V operation

• Wired and installed

Applications:

• Botanical ethanol extraction recovery

• Cannabis and hemp processing labs

• Solvent recovery in small-scale manufacturing

• Ethanol drying and purification systems

• R&D and pilot plant ethanol evaporation

• Solvent management for CRC filtration setups

• Ethanol reusability for compliant labs

What products would this be used for:

• Cannabis and hemp crude extracts

• Botanical oils and tinctures

• Solvent-purified natural compounds

• Winterized oil mixtures

• CBD/THC-rich ethanol extracts

• Essential oil ethanol removal

• Herbal and nutraceutical extract recovery

• Distillate feedstock prep

• Reusable ethanol from biomass extraction

• Concentrate or crude oil pre-purification
