Used Charlotte SD-40 40 HP 316 Stainless Steel Colloid Mill

Used Chemicolloid Industries Charlotte Model SD-40 type 316 stainless steel horizontal inline colloid mill designed for processing pumpable slurry products. Unit is mounted on a common stainless steel base and driven by a 40 hp, 230/460 VAC, 3-phase, 60 Hz, 3,565 rpm motor. Rated for production rates up to approximately 1,200 gallons per hour depending on the product being processed. Equipped with an adjustable-gap rotor for controlled high-shear particle size reduction and capable of partial reduction down to approximately 3-5 microns depending on the material, application and machine configuration. Process connections are 3" OD / 2" ID threaded fittings. Last used in the food industry. Includes motor starter. Serial #4211. Possible applications include emulsification, homogenization, dispersion and particle size reduction of compatible sauces, dressings, mayonnaise, syrups, purees, creams, lotions, suspensions, slurries and other pumpable food, cosmetic, pharmaceutical and chemical products.

Used Ingersoll Rand RS30i-A125 Rotary Screw Air Compressor Package – 40 HP, 184 CFM, 125 PSI

Used Ingersoll Rand RS30i-A125 Rotary Screw Air Compressor Package 40 HP, 184 CFM, 125 PSI. Rated for approximately 184 CFM with a 125 PSI maximum operating pressure. Driven by a 40 HP motor. Package includes an Ingersoll Rand D255NC refrigerated air dryer for moisture removal and improved compressed air quality, along with an air receiver tank to provide air storage, stabilize system pressure, and reduce compressor cycling. Reported 1,772 operating hours. Serial number CBV457593, built 2016. Complete compressed air package suitable for a wide range of industrial applications. Has 0 run hours since last major service was done.

MFR: Ingersoll-Rand

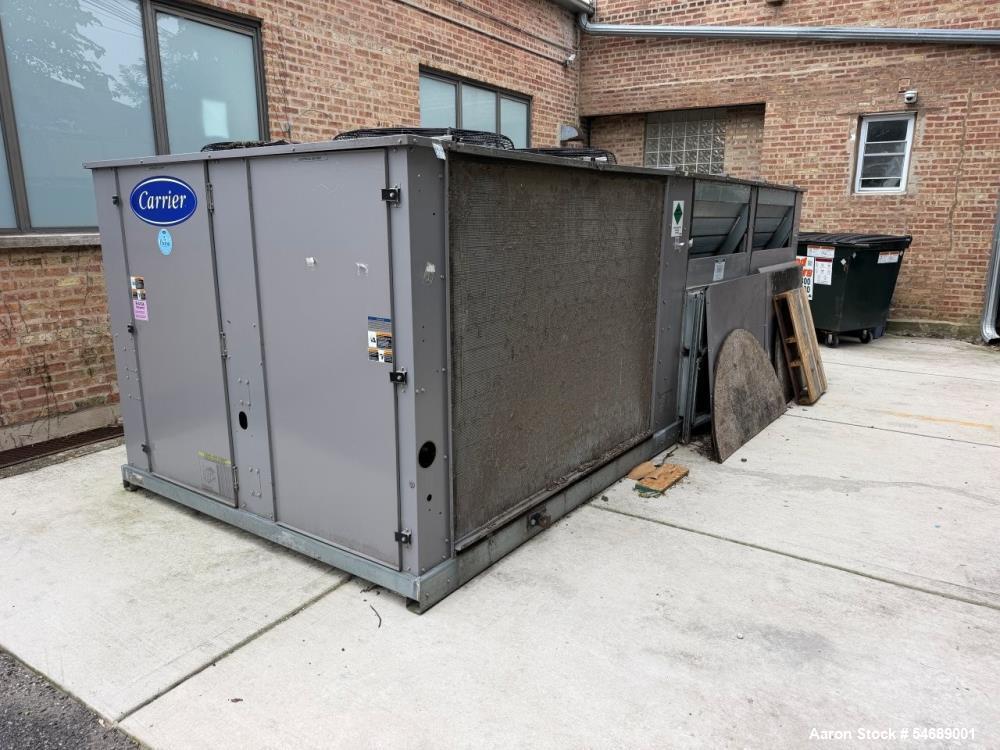

Used 2016 Carrier WeatherMaker 48A4E040 40-Ton Packaged Rooftop HVAC Unit – Gas Heat, R-410A Cooling

Used- 2016 Carrier WeatherMaker Model 48A4E040-E-521FE, 40-Ton Packaged Rooftop Gas Heat/Electric Cooling Unit, R-410A Refrigerant, 208/230V, 3-Phase, 60 Hz. Unit equipped with 20 HP indoor supply fan, (4) 1 HP condenser fan motors, dual refrigerant circuits with approximately 88 lbs total factory R-410A charge, and natural-gas heating rated 600,000 to 800,000 BTU/hr input with 648,000 BTU/hr output. Serial No. 3616U44012. Approximate base unit weight 5,334 lbs.

MFR: Carrier

Used Sharples SP-5500 Solid Bowl Basket Centrifuge, Sludge Pak

Used- Sharples SP-5500 Sludge-Pak Solid Bowl Basket Centrifuge, 316 Stainless Steel. Maximum bowl speed 1500, tri-pod suspension system, 40" x 24" basket, pneumatic single motion plow assembly, pneumatic skimmer assembly, 3-way skimmer valve, vibration switch, feed pipe, 40 hp oilgear hydraulic drive system, control.

MFR: Sharples

Used Cumberland 2428I Granulator – 24" x 28" Twin Shear Rotor, 40 HP

Used- Cumberland, Model 2428I Granulator. 24" x 28" feed throat. 3 knife twin shear open rotor. 2 bed knife. 40 hp 230/460 volt motor. Tray feed hopper. 8" right hand airveyor discharge.

MFR: Cumberland

Werner & Pfleiderer ZSK40 Twin Screw Extruder for Sale – 40mm, 50 HP

Used-Werner & Pfleiderer Model ZSK40, 40mm Co-rotating twin screw extruder. 1990 Model year. 46:1 L/D vented barrel with 11-barrel sections and a 41" centerline height. Driven by 50 hp 500 volt 1750/2100 rpm DC motor with SCR control and with a screw speed of 517 rpm. Includes Acrison 1.5 hp weight loss differential feeder, 2.2 kw Tervac vacuum pump, and side feeder.

MFR: Werner & Pfleiderer

Used Ross HSM-40 Vacuum Double Helical Mixer Reactor – Stainless, Jacketed, Explosion-Proof

used- Ross HSM-40 Vacuum Double Helical Mixer Reactor, 316 stainless steel. This unit will mix most things that a double planetary mixer will mix, and in many cases, better and faster. Unit has air/oil lift mechanism to raise and lower the drive to allow the removal of the mix tank. Designed for operations under vacuum & a positive pressure of 35 psi @ 350f, jacket maximum allowable working pressure 100 psi @ 350f. Minimum design metal temperature 0f at 100 psi.7.5hp motor. ross metal fabricators Serial# 11801-1, National Board# 463, CRN 15925. stainless steel contact parts. jacketed mix can with provision for thermocouple, insulated with sheathing. explosion proof motor runs on 575 volts, 3 phase, 60 hz. no controls. mixer dimensions for the ross hsm-40: 43" w x 68" l x 91" h lowered position tank id is about 23 and about 27.5 deep. Our freight specialists can assist you with door to door transportation and all customs documents needed to make the process go as smoothly as possible.

MFR: Ross Industries

Used Ross HDM-40 Gallon Double Planetary Mixer – Vacuum Rated, 316SS, 15 HP (Approx.)

Used- Ross HDM-40 Gallon Double Planetary Mixer. 5 to 40-gallon working capacity. Designed to mix under a full vacuum 29-1/2" HG. An air over oil hydraulic lift system is included to raise and lower the top of the mixer with drives and mixing blades. All product contact parts 316SS with a 150-grit finish and exterior stainless with an 80-grit finish. Driven by a 15 HP (to be confirmed) motor with a mechanical variable speed drive. All carbon steel surfaces are painted with a two component epoxy. Fitted with standard rectangular profile mixing blades.Comes with a control panel suitable for 3 PH / 60HZ /480v. Vacuum hood has a 2" sight port, a light fixture, a vacuum exhaust port and a port with 80 Watts / 120 volts EX-PROOF light. Mixer comes with one mix (not jacketed) can as follows: Made from 316 SS with interior finish 150-grit and exterior finish 80-grit, internally machined for use with a discharge press, designed for vacuum mixing, bottom outlet is a 4" Tri-Clover 316L SS flush plug connection with a 4" flush plug, mounted on casters, push pull handle. Prior use for manufacturing oral care products. Approximate weight of the mixer is 6234 Lbs. Manufactured in 2003.

MFR: Ross Industries

Used Korsch PH 106/DMS Rotary Tablet Press – 6 Station, 40 KN, 32,400 Tablets/Hour

Used- Korsch Rotary Tablet Press, Model PH 106/DMS, 6 station, 40 KN compression pressure, 15 mm max tablet diameter, 15 mm max depth of fill, rated up to 32,400 tablets/hour, machine #1.0037.95.

MFR: Korsch

Used 304 Stainless Steel Rotary Blancher – 40" x 98" Perforated Drum, Variable Speed

Used- Rotary Blancher, 304 Stainless Steel. Perforated drum approximately 40" diameter x 98" long, driven by a 2 hp, 3/60/208-230/460 volt, 1755 rpm Reeves variable speed motor, ratio 70.6 to 1, minimum / maximum rpm 6.6/60. 3/16" Diameter screen holes, side access doors. End feed and discharge. Mounted on a stainless steel frame.

MFR: Unknown

Used Gifford-Wood Model V/P-A AGI-Mixer – 40 Gallon Vacuum Kettle, Homogenizer Mixer, Stainless Steel

Used- Gifford-Wood AGI-Mixer, Model V/P-A, Consisting of: (1) J.C. Pardo & Sons Vacuum Kettle, 40 Gallon, 316 Stainless Steel. Approximate 26" diameter x approximate 26" deep. Lift out clamp on domed top cover, hemispherical bottom. Internal rated 15 psi or full vacuum at 250 degrees F. 304 Stainless steel jacket rated 40 psi at 287 degrees F. Tilt out agitator bridge with inner bar agitator and an anchor style scrapper agitator. (1) Gifford Wood homogenizer mixer, all set up for hydraulic drive. 2" Center bottom outlet. Mounted on (4) legs. Serial# 4402, National Board# 2158. Includes an operator panel, control panel, 0.75hp circulation pump and a Watlow electric heater. Mounted on a common carbon steel base.

MFR: Gifford

Precision Stainless 150 Liter (40 Gallon) 316L Stainless Steel Reactor Vessel.

Used- Precision Stainless 150 Liter (40 Gallon) 316L Stainless Steel Reactor Vessel. Rated for a maximum allowable working pressure (MAWP) of 45 PSI Full Vacuum at 300 degrees Fahrenheit. Jacket rated for 100 PSI at 300 degrees Fahrenheit. Multiple top inlets, clamps and probes, dished bottom. Forklift ready, mobile on casters. Manufactured in 1991. National Board Number 3424, Serial number 5203-4. Previously used in biotech operation.

MFR: Precision Stainless
