Used Prodex 4.5" Pelletizing Line with 300 HP Extruder & Cumberland Pelletizer

Used- Prodex Pelletizing Line Prodex 4.5" 32:1 L/D extruder having an electrically heated, water cooled (closed loop), and side vented barrel. The gearbox is a Lufkin change gear gearbox and driven in a tuck under manner by a 300 HP A/C motor with Yaskawa inverter. Includes stand-alone cooling system for the gearbox. Over-sized on center oblong feed throat with water cooling and volumetric screw feeder. Free-standing temperature control panel has ten (10) zones of temperature controls. Inverter is free standing and mounted in its own enclosure. Mounted on the extruder discharge is a hydraulic slide plate screen changer having two (2) nominal 4.5" diameter breakers with hydraulic power pack, stand, and strand die. Downstream includes an 11" Cumberland "Quietizer" pelletizer with solid helical rotor. Powered by a 25 HP A/C motor and Yaskawa model V1000 inverter. Pelletizer feeds 10" x 72" Witte two deck screener. Offered less extruder screw.

MFR: Prodex

Used Littleford Model DVT-130 Mixer/Reactor – High-Performance Industrial Proces

Used Littleford Model DVT-130 Mixer/Reactor, Stainless Steel. 3.1 Cubic feet working capacity (4.6 total). Jacketed chamber approximately 20" diameter x 26" long, bolt-on flat hinged jacketed cover. Jacket rated 75 psi at 32 to 320 degrees F. Internal rated 100 psi / Full vacuum at 32 to 320 degrees F. Side chopper motor, driven by 15hp, 3/60/230/460 volt, 3495 rpm (not installed). Includes control panel with voltage/phase indicators, gauges, piping. National Board#4298. Serial# 41779-4298. 3/60/480 Volt.

Used Lyco Blancher – Model Clean Flow CKFF, 7’ Chamber, Stainless Steel

Used- Lyco Blancher, Model Clean Flow CKFF. Stainless steel. 7' chamber length. 40" infeed diameter. Cool products to under 40 degrees F. CIP system. On (4) legs. 3/60/460V. Built 2011. Previously used for food.

MFR: Lyco

GEA Ecoflex VT10 Plate Heat Exchanger For Sale – 145 PSI, 212°F Rated – Approx.

Used- GEA Ecoflex GmbH Plate Heat Exchanger, Model VT10 CDS-17. Approximately 40 square foot area. Approximate (44) Stainless steel plates 31" x 8-1/2" wide. Operating pressure 0 to 145 psi (0 to 10 bar). Operating temperature 32 to 212 degrees F (0 to 100 degrees C). 2" Inlet/outlets. Mounted in an expandable frame. Serial# 169/16856.

Used Herbold Granulator. 15.5" x 15.5" feed opening

Used- Herbold Granulator. 15.5" x 15.5" feed opening; (3) complete sets of (9) blades w/ (17) spares; 3 complete sets of (2) counter blades w/ (5) spares; 6mm and 9.5mm screens. Approx. OAD: 8.9' L x 5.3' W x 7.3' H. Driven by a 40 HP, 3/60/575V motor. With control panel. Previously used for plastic. Our freight specialists can assist you with door to door transportation and all customs documents needed to make the process go as smoothly as possible.

MFR: Herbold

Used Coperion Werner & Pfleiderer ZSK 50 MCC Twin Screw Extruder – 40mm High-Speed Compounding System with Side Feeder

Used Coperion Werner & Pfleiderer ZSK 50 MCC Twin Screw Extruder 40mm High-Speed Compounding System with Side Feeder, Co-Rotating, (2) 40 mm diameter side by side screws, 54:1 L/D ratio, 10 total barrel sections, (9) heated barrels, electrically heated water cooled. Driven by a 181 kw (242.72hp) - 470 volt DC drive motor via a PIV gear box. Screw speed maximum 920-1056 RPM (1) Die head, Frame mounted. (1) Coperion Werner & Pfleiderer ZS.B 58 twin screw side feeder, (1) Cooling Bath, Control panel. Serial# 64012350, Built 2000. 34432 Hours. Weight 7.4 tonnes. Previously used in a compounding application. Our Freight Specialists can assist with any customs documents and forms to insure a smooth transition.

MFR: Werner & Pfleiderer

Used Kason K40-1-SS Vibroscreen Circular Sifter | 40" SS Single-Deck | 75 lbs/min | XP Motor | Built 2023

Used Kason K40-1-SS Vibroscreen Circular Sifter | 40" SS Single-Deck | 75 lbs/min | XP Motor | Built 2023. 304 stainless steel construction. Single deck, double separation. 75 lbs/min maximum sift rate. Stainless steel top cover. 3ph/230-460V, 1200 RPM XP motor. Built 2023. Previously used for flour.

MFR: Kason

Unused Admix Rotosolver 250RS175 40 HP High-Shear Mixer

Unused Admix Rotosolver tote-base high-shear mixer, model 250RS175, constructed with 316 stainless steel wetted parts finished to 30 Ra. Unit is equipped with a 40 HP, 1,750 RPM explosion-proof motor rated for 3-phase, 60 Hz, 230/460V electrical service and a nominal shaft speed of 1,750 RPM. Mixer features an approximately 3.15" diameter shaft, 6.89" diameter threaded Rotosolver mix head, and 10.5" diameter 4-blade upper foil secured to the shaft. Unit uses a standard Admix flange mounting arrangement and is configured for mounting on a lift stand. Net weight is approximately 1,090 lb with shipping weight of approximately 1,430 lb. Rated torque is approximately 1,432 in-lb with bending moment of approximately 4,826 in-lb. Explosion-proof motor is UL and CSA approved for Class I, Division 1, Group D or Class II, Division 2, Groups F and G. Possible applications and suitable products include high-shear dispersion, powder wet-out, emulsification, hydration, and mixing of compatible food, beverage, pharmaceutical, cosmetic, chemical, and other liquid-process products.

MFR: Admix

Unused Admix 40 HP Rotosolver High-Shear Mixer

Unused Admix Rotosolver high-shear mixer, model 250RS175, tote-base. Constructed with 316 stainless steel wetted parts finished to 30 Ra. Unit is equipped with a 40 HP, 1,750 RPM explosion-proof motor rated for 3-phase, 60 Hz, 230/460V electrical service and a nominal shaft speed of 1,750 RPM. Mixer features an approximately 3.15" diameter shaft, 6.89" diameter threaded Rotosolver mix head, and 10.5" diameter 4-blade upper foil secured to the shaft. Unit uses a standard Admix flange mounting arrangement and is configured for mounting on a lift stand. Net weight is approximately 1,090 lb with shipping weight of approximately 1,430 lb. Rated torque is approximately 1,432 in-lb with bending moment of approximately 4,826 in-lb. Explosion-proof motor is UL and CSA approved for Class I, Division 1, Group D or Class II, Division 2, Groups F and G. Possible applications and suitable products include high-shear dispersion, powder wet-out, emulsification, hydration, and mixing of compatible food, beverage, pharmaceutical, cosmetic, chemical, and other liquid-process products.

MFR: Admix

Unused Paul O. Abbe BM-223 Ball Mill – Stainless Steel Industrial Grinding Mill

Unused Paul O. Abbe Model BM-223 all-stainless-steel ball mill with a 2-degree tapered cylinder for full discharge and split, hinged clamshell dry discharge housing. Mill cylinder measures 40" diameter x 44" long inside the shell with 5/8" shell thickness, 304 stainless steel product-contact construction, and 32 RA internal finish with 180 grit polish. Welded lifter bars terminate 1.5" from the ends, with welds ground to a minimum 1/4" radius and finished pit-free. Total mill volume is 32 cubic feet / 234 gallons with an 8 cubic foot dry working volume, equal to 25% of total volume. Unit includes a 13.25" x 14.75" rectangular cover hatch, contoured stainless steel grinding cover, and stainless steel dry discharge cover with 0.25" slots. The dry discharge housing fully encloses the cylinder and incorporates the patented 2-degree taper for full discharge, stainless steel counterweights, nominal 60-degree chute/hopper, 12" square bottom discharge opening, 48" discharge height, and sliding UHMW top cover. Driven by an SEW hollow-bore 20 HP TEFC motor rated for 230/460V, 3-phase, 60 Hz operation with nominal cylinder speed of 24 RPM. Unit is supported by two welded carbon steel A-frame stands with height extensions and Sherwin-Williams Tile Clad epoxy coating. Overall dimensions are approximately 138" high x 105" long x 64" deep. Possible applications and suitable products include dry batch grinding, milling, blending, and size reduction of compatible powders, pigments, ceramics, chemicals, minerals, and other dry solid materials.

MFR: Paul O Abbe

Used This disperser has two (2) stainless steel shafts that measure 56" long with a blade diameter of 12.5". Each shaft is driven by a 40 hp, 1765 rpm motor that requires 230/460 vac, 3 ph electricit...

Used-This disperser has two (2) stainless steel shafts that measure 56" long with a blade diameter of 12.5". Each shaft is driven by a 40 hp, 1765 rpm motor that requires 230/460 vac, 3 ph electricity. Unit is equipped with an air over oil lift. Rated for hazardous locations.

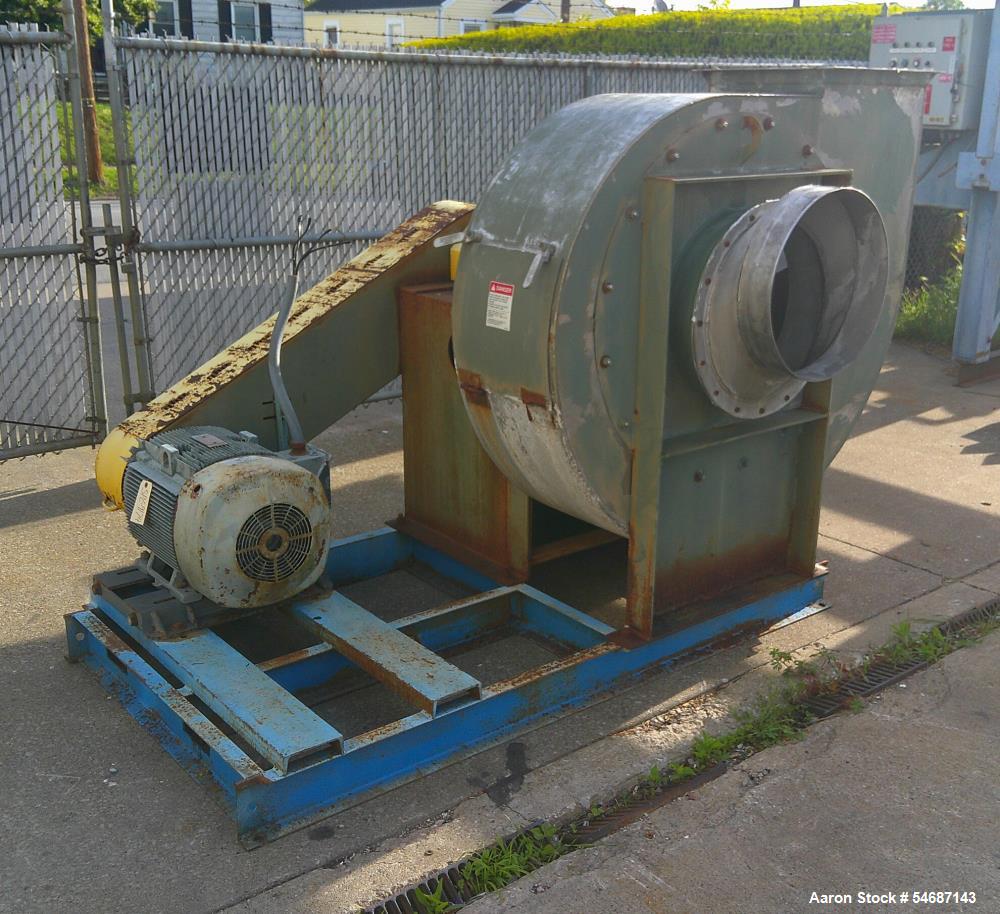

Used 11,400 cfm @ 12" SP New York Blower Co series 20 GI, Painted stainless steel housing and wheel. Blower has a 19.5" diameter inlet and 17"w x 20.5"h outlet. The fan has 6 heavy blades. The 40 hp ...

Used-11,400 cfm @ 12" SP New York Blower Co series 20 GI, Painted stainless steel housing and wheel. Blower has a 19.5" diameter inlet and 17"w x 20.5"h outlet. The fan has 6 heavy blades. The 40 hp motor turns 1770 rpm. Requires 230/460 vac 3 phase electrical supply. Overall size is about 72" wide x 68" long x 98" tall blower only does not include transition duct. Shop no.806572 100. Wheel size 364 LS. Year built 2007.

MFR: New York Blower
