Unused 3,409 Sq. Ft., Carbon Steel 4-Pass U-Tube Shell & Tube Heat Exchanger – Industrial

Unused- Carbon Steel Approximate 3409 Square Feet 4-Pass U Tube Shell & Tube Heat Exchanger, Tema Type AEU, Horizontal. Shell rated 369psi/Full Vacuum at 392 degrees F., (368) 3/4" diameter x 288" long tubes rated 364psi/Full Vacuum at 320 degrees F. Openings shell (2) 4", (2) 8", openings for tubes (2) 2", (2) 6". Mfg: Ilsung Corporation. Serial# 14-HE-072, National Board# 2056, built 2015. OAD 358"L X 44"W X 82"T, 26609 lbs. Documents available. Nitrogen purged by manufacturer after testing and prior to storage.

MFR: Ilsung Corporation

Unused Horizontal 4-Pass U-Tube Shell & Tube Heat Exchanger – 3,409 Sq. Ft., Carbon Steel

Unused Horizontal 4 Pass U Tube Carbon Steel Shell & Tube Heat Exchanger, Approximate 3409 Square Feet, Tema Type AEU. Shell rated 369psi/Full Vacuum at 392 degrees F., (368) 3/4" diameter x 288" long tubes rated 364psi/Full Vacuum at 320 degrees F. Openings shell (2) 4", (2) 8", openings for tubes (2) 2", (2) 6". Mfg: Ilsung Corporation. Serial# 14-HE-074, National Board# 2058, built 2015. Overall dimensions 358"L X 44"W X 82"T. Approximately 27,000 lbs. Documents available. Nitrogen purged by manufacturer after testing and prior to storage.

MFR: Ilsung Corporation

Unused 4-Pass U-Tube Shell & Tube Heat Exchanger – 3409 Sq Ft, Carbon Steel

Unused- 4 Pass U Tube Shell & Tube Heat Exchanger, Approximate 3409 Square Feet, Tema Type AEU, Carbon Steel, Horizontal. Shell rated 369psi/Full Vacuum at 392 degrees F., (368) 3/4" diameter x 288" long tubes rated 364psi/Full Vacuum at 320 degrees F. Openings shell (2) 4", (2) 8", openings for tubes (2) 2", (2) 6". Mfg: Ilsung Corporation. Serial# 14-HE-073, National Board# 2057, built 2015. OAD 358"L X 44"W X 82"T, 27313 lbs. Documents available. Nitrogen purged by manufacturer after testing and prior to storage.

MFR: Ilsung Corporation

Buy Unused Shell & Tube Heat Exchanger – TEMA AEU, Carbon Steel, Horizontal

Shell & Tube Heat Exchanger, Unused- 4 Pass U Tube. Approximate 3409 Square Feet, Tema Type AEU, Carbon Steel, Horizontal. Shell rated 369psi/Full Vacuum at 392 degrees F., (368) 3/4" diameter x 288" long tubes rated 364psi/Full Vacuum at 320 degrees F. Openings shell (2) 4", (2) 8", openings for tubes (2) 2", (2) 6". Mfg: Ilsung Corporation. Serial# 14-HE-075, National Board# 2059, built 2015. OAD 358"L X 44"W X 82"T, 27313 lbs. Documents available. Nitrogen purged by manufacturer after testing and prior to storage.

MFR: Ilsung Corporation

Used Ametek Inc. Niagara Filters 316 stainless steel vertical pressure leaf filter. Model 48-322-342. Unit has 16 vertical removable pressure leaf filters. The pressure leaf filter has 342 square fee...

Used-Ametek Inc. Niagara Filters 316 stainless steel vertical pressure leaf filter. Model 48-322-342. Unit has 16 vertical removable pressure leaf filters. The pressure leaf filter has 342 square feet of surface area, 48" diameter vessel, is rated at 75 psi @ 200° F, and National Board # 3318. Serial number FA5177-2.

MFR: Ametek

Used – Horizontal, Carbon Steel, Aurora Industrial Machining Shell & Tube Heat Exchanger – 150 PSI

Used Horizontal Aurora Industrial Machining Shell & Tube Heat Exchanger, Approximately 343 square feet. Carbon steel (SA53B) Shell rated 150psi at -20 to 350 Degrees F. (262) 304 Stainless steel .625" diameter straight tubes rated 150psi at -20 to 350 Degrees F. Openings shell: 4" (inlet), 4" (outlet), 2" (relief), tubes: 10" (inlet), (3) 3/4" (vent/drain). National Board# 3056, Serial# 4142, built 1997.

MFR: Aurora

Used Dry Coolers Inc. model Aqua-Vent CDX-300-120SS-PHE-FPE-NF-MP closed-loop pumping station. The station includes a plate heat exchanger, (2) centrifugal pumps, and a 120 gallon tank. The heat exch...

Used-Dry Coolers Inc. model Aqua-Vent CDX-300-120SS-PHE-FPE-NF-MP closed-loop pumping station. The station includes a plate heat exchanger, (2) centrifugal pumps, and a 120 gallon tank. The heat exchanger is a WCR Inc. 343.4 sq ft stainless steel plate heat exchange. Model WCR-UX216. Serial # 1151. Maximum working pressure is 150 psi @ 300° F. The two EBARA model A3U40200A150T3C stainless steel centrifugal pumps are driven by 15 hp 3450 rpm motors. The 120 gallon stainless steel tank has a 24" diameter, a 62" straight side, and a 3" dome top. The system sits on a carbon steel platform. The overall dimensions are: 34" wide x 118" long x 80" tall. Requires 230/460 vac 3 phase electrical supply. Built in 2005.

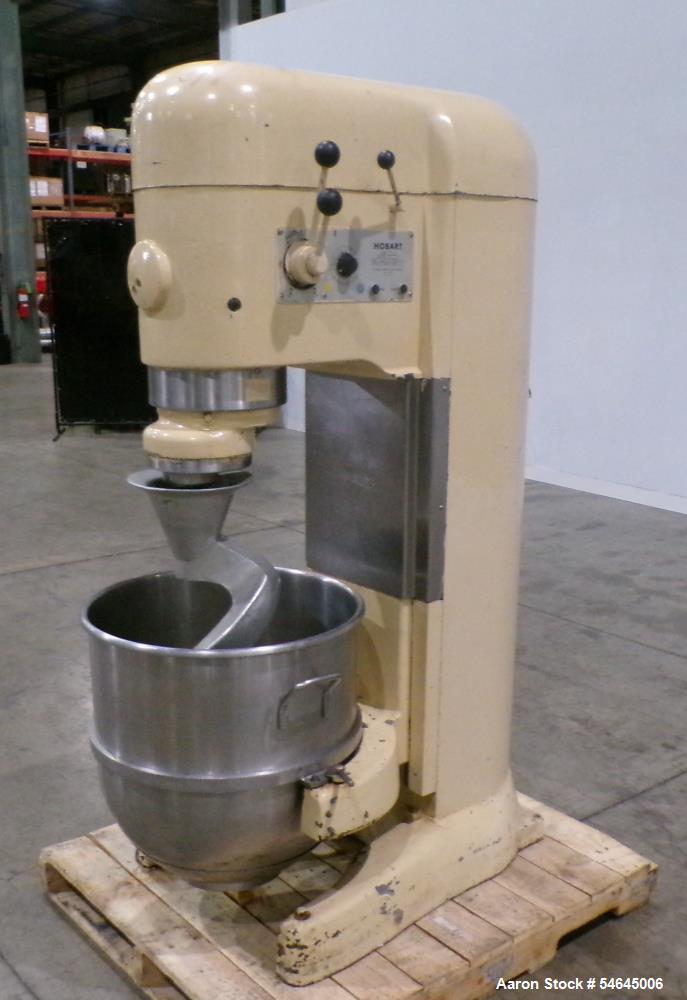

Used Hobart V1401 140-Quart Planetary All-Purpose Batch Mixer with Stainless Steel Bowl

Used Hobart Planetary All Purpose Batch Mixer, Model V1401. Has a capacity rating of 140 quarts. (4) Fixed speeds with timer. Has stainless steel bowl. Includes attachments. Gear driven. Driven by 5 hp motor, 1750 rpm. Serial# 1594888. 3/60/208 Volt.

MFR: Hobart

Used Paul O. Abbe Model RB-35 35 Cubic Foot 304 Stainless Steel Food Grade Ribbon Blender

Used Paul O. Abbe Model RB-35 ribbon blender with 35 cubic foot working capacity and 39 cubic foot total volume. All stainless steel construction with polished Type 304 stainless steel product contact surfaces and food grade design. Trough measures approximately 33.4"W x 59.1"L x 37.4"D and is equipped with an internal double spiral ribbon, packing glands and pillow block bearings. Driven by a 20hp 3/60/230/460v 1777/42rpm motor through a reducer 41.87:1 ratio. Features a top cover with hold-down clamps and limit switch, center loading cover with welded safety grate measuring approximately 19.7"W x 31.5"L, and an approximately 4.7"W x 14.2" flush air-operated plug valve. Discharge housing measures approximately 18.5"W x 24"L with approximately 24" discharge height. Overall dimensions are approximately 56"W x 108"L x 90" Tall with an approximate weight of 2,860 lbs. Last used on corn meal. Possible applications include batch blending of suitable dry food powders, granular products and similar free-flowing materials such as corn meal.

MFR: Paul O Abbe

Used Industrial Hobart 140-Quart Mixer V1401 | Heavy Duty Used Dough Mixer

Used- Hobart 140-Quart All Purpose Mixer, Model V 1401. 5HP motor. (4) Fixed speeds with timer, approximate agitator rpm 46, 80, 150, and 265. Serial# 11-248-816. 3/60/230 Volt, 13.6 Amp.

MFR: Hobart

Onan 35 kW Natural Gas Generator Set: Reliable Standby Power Solution

Used- Cummins / Onan 35 kW Standby Natural Gas Generator Set, Model 35SJB, SN-L900363017. Chrysler model H135 engine, SN-K1142033, 3600rpm. Rated 35 kW, 3/60/277/480V 12 lead reconnectable to other voltages.. 60 Amp main-line circuit breaker. Hours 403. No enclosure.

MFR: Cummins/Onan

Used American Process Systems Forberg Fluidized Zone Mixer – 35 Cu. Ft. Stainless Steel

Used- American Process Systems Forberg Fluidized Zone Mixer, Model FZM-35, 35 Cubic Feet Working Capacity, 304 Stainless Steel. Non-jacketed chamber approximate 58" long x 67" wide. (2) 4" Diameter shafts with (16) paddles per shaft, paddles 11-9/16" wide x 3/8" thick welded to 1-1/2" diameter posts. Driven by 30 hp, 3/60/208-230/460 volt, 1760 rpm motor with 30.05:1 gearbox ratio. (2) 20" x 20" side access doors, (2) 9" x 57" Bombay door style outlets. Includes stainless steel stand, Bag Dump Station. Serial# F1041. Last used for Cereal / Food Product. Great alternative for Ribbon and Paddle Mixer.

MFR: American Process Systems
