Unused 4-Pass U-Tube Shell & Tube Heat Exchanger – 3409 Sq Ft, Carbon Steel

Manufacturer Information:
Ilsung Corporation is listed as the manufacturer of this unused shell and tube heat exchanger. The unit is identified as Model AEU and TEMA Type AEU with a 4-pass U-tube configuration, carbon steel construction, and horizontal saddle-mounted design. This type of industrial heat exchanger is commonly used for process heating, process cooling, condensing, heat recovery, and pressure/vacuum service where a large-surface-area carbon steel shell and tube exchanger is required.

Main Product Description:

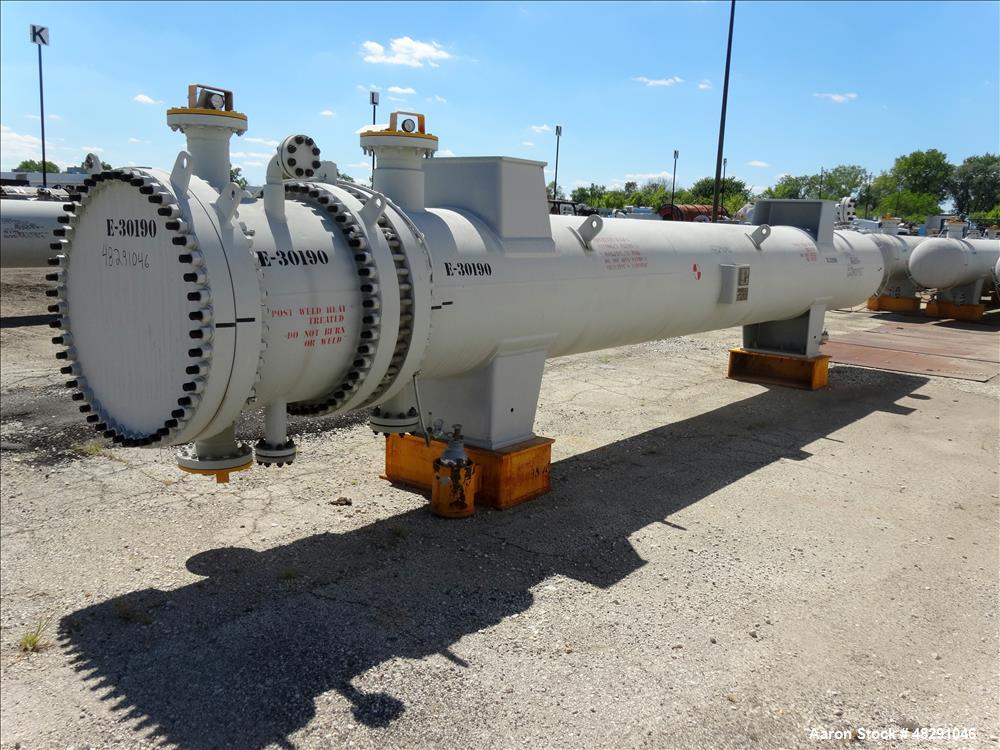

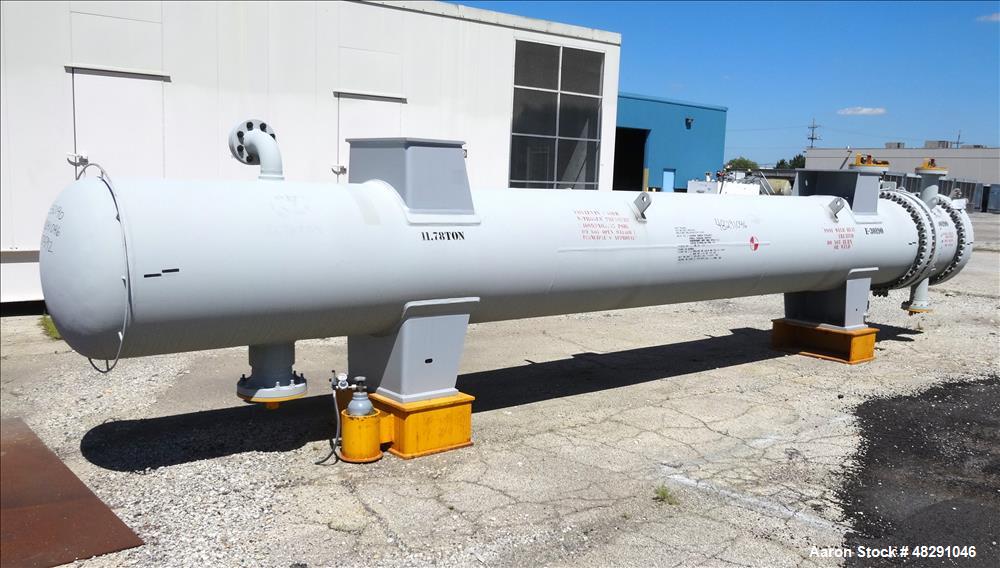

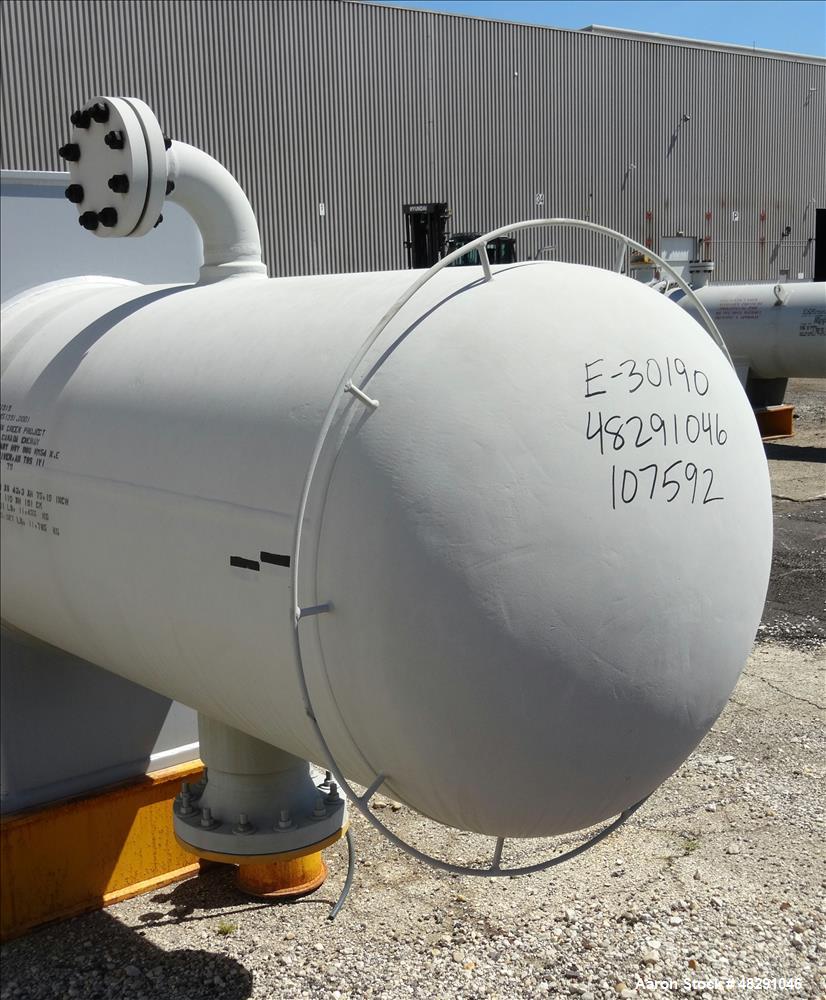

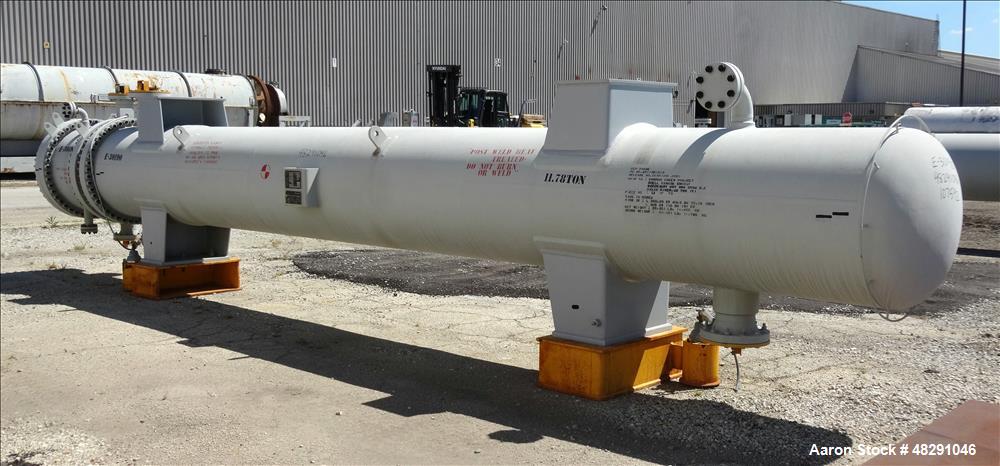

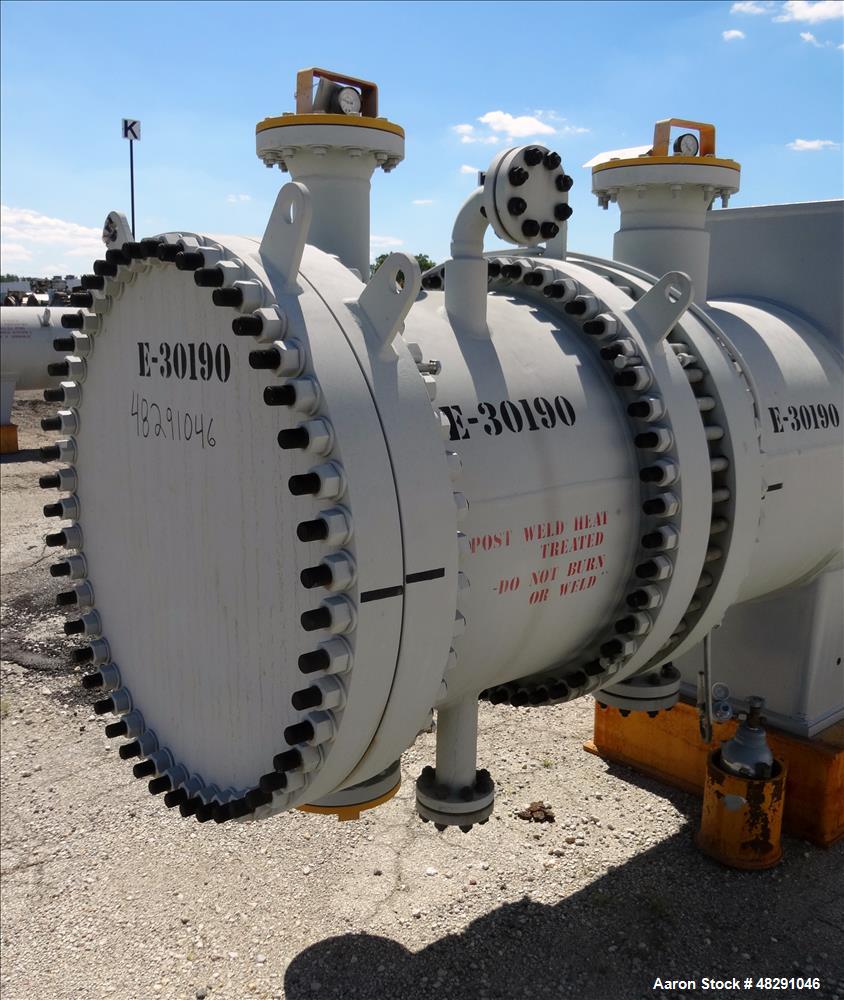

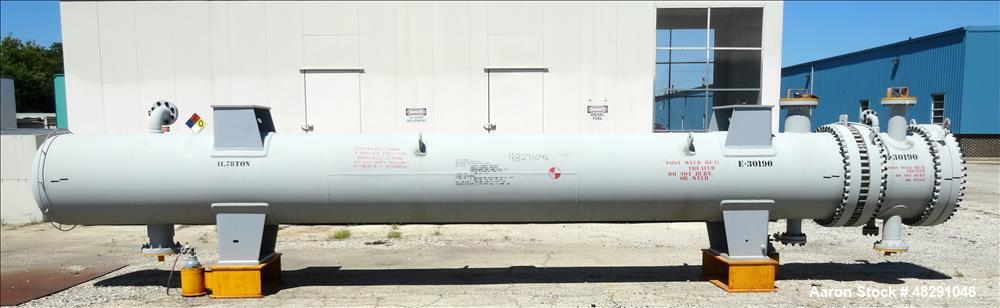

Available for sale is an unused Ilsung Corporation AEU 4-pass U-tube shell and tube heat exchanger with approximately 3409 square feet of heat transfer surface area. This horizontal saddle-mounted carbon steel exchanger is designed as a TEMA Type AEU unit and includes a shell rated for 369 psi/full vacuum at 392 degrees F and (368) 3/4" diameter x 288" long carbon steel tubes rated for 364 psi/full vacuum at 320 degrees F. The exchanger includes carbon steel shell, carbon steel tubes, carbon steel head, shell openings of (2) 4" and (2) 8", tube openings of (2) 2" and (2) 6", Serial #14-HE-073, National Board #2057, 2015 year built, and overall dimensions of 358" L x 44" W x 82" T. This unused industrial shell and tube heat exchanger is suited for process heating, cooling, condensing, and heat recovery applications where carbon steel construction and pressure/vacuum-rated service are required.

Specifications:

• Stock Number: 48291046
• Manufacturer: Ilsung Corporation
• Model: AEU
• Equipment Type: Shell and tube heat exchanger
• Style: U-tube shell and tube heat exchanger
• TEMA Type: AEU
• Condition: Unused
• Number of Passes: 4
• Heat Transfer Surface Area: Approximately 3409 sq. ft.
• Orientation: Horizontal
• Mounting: Saddle mounted
• Shell Material: Carbon steel
• Tube Material: Carbon steel
• Head Material: Carbon steel
• Shell Pressure Rating: 369 psi/full vacuum
• Shell Temperature Rating: 392 degrees F
• Tube Pressure Rating: 364 psi/full vacuum
• Tube Temperature Rating: 320 degrees F
• Tube Count: 368 tubes
• Tube Diameter: 3/4"
• Tube Length: 288"
• Shell Openings: (2) 4", (2) 8"
• Tube Openings: (2) 2", (2) 6"

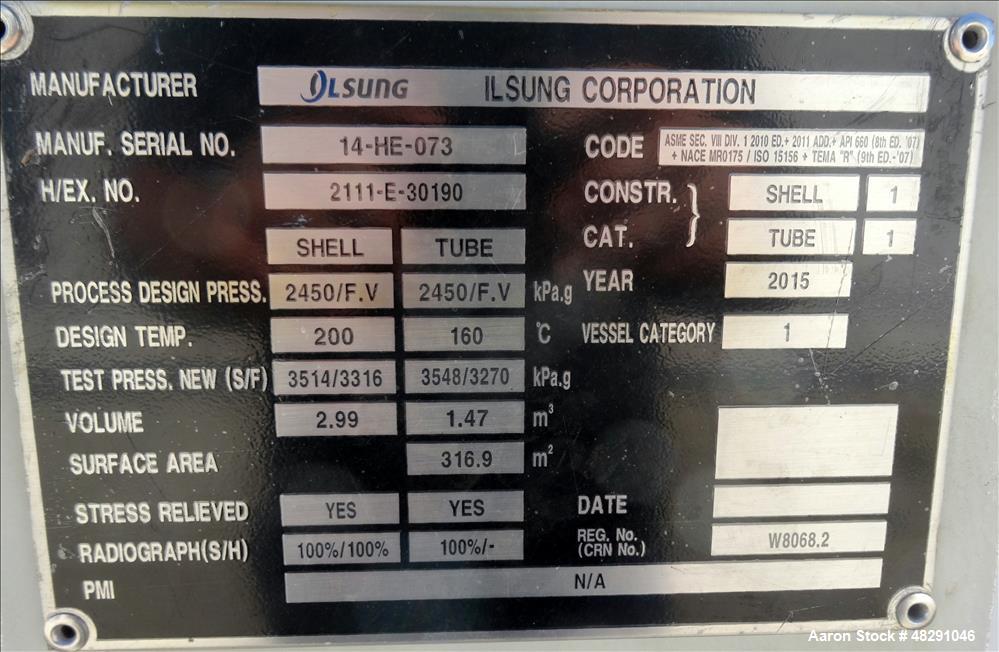

• Serial Number: 14-HE-073

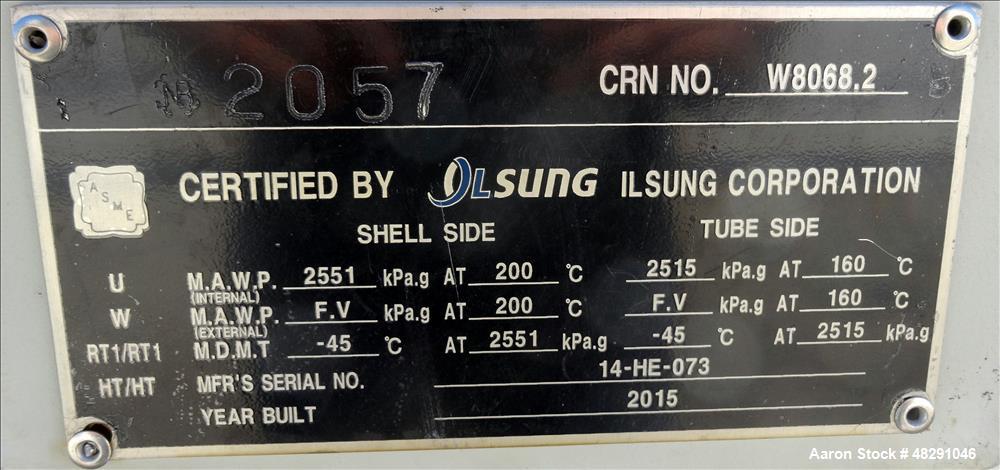

• National Board Number: 2057
• Year Built: 2015
• Overall Dimensions: 358" L x 44" W x 82" T
• ASME Stamp: Yes
• Listed Weight: 27,313 lbs.
• Documentation: Available
• Preservation Detail: Nitrogen purged by manufacturer after testing and prior to storage.
