Beltomatic 205BX Belt Dehydrator – 60 Sq. Ft., 300 lbs/hr Water Removal, Low Hours

Used Beltomatic Belt Dryer/Dehydrator, Model 205BX. Approximate web 6' wide x 12' length. Effective square foot area 60. 2 Million btu rating per hour, 7,500 maximum cfm. Capable temperature of 295 degrees F, 5-7 psi. Maximum 300lbs water evaporation. Fines conveyor in the bottom of dryer. Adjustable leveling gate; Variable speed web. Burner fan and exhaust fan. LP or natural gas. Approximately 4734 hours. Serial # 21B0726N. New in 2019.

MFR: Belt-O-Matic

Imperial Systems Industrial Cyclone Dust Collector – 72" Carbon Steel Cyclone

Used Imperial Systems carbon steel cyclone with an approximate 72" diameter upper section tapering to approximately 24" diameter. Unit includes structural support frame and rotary valve. Possible applications and suitable products include industrial dust collection, particulate separation, bulk material handling, and removal of compatible dust or solids from process air streams.

MFR: Imperial

Industrial Cyclone Dust Collector 72" to 24" with Rotary Airlock

Used Imperial Systems Cyclone, Carbon Steel. Approximate 72" diameter to 24" diameter cyclone. With frame & rotary valve. Not Installed. Possible applications and suitable products include industrial dust collection, particulate separation, bulk material handling, and removal of compatible dust or solids from process air streams.

MFR: Imperial

Used Munson CM-72x20 Rotary Continuous Mixer – 72" Diameter x 20' Long Drum, 10 HP

Used Munson Rotary Continuous Mixer, Model CM-72x20. Driven by a 10HP 3/60/230/460v 1755rpm motor. Heavy-duty rotary drum continuous mixer featuring an approximately 72" diameter x 20' long rotating drum. Designed for continuous blending of powders, granules, flakes, pellets, and other bulk solids. Provides gentle yet highly uniform mixing with low energy consumption and short residence times. Suitable for food products, chemicals, minerals, fertilizers, plastics, pigments, and specialty materials. Built 2021.

MFR: Munson Machinery

Used Alar Auto-Vac 660 Rotary Vacuum Drum Filter

Used Alar Engineering Corporation Auto-Vac Model 660 rotary vacuum drum filter system equipped with a 6' diameter x 6' long stainless steel filter drum providing approximately 113 sq. ft. of filtration area. Drum measures approximately 72" OD x 75" long and is equipped with an automatic advancing knife discharge system for continuous removal of accumulated solids. Complete system includes receiver tank, pre-mix tank, 40 hp vacuum pump and control panel. Electrical requirements are 460 VAC, 3-phase and 120 VAC, 1-phase. This automatic, self-cleaning filtration system is designed for treatment and solid/liquid separation of compatible water-based effluent streams. Filter drum skid measures approximately 118" wide x 152" long x 94" high, and tank skid measures approximately 93" wide x 186" long x 112" high. Serial #11667. Possible applications include industrial wastewater treatment, sludge dewatering, process-water clarification and solid/liquid separation of compatible wastewater, sludge, slurry and other water-based effluent streams.

MFR: Alar Engineering

Used Carbon steel double ribbon blender has 50 cu. ft. of working capacity. Unit has a closed top and a 12" w x 17" l end discharge. Driven by a gear-reduced 15 hp, 1160/31 rpm motor that requires 22...

Used-Carbon steel double ribbon blender has 50 cu. ft. of working capacity. Unit has a closed top and a 12" w x 17" l end discharge. Driven by a gear-reduced 15 hp, 1160/31 rpm motor that requires 220/440 vac, 3 ph electricity. Outer ribbon diameter is 36” with a 4” diameter shaft. Mixing chamber is 38.5” w x 90” l x 40” h for a total volume of 72 cu. ft.

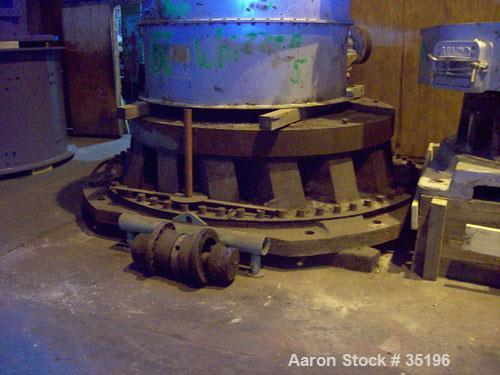

Used C.E. Raymond #73412 Roller Mill – 350 HP Motor, Industrial Grinding

Used- C.E. Raymond #73412 Roller Mill. Directly driven by a 350 hp, 3/60/4160V, 585 rpm motor. Unit is equipped with a gear and intermediate shaft, horizontal shaft assembly with pinion, external oil lubrication system, vertical shaft, mill bottom assembly with oil reservoir, spider assembly with caps, plow support assembly with (4) four plow bodies and (4) plow tips, (4) four oil journal assemblies each with grinding roll, mill base with port liners and grinding ring, mill side and system fan directly driven by a 150 hp, 3/60/4000V, 1175 rpm motor. Less mill base air housing assembly, less dual feeder assemblies and less whizzer separator assembly, also missing the gearbox. Unit has low operating hours and is in excellent condition. This machine is commonly used in the production of Gypsum Board and Drywall.

MFR: CE Raymond

Used 2010 Zerma ZRS-1500 Heavy-Duty Single Shaft Shredder – 1500 mm Rotor, Dual 55 kW Drives for Large Plastic Pipe

Used- Zerma Heavy Duty Single Shaft Shredder, Model ZRS-1500. Unit features an approximately 1500 mm rotor diameter, with speeds up to 23 rpm. Equipped with (2) 55 kW (73.75hp)drives. Can process pipes up to 1200 mm diameter. Machine includes hydraulic unit, unloading belt and control panel. Serial # ZRS1500109001, built 2010. Possible applications and suitable products include recycling and size reduction of HDPE, PP and PVC pipe, plastic profiles, pipe bundles, large plastic lumps, pallets and stacked plastic containers.

MFR: Zerma

Used Phlauer / A&J Mixing Modular Paddle Mixer – 74 Cu. Ft., 30 HP, 304 Stainless Steel

Used- Phlauer / A&J Mixing Modular Paddle Mixer, Model AJSP 486-6 SPSS. Approximate 74 cubic feet, 304 stainless steel. Non-jacketed trough approximate 48" wide x 78" long x 44" deep. 5" Diameter shaft with (16) 13-3/4" x 6-3/4" x 3/8" thick paddles welded on 2" diameter posts. Driven by a 22kW (30 hp), 3/60/230/460 volt, 1770 rpm gear motor, 75.69 to 1 ratio, final rpm 23. Openings top: 12", 2-3/4", side: (4) 30" x 15-1/2" hinged inspection doors. 14" x 8" End bottom discharge with pneumatic discharge valve. Includes outboard roller bearings, air seals, and a control panel. Mounted on (4) stainless steel legs. Serial# 99111.

MFR: Phlauer

Used Littleford KM-3000-D 74 Cu Ft 304 Stainless Steel Jacketed Plow Mixer

Used Littleford Plow Mixer, Model KM-3000-D, 304 Stainless Steel, Approximate 74 Cubic Feet Working Capacity. Approximate 44" diameter x 116" long chamber. Drum rated Atmospheric, 304 stainless steel jacket rated 75 psi at 32 to 320 degrees F. Approximate 5" diameter shaft with (12) welded on paddles. Driven by a 100 Hp 3/60/460/1780 rpm motor thru Falk gearbox, 13.86 to 1 ratio. Provision for (10) Tulip style choppers each should be driven by a 15 HP motor (5) additional provision. Top openings: 1-1/2", 3", 10", 16". (2) 24" x 16" side access doors. 16" Side bottom outlet. Serial# 41961-4442, Built 1993. Possible applications include high-intensity powder blending, dry ingredient mixing, granulation, particle dispersion and processing of compatible specialty chemicals, mineral powders, fertilizers, construction materials, polymer additives, pigments, detergents and other suitable bulk solid formulations.

MFR: Littleford

2800L (740 gal) Mueller "f" tank. 316 stainless

Used- 2800L (740 gal) Mueller "f" tank. 316 stainless inner shell, Dual 304 jackets, 2" insulation, 304 stainless cladding. Tank MAWP - 60psi @ 350F Jacket MAW - 100psi @ 350F The tank bottom actuated valve was updated/replaced by mueller in 1993 with Saunders 70v61-315-p4 tbv Have drawings from mueller. Includes lightnin vektor VKS37 agitator. Serial# R0037042201. Does not have motor.

MFR: Mueller Corp

PulsaFeeder 7440-S-AE Metering Pump – 5 HP, 230/460V, XP Motor

Used- PulsaFeeder Diaphragm Metering Pump, Model 7440-S-AE, series 40, nominally rated 8.55 gph at 330 psi, with 5 hp, 230/460 volt XP motor, Serial # 9560471-2.
