Used 10,000 Gallon Stainless Steel Jacketed Tank

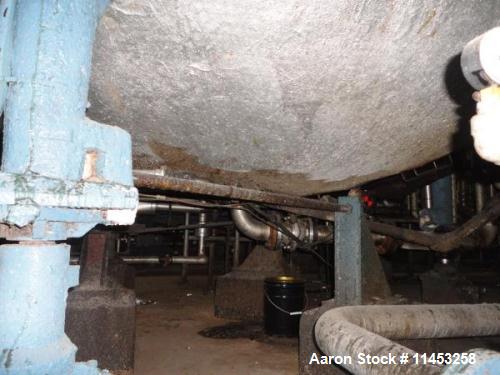

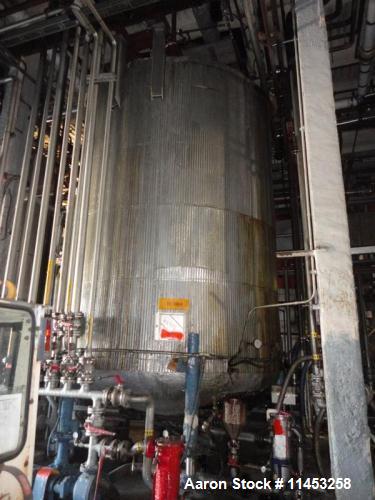

Used- 10,000 Gallon Jacketed Tank, Built by Tri Canada Cherry Burrell. Constructed of 304 stainless steel. Tank is approximately 11' diameter x 14' straight side, dished top and bottom, full double internal coil consisting of (2) sets of 17 turns each of 3" internal coil rated 50 psi at 300 Deg f. 304 stainless steel bottom jacket rated 50 psi at 350 f, top mounted 30 hp Chemineer agitator drive , 20" top man-way, 8", (4)3", (3)2", (3)1" top nozzles, 4" center bottom outlet. tank mounted on legs.

ManufacturerTri-Canada
Serial #19289
CategoryTanks
SubcategoryStainless 5000 Gal and up
Gallons10000
Material Of Construction304 Stainless Steel
Horizontal Or VerticalVertical
Diameter11'
Straight Side14'
Top Head StyleDished Head
BottomDished Bottom
Internal Pressure50 psi
Internal Temperature300 Degrees F
Agitator TypeTop Entering
Agitator Hp30
Opening20" top man-way, 8", (4)3", (3)2", (3)1" top nozzles
Outlet Size4"
Outlet LocationBottom

We offer a variety of finance programs. Please contact your sales person for more information.
