Stock No.: 10151502
Alloy Fabricators Approximately 6,400 Gallon 304 Stainless Steel Mix Tank

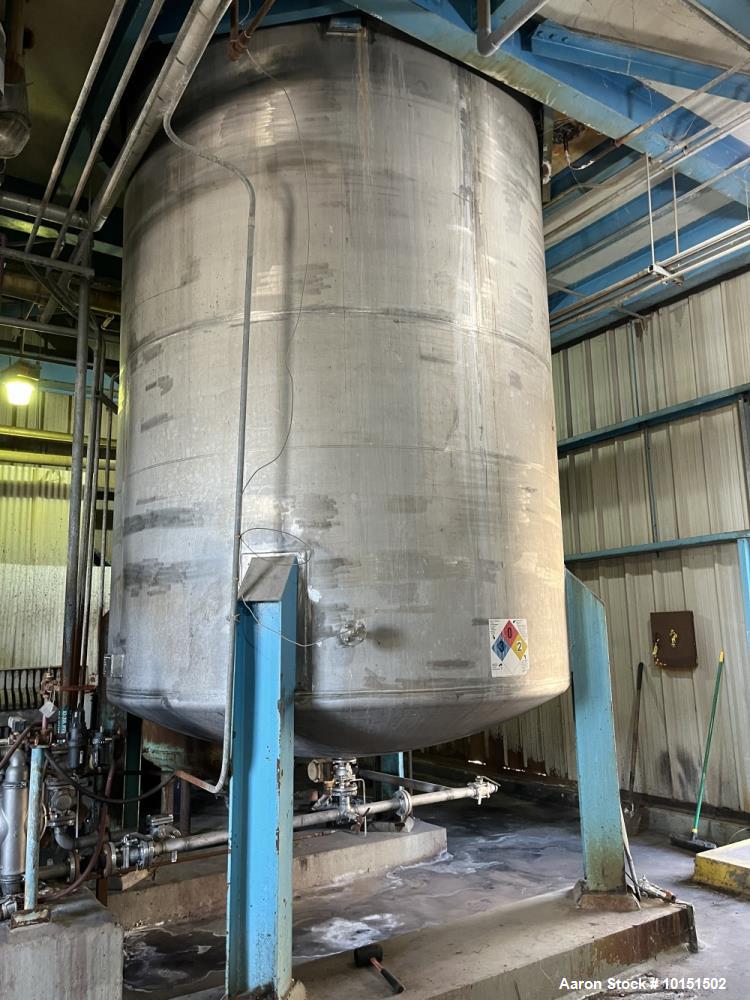

Used- Alloy Fabricators Approximately 6,400 Gallon 304 Stainless Steel Mix Tank with Internal Coils. 108" diameter x 144" straight side; Dished top and bottom; Internal rated 15 psi at 210 degrees F; Coils rated 85 psi at 335 degrees F; (4) side wall baffles; 3 hp agitator, 304 stainless steel, Dual hub with 4 blades each; 42" dia; 22" dia. 2 blade radial flow at bottom. Serial # 1-172A, Built 1991.
-
ManufacturerAlloy & Steel Fab
-

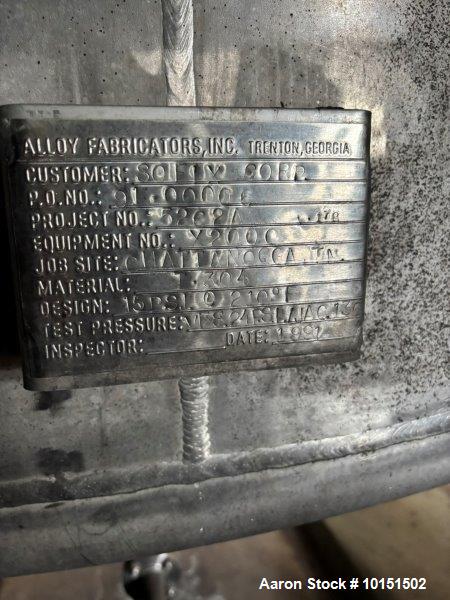

Serial #1-172A
-
CategoryTanks
-
SubcategoryStainless 5000 Gal and up
Used equipment facts about this machine
Manufacturer Information
- Brand: Alloy Fabricators
- Serial Number: 1-172A
- Year Built: 1991
- Condition: Used
Description
The Alloy Fabricators 6,400-Gallon Mix Tank is a high-capacity stainless steel mixing vessel, designed for chemical, pharmaceutical, food, and industrial liquid processing applications. Constructed from 304 stainless steel, this tank ensures corrosion resistance, durability, and sanitary processing.

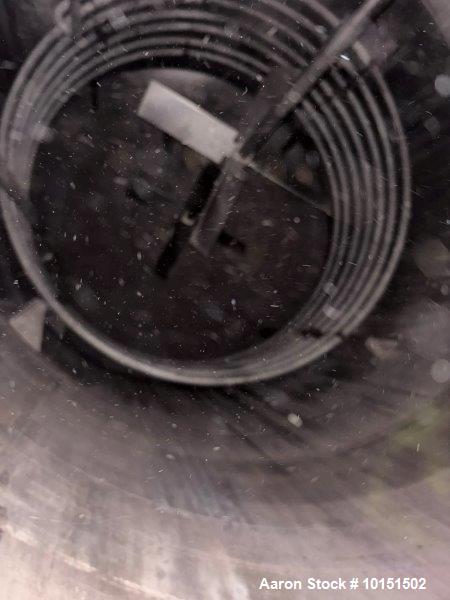

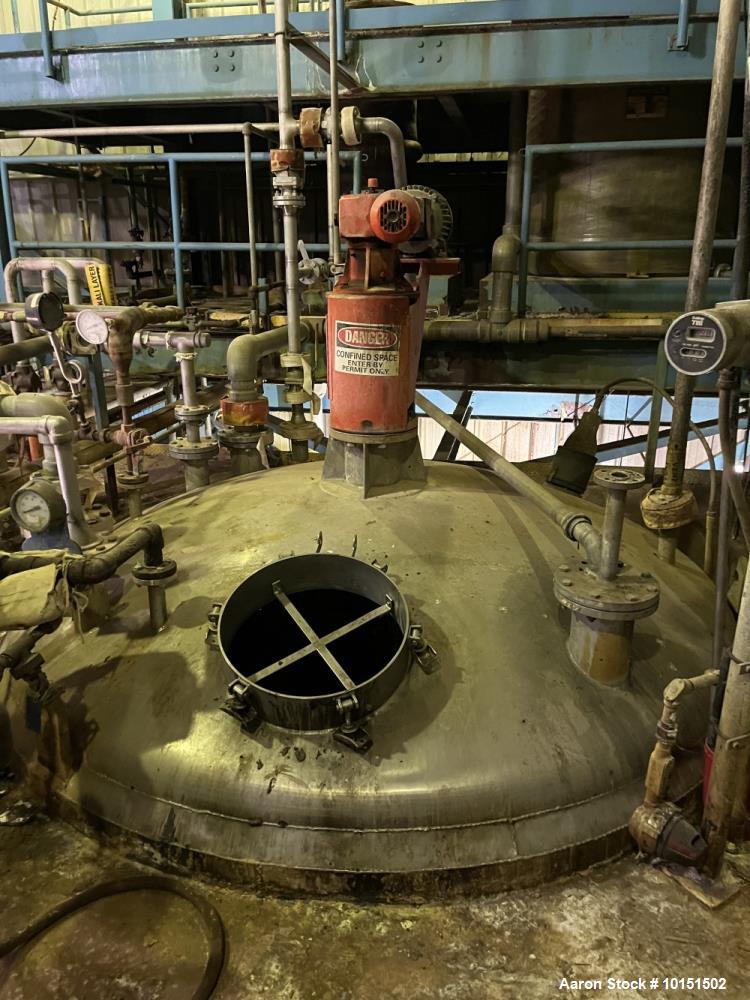

With a 108" diameter and 144" straight side, this tank features a dished top and bottom for optimal structural integrity and efficient mixing. The internal coils are rated for 85 psi at 335°F, allowing for precise temperature control and heating/cooling applications.

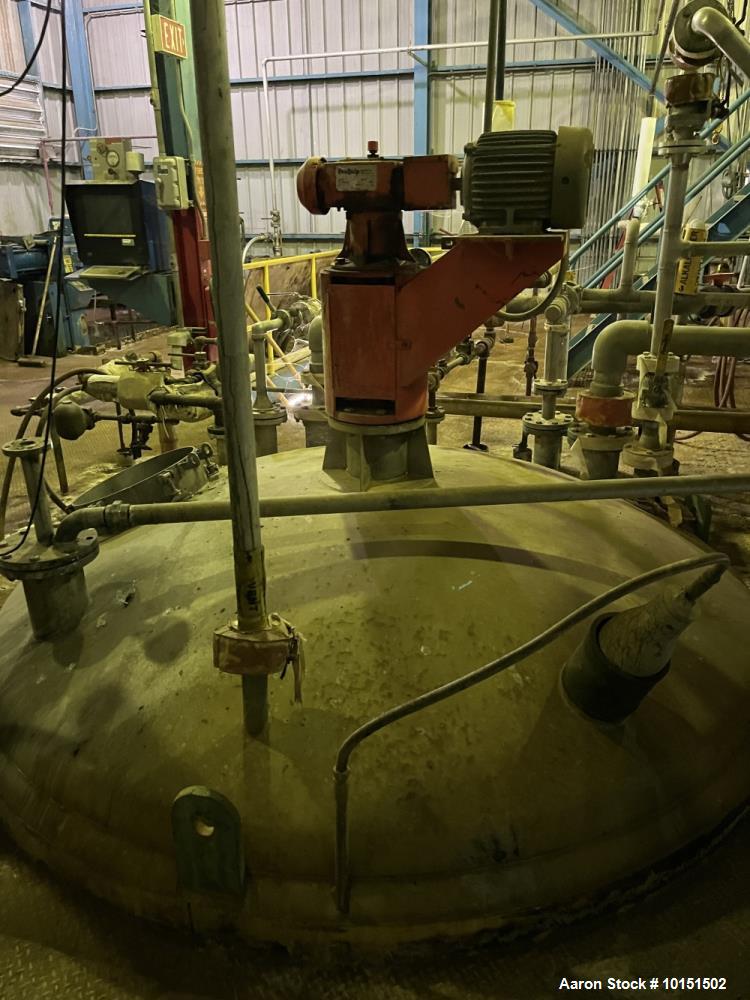

The tank is internally rated for 15 psi at 210°F and is equipped with (4) side wall baffles for enhanced mixing performance. The 3 HP agitator includes a dual hub with four blades each (42" diameter) and a 22" diameter, two-blade radial flow impeller at the bottom, ensuring efficient and uniform mixing.
Specifications
- Capacity: ~6,400 Gallons
- Material: 304 Stainless Steel
- Tank Dimensions:
- Diameter: 108"
- Straight Side Height: 144"
- Top & Bottom: Dished
- Internal Pressure Rating: 15 psi at 210°F
- Coils Pressure Rating: 85 psi at 335°F
- Agitator:
- Motor Power: 3 HP
- Construction: 304 Stainless Steel
- Design: Dual Hub with (4) Blades Each
- Blade Sizes:
- Upper Blades: 42" Diameter
- Bottom Blades: 22" Diameter, 2-Blade Radial Flow
- Additional Features:
- (4) Side Wall Baffles for Improved Mixing
- Internal Heating/Cooling Coils
Applications
- Chemical Processing – Blending, reaction, and temperature-controlled mixing
- Pharmaceutical & Biotech – High-purity liquid formulation and mixing
- Food & Beverage Processing – Large-scale ingredient mixing and batch processing
- Industrial Wastewater Treatment – Chemical conditioning and sludge mixing
- Cosmetic & Personal Care – Production of lotions, creams, and liquid formulations
Compatible Products
- Industrial mixing and blending equipment
- High-capacity liquid processing tanks
- Pharmaceutical and food-grade stainless steel vessels
- Chemical and wastewater treatment mixing systems
Product Details
- Mix tank, stainless steel tank, industrial agitator
- Used 6,400-gallon stainless steel mix tank, Alloy Fabricators mix tank with agitator, large-capacity mixing vessel
- 6,400-gallon Alloy Fabricators stainless steel mix tank with internal coils, used industrial mixing tank with 3 HP agitator and side wall baffles, high-capacity stainless steel process tank for chemical and food applications
