Stock No.: 53264005
6000 Gallon Tank. Jacketed, Insulated, Stainless Steel with Mixer.
Used- 6000 Gallon Tank. Jacketed, Insulated, Stainless Steel with Mixer. Jacket rating 70 psi @ 80 degrees F. Top Entry Mixer. 3HP, 575 volt, 54 output rpm. 2 top CIP spray balls. Sanitary interior polish. Interior dimensions: 84" wide x 308" high. 3" Discharge. Top ports: (2) 3" and (1) 2". Insulated with stainless steel cladding. 14" x 17" manway. Top stainless steel guarding. 36' overall height. Previous Use: Food Application.
-
CategoryTanks
-
SubcategoryStainless 5000 Gal and up
-
Gallons6000
-
Material Of ConstructionStainless Steel
-
Horizontal Or VerticalVertical
-
Diameter84
-
Straight Side308
-
Opening3"
-
Last Used OnFood Application
Used equipment facts about this machine
Manufacturer Information
- Condition: Used
- Previous Application: Food Processing
Description

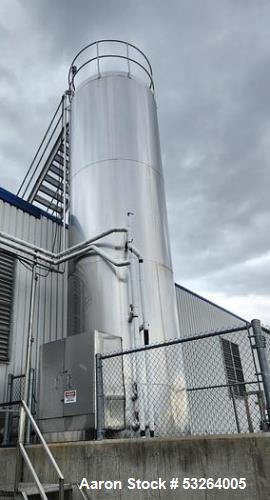

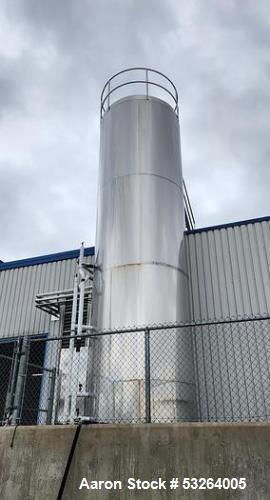

The 6,000-Gallon Jacketed & Insulated Stainless Steel Tank is a high-capacity processing vessel, designed for food, dairy, beverage, pharmaceutical, and chemical applications. Featuring sanitary interior polishing, this tank ensures hygienic processing and compliance with industry standards.

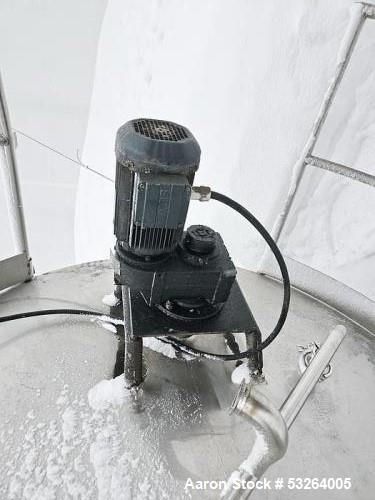

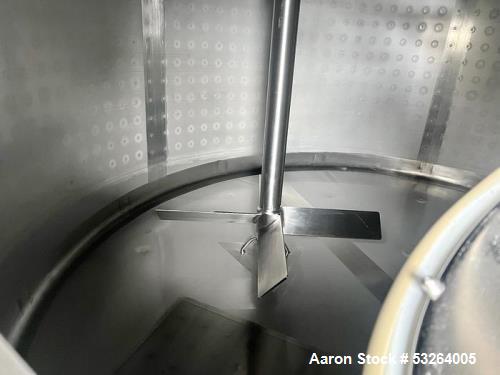

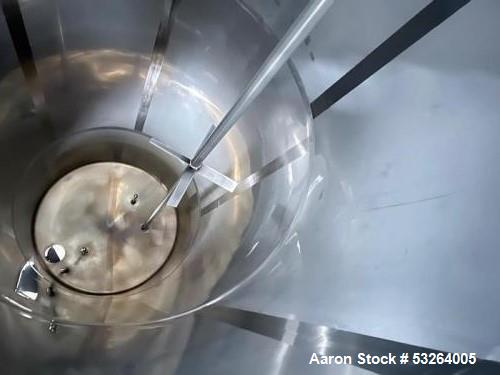

Equipped with a 3 HP top-entry mixer operating at 575 volts and 54 RPM output, this tank is optimized for consistent mixing and blending. The jacketed design allows for temperature regulation, rated at 70 psi at 80°F, making it suitable for heating or cooling applications.
For ease of cleaning, the tank includes (2) top-mounted CIP (Clean-In-Place) spray balls, ensuring efficient sanitation. The unit is fully insulated with stainless steel cladding, providing thermal efficiency and process stability.
Specifications
- Capacity: 6,000 Gallons
- Material: Stainless Steel

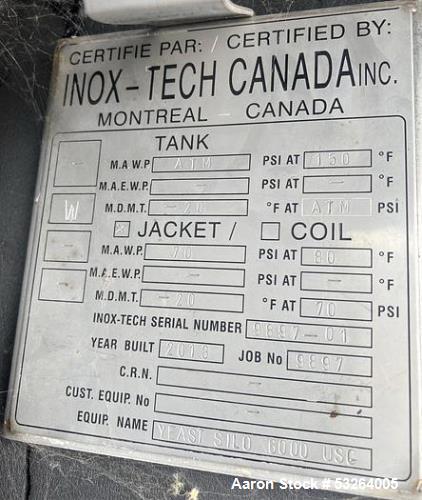

- Jacket Rating: 70 psi @ 80°F
- Mixer:
- Type: Top Entry

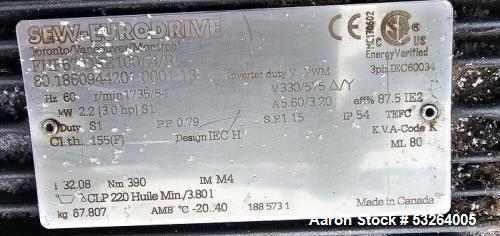

- Power: 3 HP
- Voltage: 575V
- Output Speed: 54 RPM
- Interior Dimensions: 84" Wide x 308" High
- Overall Height: 36'
- Discharge Outlet: 3"
- Top Ports:
- (2) 3" Ports
- (1) 2" Port
- CIP (Clean-In-Place) System: (2) Top Spray Balls

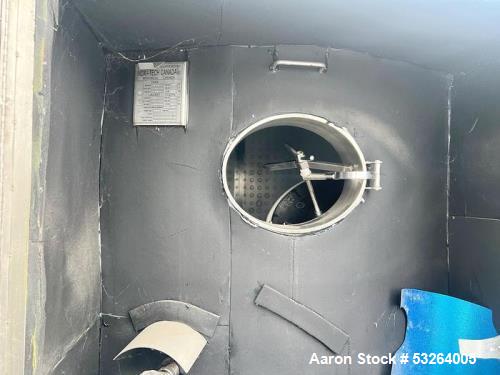

- Manway: 14" x 17"
- Exterior: Insulated with Stainless Steel Cladding
- Additional Features: Top Stainless Steel Guarding
Applications
- Food & Beverage Processing – Dairy, juice, syrups, and liquid ingredient storage
- Pharmaceutical & Biotech – High-purity liquid formulation and batch processing
- Chemical Processing – Reaction and bulk storage with temperature control
- Cosmetic & Personal Care – Production of lotions, creams, and emulsions
- Industrial Processing – High-capacity liquid storage with agitation
Compatible Products
- Sanitary stainless steel storage tanks
- Food and pharmaceutical-grade mixing vessels
- Jacketed process tanks for heating/cooling applications
- Industrial mixing and blending systems
Product Details
- Stainless steel tank, jacketed tank, industrial mixer
- Used 6,000-gallon insulated mixing tank, sanitary stainless steel process tank, high-capacity food-grade mixing vessel
- 6,000-gallon jacketed stainless steel tank with top-entry mixer, used food processing tank with CIP spray balls and sanitary polish, insulated stainless steel mixing tank for chemical and beverage applications
