Used 2018 JBF 530-Gallon 316L Stainless Steel Mix Tank – Dual Turbine Agitation with Bottom Scrapers

Manufacturer Information

JBF

JBF manufactures stainless steel process vessels and mixing equipment for industrial batch processing, blending, and product-handling applications. This JBF mix tank features 316L stainless steel construction, geared turbine agitation, bottom scrapers, multiple process connections, and stainless steel leg mounting.

Description

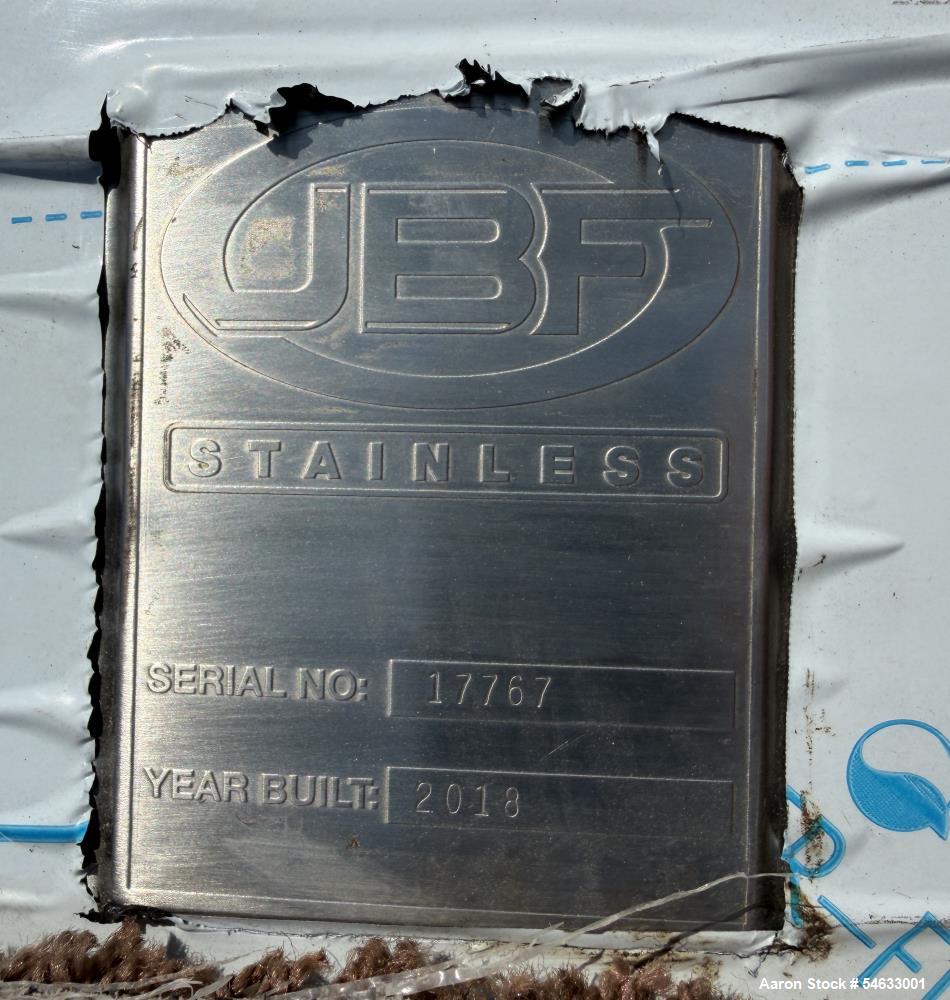

Available for sale is a used JBF stainless steel mix tank, Serial Number 17767, built in 2018, with an approximate 530-gallon capacity.

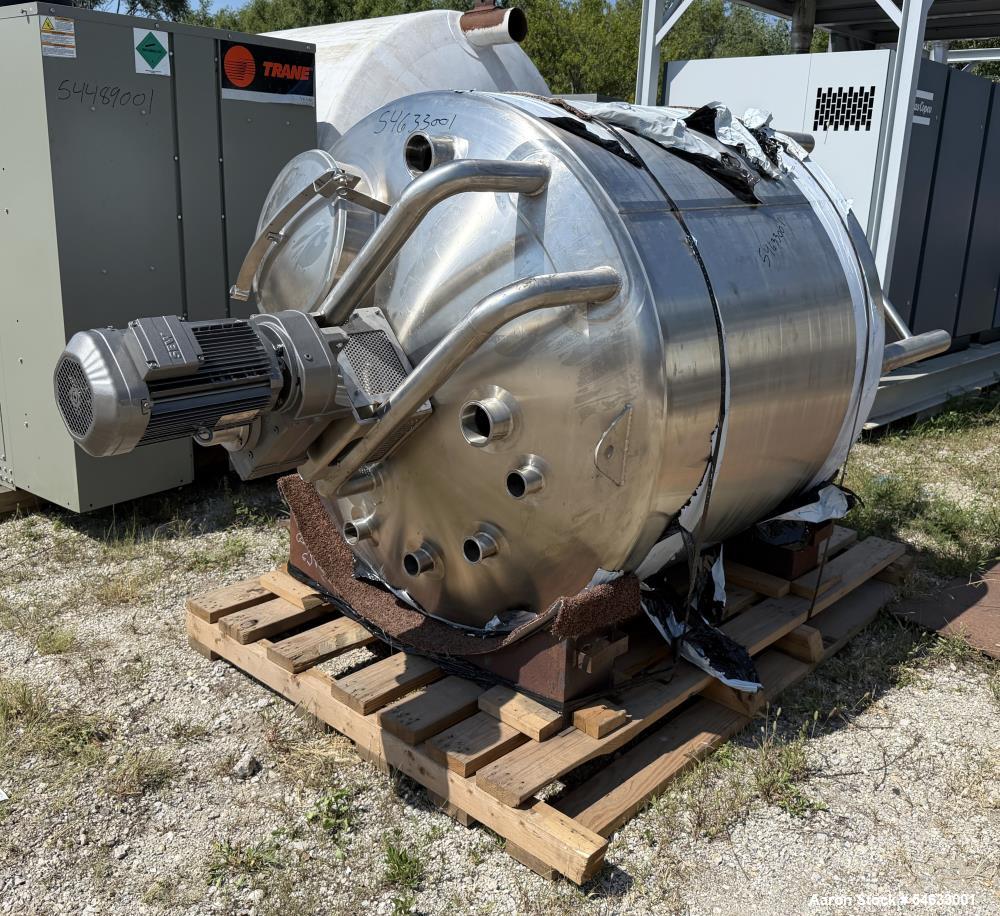

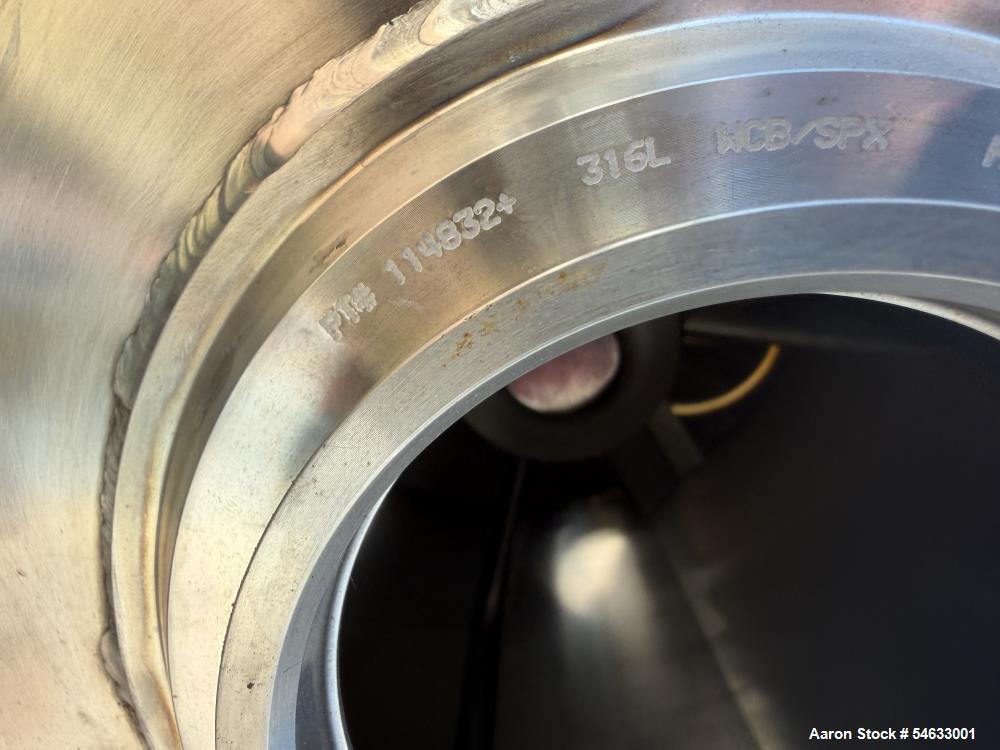

The vessel is constructed of 316L stainless steel and measures approximately 54" diameter x 48" straight side, with dished top and bottom heads.

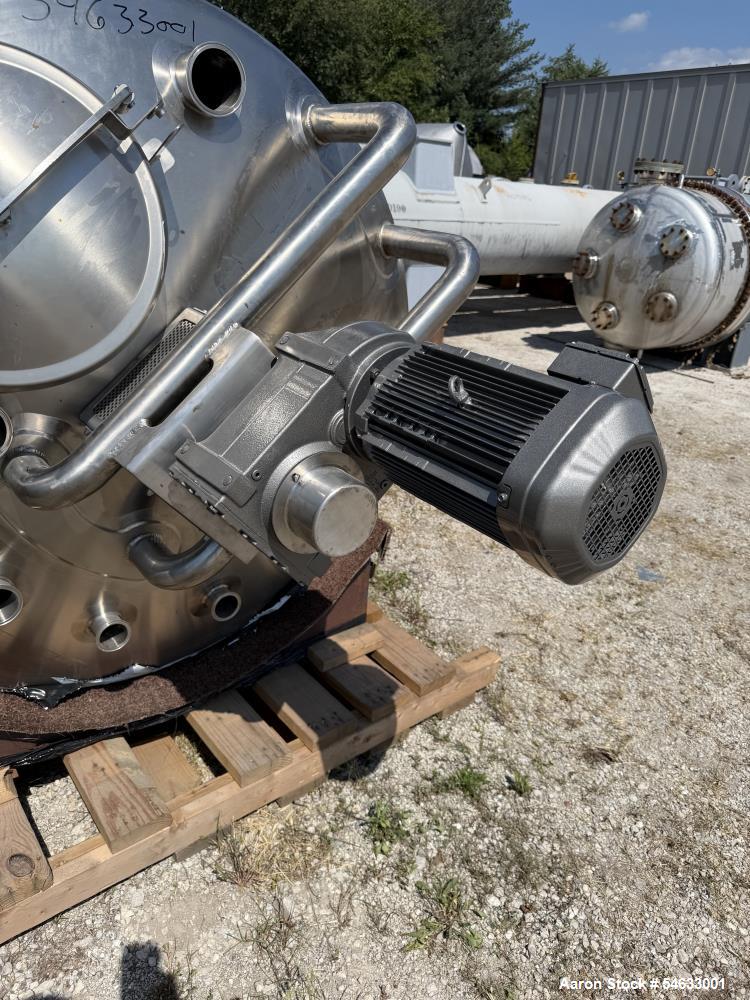

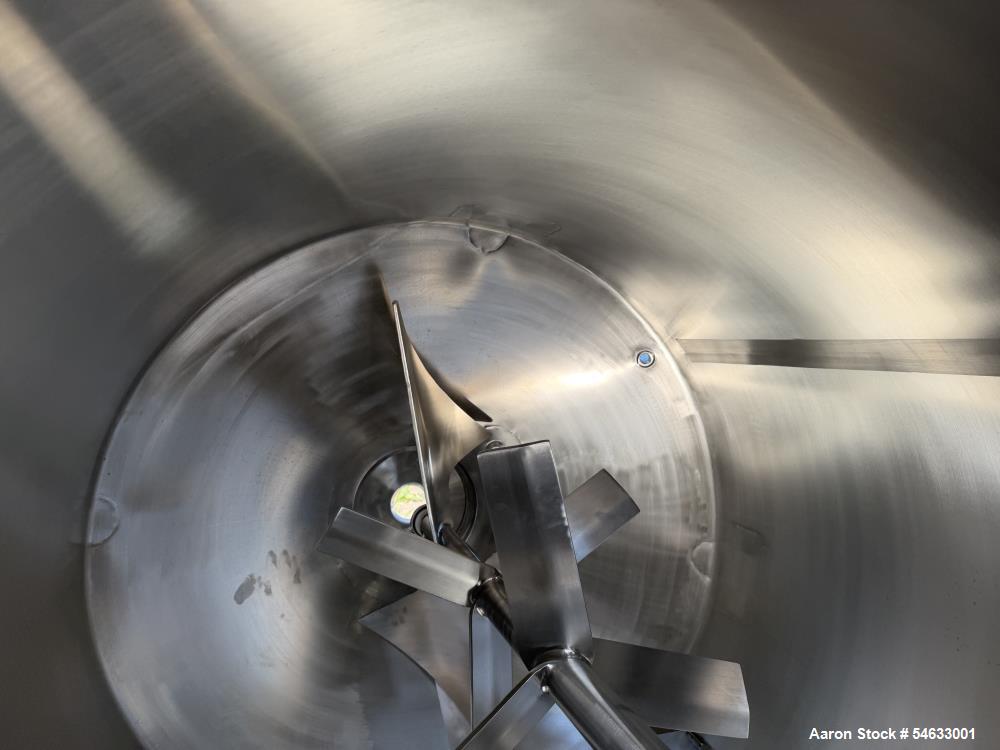

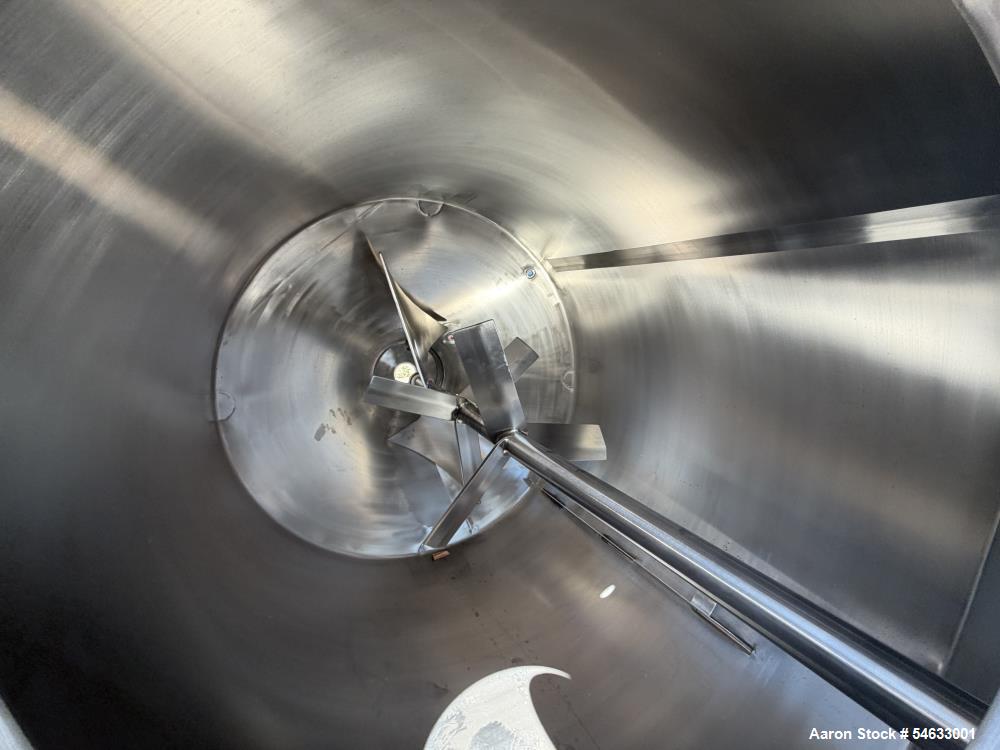

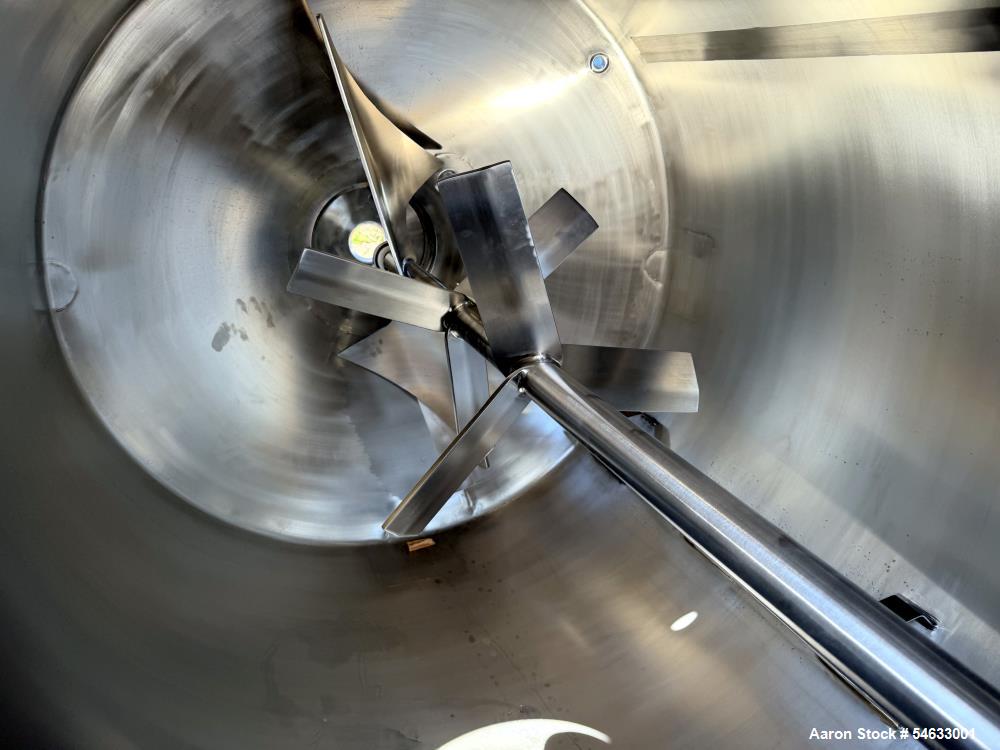

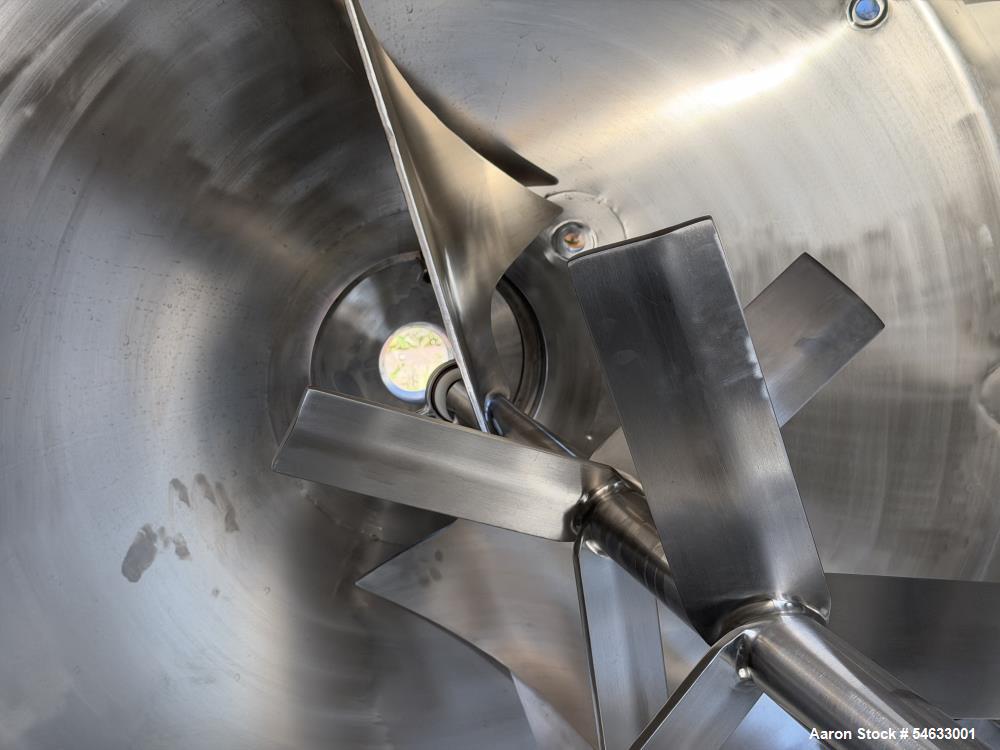

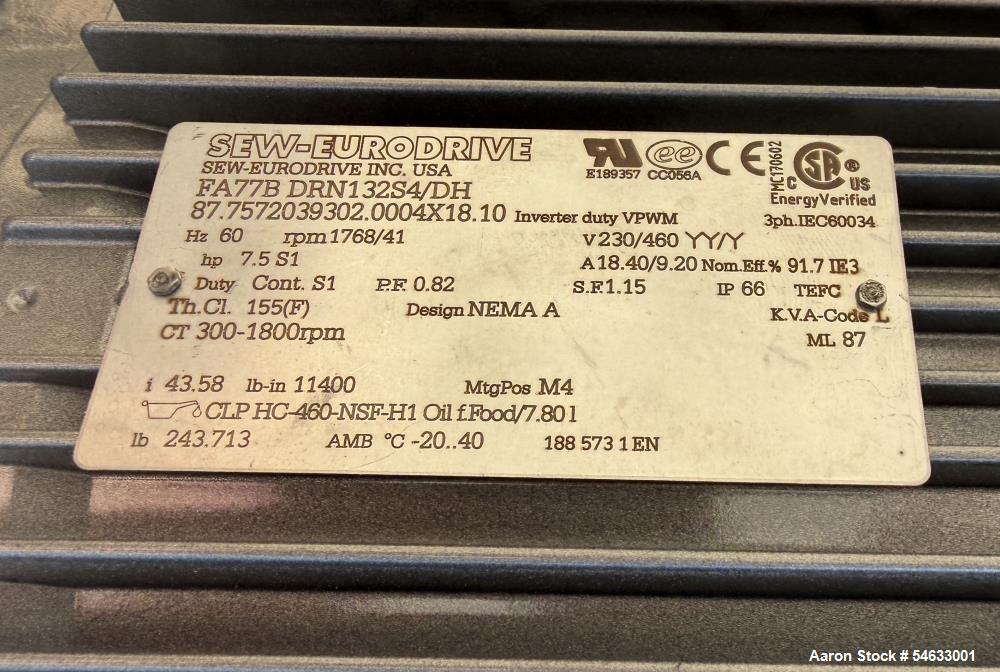

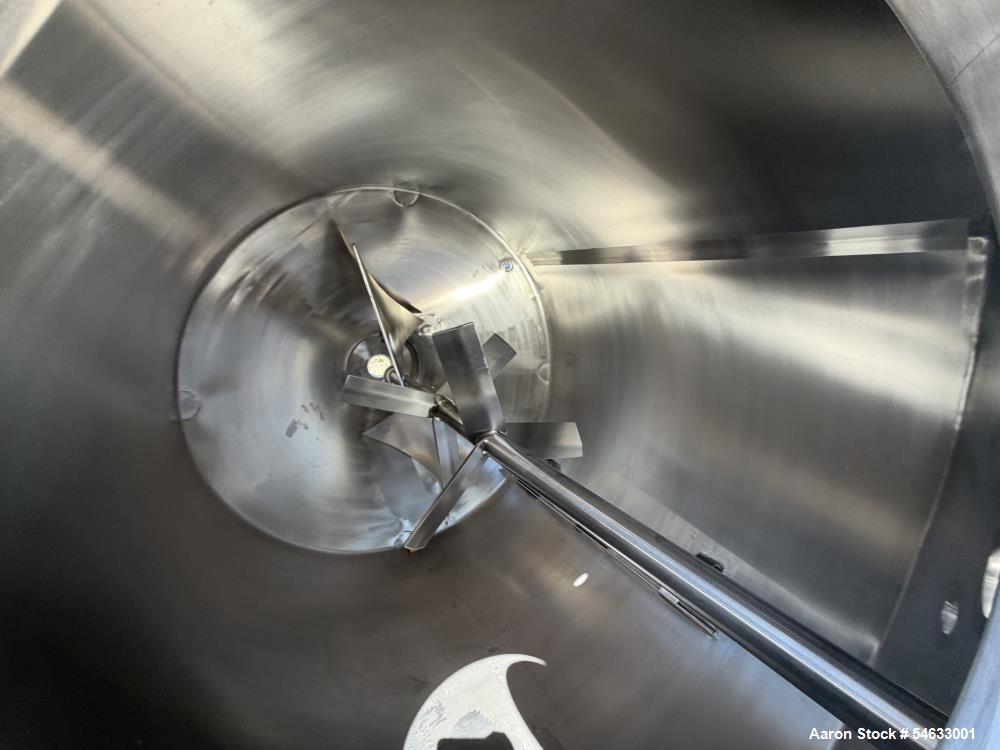

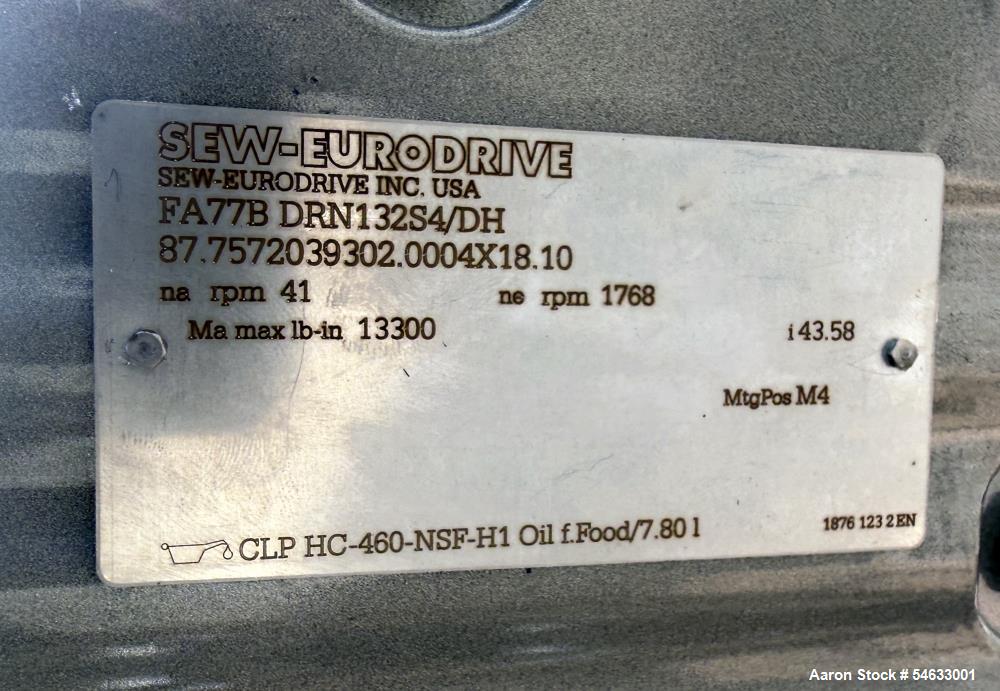

Mixing is provided by a top-center agitator with dual 3-blade turbine impellers and bottom scrapers. The agitator is driven by a 7.5 HP, 1,768 RPM motor through a 43.58:1 ratio gear reducer, resulting in a calculated output speed of approximately 40.6 RPM.

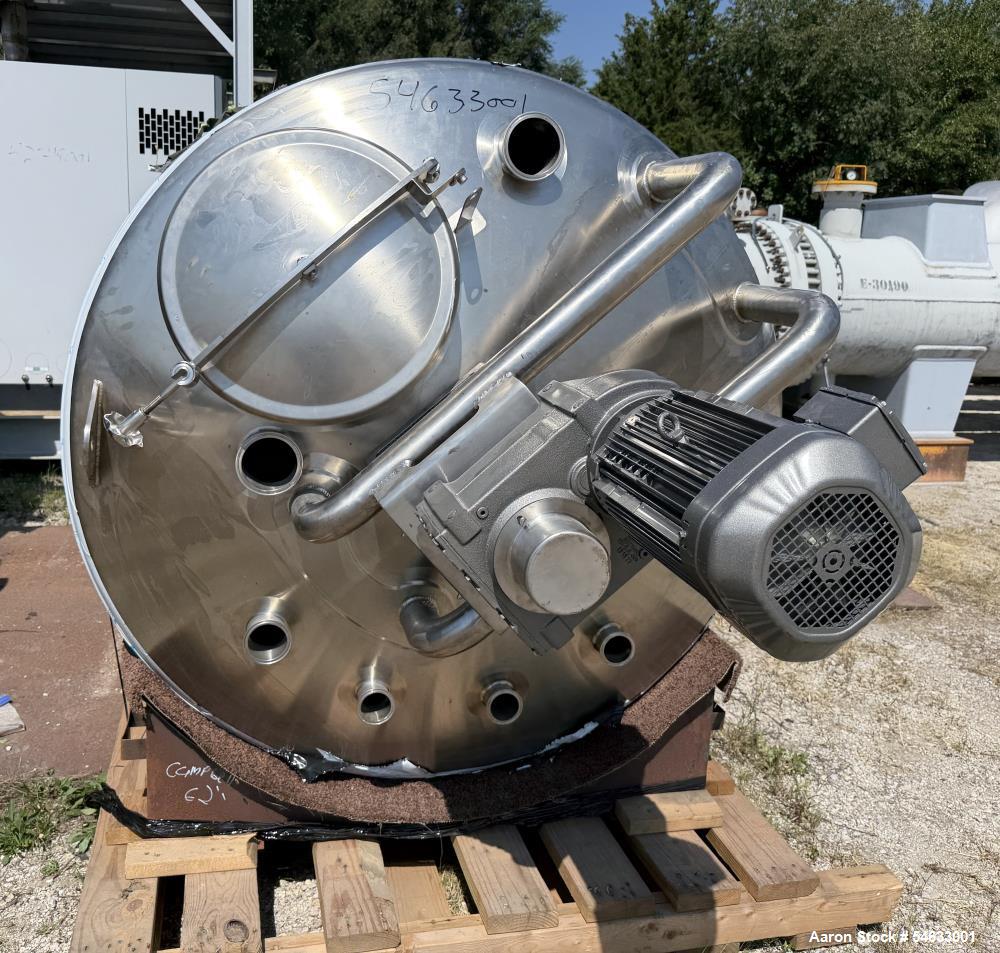

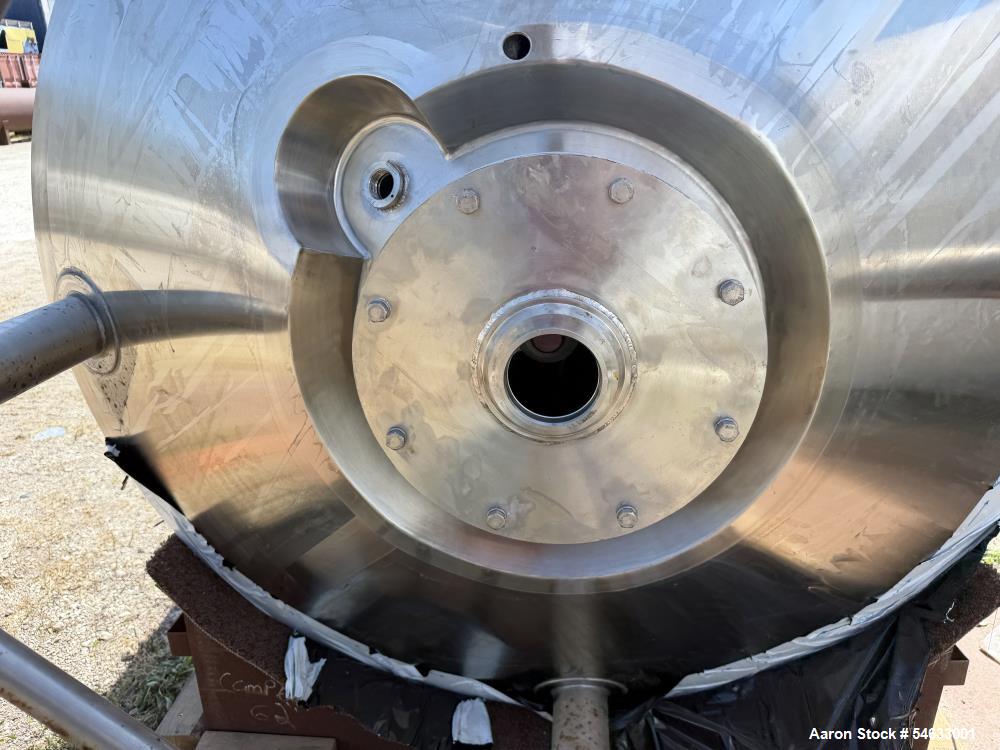

Top openings include an 18" manway with cover, a 6" agitator connection, three 4" openings, one 3" opening, and four 2-1/2" openings. Product discharge is through a 4" center-bottom outlet with approximately 18" discharge height.

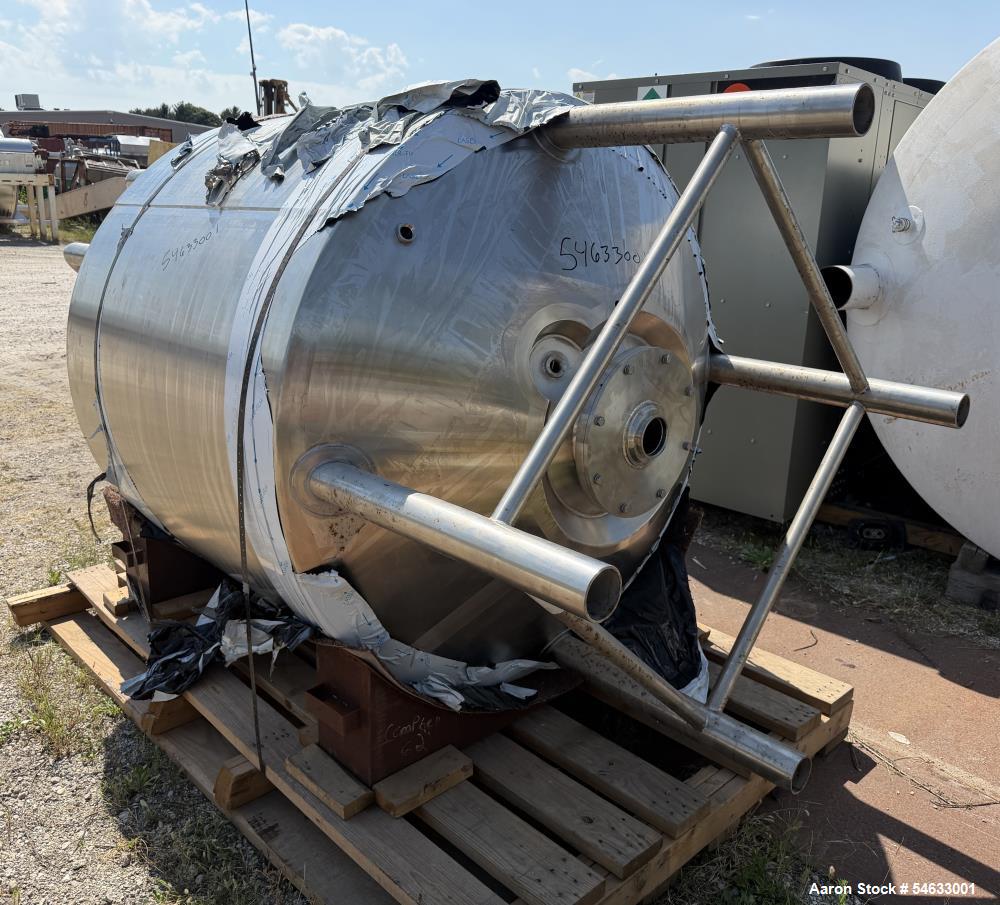

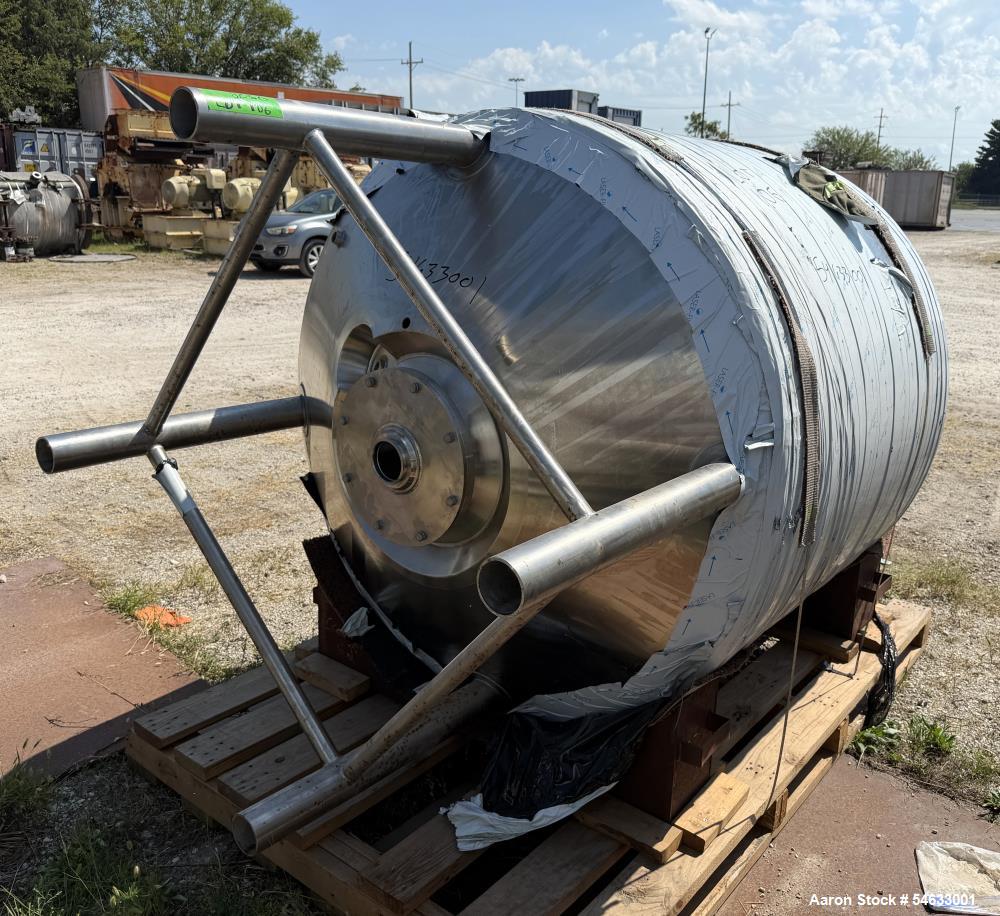

The tank is supported on four stainless steel legs for floor installation and access beneath the bottom discharge.

With its 316L construction and turbine/scraper agitation, this vessel may be suitable for food, beverage, cosmetic, pharmaceutical, nutraceutical, chemical, and other processing applications involving compatible liquid and semi-viscous products.

Specifications

Typical Applications

• Batch mixing
• Liquid blending
• Ingredient incorporation
• Product homogenization
• Semi-viscous product mixing
• Food processing
• Beverage processing
• Cosmetic manufacturing
• Personal care processing
• Pharmaceutical processing
• Nutraceutical blending
• Specialty chemical processing

Products This Mix Tank Could Be Used For

• Sauces and dressings
• Syrups and concentrates
• Beverage ingredients
• Creams and lotions
• Personal care formulations
• Cosmetic products
• Nutraceutical liquids
• Pharmaceutical formulations
• Chemical blends
• Suspensions
• Compatible semi-viscous products
• Specialty liquid formulations

Actual suitability depends on product chemistry, viscosity, mixing requirements, surface finish, sanitary requirements, and applicable industry regulations.

Frequently Asked Questions

• What is the capacity of this JBF mix tank? The tank has an approximate capacity of 530 gallons.
• What material is the tank constructed from? The vessel is specified as 316L stainless steel, making it attractive for sanitary and corrosion-sensitive processing applications.
• What type of agitator does it have? The tank has a top-center agitator with dual 3-blade turbine impellers and bottom scrapers.
• What is the approximate agitator speed? Based on the stated 1,768 RPM motor and 43.58:1 reducer, calculated agitator output speed is approximately 40.6 RPM.
• How does the product discharge from the vessel? The tank has a 4" center-bottom outlet positioned approximately 18" above the floor, based on the supplied discharge height.
• Can Aaron Equipment assist with shipping and logistics? Yes. Aaron Equipment can assist with rigging and loading coordination, domestic and international freight, customs documentation, and logistics planning for stainless steel tanks, mixers, and other industrial process equipment.
