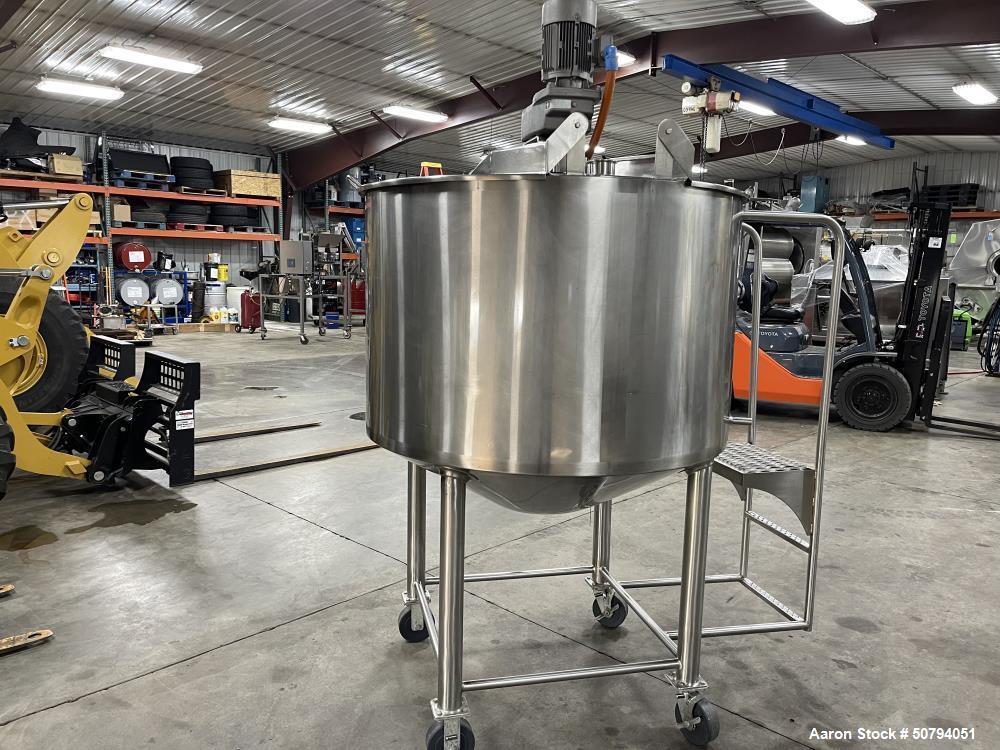

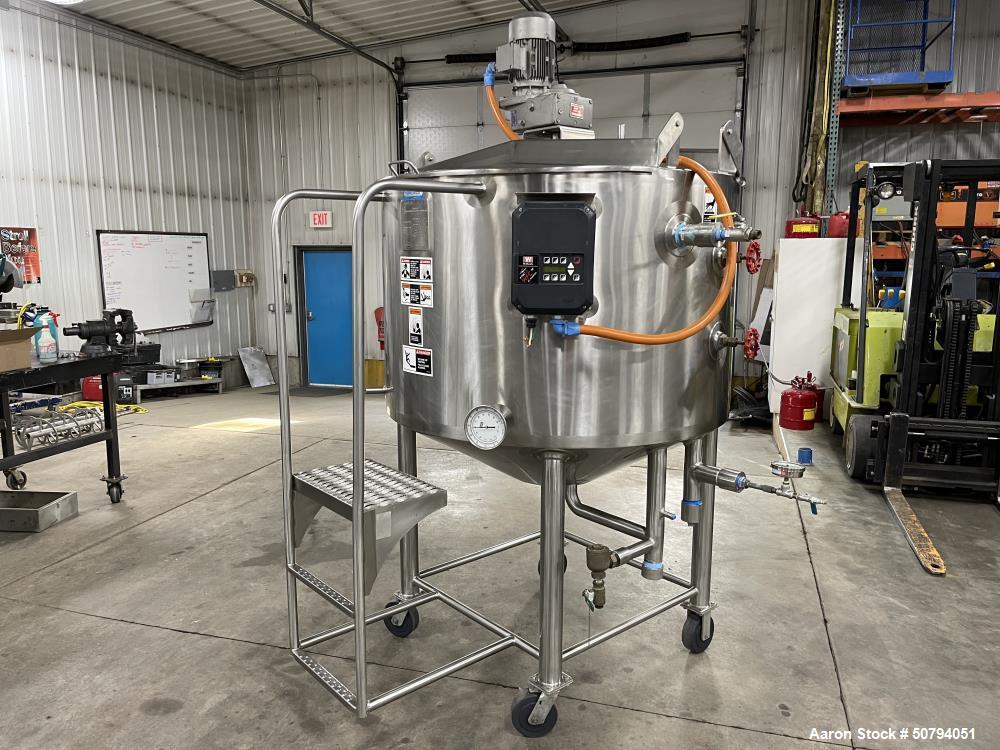

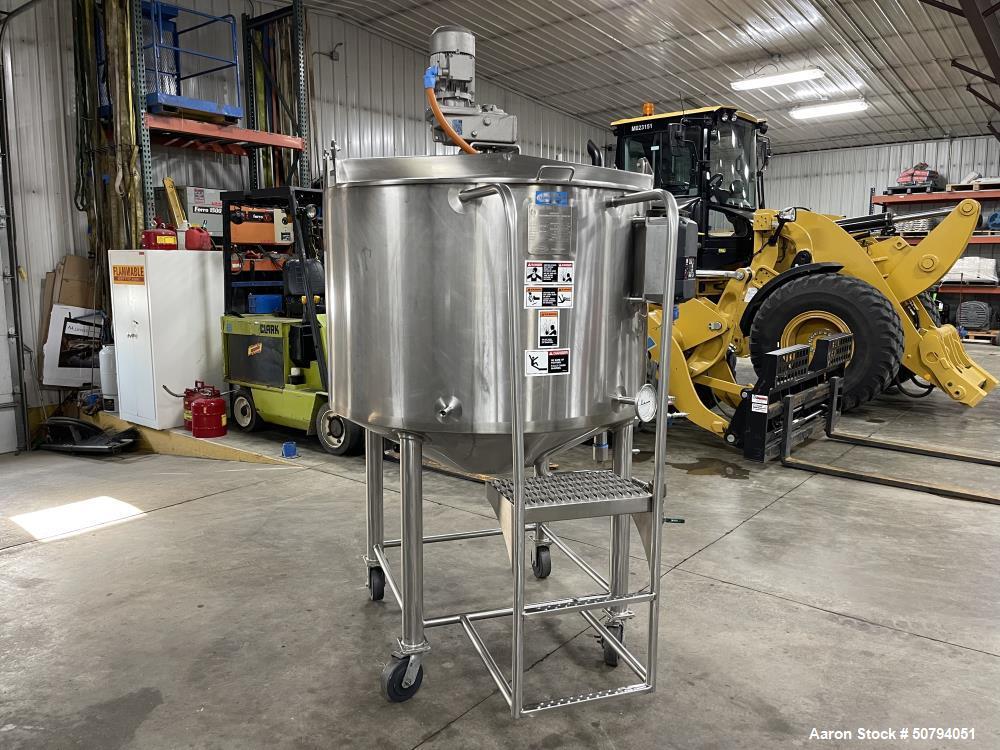

Walker Jacketed Mix Tank, Model PZ-CB-B

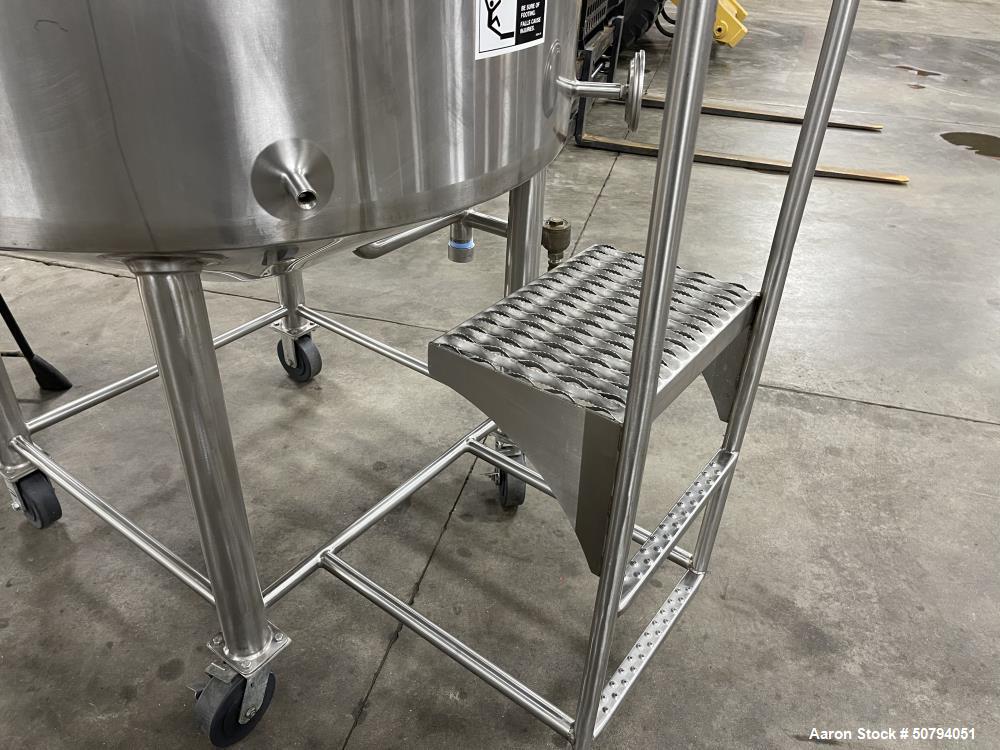

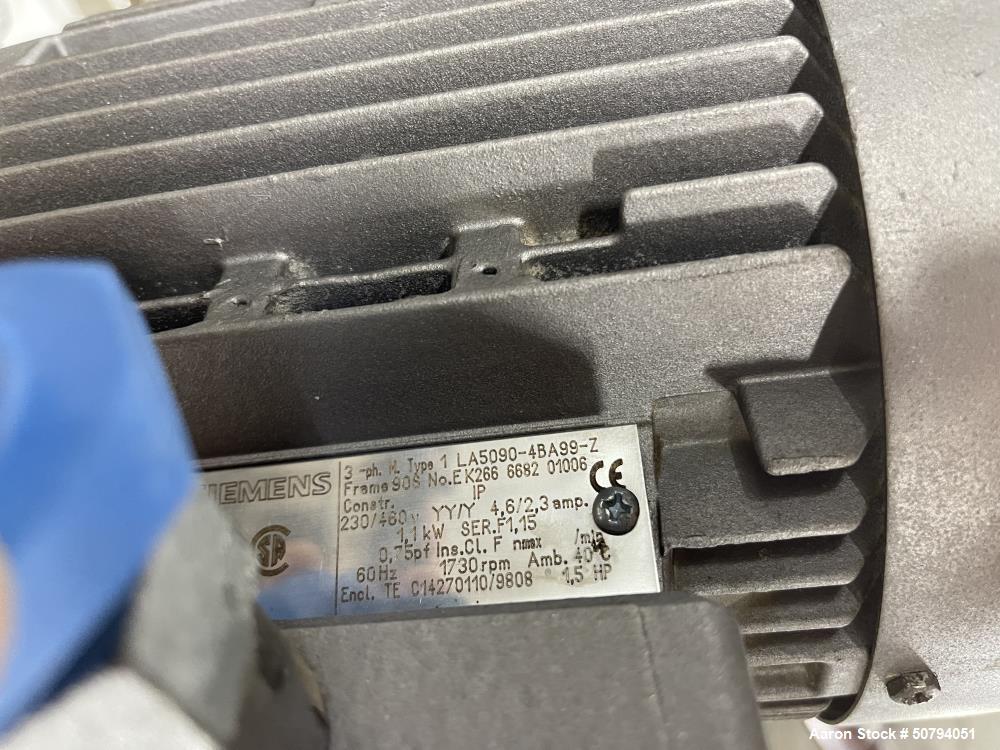

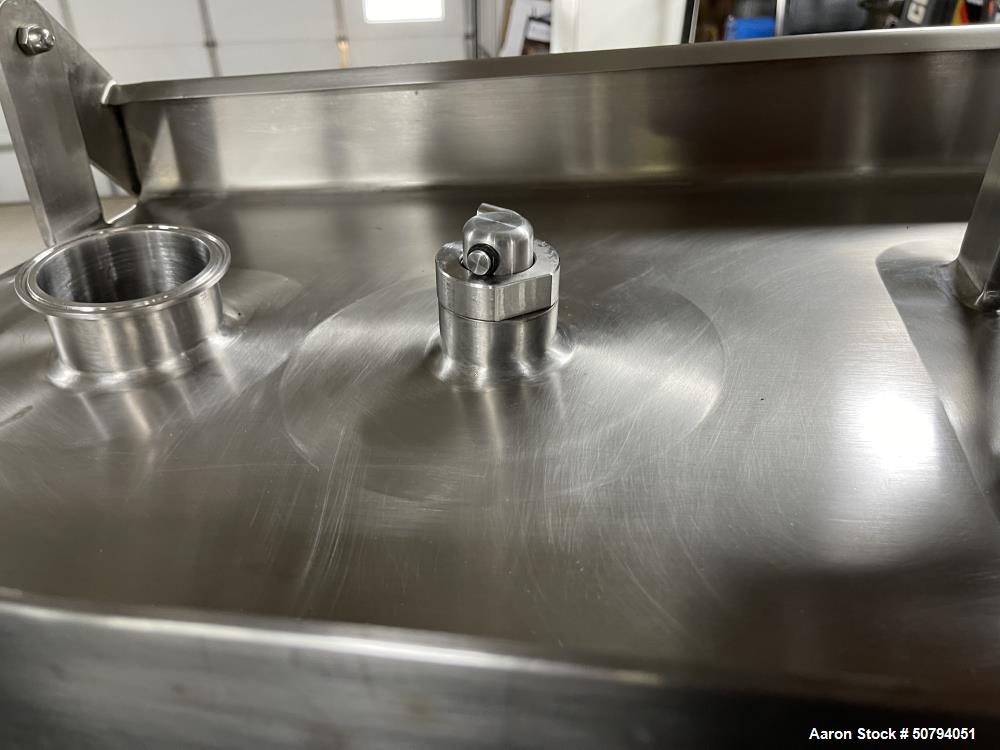

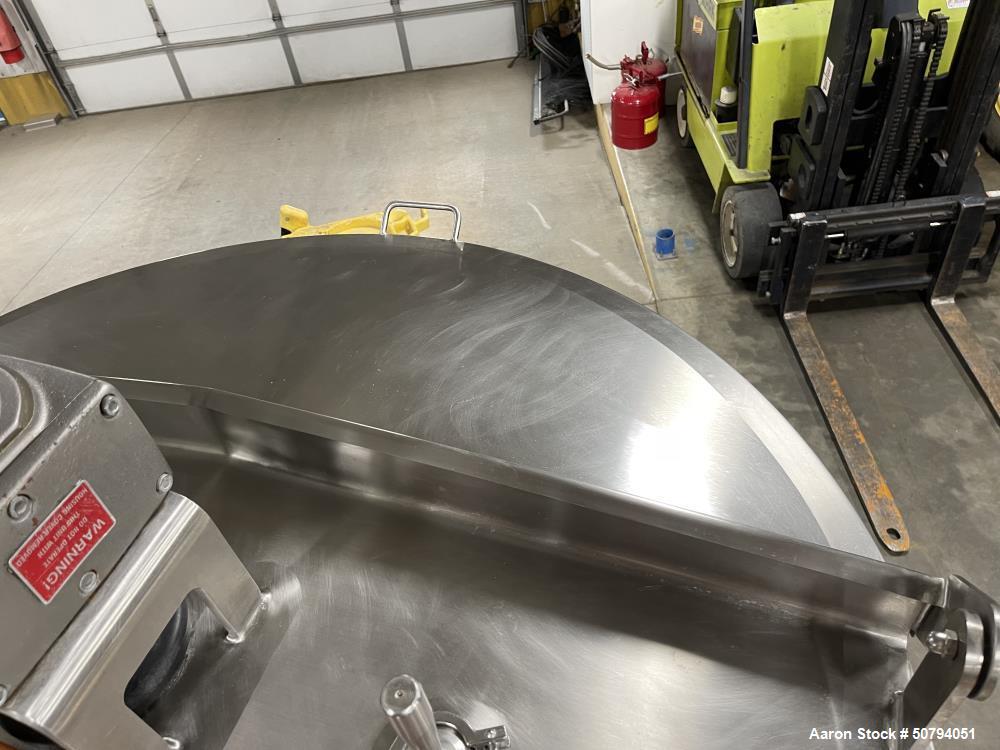

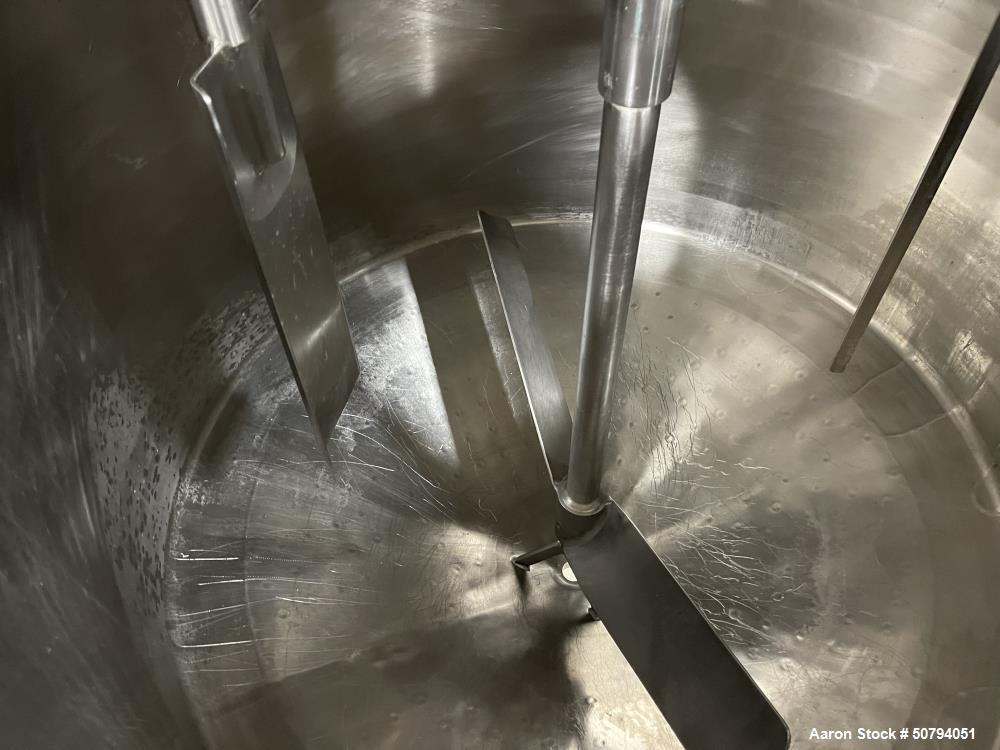

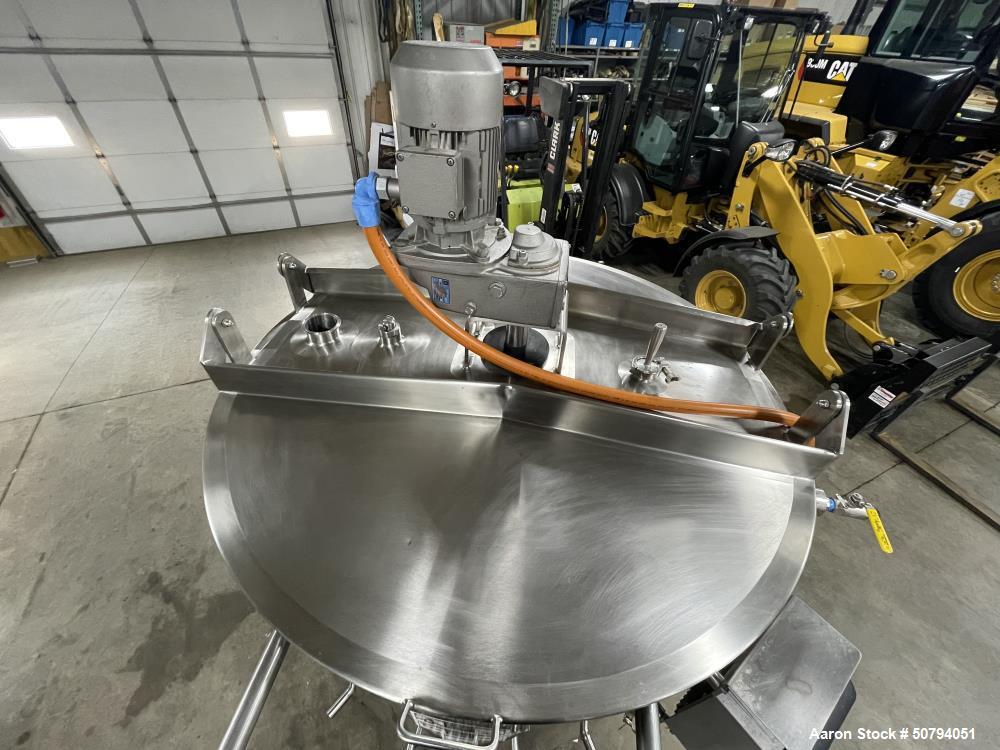

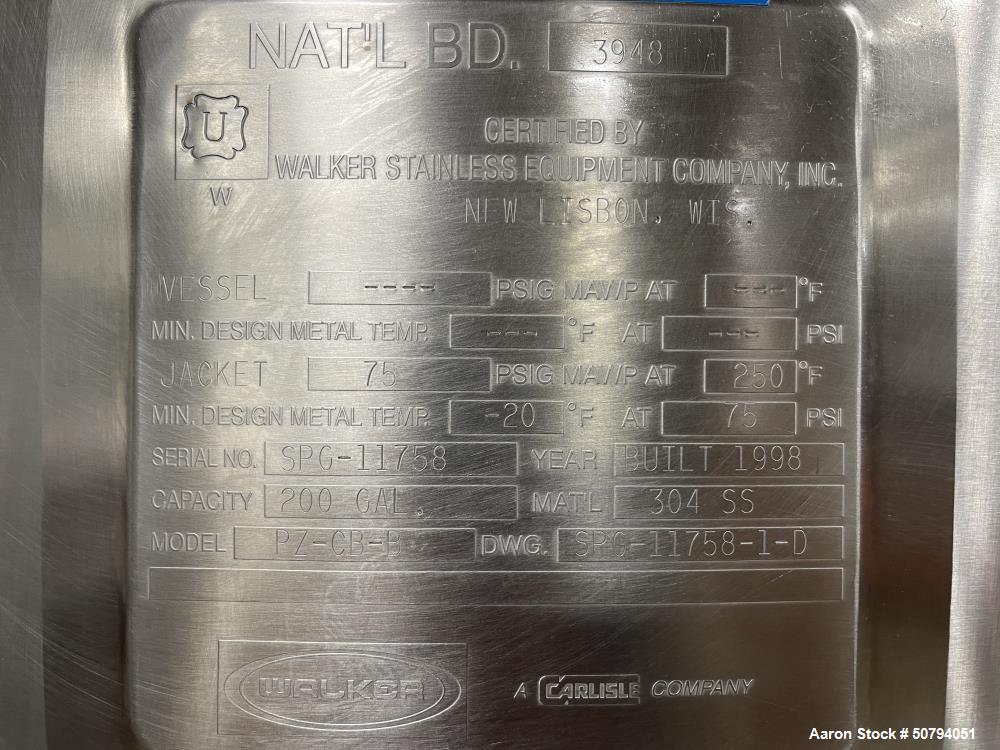

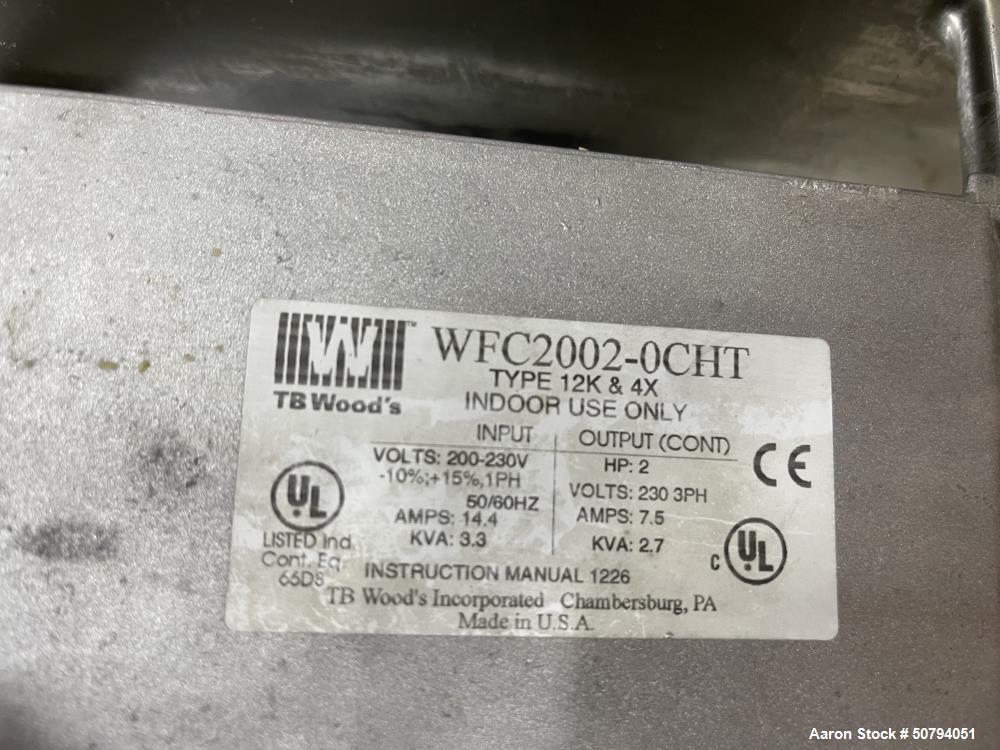

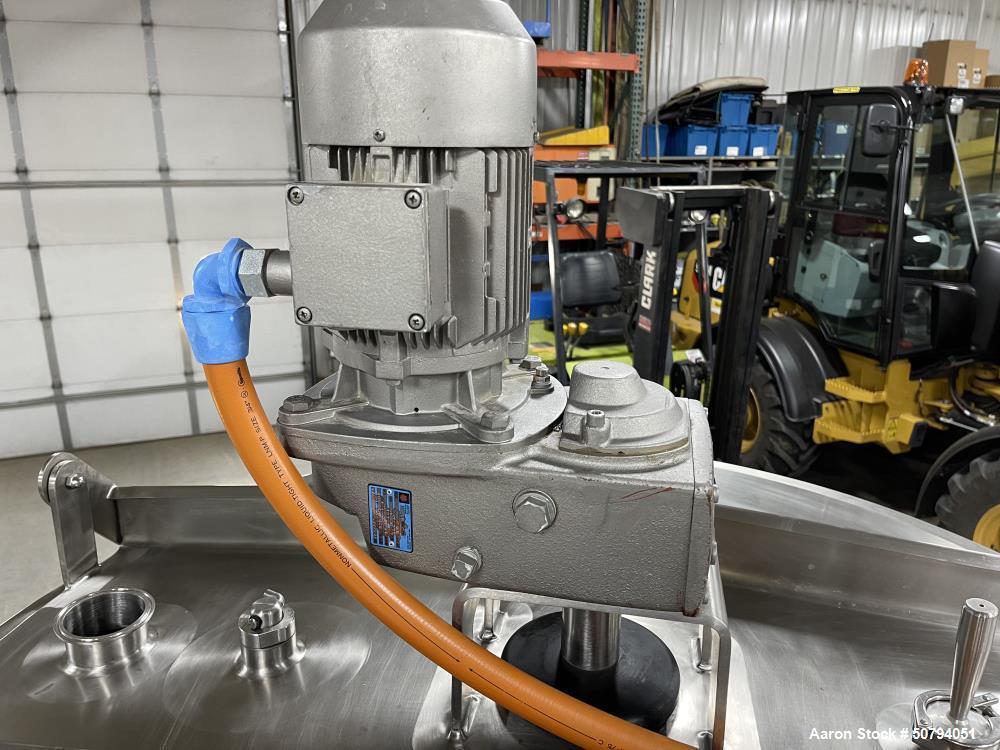

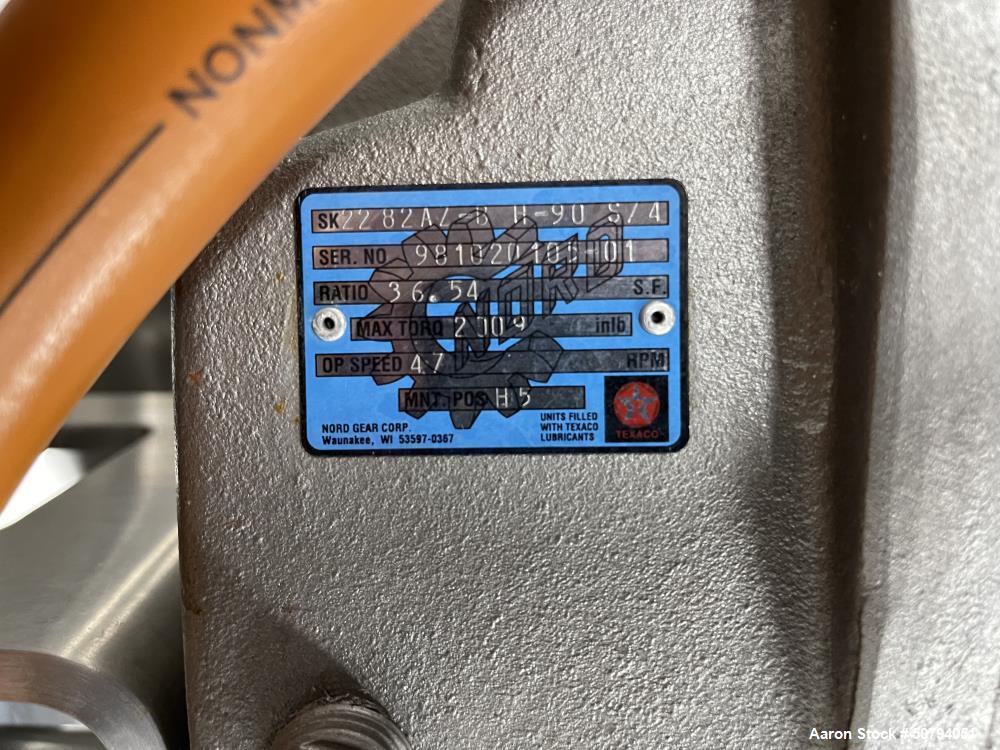

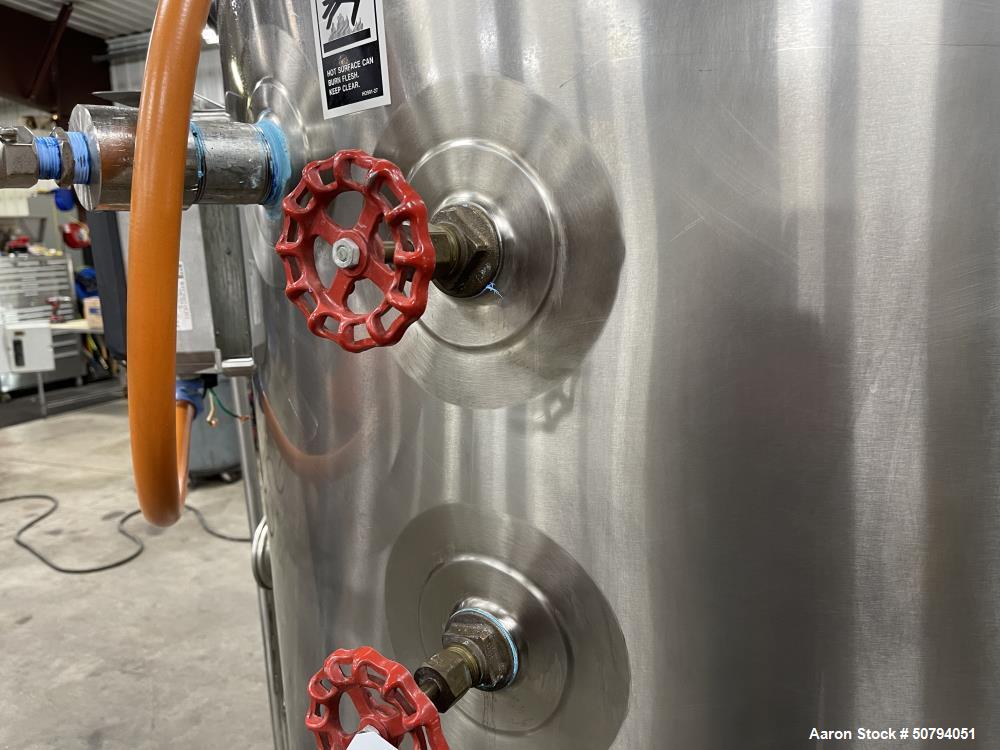

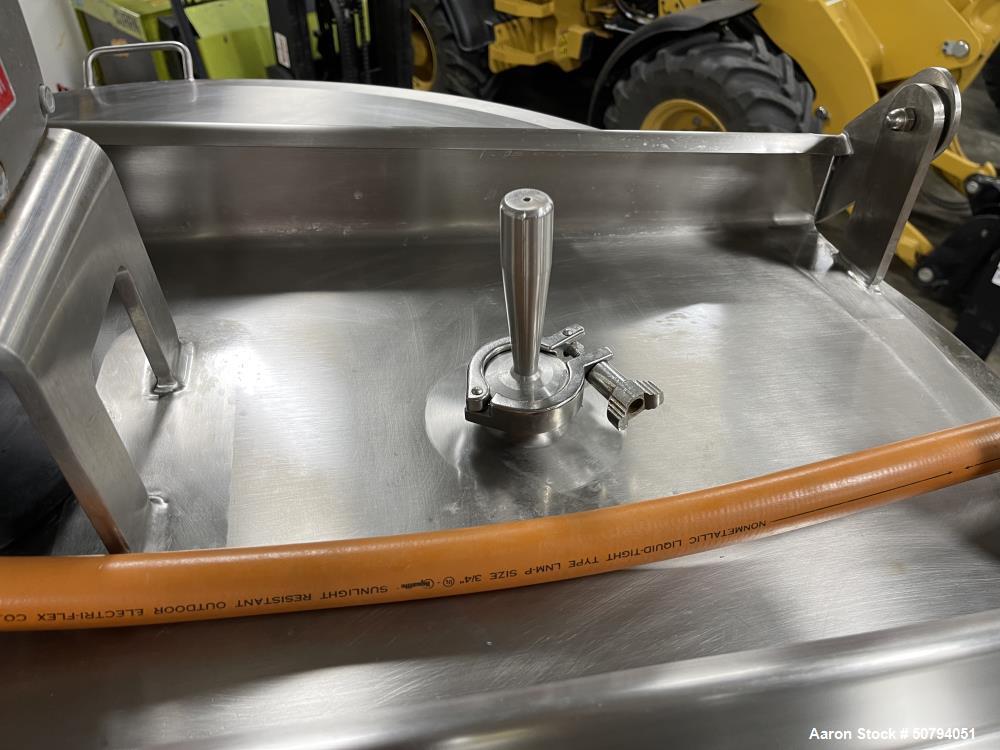

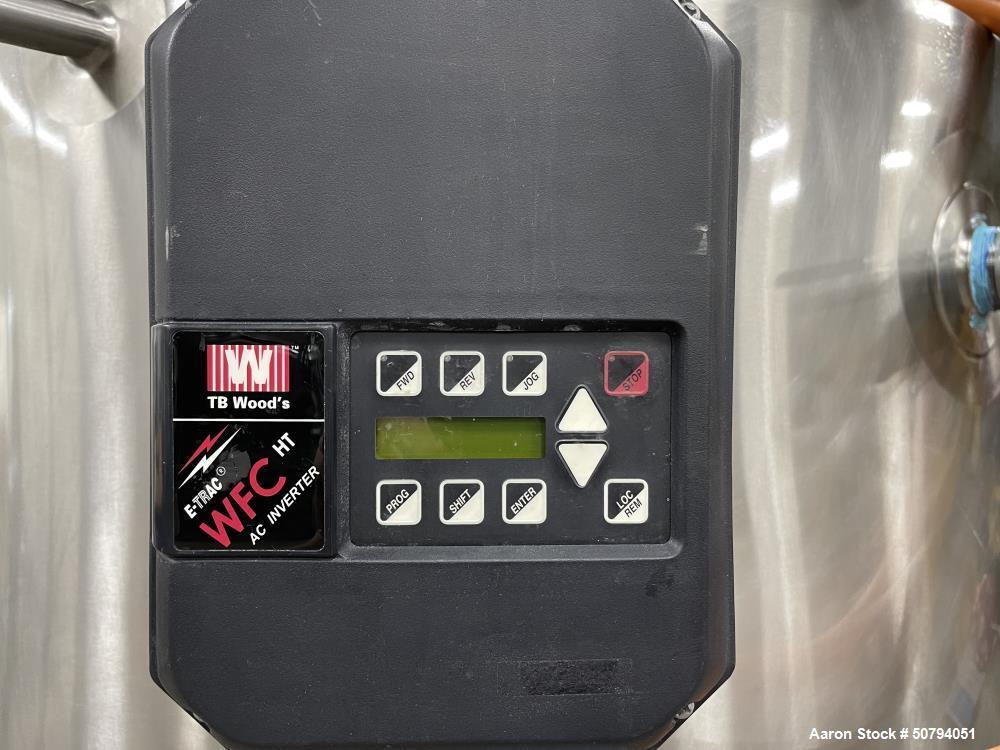

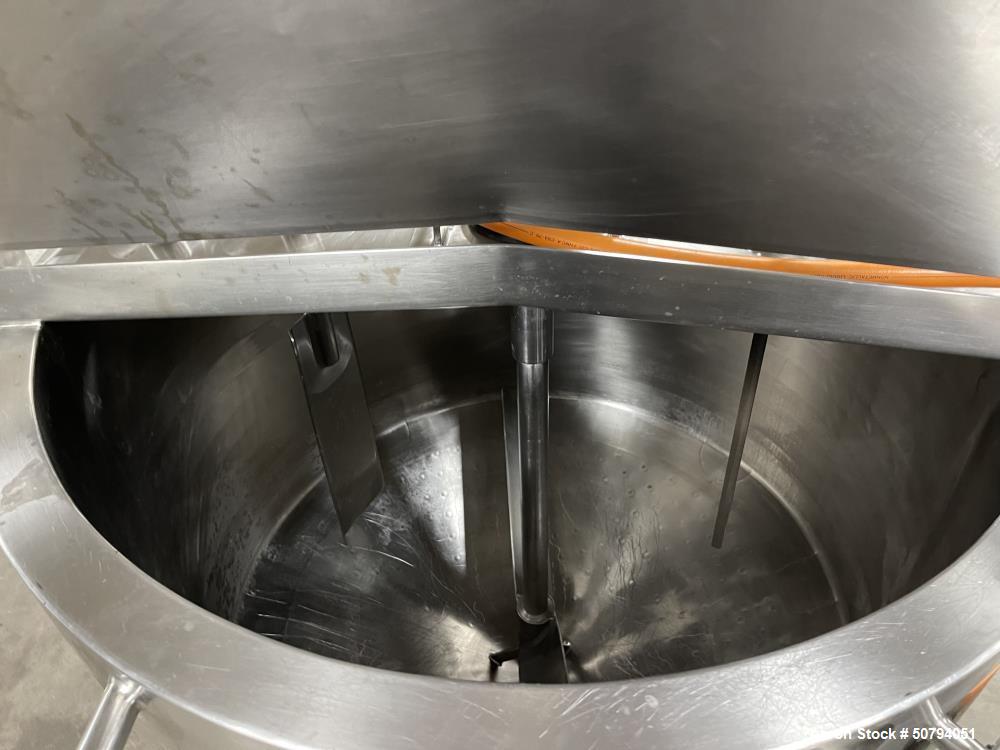

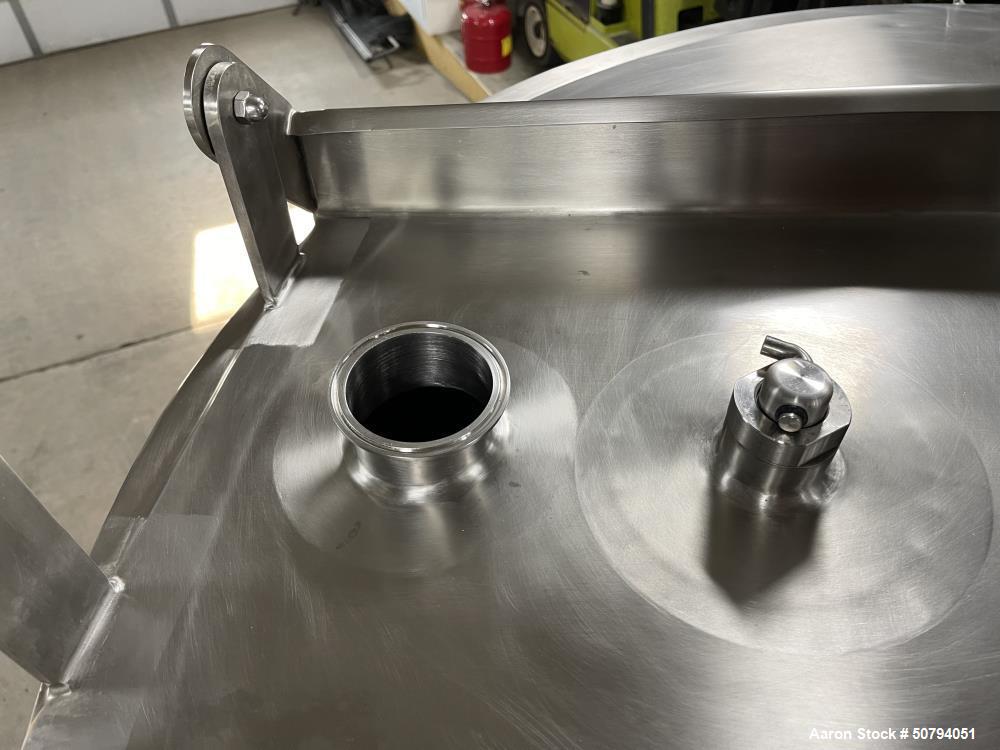

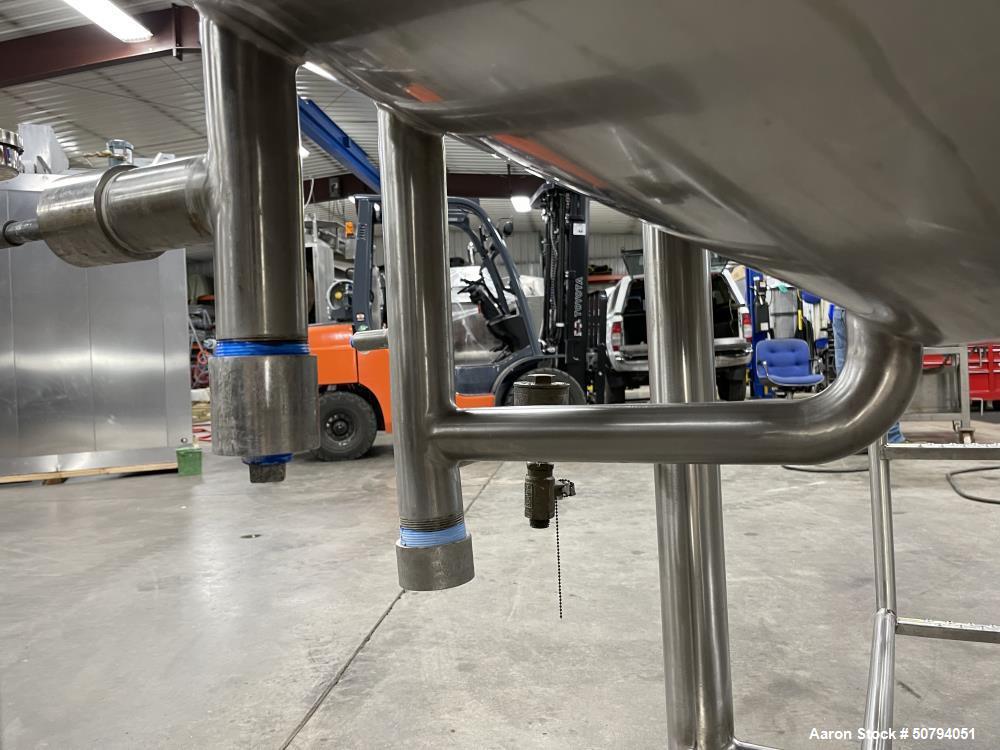

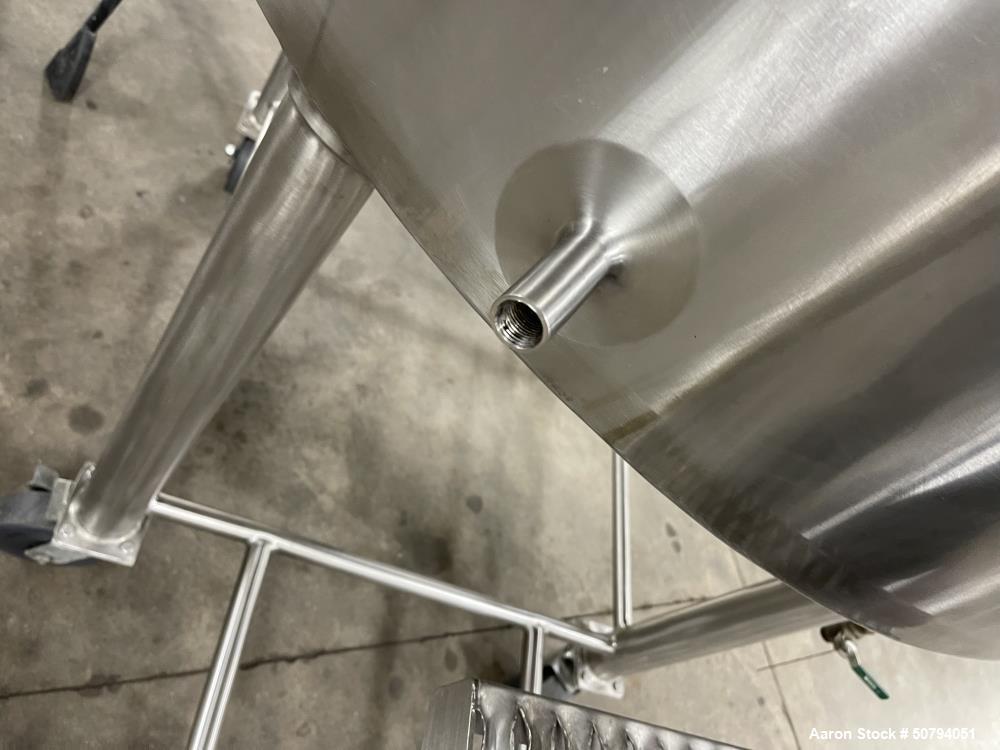

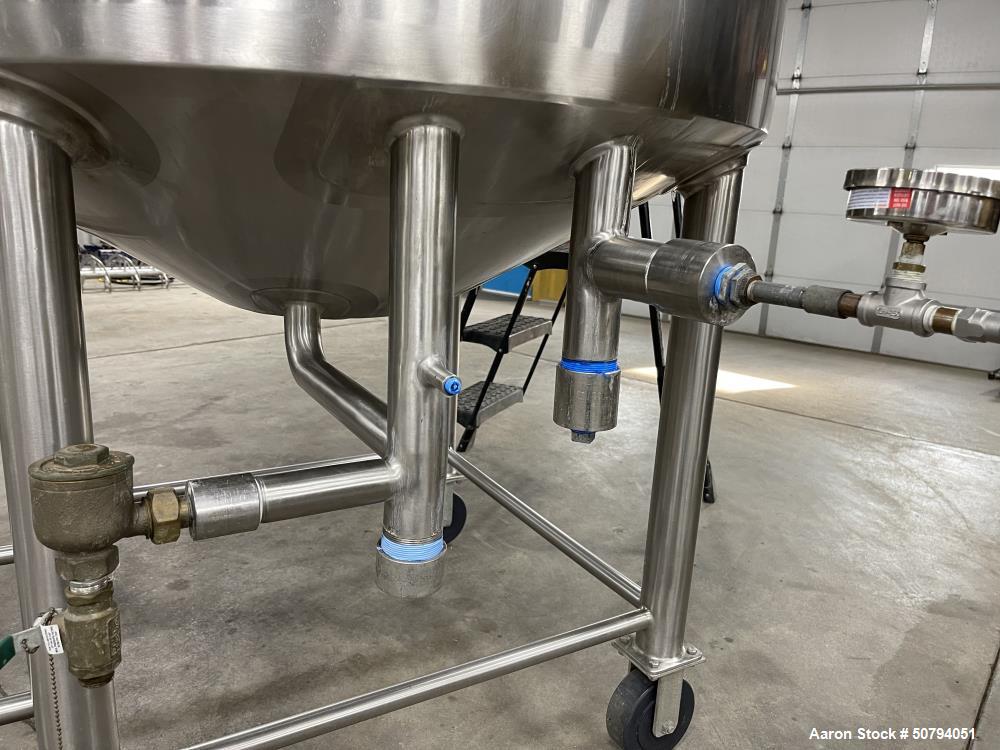

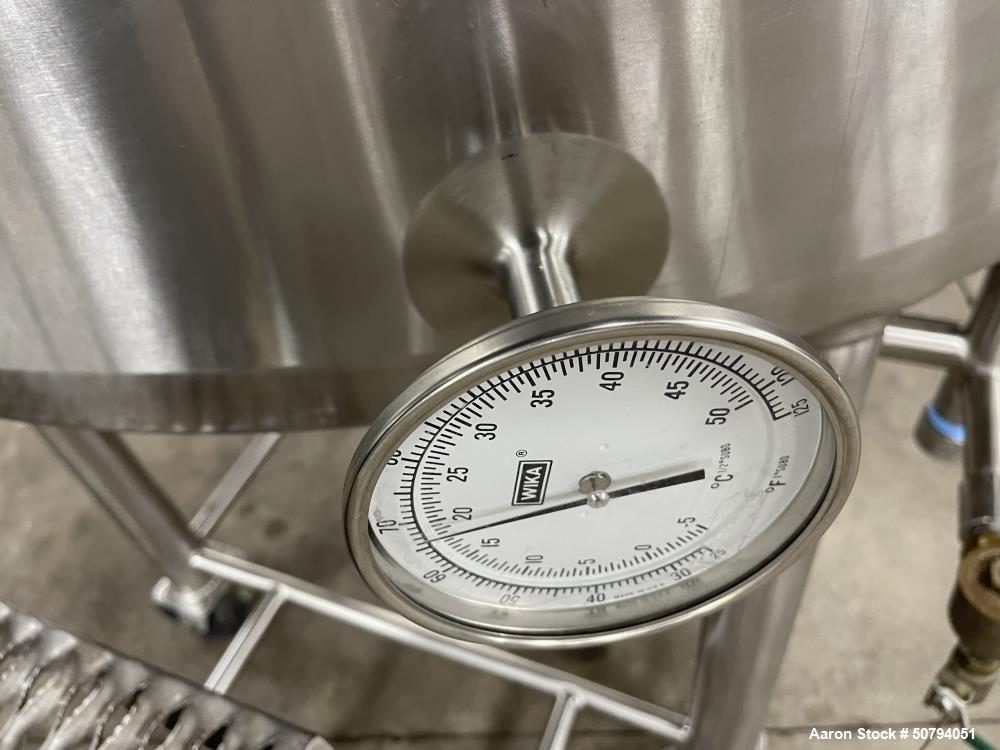

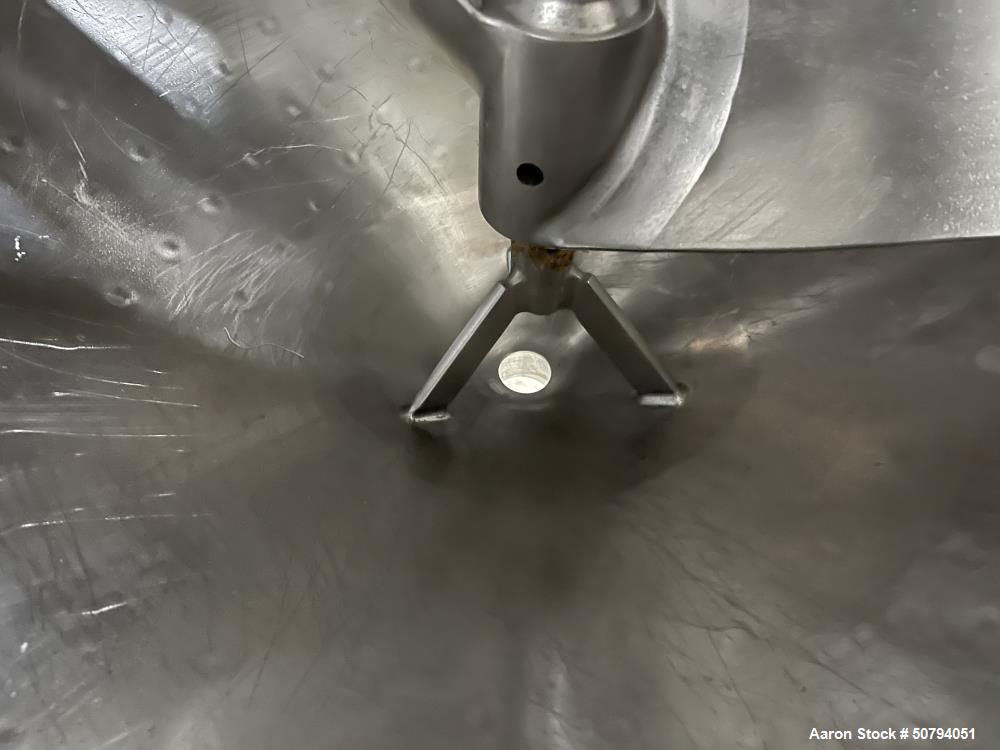

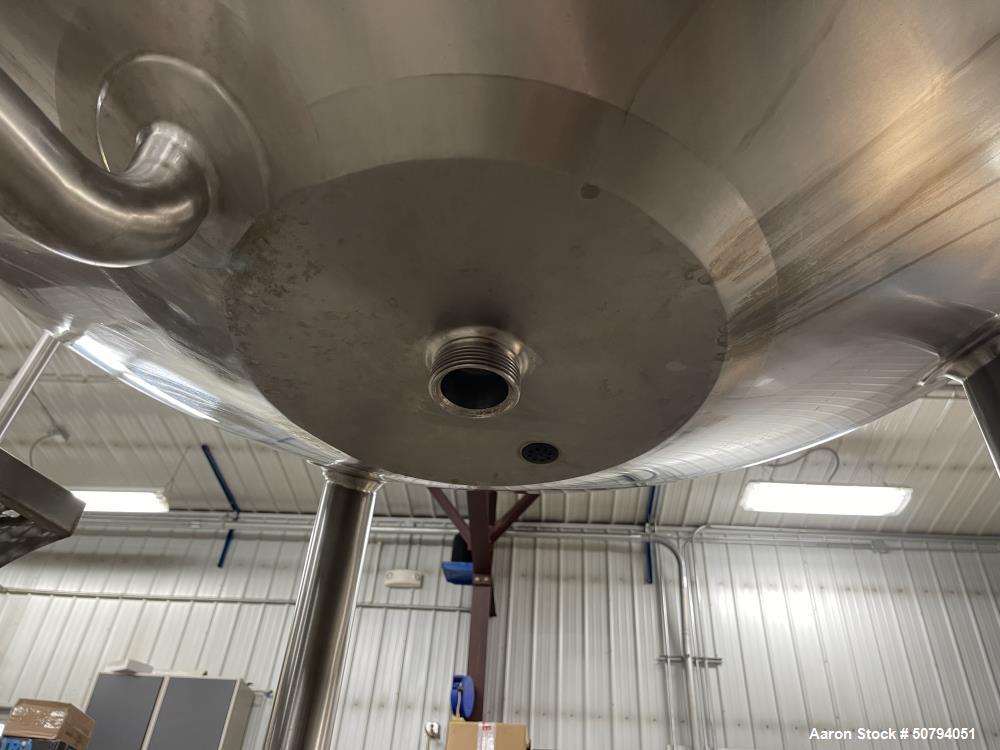

Used-Walker Jacketed Mix Tank, Model PZ-CB-B; 200 Gallon capacity. 304 Stainless Steel. Flat top with agitator bridge, coned bottom. Full jacket, MAWP 75 PSIG AT 250 F; Minium Design Metal Temperature -20 F AT 75 PSI, pressure tested. Top agitator driven by 1.47 hp, 3/60/230/460v 1730rpm motor through a reducer 36.54:1. TB Woods AC inverter, Model WFC2002-OCHT, input 200/230-volt single phase, output 230-volt 3 phase. Top liquid port, 3" diameter sanitary clamp fitting. Top liquid port, 1.5" diameter sanitary clamp fitting with stainless steel measuring insert. Free spinning baffle on top with 18 in. tall x 7 in. wide blade. (2) temperature probe ports on the side, with (1) manual temperature readout. 2" center bottom outlet. Side jacket ports, (3) 2 in. FNPT. Bottom jacket port, T-fitting with (2) 2 in. NPT fittings. Bottom T-fitting with 2 in. NPT, 1.5 in. NPT, in. FNPT. 3-step stainless steel platform, 18 in. wide x 34 in. tall. On 7.25 in. tall casters. National Board# 3948, Serial# SPG-11758.
