Goulds 3196 1.5 x 3-6 Stainless Steel Process Pump

MANUFACTURER INFORMATION

Goulds Pumps, an ITT brand, manufactures centrifugal pumps for chemical processing, petrochemical, food and beverage, pulp and paper, primary metals, and general industrial applications. The Goulds 3196 is part of an ANSI B73.1 process-pump family used for industrial liquid-transfer and circulation duties. General product-line features should be confirmed against the nameplate and documentation for this individual pump before being added to the listing.

MAIN PRODUCT DESCRIPTION

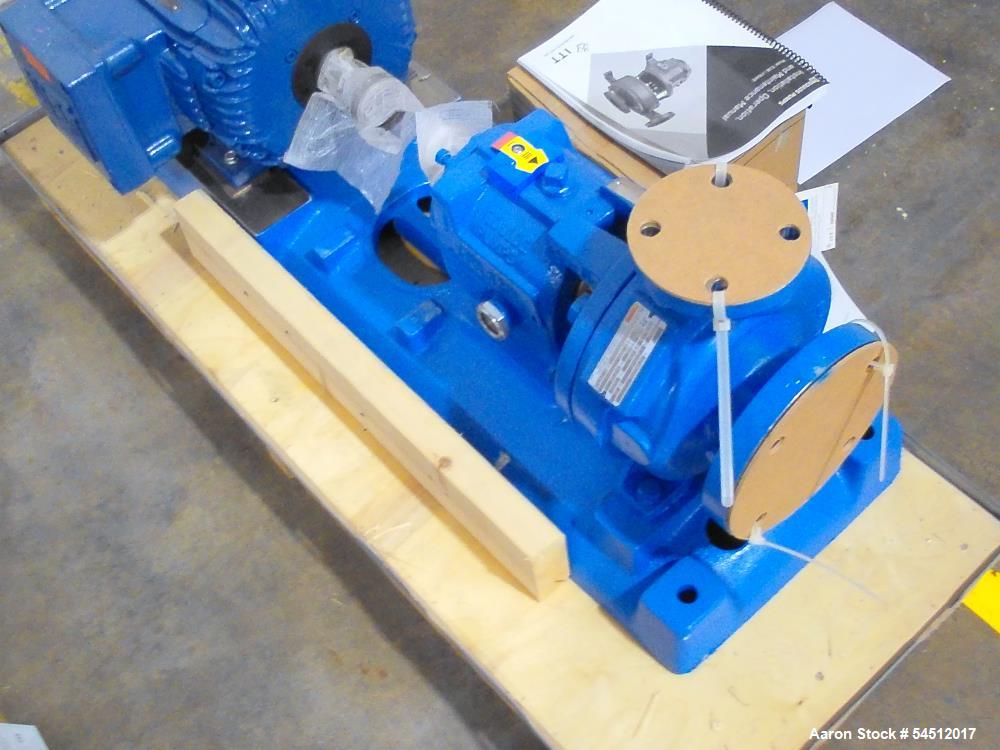

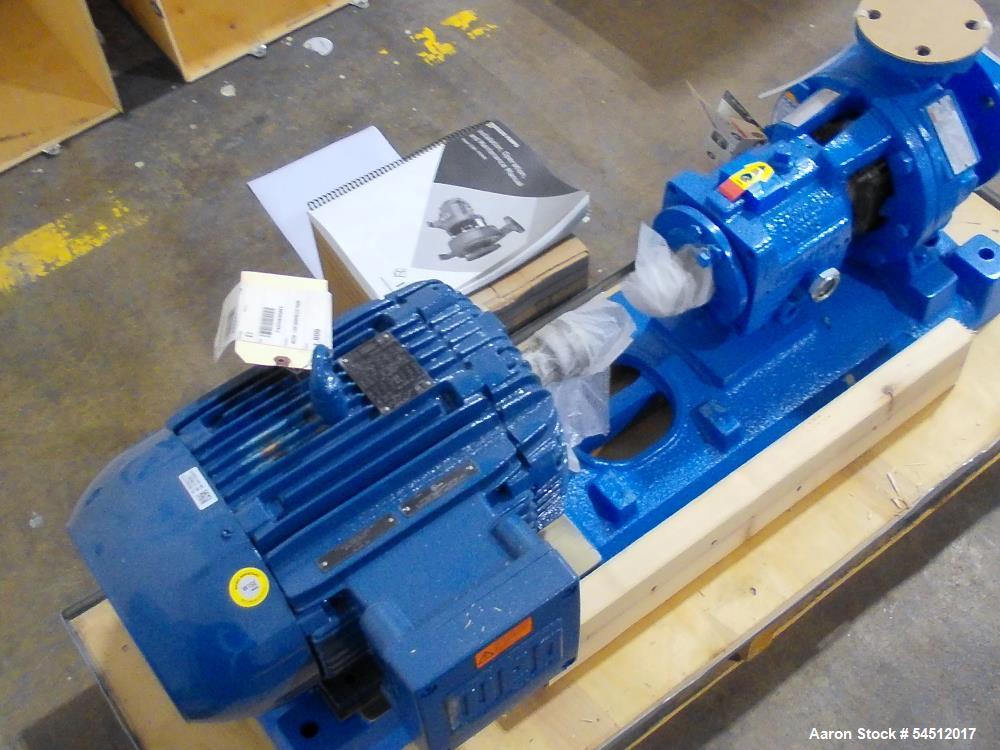

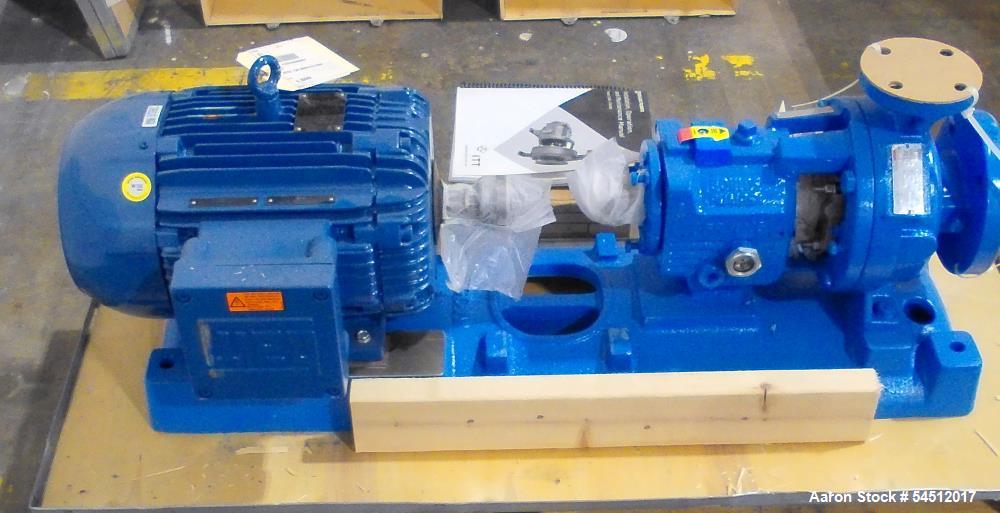

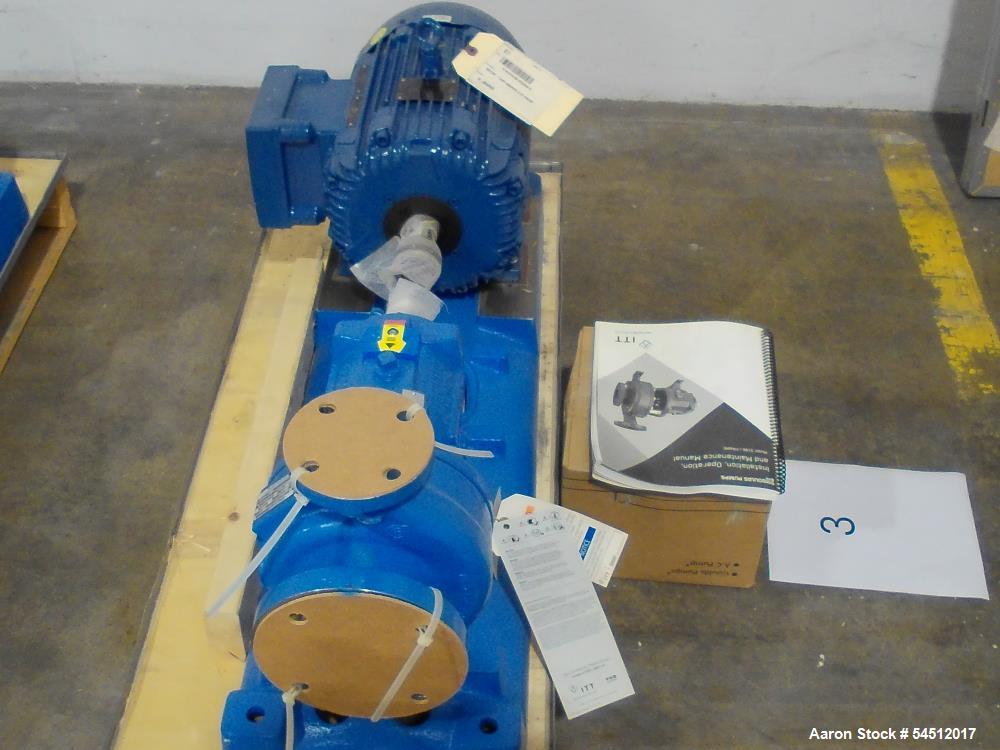

Unused Goulds Model 3196 ANSI centrifugal process pump, size 1.5 x 3-6, featuring 316 stainless steel pump construction with a 316 stainless steel shaft, shaft sleeve, and seal gland. The pump is equipped with flood-oil lubrication, a Rexnord ES-e coupling, an aluminum non-sparking coupling guard, and a cast-iron baseplate. It is driven by a 7.5 HP, 3,600 RPM explosion-proof motor rated for 230/460-volt, three-phase, 60 Hz electrical service with Class F insulation and a 1.15 service factor. The listed operating condition is 100 GPM at 40 PSI for Ethanol SDA 40B-200. The impeller diameter, total dynamic head, mechanical seal details, year, serial number, overall dimensions, weight, and testing status are not specified. Aaron Equipment stock number 54512017.

SPECIFICATIONS

• Equipment type: ANSI centrifugal process pump
• Manufacturer: Goulds
• Model: 3196
• Pump size: 1.5 x 3-6
• Condition: Unused
• Rated flow: 100 GPM
• Listed pressure: 40 PSI
• Rated service fluid: Ethanol SDA 40B-200
• Pump construction: 316 stainless steel
• Shaft material: 316 stainless steel
• Shaft sleeve material: 316 stainless steel
• Seal-gland material: 316 stainless steel
• Lubrication: Flood-oil lubrication
• Coupling manufacturer: Rexnord
• Coupling model or series: ES-e
• Coupling guard: Aluminum, non-sparking
• Baseplate material: Cast iron
• Motor horsepower: 7.5 HP
• Motor speed: 3,600 RPM
• Motor enclosure: Explosion-proof
• Voltage: 230/460 volts
• Phase: Three-phase
• Frequency: 60 Hz
• Insulation class: Class F
• Motor service factor: 1.15
• Stock number: 54512017

APPLICATIONS

• Ethanol transfer
• Alcohol-handling systems
• Chemical liquid transfer
• Solvent transfer
• Petrochemical process service
• Reactor feed
• Process circulation
• Tank-to-tank transfer
• Batch-processing systems
• Column feed and reflux service
• Paint and coating production
• Resin and adhesive processing
• General industrial liquid transfer
• Compatible food and beverage processing
• Compatible pharmaceutical process support

The Goulds 3196 product family is used across chemical, petrochemical, pulp and paper, primary-metals, food and beverage, and general industrial applications. Suitability of this specific pump depends on the hydraulic curve, impeller diameter, seal arrangement, construction materials, motor classification, and process conditions.

SUITABLE PRODUCTS AND MATERIALS

• Ethanol SDA 40B-200
• Industrial alcohols
• Compatible solvents
• Process chemicals
• Compatible hydrocarbons
• Cleaning solutions
• Water-based process liquids
• Liquid additives
• Resins
• Coatings
• Adhesive components
• Compatible food-processing liquids
• Low-viscosity industrial fluids
• Other liquids compatible with 316 stainless steel and the installed seal

Actual suitability depends on fluid concentration, temperature, viscosity, specific gravity, vapor pressure, solids content, corrosion potential, required flow, total dynamic head, NPSH available, and mechanical-seal compatibility.

PRODUCT DETAILS

• Unused Goulds ANSI process pump
• Goulds Model 3196
• Pump size 1.5 x 3-6
• Rated at 100 GPM and 40 PSI for the listed ethanol service
• 316 stainless steel pump construction
• 316 stainless steel shaft
• 316 stainless steel shaft sleeve
• 316 stainless steel seal gland
• Flood-oil bearing lubrication
• Rexnord ES-e coupling
• Aluminum non-sparking coupling guard
• Cast-iron baseplate
• 7.5 HP motor
• 3,600 RPM motor speed
• Explosion-proof motor
• 230/460-volt electrical service
• Three-phase, 60 Hz power
• Class F motor insulation
• 1.15 motor service factor
• Aaron Equipment stock number 54512017

FAQS

• WHAT TYPE OF PUMP IS THIS?
  This is an unused Goulds Model 3196 horizontal ANSI centrifugal process pump.
• WHAT IS THE PUMP SIZE?

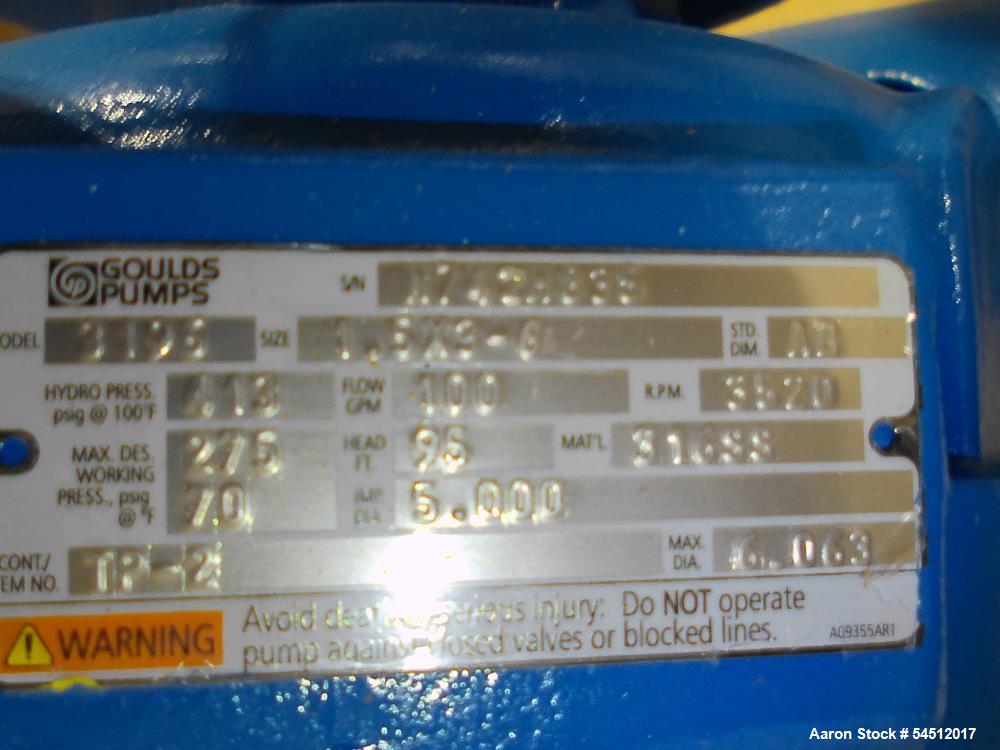

  The listed size is 1.5 x 3-6. Buyers should confirm the suction and discharge connection sizes from the pump nameplate or certified drawing.
• WHAT IS THE RATED FLOW?
  The listing states a rated flow of 100 GPM.
• HOW IS THIS PUMP DIFFERENT FROM STOCK NUMBER 54512016?
  Both listings describe similar unused Goulds 3196 pumps, but stock number 54512017 is listed at 100 GPM at 40 PSI. Buyers should compare pump curves, impeller diameters, serial numbers, and original data sheets rather than relying only on the similar outward configuration.
• WHAT IS THE PUMP CONSTRUCTED FROM?
  The pump, shaft, shaft sleeve, and seal gland are listed as 316 stainless steel.
• IS THE PUMP USED OR UNUSED?
  The listing identifies the pump as unused. Buyers should still confirm whether it has ever been installed, energized, wet-tested, or exposed to process fluid.
• WHAT SIZE MOTOR IS INCLUDED?

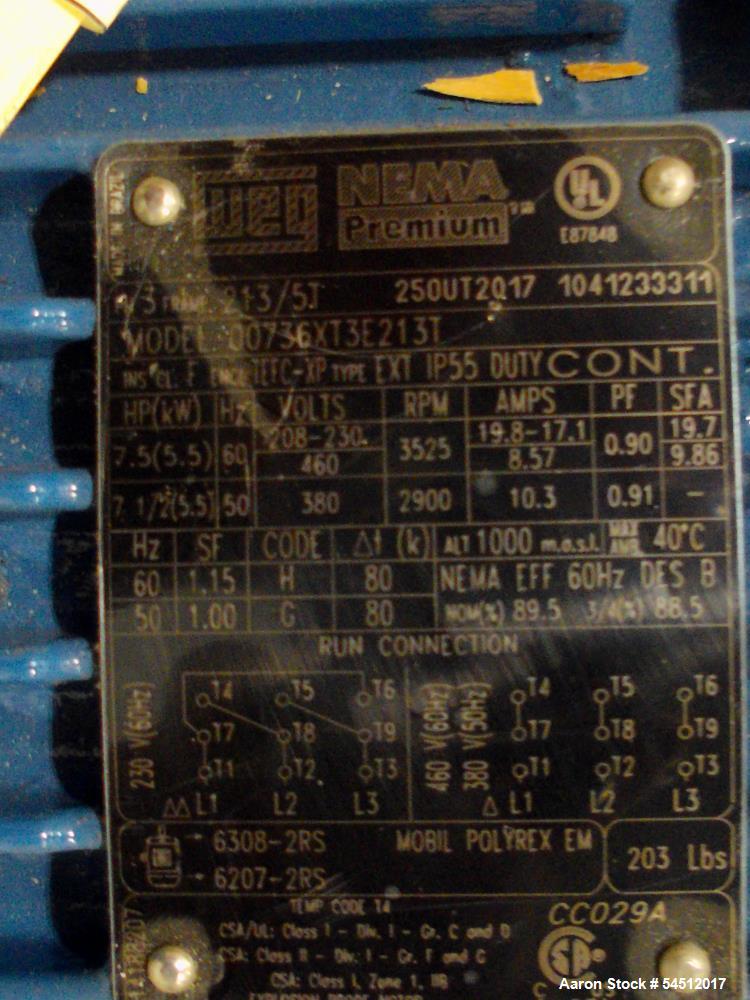

  The pump is driven by a 7.5 HP, 3,600 RPM motor.
• WHAT ELECTRICAL SERVICE IS REQUIRED?
  The motor is rated for 230/460 volts, three-phase, 60 Hz electrical service.
• IS THE MOTOR EXPLOSION-PROOF?
  Yes. The listing describes the motor as explosion-proof. The precise class, division or zone, group, and temperature code are not specified.
• WHAT TYPE OF COUPLING IS INCLUDED?
  The pump includes a Rexnord ES-e coupling and an aluminum non-sparking coupling guard.
• WHAT TYPE OF LUBRICATION DOES THE PUMP USE?
  The listing identifies flood-oil lubrication.
• IS A MECHANICAL SEAL INCLUDED?
  A 316 stainless steel seal gland is listed, but the mechanical seal manufacturer, style, arrangement, and materials are not provided.
• CAN AARON EQUIPMENT HELP VERIFY THE PUMP FOR MY APPLICATION?
  Yes. Provide the liquid, concentration, temperature, viscosity, specific gravity, required flow, total dynamic head, suction conditions, NPSH available, system pressure, hazardous-area classification, and electrical service so Aaron Equipment can help evaluate the application.
• CAN THE PUMP BE INSPECTED OR TESTED?
  Contact Aaron Equipment to discuss nameplate verification, shaft-rotation checks, motor testing, alignment inspection, lubrication condition, documentation, and available testing.
• DOES AARON EQUIPMENT HELP WITH SHIPPING?
  Yes. Aaron Equipment can assist with loading and freight coordination. Buyers should confirm the skid dimensions, weight, lifting points, center of gravity, preservation requirements, and whether lubricating oil must be removed before shipment.
