Unused Goulds 3196 316 Stainless Steel ANSI Centrifugal Pump

MANUFACTURER INFORMATION

Goulds Pumps, an ITT brand, manufactures industrial centrifugal pumps for chemical processing, petrochemical, pulp and paper, food and beverage, metals, and general industrial applications. The Goulds 3196 product family is an ANSI B73.1 process-pump line designed for industrial liquid-transfer and process duties. Goulds identifies features of the broader 3196 line that include an open impeller, back pull-out construction, external impeller adjustment, and multiple sealing configurations. Those product-line features should not be attributed to this individual pump unless confirmed from its nameplate and documentation.

MAIN PRODUCT DESCRIPTION

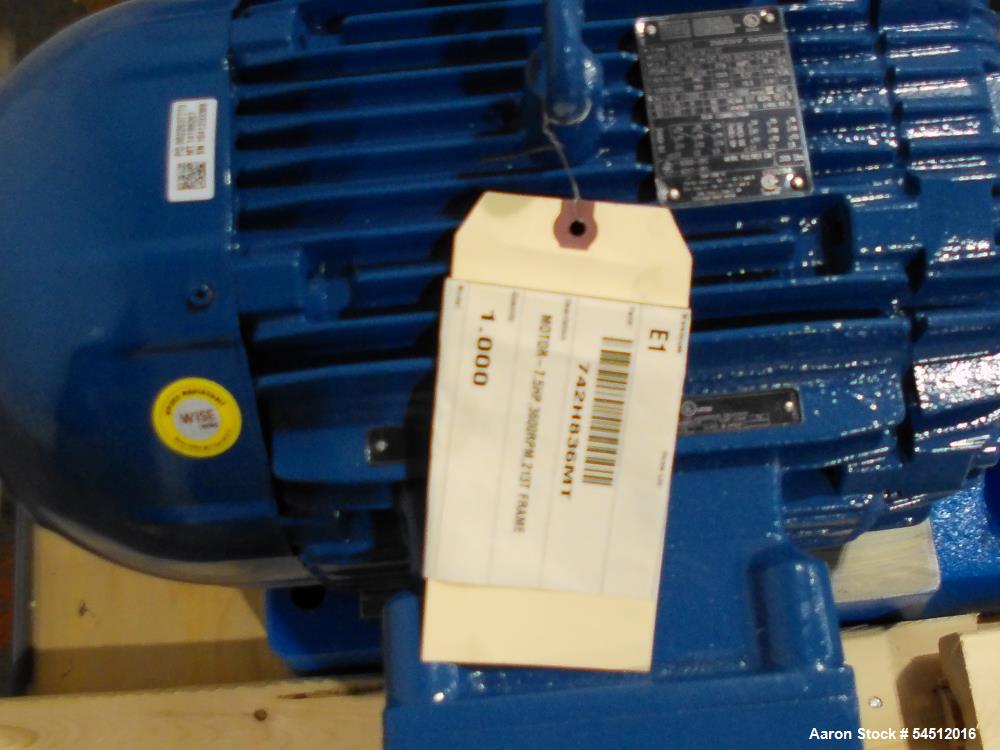

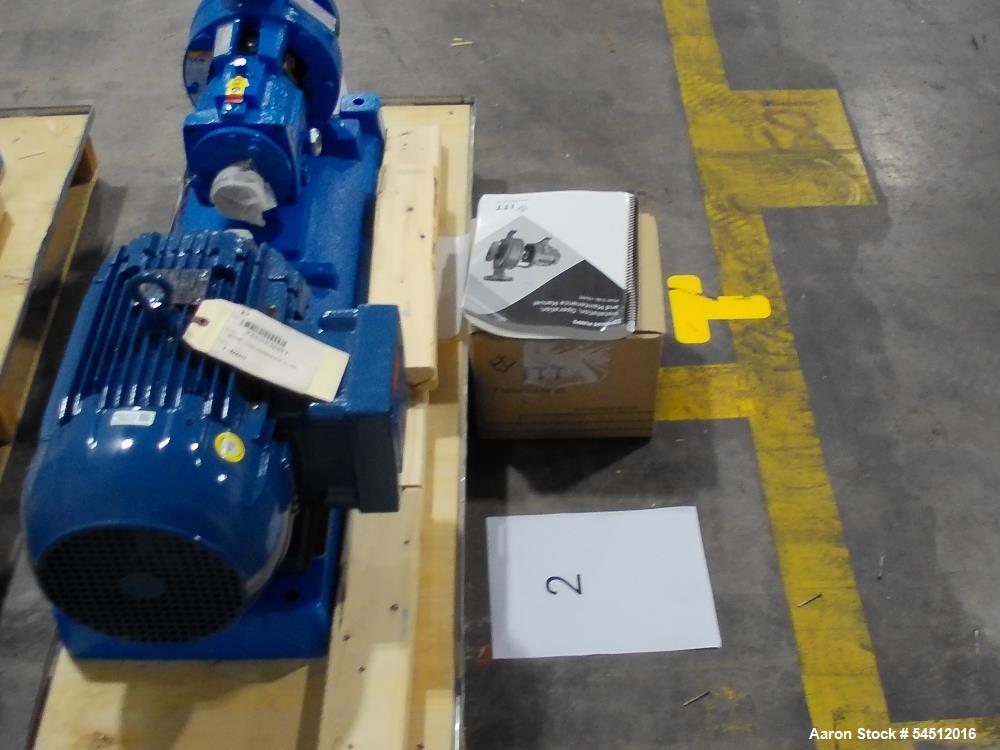

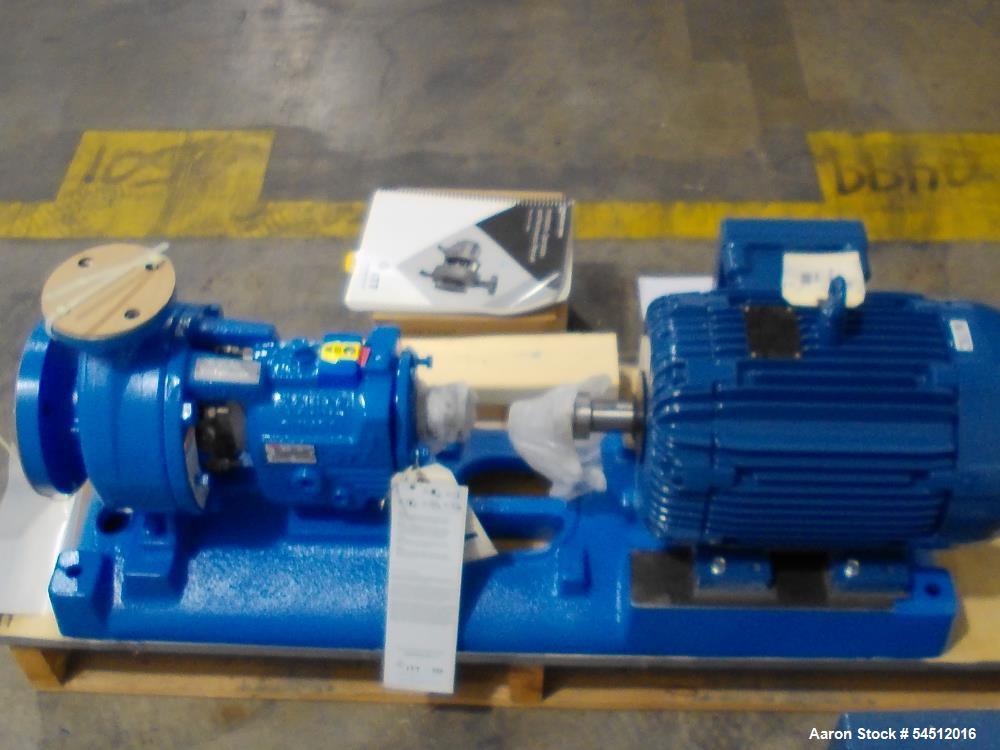

Unused Goulds Model 3196 ANSI centrifugal process pump, size 1.5 x 3-6, with 316 stainless steel construction and 316 stainless steel shaft, shaft sleeve, and seal gland. The pump is equipped with flood-oil lubrication, a Rexnord ES-e coupling, an aluminum non-sparking coupling guard, and a cast-iron baseplate. It is driven by a 7.5 HP, 3,600 RPM explosion-proof motor rated for 230/460-volt, three-phase, 60 Hz service with Class F insulation and a 1.15 service factor. The listed operating condition is 150 GPM at 40 PSI for Ethanol SDA 40B-200. The impeller diameter, mechanical seal details, serial number, year, pump curve, overall dimensions, weight, and testing status are not specified. Aaron Equipment stock number 54512016.

SPECIFICATIONS

• Equipment type: ANSI centrifugal process pump
• Manufacturer: Goulds
• Model: 3196
• Pump size: 1.5 x 3-6
• Condition: Unused
• Rated flow: 150 GPM
• Listed rated pressure: 40 PSI
• Rated service fluid: Ethanol SDA 40B-200
• Pump construction: 316 stainless steel
• Shaft material: 316 stainless steel
• Shaft sleeve material: 316 stainless steel
• Seal-gland material: 316 stainless steel
• Lubrication: Flood-oil lubrication
• Coupling manufacturer: Rexnord
• Coupling model or series: ES-e
• Coupling guard: Aluminum, non-sparking
• Baseplate material: Cast iron
• Motor horsepower: 7.5 HP
• Motor speed: 3,600 RPM
• Motor enclosure: Explosion-proof
• Voltage: 230/460 volts
• Phase: Three-phase
• Frequency: 60 Hz
• Insulation class: Class F
• Motor service factor: 1.15
• Stock number: 54512016

APPLICATIONS

• Chemical liquid transfer
• Solvent transfer
• Ethanol transfer
• Alcohol-handling systems
• Petrochemical process service
• Reactor feed
• Process circulation
• Tank-to-tank transfer
• Batch-processing systems
• Column feed or reflux service
• General industrial liquid transfer
• Food and beverage processing where construction and sanitary requirements are suitable
• Pharmaceutical process support where pump design and documentation are suitable
• Paint, coating, resin, and adhesive processing
• Utility and plant-process service

The broader Goulds 3196 pump line is marketed for chemical, petrochemical, pulp and paper, primary-metals, food and beverage, and general industrial duties. Application suitability for this specific pump must be confirmed against its hydraulic curve, materials, seal arrangement, motor classification, and process conditions.

SUITABLE PRODUCTS AND MATERIALS

• Ethanol SDA 40B-200
• Industrial alcohols
• Compatible solvents
• Process chemicals
• Hydrocarbon-based liquids
• Cleaning solutions
• Water-based process liquids
• Compatible food ingredients
• Compatible beverage-processing liquids
• Liquid additives
• Resins
• Coatings
• Adhesive components
• Low-viscosity process fluids
• Other liquids compatible with 316 stainless steel and the installed seal materials

Actual suitability depends on chemical concentration, temperature, viscosity, vapor pressure, specific gravity, solids content, corrosion potential, required flow, required head, net positive suction head available, and mechanical-seal compatibility.

PRODUCT DETAILS

• Unused ANSI centrifugal process pump
• Goulds Model 3196
• Pump size 1.5 x 3-6
• 316 stainless steel pump construction
• 316 stainless steel shaft
• 316 stainless steel shaft sleeve
• 316 stainless steel seal gland
• Rated at 150 GPM and 40 PSI for the listed ethanol service
• Flood-oil bearing lubrication
• Rexnord ES-e coupling
• Aluminum non-sparking coupling guard
• Cast-iron baseplate
• 7.5 HP motor
• 3,600 RPM motor speed
• Explosion-proof motor
• 230/460-volt electrical service
• Three-phase, 60 Hz power
• Class F motor insulation
• 1.15 motor service factor
• Available as Aaron Equipment stock number 54512016

FAQS

• WHAT TYPE OF PUMP IS THIS?
  This is an unused Goulds Model 3196 horizontal ANSI centrifugal process pump.
• WHAT IS THE PUMP SIZE?
  The listed pump size is 1.5 x 3-6. Buyers should confirm the suction and discharge connection orientation from the nameplate or dimensional drawing.
• WHAT IS THE RATED CAPACITY?
  The listing states a rated operating condition of 150 GPM at 40 PSI for Ethanol SDA 40B-200.
• DOES 40 PSI REPRESENT TOTAL DIFFERENTIAL PRESSURE?
  The listing states 40 PSI but does not clarify whether this is differential pressure, discharge pressure, or another rating. The pump curve or original data sheet should be reviewed.
• WHAT IS THE PUMP CONSTRUCTED FROM?
  The listing states that the pump has 316 stainless steel construction. The shaft, shaft sleeve, and seal gland are also identified as 316 stainless steel.
• IS THE PUMP USED OR UNUSED?
  The equipment is listed as unused. Buyers should confirm whether it has ever been installed, energized, wet-tested, or exposed to process fluid.
• WHAT SIZE MOTOR IS INCLUDED?
  The pump is driven by a 7.5 HP, 3,600 RPM motor.
• WHAT ELECTRICAL SERVICE DOES THE MOTOR REQUIRE?
  The motor is rated for 230/460 volts, three-phase, 60 Hz service.
• IS THE MOTOR EXPLOSION-PROOF?
  Yes. The listing describes the motor as explosion-proof. The exact hazardous-area class, division or zone, group, and temperature code are not specified.
• WHAT TYPE OF COUPLING IS INCLUDED?
  The pump includes a Rexnord ES-e coupling and an aluminum non-sparking coupling guard.
• WHAT TYPE OF LUBRICATION DOES THE PUMP USE?
  The listing identifies flood-oil lubrication.
• IS A MECHANICAL SEAL INCLUDED?
  The listing identifies a 316 stainless steel seal gland, but it does not provide enough information to confirm the manufacturer, model, style, or materials of the installed mechanical seal.
• CAN AARON EQUIPMENT HELP VERIFY THE PUMP FOR MY APPLICATION?
  Yes. Provide the liquid, concentration, temperature, viscosity, specific gravity, required flow, total dynamic head, suction conditions, NPSH available, system pressure, hazardous-area classification, and electrical service so Aaron Equipment can help evaluate the application.
• CAN THE PUMP BE INSPECTED OR TESTED?
  Contact Aaron Equipment to discuss inspection availability, nameplate photographs, shaft rotation, lubrication inspection, motor testing, alignment checks, documentation, and other available testing.
• DOES AARON EQUIPMENT HELP WITH SHIPPING?
  Yes. Aaron Equipment can assist with loading and freight coordination. Buyers should confirm the complete skid dimensions, weight, lifting points, center of gravity, preservation requirements, and whether the pump should be shipped with oil removed.
