Used Yamato Dataweigh Model ADW-323-RB 14-Head Multihead Combination Weigher With Dimpled Stainless Steel Surfaces And Eriez Feeder

MANUFACTURER INFORMATION

Yamato manufactures weighing, portioning and packaging equipment used throughout food, confectionery, snack, produce and other processing industries. Multihead combination weighers use multiple individual weigh hoppers and electronic controls to select combinations of product weights that closely match a programmed target weight before discharging the portion to downstream packaging equipment.

PRODUCT DESCRIPTION

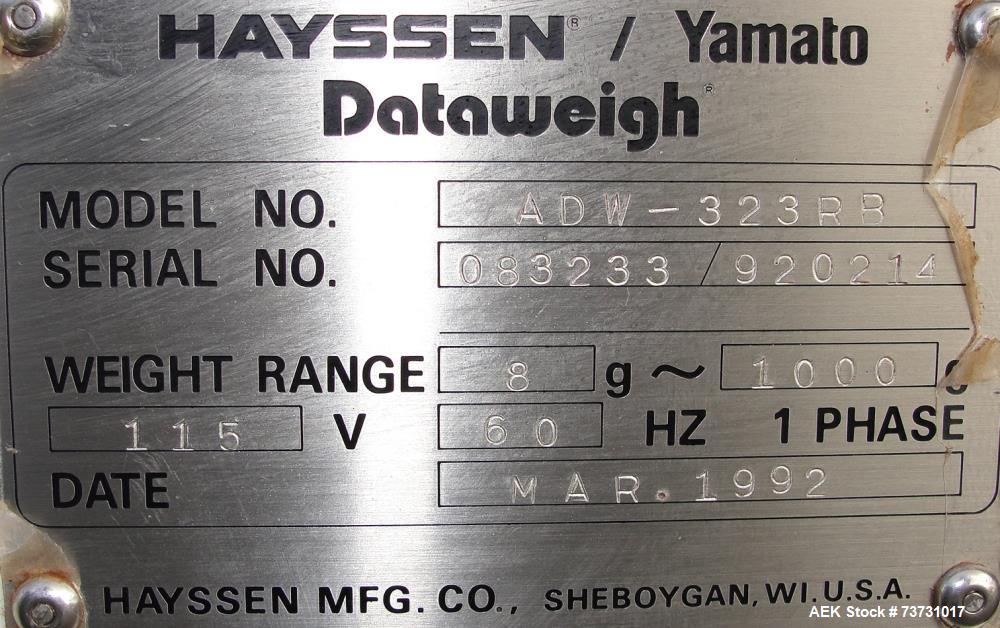

Used Yamato Dataweigh Model ADW-323-RB 14-head multihead combination weigher with dimpled stainless steel product-contact surfaces, Serial #083233/920214. The unit is capable of dispensing approximately 8 to 1,000 grams per weighment and is equipped with a Yamato RCU-412 touchscreen control panel and printer. Product supply is handled by an included Eriez Model HS42 vibratory feeder controlled by a sonic level detector for automatic feeding to the weighing system. The weigher requires 115 VAC, 60 Hz, single-phase electrical service. Unit was last used with cocoa and is reported in good condition with some spare parts included. Possible applications include accurate weighing and portioning of compatible cocoa products, granules, snack foods, confectionery products, dry food ingredients and other suitable free-flowing or semi-free-flowing materials prior to bagging, pouching or other packaging operations.

SPECIFICATIONS

• Manufacturer: Yamato Dataweigh

• Model: ADW-323-RB

• Equipment Type: Multihead combination weigher

• Number of Heads: 14

• Serial Number: 083233/920214

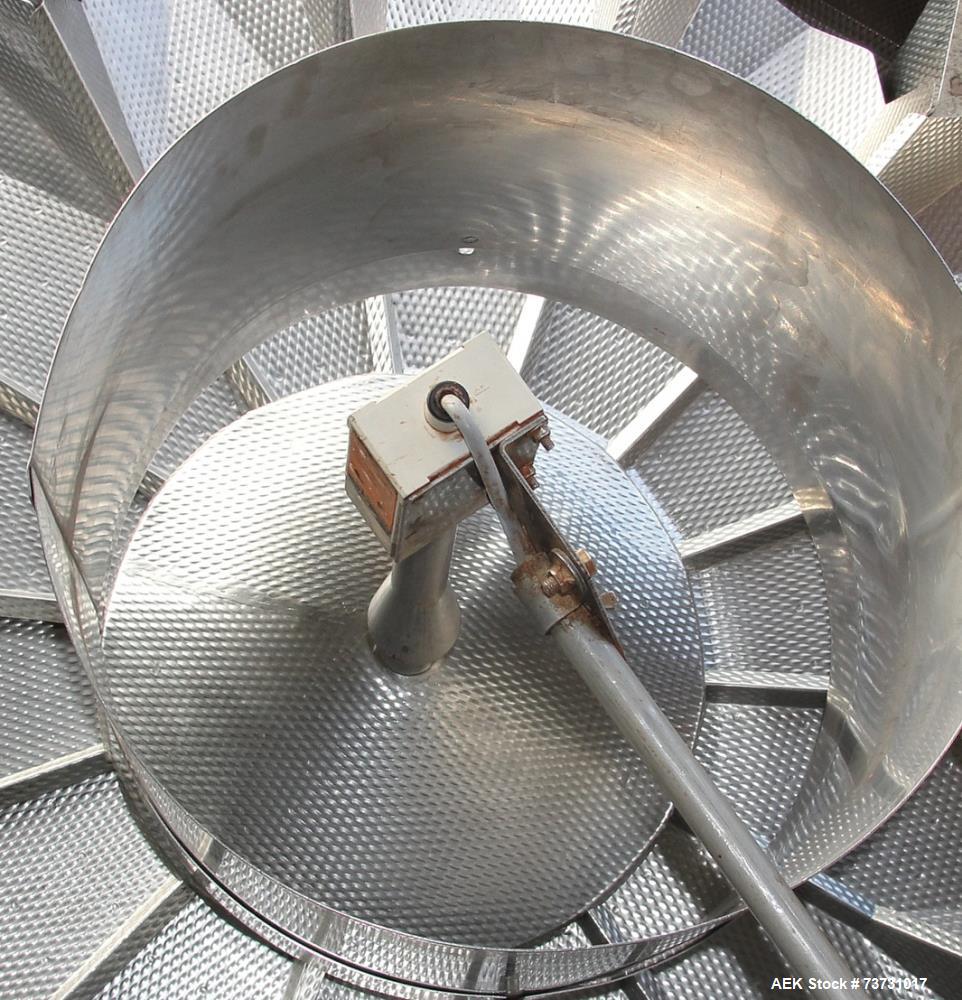

• Product-Contact Construction: Dimpled stainless steel

• Weighment Range: Approximately 8 to 1,000 grams

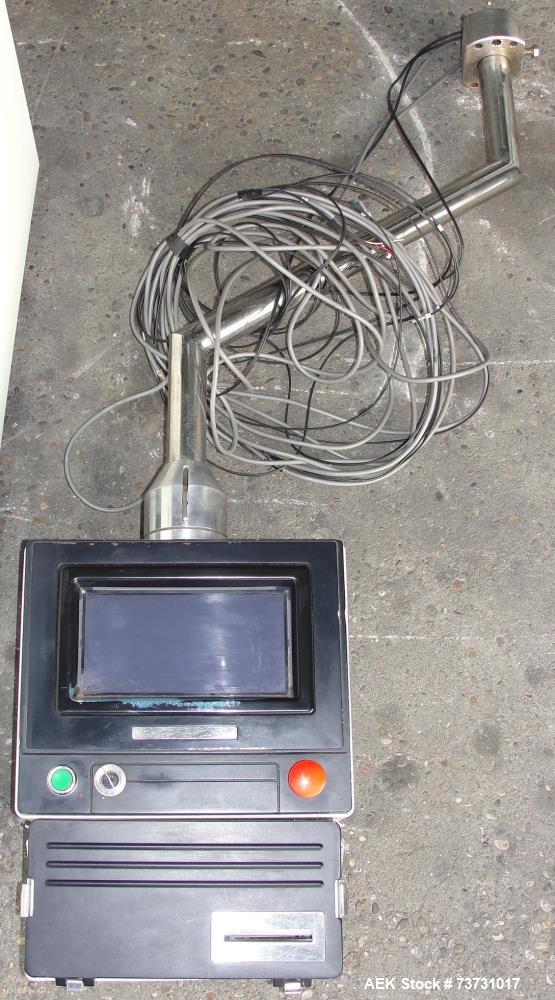

• Controls: Yamato RCU-412 touchscreen control panel

• Printer: Included

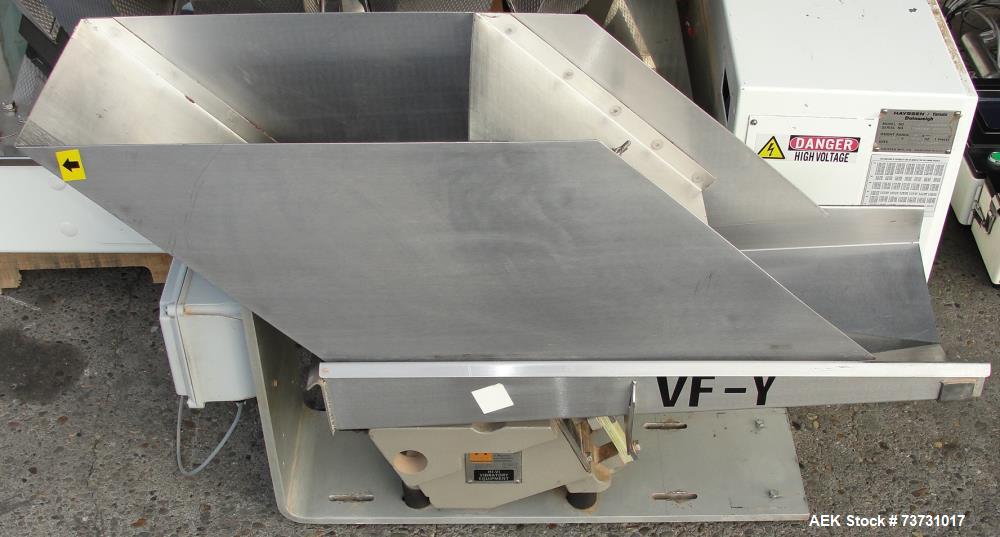

• Product Feeder Manufacturer: Eriez

• Product Feeder Model: HS42

• Feeder Type: Vibratory

• Product Level Control: Sonic level detector

• Electrical Requirements: 115 VAC, 60 Hz, single-phase

• Previous Product: Cocoa

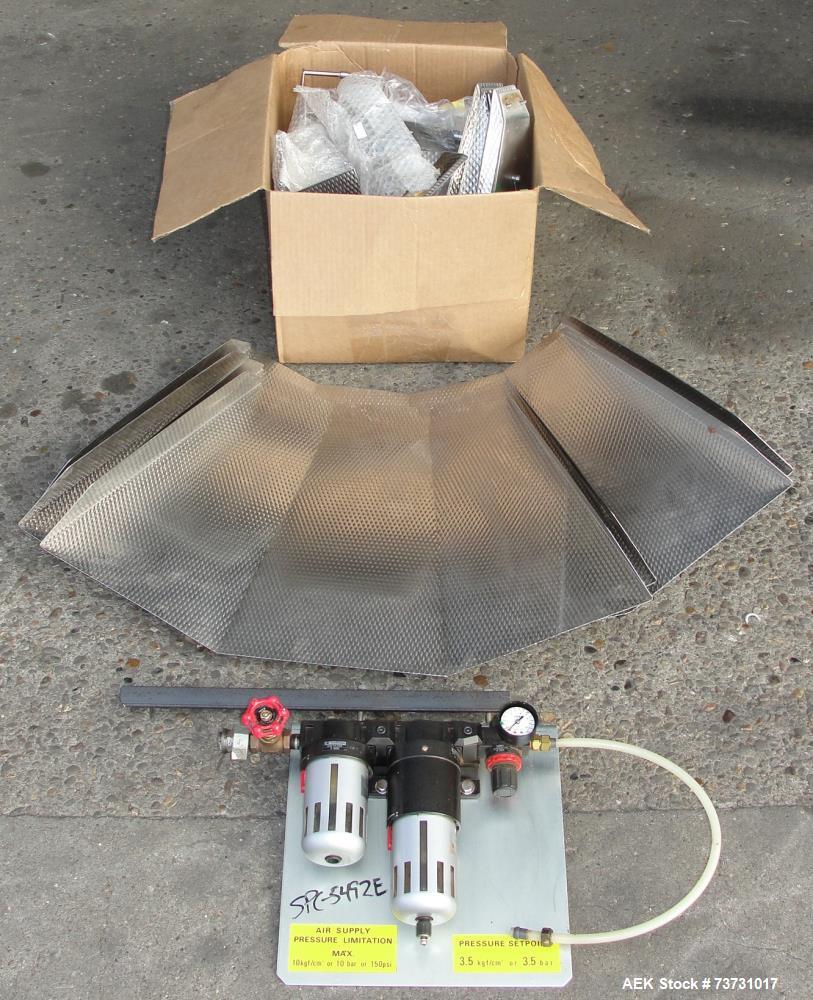

• Spare Parts: Some included

• Condition: Good

APPLICATIONS

• Multihead combination weighing

• Portion control

• Accurate product dosing

• Packaging-line product weighing

• Snack food portioning

• Confectionery weighing

• Cocoa product portioning

• Dry ingredient weighing

• Granule weighing

• Food packaging

• Premade pouch filling support

• Vertical form-fill-seal line feeding

• Bagging-line product dosing

• Automatic batch weighing

• Retail package portioning

SUITABLE PRODUCTS / MATERIALS

Depending on particle size, flowability, product behavior and hopper configuration, this weigher may be suitable for:

• Cocoa products

• Chocolate pieces

• Confectionery

• Candy

• Snack foods

• Nuts

• Seeds

• Cereals

• Granola

• Dried fruit

• Dry food ingredients

• Granulated products

• Free-flowing food products

• Semi-free-flowing food products

• Nutraceutical products

• Other compatible products requiring controlled portion weights

FAQ

• WHAT TYPE OF WEIGHER IS THE YAMATO ADW-323-RB?
  It is a 14-head multihead combination weigher designed to create accurate target-weight portions from compatible bulk products.

• WHAT IS THE WEIGHMENT RANGE?
  The unit is capable of dispensing approximately 8 to 1,000 grams per weighment.

• HOW MANY WEIGHING HEADS DOES THE MACHINE HAVE?
  The system has 14 weighing heads.

• WHAT TYPE OF PRODUCT-CONTACT SURFACE DOES IT HAVE?
  The product-contact surfaces are dimpled stainless steel.

• WHY ARE DIMPLED SURFACES USED ON MULTIHEAD WEIGHERS?
  Dimpled surfaces can help reduce product contact area and improve release of certain compatible products compared with smooth surfaces.

• WHAT CONTROL SYSTEM IS INCLUDED?
  The unit includes a Yamato RCU-412 touchscreen control panel.

• DOES THE SYSTEM INCLUDE A PRODUCT FEEDER?
  Yes. An Eriez Model HS42 vibratory feeder is included.

• HOW IS PRODUCT LEVEL CONTROLLED?
  The feeder is controlled by a sonic level detector to help maintain product supply to the weigher.

• WHAT PRODUCT WAS THE MACHINE LAST USED WITH?
  The unit was last used with cocoa.

• WHAT ELECTRICAL SERVICE DOES IT REQUIRE?
  The weigher requires 115 VAC, 60 Hz, single-phase electrical service.

• ARE SPARE PARTS INCLUDED?
  Yes. Some spare parts are included with the machine.

• CAN THIS WEIGHER BE INTEGRATED WITH A BAGGER OR POUCH MACHINE?
  Potentially. Multihead weighers are commonly installed above compatible vertical form-fill-seal machines, premade pouch fillers and other packaging systems. Integration depends on discharge height, controls and line configuration.

• CAN AARON EQUIPMENT HELP DETERMINE IF THIS WEIGHER WILL HANDLE MY PRODUCT?
  Yes. Aaron Equipment can help review your product characteristics, target weight, required accuracy, package size and desired production rate to determine whether this Yamato weigher may be suitable.

• CAN AARON EQUIPMENT ARRANGE SHIPPING?
  Yes. Aaron Equipment can assist with freight, loading and shipping coordination for domestic or international destinations. Contact Aaron Equipment with your delivery location for shipping assistance.
