Manufacturer Information

• Manufacturer: Ishida Co., Ltd.

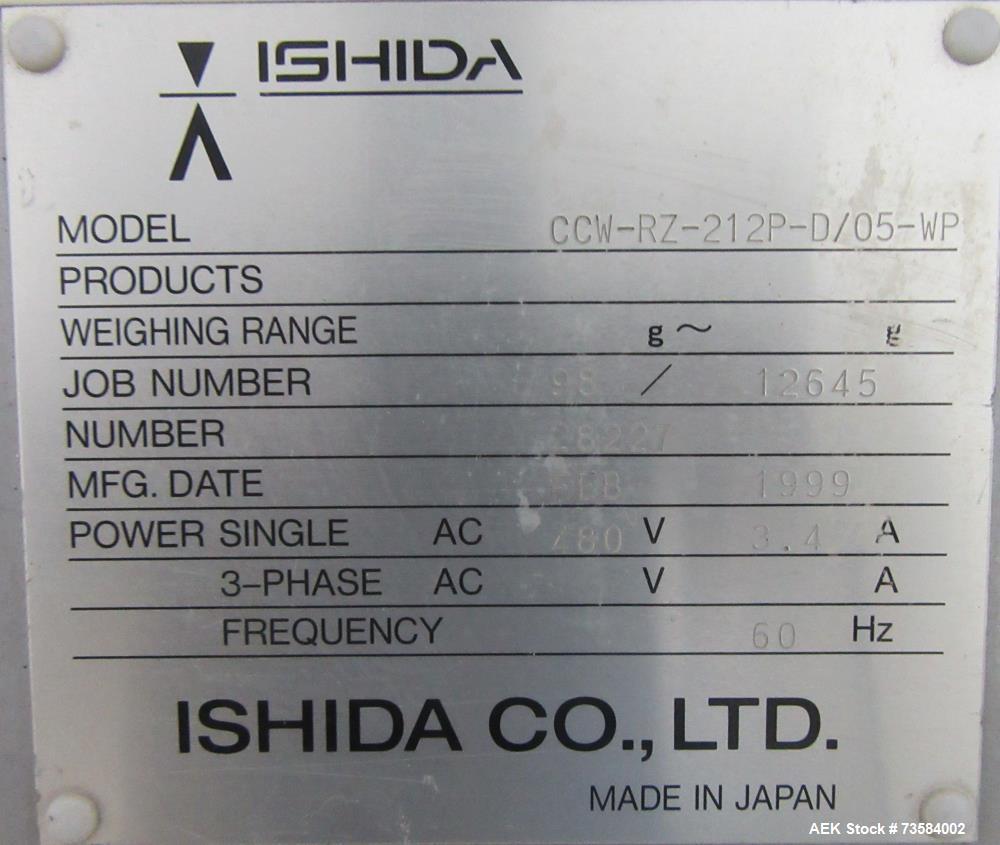

• Model: CCW-RZ-212P-D705-WP

• Machine Type: Multihead Combination Weigher / Weigh Scale System

• Configuration: 12 Head Double Drop

• Construction: Stainless Steel

• Feed System: Radial feed trough

• Additional Equipment: Frazier & Son bucket elevator with vibratory feeder

Ishida is a global leader in multihead weighing technology and packaging automation, widely used in snack food, produce, frozen foods, confectionery, nutraceutical, and industrial packaging operations.

Description

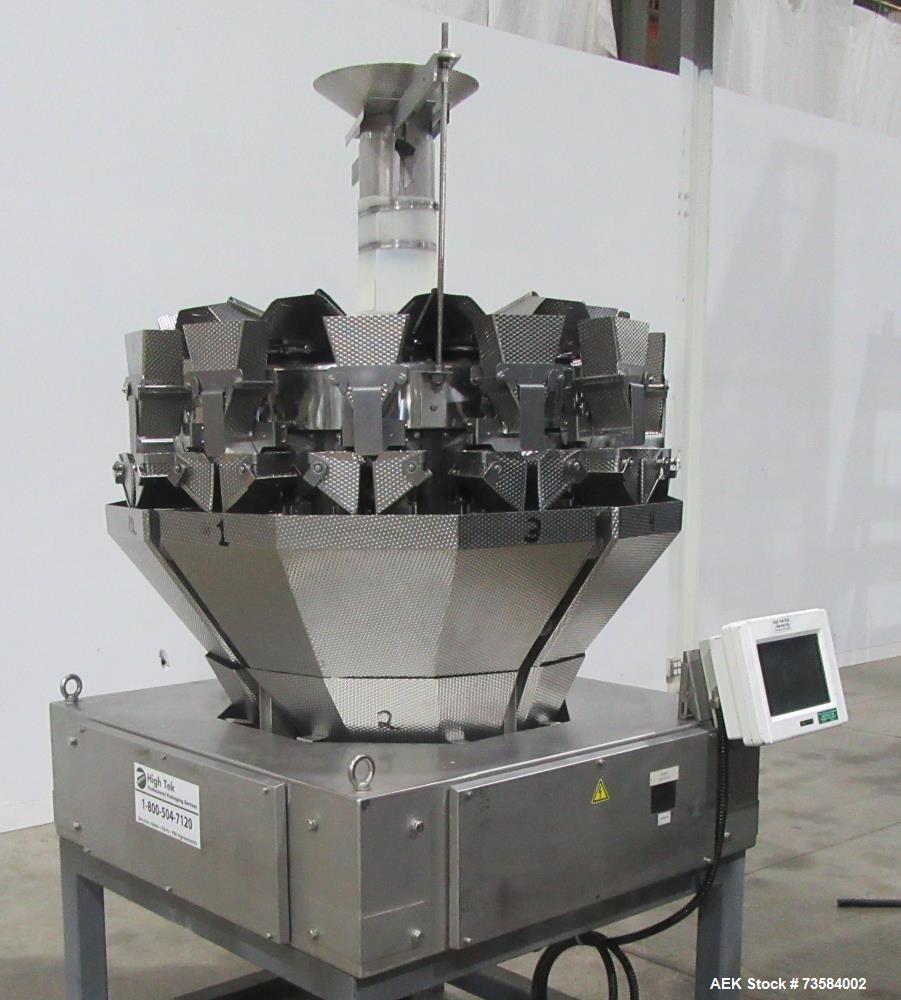

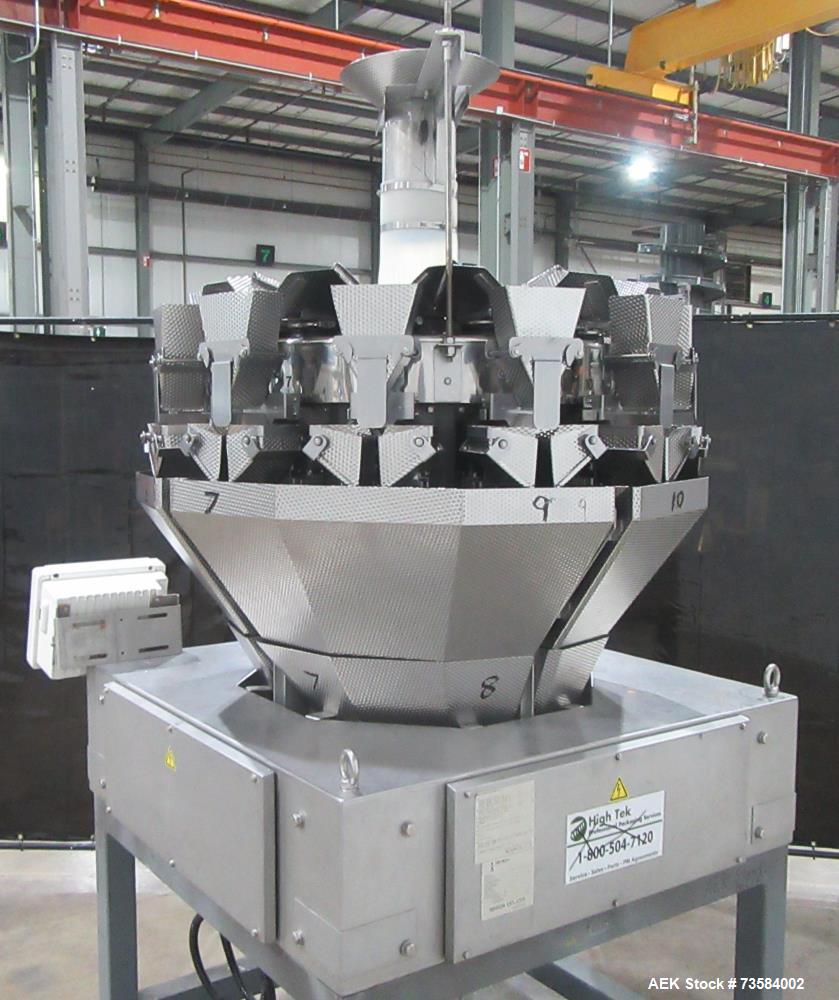

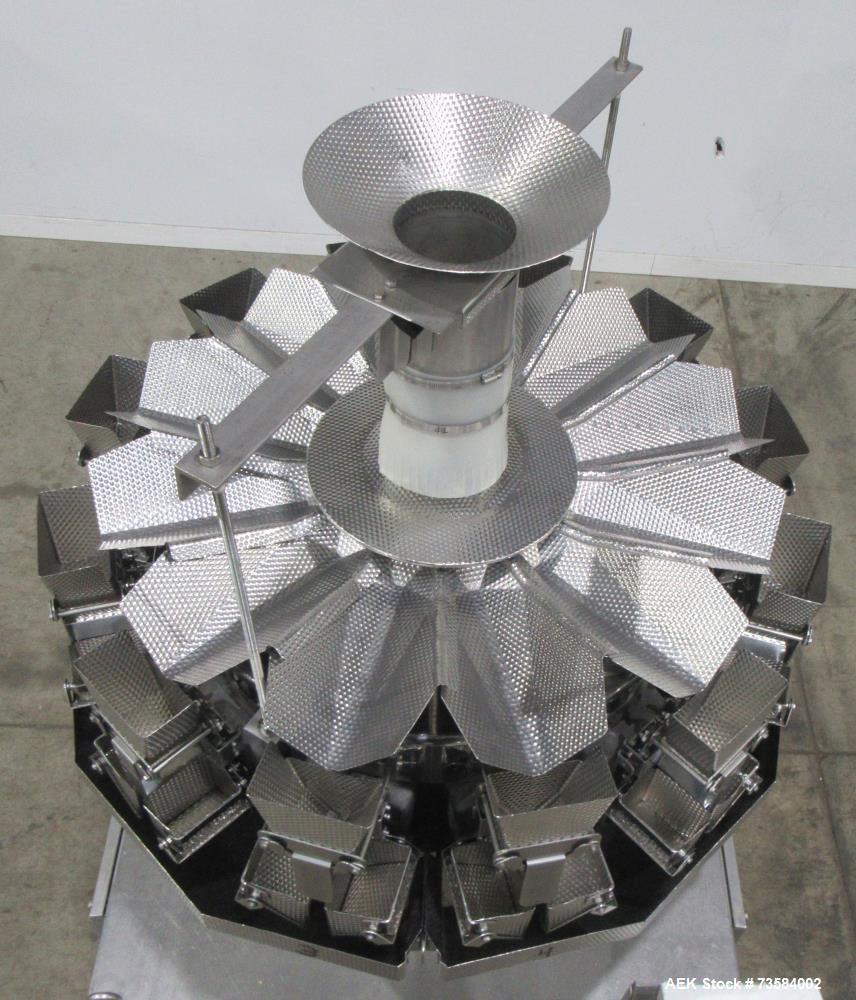

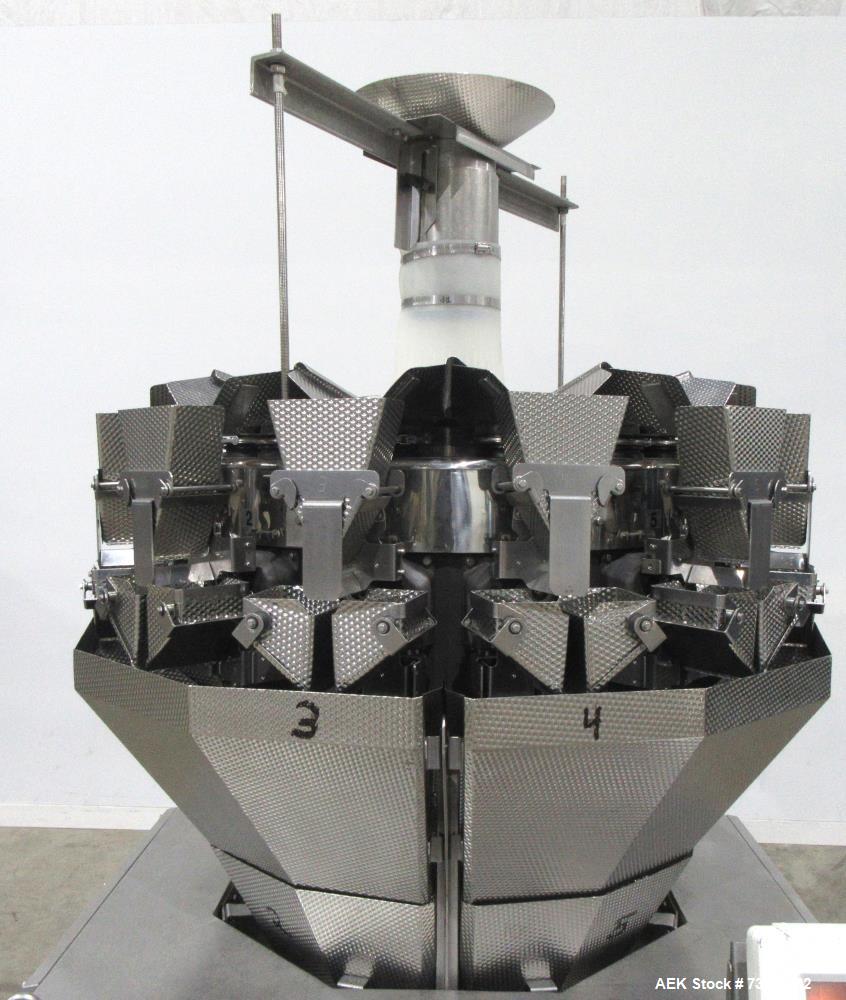

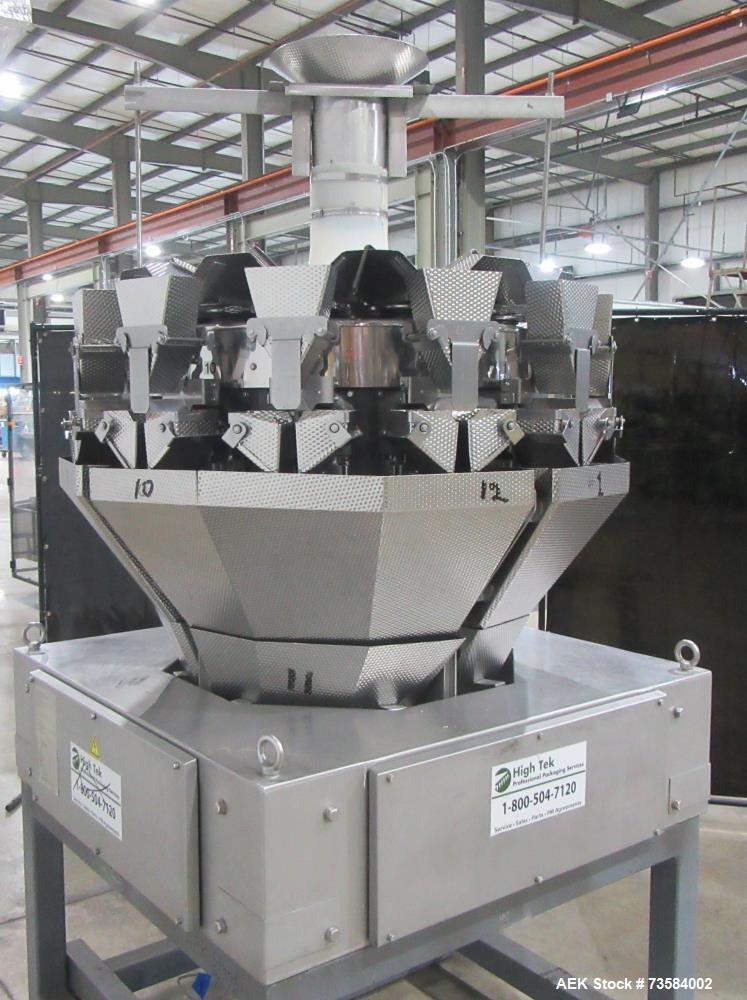

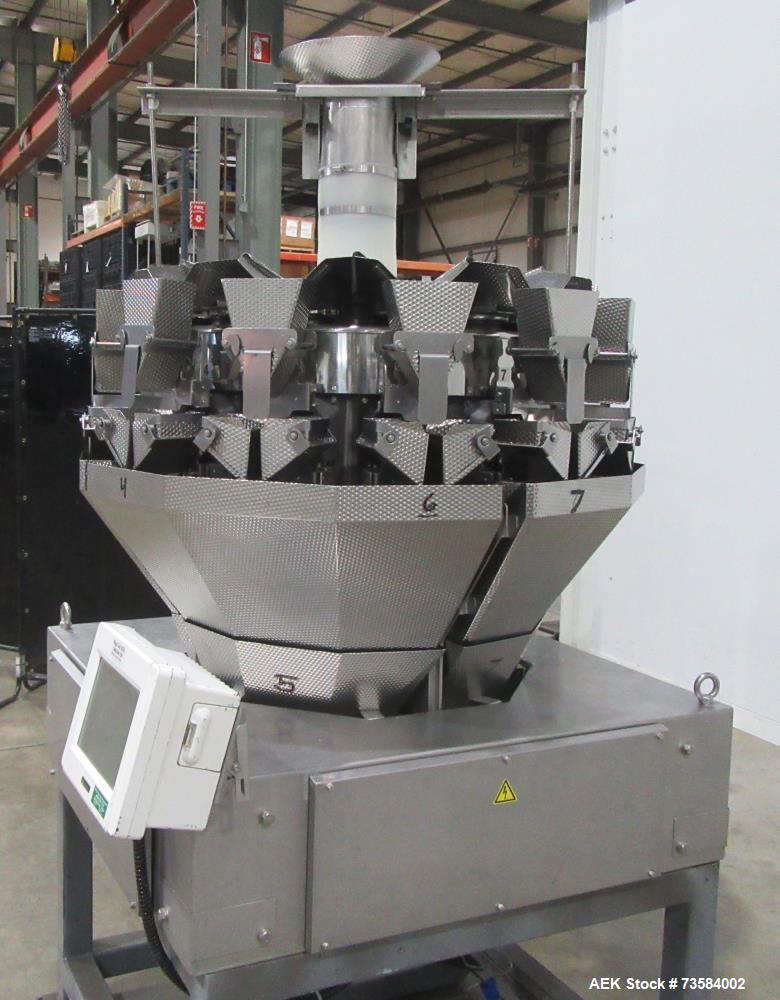

This used Ishida Model CCW-RZ-212P-D705-WP 12 Head Double Drop Combination Scale is designed for high-speed, accurate weighing of food and small product items prior to packaging. The scale is constructed from stainless steel and features dimpled/embossed buckets, making it suitable for products that require improved flow and reduced sticking.

The system is capable of 20 to 80 weighs per minute per side, depending on product characteristics and packaging configuration. The scale handles weights ranging from 4 grams to 500 grams with an accuracy of approximately ±1 gram.

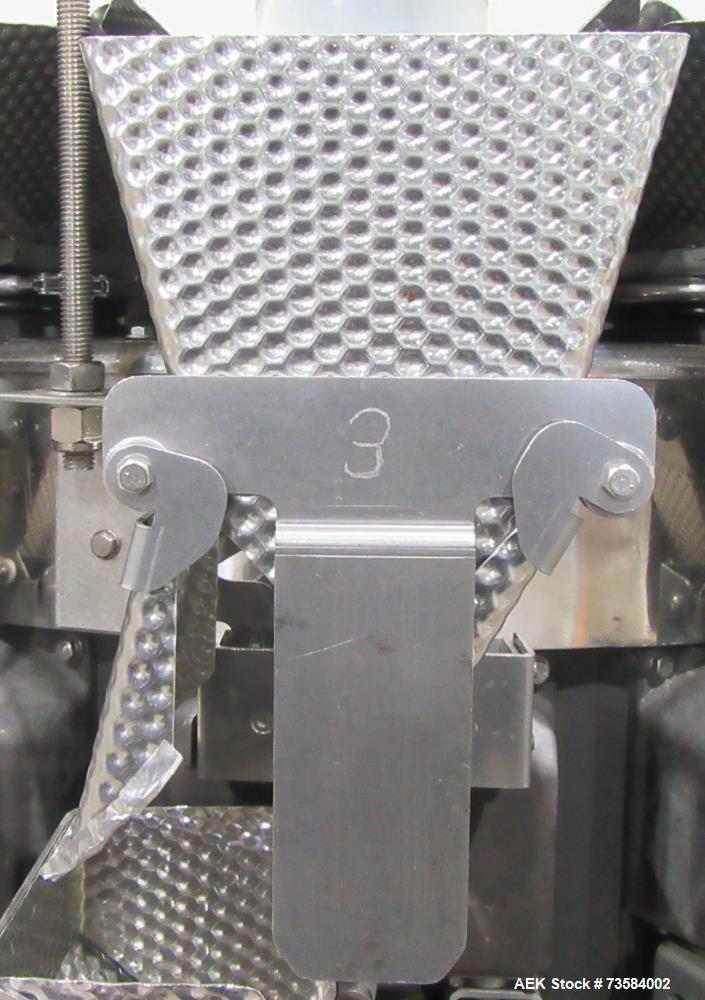

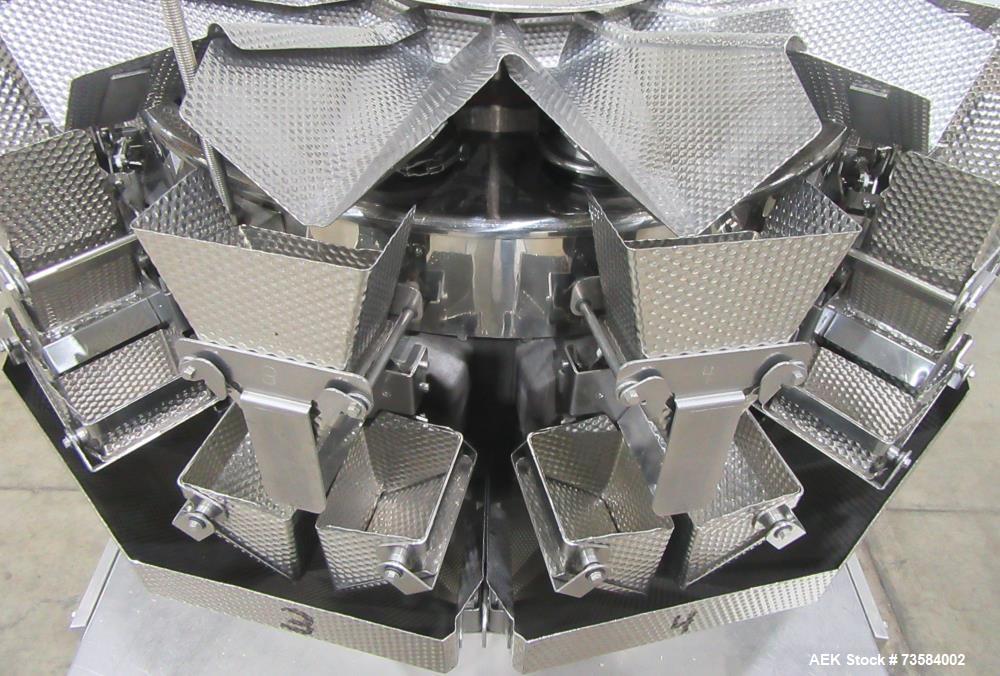

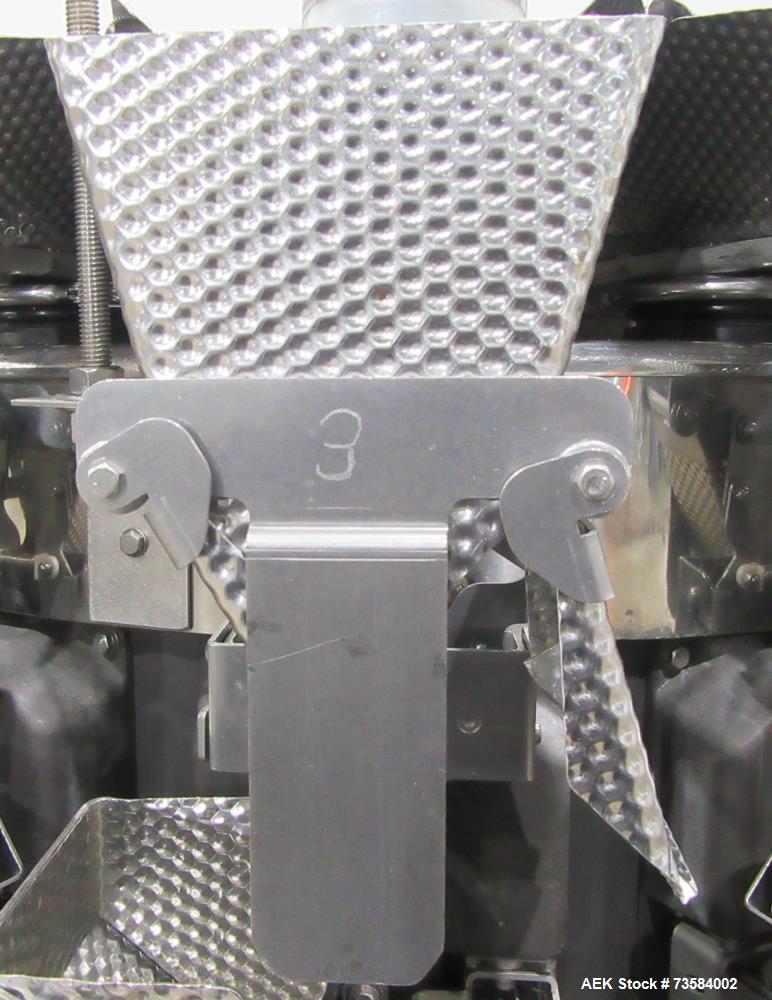

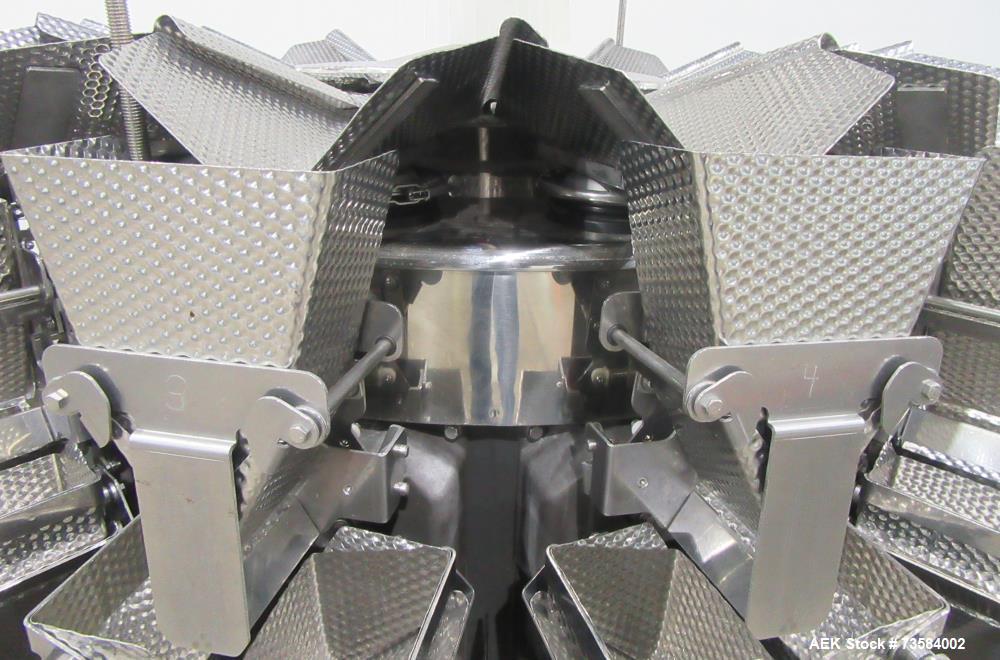

Each head includes dimpled stainless steel feed buckets and weigh buckets, designed to improve product movement and accuracy. The machine uses double-beam strain gauge load cells to ensure precise measurement during operation.

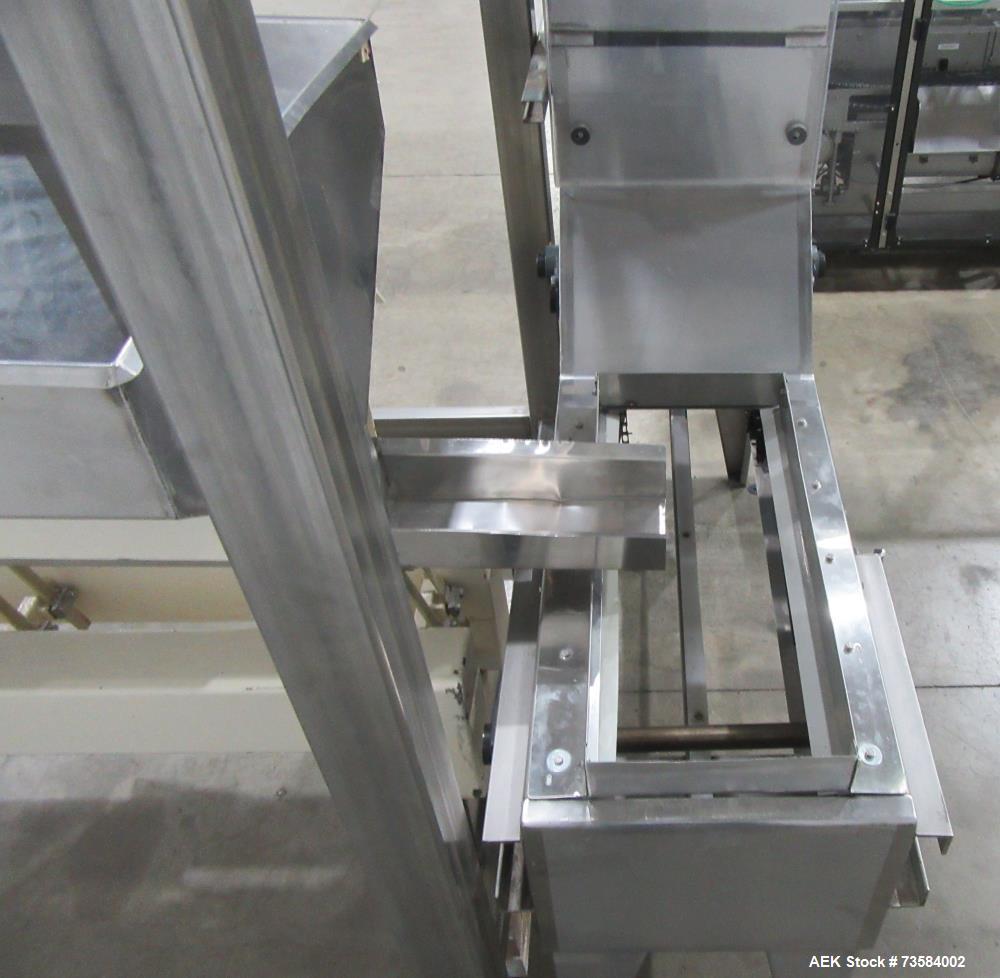

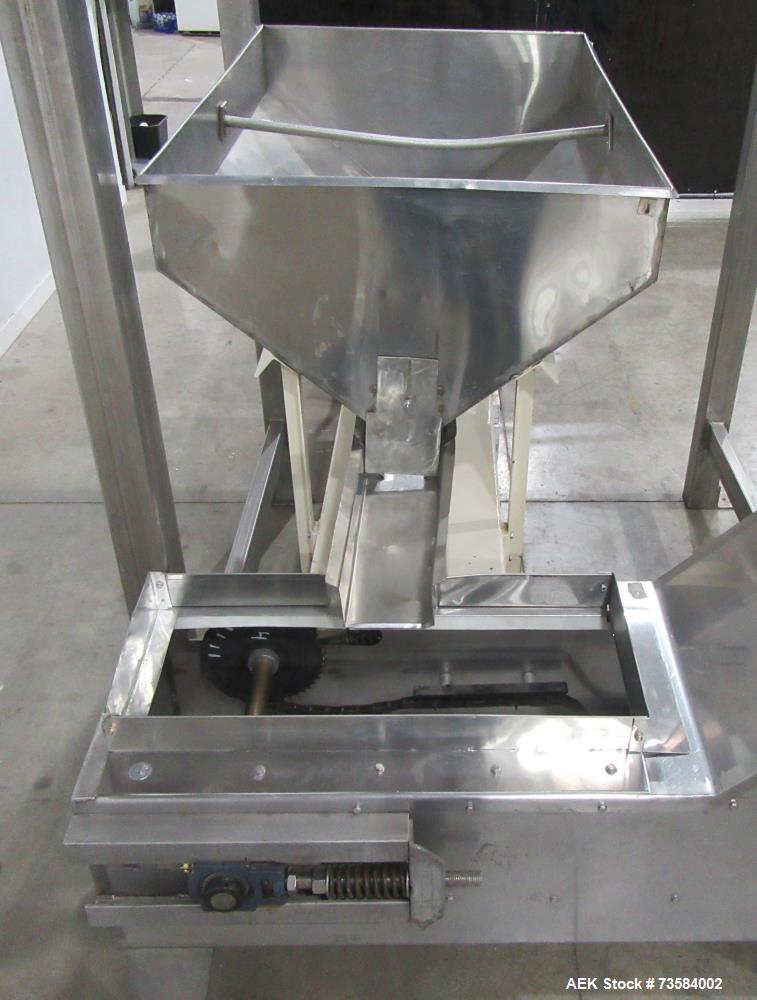

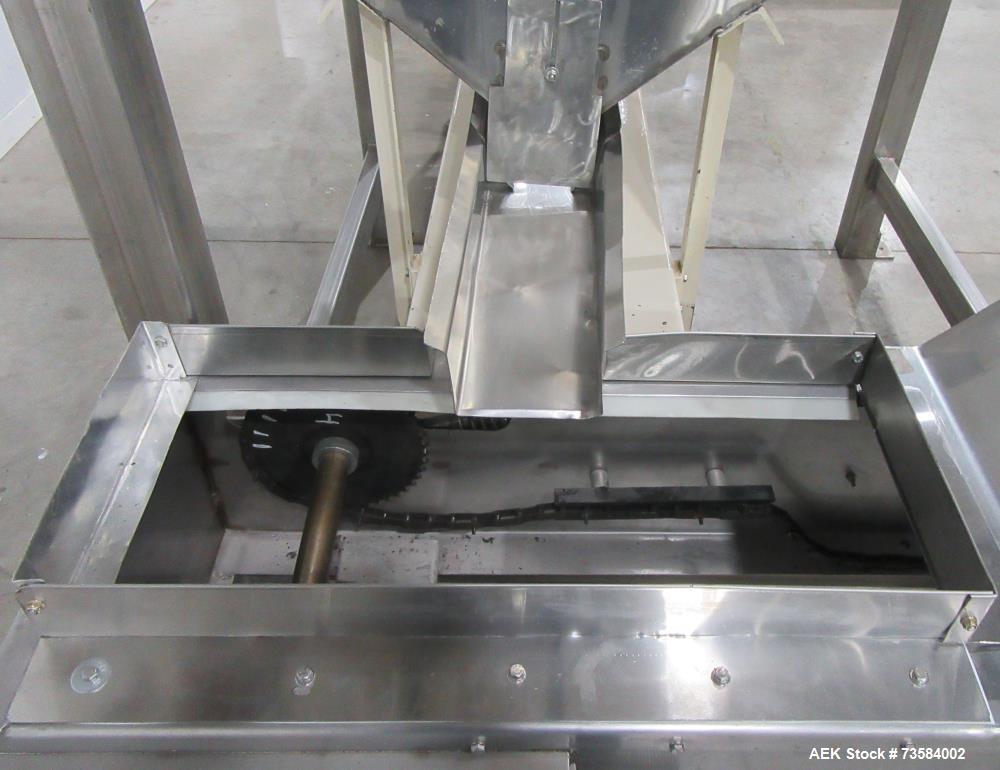

The system is supplied with a Frazier & Son Model C bucket elevator (4" x 8") with vibratory feeder, providing efficient product feeding to the scale. Platform available at additional cost.

This type of multihead weigher is commonly used in food processing plants, snack food packaging lines, produce packaging, frozen food processing, and contract packaging operations.

Specifications

General

• Manufacturer: Ishida

• Model: CCW-RZ-212P-D705-WP

• Type: Multihead Combination Weigher

• Number of Heads: 12

• Configuration: Double Drop

Production Capacity

• Speed: 20 – 80 weighs per minute per side (product dependent)

Weight Range

• Minimum Weight: 4 grams

• Maximum Weight: 500 grams

• Accuracy: ±1 gram

Volume Capacity

• Maximum Volume: 800 cc per single dump

Weighing System

• Double-beam strain gauge load cells

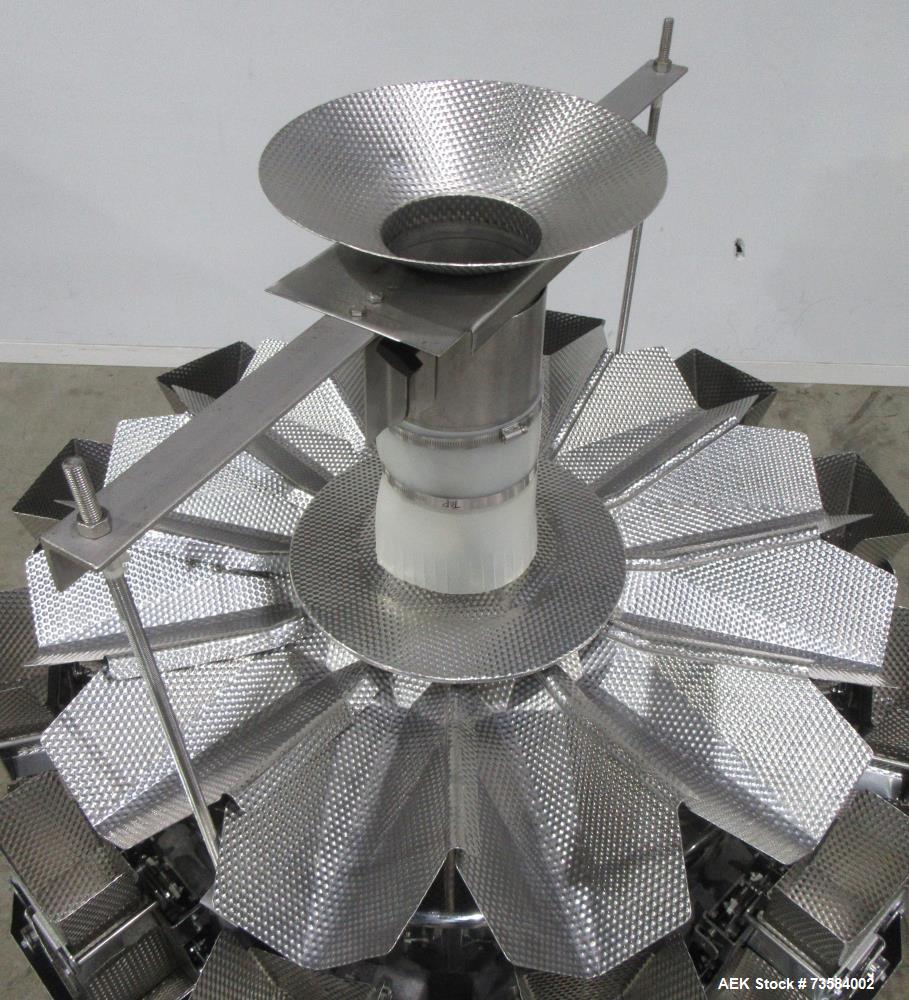

• Radial feed trough

Buckets

• Feed Buckets:

  • Qty: 12

  • Size: Approx. 5" L x 4" W x 5" D

  • Construction: Stainless steel, dimpled

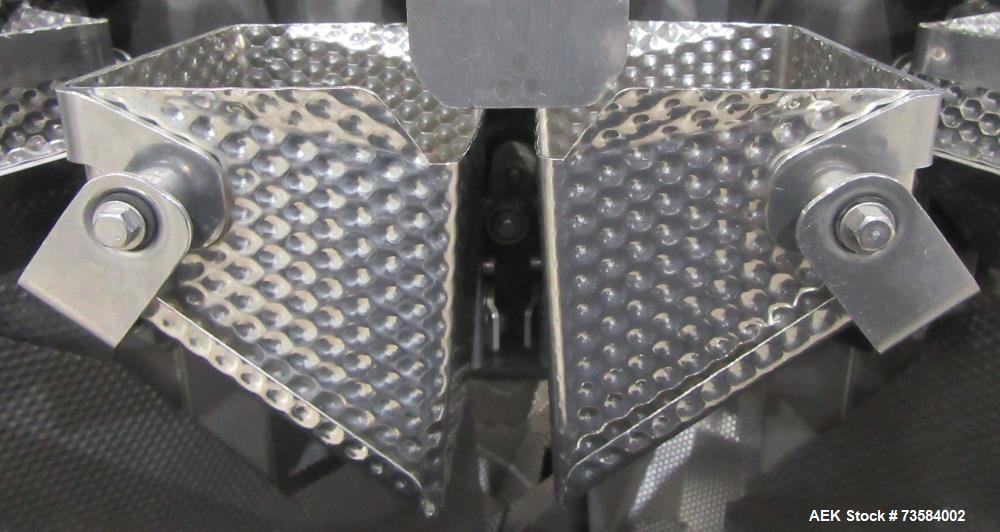

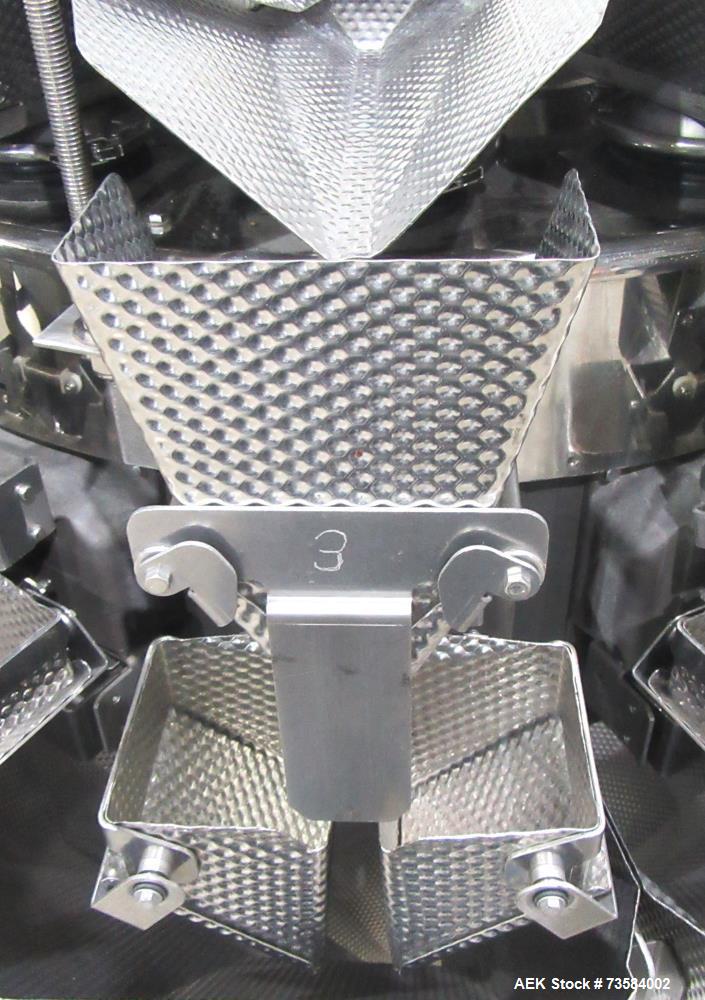

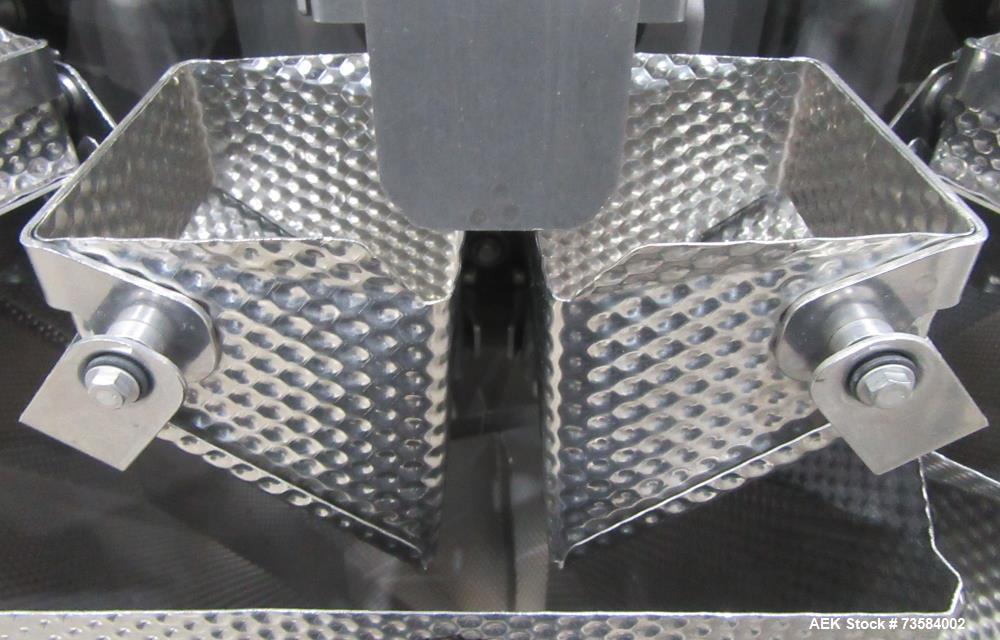

• Weigh Buckets:

  • Size: Approx. 6" L x 3-1/2" W x 4" D

  • Configuration: 2 per feed bucket

Discharge System

• 3 sets per product stainless steel dimpled discharge chutes

Product Feed Equipment

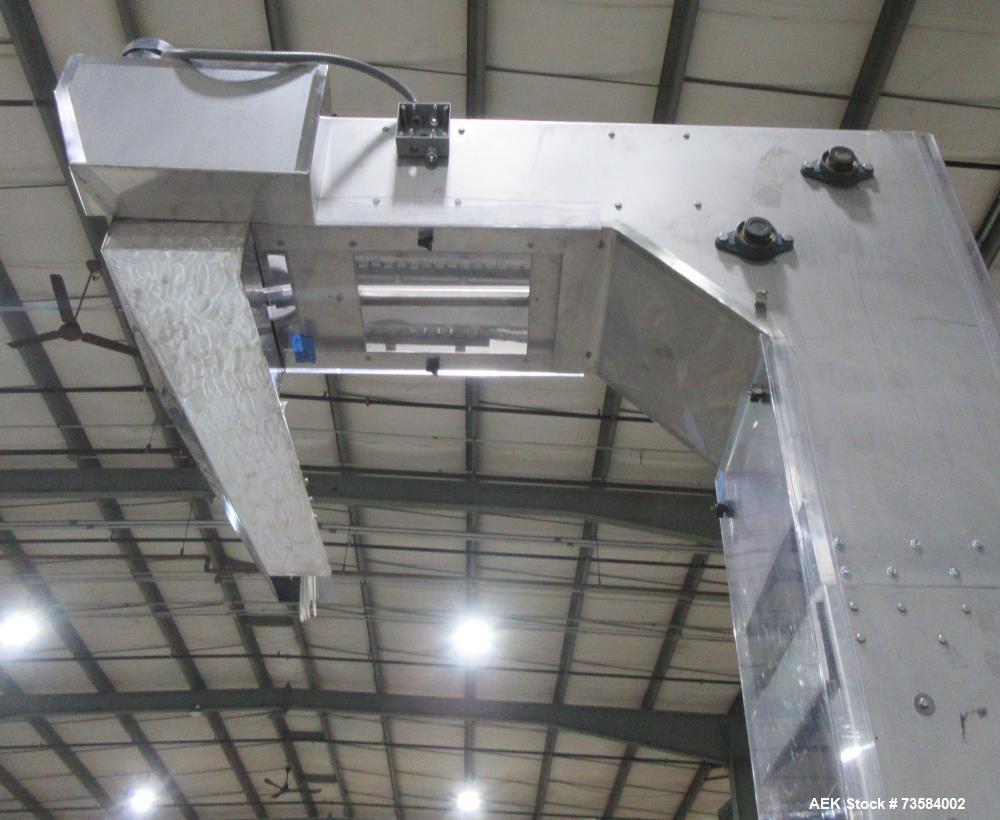

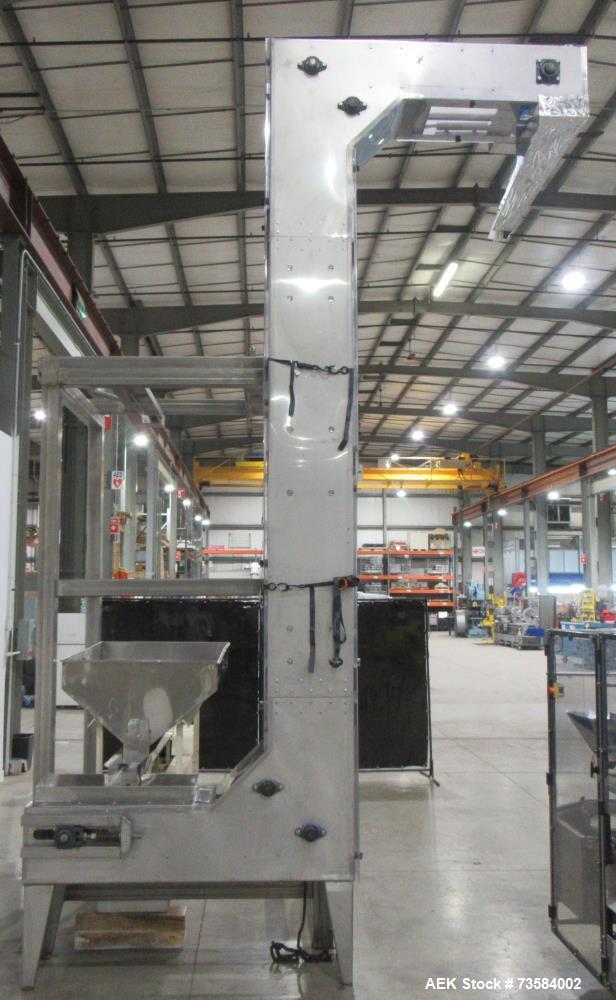

• Bucket Elevator: Frazier & Son Model C

• Bucket Size: 4" x 8"

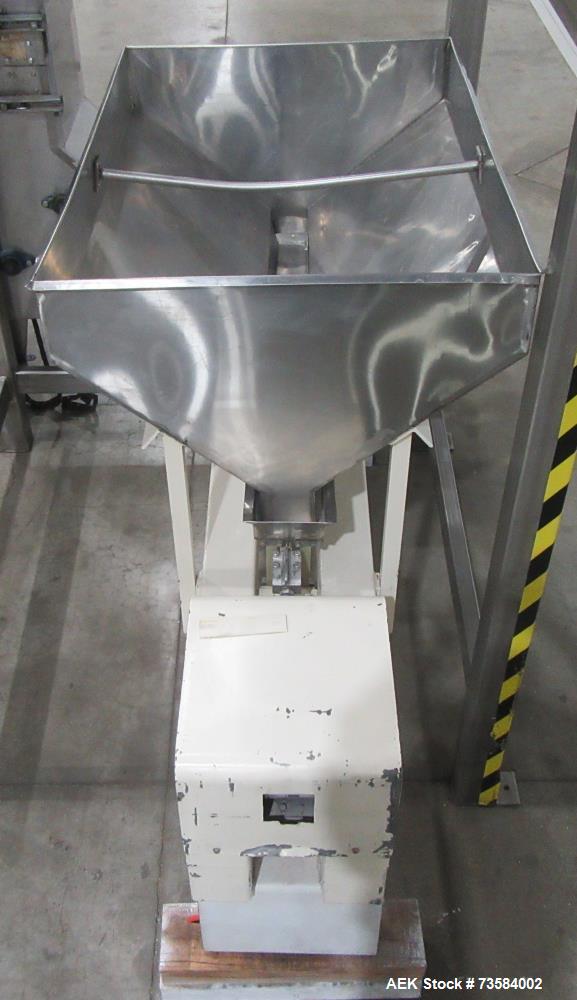

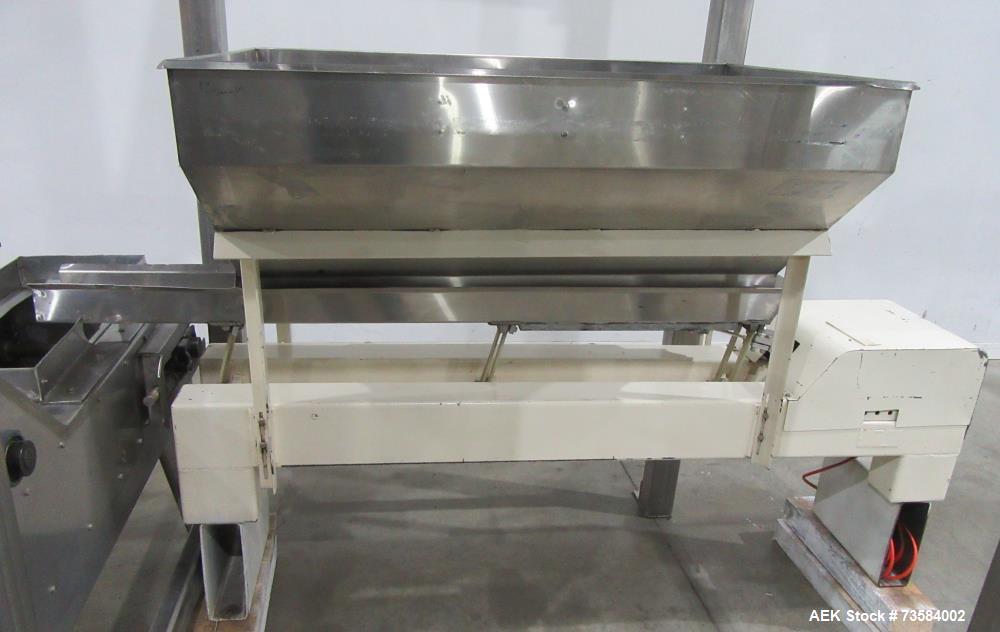

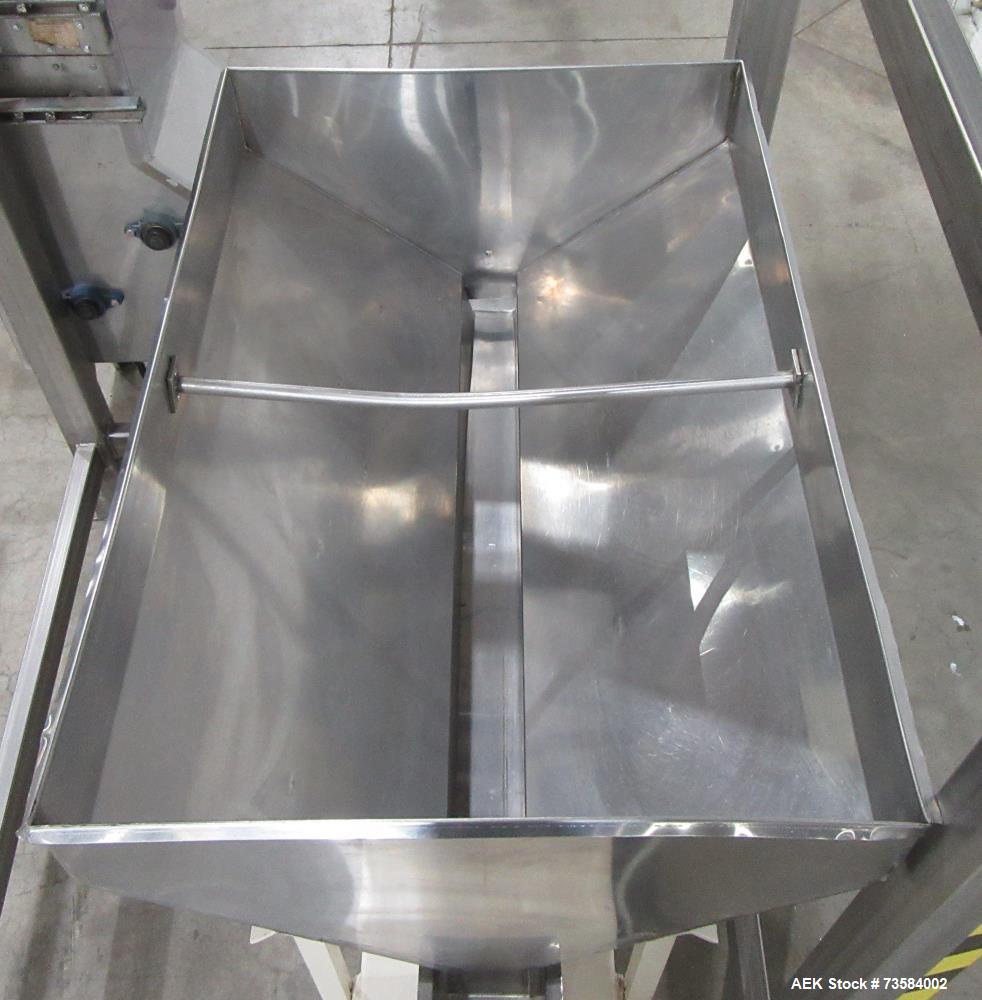

• Vibratory feeder

Construction

• Stainless steel food-grade construction

Applications

• Snack food packaging

• Produce packaging lines

• Frozen food packaging

• Nut and dried fruit packaging

• Candy and confectionery packaging

• Coffee and tea packaging

• Nutraceutical packaging

• Pet food packaging

• Bakery ingredient weighing

• Contract packaging operations

What Products Would This Be Used For

• Potato chips

• Nuts and trail mix

• Frozen vegetables

• Candy and chocolates

• Coffee beans

• Snack foods

• Salad greens

• Dried fruit

• Pet treats

• Granola and cereals
