Used Langen B1-OL Horizontal Glue Cartoner – 120 CPM, 12" Centers, Glue System

🏭 Manufacturer Information

• Brand / Manufacturer: Langen Group

• Model: B1-OL

• Country of Origin: Canada / Netherlands (global supplier)

• Specialization: High-speed cartoning systems, tray packing, robotic packaging, and end-of-line automation for food, pharma, and consumer products

📄 Description

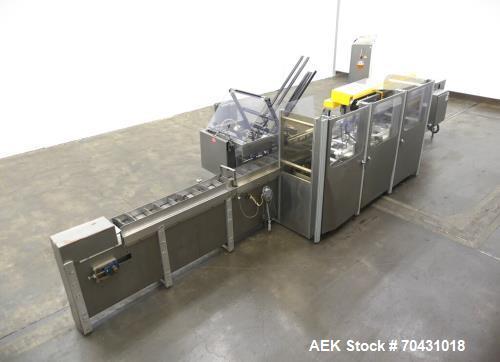

This Used Langen Model B1-OL Automatic Horizontal Glue Cartoner is a high-efficiency, continuous motion cartoning system capable of producing up to 120 cartons per minute, depending on carton size and application. It features 12” centers, an adjustable bucket infeed, and is built to handle extended width cartons (up to 6”) using its top squaring chain.

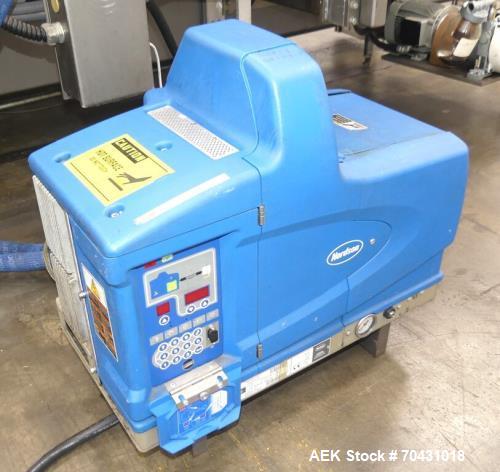

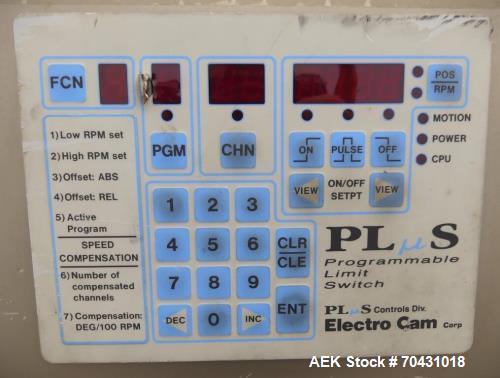

With a carton size range of 3/4" to 10" in length, 3/8" to 6" in width, and 3-3/4" to 8-1/2" in depth, the B1-OL is ideal for a wide range of packaging applications. The system is equipped with a Nordson ProBlue 7 hot melt glue system, PLS electrocam, Allen Bradley SLC 150 PLC, and A/B PowerFlex 525 drive. Includes an approx. 72” long product load area for smooth and flexible loading.

📊 Specifications

• Model: Langen B1-OL

• Type: Automatic Horizontal Glue Cartoner

• Motion Type: Continuous Motion

• Speed: Up to 120 cartons per minute (application-dependent)

• Centers: 12"

• Carton Size Range:

  • Length: 3/4" – 10"

  • Width: 3/8" – 6"

  • Depth: 3-3/4" – 8-1/2"

• Top Squaring Chain: Yes, for extended width cartons

• Infeed System: Adjustable bucket infeed

• Product Load Area: Approx. 72" long

• Glue System: Nordson ProBlue 7 hot melt with PLS electrocam

• Controls:

  • Allen Bradley SLC 150 PLC

  • A/B PowerFlex 525 drive

• Condition: Used, fully operational

🛠️ Applications

• Food packaging (bars, pouches, tray packs)

• Pharmaceutical carton packaging

• Nutraceutical and personal care cartons

• Household products

• Retail-ready cartons

• Extended width and deep carton formats

• Product bundling or multipacks

• High-speed end-of-line packaging

📦 Products This Would Be Used For

• Granola bars or snack pouches

• Blister packs or bottle kits

• Cosmetic tubes and cream cartons

• Supplements and vitamin packs

• Household cleaning product cartons

• Multi-pack single-serve items

• Personal care combo boxes

• Wide and deep food cartons

• Sachets or flexible pack cartons

• Pharmaceutical sample kits
