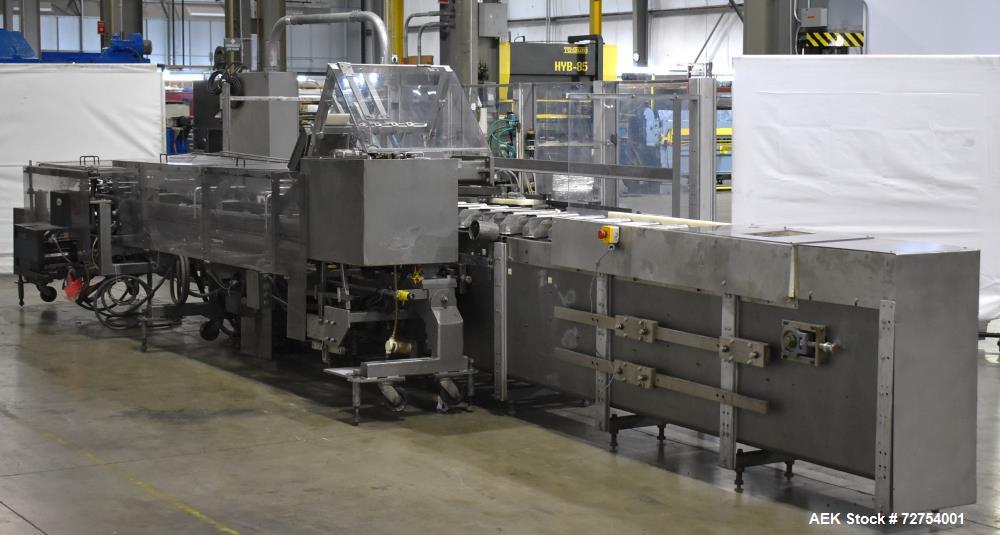

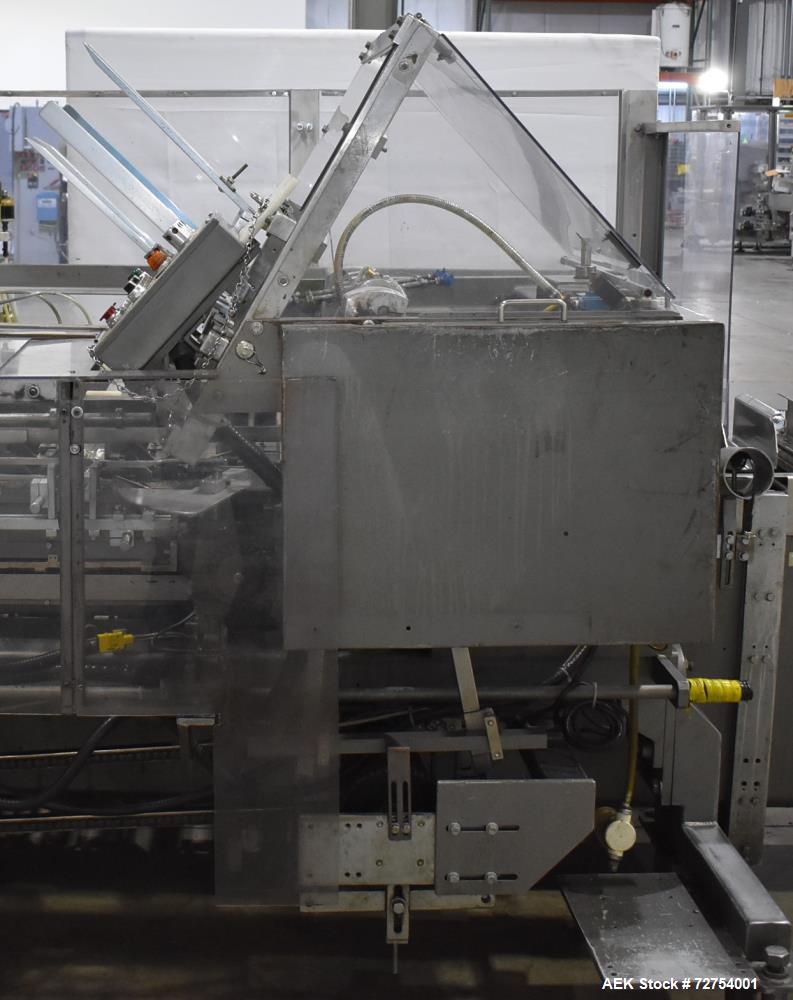

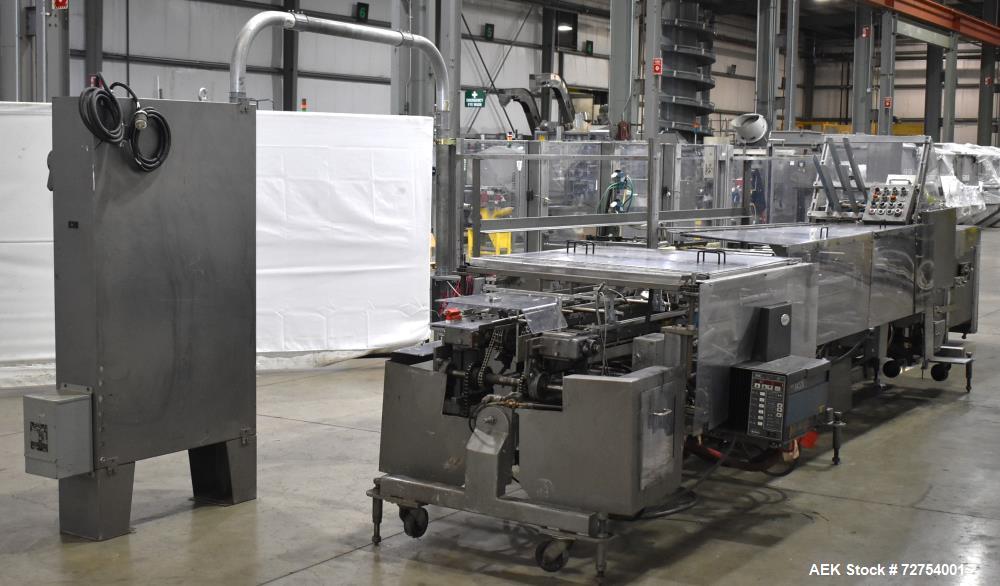

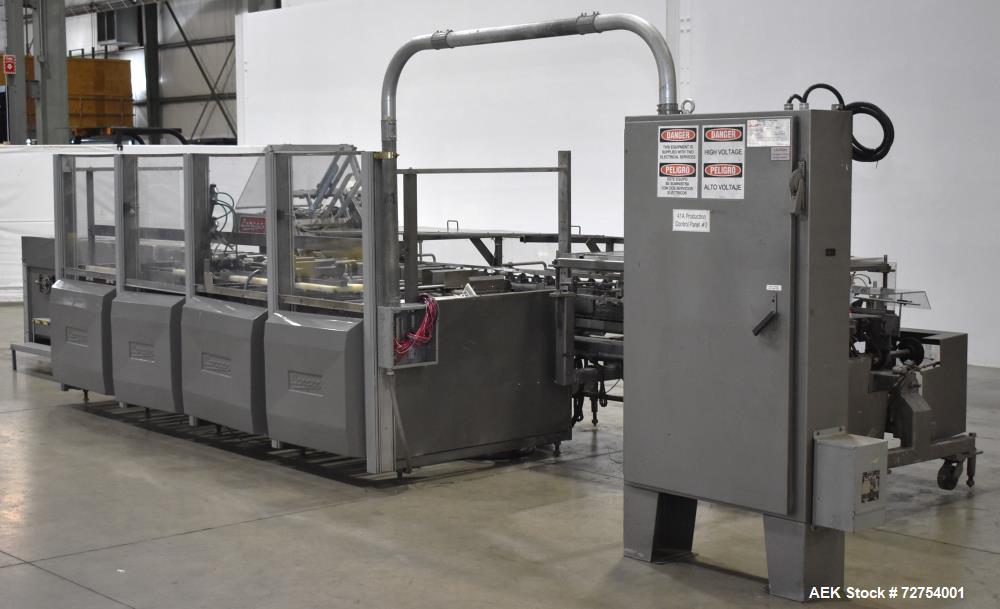

Used Langen B1-AL Automatic Horizontal Load Cartoner – 40 to 240 CPM

Manufacturers Info:

• Manufacturer: Langen
• Model: B1-AL
• Condition: Used

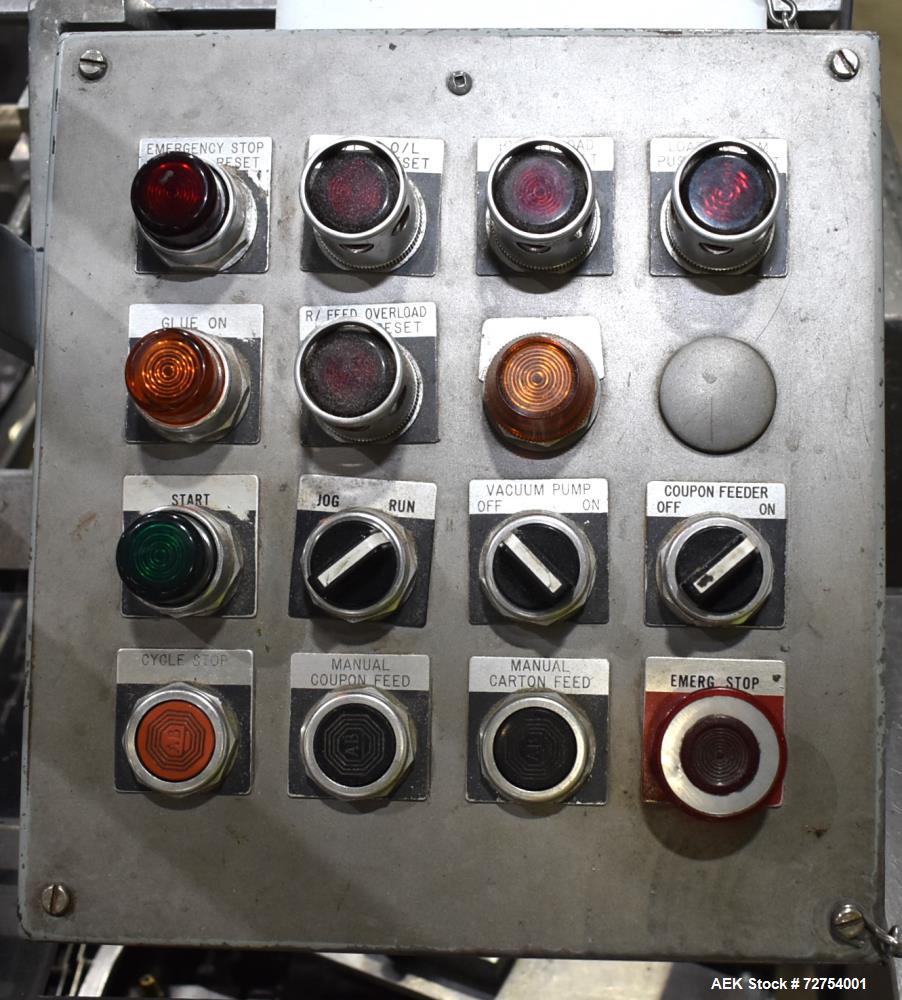

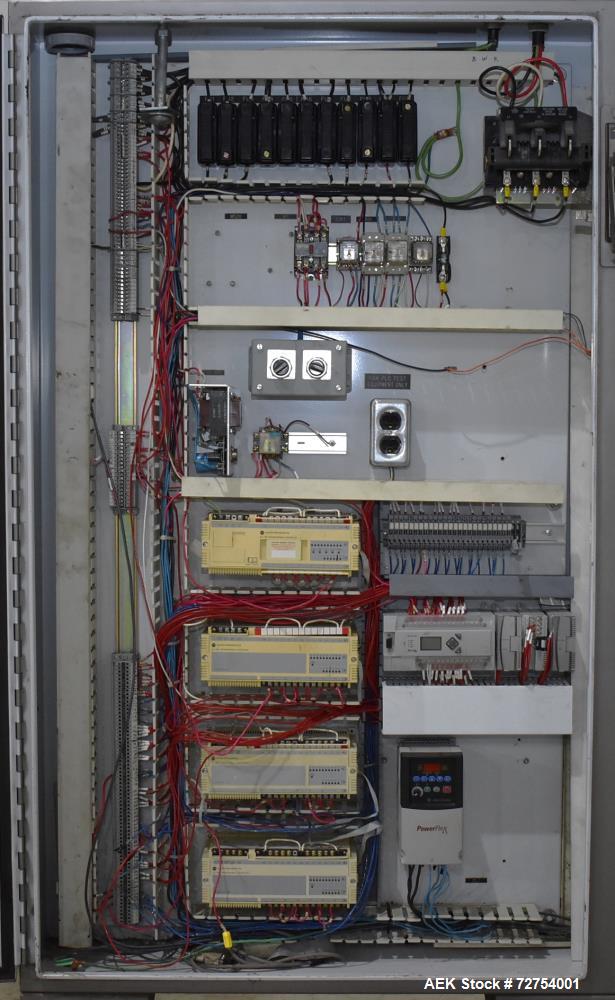

• Control System:

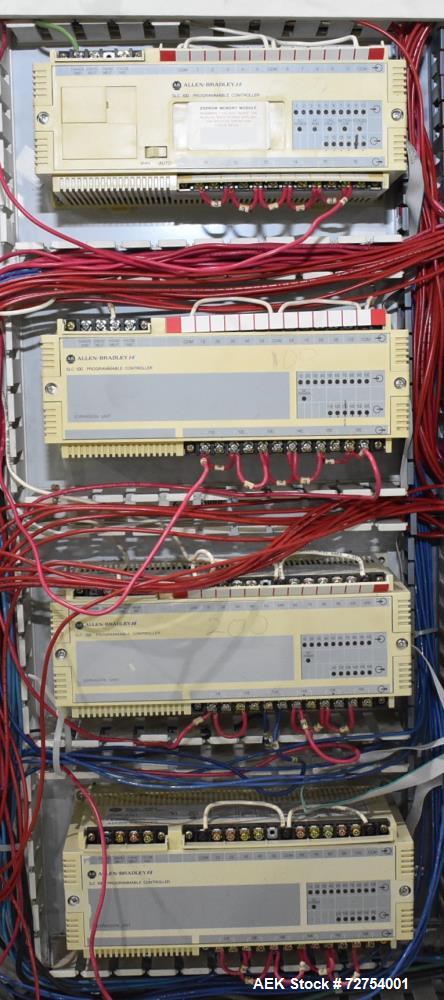

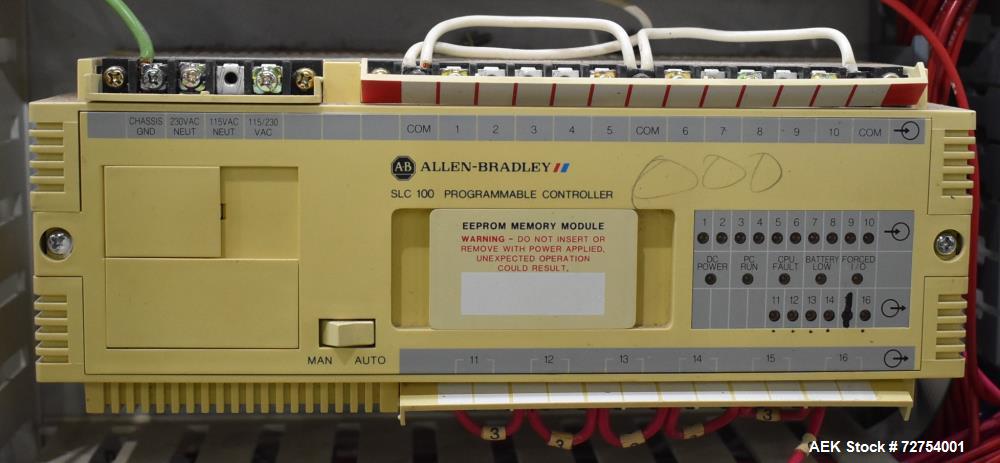

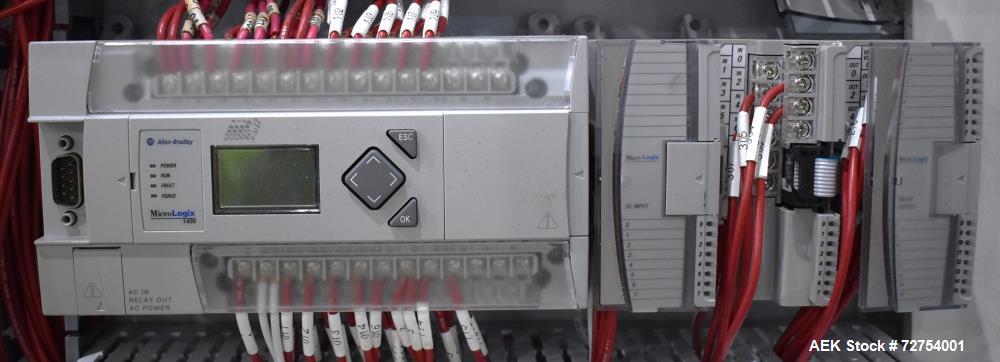

  • Allen Bradley Micrologix 1400 & SLC 100 PLC Controls

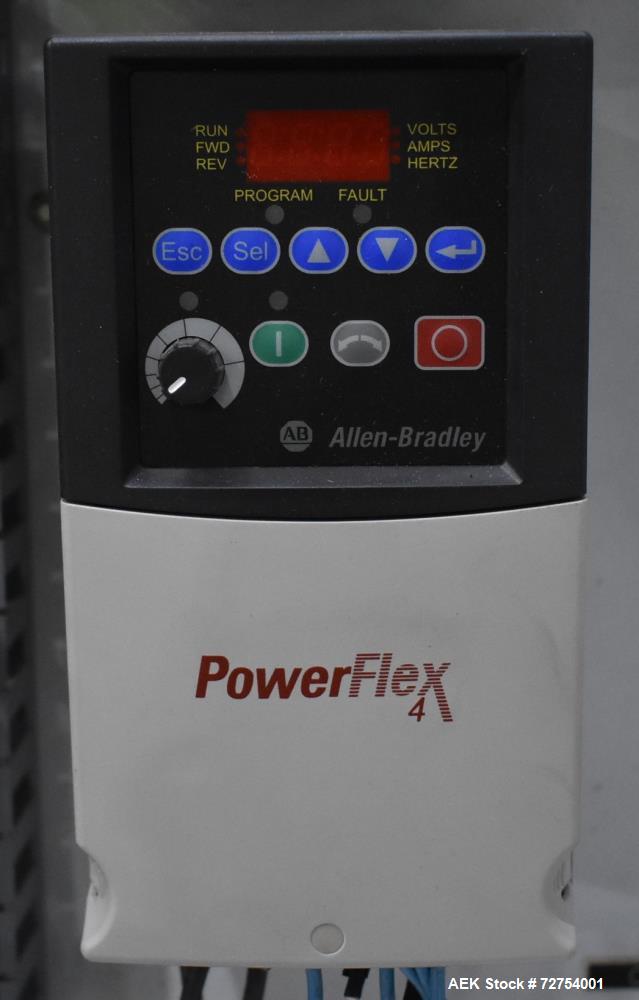

  • A/B PowerFlex 4 Drive

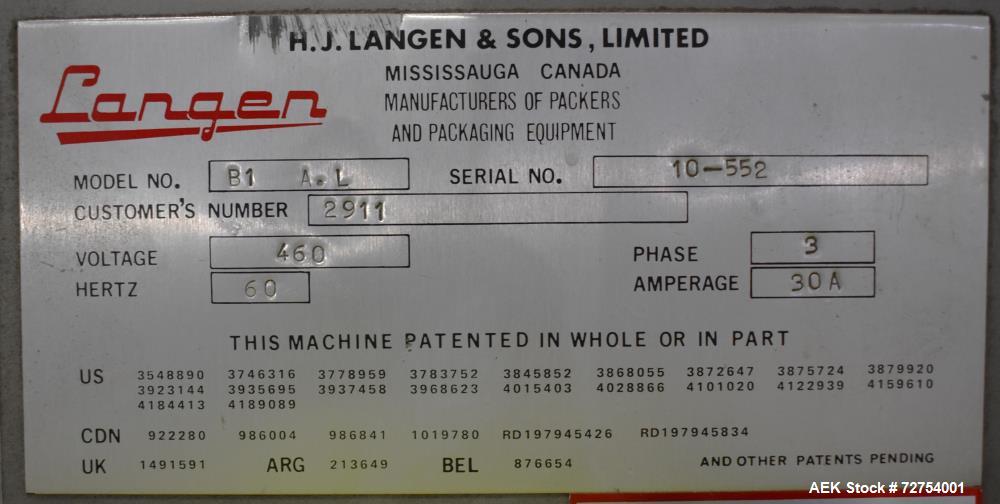

• Electrical Specs: 3-Phase, 60 Hz, 460V, 30A

Facts About the Langen B1-AL Cartoner:

• Automatic horizontal load cartoner designed for high-speed carton filling & sealing.
• Capable of speeds from 40 to 240 cartons per minute (CPM).

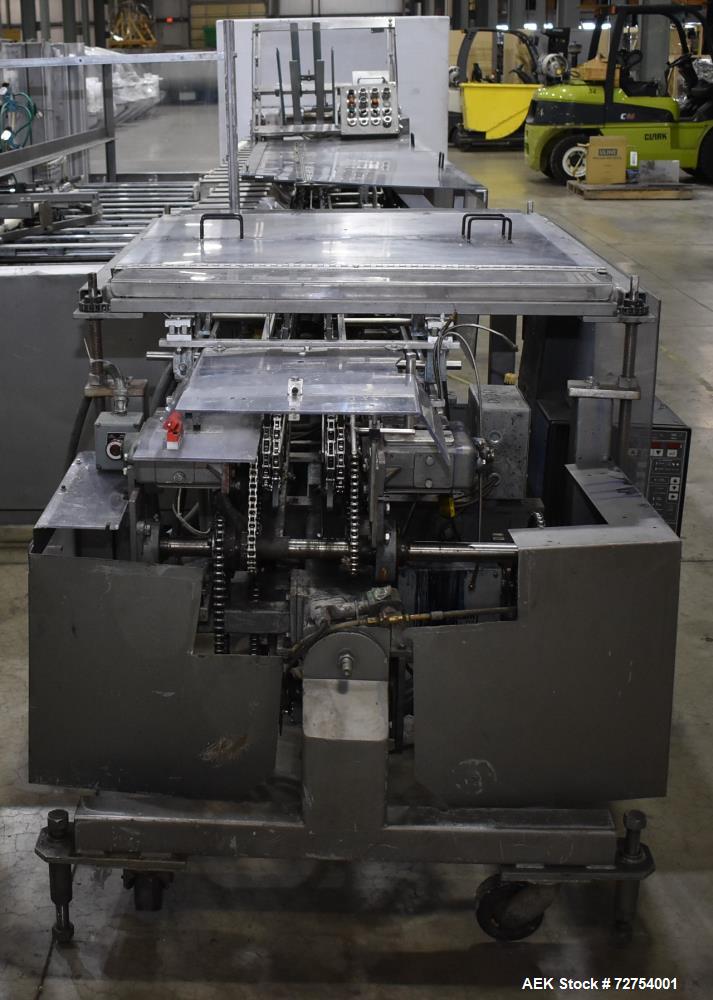

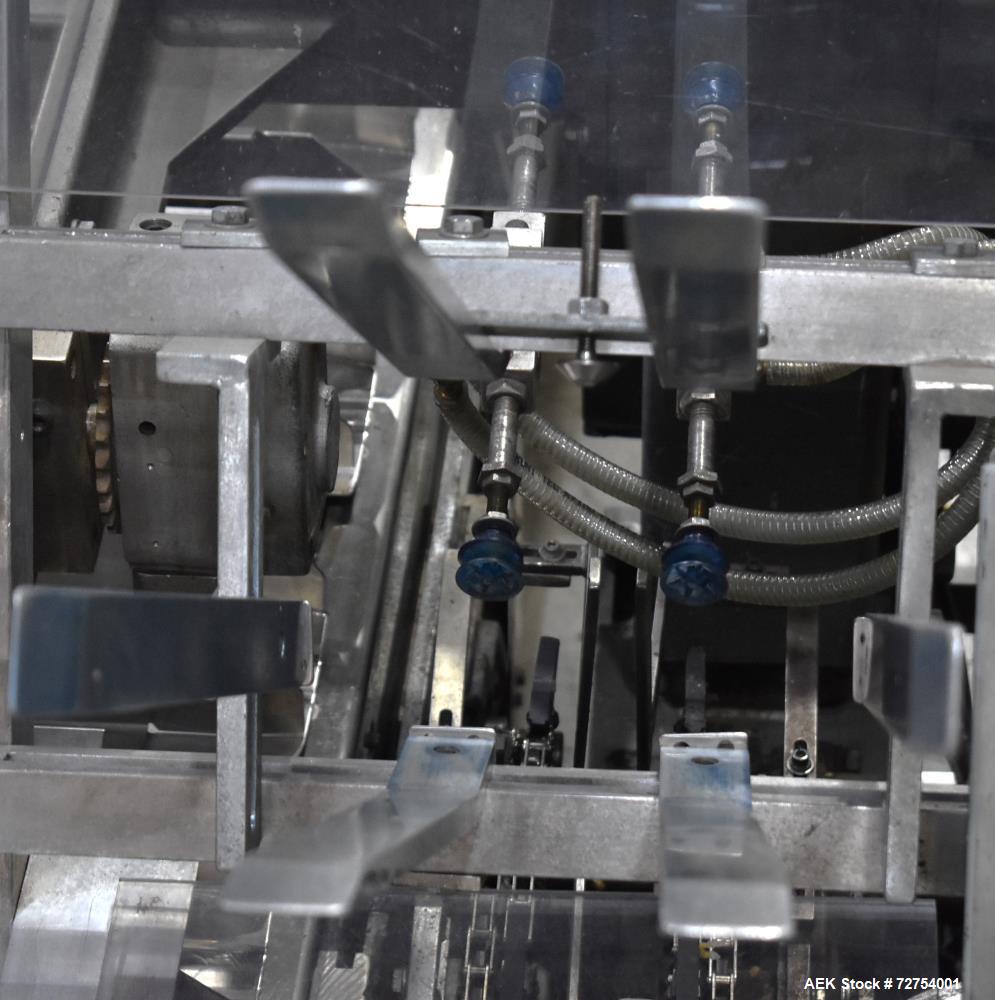

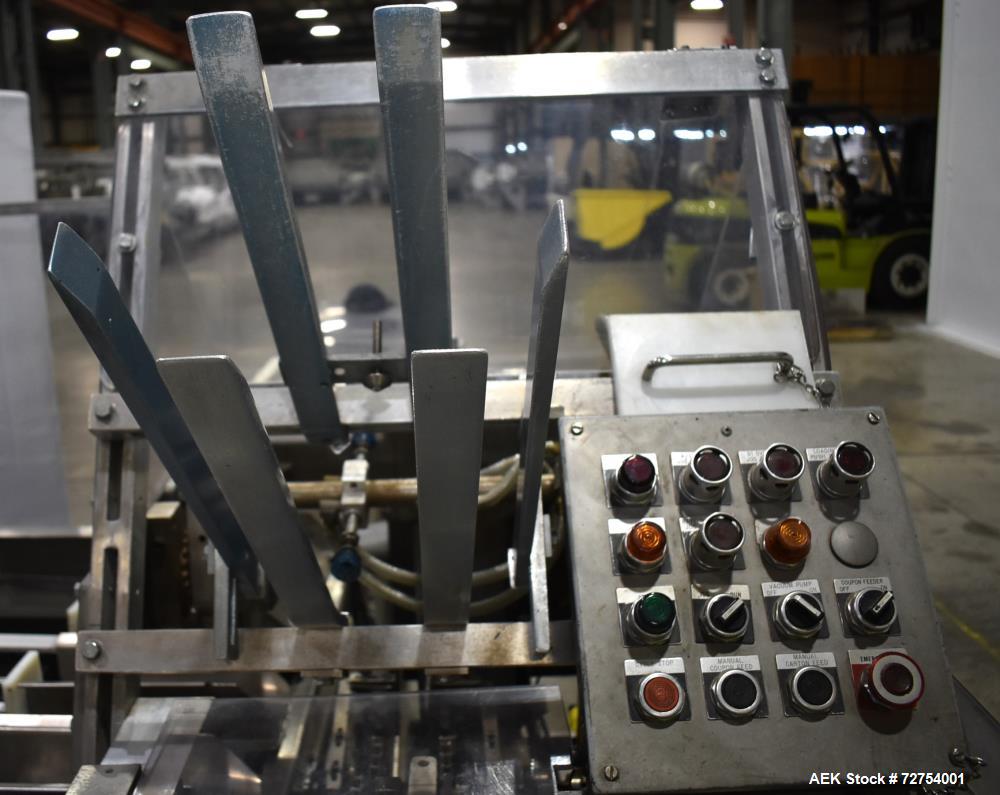

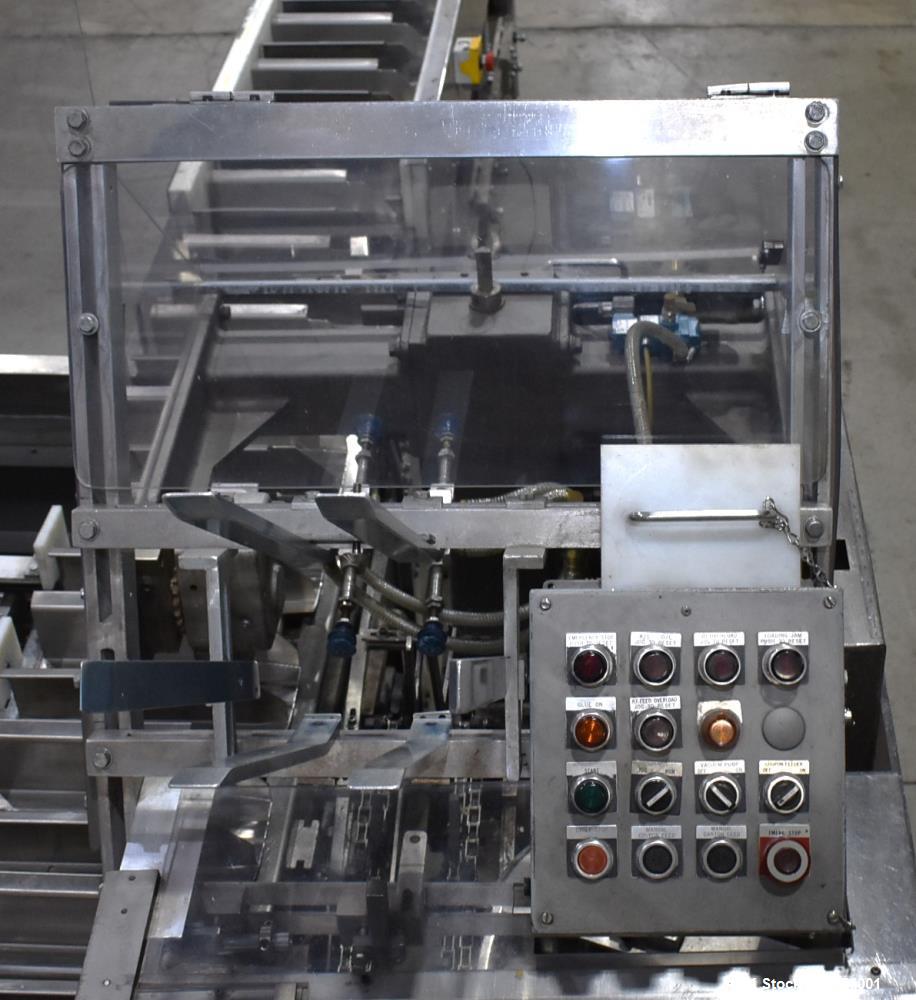

• Rotary carton feed system for smooth and consistent operation.
• Carton Size Range:
  • Length: 1-3/4" to 6-1/2"
  • Width: 1/2" to 3"
  • Depth: 3.75" to 14"

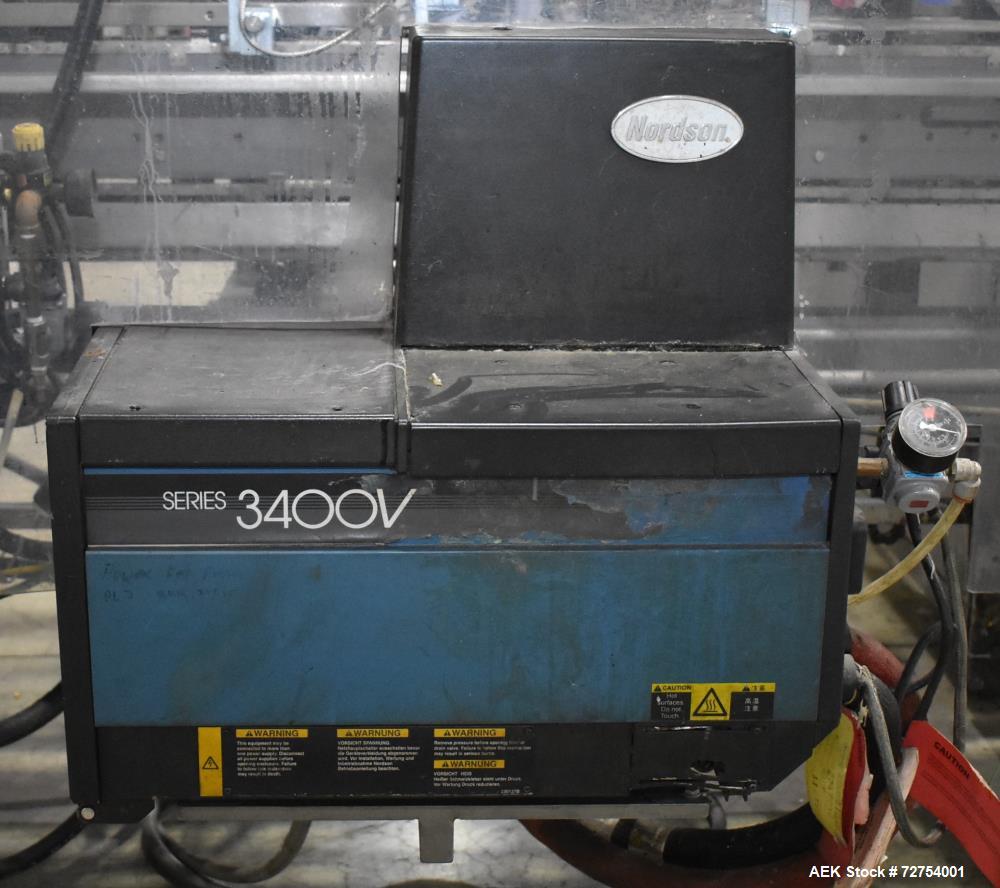

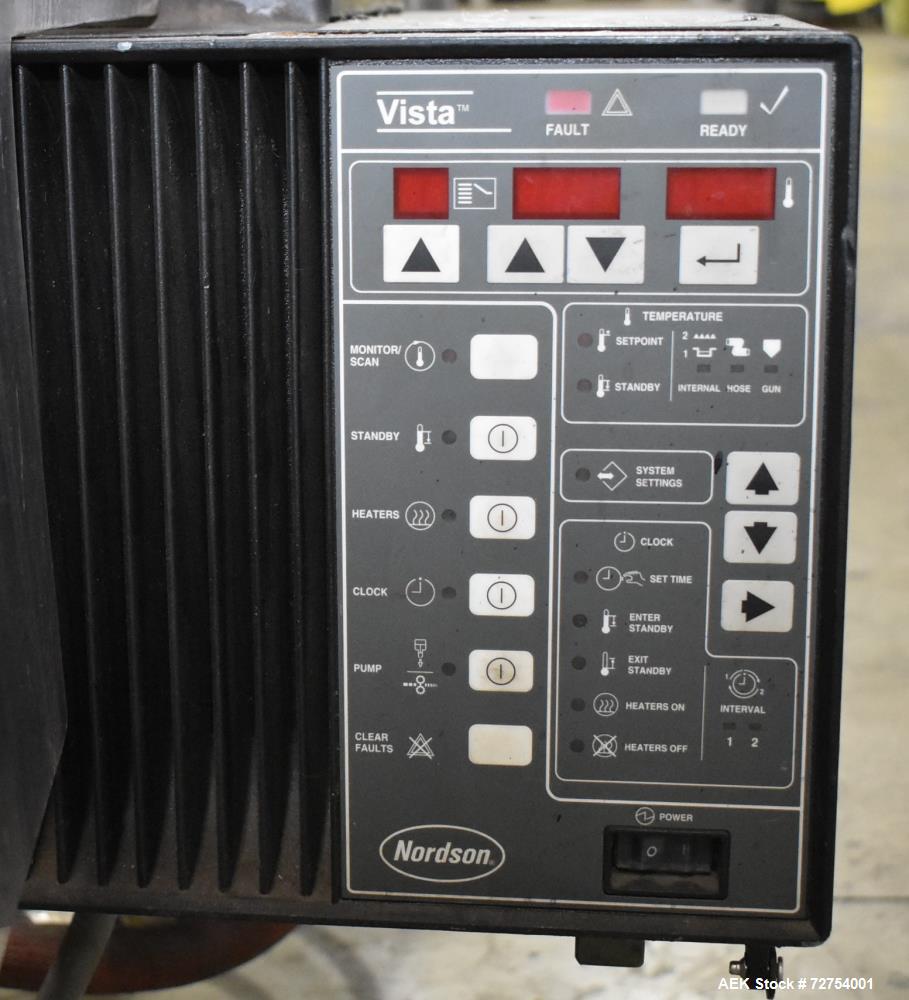

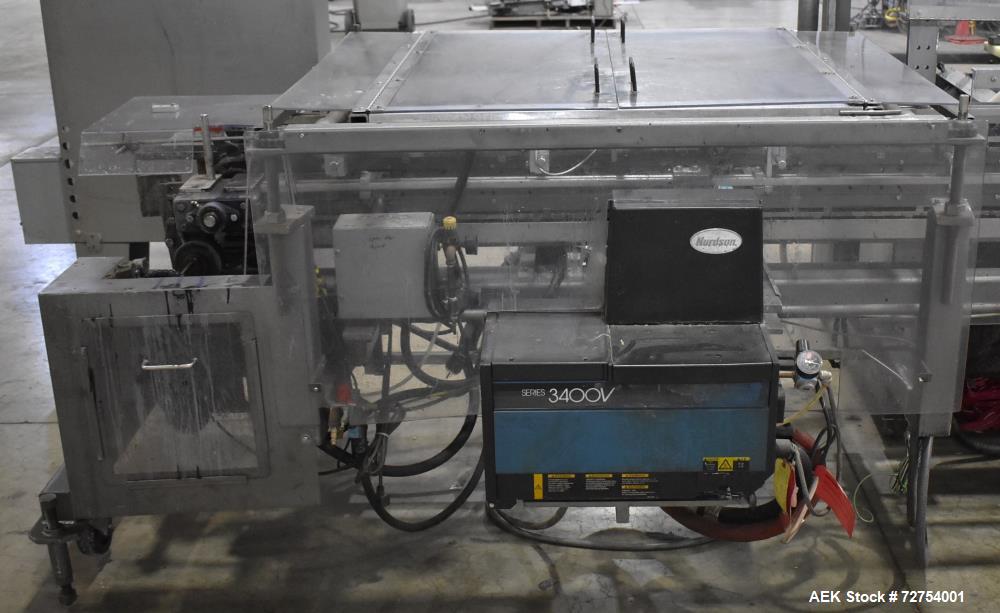

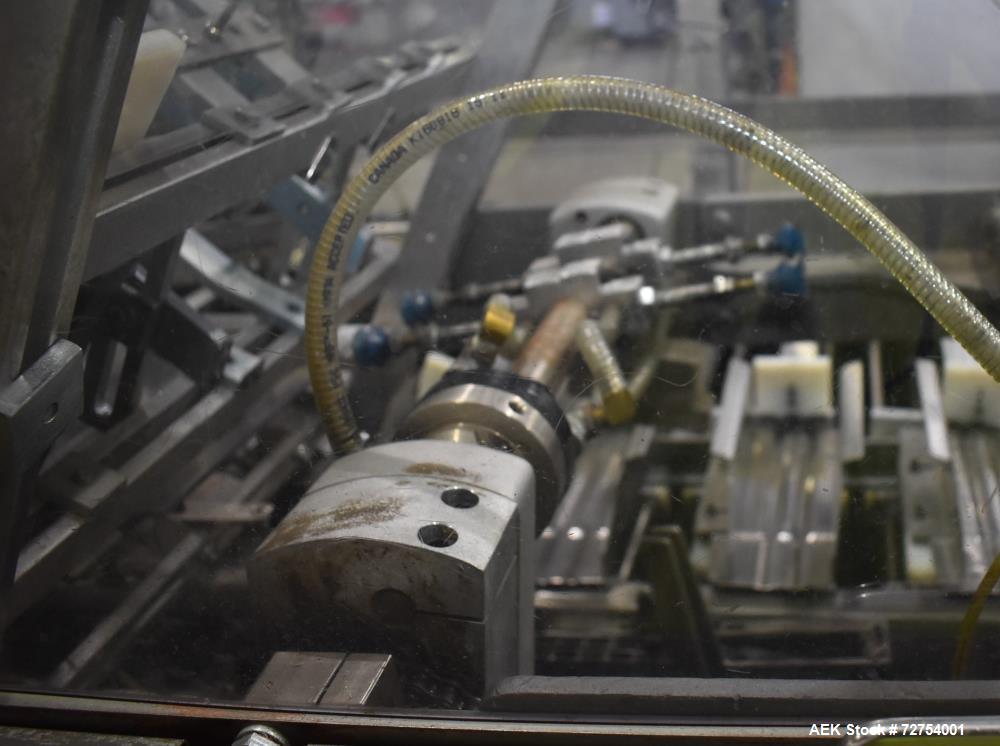

• Equipped with a Nordson 3400V Hot Melt Glue System for secure carton sealing.

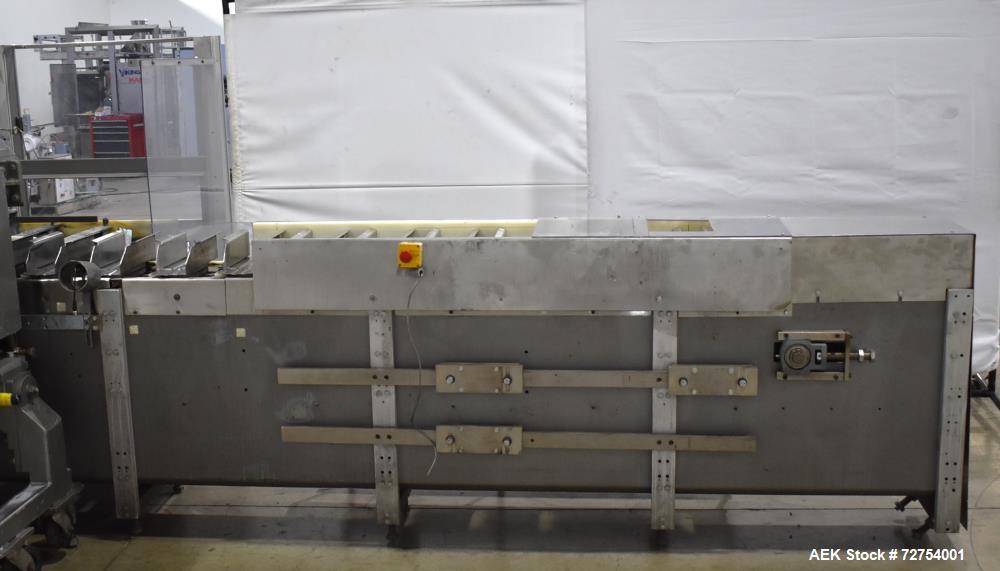

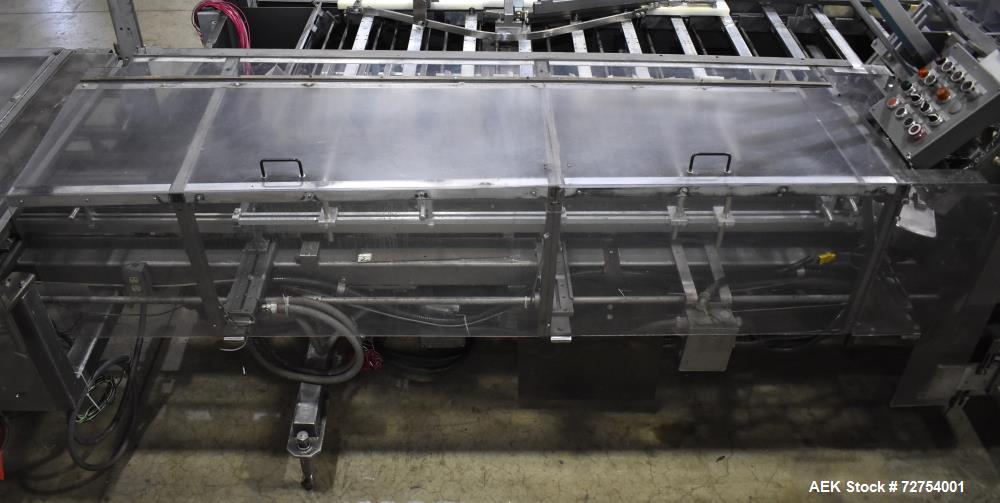

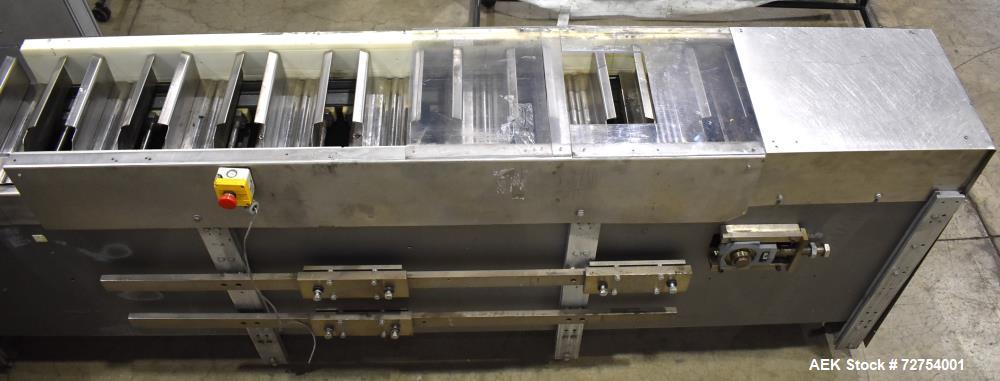

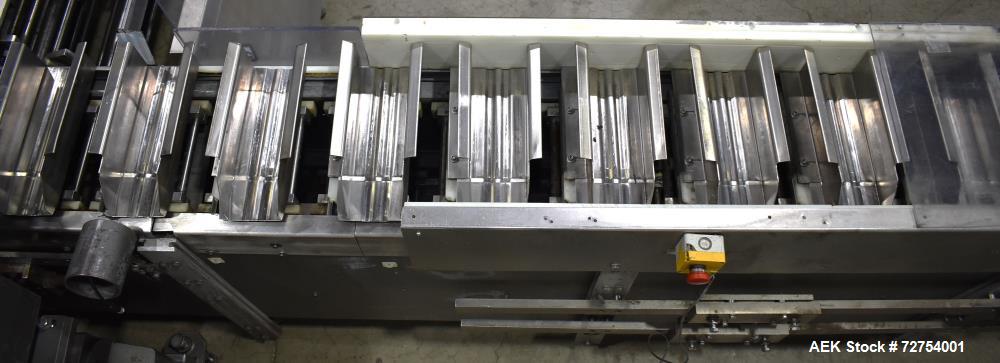

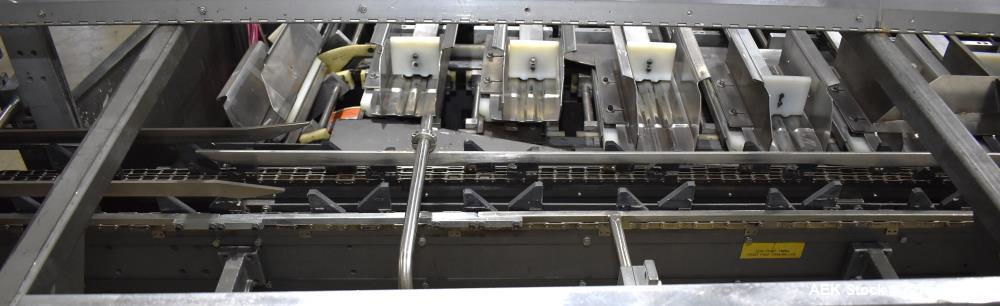

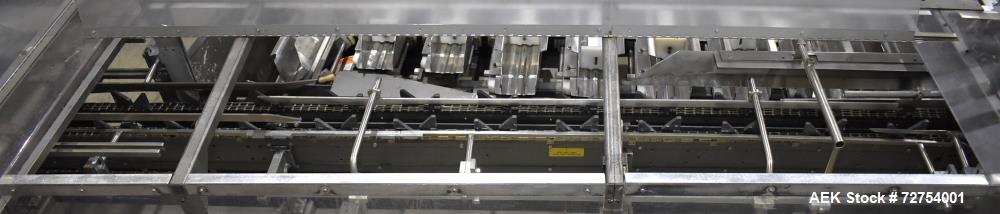

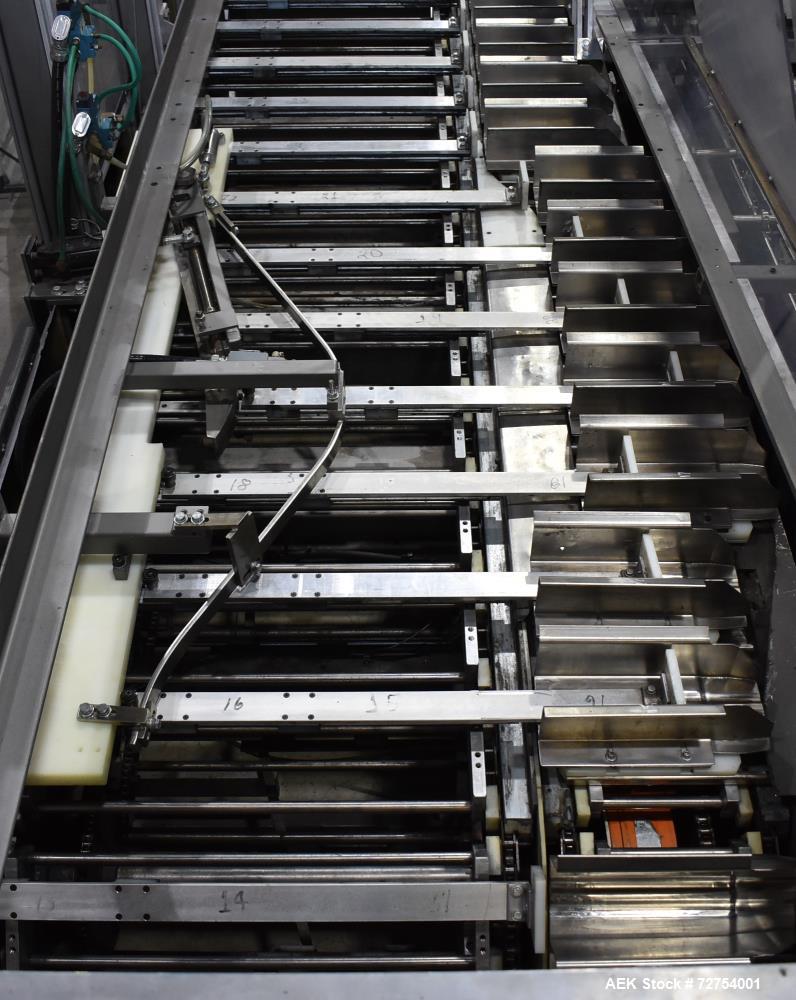

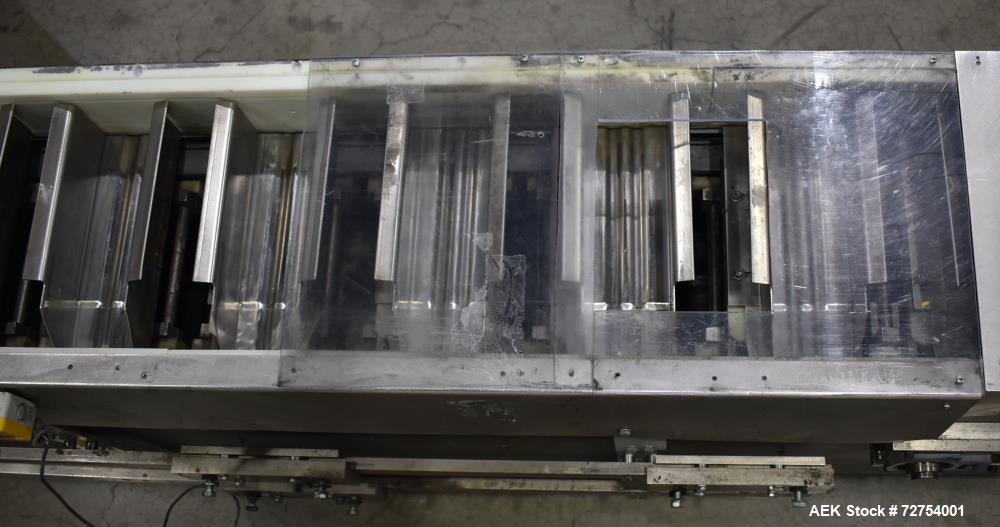

• 7-foot-long product loading area allows for efficient and flexible loading.
• Previously ran microwave popcorn, but can be retooled to accommodate various carton sizes and product types.
• Retooling and size adjustments available based on sample & project specifications for an additional fee.
• Durable construction for continuous, high-speed production environments.

Description:

This used Langen B1-AL Automatic Horizontal Load Cartoner is a high-speed, automated carton filling and sealing system designed for food, snack, and industrial product packaging. With speeds ranging from 40 to 240 cartons per minute, this machine ensures efficient, continuous operation for medium to high-volume production lines.

The rotary carton feed system ensures smooth and accurate carton handling, while the Nordson 3400V hot melt glue system provides secure, reliable sealing. Equipped with Allen Bradley Micrologix 1400 & SLC 100 PLC controls, the system offers precise automation and easy programmability.

This cartoner has a 7-foot-long product loading area, offering versatile loading options. It was last used for microwave popcorn packaging but can be retooled to fit other carton sizes and applications.

Specifications:

• Speed: 40 to 240 cartons per minute (CPM)
• Carton Size Range:
  • Length: 1-3/4" to 6-1/2"
  • Width: 1/2" to 3"
  • Depth: 3.75" to 14"
• Carton Handling: Rotary Carton Feed System
• Sealing System: Nordson 3400V Hot Melt Glue System
• Control System:
  • Allen Bradley Micrologix 1400 PLC
  • Allen Bradley SLC 100 PLC
  • A/B PowerFlex 4 Drive
• Product Loading Area: 7 feet long
• Electrical Requirements: 3-Phase, 60 Hz, 460V, 30A
• Retooling: Available for additional cost based on samples & project specifications

Applications:

• Food & Snack Packaging
• Pharmaceutical & Nutraceutical Cartoning
• Frozen & Dry Goods Packaging
• Consumer Goods & Household Products
• Personal Care & Beauty Product Cartoning

What Products Would This Be Used For?

• Microwave Popcorn & Snack Boxes
• Frozen & Packaged Food Cartoning
• Pharmaceutical & Nutraceutical Packaging
• Tea, Coffee, & Powdered Beverage Cartons
• Cosmetic & Personal Care Packaging
