Stock No.: 54687012
Used Mix S.R.L. MXC2400 2400 Liter Stainless Steel Plow Mixer
-
ManufacturerMix SRL
-
ModelMXC2400
-
Serial #C484
-
CategoryMixers
-
SubcategoryPlow Mixer
Used equipment facts about this machine
Manufacturer Information
MANUFACTURER INFORMATION
Mix S.R.L. manufactures industrial mixing equipment for powders, granules and bulk solids, including horizontal plow mixers used in food, chemical, pharmaceutical and other process industries. Plow mixers use high-energy internal plows to move product through the mixing chamber, supporting rapid blending of compatible dry ingredients and bulk solids.
PRODUCT DESCRIPTION

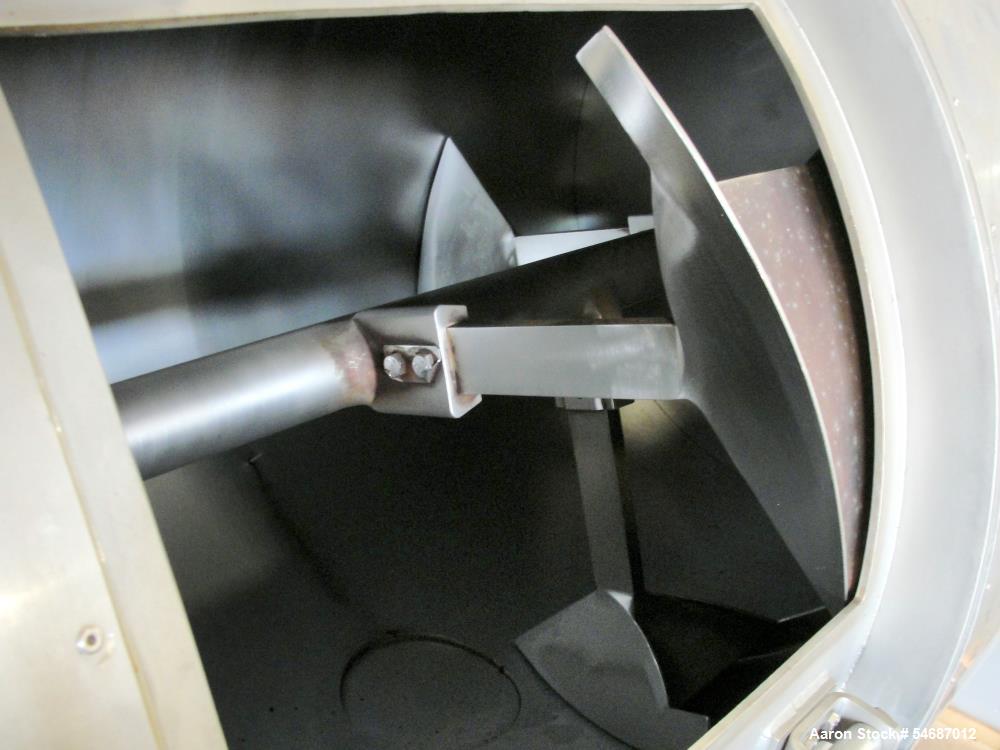

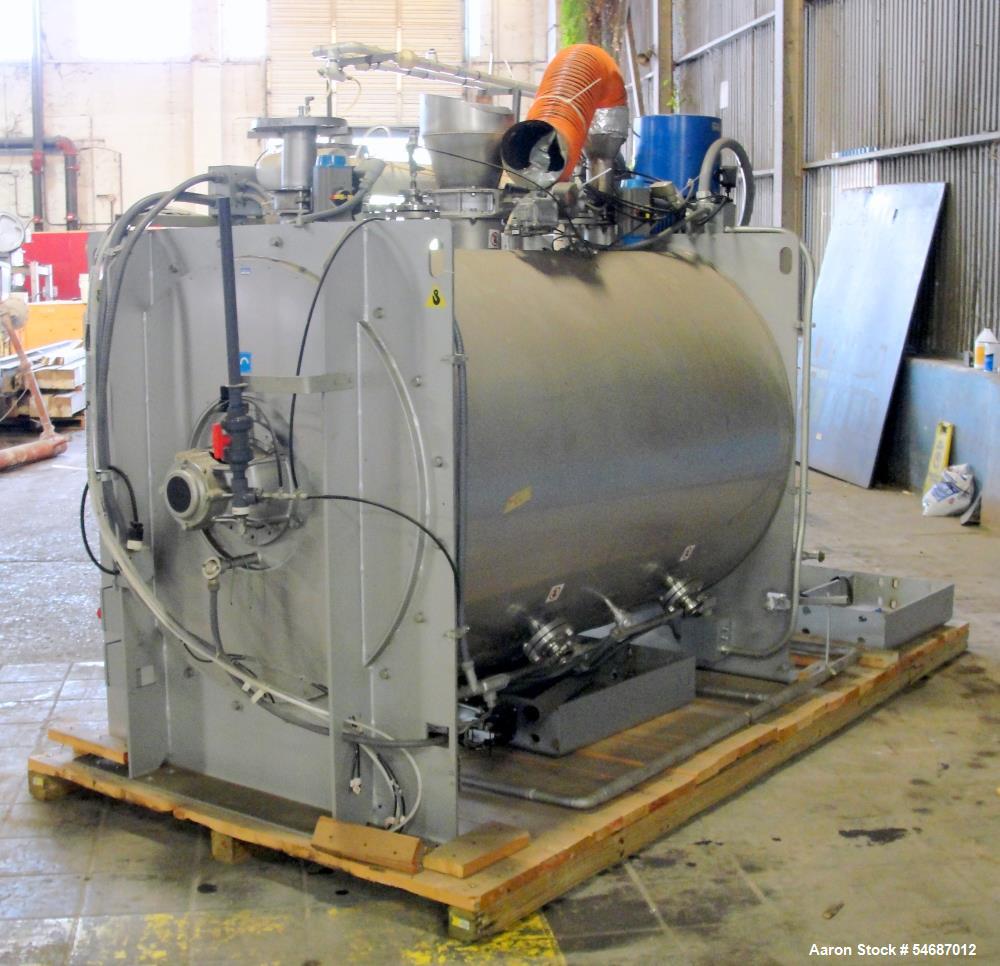

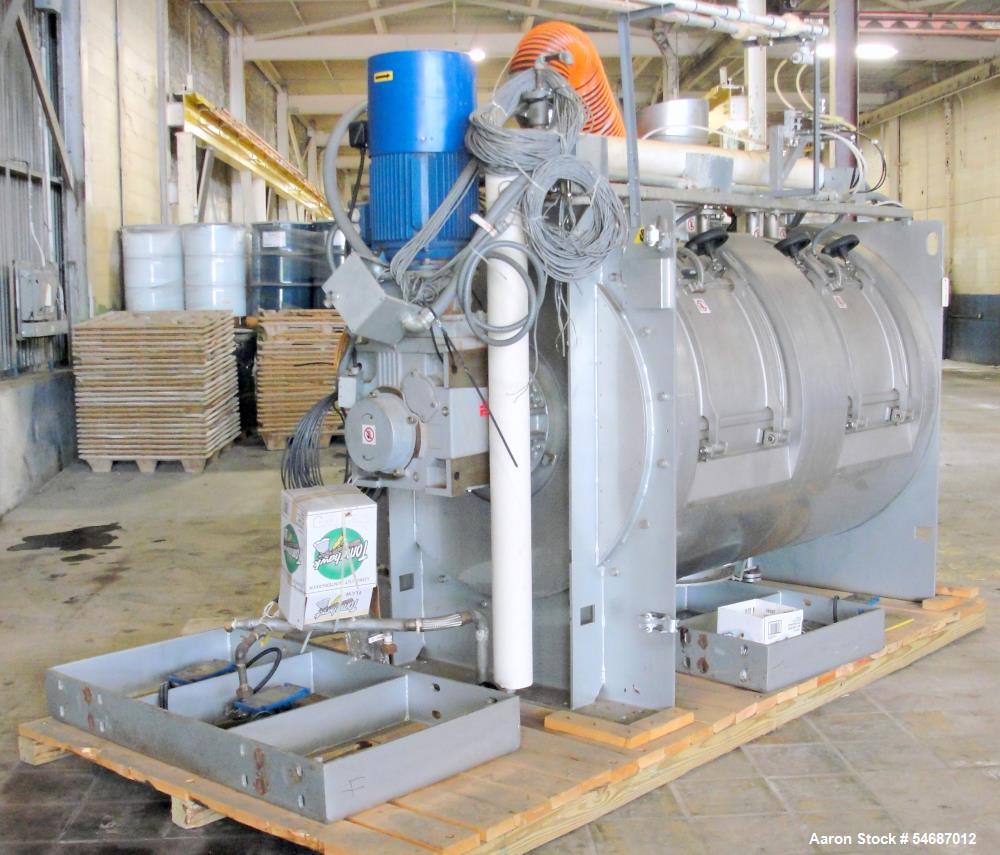

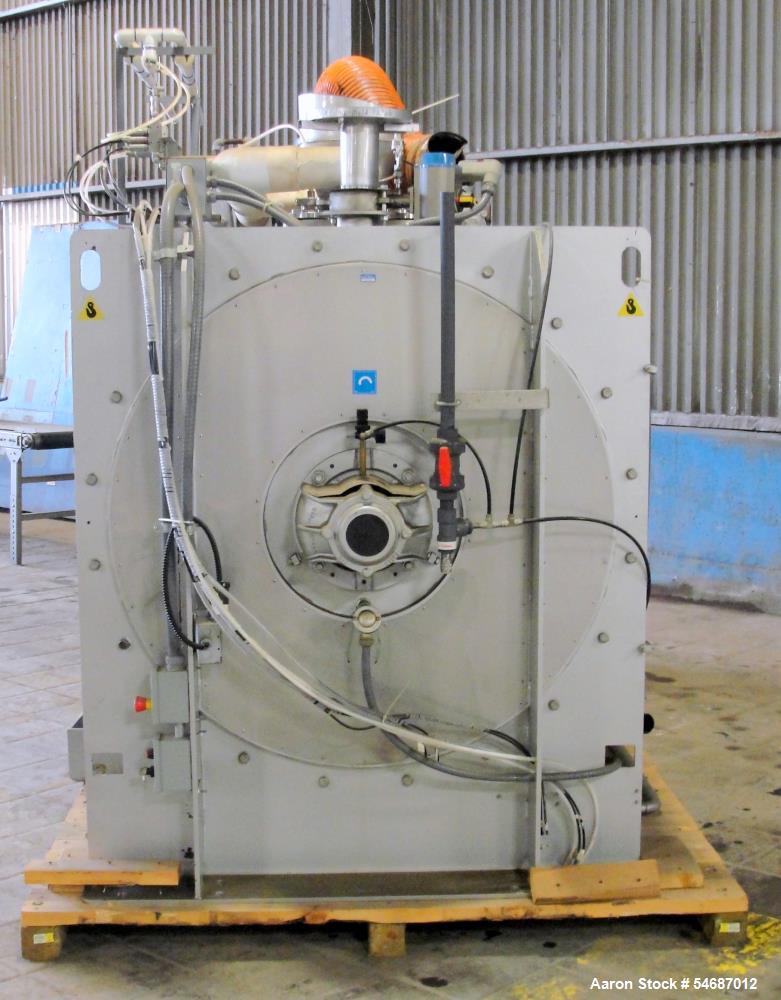

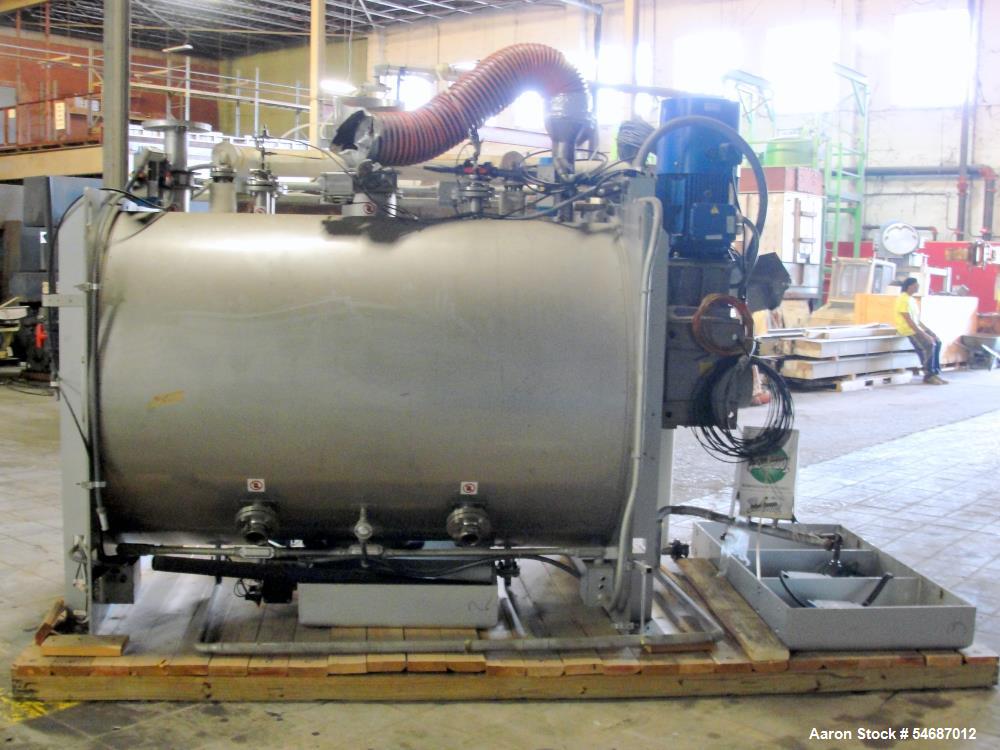

Used Mix S.R.L. Model MXC2400 horizontal plow mixer, Serial #C484, built 2006, with approximately 2,400-liter / 85 cu. ft. total capacity. Internal mixing chamber dimensions are approximately 47.24" ID x 80.71" long. Product-contact parts are stainless steel. The mixer is driven by a 30 HP motor rated 60 Hz, 480/830 VAC, 3-phase. This unit does not include choppers. The jacket is rated for 2 bar at approximately 4–38°C. The vessel includes two large side-access doors measuring approximately 23.62" x 19.68", a cylinder-operated 16" x 18" square bottom discharge, multiple sanitary and flanged process connections, and actuated butterfly valves serving filter connections. The mixer is mounted on four load cells for batch weighing. Bottom connections include two 2.5" tri-clamp nozzles and two 1" RFSP flanges. Additional connections include two 4" plate-flange nozzles with actuated butterfly valves, one 8" RFSO connection with actuated butterfly valve, four 2.5" RFSO top connections, one 1" RFSO top connection and two 2" RFSO connections on the back end. Possible applications include blending compatible powders, granules, dry ingredients and other bulk solid products.
SPECIFICATIONS
-
Manufacturer: Mix S.R.L.
-
Model: MXC2400
-
Equipment Type: Horizontal plow mixer
-
Serial Number: C484
-
Year: 2006
-
Total Capacity: Approximately 2,400 liters / 85 cu. ft.
-
Internal Diameter: Approximately 47.24"
-
Internal Length: Approximately 80.71"
-
Product-Contact Material: Stainless steel
-
Choppers: None
-

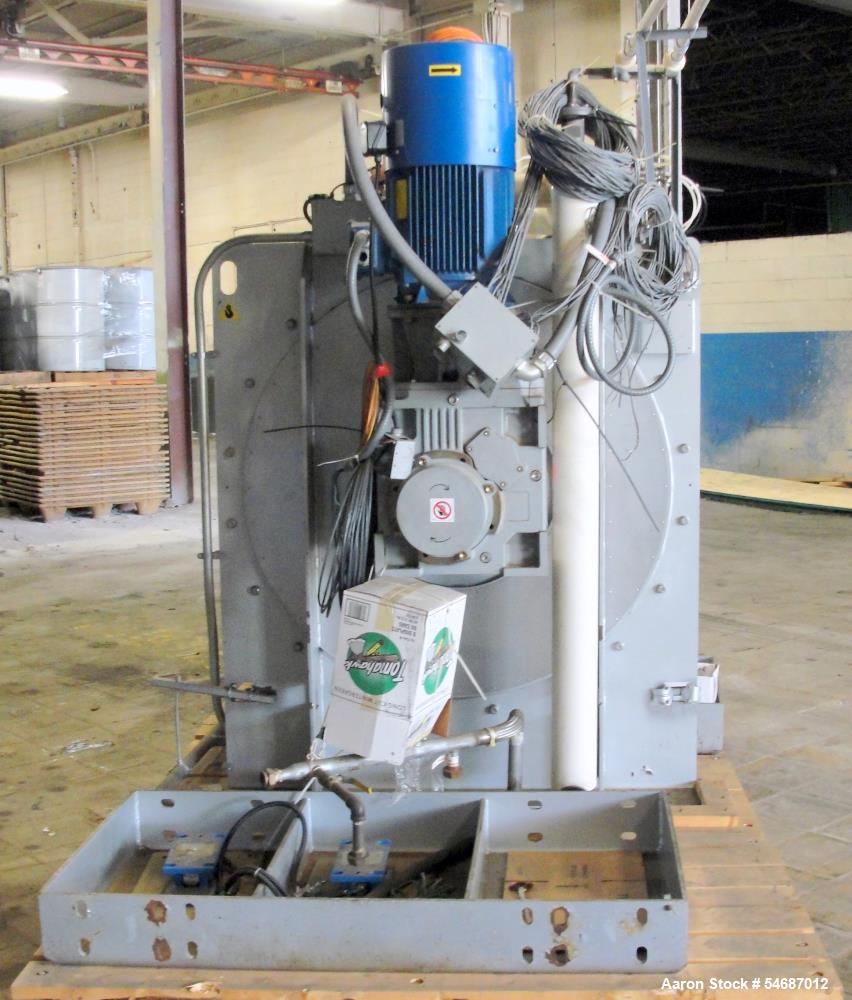

Drive Motor: 30 HP
-
Electrical: 480/830 VAC, 3-phase, 60 Hz
-
Jacket Rating: 2 bar
-
Jacket Temperature Range: Approximately 4–38°C
-
Load Cells: (4)
-
Side Access Doors: (2)
-
Side Door Size: Approximately 23.62" x 19.68"
-
Bottom Discharge: Approximately 16" x 18" square
-
Discharge Operation: Cylinder actuated
-
Bottom Sanitary Connections: (2) 2.5" tri-clamp
-
Bottom Flanged Connections: (2) 1" RFSP
-

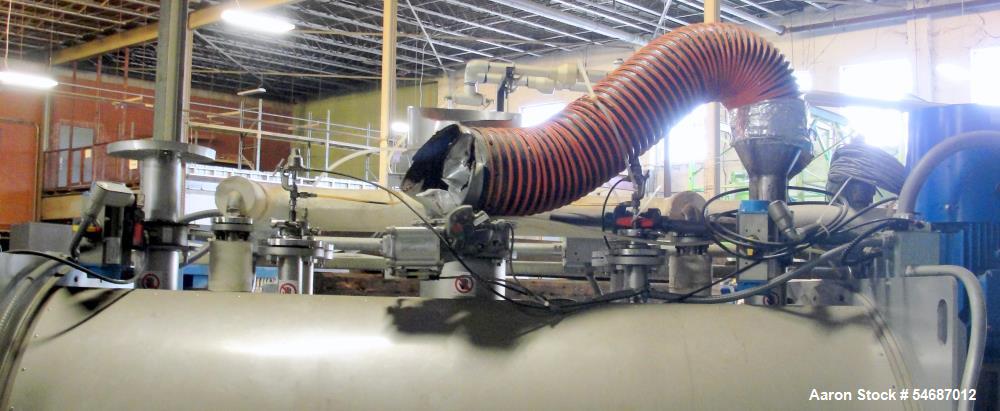

Filter Connections: (2) 4" plate-flange nozzles with actuated butterfly valves
-
Additional Middle Connection: (1) 8" RFSO with actuated butterfly valve
-
Top Connections: (4) 2.5" RFSO and (1) 1" RFSO
-
Rear Connections: (2) 2" RFSO
APPLICATIONS
-
Dry powder blending
-
Granule blending
-
Bulk solids mixing
-
Food ingredient blending
-
Chemical powder mixing
-
Pharmaceutical powder blending where equipment suitability is independently confirmed
-
Nutraceutical powder blending
-
Mineral blending
-
Dry premix production
-
Powder homogenization
-
Batch blending
-
Ingredient incorporation
-
Dry additive distribution
-
Bulk product conditioning
-
Blending processes requiring batch weight monitoring
-
Processes requiring jacketed temperature control
SUITABLE PRODUCTS / MATERIALS
Depending on bulk density, flowability, particle size and process requirements, this mixer may be suitable for products such as:
-
Food powders
-
Dry food ingredients
-
Seasoning blends
-
Flour-based mixes
-
Starches
-
Sugar-based blends
-
Salt blends
-
Nutraceutical powders
-
Vitamin blends
-
Mineral blends
-
Pharmaceutical powders where appropriate
-
Chemical powders
-
Specialty chemical blends
-
Detergent powders
-
Granulated products
-
Premixes
-
Dry additives
-
Fine powders
-
Free-flowing granules
-
Other compatible dry bulk solids
FAQ
-
WHAT IS THE CAPACITY OF THE MIX MXC2400?
The mixer has a stated total capacity of approximately 2,400 liters, equivalent to approximately 85 cubic feet. -
WHAT ARE THE INTERNAL DIMENSIONS?
The internal mixing chamber measures approximately 47.24" inside diameter x 80.71" long. -
WHAT MATERIAL ARE THE PRODUCT-CONTACT PARTS?
The product-contact parts are constructed of stainless steel. -
DOES THE MIXER HAVE HIGH-SPEED CHOPPERS?
No. This MXC2400 is listed without choppers. -
WHAT SIZE MOTOR DOES THE MIXER HAVE?

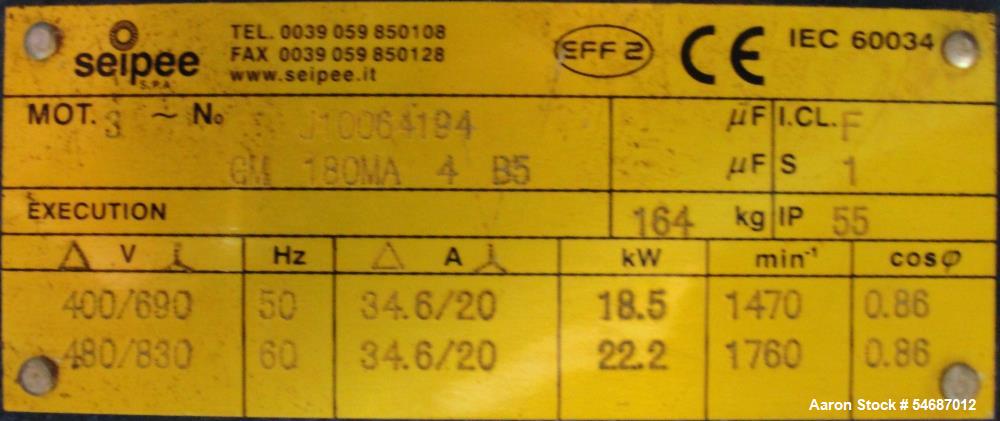

The mixer is driven by a 30 HP motor rated 480/830 VAC, 3-phase, 60 Hz. -
IS THE MIXER JACKETED?
Yes. The vessel jacket is rated for approximately 2 bar at temperatures from 4–38°C. -
DOES THE MACHINE HAVE LOAD CELLS?

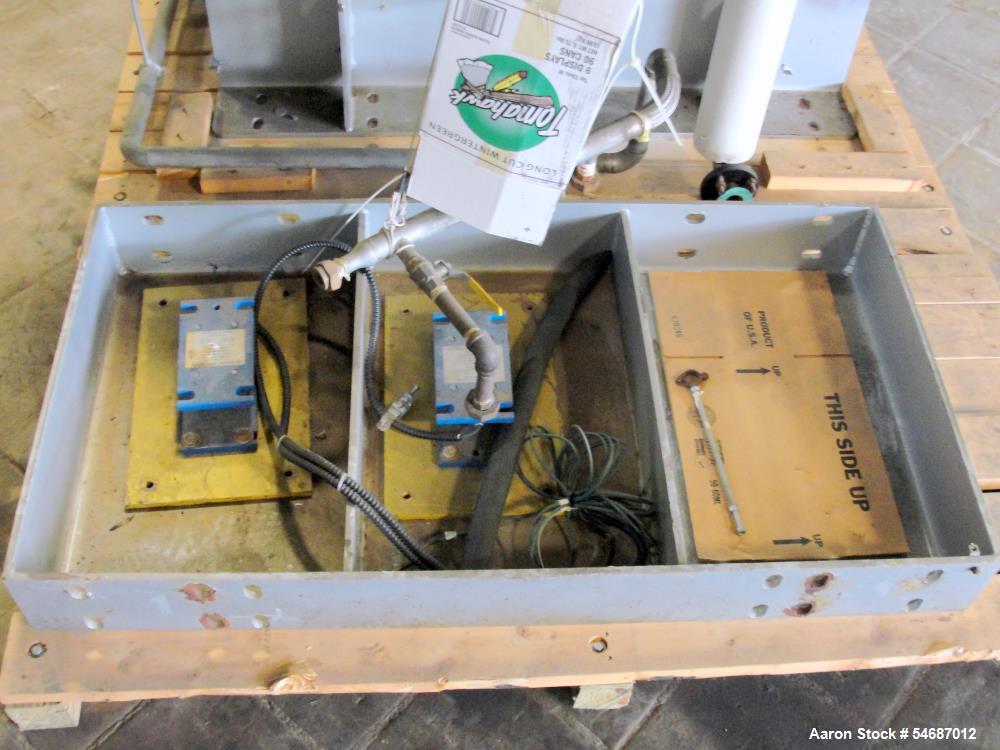

Yes. The mixer is mounted on four load cells, which can support batch weighing when connected to an appropriate weighing system. -
HOW DOES THE PRODUCT DISCHARGE?

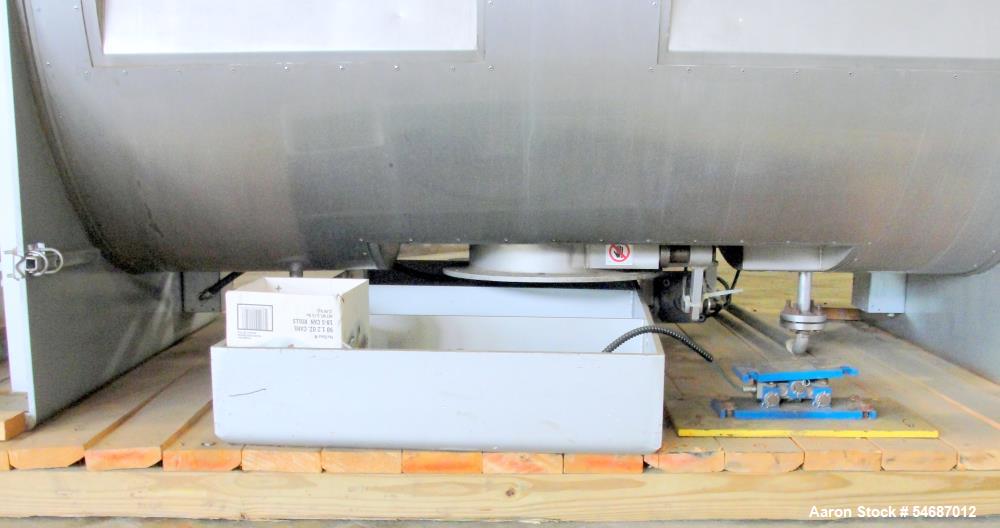

The mixer has an approximately 16" x 18" square bottom discharge operated by a cylinder for opening and closing. -
DOES THE MIXER HAVE ACCESS DOORS?

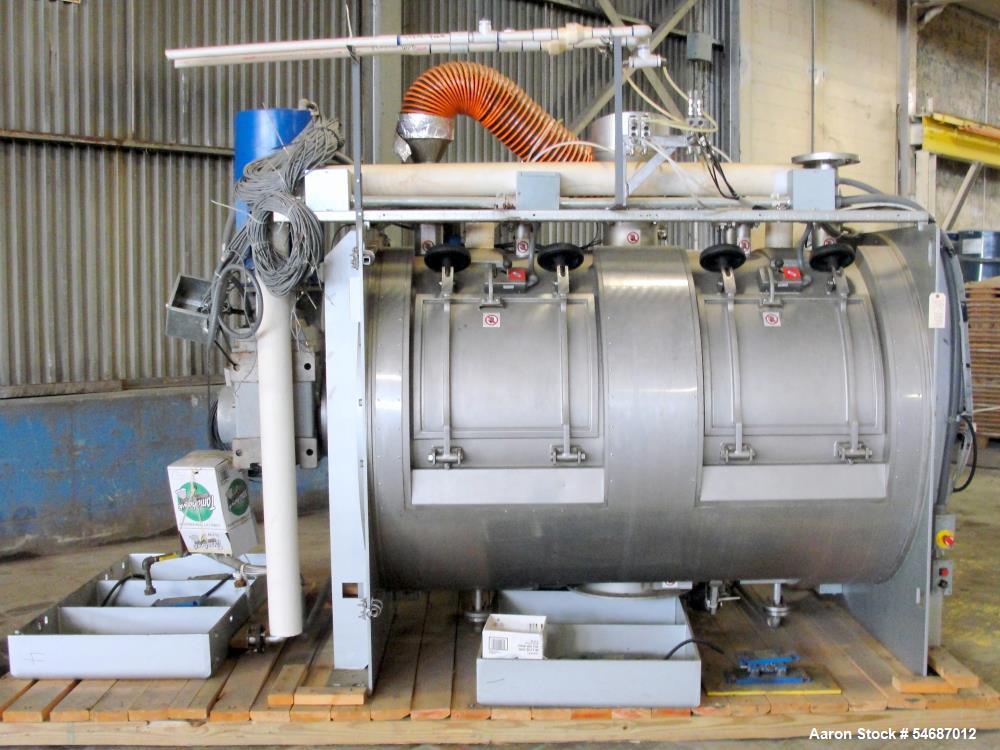

Yes. It has two large access doors measuring approximately 23.62" x 19.68". -
WHAT ARE THE ACTUATED VALVES USED FOR?
The machine includes actuated butterfly valves on two 4" filter connections and one 8" RFSO connection. Exact process use should be confirmed from the original installation. -
CAN AARON EQUIPMENT HELP DETERMINE IF THIS MIXER WILL WORK FOR MY PRODUCT?
Yes. Aaron Equipment can help review your product type, bulk density, batch size, mixing requirements, temperature-control needs and discharge requirements to determine whether this Mix S.R.L. MXC2400 may be suitable for your application. -
CAN AARON EQUIPMENT ARRANGE SHIPPING?
Yes. Aaron Equipment can assist with freight, loading and shipping coordination for domestic or international destinations. Contact Aaron Equipment with your delivery location for shipping assistance.
