Used Oakes model 14MC20 high shear, continuous, rotor and stator type pin mill mixer. Equipped with radial flow disc with high shear action consisting of front / rear stator and 20 hp Reeves variable...

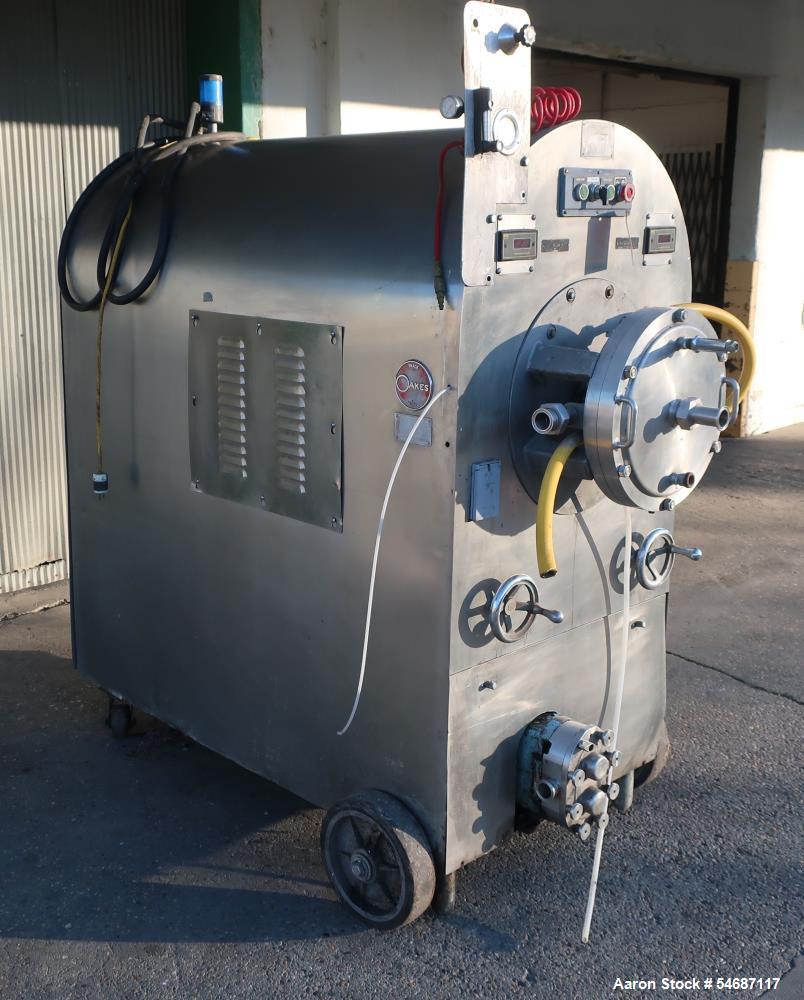

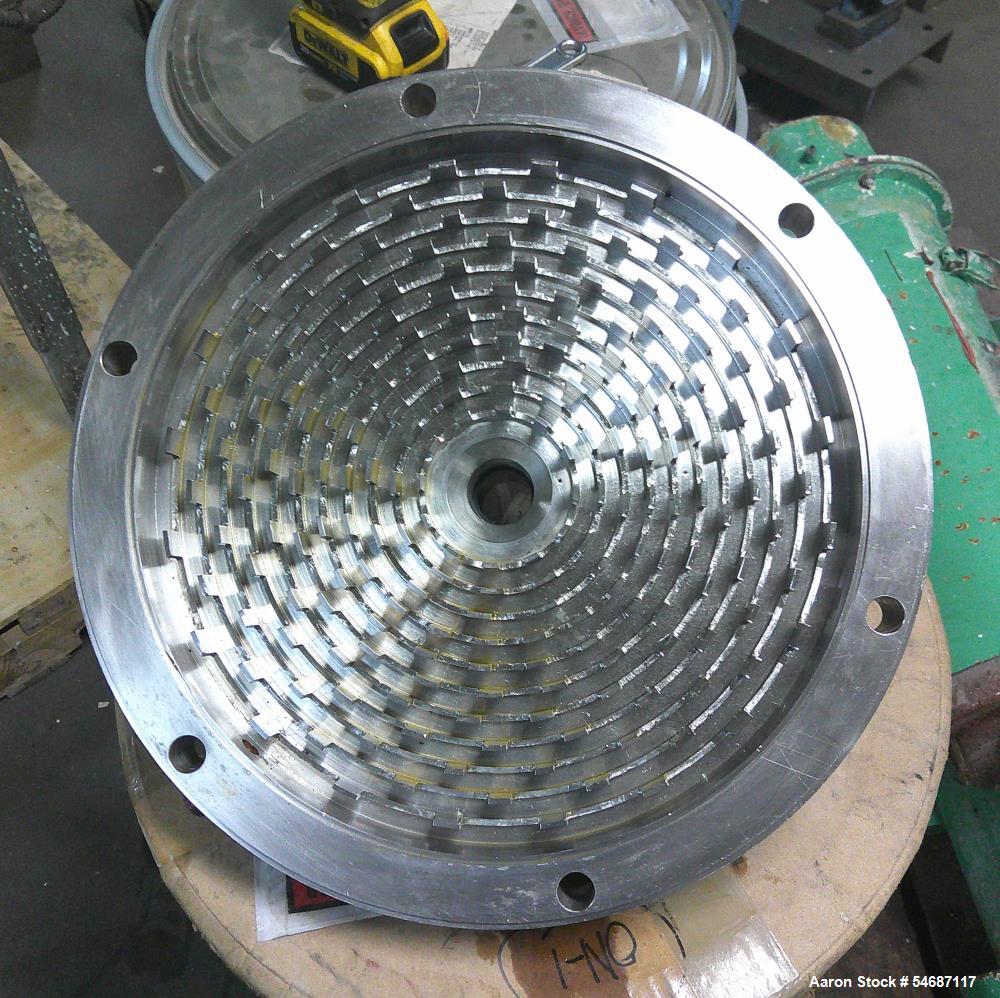

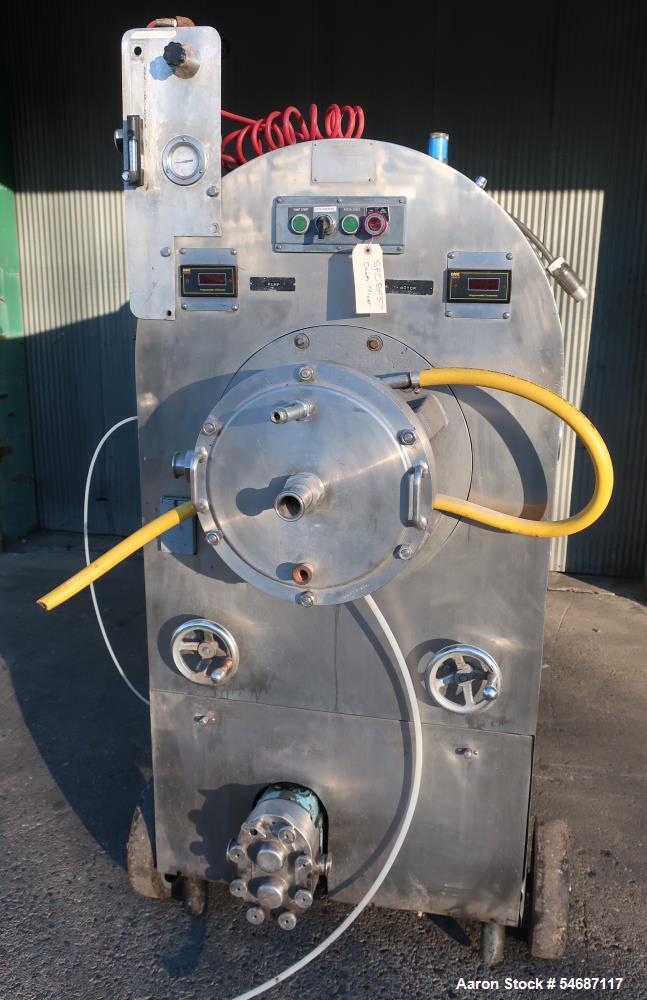

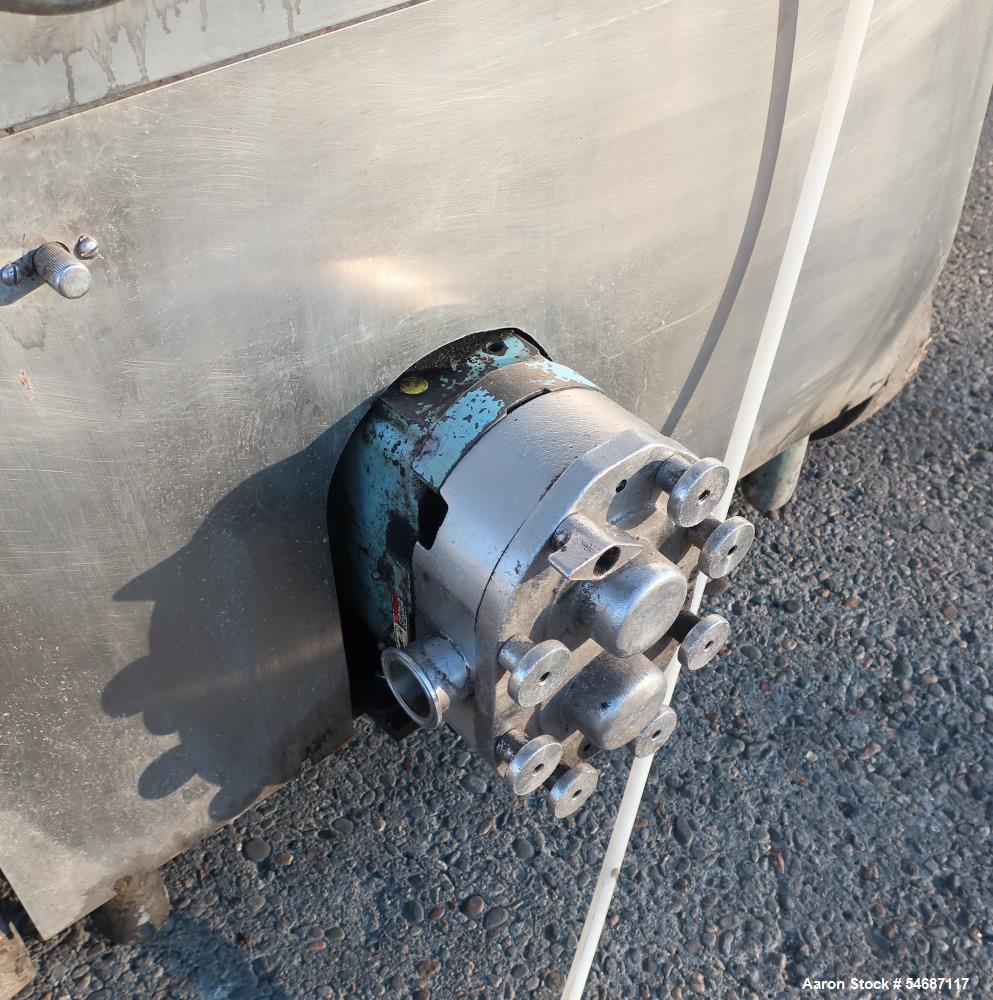

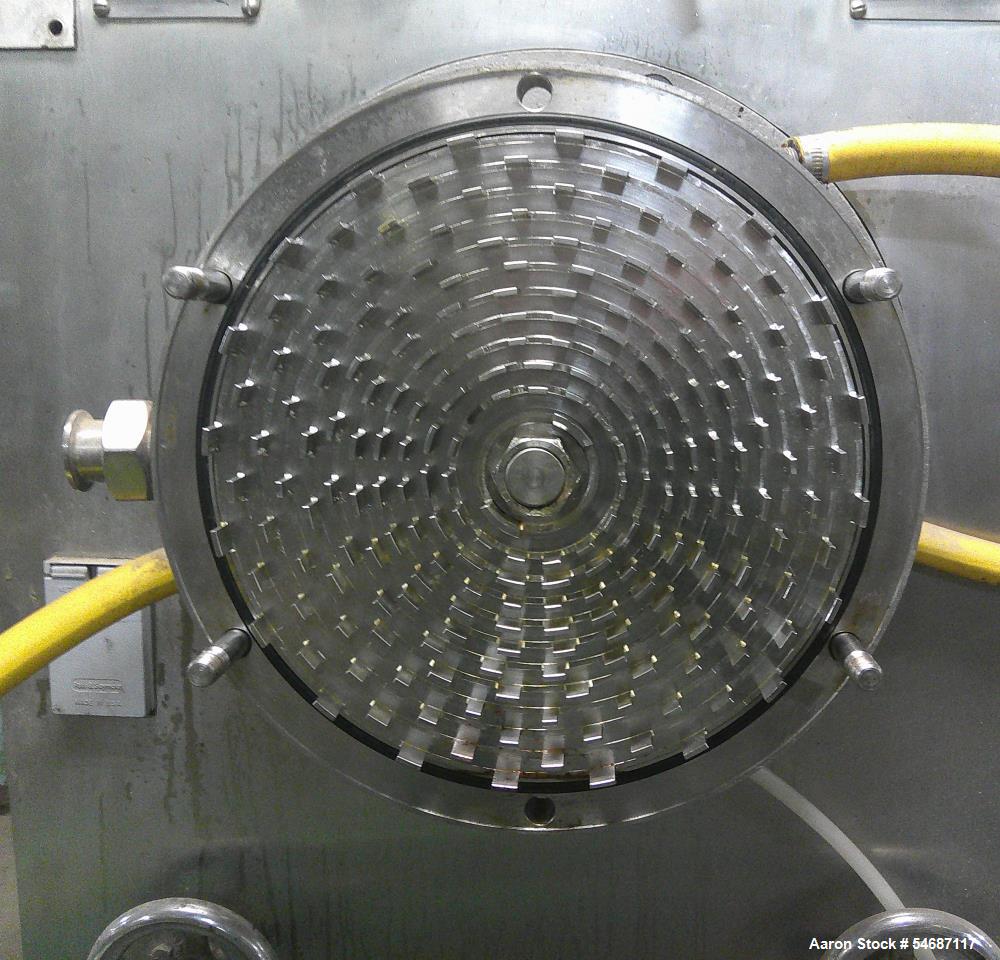

Used-Oakes model 14MC20 high shear, continuous, rotor and stator type pin mill mixer. Equipped with radial flow disc with high shear action consisting of front / rear stator and 20 hp Reeves variable speed drive. The mix head is jacketed. The mix head has 1.5" triclamp connections. Equipped with a size 30 Waukesau positive displacement pump with 1.5" triclamp connections. All mounted in a stainless steel skinned cabinet on casters. 230/460 vac 3 ph power required. Oakes mixers are designed to homogenize or aerate slurry to produce a highly uniform and stable cell structure. OAD 41" wide x 74" long x 77.5" tall.
