Used Fitzpatrick DAS06 Stainless Steel Hammer Mill with Screw Feeder

Manufacturer Information

Fitzpatrick is a manufacturer of industrial size reduction and particle processing equipment, known for its FitzMill milling technology. FitzMill equipment is used in industries requiring controlled particle size reduction, granulation, and powder processing, including pharmaceutical, food, chemical, and nutraceutical manufacturing.

Main Product Description

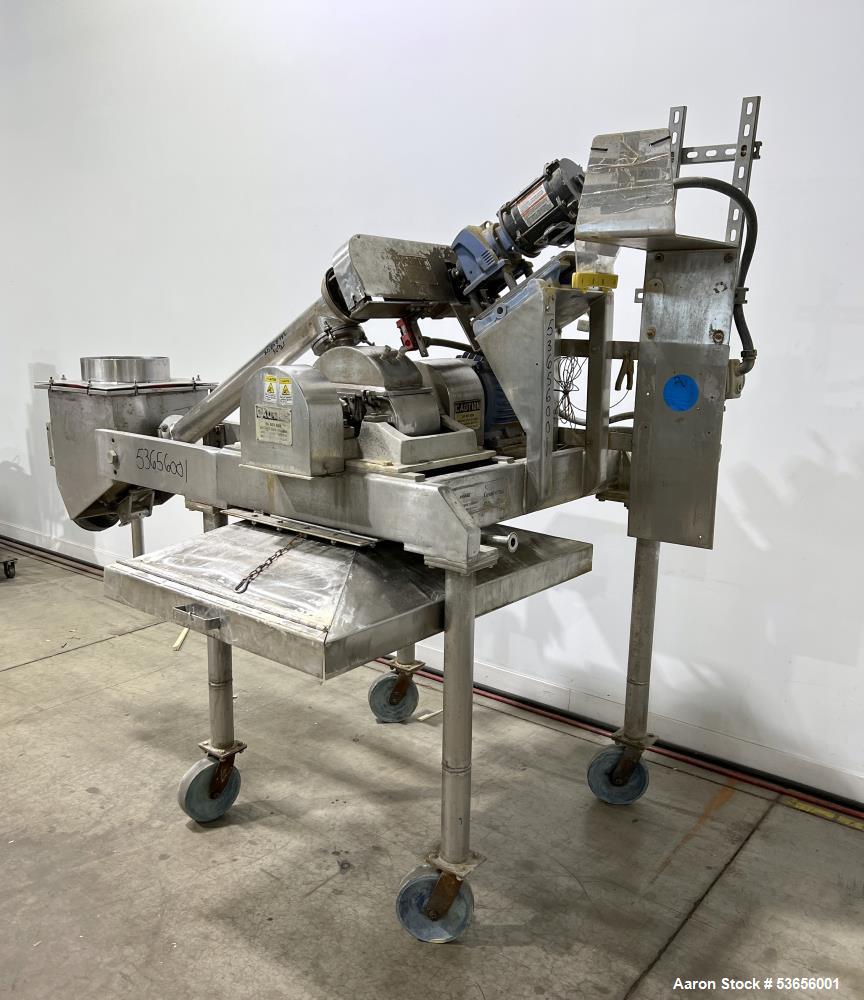

Used Fitzpatrick FitzMill Model DAS06 stainless steel hammer mill with integrated screw feeder, designed for controlled milling, grinding, granulation, and particle size reduction of compatible dry powders, granules, and bulk solids. This industrial size reduction mill offers processing capacity up to 749 lbs per hour, depending on material properties, screen selection, and application, with a stated operating speed range of 1,000 to 4,600 RPM. The milling chamber features 16 fixed blades with blunt and knife edges and is powered by a 7.5 HP main drive motor. An integrated screw feeder with a 0.33 HP gear motor provides controlled material delivery into the milling chamber, while a screened bottom discharge supports particle size control. The unit is mounted on a mobile stainless steel frame with casters for convenient positioning within a processing facility. Suitable for a variety of dry powder processing, granule sizing, deagglomeration, and lump-breaking applications.

Specifications

• Manufacturer: Fitzpatrick

• Product Line: FitzMill

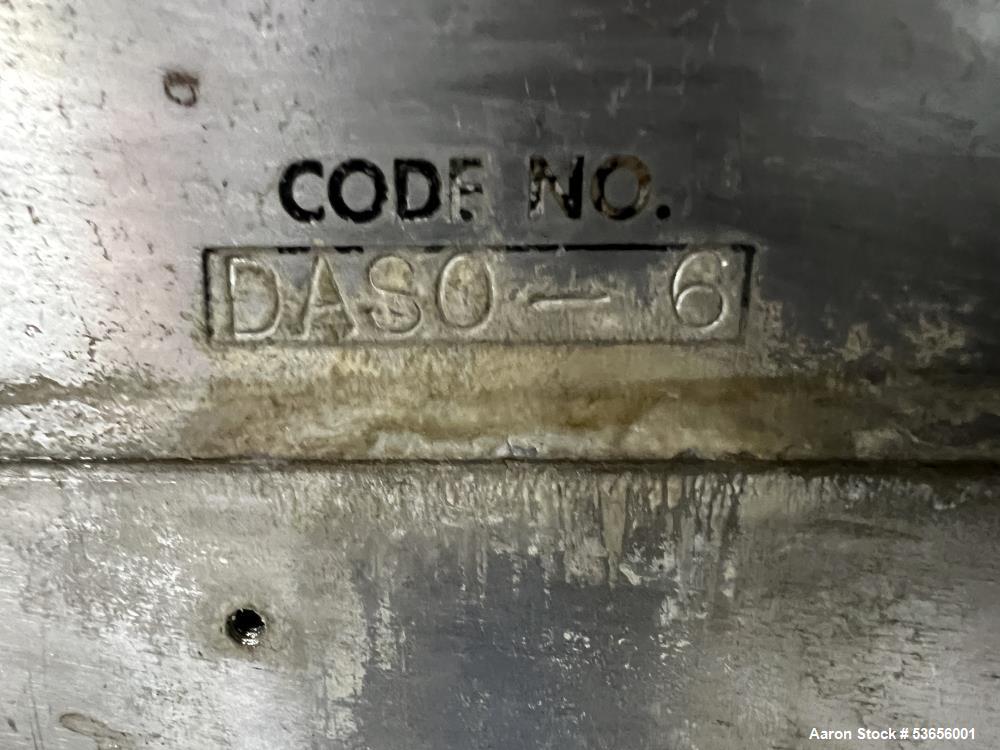

• Model: DAS06

• Equipment Type: Hammer Mill / Particle Size Reduction Mill

• Condition: Used

• Construction: Stainless steel

• Rated Processing Capacity: Up to 749 lbs/hour, material and application dependent

• Stated Operating Speed Range: 1,000–4,600 RPM

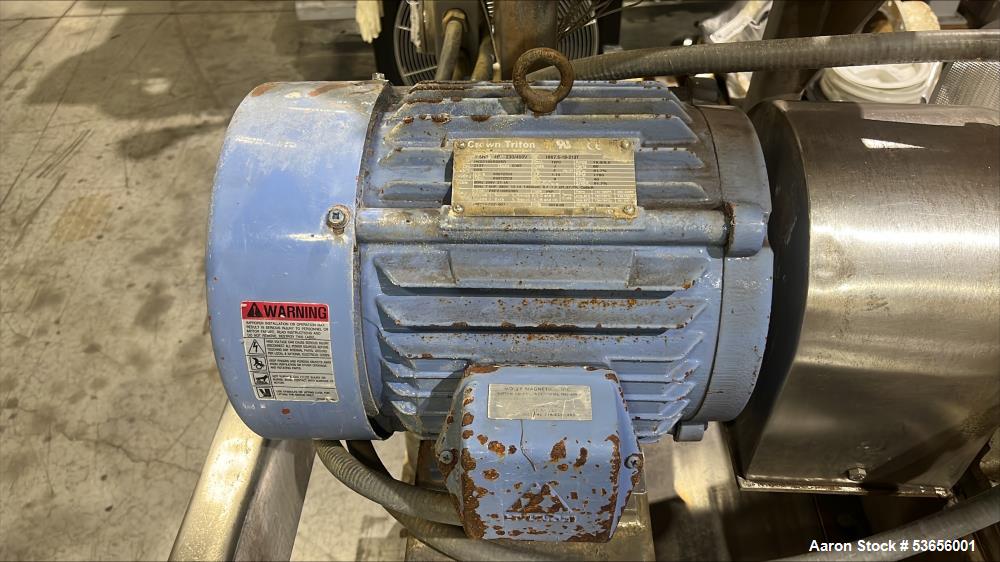

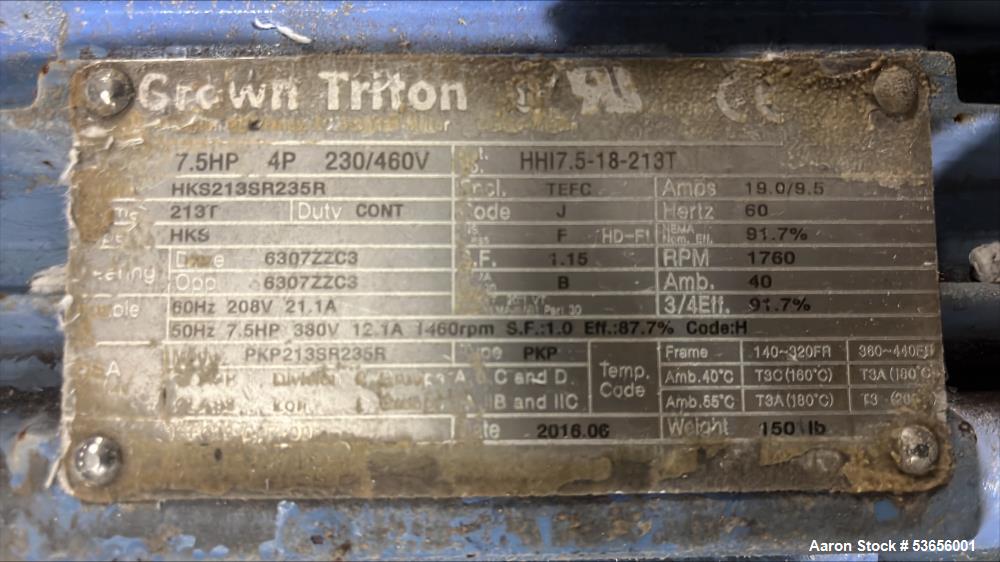

• Main Drive Motor: 7.5 HP

• Main Motor Speed: 1,760 RPM

• Main Motor Electrical: 230/460 volts, 3-phase, 60 Hz

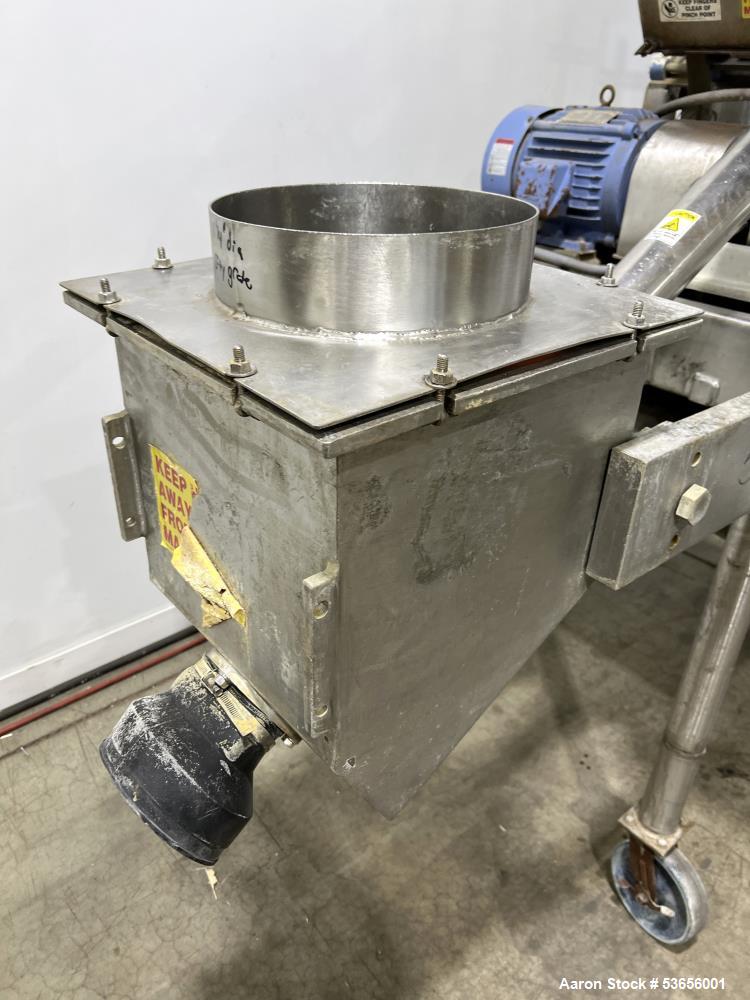

• Feed Hopper Dimensions: Approximately 15" L x 15" W x 10" D

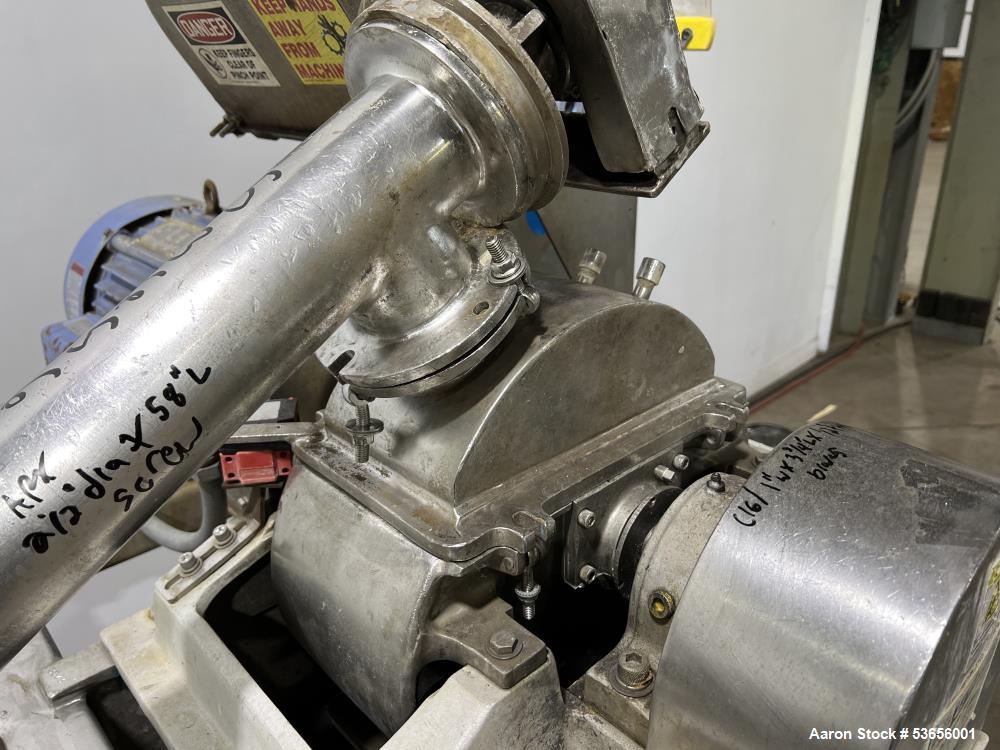

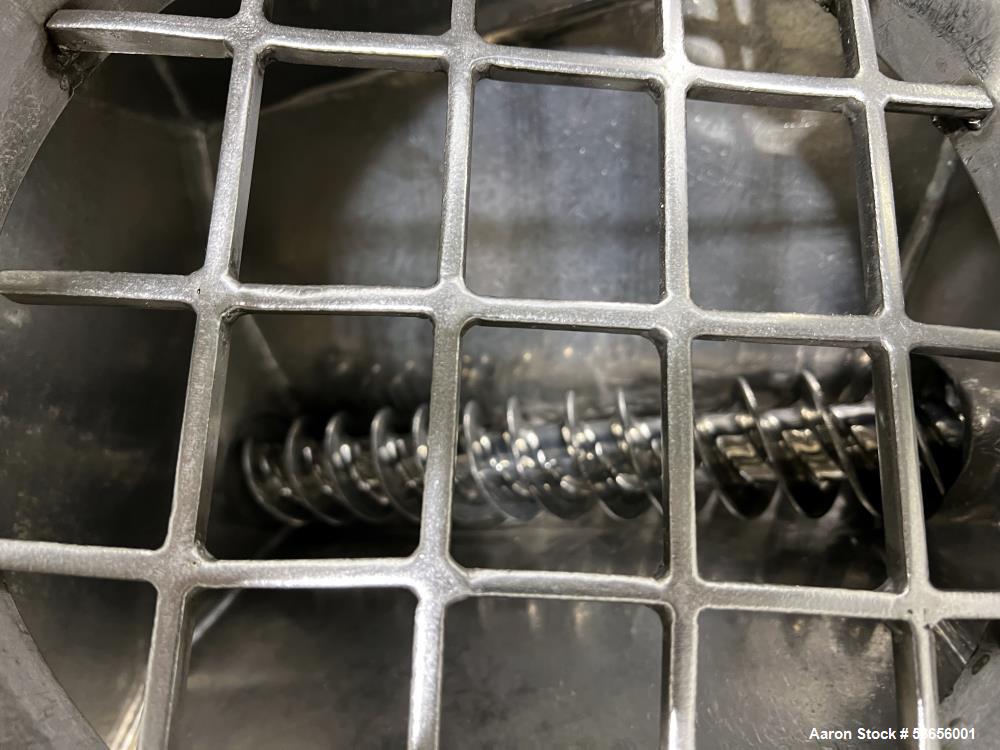

• Feeding System: Integrated screw feeder

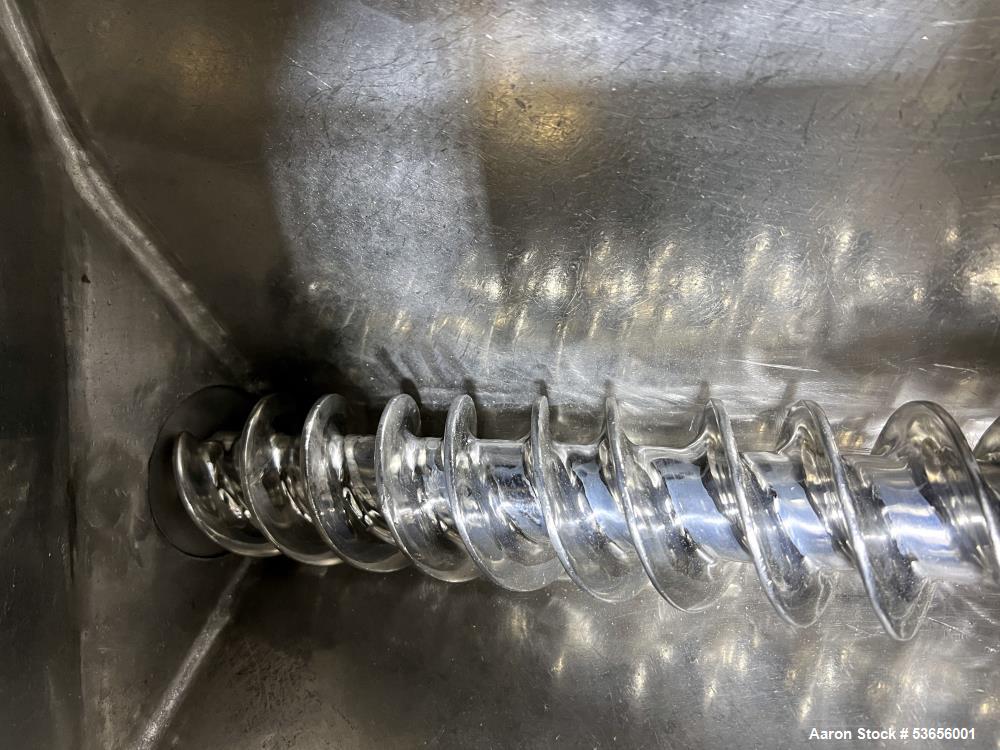

• Screw Feeder Dimensions: Approximately 2-1/2" diameter x 58" long

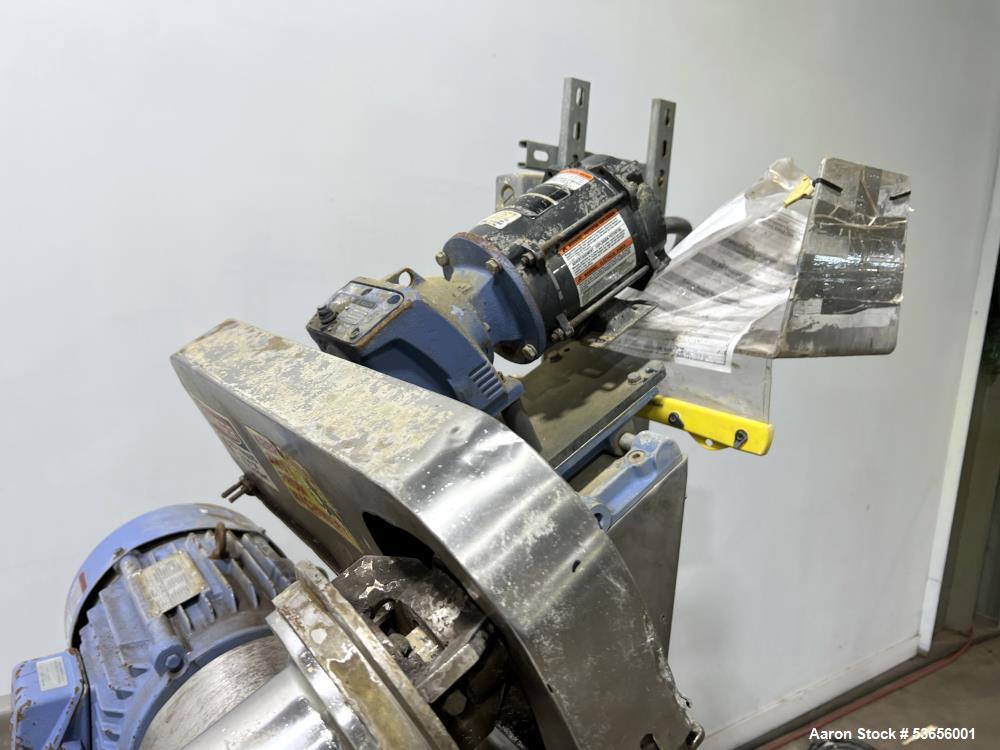

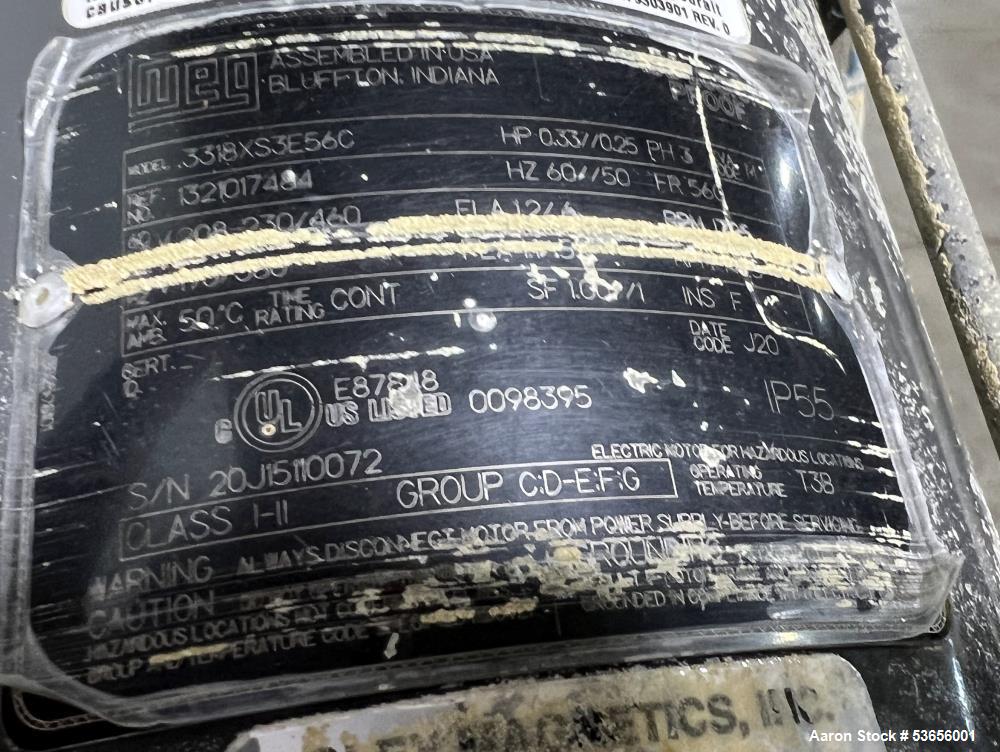

• Screw Feeder Motor: 0.33 HP gear motor

• Screw Feeder Motor Speed: 1,725 RPM

• Screw Feeder Electrical: 208–230/460 volts, 3-phase, 60 Hz

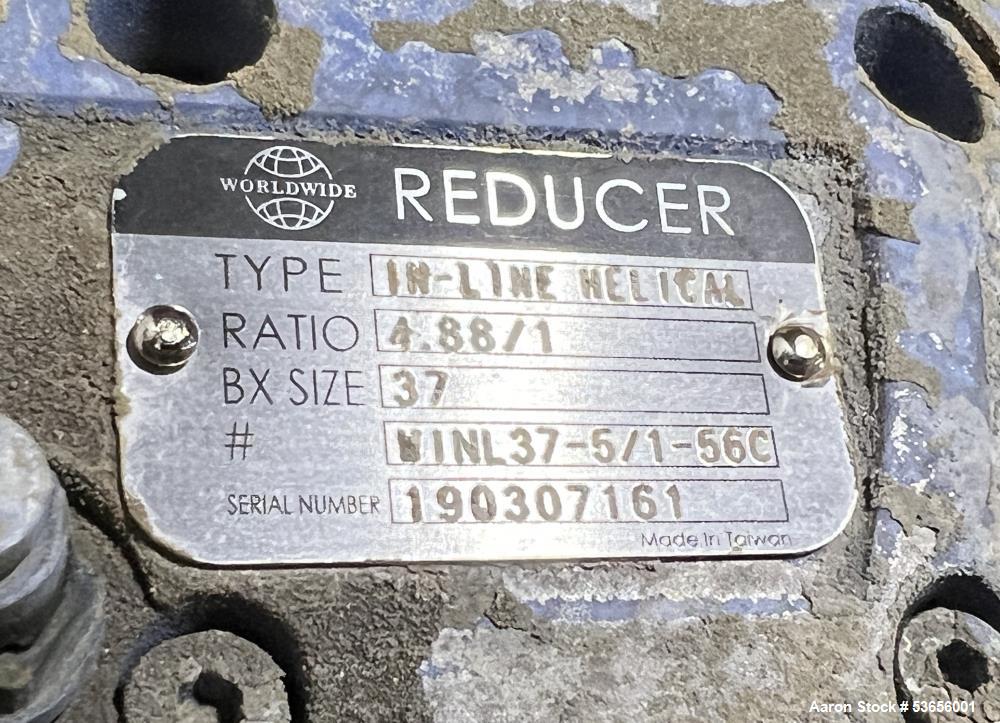

• Screw Feeder Gearbox Reduction: 4.88:1

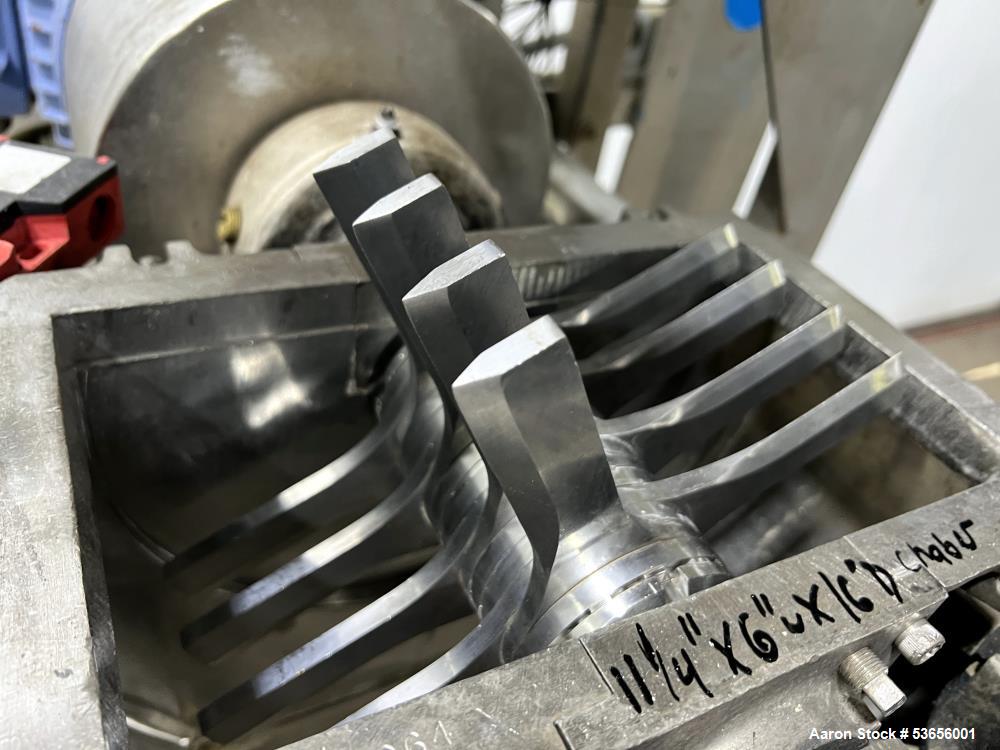

• Milling Chamber Dimensions: Approximately 11-1/4" L x 6" W x 16" D

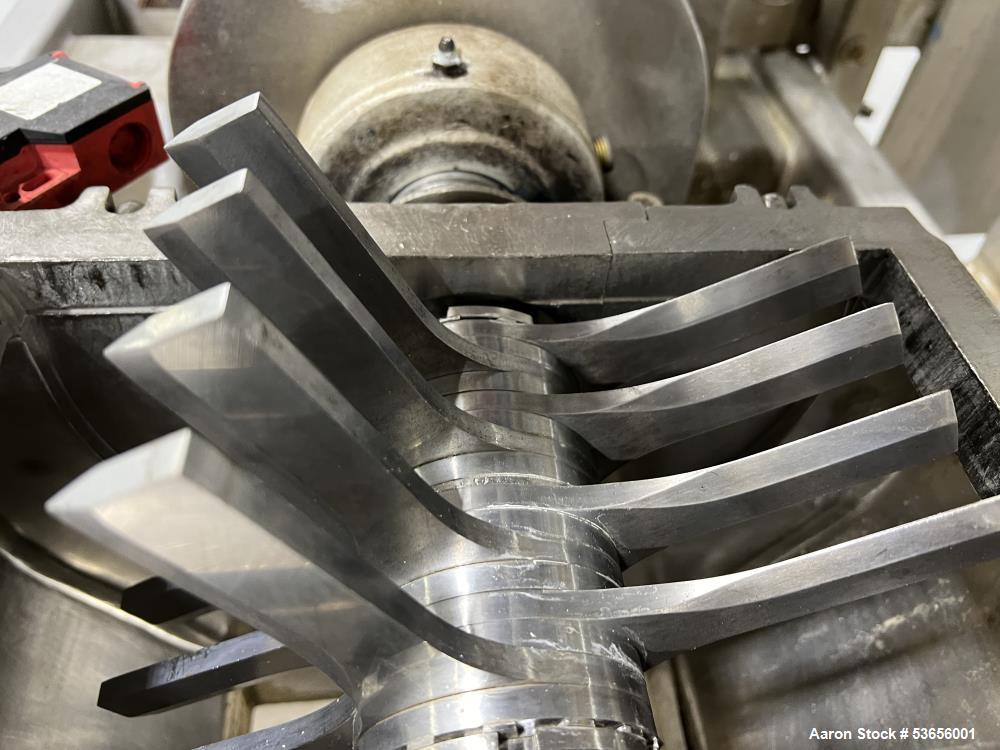

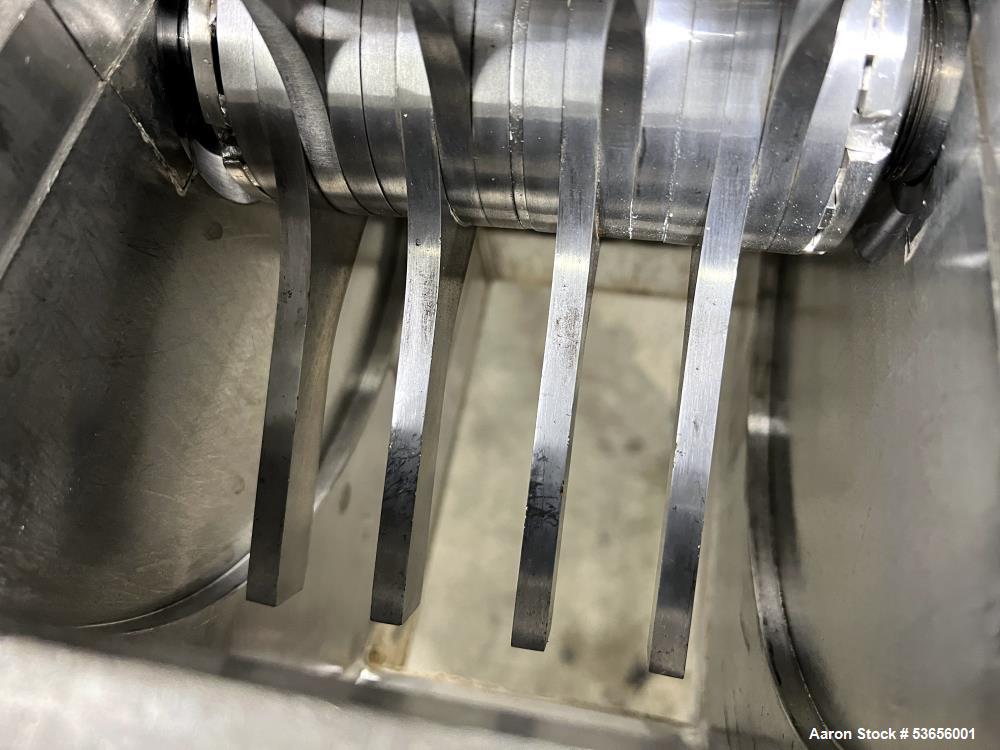

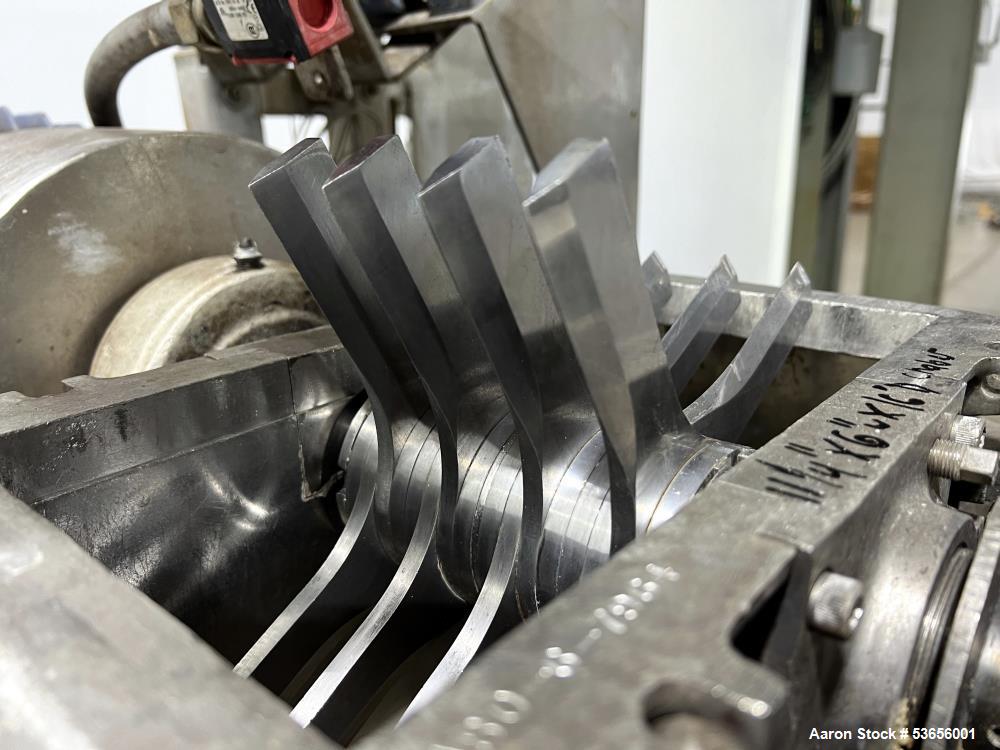

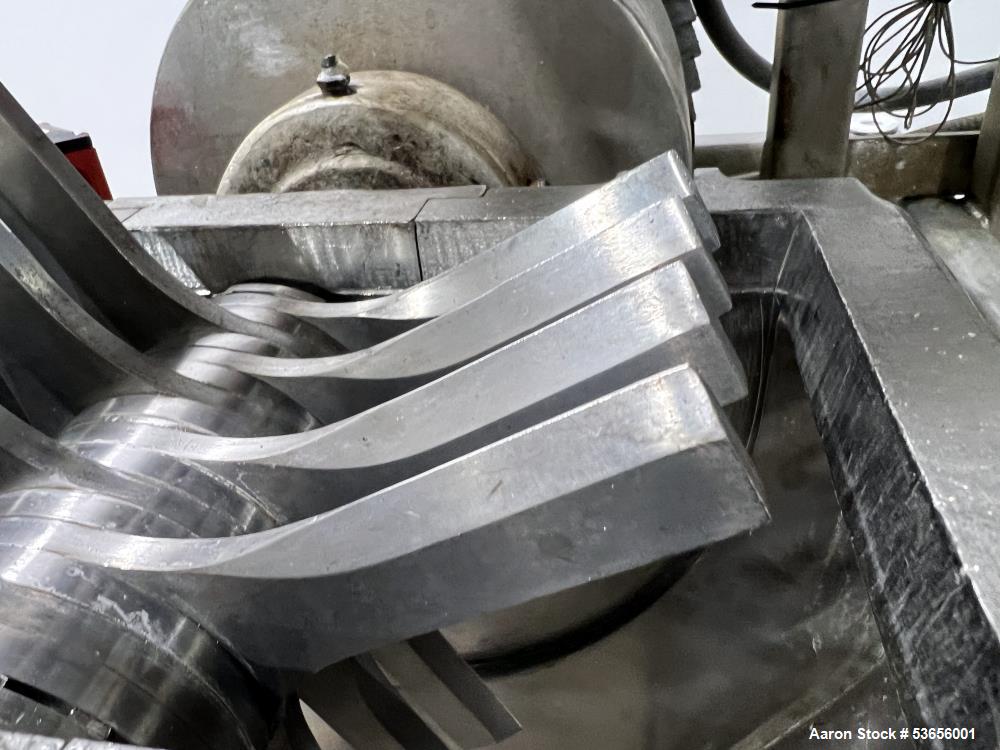

• Blade Configuration: 16 fixed blades with blunt and knife edges

• Individual Blade Dimensions: Approximately 1" W x 3-3/4" L x 1/2" thick

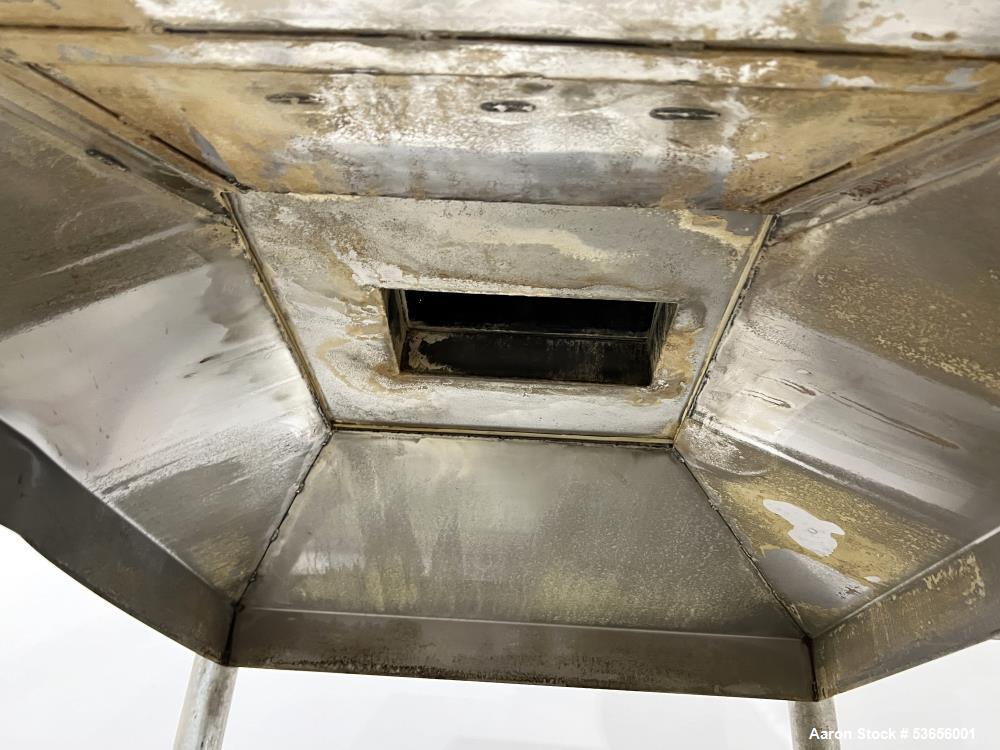

• Discharge Opening: Approximately 9-1/2" L x 5-1/2" W

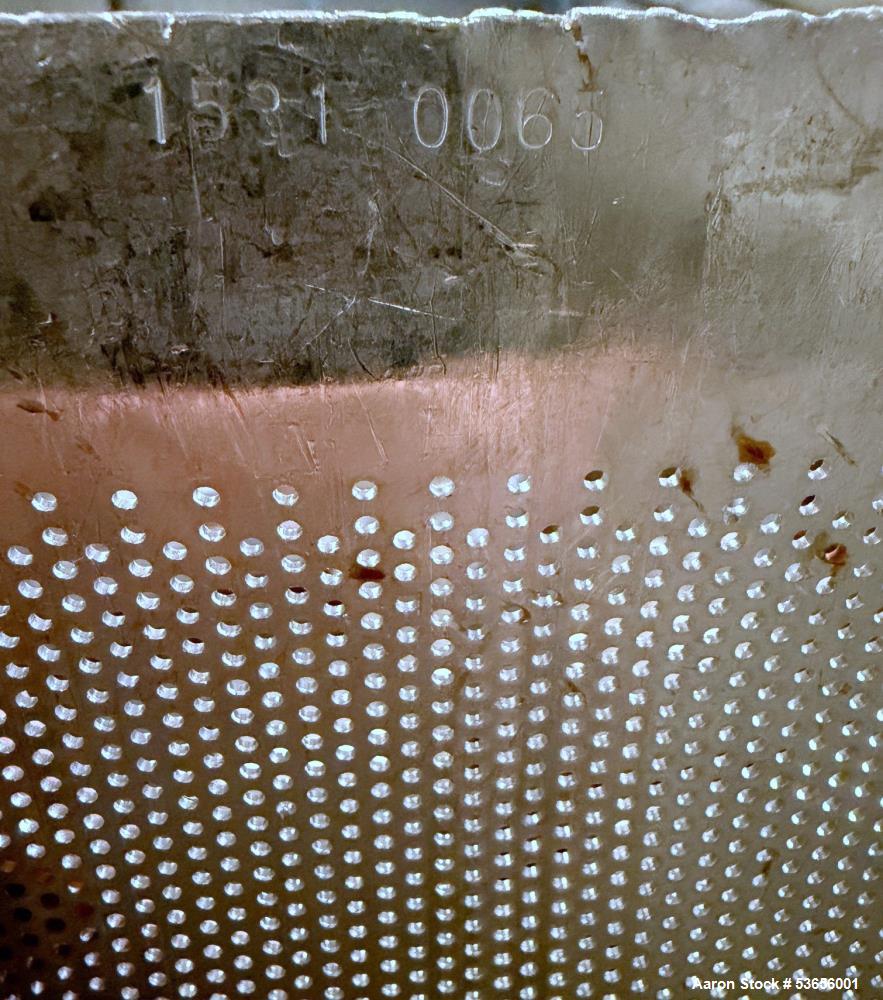

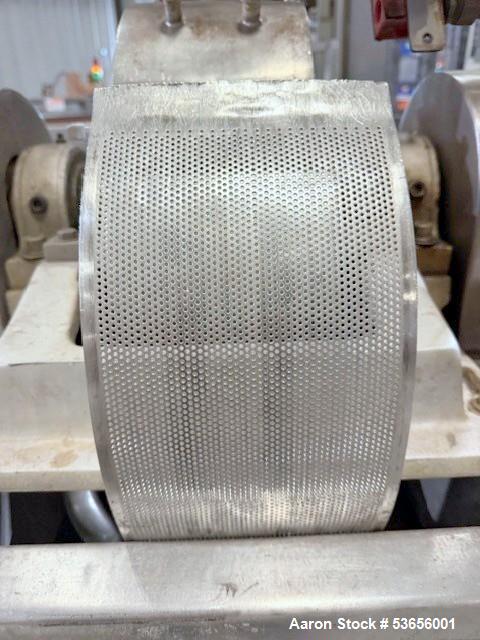

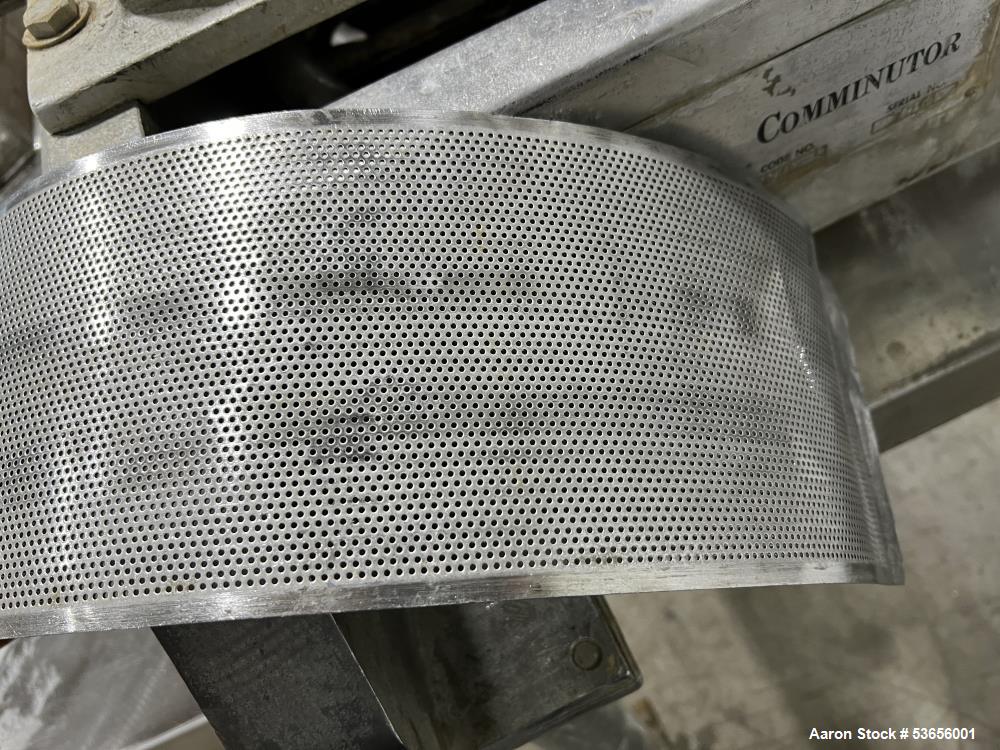

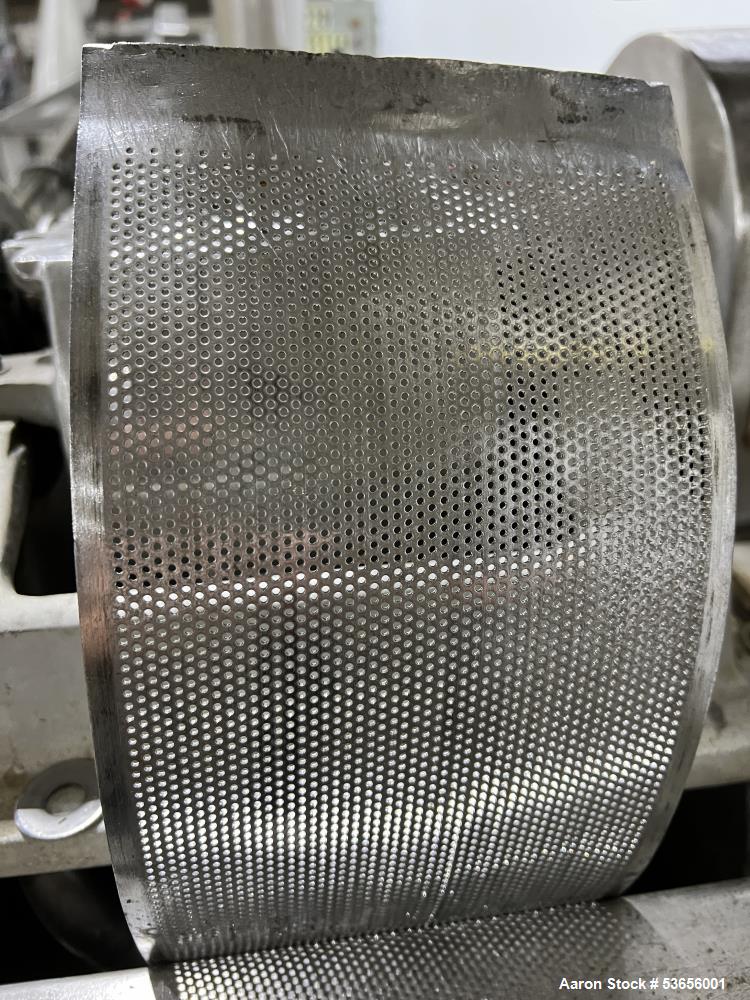

• Discharge Configuration: Bottom discharge with screen

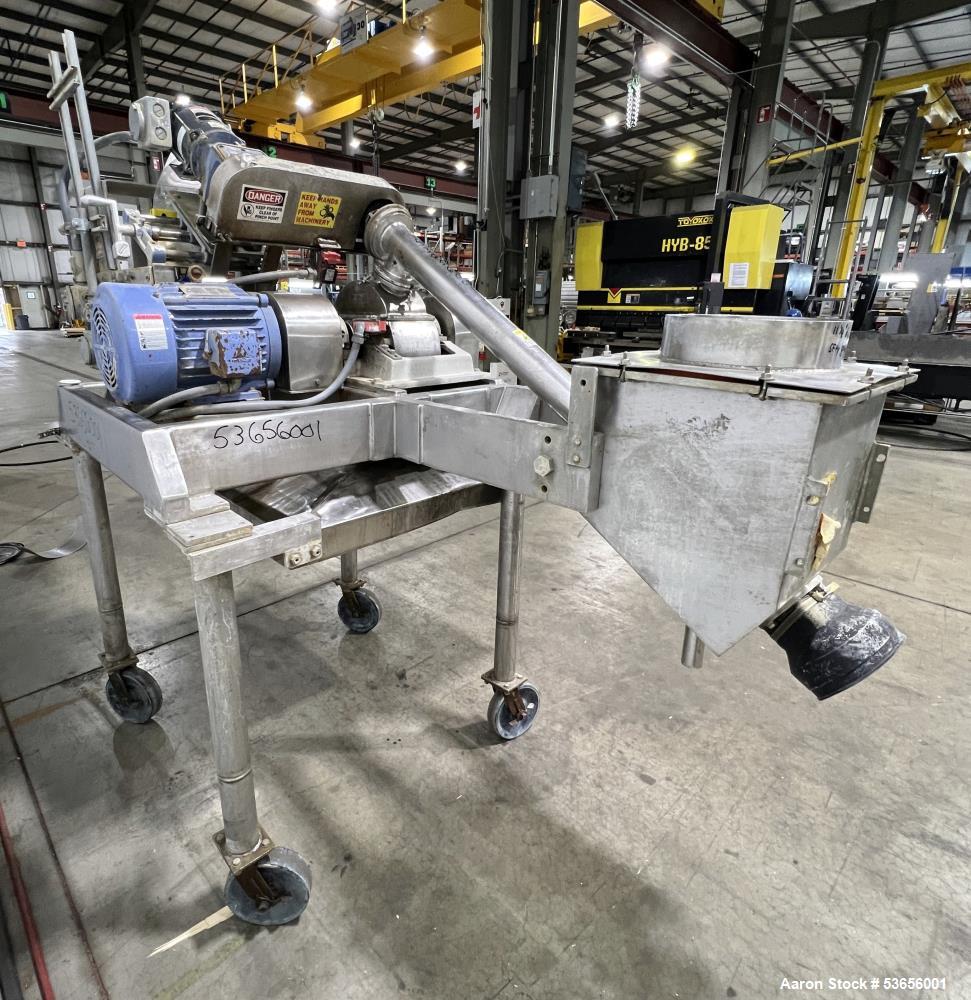

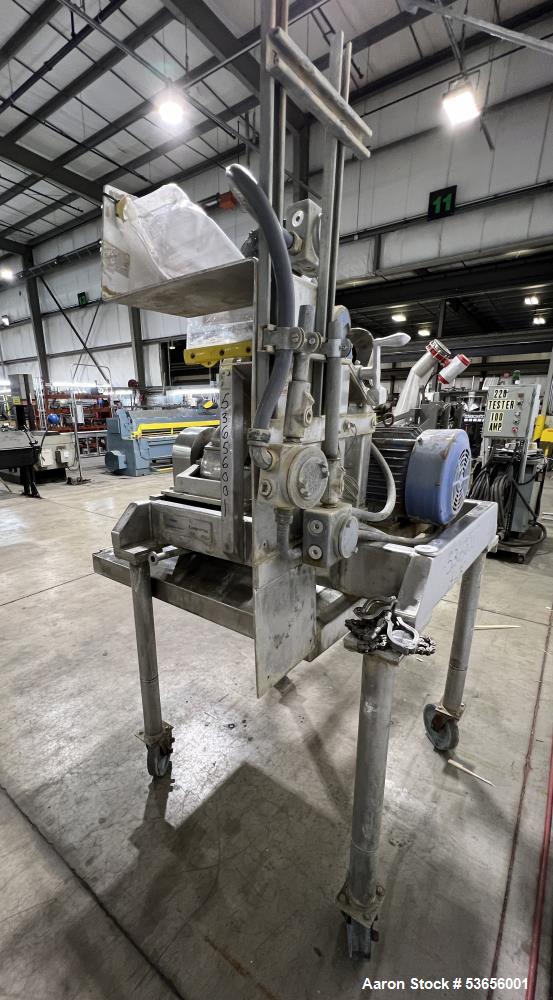

• Frame: Mobile stainless steel frame with casters

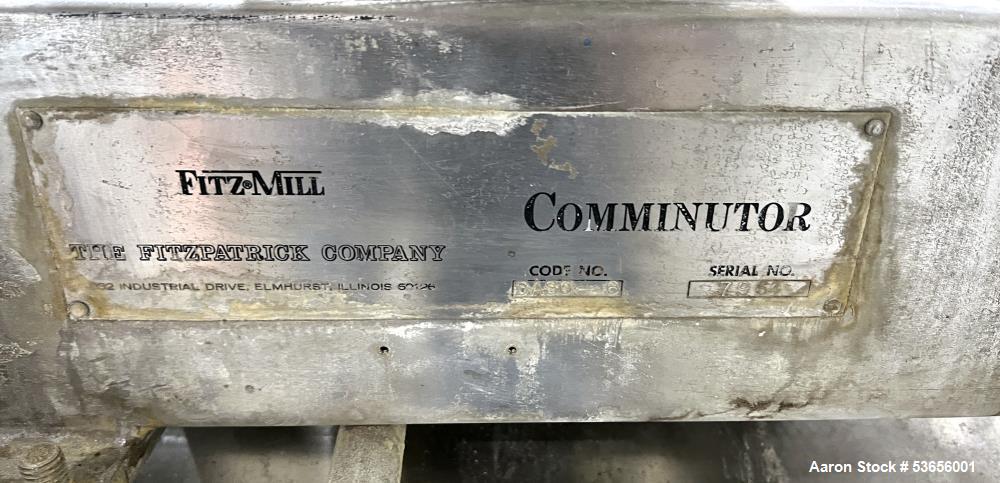

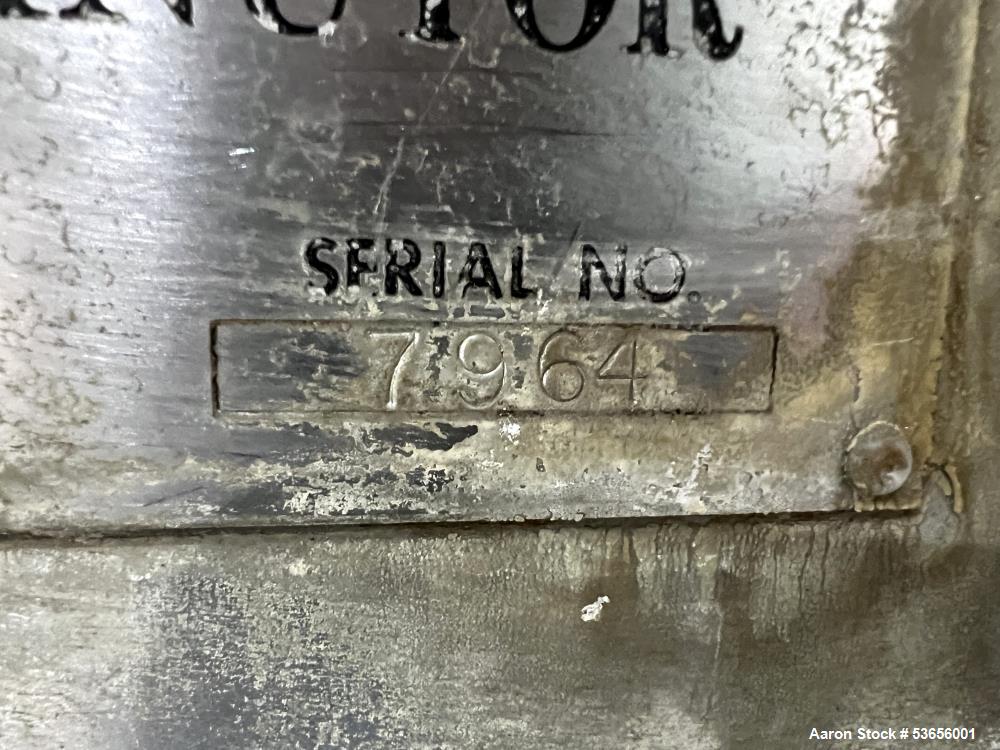

• Serial Number: 7964

Applications

• Dry powder milling and grinding

• Particle size reduction of compatible bulk solids

• Granule sizing and granulation

• Dry material deagglomeration

• Lump breaking and powder conditioning

• Screen-controlled particle size processing

• Pharmaceutical and nutraceutical ingredient processing

• Food ingredient and seasoning size reduction

• Chemical and specialty material milling

Suitable Products and Materials

• Pharmaceutical powders

• Nutraceutical ingredients

• Dry food powders

• Spices and seasonings

• Powdered chemicals

• Pigments

• Mineral powders

• Polymer additives

• Dry granules

• Compatible dry bulk solids

Material suitability and achievable processing rates depend on product characteristics, screen selection, and operating conditions.

Frequently Asked Questions (FAQs)

- What is the processing capacity of this Fitzpatrick DAS06 FitzMill?

• The mill has a stated capacity of up to 749 lbs per hour, depending on material characteristics, screen selection, and processing requirements.

- What horsepower is the main milling motor?

• The unit is equipped with a 7.5 HP main drive motor rated at 1,760 RPM and 230/460 volts, 3-phase, 60 Hz.

- Does this FitzMill include a screw feeder?

• Yes. The mill includes an integrated screw feeder measuring approximately 2-1/2" in diameter and 58" long, powered by a 0.33 HP gear motor through a 4.88:1 reduction gearbox.

- What types of materials can this hammer mill process?

• Potential applications include compatible pharmaceutical powders, nutraceutical ingredients, food powders, spices, powdered chemicals, pigments, mineral powders, and polymer additives.

- Does the mill include a discharge screen?

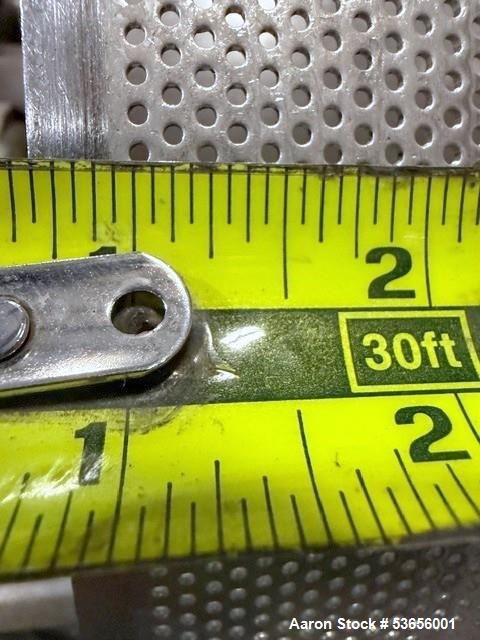

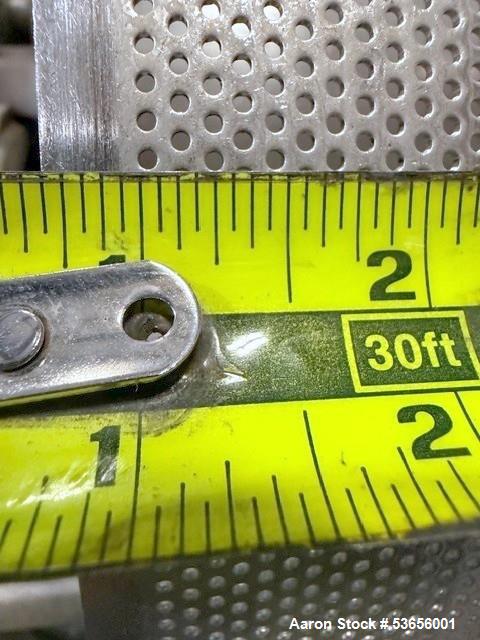

• Yes. The mill has a bottom discharge opening with a screen for controlling discharged particle size. Screen opening size is not specified.

- Is the Fitzpatrick DAS06 hammer mill portable?

• The unit is mounted on a mobile stainless steel frame with casters for convenient positioning within a facility.

- Can Aaron Equipment help determine whether this FitzMill is suitable for my application?

• Yes. Aaron Equipment can help review available equipment specifications and discuss your material characteristics, target particle size, processing capacity, and other application requirements.

- Can Aaron Equipment help with shipping this hammer mill?

• Yes. Aaron Equipment can assist with shipping and freight coordination, including discussing transportation requirements and available shipping options based on the equipment's location and destination.

- How can I request pricing or additional information?

• Contact Aaron Equipment to inquire about pricing, equipment availability, additional photographs, and available technical information for this Fitzpatrick DAS06 FitzMill.
